engine TOYOTA COROLLA HATCHBACK 2022 Owners Manual (in English)

523
8
8-2. Steps to take in an emergency
When trouble arises
 Stop the vehicle in a safe place
on a hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P
(Multidrive) or N (manual trans-
mission).
 Stop the engine.
 Turn on the emergency flashers.
 Check the degree of the tire
damage.
Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and make
emergency repair with the repair kit
impossible.
■A flat tire that cannot be repaired
with the emergency tire puncture repair kit
In the following cases, the tire cannot be
repaired with the emergency tire punc-
ture repair kit. Contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●When the tire is damaged due to driv-ing without sufficient air pressure
●When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
●When the tire is visibly separated from
the wheel
●When the cut or damage to the tread
is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
●When the sealant has expired
WA R N I N G
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could
result in an accident.
Before repairing the tire

529
8
8-2. Steps to take in an emergency
When trouble arises
11 Connect the power plug to the
power outlet socket. ( P.451)
12 Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the label as shown. ( P.573)
13Start the vehicle's engine.
14 To inject the sealant and inflate
the tire, turn the compressor
switch on.
15 Inflate the tire until the specified
air pressure is reached.
The sealant will be injected and
the pressure will surge and then
gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation pres-
sure about 1 minute (5 minutes
at low temperature) after the
switch is turned on.
Inflate the tire until the specified
air pressure.
 If the tire inflation pressure is still
lower than the specified point
after inflation for 35 minutes with
the switch on, the tire is too dam-
aged to be repaired. Turn the
compressor switch off and con-
tact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.

533
8
8-2. Steps to take in an emergency
When trouble arises
as far as possible.
9 Make sure that the compressor
switch is (off).
10 Remove the power plug from
the compressor.
11 Connect the power plug to the
power outlet socket. ( P.451)
12 Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the label as shown. ( P.573)
13Start the vehicle's engine.
14 To inject the sealant and inflate
the tire, turn the compressor
switch to (on).

539
8
8-2. Steps to take in an emergency
When trouble arises
 Stop the vehicle in a safe place
on a hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P
(Multidrive) or R (manual trans-
mission).
 Stop the engine.
 Turn on the emergency flashers.
If you have a flat tire
(vehicles with a spare
tire)
Your vehicle is equipped with a
spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P.479
WA R N I N G
■If you have a flat tire
Do not continue driving with a flat tire. Driving even a short distance with a
flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehi-
cle

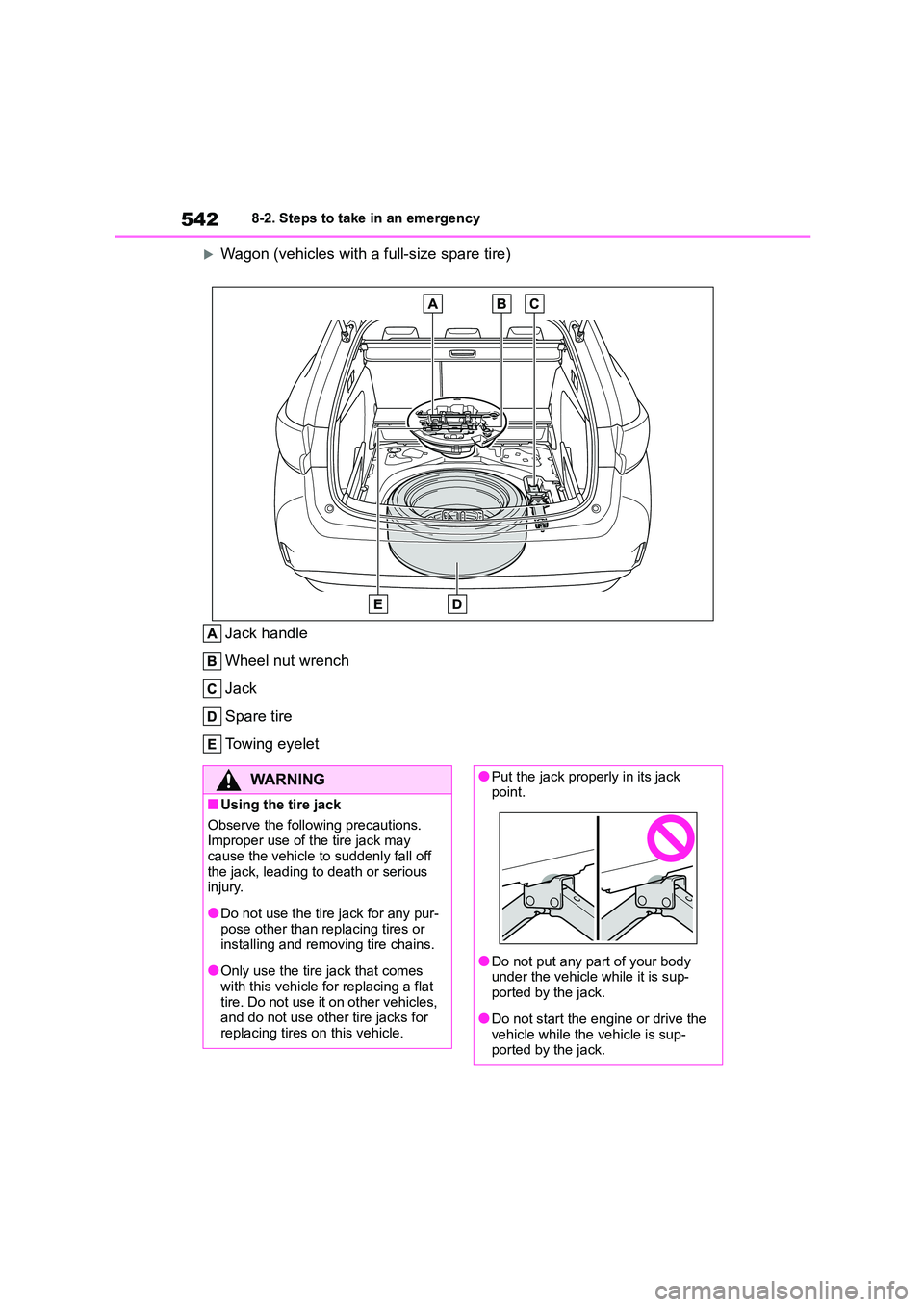

5428-2. Steps to take in an emergency
Wagon (vehicles with a full-size spare tire)
Jack handle
Wheel nut wrench
Jack
Spare tire
Towing eyelet
WA R N I N G
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious
injury.
●Do not use the tire jack for any pur-
pose other than replacing tires or installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire. Do not use it on other vehicles,
and do not use othe r tire jacks for replacing tires on this vehicle.
●Put the jack properly in its jack
point.
●Do not put any part of your body
under the vehicle while it is sup-
ported by the jack.
●Do not start the engine or drive the
vehicle while the vehicle is sup- ported by the jack.

551
8
8-2. Steps to take in an emergency
When trouble arises
WA R N I N G
■When using the full-size spare
tire
●Replace the full-size spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden
engine braking.
■When using the compact spare
tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle.
Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden
engine braking.
■When the compact spare tire is
attached
The vehicle speed may not be cor-
rectly detected, an d the following sys-
tems may not operate correctly:
• ABS & Brake assist
• VSC
•TRC
• Automatic High Beam (if equipped)
• AHS (Adaptive High-beam Sys-
tem) (if equipped)
• Cruise control (if equipped)
• Dynamic radar cruise control with full-speed range (if equipped)
• Dynamic radar cruise control (if equipped)
• EPS
• Trailer Sway Control (if equipped)
• PCS (Pre-Collision System) (if
equipped)
• LTA (Lane Tracing Assist) (if
equipped)
• LDA (Lane Departure Alert with
steering control) (if equipped)
• Tire pressure warning system (if
equipped)
• Toyota parking assist-sensor (if
equipped)
• PKSB (Parking Support Brake) (if
equipped)
• BSM (Blind Spot Monitor) (if
equipped)
• Rear view monitor system (if
equipped)
• S-IPA (Simple Intelligent Parking
Assist System) (if equipped)
• Navigation system (if equipped)
■Speed limit when using the com- pact spare tire
Do not drive at speeds in excess of 80
km/h (50 mph) when a compact spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds.
Failure to observe this precaution
may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possi-
bility of personal injury during a colli- sion or sudden braking.

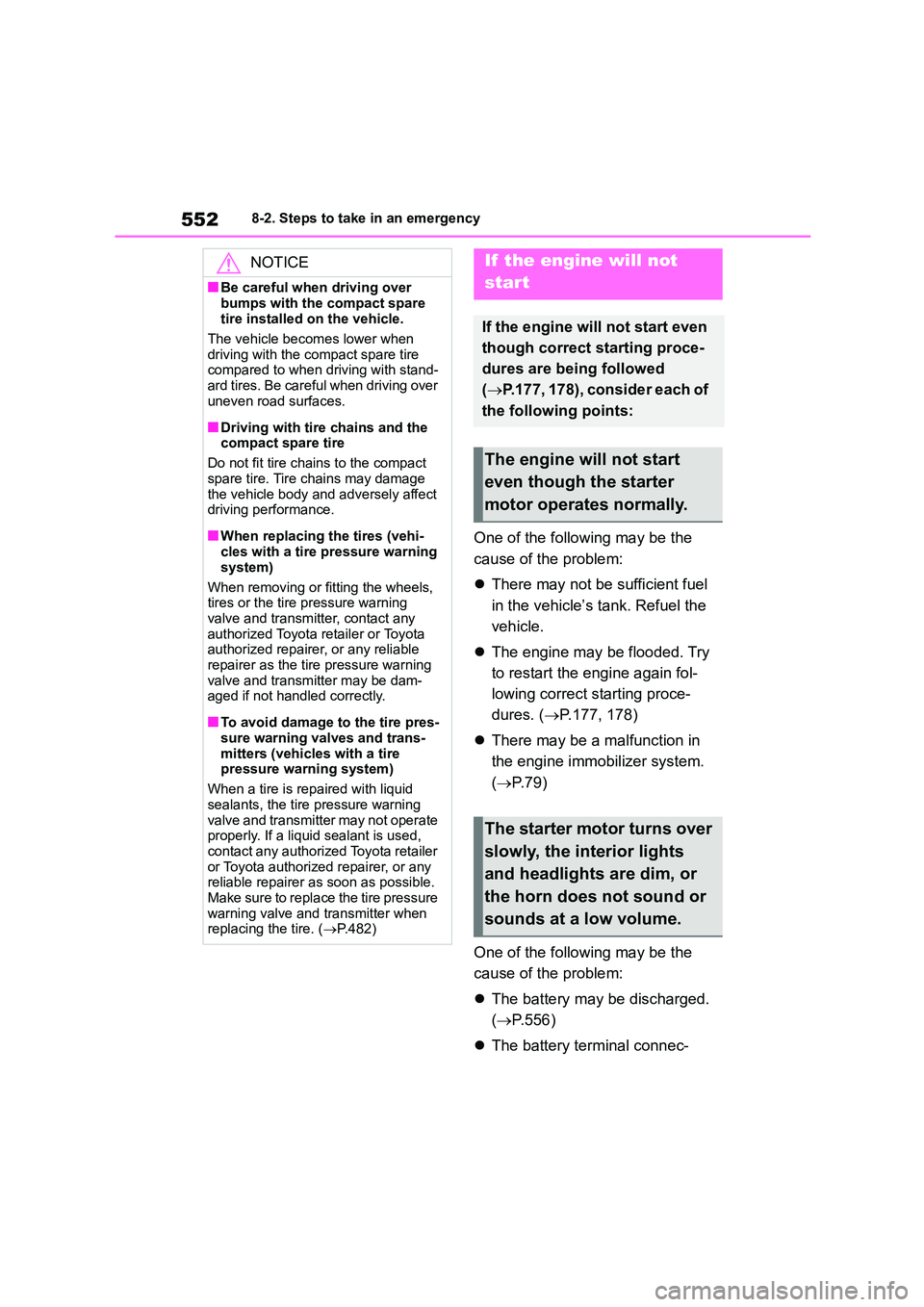

5528-2. Steps to take in an emergency
One of the following may be the
cause of the problem:
 There may not be sufficient fuel
in the vehicle’s tank. Refuel the
vehicle.
 The engine may be flooded. Try
to restart the engine again fol-
lowing correct starting proce-
dures. ( P.177, 178)
 There may be a malfunction in
the engine immobilizer system.
( P. 7 9 )
One of the following may be the
cause of the problem:
 The battery may be discharged.
( P.556)
 The battery terminal connec-
NOTICE
■Be careful when driving over
bumps with the compact spare
tire installed on the vehicle.
The vehicle becomes lower when
driving with the compact spare tire
compared to when driving with stand- ard tires. Be careful when driving over
uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact
spare tire. Tire chains may damage the vehicle body and adversely affect
driving performance.
■When replacing the tires (vehi-
cles with a tire pressure warning
system)
When removing or fitting the wheels,
tires or the tire pressure warning
valve and transmitter, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as the tire pressure warning valve and transmitter may be dam-
aged if not handled correctly.
■To avoid damage to the tire pres-
sure warning valves and trans-
mitters (vehicle s with a tire pressure warning system)
When a tire is repaired with liquid
sealants, the tire pressure warning valve and transmitter may not operate
properly. If a liquid sealant is used,
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. ( P.482)
If the engine will not
star t
If the engine will not start even
though correct starting proce-
dures are being followed
( P.177, 178), consider each of
the following points:
The engine will not start
even though the starter
motor operates normally.
The starter motor turns over
slowly, the interior lights
and headlights are dim, or
the horn does not sound or
sounds at a low volume.

553
8
8-2. Steps to take in an emergency
When trouble arises
tions may be loose or corroded.
( P.476)
The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key bat-
tery depletion or a blown fuse.
However, an interim measure is
available to start the engine.
( P.553)
One of the following may be the
cause of the problem:
 The battery may be discharged.
( P.556)
 One or both of the battery termi-
nals may be disconnected.
( P.476)
 There may be a malfunction in
the steering lock system.
Contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer if the problem cannot
be repaired, or if repair procedures are
unknown.
When the engine does not start, the
following steps can be used as an
interim measure to start the engine
if the engine switch is functioning
normally.
Do not use this starting procedure
except in case of emergency.
1 Pull the parking brake switch to
check that the parking brake is
set. ( P.189)
Parking brake indicator will come on.
2Check that the shift lever is in P
(Multidrive) or N (manual trans-
mission).
3 Turn the engine switch to ACC.
4 Press and hold the engine
switch for about 15 seconds
while depressing the brake
pedal (Multidrive) or clutch
pedal (manual transmission)
firmly.
Even if the engine can be started using
the above steps, the system may be
malfunctioning. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer, or
any reliable repairer.
The starter motor does not
turn over (vehicles with a
smart entry & start system)
The starter motor does not
turn over, the interior lights
and headlights do not turn
on, or the horn does not
sound.
Emergency start function
(vehicles with a smart entry
& start system)

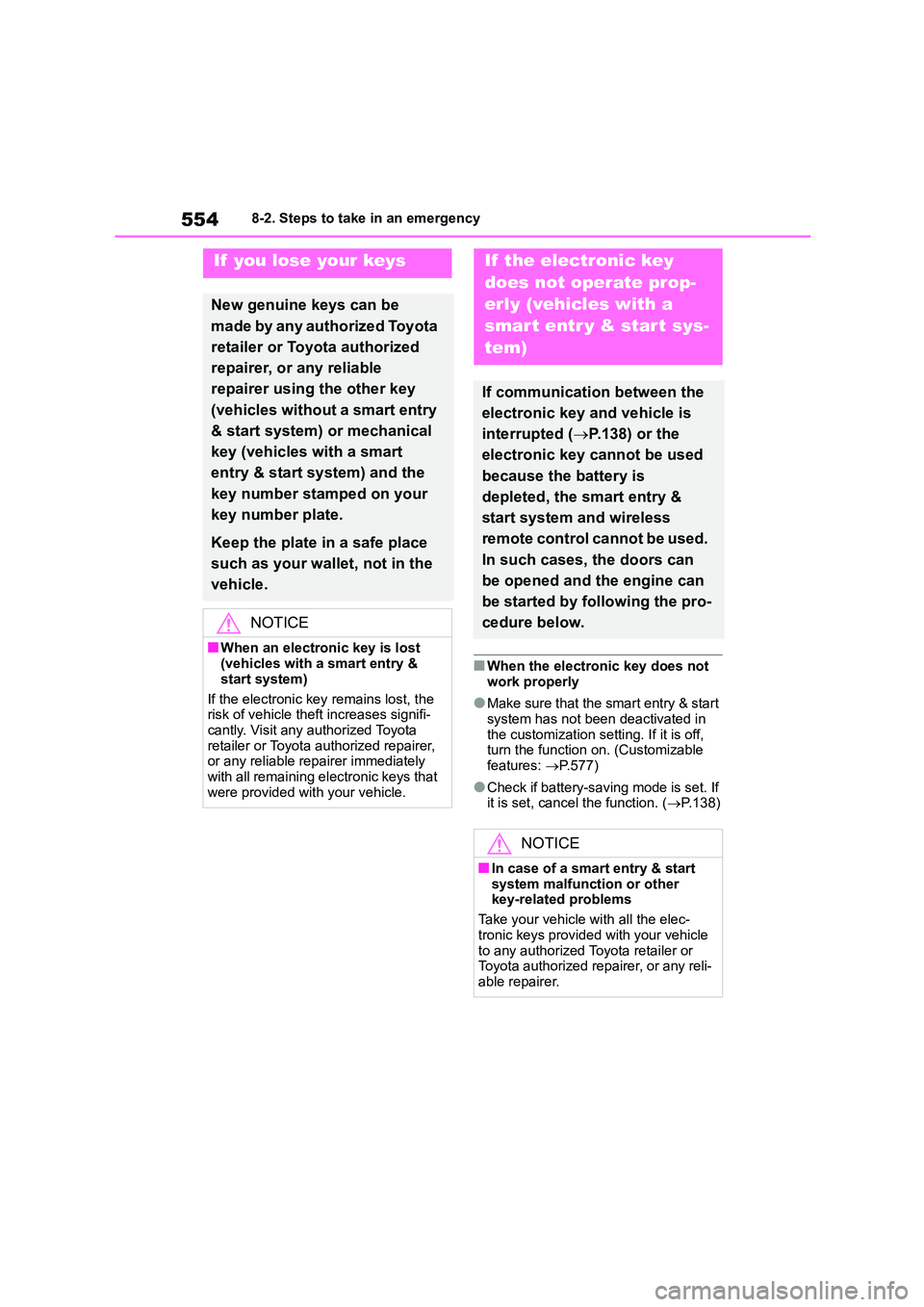

5548-2. Steps to take in an emergency
■When the electronic key does not
work properly
●Make sure that the smart entry & start
system has not been deactivated in
the customization setting. If it is off, turn the function on. (Customizable
features: P.577)
●Check if battery-saving mode is set. If it is set, cancel the function. ( P.138)
If you lose your keys
New genuine keys can be
made by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer using the other key
(vehicles without a smart entry
& start system) or mechanical
key (vehicles with a smart
entry & start system) and the
key number stamped on your
key number plate.
Keep the plate in a safe place
such as your wallet, not in the
vehicle.
NOTICE
■When an electronic key is lost
(vehicles with a smart entry &
start system)
If the electronic ke y remains lost, the
risk of vehicle thef t increases signifi-
cantly. Visit any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately
with all remaining electronic keys that were provided with your vehicle.
If the electronic key
does not operate prop-
erly (vehicles with a
smar t entr y & star t sys-
tem)
If communication between the
electronic key and vehicle is
interrupted ( P.138) or the
electronic key cannot be used
because the battery is
depleted, the smart entry &
start system and wireless
remote control cannot be used.
In such cases, the doors can
be opened and the engine can
be started by following the pro-
cedure below.
NOTICE
■In case of a smart entry & start
system malfunction or other key-related problems
Take your vehicle with all the elec-
tronic keys provided with your vehicle to any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.

555
8
8-2. Steps to take in an emergency
When trouble arises
Use the mechanical key ( P.117)
in order to perform the following
operations:
1 Locks all the doors
2 Unlocks all the doors
■Key linked functions
1 Closes the windows and panoramic
moon roof*1 (turn and hold)*2
2 Opens the windows and panoramic
moon roof*1 (turn and hold)*2
*1: If equipped
*2: These settings must be customized
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
1 Vehicles with a Multidrive:
Ensure that the shift lever is in P
and depress the brake pedal.
Vehicles with a manual trans-
mission: Shift the shift lever to N
and depress the clutch pedal.
2 Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to ON.
When the smart entry & start system is
deactivated in customization setting,
the engine switch will turn to ACC.
Locking and unlocking the
doors
WA R N I N G
■When using the mechanical key
and operating the power win-
dows or panoramic moon roof (if equipped)
Operate the power window or pano-
ramic moon roof after checking to make sure that there is no possibility
of any passenger having any of their
body parts caught in the window or
panoramic moon roof. Also, do not allow children to operate
the mechanical key. It is possible for
children and other passengers to get caught in the power window or pano-
ramic moon roof.
Starting the engine
