1303-2. Opening, closing and locking the doors
with instep (toe up) to activate 2
sensors.
• Vehicles with a genuine Toyota
towing hitch vertical detachable:
Refer to Installation Instructions.
Kick sensors
Hands Free Power Back Door
operation detection area
3 When the kick sensor detects
that your foot is pulled back,
after a short delay a buzzer will
sound and the back door will
automatically fully open/close.
If kick operation is performed while the
back door is opening/closing, the back door will stop the operation. Perform a
kick operation again will operate the
back door in the opposite direction.
■Luggage compartment light
●The luggage compartment light turns
on when the back door is opened.
●If the luggage compartment light is left
on when the engine switch is turned off, the light will go off automatically
after 20 minutes.
■Power back door operating condi-
tions
If the following conditions are met with
the power back door operation enabled
( P.577), the power back door can be opened and closed automatically.
●When the back door is unlocked
●When the engine switch is in ON, one
of the following conditions must be met in addition to the above condi-
tions:
• The parking brake is engaged. • The brake pedal is depressed.
• The shift lever is in P (Multidrive) or N
(manual transmission).
■Kick sensor operating conditions
●When the kick sensor operation set-
ting is turned on and the engine switch is turned off
●When an electronic key is carried within the operation range
■Operation of the power back door
●When the power back door system is disabled, the power back door will not
operate, but it can still be opened and
closed manually.
●When the power back door is open-
ing, if the power back door becomes obstructed, operation will stop.
■Close & lock function
When the power back door is open, this
function closes the power back door and then locks all of the doors simultane-
ously. When the following procedures
are performed and there are no elec- tronic keys for the vehicle within the
vehicle, all of the doors will lock when
the power back door is completely closed.
1 Close all of the doors except the
power back door.
2 While carrying an electronic key,
press the switch on the lower
part of the power back door
( P.128).
A different buzzer than the one for a nor-
mal power back door closing operation will sound and then the power back door
will begin closing automatically. When
the power back door is closed, all of the doors will lock simultaneously and oper-
ation signals will indicate that all of the
doors have been locked.
Vehicles with a double locking system:
The double locking syst em will not oper-

131
3
3-2. Opening, closing and locking the doors
Before driving
ate at this time.
■Situations in which the close & lock
function may not operate properly
In the following situations, the close &
lock function may not operate properly:
●If the switch on the lower part of
the power back door ( P.128) is
pressed by a hand which is holding an electronic key
●If the switch on the lower part of
the power back door ( P.128) is
pressed when the electronic key is in
a bag, etc. that is placed on the ground
●If the switch on the lower part of
the power back door ( P.128) is
pressed when the electronic key is not
near the vehicle.
■Preventing unintentional operation of the kick sensor
When an electronic key is in the opera-
tion detection area, the kick sensor may operate unintentionally, so be careful in
the following situations:
●When a large amount of water is
applied to the lower center part of the
rear bumper, such as when the vehi- cle is being washed or in heavy rain
●When dirt is wiped off the lower center part of the rear bumper
●When a small animal or small object,
such as a ball, moves under the lower center part of the rear bumper
●When an object is moved from under the lower center part of the rear
bumper
●If someone is swinging their legs while
sitting on the rear bumper
●If the legs or another part of some-
one’s body contacts the lower center
part of the rear bumper while passing by the vehicle
●When the vehicle is parked near an electrical noise source which affects
the sensitivity of the kick sensor, such
as a pay parking spot, gas station,
electrically heated road, or fluorescent light
●When the vehicle is near a TV tower, electric power plant, radio station,
large display, airport or other facility
that generates strong radio waves or electrical noise
●When the vehicle is parked in a place where objects such as plants are near
the lower center part of the rear
bumper
●If luggage, etc. is set near the lower
center part of the rear bumper
●If accessories or a vehicle cover is
installed/removed near the rear bumper
●When the vehicle is being towed
To prevent unintentional operation, turn
the kick sensor operation setting off.
■Situations in which the kick sensor
may not operate properly
In the following situations, the kick sen-
sor may not operate properly:
●When a foot remains under the lower
center part of the rear bumper
●If the lower center part of the rear
bumper is strongly hit with a foot or is
touched for a while If the lower center part of the rear
bumper has been touched for a while,
wait for a short time before attempting to operate the kick sensor again.
●When standing exce ssively close to the lower center part of the rear
bumper
●When an external radio wave source
interferes with the communication
between the electronic key and the
vehicle ( P.138)
●When the vehicle is parked near an
electrical noise source which affects the sensitivity of the kick sensor, such
as a pay parking spot, gas station,
electrically heated road, or fluorescent light
●When the vehicle is near a TV tower,

1323-2. Opening, closing and locking the doors
electric power plant, radio station,
large display, airport or other facility that generates strong radio waves or
electrical noise
●When a large amount of water is
applied to the lower center part of the
rear bumper, such as when the vehi- cle is being washed or in heavy rain
●When mud, snow, ice, etc. is attached to the lower center part of the rear
bumper
●When the vehicle has been parked for
a while near objects that may move
and contact the rear bumper, such as plants
●When an accessory is installed to the lower center part of the rear bumper
If an accessory has been installed, turn
the kick sensor operation setting off.*
*: If a Toyota genuine accessory has
been installed, depending on the
accessory, the kick sensor may still be
operable. For details, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer for details.
■When reconnecting the battery
To enable the power back door to oper-
ate properly, close the back door manu- ally.
■Jam protection function
Sensors are installed on the right and
left sides of the power back door. When the door is automatically closing and the
sensors are pushed due to an object
being clamped, etc., the jam protection function operates.
From that position the door automati-
cally moves a little in the opposite direc-
tion and then the function stops.
■Customization
Some functions can be customized. ( P.577)
WA R N I N G
■Power back door
Observe the following precautions
when operating the power back door. Failure to do so may cause death or
serious injury.
●Check the safety of the surrounding
area to make sure there are no
obstacles or anything that could cause any of your belongings to get
caught.
●If anyone is in the vicinity, make
sure they are safe and let them
know that the back door is about to open or close.
●If the power back door system is turned off with the main switch
while the back door is operating
automatically, the automatic opera- tion will be stopped. The back door
then has to be operated manually.
Take extra care when on an incline, as the back door may open or close
unexpectedly.
●If the operating conditions of the
power back door are no longer met,
a buzzer may sound and the back door may stop opening or closing.
The back door then has to be oper-
ated manually. Take extra care when on an incline, as the back
door may open or close abruptly.

133
3

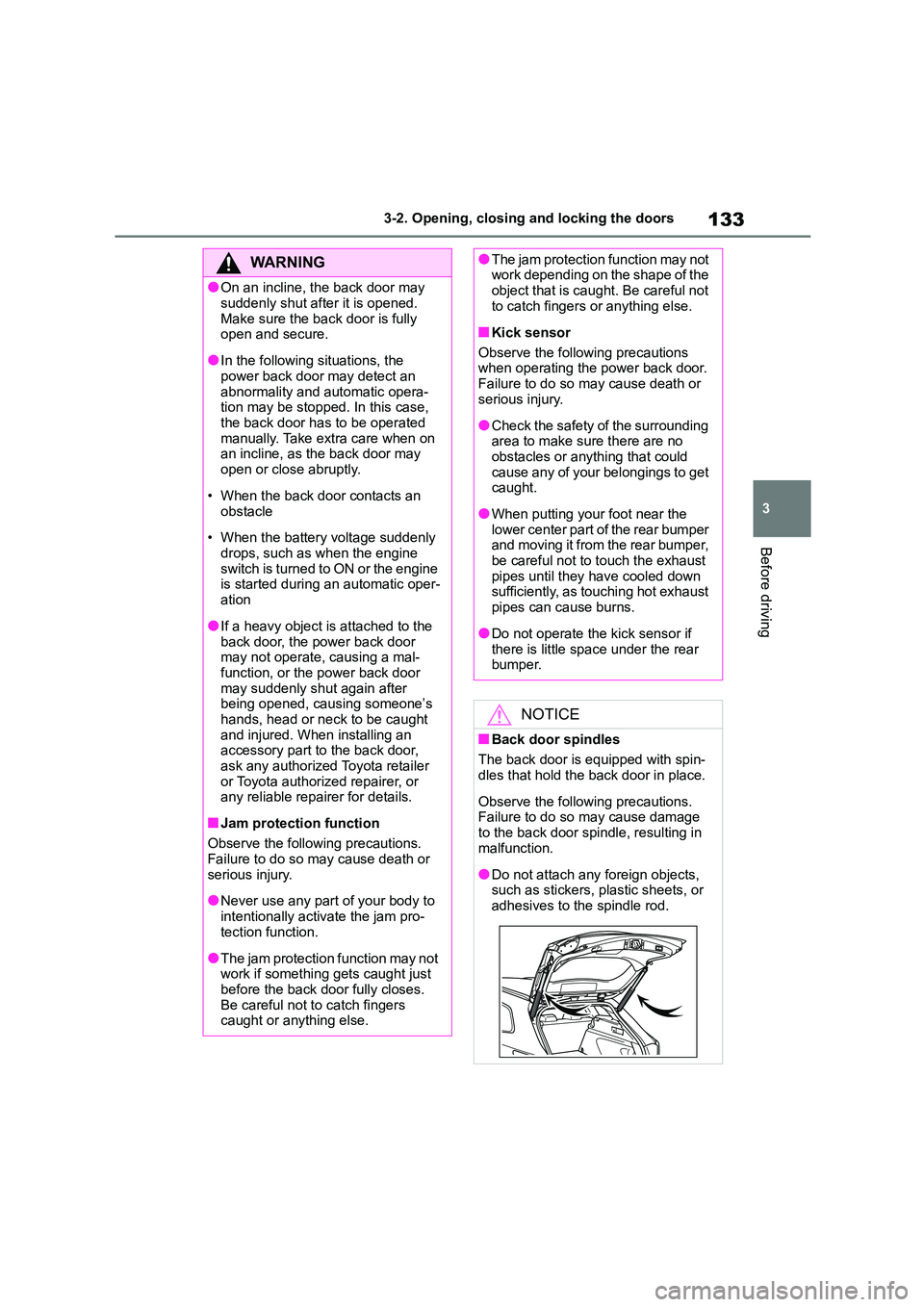

3-2. Opening, closing and locking the doors
Before driving
WA R N I N G
●On an incline, the back door may
suddenly shut after it is opened.
Make sure the back door is fully open and secure.
●In the following situations, the power back door may detect an
abnormality and automatic opera-
tion may be stopped. In this case,
the back door has to be operated manually. Take extra care when on
an incline, as the back door may
open or close abruptly.
• When the back door contacts an
obstacle
• When the battery voltage suddenly
drops, such as when the engine switch is turned to ON or the engine
is started during an automatic oper-
ation
●If a heavy object is attached to the
back door, the power back door may not operate, causing a mal-
function, or the power back door
may suddenly shut again after being opened, causing someone’s
hands, head or neck to be caught
and injured. When installing an accessory part to the back door,
ask any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer for details.
■Jam protection function
Observe the following precautions.
Failure to do so may cause death or
serious injury.
●Never use any part of your body to
intentionally activate the jam pro- tection function.
●The jam protection function may not work if something gets caught just
before the back door fully closes.
Be careful not to catch fingers caught or anything else.
●The jam protection function may not work depending on the shape of the
object that is caught. Be careful not
to catch fingers or anything else.
■Kick sensor
Observe the following precautions when operating the power back door.
Failure to do so may cause death or
serious injury.
●Check the safety of the surrounding
area to make sure there are no obstacles or anything that could
cause any of your belongings to get
caught.
●When putting your foot near the
lower center part of the rear bumper and moving it from the rear bumper,
be careful not to touch the exhaust
pipes until they have cooled down sufficiently, as touching hot exhaust
pipes can cause burns.
●Do not operate the kick sensor if
there is little space under the rear
bumper.
NOTICE
■Back door spindles
The back door is equipped with spin-
dles that hold the back door in place.
Observe the following precautions.
Failure to do so may cause damage
to the back door spindle, resulting in malfunction.
●Do not attach any foreign objects, such as stickers, plastic sheets, or
adhesives to the spindle rod.

1343-2. Opening, closing and locking the doors
NOTICE
●Do not touch the spindle rod with
gloves or other fabric items.
●Do not attach hea vy accessories to
the back door. When attaching an
accessory, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for
details.
●Do not place your hand on either
spindle or apply lateral forces to it.
■To prevent damage to the power
back door
●Make sure that there is no ice between the back door and frame
that would prevent movement of the
back door. Operating the power back door when excessive load is
present on the back door may
cause a malfunction.
●Do not apply excessive force to the
back door while the power back door is operating.
●Take care not to damage the sen-sors (installed on the right and left
edges of the power back door) with
a knife or other sharp object. If a sensor is disconnected, the power
back door will not close automati-
cally.

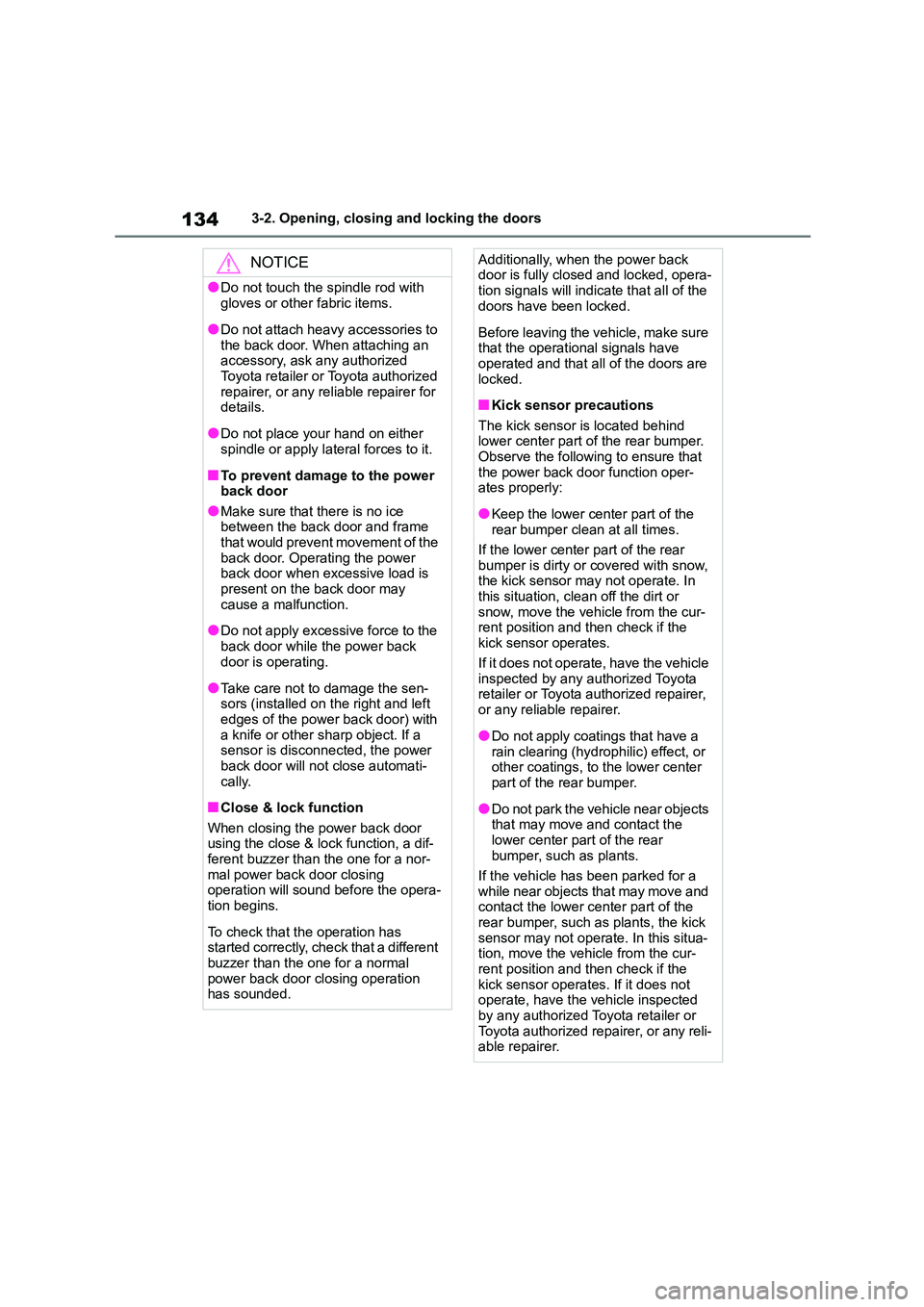

■Close & lock function
When closing the power back door using the close & lock function, a dif-
ferent buzzer than the one for a nor-
mal power back door closing operation will sound before the opera-
tion begins.
To check that the operation has
started correctly, check that a different
buzzer than the one for a normal power back door closing operation
has sounded.
Additionally, when the power back door is fully closed and locked, opera-
tion signals will indicate that all of the
doors have been locked.
Before leaving the vehicle, make sure
that the operational signals have operated and that all of the doors are
locked.
■Kick sensor precautions
The kick sensor is located behind
lower center part of the rear bumper. Observe the following to ensure that
the power back door function oper-
ates properly:
●Keep the lower center part of the
rear bumper clean at all times.
If the lower center part of the rear
bumper is dirty or covered with snow,
the kick sensor may not operate. In this situation, clean off the dirt or
snow, move the vehicle from the cur-
rent position and then check if the kick sensor operates.
If it does not operate, have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
●Do not apply coatings that have a
rain clearing (hydrophilic) effect, or
other coatings, to the lower center part of the rear bumper.
●Do not park the vehicle near objects that may move and contact the
lower center part of the rear
bumper, such as plants.
If the vehicle has been parked for a
while near objects that may move and
contact the lower center part of the
rear bumper, such as plants, the kick sensor may not operate. In this situa-
tion, move the vehicle from the cur-
rent position and then check if the kick sensor operates. If it does not
operate, have the vehicle inspected
by any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.

135
3
3-2. Opening, closing and locking the doors
Before driving
The open position of the power
back door can be adjusted.
1 Stop the back door in the
desired position. ( P.127)
2 Press and hold the power back
door switch on the back door for
2 seconds.
• When the position is set, a
buzzer will sound 4 times.
• The next time the power back
door is opened, it will stop at the
set position.
■Returning the open position of the
back door to the default position
Press and hold the power back door switch on the back door for 7 seconds.
A buzzer will sound 4 times, pause, and
then sound 2 more times. The next time the power back door is opened, it will
stop at the default position.
■When setting the open position of
the back door by the multi-informa-
tion display
The open position of the power back
door can be adjusted using the
multi-information display. ( P.577)
When opened, the power back door will
open to the last position set using the
switch on the back door or on the
multi-information display.
NOTICE
●Do not subject the kick sensor or its
surrounding area to a strong
impact.
If the kick sensor or its surrounding
area has been subjected to a strong
impact, the kick sensor may not oper- ate properly. If the kick sensor does
not operate in the following situations,
have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
• The kick sensor or its surrounding area has been subjected to a strong
impact.
• The lower center part of the rear
bumper is scratched or damaged.
●Do not disassemble the rear
bumper.
●Do not attach stickers to the rear
bumper.
●Do not paint the rear bumper.
●If a heavy object is attached to the power back door, disable the kick
sensor.
Adjusting the open position
of the back door (vehicles
with a power back door)

139
3
3-2. Opening, closing and locking the doors
Before driving
• The electronic key is on the instru-
ment panel, luggage cover or floor, or in the door pockets or glove box when
the engine is started or engine switch
modes are changed.
●Do not leave the electronic key on top
of the instrument panel or near the door pockets when exiting the vehicle.
Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the
outside, possibly trapping the elec- tronic key inside the vehicle.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. How-
ever, only the doors detecting the electronic key can be used to unlock
the vehicle.
●Even if the electronic key is not inside
the vehicle, it may be possible to start
the engine if the electronic key is near the window.
●The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a
car wash when the electronic key is within the effective range. (The doors
will automatically be locked after
approximately 30 seconds if the doors are not opened and closed.)
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a pos-
sibility that the door may not be unlocked by the entry function. (Use
the wireless remote control to unlock
the doors.)
●Touching the door lock or unlock sen-
sor while wearing gloves may prevent
lock or unlock operation.
●Some models: When the lock opera-
tion is performed using the lock sen- sor, recognition signals will be shown
up to two consecutive times. After
this, no recognition signals will be given.
●If the door handle becomes wet while
the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In that case, follow
the following correction procedures to
wash the vehicle: • Place the electronic key in a location 2
m (6 ft.) or more away from the vehi-
cle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-sav-
ing mode to disable the smart entry & start system. ( P.138)
●If the electronic key is inside the vehi- cle and a door handle becomes wet
during a car wash, a message may be
shown on the multi-information dis- play and a buzzer will sound outside
the vehicle. To turn off the alarm, lock
all the doors.
●The lock sensor may not work prop-
erly if it comes into contact with ice, snow, mud, etc. Clean the lock sensor
and attempt to operate it again.
●A sudden handle operation or a han-
dle operation immediately after enter-
ing the effective range may prevent the doors from being unlocked. Touch
the door unlock sensor and check that
the doors are unlocked before pulling the door handle again.
●If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the
door handle is gripped.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 2 m (6
ft.) of the vehicle.
●The smart entry & start system can be
deactivated in advance. ( P.577)
●Setting the electronic key to bat- tery-saving mode helps to reduce key
battery depletion. ( P.138)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehi-
cle when operating the system from the

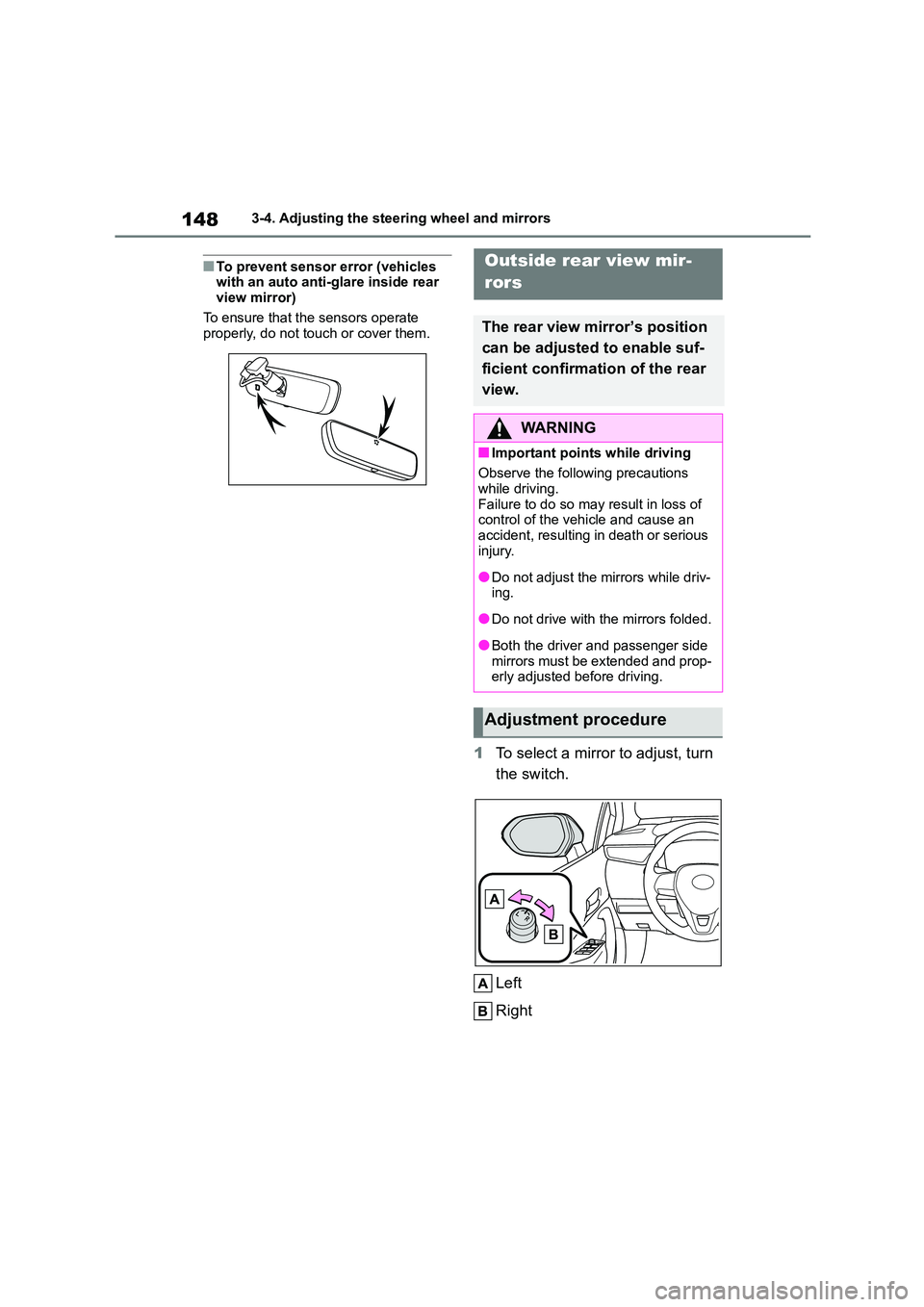

1483-4. Adjusting the steering wheel and mirrors
■To prevent sensor error (vehicles with an auto anti-glare inside rear
view mirror)
To ensure that the sensors operate properly, do not touch or cover them.
1 To select a mirror to adjust, turn
the switch.
Left
Right
Outside rear view mir-
rors
The rear view mirror’s position
can be adjusted to enable suf-
ficient confirmation of the rear
view.
WA R N I N G
■Important points while driving
Observe the following precautions
while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious
injury.
●Do not adjust the mirrors while driv-
ing.
●Do not drive with the mirrors folded.
●Both the driver and passenger side
mirrors must be extended and prop-
erly adjusted before driving.
Adjustment procedure

4
159
4
Driving
Driving
.4-1. Before driving
Driving the vehicle ............ 161
Cargo and luggage ........... 168
Trailer towing .................... 170
4-2. Driving procedures
Engine (ignition) switch (vehi-
cles without a smart entry &
start system) ................... 177
Engine (ignition) switch (vehi-
cles with a smart entry & start
system) ........................... 178
Multidrive .......................... 182
Manual transmission ......... 186
Turn signal lever ............... 189
Parking brake ................... 189
Brake Hold ........................ 192
4-3. Operating the lights and wip-
ers
Headlight switch ............... 195
Automatic High Beam ....... 199
AHS (Adaptive High-beam
System) .......................... 201
Fog light switch ................. 205
Windshield wipers and washer
....................................... 206
Rear window wiper and washer
....................................... 209
4-4. Refueling
Opening the fuel tank cap
....................................... 211
4-5. Using the driving support
systems
Toyota Safety Sense......... 213
PCS (Pre-Collision System)
........................................ 224
LTA (Lane Tracing Assist)
........................................ 231
LDA (Lane Departure Alert with
steering control) .............. 241
Dynamic radar cruise control
with full-speed range ...... 249
Dynamic radar cruise control
........................................ 260
Cruise control.................... 271
Speed limiter ..................... 273
RSA (Road Sign Assist) .... 276
Stop & Start system .......... 280
BSM (Blind Spot Monitor)
........................................ 288
Toyota parking assist-sensor
........................................ 303
RCTA (Rear Crossing Traffic
Alert) function ................. 312
PKSB (Parking Support Brake)
........................................ 317
Parking Support Brake function
(static objects) ................ 324
Parking Support Brake function
(rear-crossing vehicles) .. 327
S-IPA (Simple Intelligent Park-
ing Assist System) .......... 329
Driving mode select switch
........................................ 355
Exhaust Gas Filter system
........................................ 356
Driving assist systems ...... 357

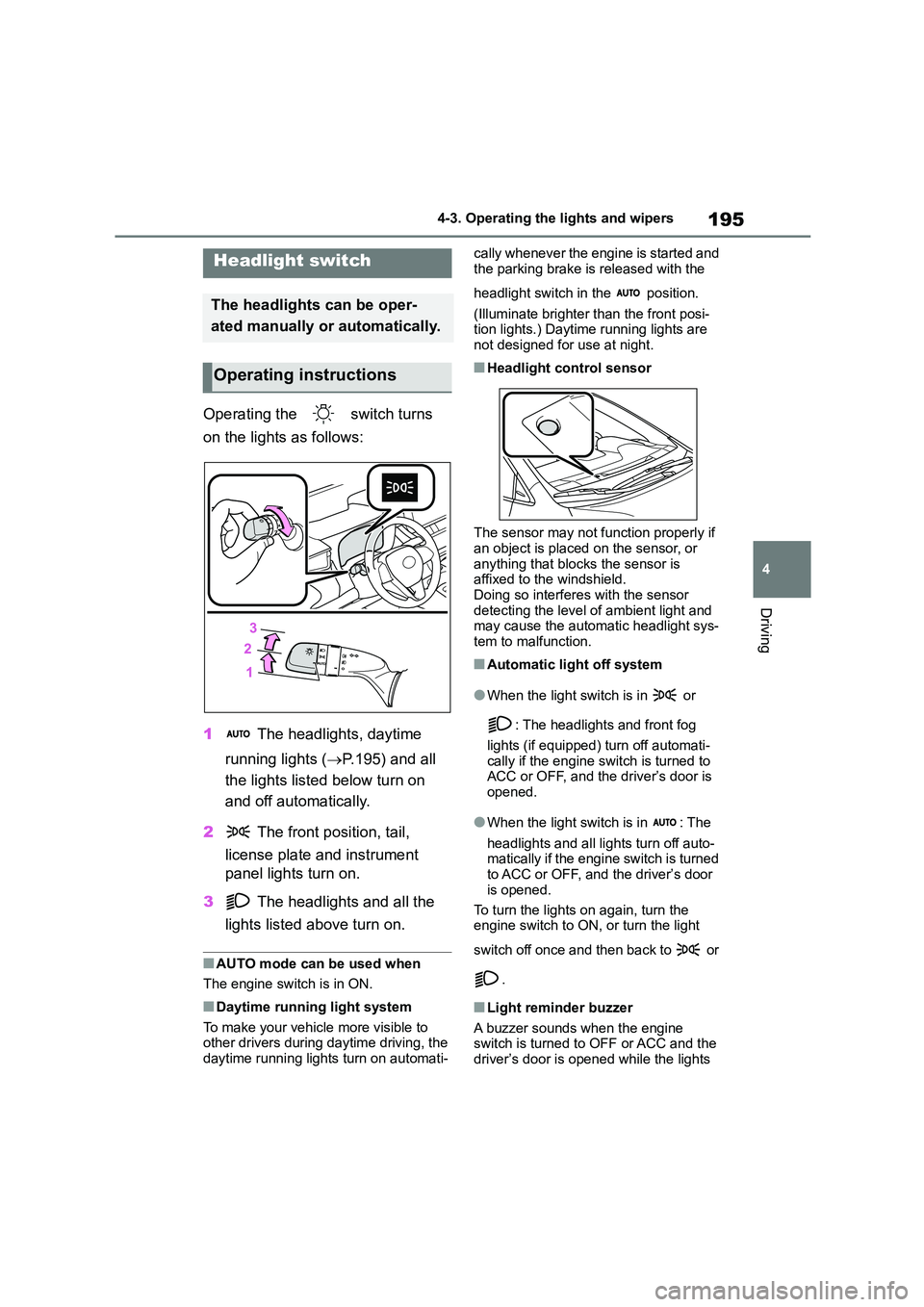

195
4
4-3. Operating the lights and wipers
Driving
4-3.Operating the lights and wipers
Operating the switch turns
on the lights as follows:
1 The headlights, daytime
running lights ( P.195) and all
the lights listed below turn on
and off automatically.
2 The front position, tail,
license plate and instrument
panel lights turn on.
3 The headlights and all the
lights listed above turn on.
■AUTO mode can be used when
The engine switch is in ON.
■Daytime running light system
To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on automati-
cally whenever the engine is started and
the parking brake is released with the
headlight switch in the position.
(Illuminate brighter than the front posi-
tion lights.) Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an object is placed on the sensor, or
anything that blo cks the sensor is
affixed to the windshield. Doing so interferes with the sensor
detecting the level of ambient light and
may cause the autom atic headlight sys- tem to malfunction.
■Automatic light off system
●When the light switch is in or
: The headlights and front fog
lights (if equipped) turn off automati-
cally if the engine switch is turned to ACC or OFF, and the driver’s door is
opened.
●When the light switch is in : The
headlights and all lights turn off auto-
matically if the engine switch is turned to ACC or OFF, and the driver’s door
is opened.
To turn the lights on again, turn the engine switch to ON, or turn the light
switch off once and then back to or
.
■Light reminder buzzer
A buzzer sounds when the engine switch is turned to OFF or ACC and the
driver’s door is opened while the lights
Headlight switch
The headlights can be oper-
ated manually or automatically.
Operating instructions
