5709-1. Specifications
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Commi ttee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
Cooling system
Capacity
(Reference)
Gasoline
engine
Multidrive
6.6 L (7.0 qt., 5.8 Imp. qt.)
Manual transmission
6.4 L (6.8 qt., 5.6 Imp. qt.)
Intercooler1.9 L (2.0 qt., 1.7 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeNGK DILKAR8J9G
Gap0.9 mm (0.035 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

571
9
9-1. Specifications
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.

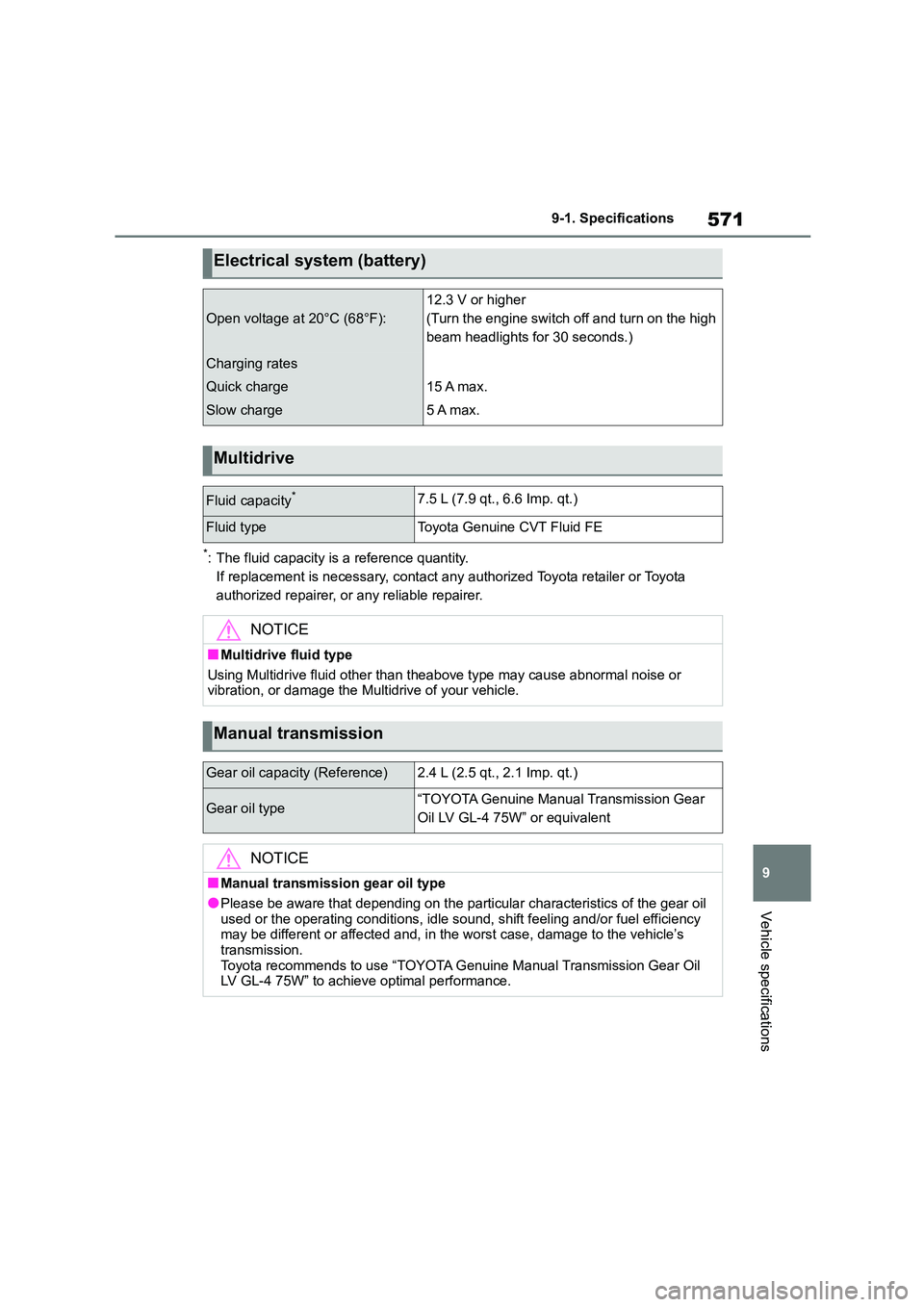

Electrical system (battery)
Open voltage at 20°C (68°F):
12.3 V or higher
(Turn the engine switch off and turn on the high
beam headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Multidrive
Fluid capacity*7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than theabove type may cause abnormal noise or
vibration, or damage the Multidrive of your vehicle.
Manual transmission
Gear oil capacity (Reference)2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristics of the gear oil
used or the operating conditions, idle sound, shift feeling and/or fuel efficiency
may be different or affected and, in the worst case, damage to the vehicle’s transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission Gear Oil
LV GL-4 75W” to achieve optimal performance.

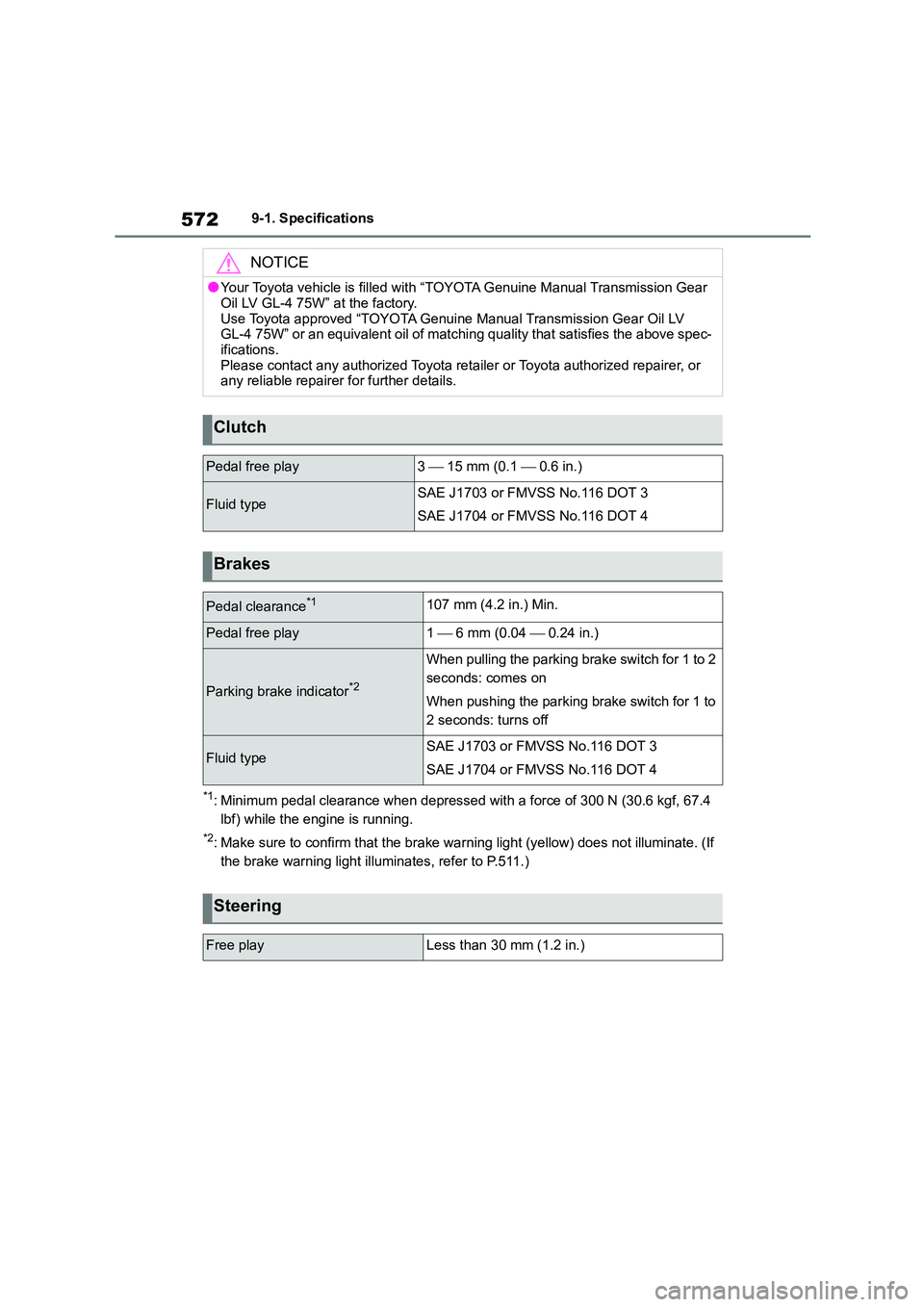

5729-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.4
lbf) while the engine is running.
*2: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If
the brake warning light illuminates, refer to P.511.)
NOTICE
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil LV GL-4 75W” or an equivalent oil of matching quality that satisfies the above spec-
ifications.
Please contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for further details.
Clutch
Pedal free play3  15 mm (0.1  0.6 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*1107 mm (4.2 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake indicator*2
When pulling the parking brake switch for 1 to 2
seconds: comes on
When pushing the parking brake switch for 1 to
2 seconds: turns off
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

5769-1. Specifications

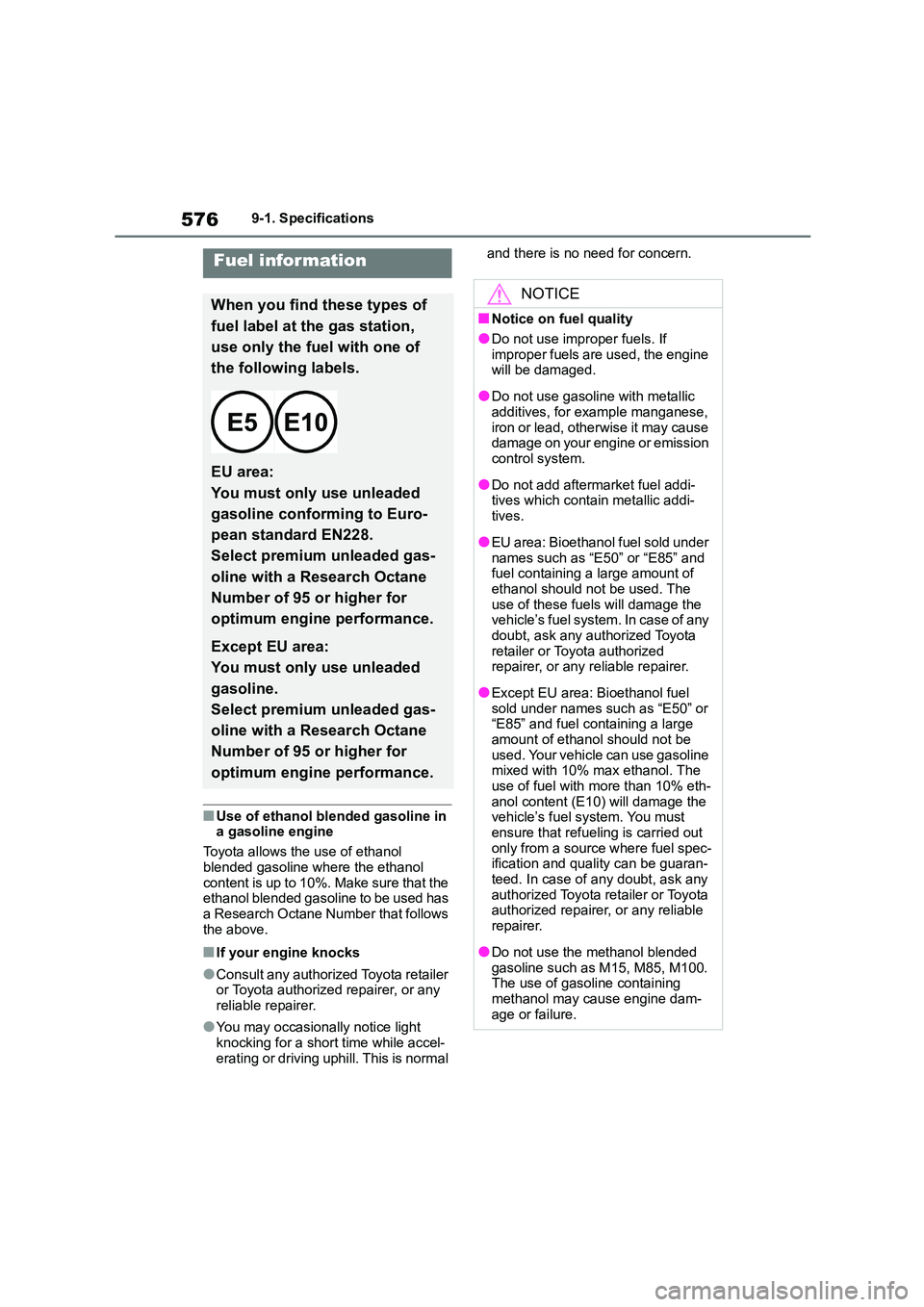

■Use of ethanol blended gasoline in
a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol
content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows
the above.
■If your engine knocks
●Consult any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel infor mation
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area:
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select premium unleaded gas-
oline with a Research Octane
Number of 95 or higher for
optimum engine performance.
Except EU area:
You must only use unleaded
gasoline.
Select premium unleaded gas-
oline with a Research Octane
Number of 95 or higher for
optimum engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine
will be damaged.
●Do not use gasoline with metallic
additives, for example manganese,
iron or lead, otherwise it may cause damage on your engine or emission
control system.
●Do not add aftermarket fuel addi-
tives which contain metallic addi-
tives.
●EU area: Bioethanol fuel sold under
names such as “E50” or “E85” and fuel containing a large amount of
ethanol should not be used. The
use of these fuels will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large
amount of ethanol should not be used. Your vehicle can use gasoline
mixed with 10% max ethanol. The
use of fuel with more than 10% eth- anol content (E10) will damage the
vehicle’s fuel system. You must
ensure that refue ling is carried out only from a source where fuel spec-
ification and quality can be guaran-
teed. In case of any doubt, ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
●Do not use the methanol blended
gasoline such as M15, M85, M100. The use of gasoline containing
methanol may cause engine dam-
age or failure.

577
9
9-2. Customization
Vehicle specifications
9-2.Customization
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with navigation/mul-
timedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter
control switches
1 Press or of the meter
control switch to select .
2 Press or of the meter
control switch to select the
desired item to be customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorize d Toyota retailer or Toyota author-
ized repairer, or any reliable repairer for further details.
Settings that can be changed using the navigation/multimedia system
screen (vehicles with navigation/multimedia system)
Settings that can be changed using the meter control switches
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the navigation/multi-
media system screen or at any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
Customizing vehicle fea-
tures
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as a garage, exhaust gases
including harmful carbon monoxide
(CO) may collect and enter the vehi- cle. This may lead to death or a seri-
ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure
that the engine is running while cus-
tomizing features.
Customizable features

581
9
9-2. Customization
Vehicle specifications
*: If equipped
■Outside rear view mirrors ( P.148)
*: If equipped
■Power windows and panoramic moon roof* (P.151, 154)
*: If equipped
■Automatic light control system (P.195)
Set at the desired posi-
tion(height): Back door
automatic open and stop
position
Initial settings
position
Stop at the desired
position (height)—O—
5 step configuration: Back
door automatic open and
stop position
51 to 5—O—
Operation buzzer volume31—O—2
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the engine switch
FunctionDefault settingCustomized setting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
FunctionDefault settingCustomized setting

583
9
9-2. Customization
Vehicle specifications
■PCS (Pre-Collision System)*1 ( P.224)
*1: If equipped
*2: The system is automatically enabled each time the engine switch is turned to
ON.
■LTA (Lane Tracing Assist)*/LDA (Lane Departure Alert with steering
control)* ( P.231, 241)
*: If equipped
■RSA (Road Sign Assist)*1 (P. 2 7 6 )
FunctionCustomized setting
PCS (Pre-Collision Sys-
tem)*2On, Off—O—
Adjust alert timingEarly, Middle, Late—O—
FunctionCustomized setting
Lane centering function*On, Off—O—
Steering assist functionOn, Off—O—
Alert sensitivityHigh, Standard—O—
Vehicle sway warning func-
tionOn, Off—O—
Vehicle sway warning sen-
sitivityHigh, Standard, Low—O—
FunctionCustomized setting
RSA (Road Sign Assist)*2On, Off—O—
Excess speed notification method*3Display only, Display
and buzzer, No notifi-
cation
—O—
Excess speed notification level
10 km/h (5 mph), 5
km/h (3 mph), 2 km/h
(1 mph)
—O—

5849-2. Customization
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
*3: If a Speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
■Dynamic radar cruise control with full-speed range*/Dynamic radar
cruise control* ( P.249, 260)
*: If equipped
■Stop & Start system* (P.280)
*: If equipped
■BSM (Blind Spot Monitor)* (P.288)
No overtaking notification method
Display only, Display
and buzzer, No notifi-
cation
—O—
Other notifications method (No-entry notifica-
tion)*4
Display only, Display
and buzzer, No notifi-
cation
—O—
FunctionCustomized setting
Dynamic Radar Cruise Control with Road
Sign AssistOff, On—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
FunctionCustomized setting

5869-2. Customization
■Automatic air conditioning system* (P. 4 2 7 )
*: If equipped
■Illumination (P.436)
*: If equipped
■Vehicle customization
When the smart entry & start system is
off, Smart door unlocking cannot be cus- tomized.
■In the following situations, custom-ize mode in which the settings can
be changed through the multi-infor-
mation display will automatically be turned off
●A warning message appears after the customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the
customize mode screen is displayed.
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
A/C auto switch operationOnOffO—O
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Cup holder lights* and
center tray light*OnOff——O
Door trim lights*OnOff——O

587
9
9-3. Initialization
Vehicle specifications
9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system operation
after such cases as the battery being reconnected, or maintenance
being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
PKSB (Parking Sup-
port Brake)*• After reconnecting or changing the
batteryP. 3 2 3
Toyota parking
assist-sensor*• After reconnecting or changing the
batteryP. 3 0 6
Engine oil mainte-
nance data• After maintenance is performedP. 4 7 4
S-IPA (Simple Intelli-
gent Parking Assist
System)*
• After reconnecting or changing the
batteryP. 3 4 6
Tire pressure warning
system*
• When rotating front and rear tires
which have different tire inflation
pressures
• When changing the tire size
• When the tire inflation pressure is
changed such as when changing
traveling speed or load weight
• When changing between two regis-
tered wheel sets
P. 4 8 3
