TOYOTA COROLLA HATCHBACK 2022 Owners Manual (in English)

579
9
9-2. Customization
Vehicle specifications
*4: If equipped
*5: 7-inch display
■Head-up display* ( P.106)
*: If equipped
■Door lock (P.119, 124, 554)
■Smart entry & start system* and wireless remote control (P.119,
136)
*: If equipped
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometerEco Driving Indicator*
—O—No content
Route guidance to destina-
tion/street name*OnOff—O—
Driving support system dis-
playOnOff—O—
Compass*OnOff—O—
Audio system operation
status*OnOff—O—
FunctionDefault settingCustomized setting
Unlocking using a key
All doors
unlocked in one
step
Driver’s door
unlocked in one step,
all doors unlocked in
two step
——O
FunctionDefault settingCustomized setting
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O

5809-2. Customization
■Smart entry & start system*1 (P.119, 136)
*1: If equipped
*2: On some models
■Wireless remote control (P.116, 119, 124)
*: If equipped
■Power back door* (P.124)
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlockingAll the doorsDriver’s doorO—O
Time elapsed before
unlocking all the door when
gripping and holding the
driver’s door handle
Off
1.5 seconds
——O2.0 seconds
2.5 seconds
Number of consecutive
door lock operations*22 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
All doors
unlocked in one
step
Driver’s door
unlocked in one step,
all doors unlocked in
two step
O—O
Back door unlocking opera-
tion*Press and hold
(short)
One short press
——OPush twice
Press and hold (long)
Off
FunctionDefault settingCustomized setting
Power back door opera-
tionsOnOff—O—
Kick sensorOnOff—O—

581
9
9-2. Customization
Vehicle specifications
*: If equipped
■Outside rear view mirrors ( P.148)
*: If equipped
■Power windows and panoramic moon roof* (P.151, 154)
*: If equipped
■Automatic light control system (P.195)
Set at the desired posi-
tion(height): Back door
automatic open and stop
position
Initial settings
position
Stop at the desired
position (height)—O—
5 step configuration: Back
door automatic open and
stop position
51 to 5—O—
Operation buzzer volume31—O—2
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the engine switch
FunctionDefault settingCustomized setting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
FunctionDefault settingCustomized setting

5829-2. Customization

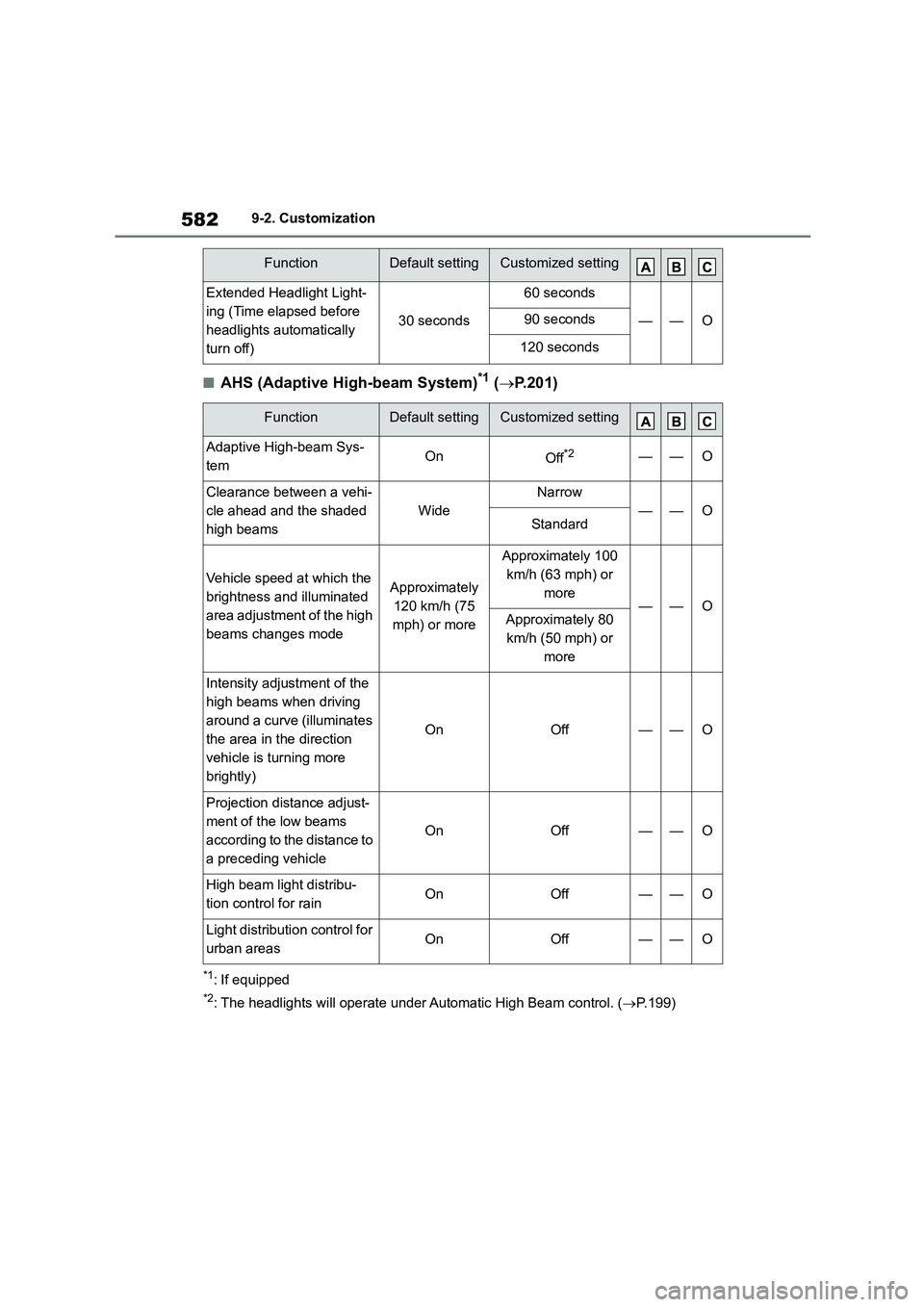

■AHS (Adaptive High-beam System)*1 (P.201)
*1: If equipped
*2: The headlights will operate under Automatic High Beam control. (P.199)
Extended Headlight Light-
ing (Time elapsed before
headlights automatically
turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Adaptive High-beam Sys-
temOnOff*2——O
Clearance between a vehi-
cle ahead and the shaded
high beams
Wide
Narrow
——OStandard
Vehicle speed at which the
brightness and illuminated
area adjustment of the high
beams changes mode
Approximately
120 km/h (75
mph) or more
Approximately 100
km/h (63 mph) or
more——OApproximately 80
km/h (50 mph) or
more
Intensity adjustment of the
high beams when driving
around a curve (illuminates
the area in the direction
vehicle is turning more
brightly)
OnOff——O
Projection distance adjust-
ment of the low beams
according to the distance to
a preceding vehicle
OnOff——O
High beam light distribu-
tion control for rainOnOff——O
Light distribution control for
urban areasOnOff——O
FunctionDefault settingCustomized setting

583
9
9-2. Customization
Vehicle specifications
■PCS (Pre-Collision System)*1 ( P.224)
*1: If equipped
*2: The system is automatically enabled each time the engine switch is turned to
ON.
■LTA (Lane Tracing Assist)*/LDA (Lane Departure Alert with steering
control)* ( P.231, 241)
*: If equipped
■RSA (Road Sign Assist)*1 (P. 2 7 6 )
FunctionCustomized setting
PCS (Pre-Collision Sys-
tem)*2On, Off—O—
Adjust alert timingEarly, Middle, Late—O—
FunctionCustomized setting
Lane centering function*On, Off—O—
Steering assist functionOn, Off—O—
Alert sensitivityHigh, Standard—O—
Vehicle sway warning func-
tionOn, Off—O—
Vehicle sway warning sen-
sitivityHigh, Standard, Low—O—
FunctionCustomized setting
RSA (Road Sign Assist)*2On, Off—O—
Excess speed notification method*3Display only, Display
and buzzer, No notifi-
cation
—O—
Excess speed notification level
10 km/h (5 mph), 5
km/h (3 mph), 2 km/h
(1 mph)
—O—

5849-2. Customization
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
*3: If a Speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
■Dynamic radar cruise control with full-speed range*/Dynamic radar
cruise control* ( P.249, 260)
*: If equipped
■Stop & Start system* (P.280)
*: If equipped
■BSM (Blind Spot Monitor)* (P.288)
No overtaking notification method
Display only, Display
and buzzer, No notifi-
cation
—O—
Other notifications method (No-entry notifica-
tion)*4
Display only, Display
and buzzer, No notifi-
cation
—O—
FunctionCustomized setting
Dynamic Radar Cruise Control with Road
Sign AssistOff, On—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
FunctionCustomized setting

585
9
9-2. Customization
Vehicle specifications
*: If equipped
■Toyota parking assist-sensor* ( P.303)
*: If equipped
■RCTA (Rear crossing traffic alert) function* (P.312)
*: If equipped
■PKSB (Parking Support Brake)* (P.317)
*: If equipped
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
FunctionDefault settingCustomized setting
RCTA (Rear crossing traffic
alert) functionOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—
FunctionDefault settingCustomized setting

5869-2. Customization
■Automatic air conditioning system* (P. 4 2 7 )
*: If equipped
■Illumination (P.436)
*: If equipped
■Vehicle customization
When the smart entry & start system is
off, Smart door unlocking cannot be cus- tomized.
■In the following situations, custom-ize mode in which the settings can
be changed through the multi-infor-
mation display will automatically be turned off
●A warning message appears after the customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the
customize mode screen is displayed.
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
A/C auto switch operationOnOffO—O
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Cup holder lights* and
center tray light*OnOff——O
Door trim lights*OnOff——O

587
9
9-3. Initialization
Vehicle specifications
9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system operation
after such cases as the battery being reconnected, or maintenance
being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
PKSB (Parking Sup-
port Brake)*• After reconnecting or changing the
batteryP. 3 2 3
Toyota parking
assist-sensor*• After reconnecting or changing the
batteryP. 3 0 6
Engine oil mainte-
nance data• After maintenance is performedP. 4 7 4
S-IPA (Simple Intelli-
gent Parking Assist
System)*
• After reconnecting or changing the
batteryP. 3 4 6
Tire pressure warning
system*
• When rotating front and rear tires
which have different tire inflation
pressures
• When changing the tire size
• When the tire inflation pressure is
changed such as when changing
traveling speed or load weight
• When changing between two regis-
tered wheel sets
P. 4 8 3

5889-3. Initialization
