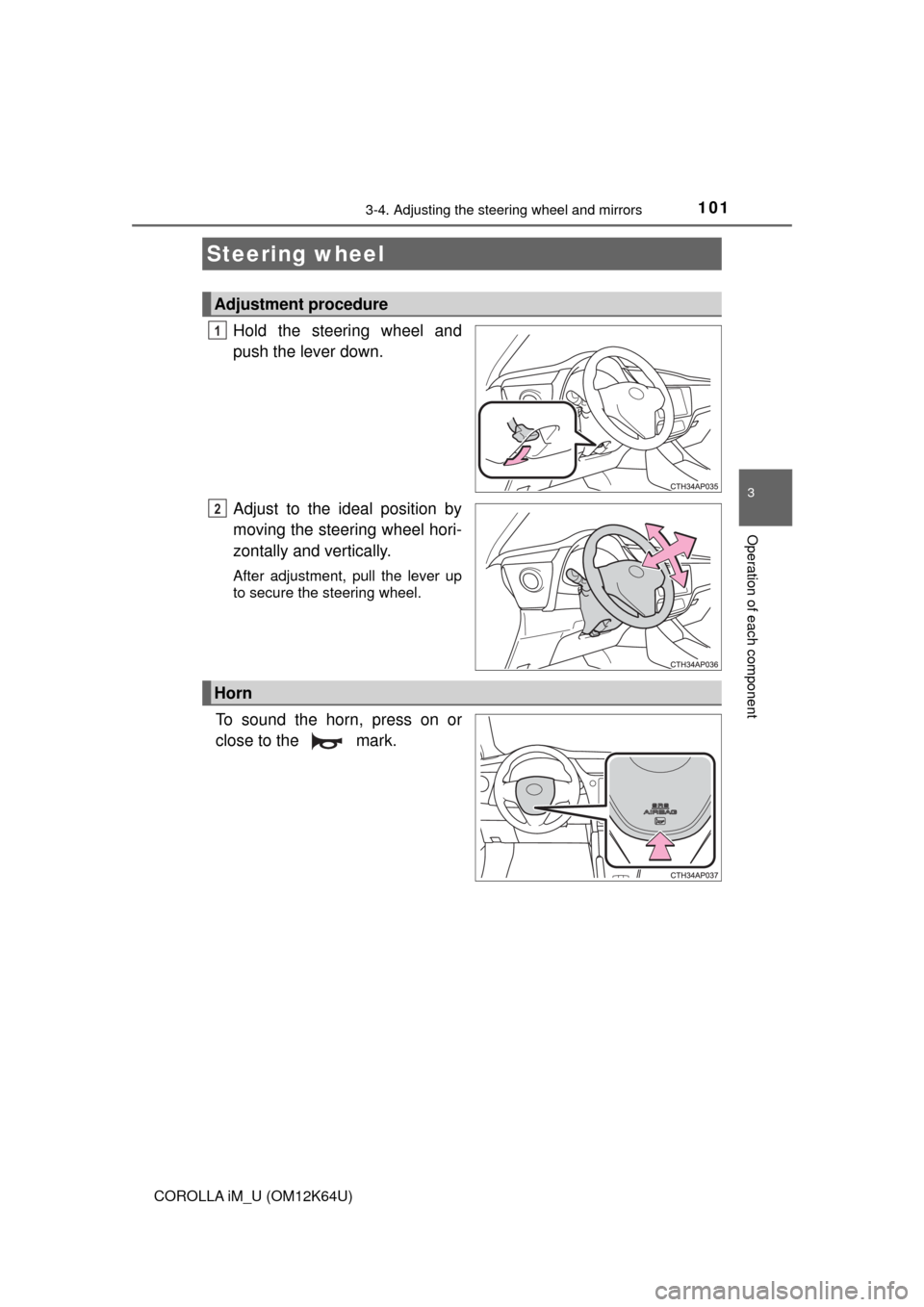

Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
1
2
Horn

1023-4. Adjusting the steering wheel and mirrors
COROLLA iM_U (OM12K64U)
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury. Also, the horn may not
sound if the steering wheel is not securely locked.

1033-4. Adjusting the steering wheel and mirrors
3
Operation of each component
COROLLA iM_U (OM12K64U)

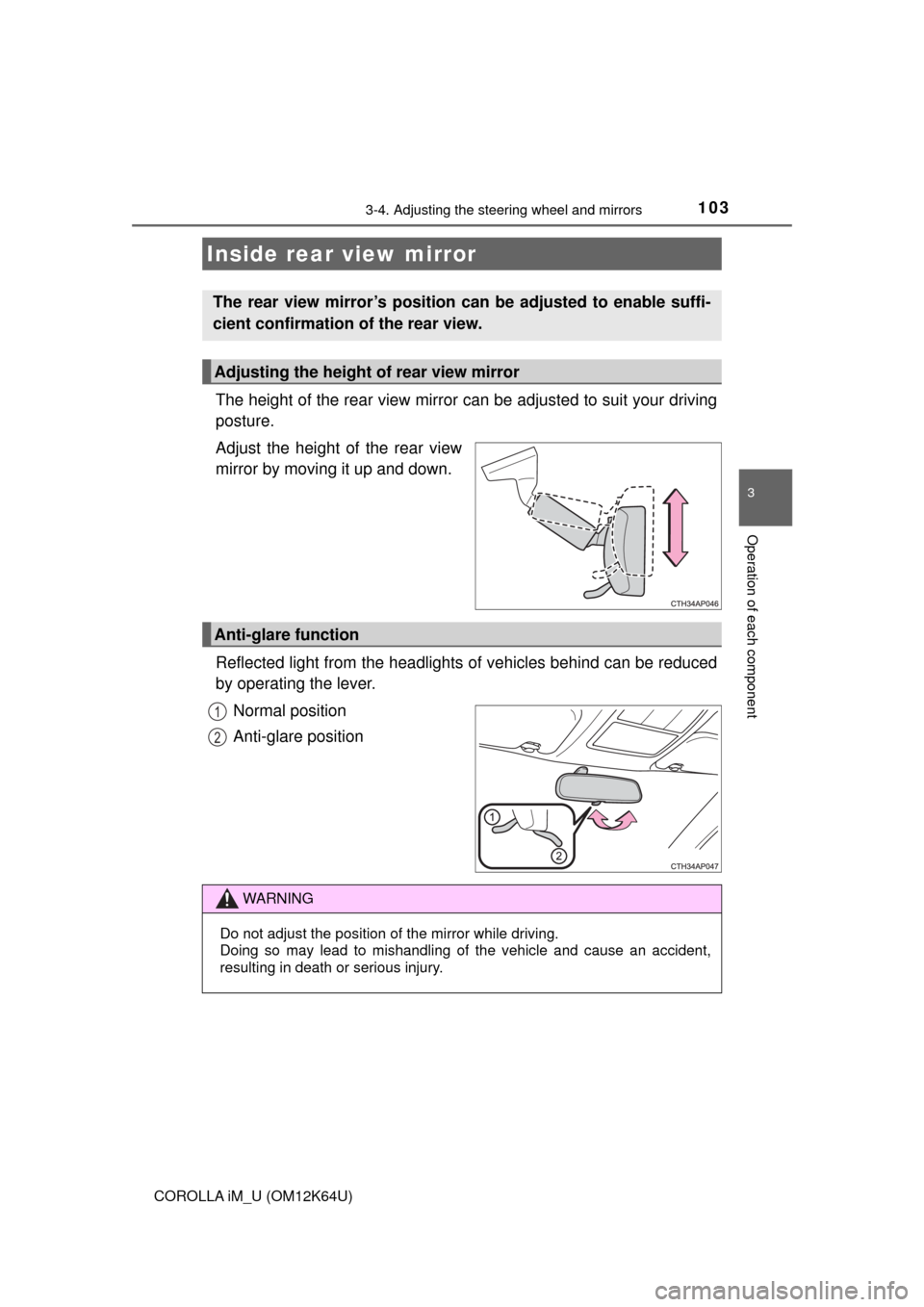

The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

1043-4. Adjusting the steering wheel and mirrors
COROLLA iM_U (OM12K64U)

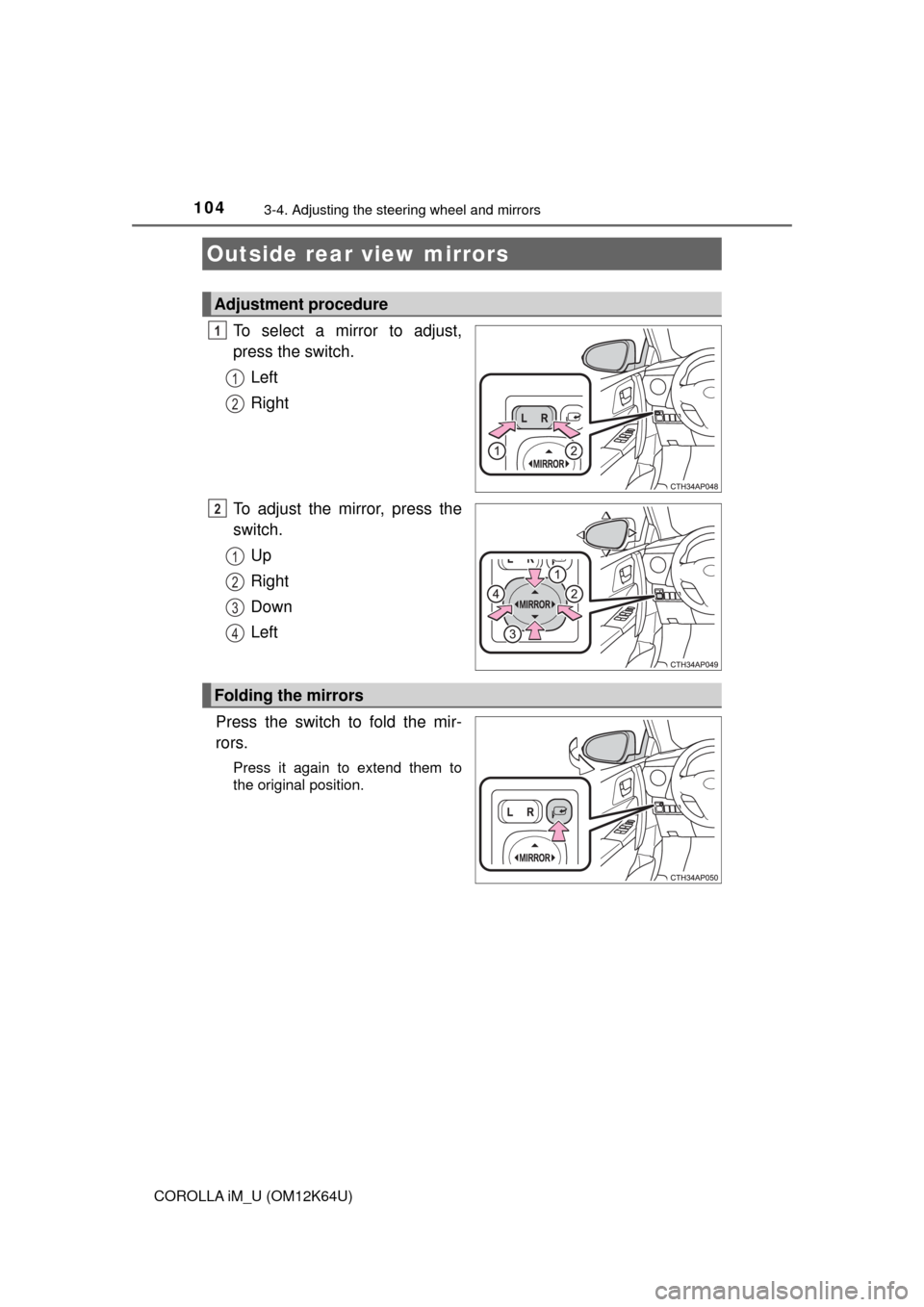

To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Folding the mirrors

1053-4. Adjusting the steering wheel and mirrors
3
Operation of each component
COROLLA iM_U (OM12K64U)
■Mirror angle can be adjusted when
The engine switch is in the “ACC” or “ON” position.
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (→P. 199)
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

106
COROLLA iM_U (OM12K64U)
3-5. Opening and closing the windows

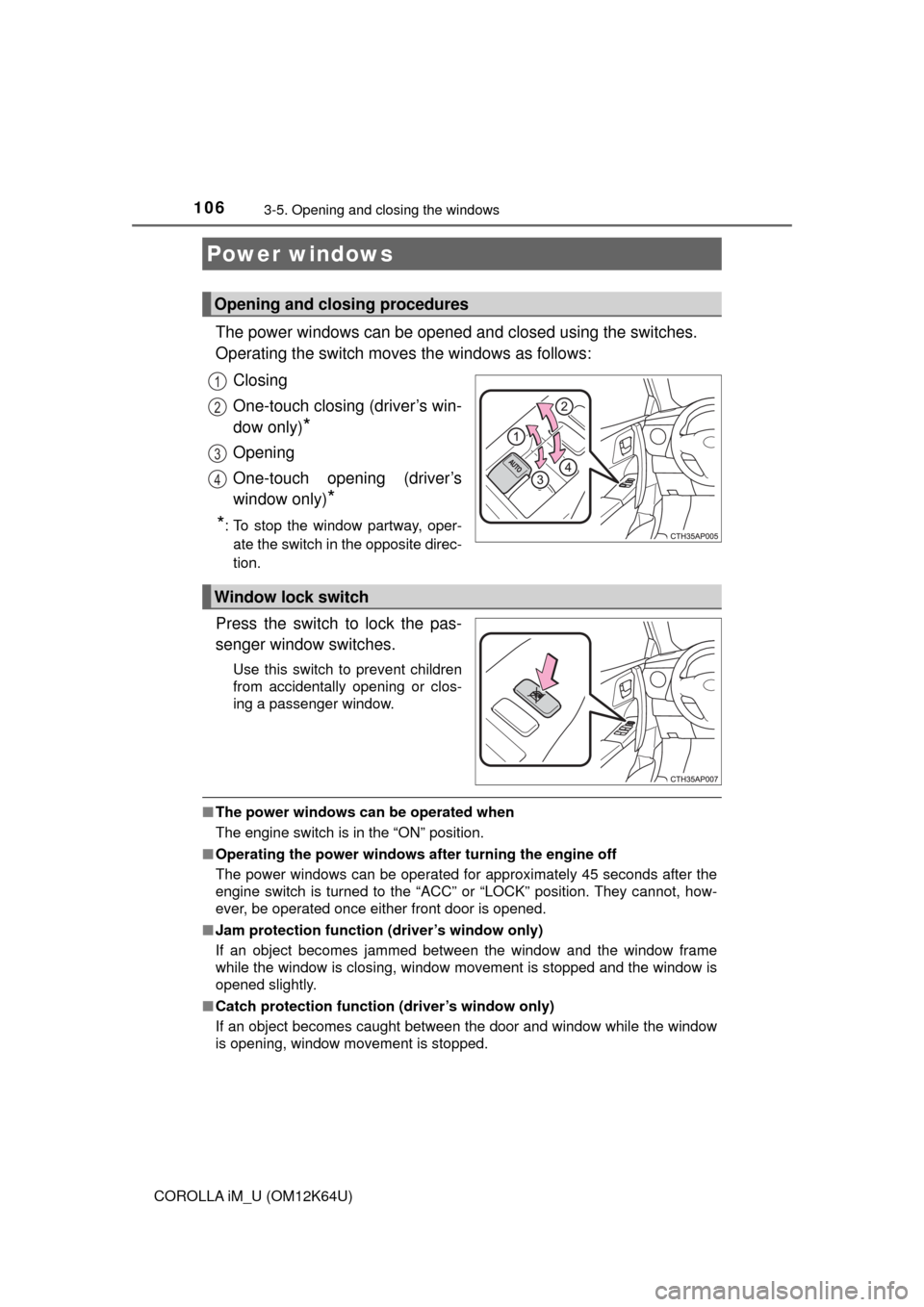

The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
■The power windows can be operated when
The engine switch is in the “ON” position.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. They cannot, how-
ever, be operated once either front door is opened.
■Jam protection function (driver’s window only)
If an object becomes jammed between the window and the window frame
while the window is closing, window movement is stopped and the window is
opened slightly.
■Catch protection function (driver’s window only)
If an object becomes caught between the door and window while the window
is opening, window movement is stopped.
Power windows
Opening and closing procedures
1
2
3
4
Window lock switch

1073-5. Opening and closing the windows
3
Operation of each component
COROLLA iM_U (OM12K64U)■When the window cannot be opened or closed (driver’s window only)
When the jam protection function or catch protection function operates
unusually and the door window cannot be opened or closed, perform the fol-
lowing operations with the power window switch of that door.
●Stop the vehicle. With the engine switch in the “ON” position, within 4 sec-
onds of the jam protection function or catch protection function activating,
continuously operate the power window switch in the one-touch closing
direction or one-touch opening direction so that the door window can be
opened and closed.
●If the door window cannot be opened and closed even when performing the
above operations, perform the following procedure for function initialization.
Turn the engine switch to the “ON” position.
Pull and hold the power window switch in the one-touch closing direction
and completely close the door window.
Release the power window switch for a moment, resume pulling the switch
in the one-touch closing direction, and hold it there for approximately 6 sec-
onds or more.
Press and hold the power window switch in the one-touch opening direc-
tion. After the door window is completely opened, continue holding the
switch for an additional 1 second or more.
Release the power window switch for a moment, resume pressing the
switch in the one-touch opening direction, and hold it there for approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction
again. After the door window is completely closed, continue holding the
switch for a further 1 second or more.
If you release the switch while the window is moving, start again from the
beginning.
If the window reverse and cannot be fully closed or opened, have the vehicle
inspected by your Toyota dealer.
1
2
3
4
5
6

1083-5. Opening and closing the windows
COROLLA iM_U (OM12K64U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch.(→P. 106)
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
●When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■Jam protection function (driver’s window only)
●Never use any part of your body to intentionally activate the jam protection
function.
●The jam protection function may not work if something gets jammed just
before the window is fully closed. Be careful not to get any part of your
body jammed in the window.
■Catch protection function (driver’s window only)
●Never use any part of your body or clothing to intentionally activate the
catch protection function.
●The catch protection function may not work if something gets caught just
before the window is fully opened. Be careful not to get any part of your
body or clothing caught in the window.

109
4Driving
COROLLA iM_U (OM12K64U)4-1. Before driving
Driving the vehicle ............. 110
Cargo and luggage ........... 120
Vehicle load limits ............. 123
Trailer towing..................... 124
Dinghy towing
(vehicles with a
continuously variable
transmission)................... 125
Dinghy towing
(vehicles with a manual
transmission)................... 126
4-2. Driving procedures
Engine (ignition) switch ..... 128
Continuously variable
transmission .................... 131
Manual transmission ......... 137
Turn signal lever................ 139
Parking brake .................... 140
4-3. Operating the lights
and wipers
Headlight switch ................ 141
Automatic High Beam ....... 145
Windshield wipers
and washer ..................... 149
Rear window wiper
and washer ..................... 1514-4. Refueling
Opening the fuel tank
cap .................................. 153
4-5. Using the driving
support systems
Toyota Safety Sense C ..... 157
PCS
(Pre-Collision System) .... 163
LDA
(Lane Departure Alert) .... 176
4-6. Using the driving
support systems
Cruise control .................... 181
Driving assist systems ...... 186
4-7. Driving tips
Winter driving tips ............. 192

110
COROLLA iM_U (OM12K64U)
4-1. Before driving
→P. 1 2 8
Continuously variable transmission
With the brake pedal depressed, shift the shift lever to D.
(→P. 131)
Release the parking brake. (→P. 140)
Gradually release the brake pedal and gently depress the accel-
erator pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(→P. 137)
Release the parking brake. (→P. 140)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Continuously variable transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the
shift lever to P or N. (→P. 131)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the
shift lever to N. (→P. 137)
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
Stopping
1
2
3
1
2
3
1
2
1
2
