712. Instrument cluster
2
Instrument cluster
COROLLA iM_U (OM12K64U)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
*1: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*3: If equipped

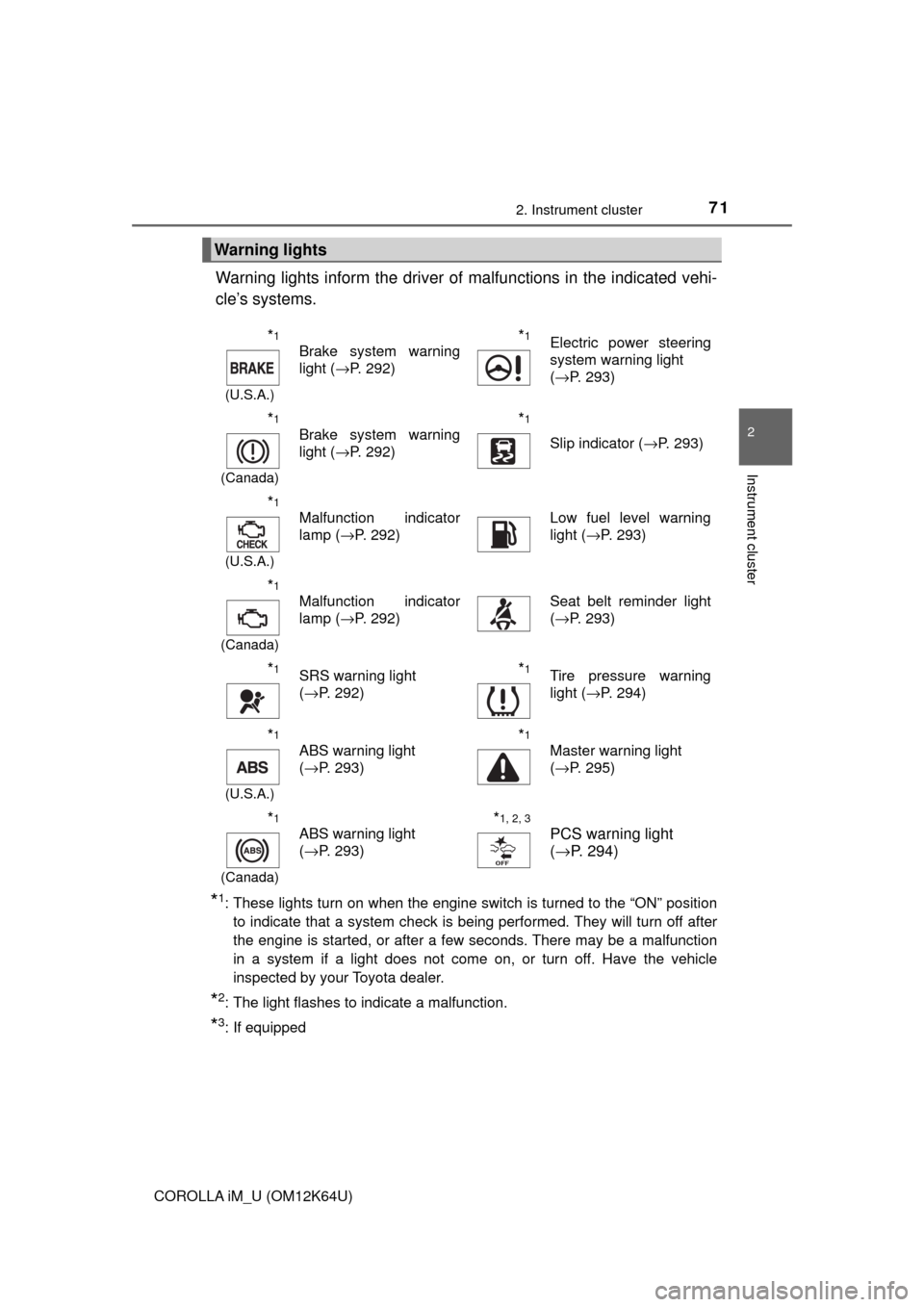

Warning lights
*1
(U.S.A.)
Brake system warning
light (→P. 292)*1Electric power steering
system warning light
(→P. 293)
*1
(Canada)
Brake system warning
light (→P. 292)*1
Slip indicator (→P. 293)
*1
(U.S.A.)
Malfunction indicator
lamp (→P. 292)Low fuel level warning
light (→P. 293)
*1
(Canada)
Malfunction indicator
lamp (→P. 292)Seat belt reminder light
(→P. 293)
*1SRS warning light
(→P. 292)*1Tire pressure warning
light (→P. 294)
*1
(U.S.A.)
ABS warning light
(→P. 293)*1
Master warning light
(→P. 295)
*1
(Canada)
ABS warning light
(→P. 293)*1, 2, 3
PCS warning light
(→P. 294)

722. Instrument cluster
COROLLA iM_U (OM12K64U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
*1: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light does not turn on when the system is disabled.
*4: This light illuminates on the center panel.

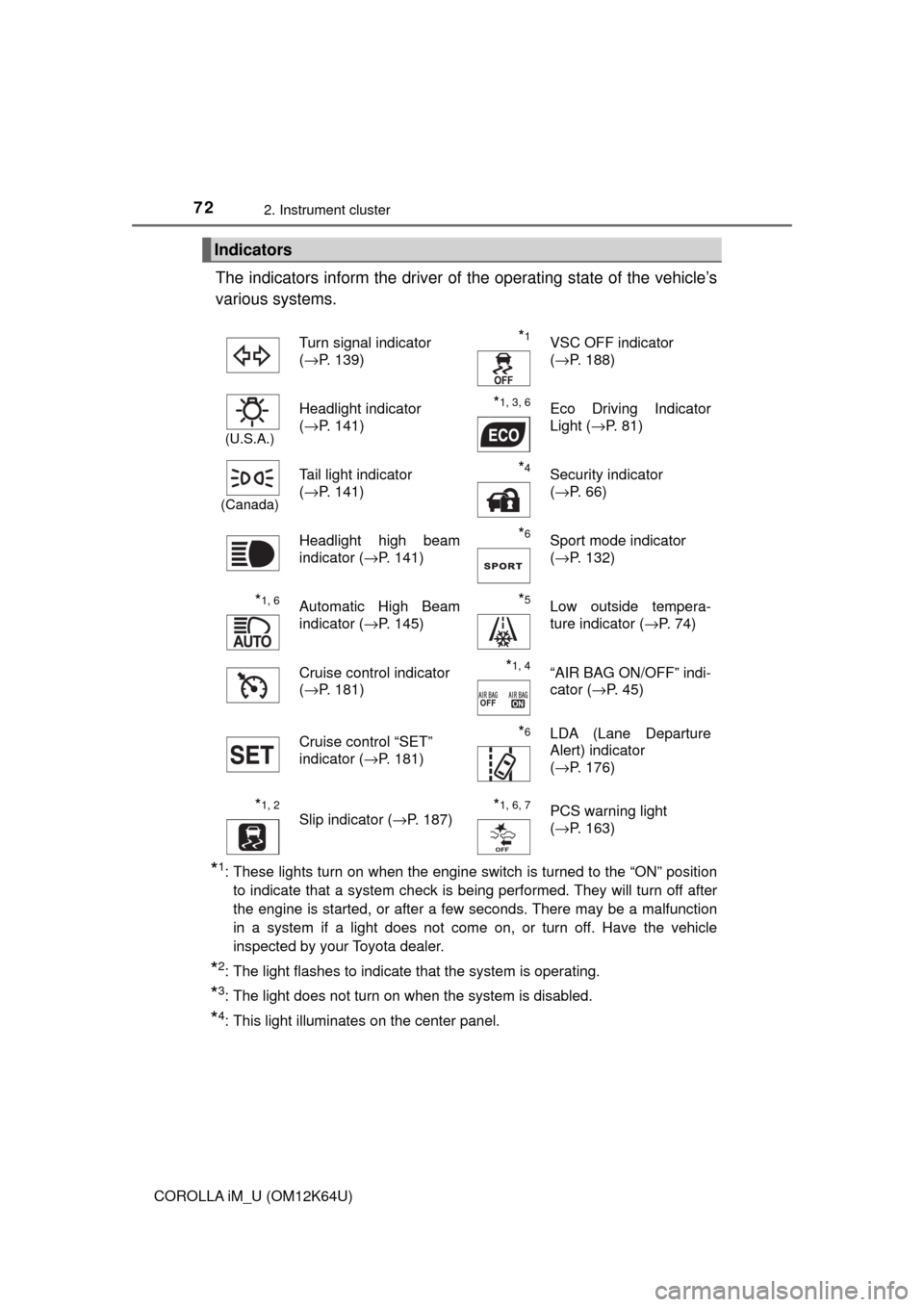

Indicators
Turn signal indicator
(→P. 139)*1VSC OFF indicator
(→P. 188)
(U.S.A.)
Headlight indicator
(→P. 141)*1, 3, 6Eco Driving Indicator
Light (→P. 81)
(Canada)
Tail light indicator
(→P. 141) *4Security indicator
(→P. 66)
Headlight high beam
indicator (→P. 141)
*6Sport mode indicator
(→P. 132)
*1, 6Automatic High Beam
indicator (→P. 145)*5Low outside tempera-
ture indicator (→P. 74)
Cruise control indicator
(→P. 181)
*1, 4“AIR BAG ON/OFF” indi-
cator (→P. 45)
Cruise control “SET”
indicator (→P. 181)
*6LDA (Lane Departure
Alert) indicator
(→P. 176)
*1, 2
Slip indicator (→P. 187)*1, 6, 7PCS warning light
(→P. 163)

732. Instrument cluster
2
Instrument cluster
COROLLA iM_U (OM12K64U)
*5: When the outside temperature is approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
*6: If equipped
*7: The light comes on when the system is turned off.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

742. Instrument cluster
COROLLA iM_U (OM12K64U)
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C).
Low outside temperature indicator comes on when the ambient tempera-
ture is 37°F (3°C) or lower.
Shift position and gear position indicator (if equipped)
→P. 131
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Multi-information display
→P. 7 6

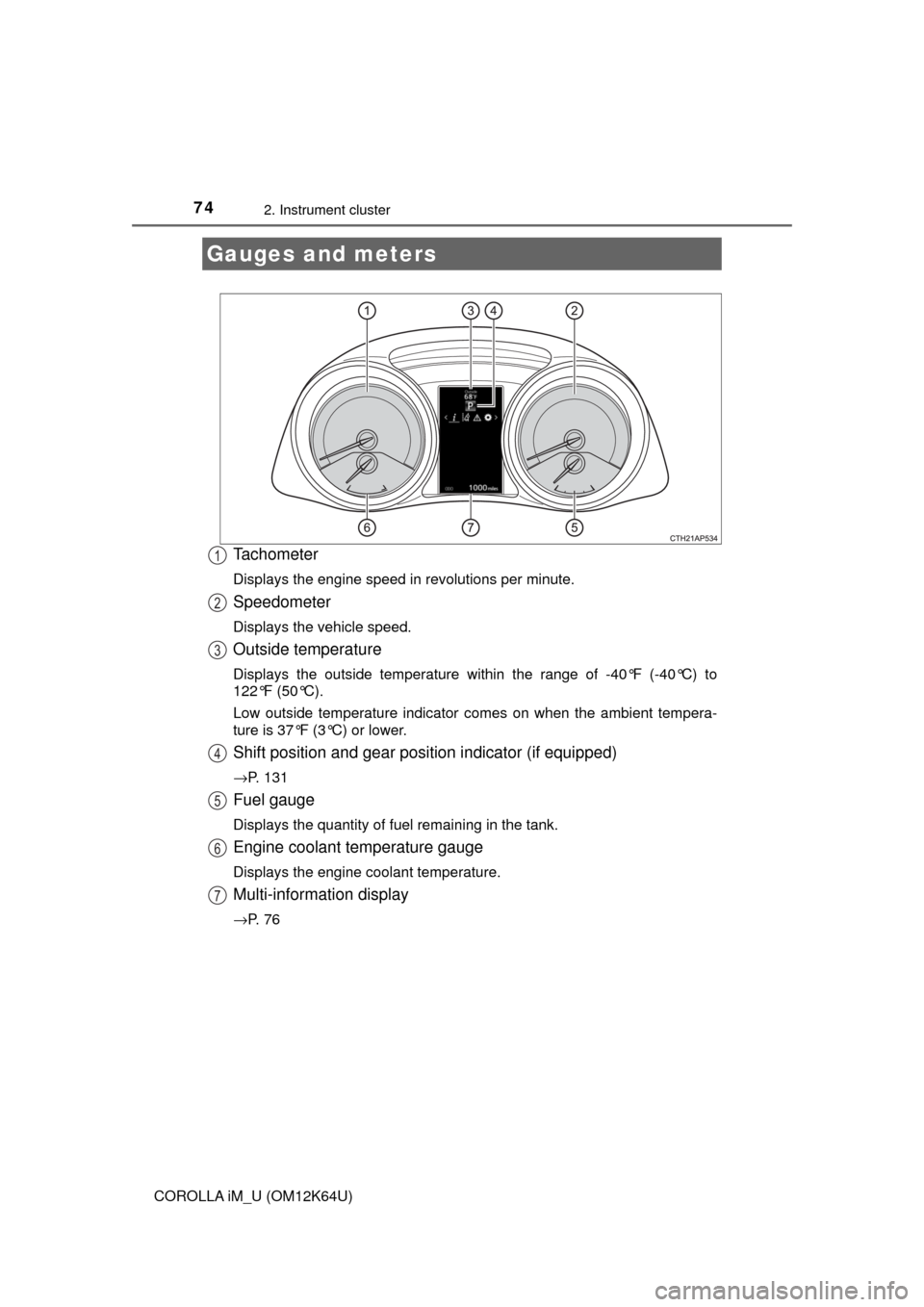

Gauges and meters
1
2
3
4
5
6
7

752. Instrument cluster
2
Instrument cluster
COROLLA iM_U (OM12K64U)
■The meters and display illuminate when
The engine switch is in the “ON” position.
■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 9 mph [15 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
●If “− −” is displayed continuously, the system may be malfunctioning. Take
your vehicle to your Toyota dealer.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge
enters the red zone. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (→P. 318)

762. Instrument cluster
COROLLA iM_U (OM12K64U)

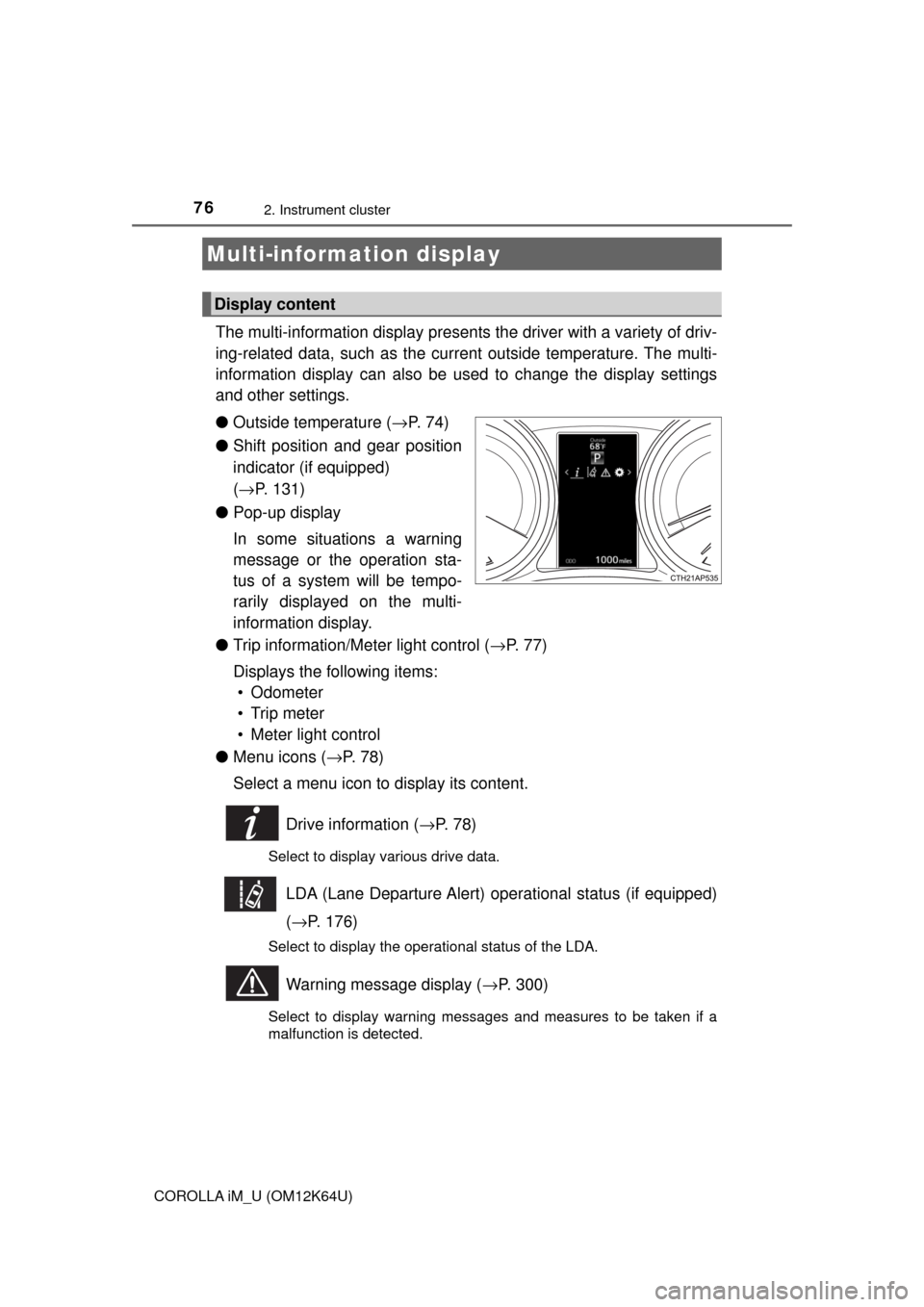

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
●Outside temperature (→P. 7 4 )
●Shift position and gear position
indicator (if equipped)
(→P. 131)
●Pop-up display
In some situations a warning
message or the operation sta-
tus of a system will be tempo-
rarily displayed on the multi-
information display.
●Trip information/Meter light control (→P. 7 7 )
Displays the following items:
•Odometer
•Trip meter
• Meter light control
●Menu icons (→P. 78)
Select a menu icon to display its content.
Drive information (→P. 7 8 )
Select to display various drive data.
LDA (Lane Departure Alert) operational status (if equipped)
(→P. 176)
Select to display the operational status of the LDA.
Warning message display (→P. 300)
Select to display warning messages and measures to be taken if a
malfunction is detected.
Multi-information display
Display content

772. Instrument cluster
2
Instrument cluster
COROLLA iM_U (OM12K64U)
Settings display (→P. 80)
Select to change the meter display settings and other settings.
◆Changing the display
To change the displayed item,
press the “TRIP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
■
Meter light control
Displays the meter light control display.
• The brightness of the meters can be adjusted individually for day mode
and night mode
*.
• If the brightness of the meters is adjusted when the tail lights are on, the
brightness of the clock and other items will also be adjusted.
• To adjust the brightness, display the meter light control display and
press and hold the “TRIP” switch.
*: Day mode and night mode: →P. 8 1
Trip information/Meter light control

782. Instrument cluster
COROLLA iM_U (OM12K64U)

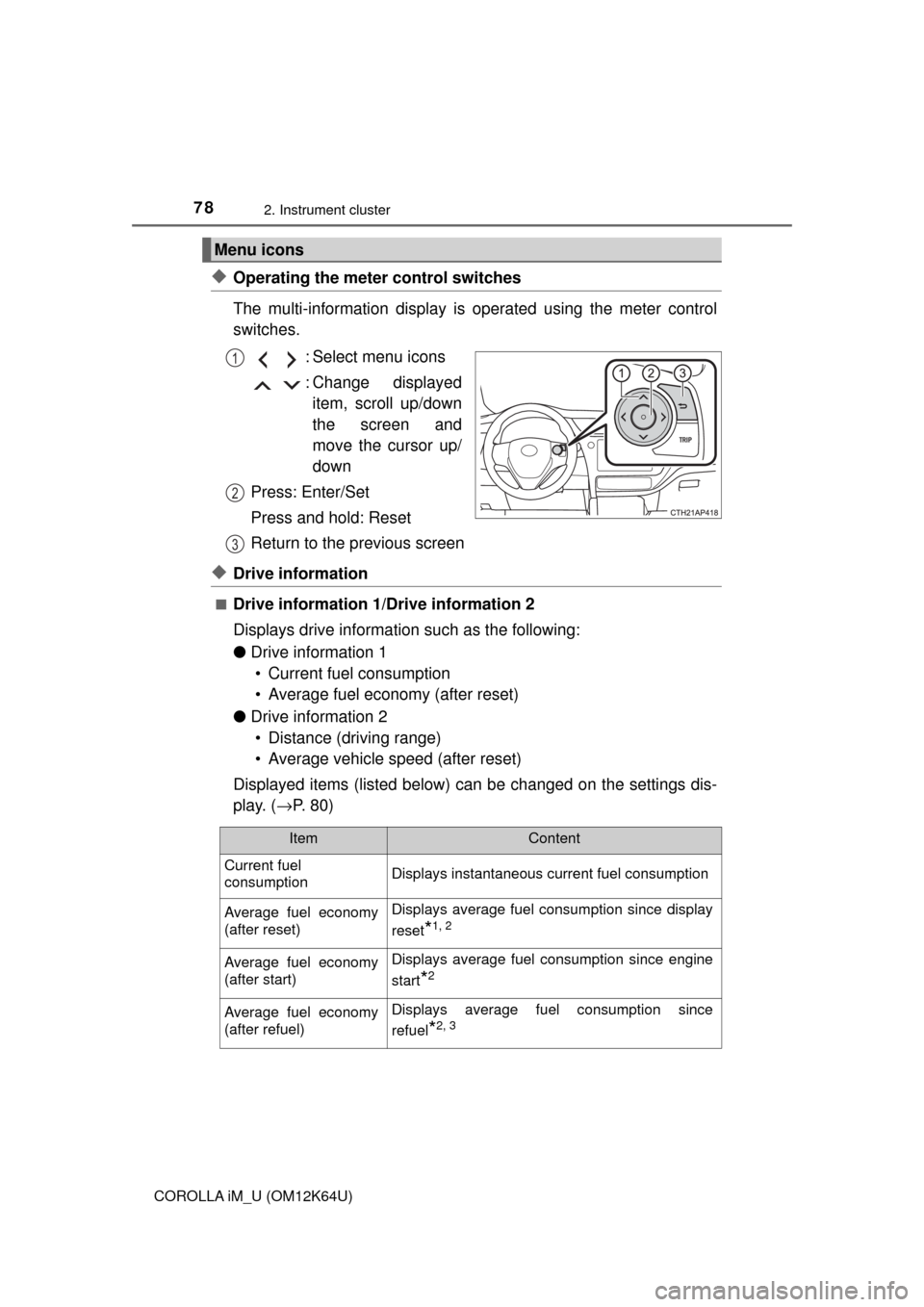

◆Operating the meter control switches
The multi-information display is operated using the meter control
switches.
: Select menu icons
: Change displayed
item, scroll up/down
the screen and
move the cursor up/
down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
◆Drive information
■Drive information 1/Drive information 2
Displays drive information such as the following:
●Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
●Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
Displayed items (listed below) can be changed on the settings dis-
play. (→P. 80)
Menu icons
1
2
3
ItemContent
Current fuel
consumptionDisplays instantaneous current fuel consumption
Average fuel economy
(after reset)Displays average fuel consumption since display
reset
*1, 2
Average fuel economy
(after start)Displays average fuel consumption since engine
start
*2
Average fuel economy
(after refuel)Displays average fuel consumption since
refuel
*2, 3

792. Instrument cluster
2
Instrument cluster
COROLLA iM_U (OM12K64U)
*1: To reset, display the desired item and press and hold switch. If both
displayed items are resettable, a reset selection screen will appear.
*2: Use the displayed fuel consumption as a reference.
*3: When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without
turning the engine switch off, the display may not be updated.
*4: This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that dis-
played.
■
Eco Driving Indicator (if equipped)
→P. 8 1
■Blank (No items)
Displays no drive information items.
Average vehicle speed
(after reset)Displays average vehicle speed since display
reset
*1
Average vehicle speed
(after start)Displays average vehicle speed since engine
start
Elapsed time
(after reset)Displays elapsed time since display reset*1
Elapsed time
(after start)Displays elapsed time since engine start
Distance
(driving range)Displays driving range with remaining fuel*3, 4
Distance
(after start)Displays drive distance since vehicle start
BlankNo item
ItemContent

802. Instrument cluster
COROLLA iM_U (OM12K64U)
◆Settings display
■LDA (Lane Departure Alert) warning sensitivity (if equipped)
LDA warning sensitivity can be set to 2 different levels.
■Eco Driving Indicator Light (if equipped)
Select to activate/deactivate the Eco Driving Indicator Light.
■Language
Select to change the language on the display.
■Units
Select to change the units of measure displayed on the multi-infor-
mation display.
■Drive information 1/Drive information 2
Select to select up to 2 items that will be displayed on the Drive
information 1 screen and Drive information 2 screen respectively.
(→P. 78)
■Scheduled Maintenance (U.S.A. only)
Select to reset the message indicating maintenance is required
after the required maintenance is performed. (→P. 227)
■Initialize Display
Select to reset the meter display settings. (→P. 350)
