TOYOTA DYNA 100/150 2012 Owners Manual (in English)

AIR CONDITIONING SYSTEM95
Air flow selector
Move the lever to select the vents used
for air flow.
1. Panel—Air flows mainly from the
instrument panel vents.
2. Bi−level—Air flows from both the floor
vents and the instrument panel vents.
3. Floor—Air flows mainly from the floor
vents.
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
5. Windshield—Air flows mainly from the
windshield vents.
For details about air flow selector settings,
see “Air flow selector settings” described
below.Air intake selector
Move the lever to select the air source.
1. Recirculate—Recirculates the air inside
the vehicle.
2. Fresh—Draws outside air into the sys-
tem.
Dyna100/150_EE

96AIR CONDITIONING SYSTEM
“A/C” button (on some models)
To turn the air conditioning on, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
Dyna100/150_EE

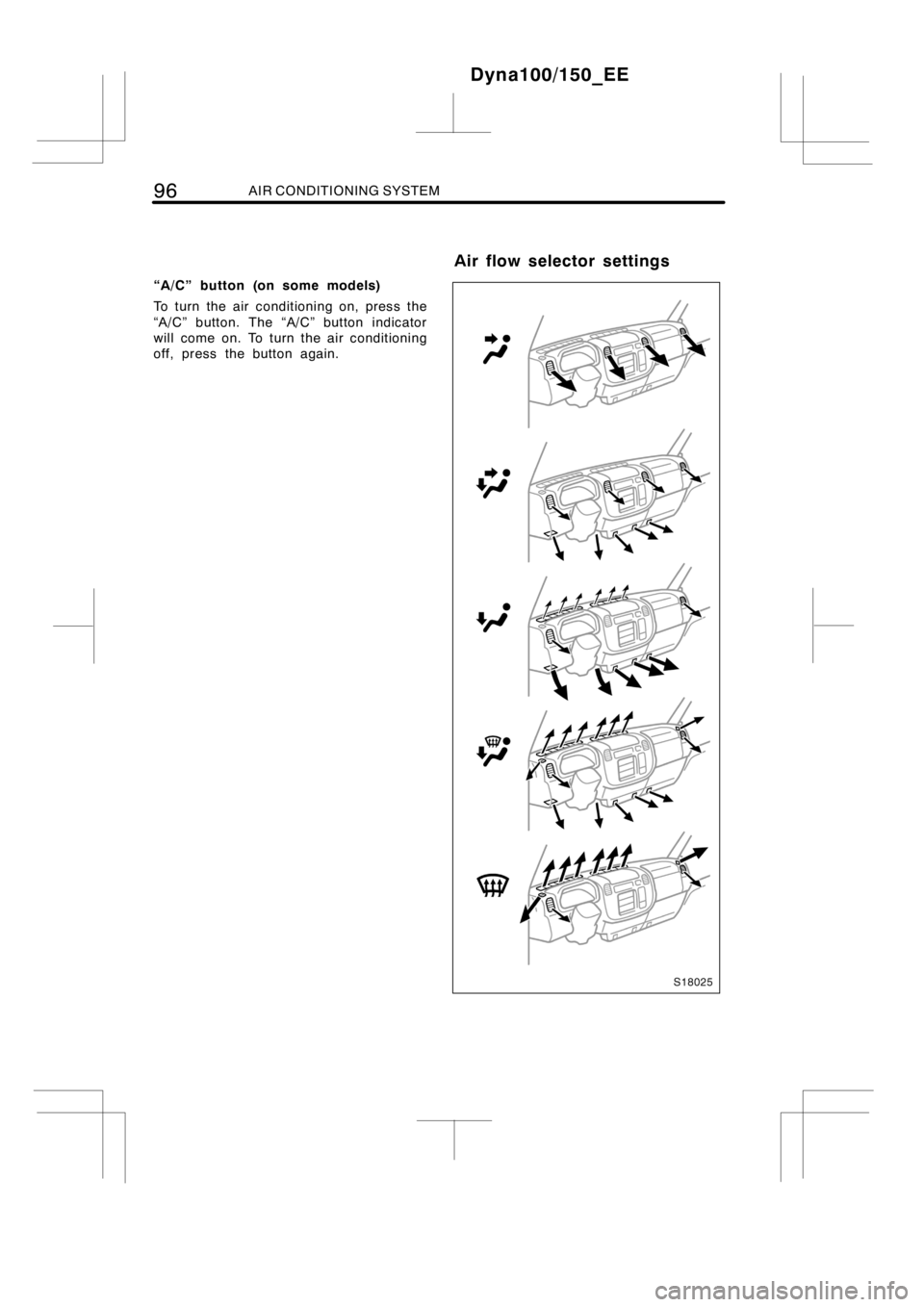

Air flow selector settings

AIR CONDITIONING SYSTEM97
DTo cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
DMake sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
DKeep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
DOn cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
DWhen driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
DIf following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
DDuring use, various odors from inside
and outside the vehicle may enter into
and accumulate in the air conditioning
system. This may then causeodor to
be emitted from the vents.
DTo reduce potential odors from occur-
ring:
It is recommended that the air condi-
tioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
To prevent the windshield from fog-
ging up, do not select the windshield
air outlets during cool air operation
in extremely humid weather. The dif-
ference between the temperature of
the outside air and that of the wind-
shield can cause the outer surface of
the windshield to fog up, blocking
your vision.
NOTICE
To prevent battery discharge, do not
leave the air conditioning system on
longer than necessary when the en-
gine is stopped.
Heating
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d sWARM
(red zone)
Air intake—FRESH(outside air)
Air flow—FLOOR
Air conditioning—OFF
DFor quick heating, set the temperature
selector lever to the right end position
and select recirculated air mode for a
few minutes. To keep the windows from
fogging after the vehicle interior has
been warmed, select fresh air mode.
DPress the “A/C” button on for dehumidi-
fied heating.
DChoose floor/windshield air flow to heat
the vehicle interior while defrosting the
windshield.
Dyna100/150_EE
Operating tips

98AIR CONDITIONING SYSTEM
Air conditioning
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d sCOLD
(blue zone)
Air intake—FRESH(outside air)
Air flow—PANEL
Air conditioning—ON
DFor quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d sCOLD
(blue zone)
Air intake—FRESH(outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d sWARM(red
zone) to heat;COLD
(blue zone) to cool
Air intake—FRESH(outside air)
Air flow—WINDSHIELD
Air conditioning—ON
DOn humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d sWARM
(red zone)
Air intake—FRESH(outside air)
Air flow—WINDSHIELD
DTo heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Dyna100/150_EE

AIR CONDITIONING SYSTEM99
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
Dyna100/150_EE
Side vents

100AIR CONDITIONING SYSTEM
1. Fan speed selector
Turn the knob to adjust the fan speed—to
the “HI” to increase, to the “OFF” to de-
crease.
2. Temperature selector
Move the lever to adjust the tempera-
ture—move it up for higher temperature,
down for lower temperature.
Dyna100/150_EE
Rear heater system

AIR CONDITIONING SYSTEM101

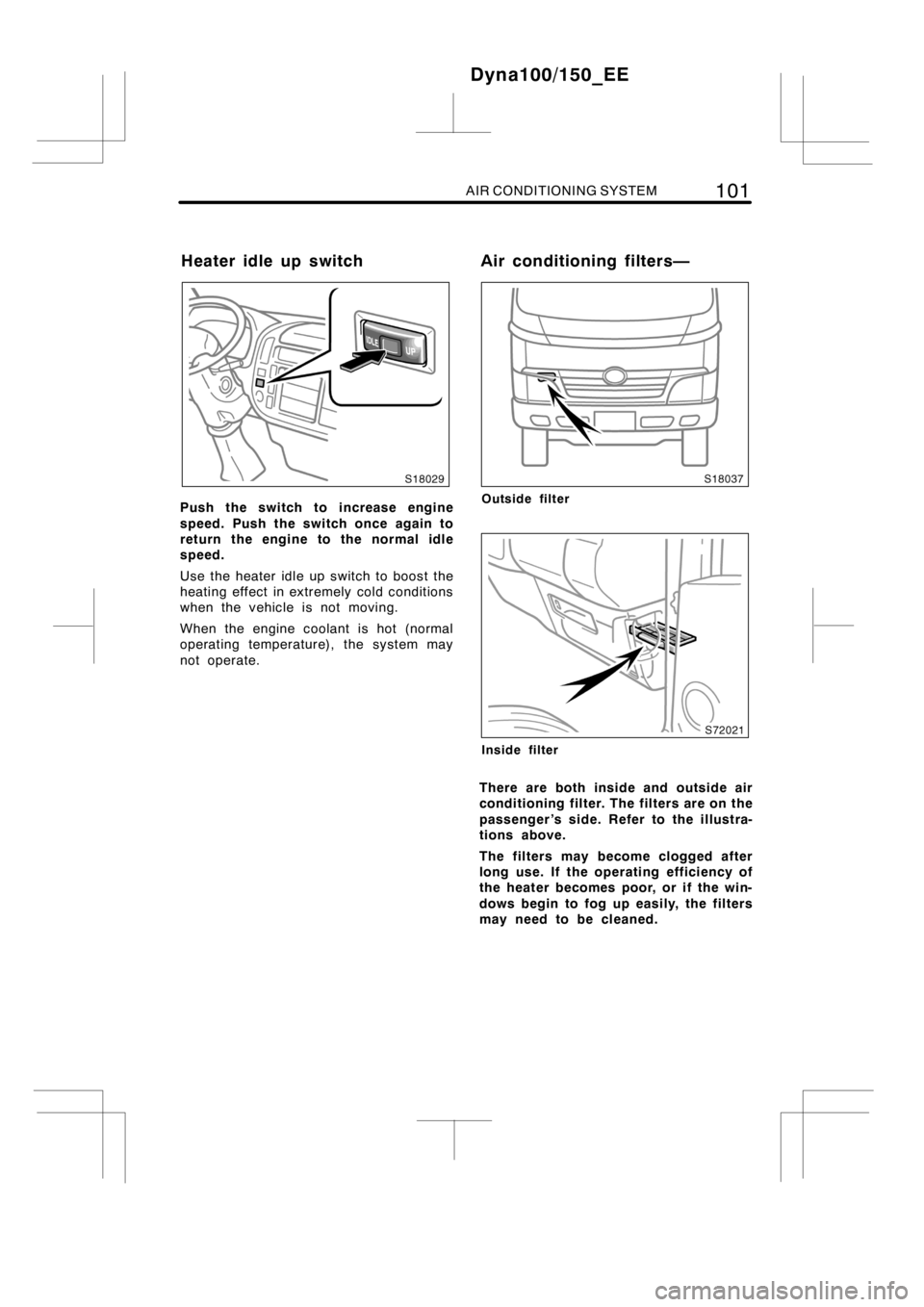

Push the switch to increase engine
speed. Push the switch once again to
return the engine to the normal idle
speed.
Use the heater idle up switch to boost the
heating effect in extremely cold conditions
when the vehicle is not moving.
When the engine coolant is hot (normal
operating temperature), thesystem may
not operate.Outside filter
Inside filter
There are both inside and outside air
conditioning filter. The filters are on the
passenger ’s side. Refer to theillustra-
tions above.
The filters may become clogged after
long use. If the operating efficiency of
the heater becomes poor, or if the win-
dows begin to fog up easily, the filters
may need to be cleaned.
Dyna100/150_EE
Heater idle up switch Air conditioning filters—

102AIR CONDITIONING SYSTEM
: Upper clips
: Lower clips
1. Before cleaning the air conditioning
filter,besuretoturnoffthefan.
Remove the front grille bolt with a
Phillips−head screwdriver. Then, re-
move the clips at the lower part of
the front grille first, and at the up-
per part next, and take off the front
grille.
NOTICE
To remove the front grille without
damaging it, pull it straight as shown
in the illustrations.
Dyna100/150_EE
—Cleaning the outside filter

AIR CONDITIONING SYSTEM103

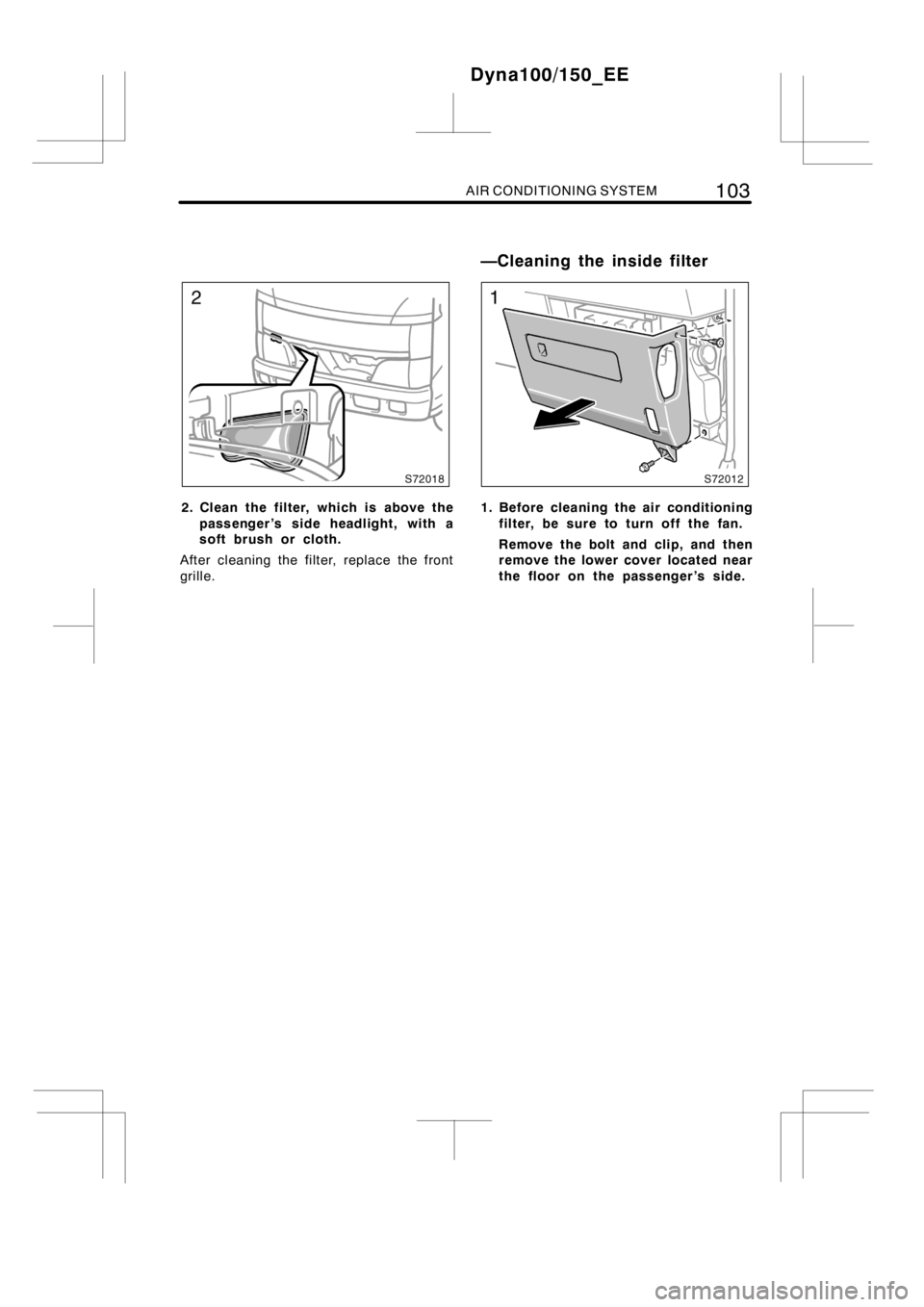

2. Clean the filter, which is above the
passenger ’s side headlight, with a
soft brush or cloth.
After cleaning the filter, replace the front
grille.1. Before cleaning the air conditioning
filter,besuretoturnoffthefan.
Remove the bolt and clip, and then
remove the lower cover located near
the floor on the passenger ’s side.
Dyna100/150_EE
—Cleaning the inside filter

104AIR CONDITIONING SYSTEM

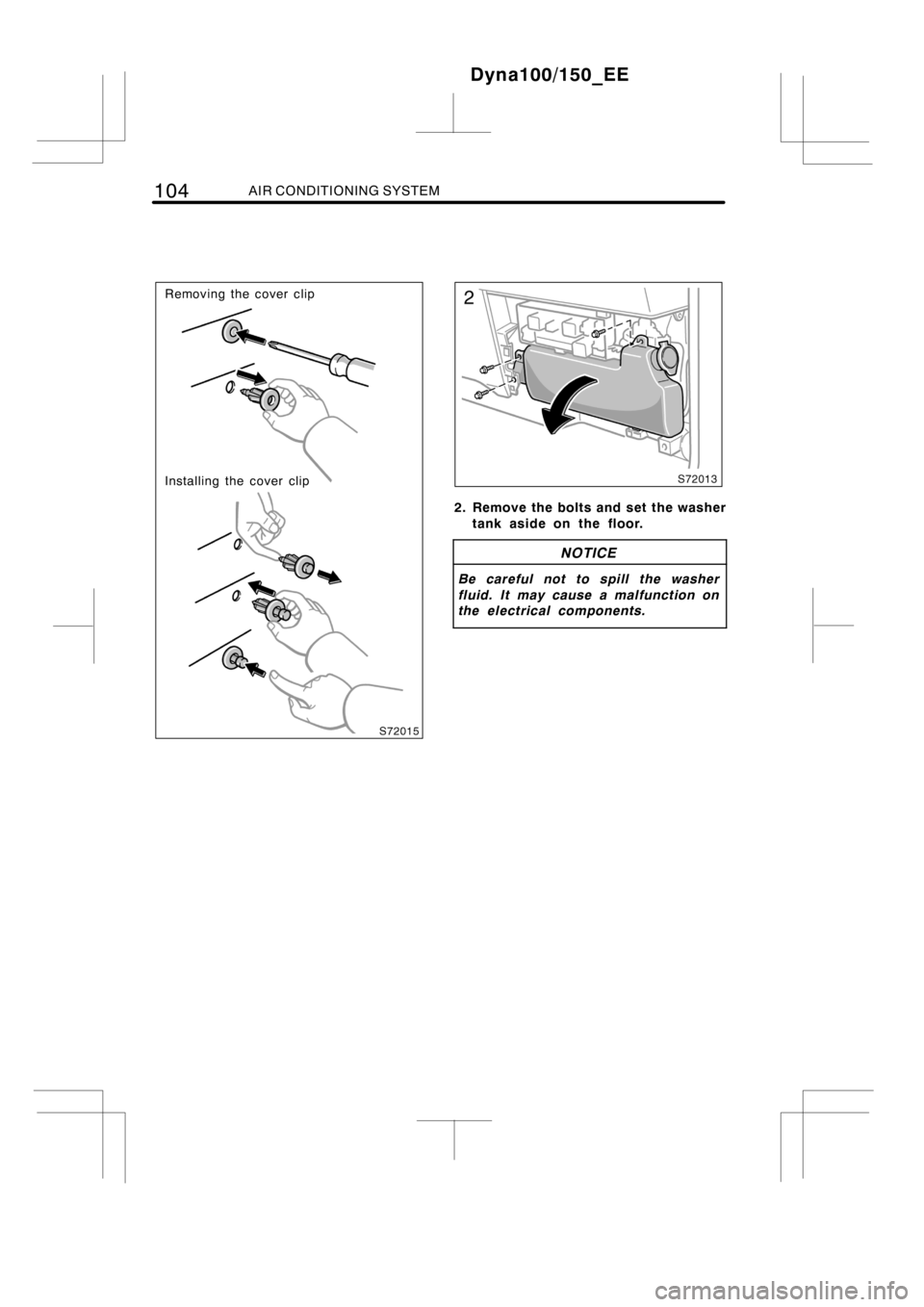

Removing the cover clip
Installing the cover clip
2. Remove the bolts and set the washer
tank aside on the floor.
NOTICE
Be careful not to spill the washer
fluid. It may cause a malfunction on
the electrical components.
Dyna100/150_EE
