To adjust the rear view mirror, simply
operate the control lever.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de−icer to free
the mirror.
SP13503
Adjust the mirror so you can just see
the rear of your vehicle in the mirror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight drivingLever at position 1
The reflection in the mirror has greater
clarity at this position.
Night drivingLever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Rear view mirror remote
controlAnti−glare inside rear view
mirror

ECHO_U
612000 ECHO (OM52411U)
Vanity mirror
SU13061
To use the vanity mirrors, swing down
the sun visor and open the cover.

ECHO_U
622000 ECHO (OM52411U)

ECHO_U
632000 ECHO (OM52411U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Windshield wipers and washer 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1− 4

ECHO_U
642000 ECHO (OM52411U)
Headlights and turn signals
SP14001
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1Parking, tail, license plate,
side marker and instrument panel lights
Position 2Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlights and
taillights left on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the "OFF" position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Vehicles for the U.S.A.: The headlights
automatically turn to full intensity in the
twilight even with the light switch in the
"OFF" position.
SP14002
High−Low beamsFor high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to "OFF".

ECHO_U
652000 ECHO (OM52411U)
SP14003
TURN SIGNALS

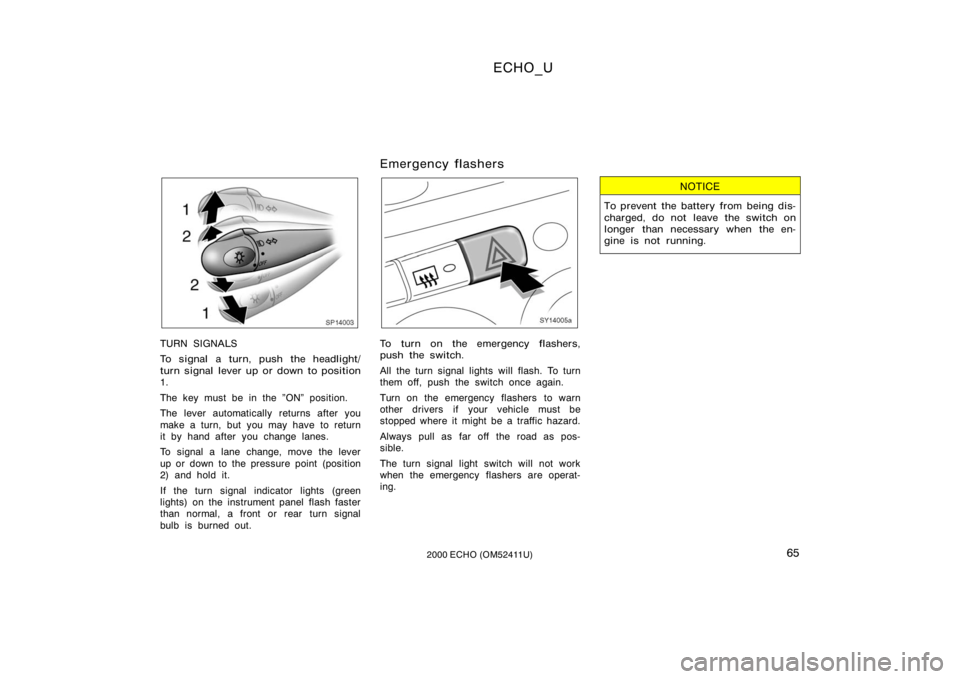

To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the "ON" position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
SU14005
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.

ECHO_U
662000 ECHO (OM52411U)
Instrument panel light control
SU14006
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Interior light
SU14007
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
"ON"Keeps the light on all the time.
"OFF"Turns the light off.
"DOOR"Turns the light on when any of
the door is opened. The light remains on
for a certain time after all the doors are
closed. When all the doors are locked or
the ignition switch is turned to "ACC" or
"ON" after all the doors are closed, the
light fades out.
SU14010
Type A
SU14011
Type B
Windshield wipers and
washer

ECHO_U
672000 ECHO (OM52411U)
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the "ON" position.
Ty p e A Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. To squirt washer fluid, pull the lever
toward you.
With interval adjuster: If the windshield
wipers are off, they will operate a couple
of times after the washer squirts.
For instructions on adding washer fluid,
see "Adding washer fluid" in Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window defogger
SY14013a
To defog or defrost the rear window,
push the switch.
The key must be in the "ON" position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
On some models, the system will automat-
ically shut off after the defogger has oper-
ated about 15 minutes.

ECHO_U
682000 ECHO (OM52411U)
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
To prevent the battery from being
discharged, turn the switch on
when the engine is running.
 When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires.
