VEHICLE MAINTENANCE AND CARE
Maintenance requirements178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Does your vehicle need repairing? 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
For scheduled maintenance information, please refer to the
ªScheduled Maintenance Guideº or ªOwner's Manual Supplementº.
SECTION 6

2001MY ECHO (U) L/O0008
1782001 ECHO (OM52440U)
Maintenance requirements
Your Toyota vehicle has been designed for
fewer maintenance requirements with long-
er service intervals to save both your time
and money. However, each regular mainte-
nance, as well as day±to±day care, is
more important than ever before to ensure
smooth, trouble±free, safe, and economical
drivings.
It is the owner 's responsibility to make
sure the specified maintenance, including
general maintenance service, is performed.
Note that both the new vehicle and emis-
sion control system warranties specify that
proper maintenance and care must be per-
formed. See ªOwner 's Warranty Informa-
tion Bookletº or ªOwner 's Manual Supple-
mentº for complete warranty information.
General maintenance
General maintenance items are those day±
to±day care practices that are important to
your vehicle for proper operation. It is the
owner 's responsibility to insure that the
general maintenance items are performed
regularly.
These checks or inspections can be done
either by yourself or a qualified technician,
or if you prefer, your Toyota dealer will be
pleased to do them at a nominal cost. Scheduled maintenance
The scheduled maintenance items listed in
the ªScheduled Maintenance Guideº or
ªOwner 's Manual Supplementº are those
required to be serviced at regular inter-
vals.
For details of your maintenance schedule,
read the ªScheduled Maintenance Guideº
or ªOwner 's Manual Supplementº.
It is recommended that any replacement
parts used for maintenance or for the
repair of the emission control system
be Toyota supplied.
The owner may elect to use non±Toyota
supplied parts for replacement pur-
poses without invalidating the emission
control system warranty. However, use
of replacement parts which are not of
equivalent quality may impair the effec-
tiveness of the emission control sys-
tems.
You may also elect to have
maintenance, replacement, or repair of
the emission control devices and
system performed by any automotive
repair establishment or individual
without invalidating this warranty. See
ªOwner 's Warranty Information Bookletº
or ªOwner 's Manual Supplementº for
complete warranty information.Where to go for service?
Toyota technicians are well±trained spe-
cialists and are kept up to date with the
latest service information through technical
bulletins, service tips, and in±dealership
training programs. They learn to work on
Toyotas before they work on your vehicle,
rather than while they are working on it.
You can be confident that your Toyota
dealer 's service department performs the
best job to meet the maintenance require-
ments on your vehicleÐreliably and eco-
nomically.
Your copy of the repair order is proof that
all required maintenance has been per-
formed for warranty coverage. And if any
problems should arise with your vehicle
while under warranty, your Toyota dealer
will promptly take care of it. Again, be
sure to keep a copy of the repair order
for any service performed on your Toyota.
What about do±it±yourself maintenance?
Many of the maintenance items are easy
to do yourself if you have a little mechani-
cal ability and a few basic automotive
tools. Simple instructions for how to per-
form them are presented in Section 7.

2001MY ECHO (U) L/O0008
1792001 ECHO (OM52440U)
If you are a skilled do±it±yourself
mechanic, the Toyota service manuals are
recommended. Please be aware that
do±it±yourself maintenance can affect your
warranty coverage. See ªOwner 's Warranty
Information Bookletº or ªOwner 's Manual
Supplementº for the details.
General maintenance
Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only where ade-
quate ventilation can be obtained if
you run the engine.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Tire pressure
Check the pressure with a gauge every
two weeks, or at least once a month. See
Section 7±2 for additional information.Tire surface and wheel nuts
Check the tires carefully for cuts, damage
or excessive wear. See Section 7±2 for
additional information. When checking the
tires, make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tries according to the
maintenance schedule. (For scheduled
maintenance information, please refer to
the ªScheduled Maintenance Guideº or
ªOwner 's Manual Supplementº.)
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.

2001MY ECHO (U) L/O0008
1802001 ECHO (OM52440U)
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position. For folding±down
rear seatbacks, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure that the
belt webbings are not cut, frayed, worn or
damaged.Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission ªParkº mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in ªPº position and all brakes re-
leased.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See Section 7±3 for additional in-
formation.
Engine coolant level
Make sure the coolant level is between
the ªFULLº and ªLOWº lines on the see±
through reservoir when the engine is cold.
See Section 7±2 for additional information.
Battery electrolyte level
Make sure the electrolyte level of all bat-
tery cells is between upper and lower lev-
el lines on the case. Add only distilled
water when replenishing. See Section 7±3
for additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See Section 7±2 for additional information.
Engine oil level
Check the level on the dipstick with the
engine turned off and the vehicle parked
on a level spot. See Section 7±2 for addi-
tional information.

2001MY ECHO (U) L/O0008
1812001 ECHO (OM52440U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the ªHOTº or ªCOLDº
range depending on the fluid temperature.
See Section 7±2 for additional information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See engine exhaust cautions in
Section 2.)Be on the alert for changes in perfor-
mance, sounds, and visual tip±offs that
indicate service is needed. Some impor-
tant clues are as follows:

Engine missing, stumbling, or pinging

Appreciable loss of power

Strange engine noises

A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)

Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)

Flat±looking tire; excessive tire squeal
when cornering; uneven tire wear

Vehicle pulls to one side when driving
straight on a level road

Strange noises related to suspension
movement

Loss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking

Engine coolant temperature continually
higher than normalIf you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?

2001MY ECHO (U) L/O0008
1822001 ECHO (OM52440U)

2001MY ECHO (U) L/O0008
1832001 ECHO (OM52440U)
DO±IT±YOURSELF MAINTENANCE
Introduction
Engine compartment overview184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do±it±yourself service precautions 185
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Positioning the jack 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 7± 1

2001MY ECHO (U) L/O0008
1842001 ECHO (OM52440U)
Engine compartment overview
1. Windshield washer fluid tank
2. Engine oil filler cap
3. Power steering fluid reservoir
4. Brake fluid reservoir
5. Battery
6. Fuse blocks
7. Engine coolant reservoir
8. Electric cooling fan
9. Engine oil level dipstick
SU71005

2001MY ECHO (U) L/O0008
1852001 ECHO (OM52440U)

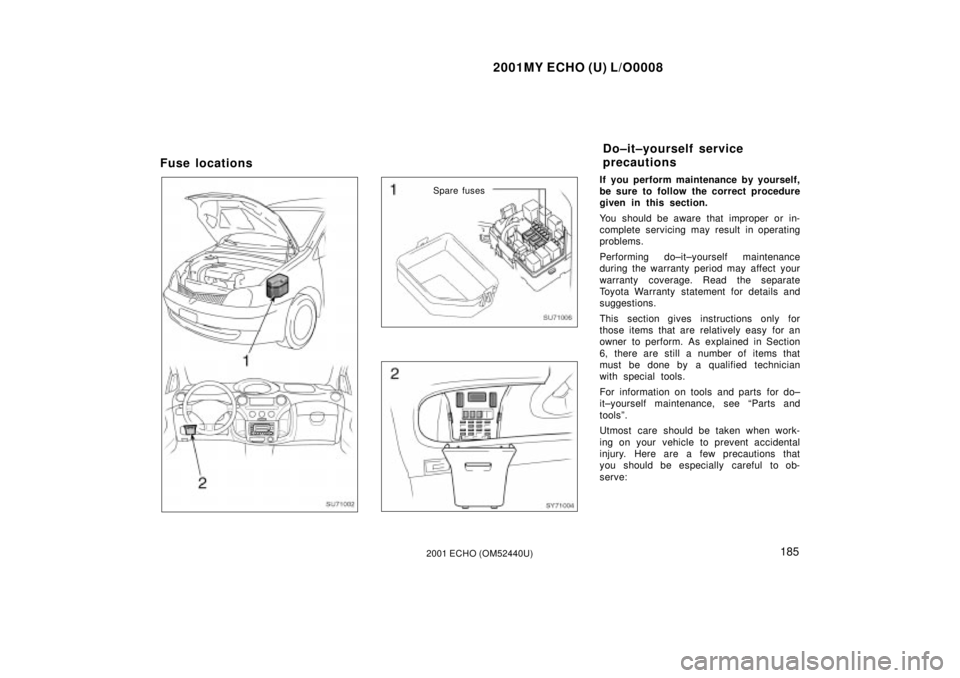

Fuse locations
SU71002
SU71006
Spare fuses
SY71004
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do±it±yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do±
it±yourself maintenance, see ªParts and
toolsº.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:
Do±it±yourself service
precautions

2001MY ECHO (U) L/O0008
1862001 ECHO (OM52440U)
CAUTION

When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)

Right after driving, the engine
compartmentÐthe engine, radiator,
exhaust manifold and spark plug
boots, etc.Ðwill be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.

If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.

Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.

Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.

Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.

Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.

Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.

Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.

Do not leave used oil within the
reach of children.

Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.

Take care when filling the brake and
clutch fluid reservoirs because
brake fluid can harm your eyes and
damage painted surfaces. If fluid
gets in your eyes, flush your eyes
with clean water immediately. If you
still feel uncomfortable with your
eyes, go to the doctor.
NOTICE
Remember that battery and ignitioncables carry high currents or volt-ages. Be careful of accidentallycausing a short circuit.
Add only demineralized or distilledwater to fill the radiator. And if youspill some of the coolant, be sure
to wash off with water to prevent itfrom damaging the parts or paint.
