CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
SY13063
4. To remove the infant seat, press thebuckle±release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
SU13042
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward±
facing or rear±facing position depend-
ing on the child's age and size. When
installing, follow the manufacturer's in-
structions about the applicable child's
age and size as well as directions for
installing the child restraint system.

2001MY ECHO (U) L/O0008
582001 ECHO (OM52440U)
SU12121

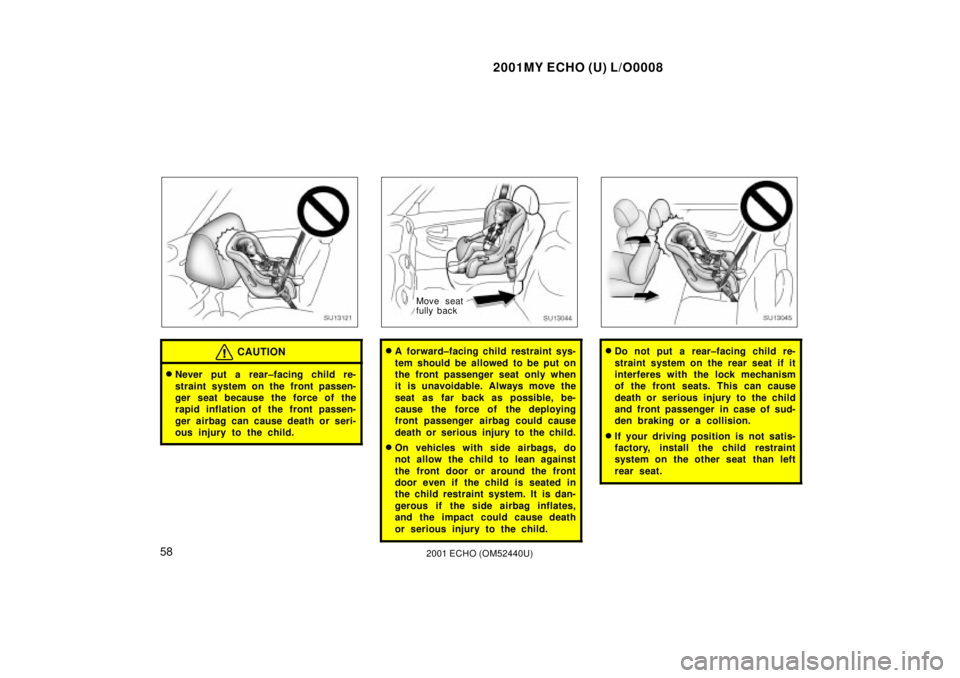

CAUTION

Never put a rear±facing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.
SU13044
Move seat
fully back

A forward±facing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, be-
cause the force of the deploying
front passenger airbag could cause
death or serious injury to the child.

On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
SU13045

Do not put a rear±facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
death or serious injury to the child
and front passenger in case of sud-
den braking or a collision.

If your driving position is not satis-
factory, install the child restraint
system on the other seat than left
rear seat.

2001MY ECHO (U) L/O0008
592001 ECHO (OM52440U)
SU13046

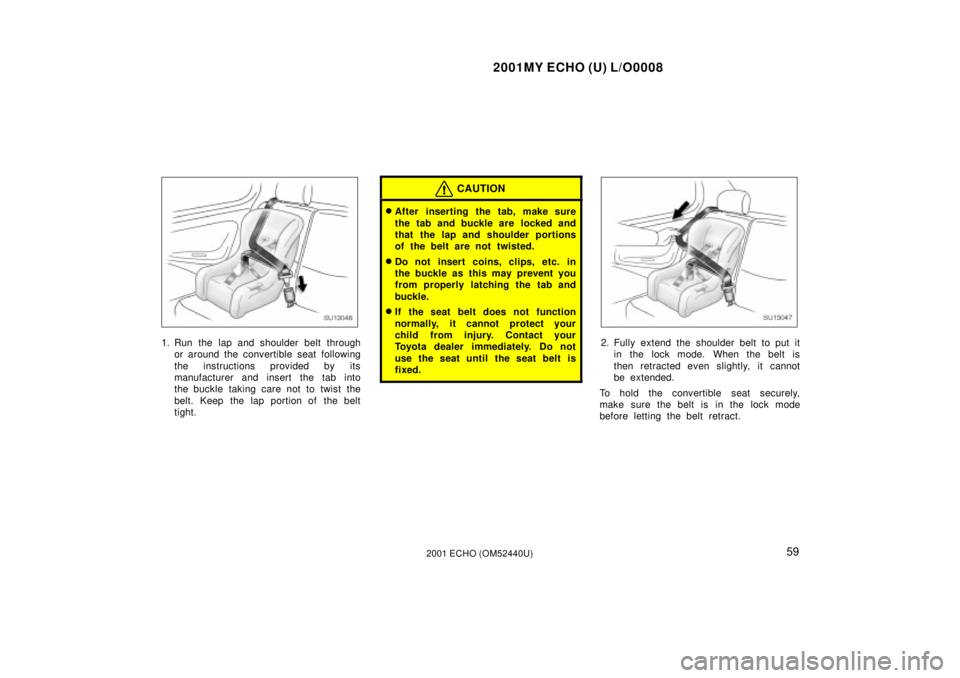

1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
SU13047
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

2001MY ECHO (U) L/O0008
602001 ECHO (OM52440U)

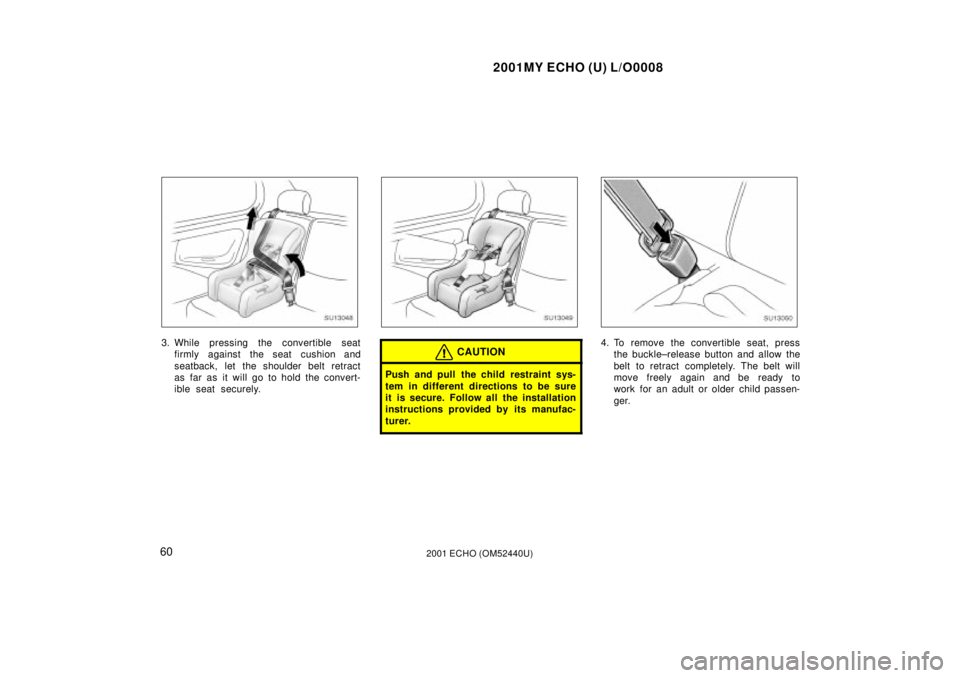

SU13048
3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
SU13049
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
SU13050
4. To remove the convertible seat, pressthe buckle±release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

2001MY ECHO (U) L/O0008
612001 ECHO (OM52440U)
SU13051

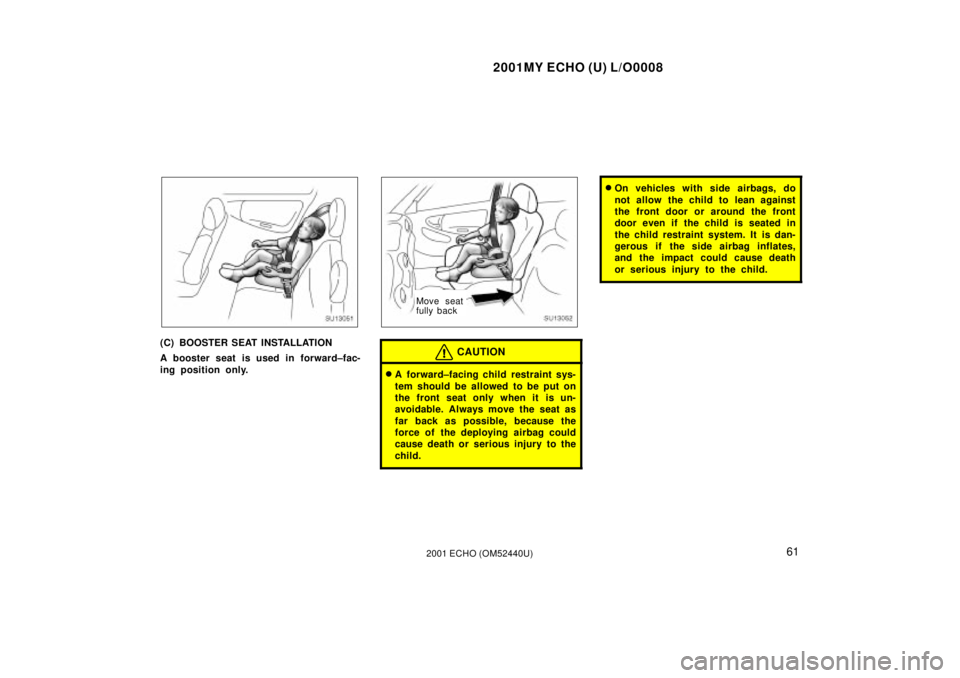

(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward±fac-
ing position only.
SU13052
Move seat
fully back
CAUTION

A forward±facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.

On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.

2001MY ECHO (U) L/O0008
622001 ECHO (OM52440U)
SU13053

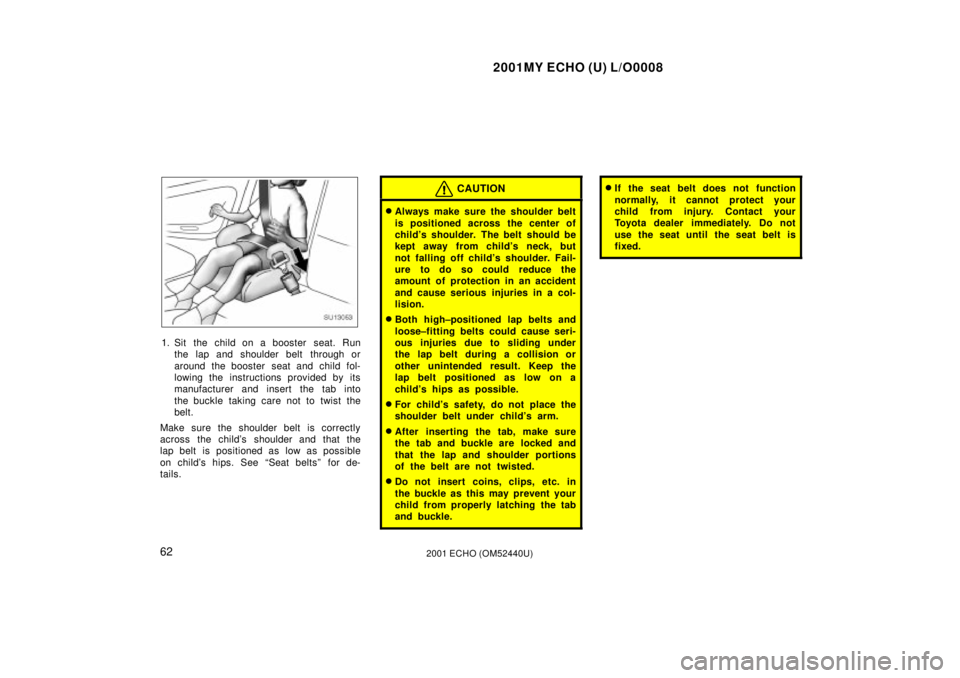

1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child's shoulder and that the
lap belt is positioned as low as possible
on child's hips. See ªSeat beltsº for de-
tails.
CAUTION

Always make sure the shoulder belt
is positioned across the center of
child's shoulder. The belt should be
kept away from child's neck, but
not falling off child's s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.

Both high±positioned lap belts and
loose±fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child's hips as possible.

For child's safety, do not place the
shoulder belt under child's arm.

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.

2001MY ECHO (U) L/O0008
632001 ECHO (OM52440U)
SU13054
2. To remove the child restraint system,press the buckle±release button and al-
low the belt to retract.
Ð U sin g a to p st rap
SU13101
Follow the procedure below for a child
restraint system that use of a top strap
to secure the system. Follow all the
installation instructions provided by its
manufacturer.

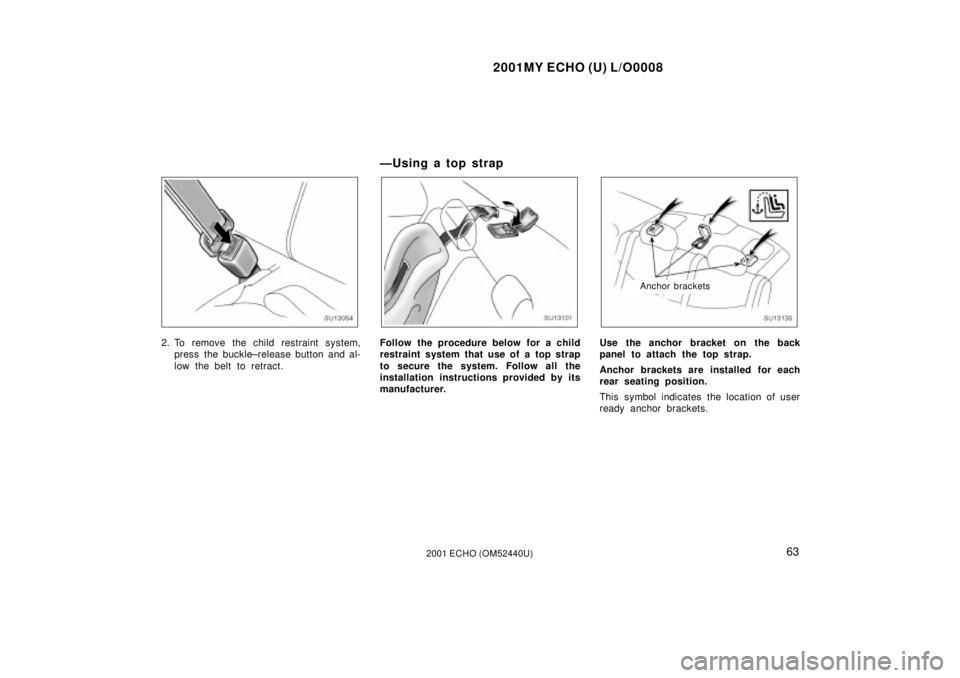

SU13135
Anchor brackets
Use the anchor bracket on the back
panel to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of user
ready anchor brackets.

2001MY ECHO (U) L/O0008
642001 ECHO (OM52440U)
SU13103

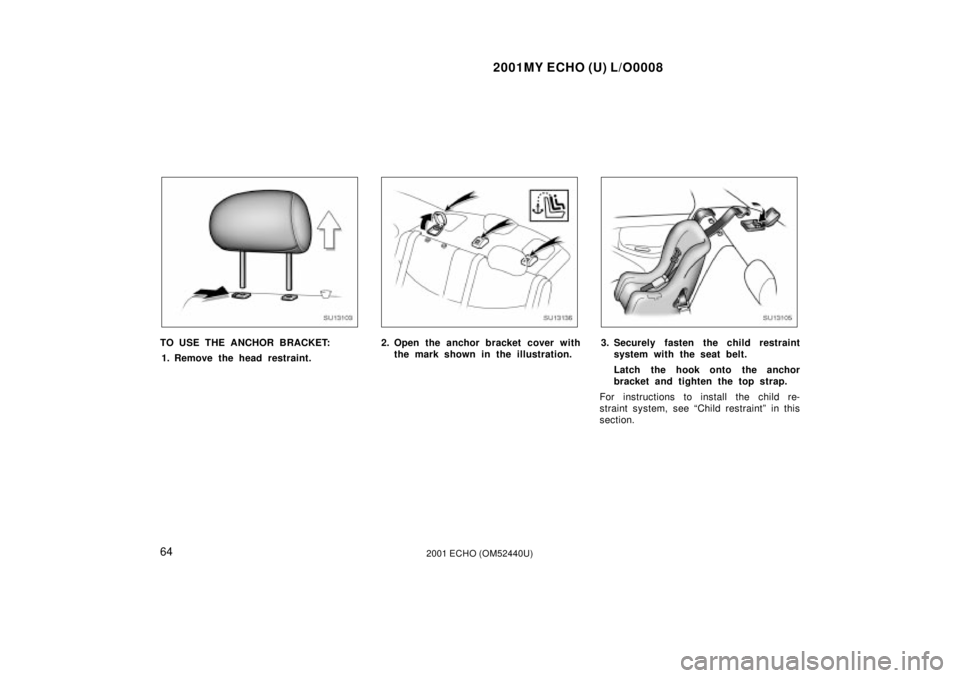

TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
SU13136
2. Open the anchor bracket cover with the mark shown in the illustration.
SU13105
3. Securely fasten the child restraintsystem with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see ªChild restraintº in this
section.

2001MY ECHO (U) L/O0008
652001 ECHO (OM52440U)

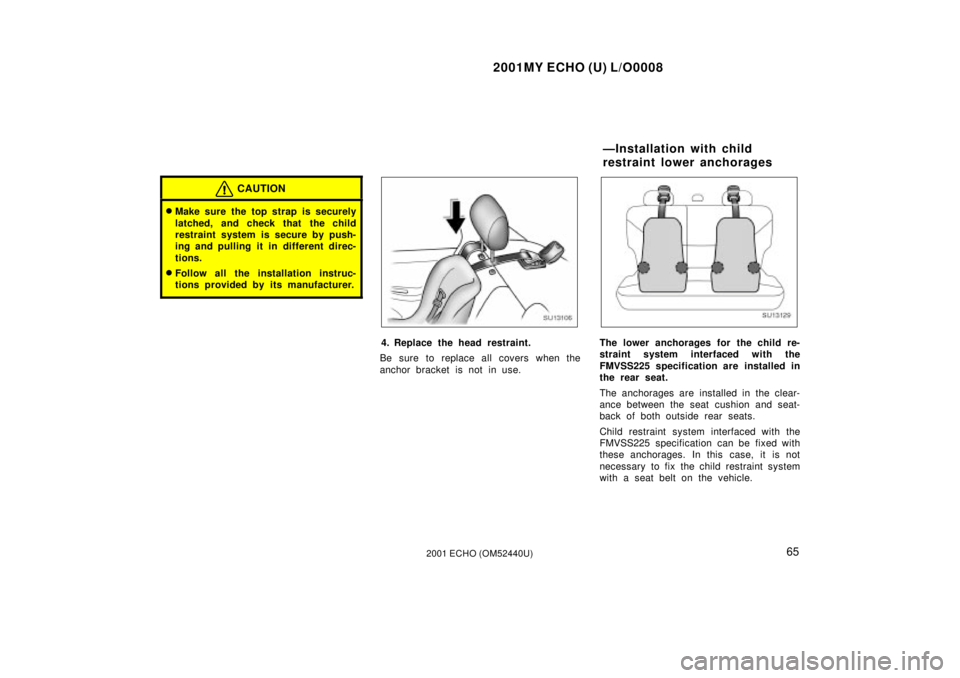

CAUTION

Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions.

Follow all the installation instruc-
tions provided by its manufacturer.
SU13106
4. Replace the head restraint.
Be sure to replace all covers when the
anchor bracket is not in use.
SU13129
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both outside rear seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
ÐInstallation with child
restraint lower anchorages

2001MY ECHO (U) L/O0008
662001 ECHO (OM52440U)
SU13132

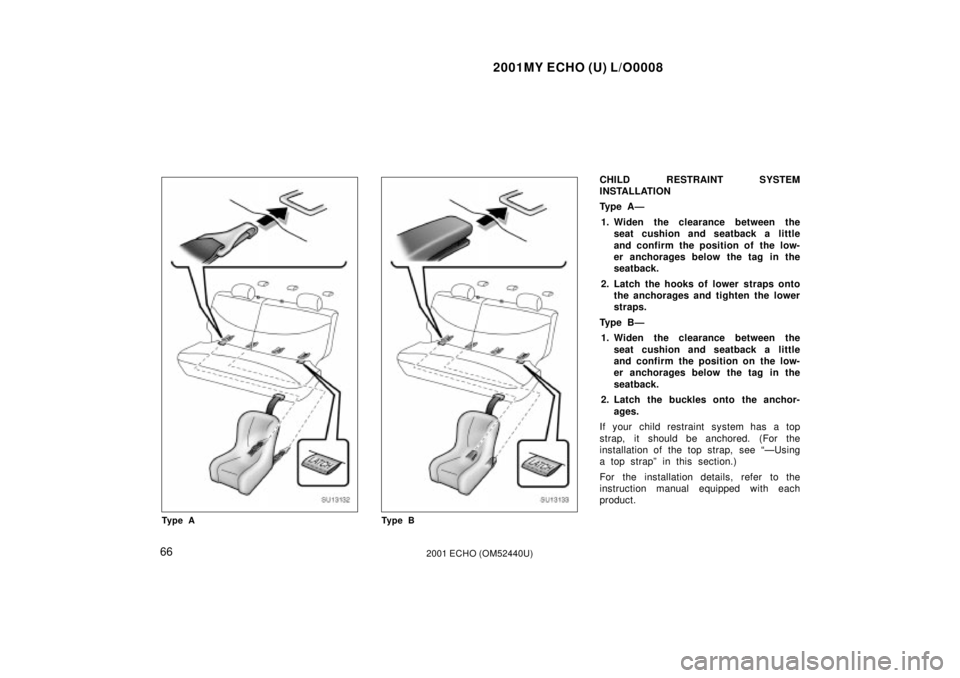

Ty p e A
SU13133
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A Ð1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B Ð 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position on the low-
er anchorages below the tag in the
seatback.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see ªÐUsing
a top strapº in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.
