The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Parking/front side
marker/front turn
signal lights
1157NA5/21B
Rear turn signal
lightsWY21W21C
Rear side
marker/stop/tail
lights
74435/21C
Backup lights744021C
License plate lightsW5W5C
High mounted
stoplight92118C
Interior light—8D
Trunk light1943.8C
A: HB2 halogen bulbs
B: Single end bulbs (amber)
C: Wedge base bulbs
D: Double end bulbs
—Headlights
SU73036
1. Unplug the connector. Remove the
rubber cover.
If the connector is tight, wiggle it.

2002MY ECHO (U) L/O0109
2112002 ECHO (OM52463U)
SU73037
2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
ST73001
3. Install the rubber cover as shown and snuggle on the boss. Plug in the
connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
SU73013
—Parking/front side
marker/front turn signal lights

2001MY ECHO (U) L/O0008
2122002 ECHO (OM52463U)

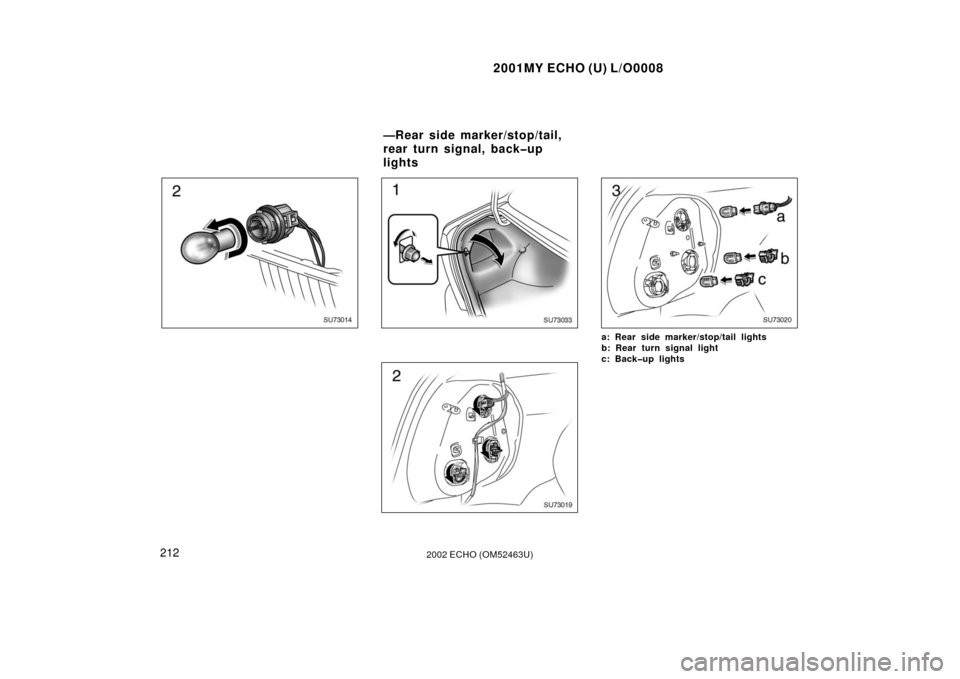

SU73014SU73033
SU73019
SU73020
a: Rear side marker/stop/tail lights
b: Rear turn signal light
c: Backup lights
—Rear side marker/stop/tail,
rear turn signal, backup
lights

2001MY ECHO (U) L/O0008
2202002 ECHO (OM52463U)
SU81003
Fuse box
13. WIPER 20 A: Windshield wipers and
washer
14. ECUIG 7.5 A: Antilock brake system,
electric cooling fan
15. D/L 25 A: Power door lock system
16. ECUB 7.5 A: SRS airbag system
17. OBD 7.5 A: Onboard diagnosis sys-
tem
18. TAIL 7.5 A: Tail lights, parking lights,
license plate lights, radio, illuminations 19. HAZ 10 A:
Turn signal lights, emergen-
cy flashers
20. STOP 10 A: Stop lights, high mounted
stop light, antilock brake system, shift
lock system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses (type B)
21. HTR SUB1 50 A: Air conditioning sys-
tem (PTC 1)
22. RDI 30 A: Electric cooling fan
23. AM1 40 A: “ACC”, “GAUGE”, “WIPER”,
and “ECUIG” fuses
24. POWER 30 A: Power windows
25. HTR 40 A: Air conditioning system
26. DEF 30 A: Rear window defogger sys-
tem.
Fuses (type C)
27. MAIN 60 A: “EFI”, “DOME”, “HORN”,
“ST”, “AM2”, “HLP LH”, and “HLP
RH” fuse
28. ALT 100 or 120 A: “ECUB”, “TAIL”,
“D/L”, “OBD”, “A.C”, “HTR”, “POWER”,
“STOP” and “FL DEF” fuses
29. ABS 60 A: Antilock brake system

2001MY ECHO (U) L/O0008
2282002 ECHO (OM52463U)
High speed operationDuring breakin 134 . . . . . . . . . . . . . . . . . .
Hood release, Engine 19 . . . . . . . . . . . . . . . .
How to start the engine 147 . . . . . . . . . . . . .
I
Identification
Engine 143 . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle 144 . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 88 . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 5 . . . . . . . . . . . . . . . . . . . .
Instrument panel
Brightness control 76 . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 128 . . . . . . .
Clock 128 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 80 . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 5 . . . . . . . . . . . . . . . . . .
Odometer 81 . . . . . . . . . . . . . . . . . . . . . . . .
Trip meter 81 . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 76 . . . . . . . . .
Instrument panel overview 2,4 . . . . . . . . . .
Interior light 76 . . . . . . . . . . . . . . . . . . . . . . . .
J
Jack
Location 162 . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 190 . . . . . . . . . . . . . . .
Jump starting 157 . . . . . . . . . . . . . . . . . . . . . .
K
Key reminder buzzer 82
. . . . . . . . . . . . . . . .
Keys 8,172
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
L
Light bulbs
Backup lights 212 . . . . . . . . . . . . . . . . . . .
Front side marker lights 211 . . . . . . . . . . .
Front turn signal lights 211 . . . . . . . . . . . .
Headlights 210 . . . . . . . . . . . . . . . . . . . . . . .
Highmounted stoplight 213 . . . . . . . . . . .
License plate lights 213 . . . . . . . . . . . . . . .
Parking lights 211 . . . . . . . . . . . . . . . . . . . .
Rear fog lights 212 . . . . . . . . . . . . . . . . . . .
Rear side marker lights 212 . . . . . . . . . . .
Rear turn signal lights 212 . . . . . . . . . . . .
Stop and tail lights 212 . . . . . . . . . . . . . . . .
Light bulbs, replacing 209 . . . . . . . . . . . . . . .
Light reminder buzzer 82 . . . . . . . . . . . . . . .
Lock Side doors 9 . . . . . . . . . . . . . . . . . . . . . . . . .
Steering column 88 . . . . . . . . . . . . . . . . . . .
Trunk lid 17 . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid lock release lever 17 . . . . . . . . .
Low fuel level warning light 82 . . . . . . . . . . .
Low oil pressure warning light 82 . . . . . . . .
Low windshield wsher fluid level warning light 82 . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 143 . . . . . . .
M
Maintenance
Doityourself maintenance 187 . . . . . . .
Does your vehicle need repairing? 183 . . . . . . . . . . . . . . . .
General maintenance 181 . . . . . . . . . . . . .
Maintenance requirements 180 . . . . . . . .
Parts and tools 189 . . . . . . . . . . . . . . . . . . .
Where to go for service 180 . . . . . . . . . . .
Malfunction indicator lamp 82 . . . . . . . . . . .
Manual transmission Driving with a
manual transmission 93 . . . . . . . . . . . . .
Shift pattern 93 . . . . . . . . . . . . . . . . . . . . . .
Shift speed 93 . . . . . . . . . . . . . . . . . . . . . . .
Maximum allowable speed Automatic transmission 89 . . . . . . . . . . . .
Manual transmission 93 . . . . . . . . . . . . . .
Mirror Antiglare inside rear view 71 . . . . . . . . .
Outside rear view 70 . . . . . . . . . . . . . . . . .
Remote controlled rear view 71 . . . . . . . .
Vanity 72 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
N
New vehicle breakin 134
. . . . . . . . . . . . . . .
O
Odometer 81
. . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Consumption 138
. . . . . . . . . . . . . . . . . . . .

2002MY ECHO (U) L/O0109
2292002 ECHO (OM52463U)
Power steering198
. . . . . . . . . . . . . . . . . . .
Viscosity and grade 194,217
. . . . . . . . . .
Oil consumption 138
. . . . . . . . . . . . . . . . . . . .
Open door warning light 82
. . . . . . . . . . . . . .
Operating tips 123
. . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 136 . . . . . . .
Overdrive switch 89
. . . . . . . . . . . . . . . . . . . .
Overheating, Engine 159
. . . . . . . . . . . . . . . .
Overheating, Engine coolant 80
. . . . . . . . . .
Overview
Engine compartment 186
. . . . . . . . . . . . . .
P
Parking brake
Operation 94 . . . . . . . . . . . . . . . . . . . . . . . .
Reminder light 94 . . . . . . . . . . . . . . . . . . . .
Parking brake reminder light 82 . . . . . . . . . .
Polishing 175 . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 190 . . . . . . . . . . . . . . . . .
Power outlet 129 . . . . . . . . . . . . . . . . . . . . . . .
Power steering Fluid level 198 . . . . . . . . . . . . . . . . . . . . . . .
Power window switches 15 . . . . . . . . . . . . . .
Preloaders (seat belt pretensioners) 38 . . . . . . . . . . .
Pretensioners
(seat belt pretensioners) 38 . . . . . . . . . . .
Protecting your Toyota from corrosion 174 . . . . . . . . . . . . . . . . . . .
R
Radiator
Coolant, Engine 196 . . . . . . . . . . . . . . . . . .
Rear seat Folddown 29 . . . . . . . . . . . . . . . . . . . . . . .
Rear view mirror remote
control 71 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view mirror, Antiglare inside 71 . . . . . . . . . . . . . . . . . .
Rear view mirror, Remote controlled 71 . . . . . . . . . . . . . . . . .
Rear view mirrors, Outside 70 . . . . . . . . . . .
Rear window defogger switch 77 . . . . . . . . .
Reporting safety defects for U.S. owners 222 . . . . . . . . . . . . . . . . . .
S
Seat adjustment precautions
Front seats 26 . . . . . . . . . . . . . . . . . . . . . . .
Seat belt extender 37 . . . . . . . . . . . . . . . . . . .
Seat belt reminder buzzer 82 . . . . . . . . . . . .
Seat belt reminder light 82 . . . . . . . . . . . . . .
Seat belt pretensioner warning light 82 . . . . . . . . . . . . . . . . . . . . . .
Seat belts
Cleaning 177 . . . . . . . . . . . . . . . . . . . . . . . .
Seat belt precautions 32 . . . . . . . . . . . . . .
Seat belt pretensioners 38 . . . . . . . . . . . .
Seats 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and maintenance 180 . . . . . . . . . . .
Service reminder indicators 82 . . . . . . . . . .
Side door locks 9 . . . . . . . . . . . . . . . . . . . . . . Spare fuse 208
. . . . . . . . . . . . . . . . . . . . . . . .
Spare tire 162 . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 215 . . . . . . . . . . . . . . . . . . . . .
SRS airbag warning light 82 . . . . . . . . . . . . .
SRS driver and front passenger airbags 40
. . . . . . . . . . . .
SRS warning light 82
. . . . . . . . . . . . . . . . . . .
SRS side airbags 48
. . . . . . . . . . . . . . . . . . . .
Starting Cold weather 148
. . . . . . . . . . . . . . . . . . . .
Engine 147
. . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 157
. . . . . . . . . . . . . . . . . . . .
Starting a flooded engine 156
. . . . . . . . . . . .
Steering Tilt steering wheel 69
. . . . . . . . . . . . . . . . .
Steering column
Column lock 88
. . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis 145
. . . . . . . . . . . .
Switch
Emergency flasher 75
. . . . . . . . . . . . . . . .
Headlight, dimmer and turn signal 74
. . . . . . . . . . . . . . . . . . . . . .
Ignition 88
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Overdrive 89
. . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 77
. . . . . . . . . . . . .
Power window 15
. . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer 76 . . . . . . .
T
Theft deterrent system 20
. . . . . . . . . . . . . . .
Theft prevention labels 144
. . . . . . . . . . . . . .
Threeway catalytic converter 136 . . . . . . .


2001MY ECHO (U) L/O0008
2302002 ECHO (OM52463U)
Tilt steering wheel69
. . . . . . . . . . . . . . . . . . .
Tires Changing 160
. . . . . . . . . . . . . . . . . . . . . . . .
Flat tire 160
. . . . . . . . . . . . . . . . . . . . . . . . .
Rotation 201
. . . . . . . . . . . . . . . . . . . . . . . . .
Spare 162
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire information 199,200,202
. . . . . . . . . .
Tools 162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To w i n g Dinghy towing 151
. . . . . . . . . . . . . . . . . . .
Emergency towing 170
. . . . . . . . . . . . . . . .
If your vehicle needs to be towed 168
. . . . . . . . . . . . . . . . . . . . . . . . .
Trailer 152
. . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer towing 152
. . . . . . . . . . . . . . . . . . . . . .
Trip meter 81
. . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 17
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid lock release lever 17
. . . . . . . . . . .
Turn signals 74
. . . . . . . . . . . . . . . . . . . . . . . .
Types of tires 145
. . . . . . . . . . . . . . . . . . . . . .
U
Uniform tire quality grading 222
. . . . . . . . . .
V
Vanity mirror 72
. . . . . . . . . . . . . . . . . . . . . . . .
W
Warning buzzer 82
. . . . . . . . . . . . . . . . . . . . .
Washer fluid Adding washer fluid 209
. . . . . . . . . . . . . . . Washing and waxing
175
. . . . . . . . . . . . . . . .
Wheels Aluminum wheel 203
. . . . . . . . . . . . . . . . .
Windshield wiper and washer
switch 76
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 150
. . . . . . . . . . . . . . . . . .
Wireless remote control 11
. . . . . . . . . . . . . .
