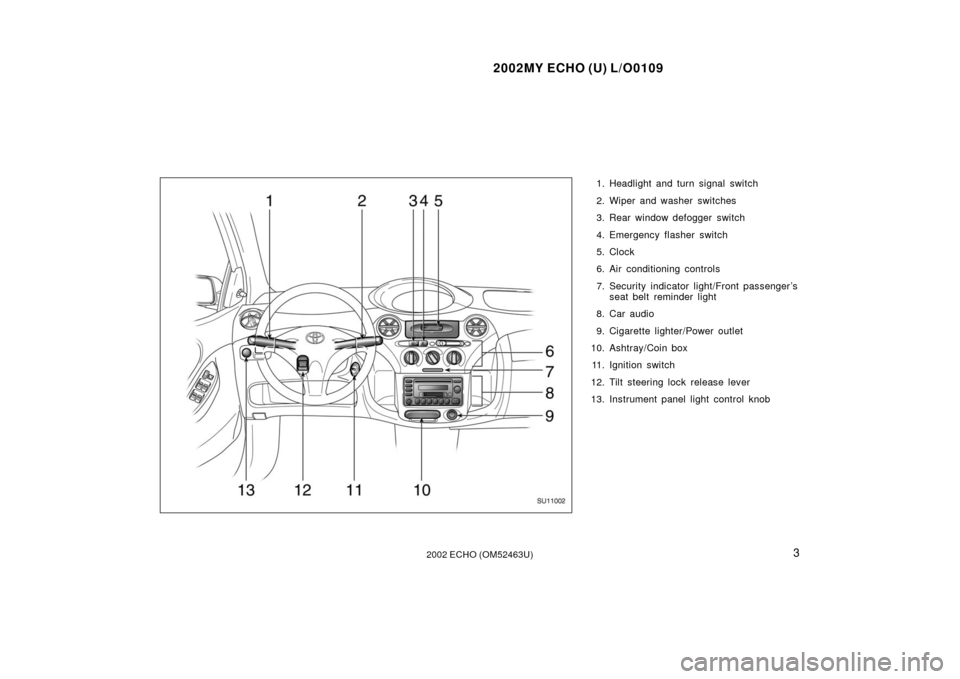

1. Headlight and turn signal switch
2. Wiper and washer switches
3. Rear window defogger switch
4. Emergency flasher switch
5. Clock
6. Air conditioning controls
7. Security indicator light/Front passenger ’sseat belt reminder light
8. Car audio
9. Cigarette lighter/Power outlet
10. Ashtray/Coin box 11. Ignition switch
12. Tilt steering lock release lever
13. Instrument panel light control knob
SU11002

2002MY ECHO (U) L/O0109
52002 ECHO (OM52463U)
Indicator symbols on the instrument panel
orBrake system warning light∗
Driver ’s seat belt reminder light∗
Discharge warning light∗
Malfunction indicator lamp∗
Low engine oil pressure warning light∗
Anti-lock brake system warning light∗
SRS warning light∗
Low windshield washer fluid level warning light∗
Low fuel level warning light∗
Turn signal indicator lights
Headlight high beam indicator light
Overdriveoff indicator light
Low engine coolant temperature indicator light
(in blue)∗
High engine coolant temperature warning light
(in red)∗
Front passenger ’s seat belt reminder light∗
Open door warning light∗
∗
: For details, see “Service reminder indicators and warning
buzzers” in Section 15.
or

2002MY ECHO (U) L/O0109
732002 ECHO (OM52463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Windshield wipers and washer 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1 4

2001MY ECHO (U) L/O0008
742002 ECHO (OM52463U)
Headlights and turn signals
SP14001
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlights and
tail lights left on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Vehicles for the U. S. A.: The headlights
automatically turn to full intensity in the
twilight even with the light switch in the
“OFF” position.
SP14014
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

2002MY ECHO (U) L/O0109
752002 ECHO (OM52463U)
SP14015

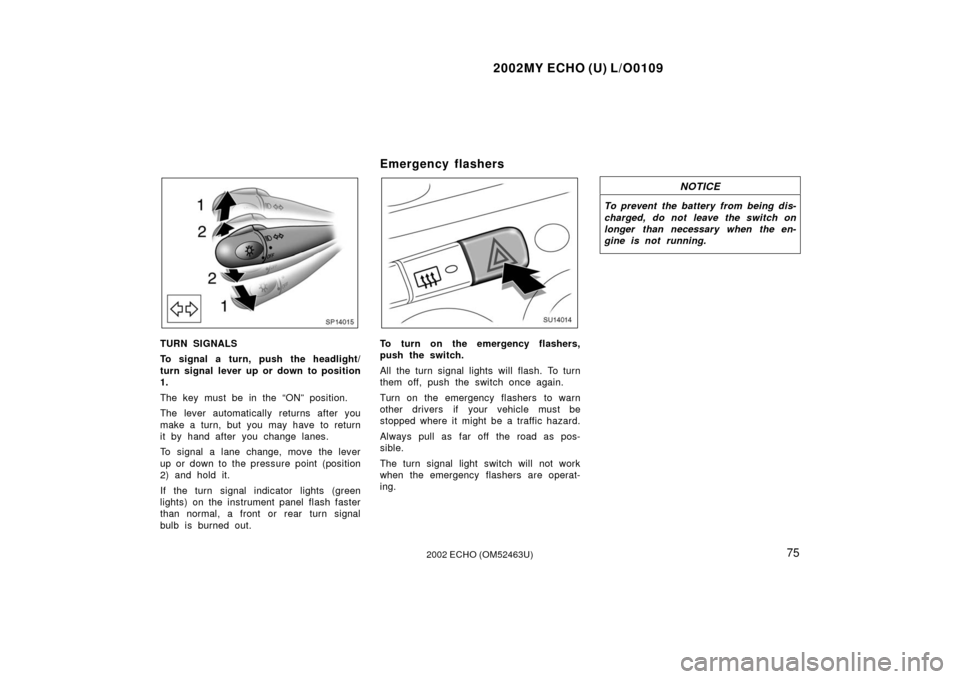

TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
SU14014
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.

2002MY ECHO (U) L/O0109
