fuse box TOYOTA ECHO 2002 1.G Owners Manual

2001MY ECHO (U) L/O0008
2082002 ECHO (OM52463U)

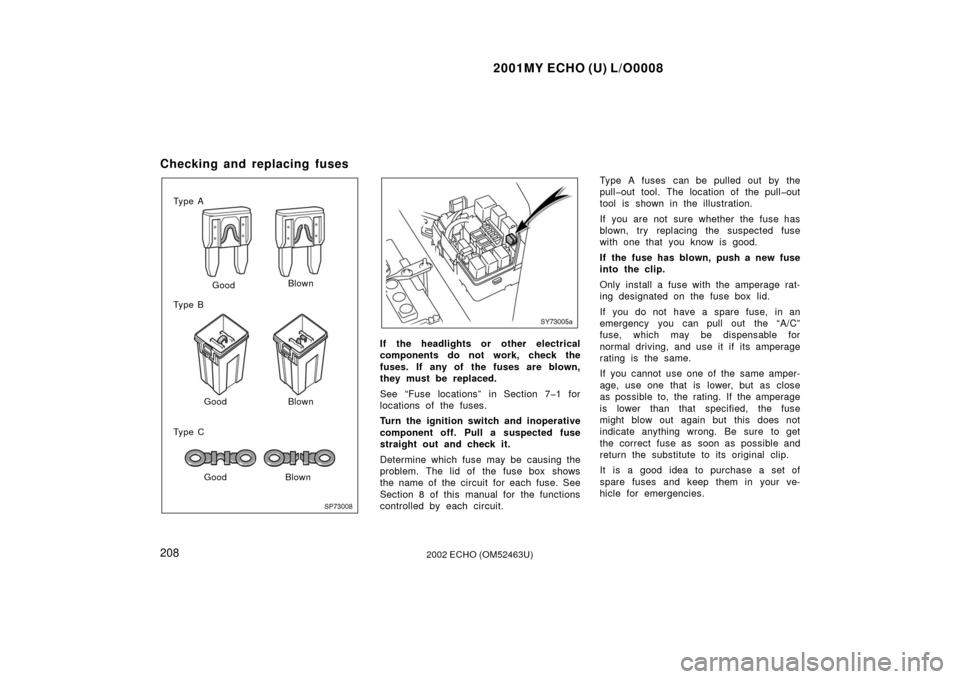

Checking and replacing fuses
SP73008
Ty p e AGood Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
SY73005a
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 71 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit. Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A/C”
fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to, the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.

2001MY ECHO (U) L/O0008
2202002 ECHO (OM52463U)
SU81003
Fuse box
13. WIPER 20 A: Windshield wipers and
washer
14. ECUIG 7.5 A: Antilock brake system,
electric cooling fan
15. D/L 25 A: Power door lock system
16. ECUB 7.5 A: SRS airbag system
17. OBD 7.5 A: Onboard diagnosis sys-
tem
18. TAIL 7.5 A: Tail lights, parking lights,
license plate lights, radio, illuminations 19. HAZ 10 A:
Turn signal lights, emergen-
cy flashers
20. STOP 10 A: Stop lights, high mounted
stop light, antilock brake system, shift
lock system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses (type B)
21. HTR SUB1 50 A: Air conditioning sys-
tem (PTC 1)
22. RDI 30 A: Electric cooling fan
23. AM1 40 A: “ACC”, “GAUGE”, “WIPER”,
and “ECUIG” fuses
24. POWER 30 A: Power windows
25. HTR 40 A: Air conditioning system
26. DEF 30 A: Rear window defogger sys-
tem.
Fuses (type C)
27. MAIN 60 A: “EFI”, “DOME”, “HORN”,
“ST”, “AM2”, “HLP LH”, and “HLP
RH” fuse
28. ALT 100 or 120 A: “ECUB”, “TAIL”,
“D/L”, “OBD”, “A.C”, “HTR”, “POWER”,
“STOP” and “FL DEF” fuses
29. ABS 60 A: Antilock brake system

2001MY ECHO (U) L/O0008
2262002 ECHO (OM52463U)
A
Adding washer fluid209
. . . . . . . . . . . . . . . .
Adjustment
Front seats 26
. . . . . . . . . . . . . . . . . . . . . . .
Seat belt 32
. . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning system 120
. . . . . . . . . . . . .
Airbags 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions 203 . . . . . . . .
Antiglare inside rear view mirror 71 . . . . .
Antilock brake system warning light 82
. . . . . . . . . . . . . . . . . . . . . .
Antitheft steering column lock 88 . . . . . . .
Appearance care Cleaning the interior 177
. . . . . . . . . . . . . .
Protecting your Toyota from
corrosion 174
. . . . . . . . . . . . . . . . . . . . . .
Washing and waxing 175
. . . . . . . . . . . . . .
Automatic transmission
Driving with a automatic transmission 89
. . . . . . . . . . . . . . . . . . . .
Shift pattern 89
. . . . . . . . . . . . . . . . . . . . . .
Shift speed 89
. . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box 130
. . . . . . . . . . . . . . . . . . . . . .
Auxiliary catch, Engine hood 19
. . . . . . . . .
B
Battery
Checking battery condition 206 . . . . . . . .
Gas caution 206 . . . . . . . . . . . . . . . . . . . . .
Handling safety 206 . . . . . . . . . . . . . . . . . .
Recharging precautions 207 . . . . . . . . . . .
Winter driving tips 150 . . . . . . . . . . . . . . . . Before starting the engine 148
. . . . . . . . . . .
Brake pad wear indicators 142 . . . . . . . . . . .
Brake system 139 . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 82 . . . . . . . . . .
Brakes Fluid level 194 . . . . . . . . . . . . . . . . . . . . . . .
Pad wear indicators 142 . . . . . . . . . . . . . .
Parking 94 . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakin tips 134 . . . . . . . . . . . . . . . . . . . . . .
Brightness control 76 . . . . . . . . . . . . . . . . . . .
C
Car audio system 95
. . . . . . . . . . . . . . . . . . .
Carbon monoxide caution 138
. . . . . . . . . . .
Checking and replacing fuses 208 . . . . . . . .
Checking brake fluid 197
. . . . . . . . . . . . . . . .
Checking the engine oil level 194 . . . . . . . .
Checking the radiator 197
. . . . . . . . . . . . . . .
Child restraint Child restraint system 54
. . . . . . . . . . . . .
Installation 56
. . . . . . . . . . . . . . . . . . . . . . .
Precautions 53
. . . . . . . . . . . . . . . . . . . . . .
Types of child restraint system 55 . . . . . .
Cigarette lighter and ashtray 128
. . . . . . . . .
Cleaning the interior 177
. . . . . . . . . . . . . . . .
Clock 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cold weather Operation 150
. . . . . . . . . . . . .
Controls, Instrument panel 2,4
. . . . . . . . . .
Cooling system
Coolant level 196
. . . . . . . . . . . . . . . . . . . .
Engine overheating 159
. . . . . . . . . . . . . . .
Radiator and reservoir 196
. . . . . . . . . . . . Radiator cap
159
. . . . . . . . . . . . . . . . . . . . .
Winter driving tips 150
. . . . . . . . . . . . . . . .
Corrosion prevention 174
. . . . . . . . . . . . . . .
Cup holders 131
. . . . . . . . . . . . . . . . . . . . . . .
D
Defogger, Rear window 77
. . . . . . . . . . . . . .
Dimmer switch, Headlight 74
. . . . . . . . . . . .
Dinghy towing 151
. . . . . . . . . . . . . . . . . . . . .
Directional signals 74
. . . . . . . . . . . . . . . . . .
Discharge warning light 82
. . . . . . . . . . . . . .
Doityourself maintenance
Parts and tools 189
. . . . . . . . . . . . . . . . . . .
Service precautions 187
. . . . . . . . . . . . . .
Does your vehicle need repairing? 183 . . .
Driving Automatic transmission 89
. . . . . . . . . . . .
Driving tips 149,150
. . . . . . . . . . . . . . . . . .
Manual transmission 93
. . . . . . . . . . . . . .
Driving tips
Driving tips in various conditions 149
. . . . . . . . . . . . . . . . . . . . .
Driving with a
automatic transmission 89
. . . . . . . . . .
Driving with a manual transmission 93
. . . . . . . . . . . . .
Economical driving 153
. . . . . . . . . . . . . . .
Good driving practice 89,93
. . . . . . . . . . .
Winter driving tips 150
. . . . . . . . . . . . . . . .
During Breakin 134
. . . . . . . . . . . . . . . . . . . . . . . .

2002MY ECHO (U) L/O0109
2272002 ECHO (OM52463U)
E
Economical drivingSaving money on both fuel
and repairs 153 . . . . . . . . . . . . . . . . . . . .
Electrical system Battery 206,207 . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 187 . . . . . . . . . . . . . . . . . . .
Fuses 208 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 75 . . . . . . . . . . . .
Emergency, In case of Blown fuse 208 . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 75 . . . . . . . . . .
Flat tire 160 . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission selector lever 171 . . . . . .
If you lose your keys 172 . . . . . . . . . . . . . .
If your engine stalls while driving 159 . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 168 . . . . . . . . . . . . . . . . . . . .
If your vehicle will not start 156 . . . . . . . .
Jump starting 157 . . . . . . . . . . . . . . . . . . . .
Overheating 159 . . . . . . . . . . . . . . . . . . . . .
Towing 168 . . . . . . . . . . . . . . . . . . . . . . . . . .
Emissions inspection and maintenance (I/M) programs 184 . . . . . . .
Engine Before starting the engine 148 . . . . . . . . .
Checking the coolant level 196 . . . . . . . .
Emission control device 136 . . . . . . . . . . .
Engine compartment 186 . . . . . . . . . . . . . .
Exhaust gas caution 138 . . . . . . . . . . . . . . Hood release 19
. . . . . . . . . . . . . . . . . . . . .
Oil consumption 138 . . . . . . . . . . . . . . . . . .
Oil level 194 . . . . . . . . . . . . . . . . . . . . . . . . .
Overheating 159 . . . . . . . . . . . . . . . . . . . . .
Starting procedure 147 . . . . . . . . . . . . . . .
Threeway catalytic converter 136 . . . . .
Engine coolant
Temperature gauge 80 . . . . . . . . . . . . . . . .
Winter driving tips 150 . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 80 . . . .
Engine oil Winter driving tips 150 . . . . . . . . . . . . . . . .
Exhaust gas caution 138 . . . . . . . . . . . . . . . .
F
Facts about engine oil
consumption 138 . . . . . . . . . . . . . . . . . . . . .
Flasher, Headlight 74 . . . . . . . . . . . . . . . . . . .
Flat tire After changing wheels 167 . . . . . . . . . . . .
Changing tires 165 . . . . . . . . . . . . . . . . . . .
If you have a flat tire 160 . . . . . . . . . . . . . .
Jack point 164 . . . . . . . . . . . . . . . . . . . . . . .
Jacking precautions 160 . . . . . . . . . . . . . .
Jacking up 164 . . . . . . . . . . . . . . . . . . . . . .
Loosening wheel nuts 164 . . . . . . . . . . . . .
Lowering vehicle 166 . . . . . . . . . . . . . . . . .
Reinstalling w heel ornament 167 . . . . . . .
Removing wheel ornament 164 . . . . . . . .
Wheel block 163 . . . . . . . . . . . . . . . . . . . . .
Wheel nuts 166 . . . . . . . . . . . . . . . . . . . . . .
Floor mat 131 . . . . . . . . . . . . . . . . . . . . . . . . . . Fluid level
Brake 197 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering 198 . . . . . . . . . . . . . . . . . . .
Washer fluid 209 . . . . . . . . . . . . . . . . . . . . .
Folddown rear seat 29 . . . . . . . . . . . . . . . . .
Foreign countries, Operation in 136 . . . . . .
Front passenger ’s seat 28 . . . . . . . . . . . . . .
Front seats 26,27 . . . . . . . . . . . . . . . . . . . . . .
Fuel Filler door o pener 22. . . . . . . . . . . . . . . . .
Fuel economy 153 . . . . . . . . . . . . . . . . . . . .
Fuel information 134 . . . . . . . . . . . . . . . . . .
Gauge 80 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 136 . . . . .
Tank cap 22 . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 187 . . . . . . . . . . . . . . . . . . . . .
Fuses Fuse box 208 . . . . . . . . . . . . . . . . . . . . . . . .
G
Gauge
Engine coolant temperature 80 . . . . . . . .
Fuel 80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 130 . . . . . . . . . . . . . . . . . . . . . . . . .
Good driving practice Automatic transmission 89 . . . . . . . . . . . .
Manual transmission 93 . . . . . . . . . . . . . .
H
Hazard switch 75
. . . . . . . . . . . . . . . . . . . . . .
Head restraints 31
. . . . . . . . . . . . . . . . . . . . .
Headlight switch 74
. . . . . . . . . . . . . . . . . . . .
