TOYOTA ECHO 2004 1.G Owners Manual

832004 ECHO from Aug. ’03 Prod. (OM52526U)
SU14015a
Ty p e A
SU14016
Ty p e B

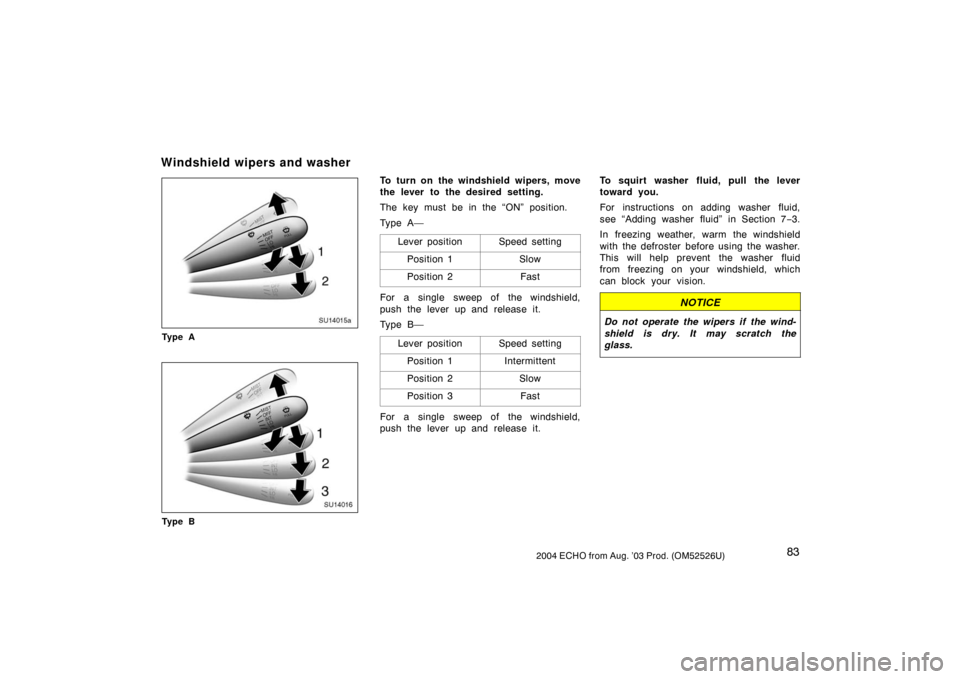

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Ty p e A —
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B —
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.To squirt washer fluid, pull the lever
toward you.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer

842004 ECHO from Aug. ’03 Prod. (OM52526U)

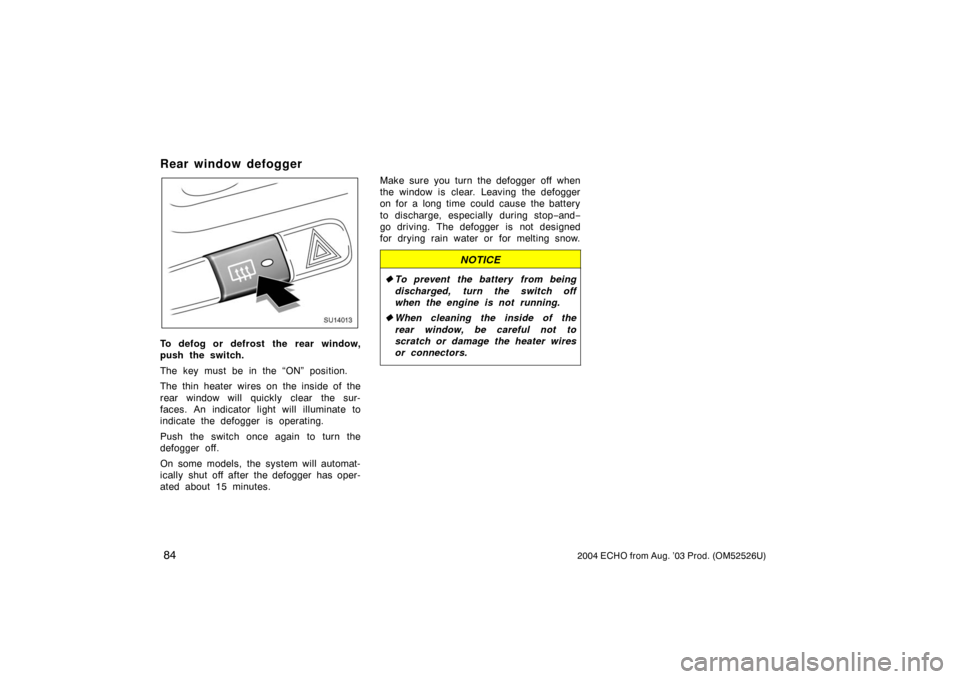

Rear window defogger
SU14013
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
On some models, the system will automat-
ically shut off after the defogger has oper-
ated about 15 minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires
or connectors.

852004 ECHO from Aug. ’03 Prod. (OM52526U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature indicator and warning light87 . . . . . . . . . .
Tachometer88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers90 . . . . . . . . . . . . . . .
SECTION 1 6

862004 ECHO from Aug. ’03 Prod. (OM52526U)

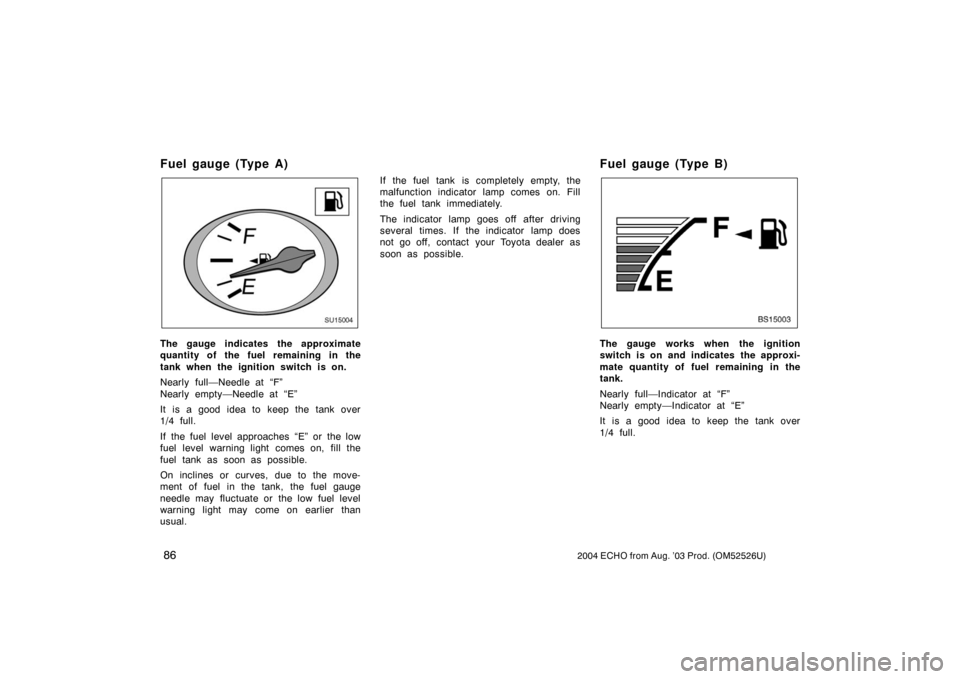

Fuel gauge (Type A)
SU15004
The gauge indicates the approximate
quantity of the fuel remaining in the
tank when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
Fuel gauge (Type B)
BS15003
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Indicator at “F”
Nearly empty—Indicator at “E”
It is a good idea to keep the tank over
1/4 full.

872004 ECHO from Aug. ’03 Prod. (OM52526U)
SU15008
Low fuel level warning light
If the low fuel level warning light flashes,
fill the fuel tank as soon as possible.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
SU15005
High engine coolant
temperature
warning light in red
Low engine
coolant
temperature
indicator light in
blue
The indicator and warning lights indi-
cate the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
The high engine coolant temperature warn-
ing light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off.
If your engine coolant temperature is cool
with the ignition switch on, the low engine
coolant temperature indicator light comes
on. If it keeps lighting on with the engine
fully warmed, contact your Toyota dealer
as soon as possible to service the ve-
hicle.If the high engine coolant temperature
warning light flashes, your engine is too
hot. If your vehicle overheats, stop your
vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your
vehicle overheats” in Section 4.
Engine coolant temperature
indicator and warning light
(Type A)

882004 ECHO from Aug. ’03 Prod. (OM52526U)

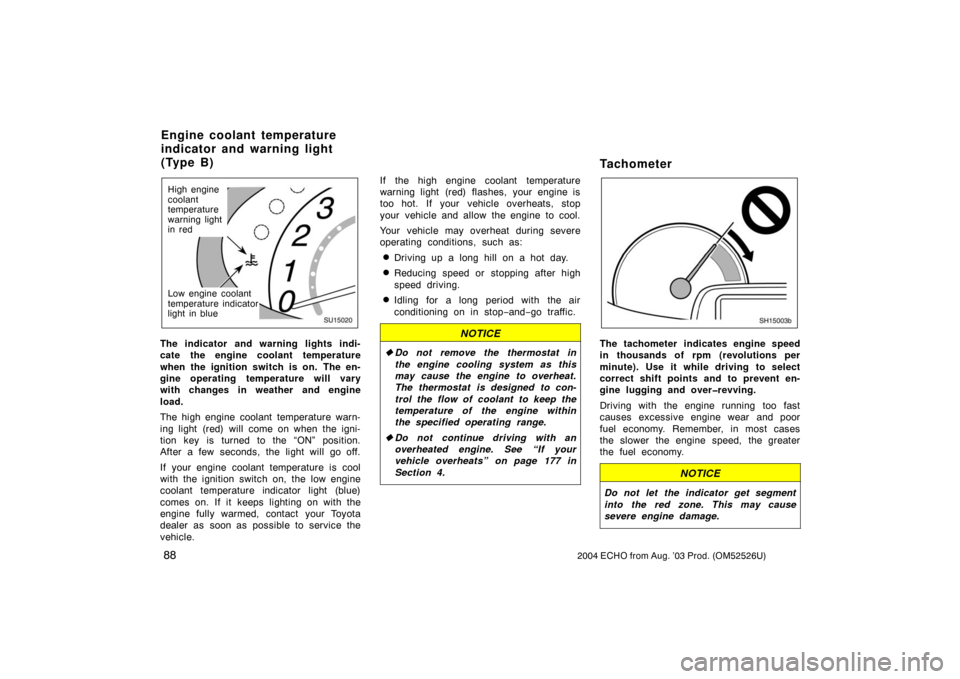

SU15020
Low engine coolant
temperature indicator
light in blue High engine
coolant
temperature
warning light
in red
The indicator and warning lights indi-
cate the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
The high engine coolant temperature warn-
ing light (red) will come on when the igni-
tion key is turned to the “ON” position.
After a few seconds, the light will go off.
If your engine coolant temperature is cool
with the ignition switch on, the low engine
coolant temperature indicator light (blue)
comes on. If it keeps lighting on with the
engine fully warmed, contact your Toyota
dealer as soon as possible to service the
vehicle.If the high engine coolant temperature
warning light (red) flashes, your engine is
too hot. If your vehicle overheats, stop
your vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your
vehicle overheats” on page 177 in
Section 4.
Tachometer
SH15003b
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator get segment
into the red zone. This may cause
severe engine damage.
Engine coolant temperature
indicator and warning light
(Type B)

892004 ECHO from Aug. ’03 Prod. (OM52526U)

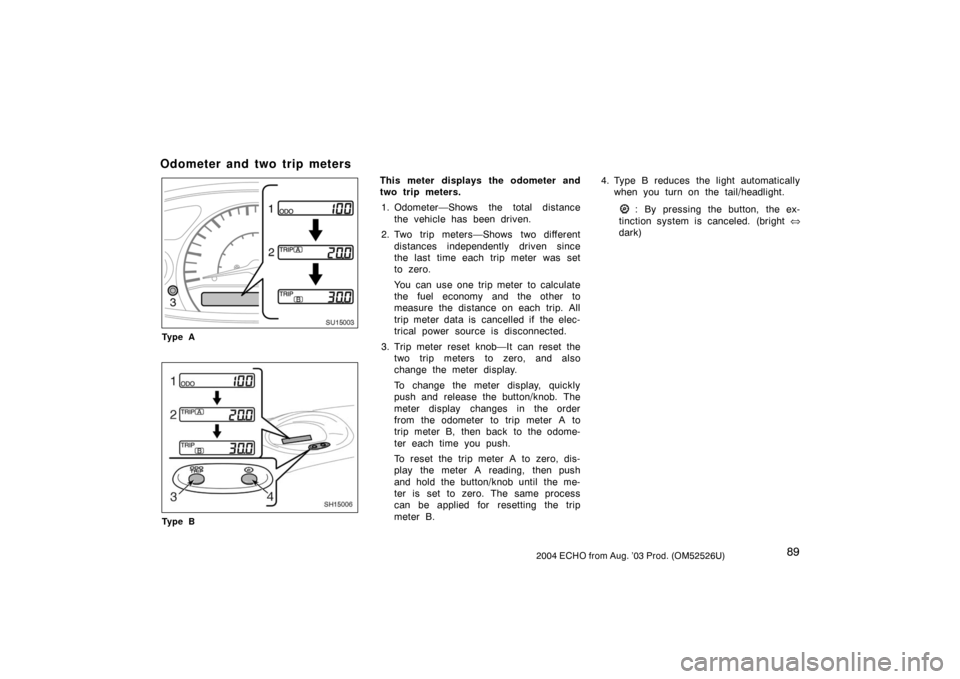

Odometer and two trip meters
SU15003
Ty p e A
SH15006
Ty p e B
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Shows two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
3. Trip meter reset knob—It can reset the
two trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the button/knob. The
meter display changes in the order
from the odometer to trip meter A to
trip meter B, then back to the odome-
ter each time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the button/knob until the me-
ter is set to zero. The same process
can be applied for resetting the trip
meter B.4. Type B reduces the light automatically
when you turn on the tail/headlight.
: By pressing the button, the ex-
tinction system is canceled. (bright ⇔
dark)

902004 ECHO from Aug. ’03 Prod. (OM52526U)
Service reminder indicators and warning buzzers
If the indicator or buzzer comes on...Do this.
(a)orIf parking brake is off, stop immediately and contact Toyota dealer.
(b)
(Indicator and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front passenger ’s seat belt.
(d)Stop and check.
(e)Take vehicle to Toyota dealer.
(f)
Fill up tank. (Type A)
Fill up tank. (Type B)

912004 ECHO from Aug. ’03 Prod. (OM52526U)
If the indicator or buzzer comes on...Do this.
(g)Stop and check.
(h)orTake vehicle to Toyota dealer.
(i)Close all doors.
(j)Take vehicle to Toyota dealer immediately.
(k)Add washer fluid.
(l)
(in red)
Stop and check.

922004 ECHO from Aug. ’03 Prod. (OM52526U)
If the indicator or buzzer comes on...Do this.
(m)Key reminder
buzzerRemove key.
(n)Light reminder
buzzerTurn off lights.
