632004 ECHO from Aug. ’03 Prod. (OM52526U)
AS13002
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
SU13046
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.

642004 ECHO from Aug. ’03 Prod. (OM52526U)
SU13047

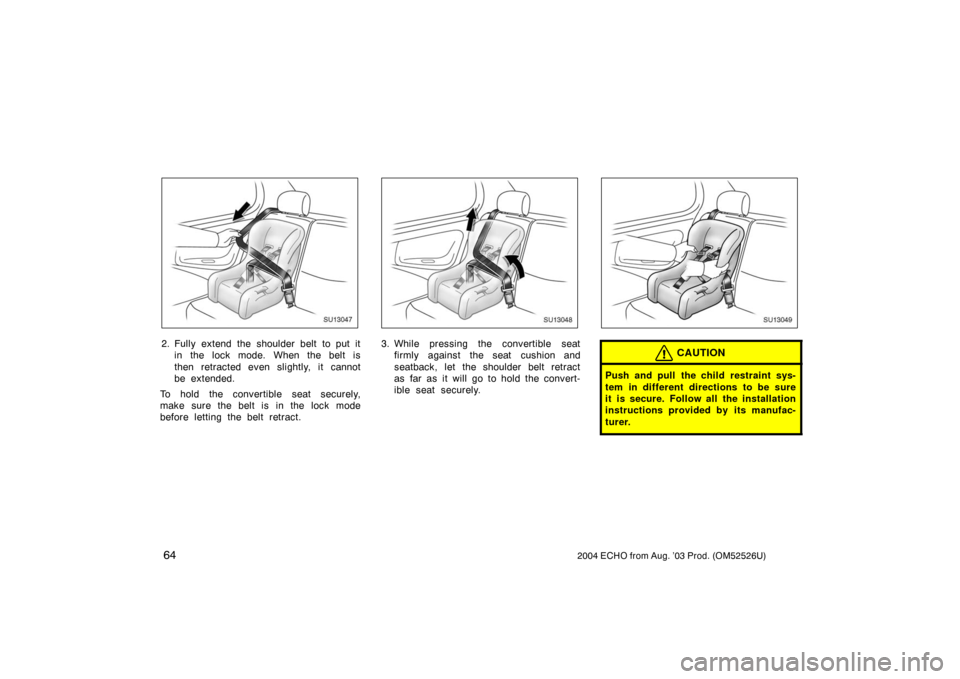

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
SU13048
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
SU13049
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

652004 ECHO from Aug. ’03 Prod. (OM52526U)
SU13050

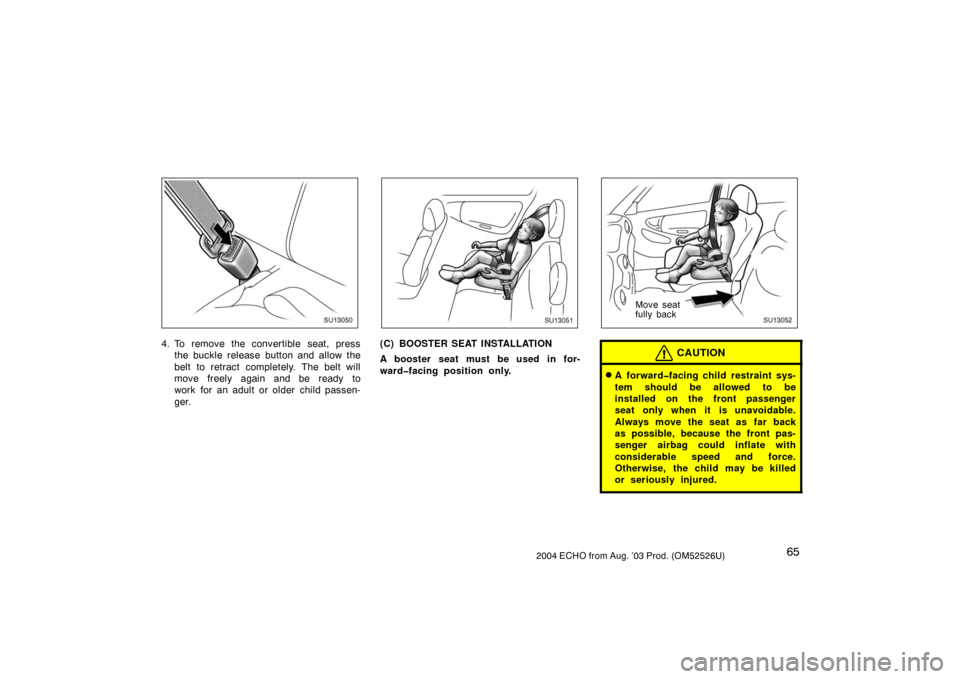

4. To remove the convertible seat, press
the buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
SU13051
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
SU13052
Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.

662004 ECHO from Aug. ’03 Prod. (OM52526U)

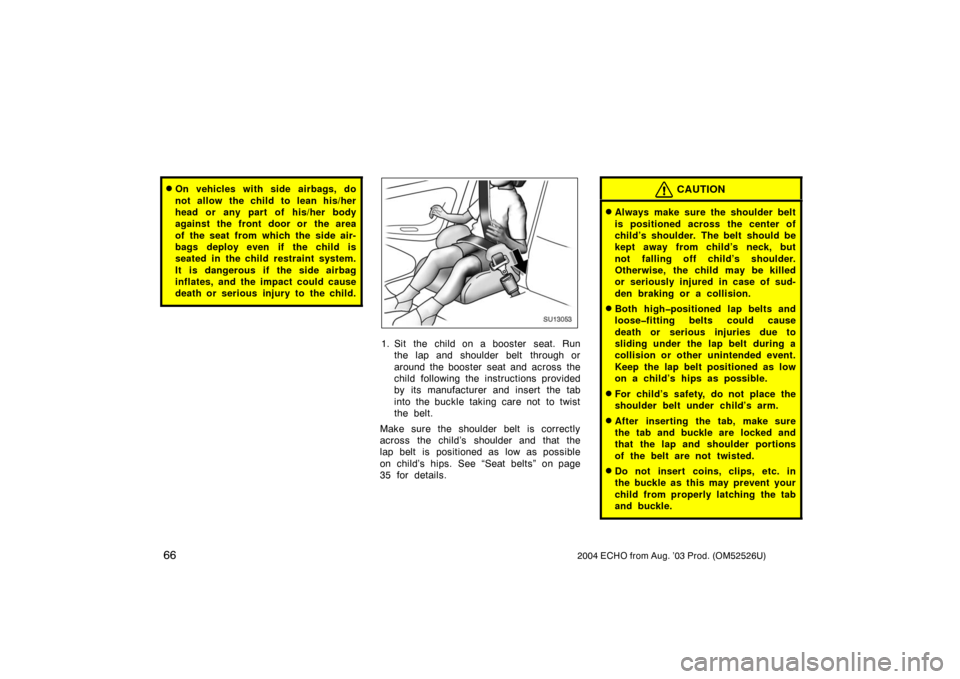

On vehicles with side airbags, do
not allow the child to lean his/her
head or any part of his/her body
against the front door or the area
of the seat from which the side air-
bags deploy even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.
SU13053
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page
35 for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

672004 ECHO from Aug. ’03 Prod. (OM52526U)

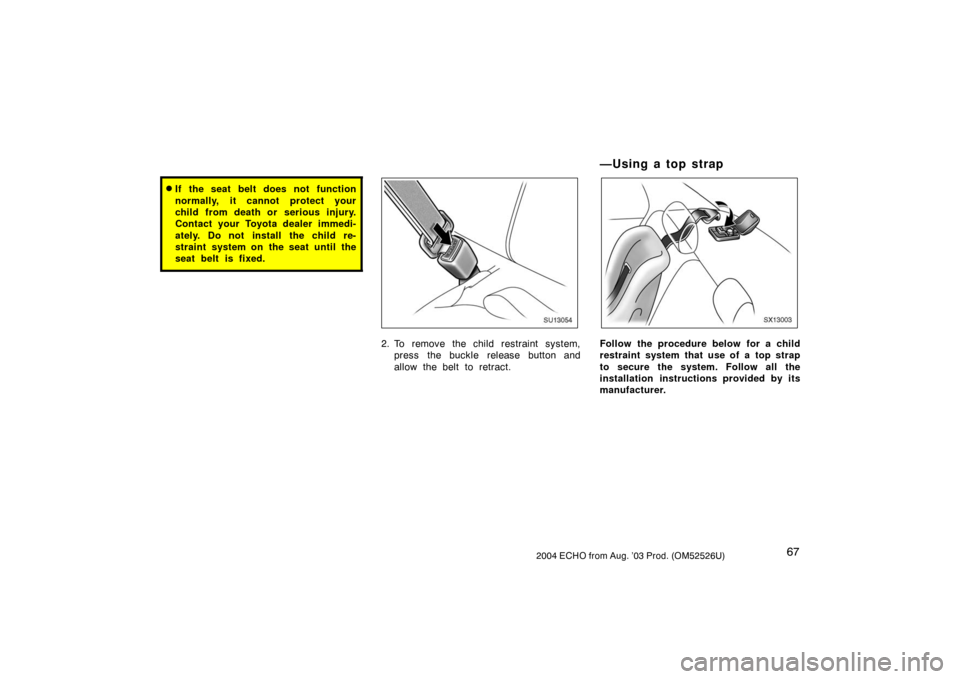

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.
SU13054
2. To remove the child restraint system,
press the buckle release button and
allow the belt to retract.
— U sin g a to p st rap
SX13003
Follow the procedure below for a child
restraint system that use of a top strap
to secure the system. Follow all the
installation instructions provided by its
manufacturer.

682004 ECHO from Aug. ’03 Prod. (OM52526U)
SX13004

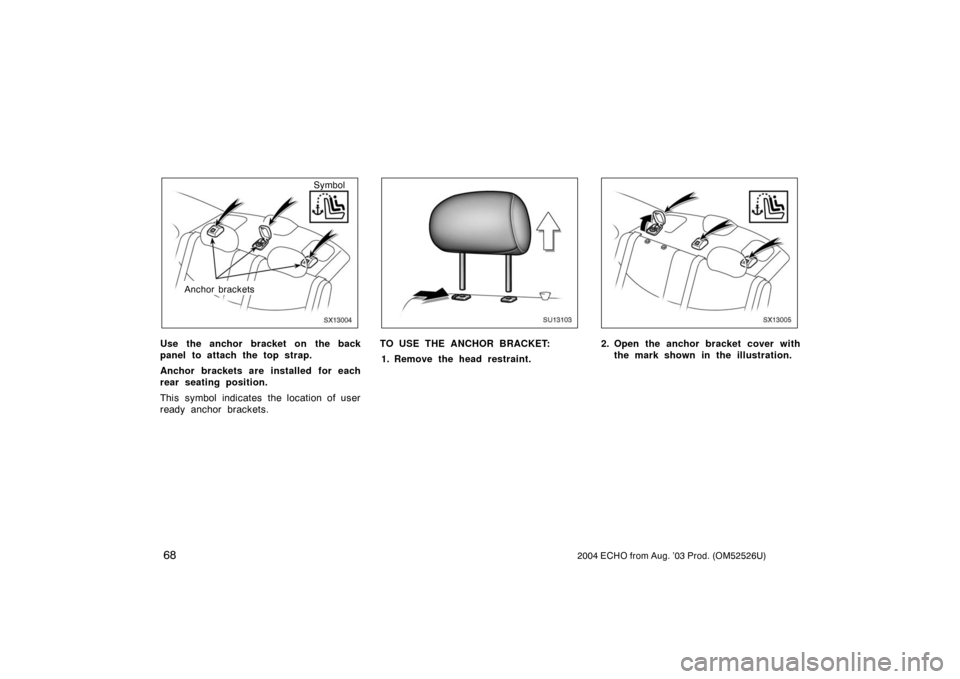

Anchor bracketsSymbol
Use the anchor bracket on the back
panel to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of user
ready anchor brackets.
SU13103
TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.
SX13005
2. Open the anchor bracket cover with
the mark shown in the illustration.

692004 ECHO from Aug. ’03 Prod. (OM52526U)
SX13006

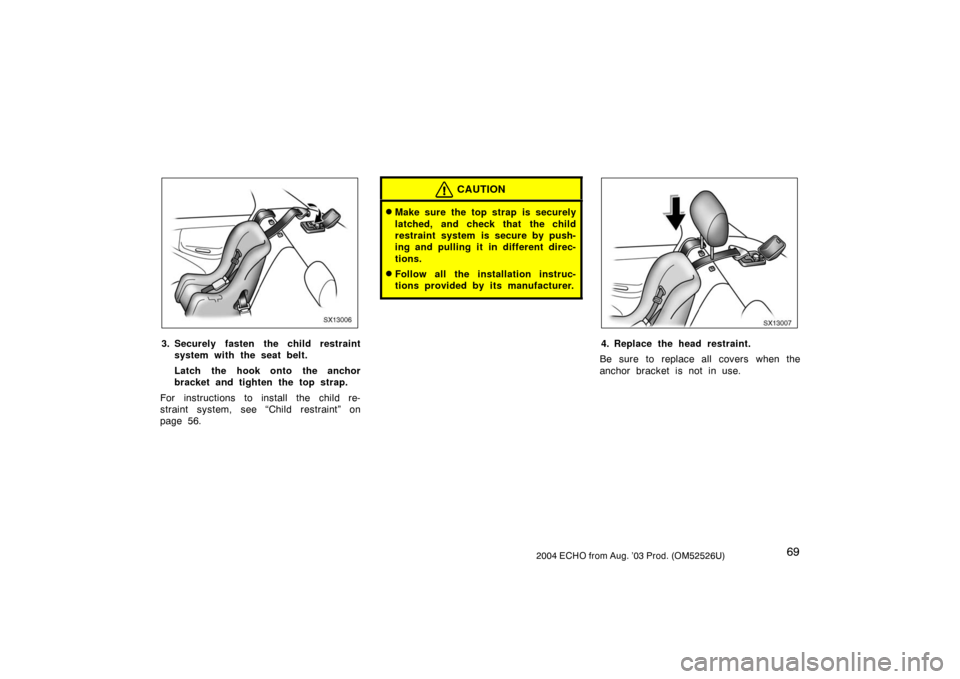

3. Securely fasten the child restraint
system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 56.
CAUTION
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions.
Follow all the installation instruc-
tions provided by its manufacturer.
SX13007
4. Replace the head restraint.
Be sure to replace all covers when the
anchor bracket is not in use.

702004 ECHO from Aug. ’03 Prod. (OM52526U)
SU13129

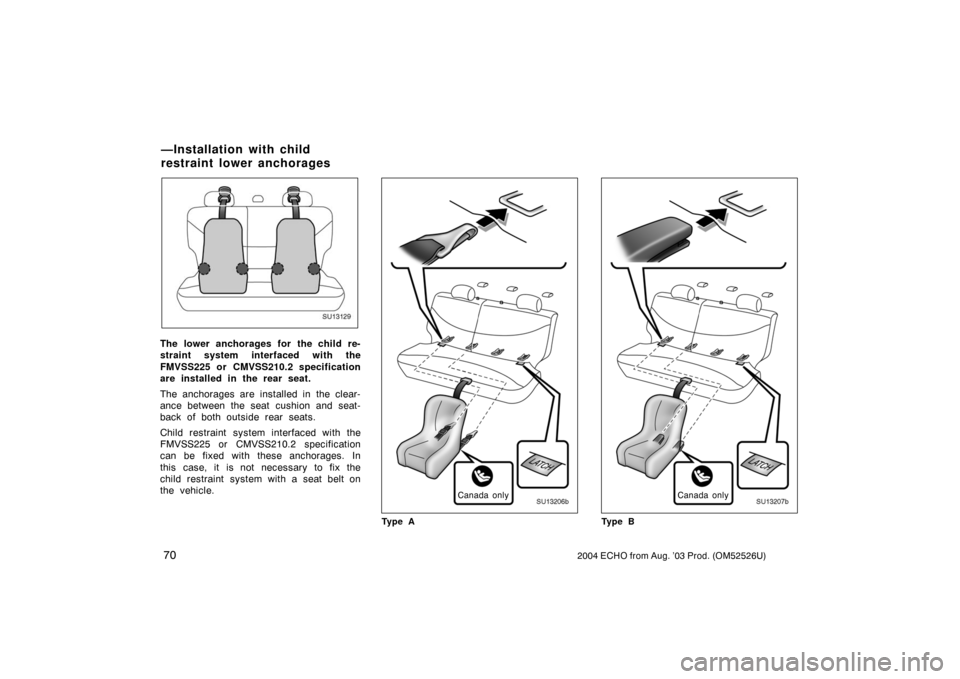

The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 or CMVSS210.2 specification
are installed in the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both outside rear seats.
Child restraint system interfaced with the
FMVSS225 or CMVSS210.2 specification
can be fixed with these anchorages. In
this case, it is not necessary to fix the
child restraint system with a seat belt on
the vehicle.SU13206b
Canada only
Ty p e A
SU13207b
Canada only
Ty p e B
—Installation with child
restraint lower anchorages

712004 ECHO from Aug. ’03 Prod. (OM52526U)
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seatback.
2. Latch the hooks of lower straps onto
the anchorages and tighten the lower
straps.
Ty p e B —
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position on the low-
er anchorages below the tag in the
seatback.
2. Latch the buckles onto the anchor-
ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 67.)For the installation details, refer to the
instruction manual equipped with each
product.

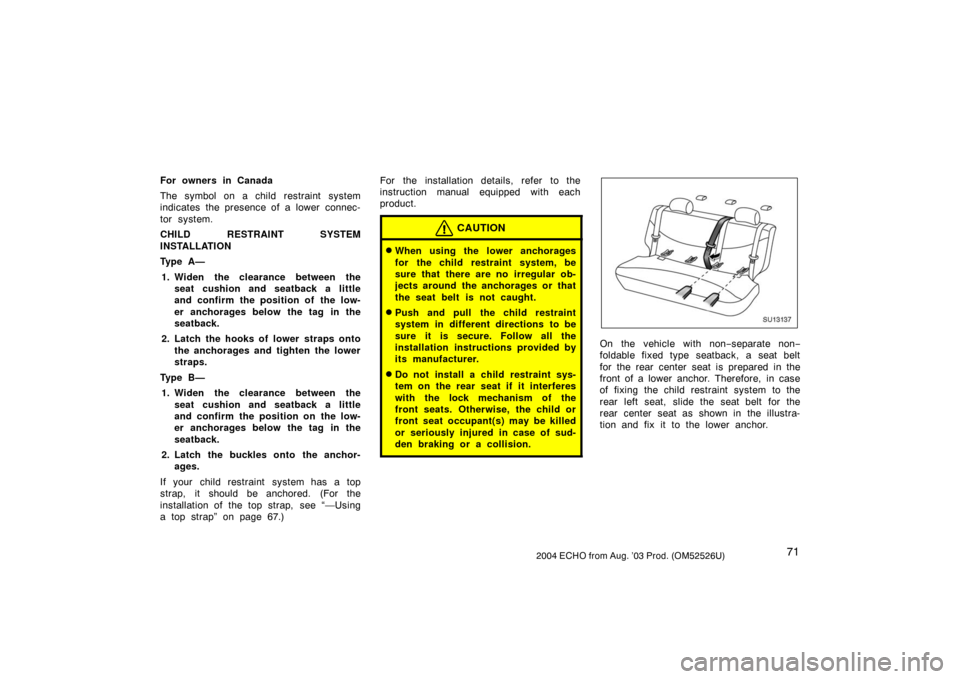

CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
SU13137
On the vehicle with non−separate non−
foldable fixed type seatback, a seat belt
for the rear center seat is prepared in the
front of a lower anchor. Therefore, in case
of fixing the child restraint system to the
rear left seat, slide the seat belt for the
rear center seat as shown in the illustra-
tion and fix it to the lower anchor.

722004 ECHO from Aug. ’03 Prod. (OM52526U)
CAUTION
When installing the child restraint
system, pay attention not to catch a
seat belt and other irregular objects.
Otherwise, this can cause severe inju-
ry to the child in case of a sudden
braking or collision.
