Defogging
The inside of the windshield
For best results, set controls to:Fan speed— Any setting except “OFF”
Temperature— Towards red zone to heat;
blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster −
linked air conditioning. This is to clean up
the front view more quickly.
When the “A/C” button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster −
linked air conditioning. This is to clean up
the front view more quickly.
When the “A/C” button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Instrument panel vents
SU18008
—Center vents —Side vents
Close Close
Open Open
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.

1342005 ECHO from Aug. ’04 Prod. (OM52636U)
SZ72005
The air conditioning filter information
label is placed inside the glove box as
shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
SZ72004
The air conditioning filter is behind the
glove box.The air conditioning filters may clog
after long use. The filters may need to
be replaced if the air flow of the air
conditioning and heater experiences ex-
treme reductions in operating efficiency,
or if the windows become to fog up
easily in FRESH mode.
To maintain the air conditioning efficiency,
replace the air conditioning filters accord-
ing to the maintenance schedule. In dusty
areas or areas with heavy traffic flow,
such as inner city or desert areas, early
replacement may be required. (For sched-
uled maintenance information, please refer
to the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
Air conditioning filter—
(on some models: particle
filter)
—Checking and replacing the
air conditioning filter

1352005 ECHO from Aug. ’04 Prod. (OM52636U)
SY72002

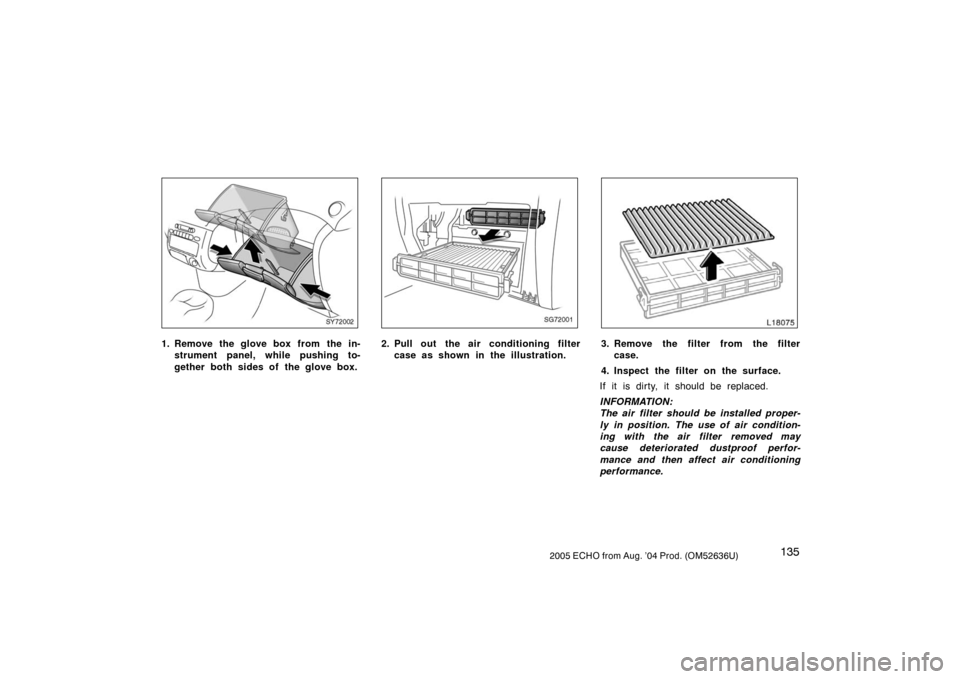

1. Remove the glove box from the in-strument panel, while pushing to-
gether both sides of the glove box.
SG72001
2. Pull out the air conditioning filtercase as shown in the illustration.
L18075
3. Remove the filter from the filtercase.
4. Inspect the filter on the surface.
If it is dirty, it should be replaced.
INFORMATION:
The air filter should be installed proper-
ly in position. The use of air condition-
ing with the air filter removed may
cause deteriorated dustproof perfor-
mance and then affect air conditioning
performance.

1362005 ECHO from Aug. ’04 Prod. (OM52636U)
SN72006
The air conditioning filter information
label is placed inside the glove box as
shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
SN72003a
The air conditioning filter is behind the
glove box.The air conditioning filters may clog
after long use. The filters may need to
be replaced if the air flow of the air
conditioning and heater experiences ex-
treme reductions in operating efficiency,
or if the windows become to fog up
easily in FRESH mode.
To maintain the air conditioning efficiency,
clean the air conditioning filters according
to the maintenance schedule. In dusty
areas or areas with heavy traffic flow,
such as inner city or desert areas, early
replacement may be required. (For sched-
uled maintenance information, please refer
to the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
Air conditioning filter—
(on some models: mesh filter)
—Checking and cleaning the
air conditioning filter

1372005 ECHO from Aug. ’04 Prod. (OM52636U)
SY72002
1. Remove the glove box from the in-strument panel, while pushing to-
gether both sides of the glove box.
SN72002a
2. Pull out the air conditioning filtercase as shown in the illustration.
SN72005
3. Clean the filter.
When cleaning the air conditioning filter,
blow the dust out of the filter with com-
pressed air from the backside of the filter.
INFORMATION:
Frequency of the cleaning varies de-
pending on road conditions (dusty
road, etc). Earlier cleaning is recom-
mended.
The air filter should be installed
properly in position. The use of air
conditioning with the air filter re-
moved may cause deteriorated dust-
proof performance and then affect
air conditioning performance.

1382005 ECHO from Aug. ’04 Prod. (OM52636U)

1392005 ECHO from Aug. ’04 Prod. (OM52636U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Floor mat 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

1402005 ECHO from Aug. ’04 Prod. (OM52636U)
Clock
SY19008a
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00. If
the time is between 1:30—1:59, the time
will change to 2:00.If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
SU19002
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position to use the light-
er.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.

1412005 ECHO from Aug. ’04 Prod. (OM52636U)
ASHTRAY
To use the ashtray, open out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
SU19011
The power outlet is designed for power
supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
Po wer ou t let
(without cigarette lighter)

1422005 ECHO from Aug. ’04 Prod. (OM52636U)
Glove box
SU19003

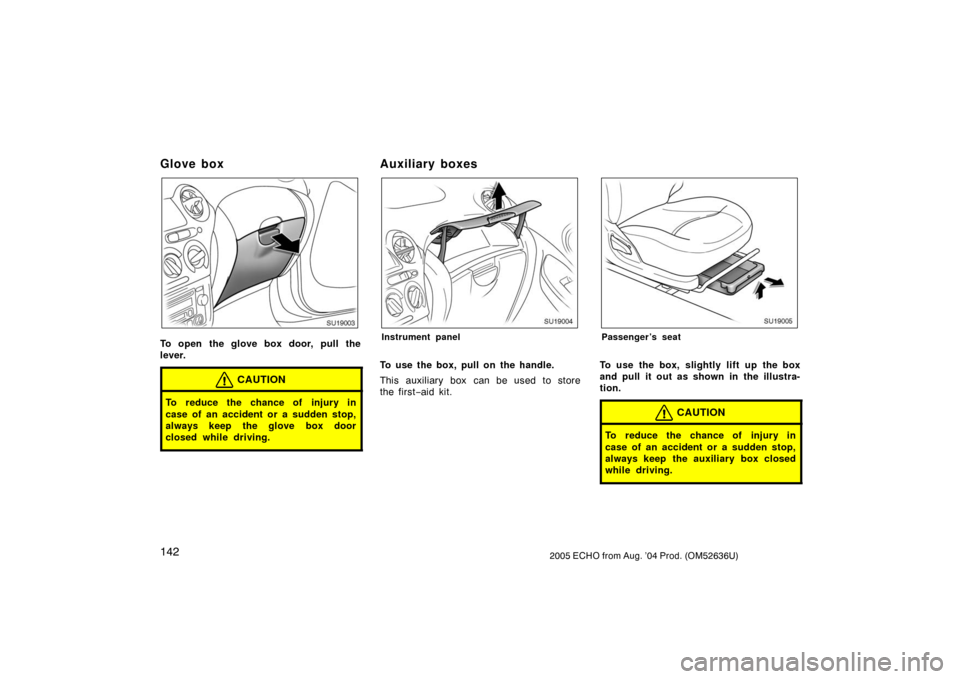

To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Auxiliary boxes
SU19004
Instrument panel
To use the box, pull on the handle.
This auxiliary box can be used to store
the first−aid kit.
SU19005
Passenger’s seat
To use the box, slightly lift up the box
and pull it out as shown in the illustra-
tion.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
