Page 11 of 340
12007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 7
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 12 of 340
22007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
1. Side defroster outlets
2. Side vents
3. Auxiliary box
4. Instrument cluster
5. Accessory meter
6. Center vents
7. Glove box
8. Power door lock switches
9. Power window switches
10. Automatic transmission selector lever
11. Cup holders
12. Parking brake lever
13. Four −wheel drive control lever
14. Tilt steering lock release lever
15. Window lock switch
Instrument panel overview
View A
(vehicles with automatic transmission)
TS11001a
Page 13 of 340
32007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

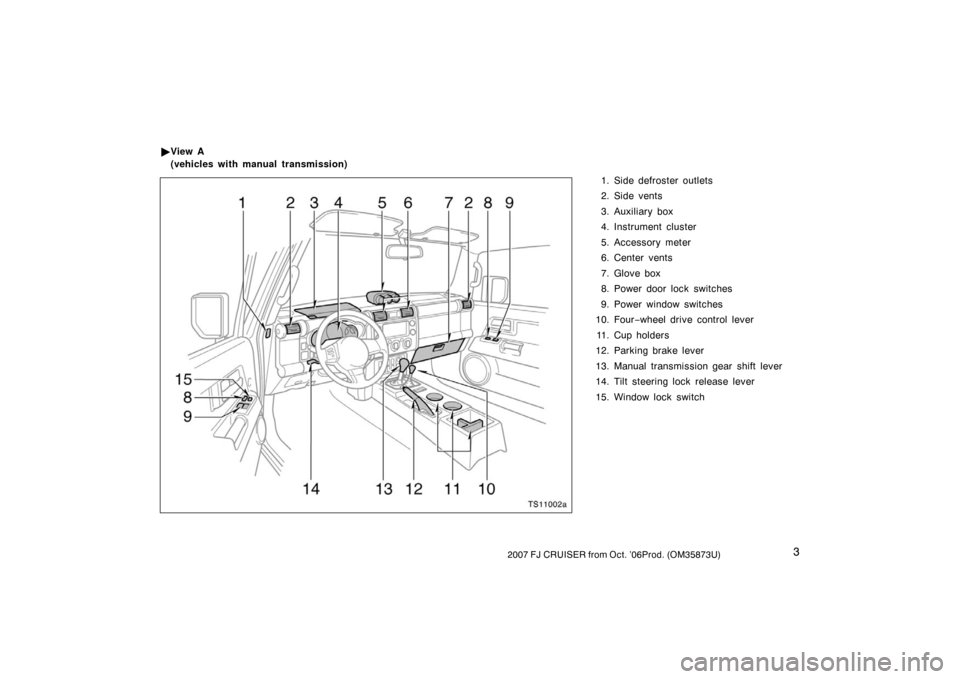

1. Side defroster outlets
2. Side vents
3. Auxiliary box
4. Instrument cluster
5. Accessory meter
6. Center vents
7. Glove box
8. Power door lock switches
9. Power window switches
10. Four −wheel drive control lever
11. Cup holders
12. Parking brake lever
13. Manual transmission gear shift lever
14. Tilt steering lock release lever
15. Window lock switch
View A
(vehicles with manual transmission)
TS11002a
Page 14 of 340
42007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

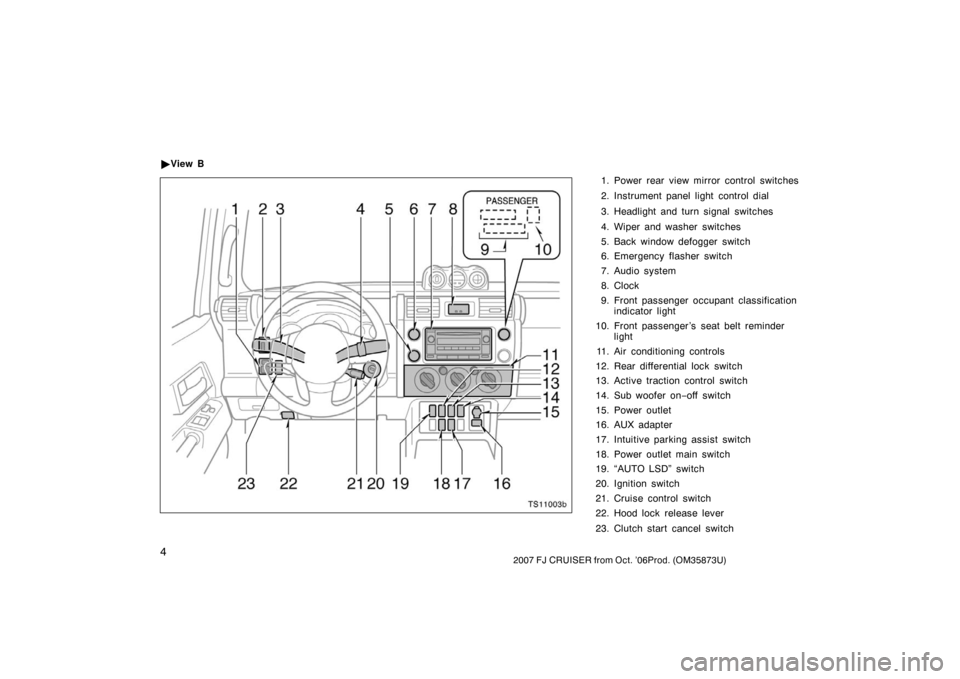

1. Power rear view mirror control switches
2. Instrument panel light control dial
3. Headlight and turn signal switches
4. Wiper and washer switches
5. Back window defogger switch
6. Emergency flasher switch
7. Audio system
8. Clock
9. Front passenger occupant classificationindicator light
10. Front passenger ’s seat belt reminder light
11. Air conditioning controls
12. Rear differential lock switch
13. Active traction control switch
14. Sub woofer on− off switch
15. Power outlet
16. AUX adapter
17. Intuitive parking assist switch
18. Power outlet main switch
19. “AUTO LSD” switch
20. Ignition switch
21. Cruise control switch
22. Hood lock release lever
23. Clutch start cancel switch
View B
TS11003b
Page 15 of 340
52007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
TS11004b
1. Volume control switch
2. “” switch
3. “MODE” switch
Steering switches
Page 16 of 340
62007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

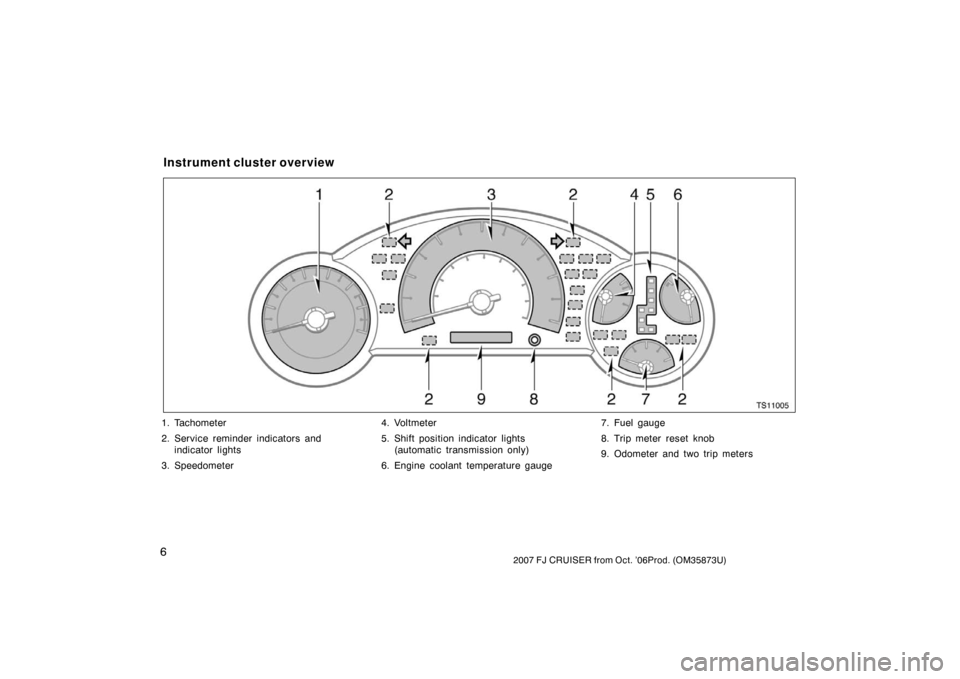

TS11005
1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Voltmeter
5. Shift position indicator lights
(automatic transmission only)
6. Engine coolant temperature gauge 7. Fuel gauge
8. Trip meter reset knob
9. Odometer and two trip meters
Instrument cluster overview
Page 17 of 340
72007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
or
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.) Brake system warning light
∗
1
Malfunction indicator lamp∗1
Charging system warning light∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
Open door warning light∗1
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system warning
light∗1
Traction control system warning light∗1
Active traction control system warning light∗1
(four −wheel drive models with rear
differential lock)
“AUTO LSD” system warning light∗ 1
(two −wheel drive models)
Automatic transmission fluid temperature
warning light∗
1 (four −wheel drive models)
Unengaged “Park” warning light∗
1
(four −wheel drive models)
Front passenger occupant classification indicator
light
Indicator symbols on the instrument panel
Page 18 of 340
82007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
Center differential lock indicator light∗2
Automatic transmission indicator lights
Slip indicator light
Turn signal indicator lights
Rear differential lock indicator light∗3
Headlight high beam indicator light
“AUTO LSD” indicator light
(two −wheel drive models)
Vehicle stability control s ystem off indicator light
Four−wheel drive indicator light∗
2
(four −wheel drive models)
Cruise control indicator light∗
4
Active traction control system indicator light
(four −wheel drive models with rear differential
lock)
∗ 1: For details, see “Service reminder indicators and warning
buzzers” on page 101 in Section 1 −6.
∗
2: If this light flashes, see “Four −wheel drive system” on page
120 in Section 1 −7.
∗
3: If this light flashes, see “Rear differential lock system” on
page 132 in Section 1 −7.
∗
4: If this light flashes, see “Cruise control” on page 135 in
Section 1 −7.
Page 19 of 340
92007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Wireless remote control 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Access doors 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Power windows 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back window 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Back door 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 2
Page 20 of 340
102007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

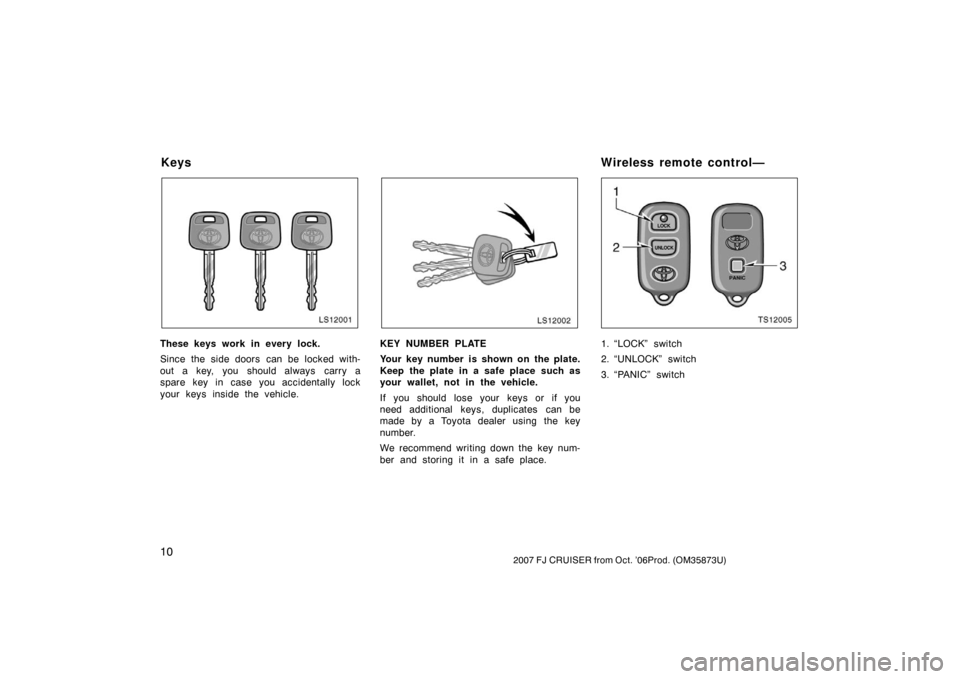

LS12001
These keys work in every lock.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
LS12002
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
TS12005
1. “LOCK” switch
2. “UNLOCK” switch
3. “PANIC” switch
KeysWireless remote control—
