212007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
TS12017
Window
lock
switch
Driver’s side
TS12018
Passenger’s side
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the front passenger ’s
door or the switches on the driver ’s
door that control the front passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Page 32 of 340
222007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
TS12027
To open the back window, turn the key
clockwise and hold it for about 1 se-
cond.
After the door is locked, the window
opens slightly, and then lift the back win-
dow.
You can open the back window when the
back window wiper is working. At that
time, the wiper returns to the original
position and stops working.
The wiper restarts its working about 3
seconds after the back window is closed.
If the back window is not securely closed,
the back window wiper and washer will
not work. (See “Back window wiper and
washer” on page 95 and “Back window
defogger” on page 96 in Section 1−5.)
To close the back window, lower it. After
closing the back window, try pulling it up
to make sure it is securely closed.
When you close the back window, be
careful not to lock your keys in the ve-
hicle.
Back window
Page 33 of 340
232007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the back window,
always make sure there is nobody
around the back window. You must
also make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle. If someone’s neck,
head or hands get caught in a clos-
ing window, it could result in death
or serious injury. When anyone
closes the back window, make sure
he or she operates the window
safely.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
NOTICE
To prevent damage to the back win-
dow dampers, do not apply any force,
paint or let any other foreign matter
on them.

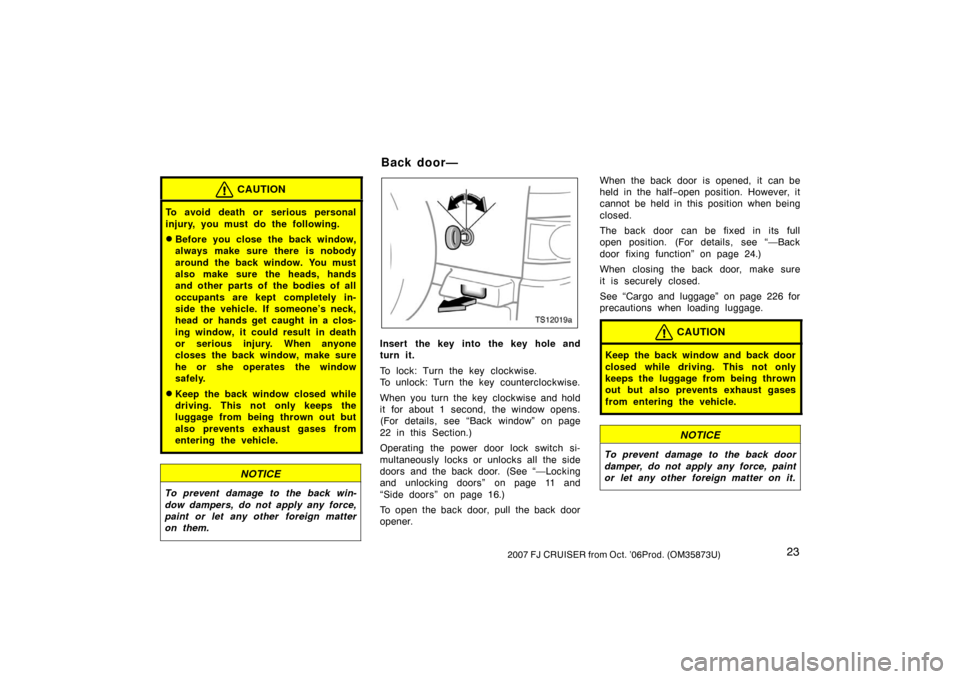

TS12019a
Insert the key into the key hole and
turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
When you turn the key clockwise and hold
it for about 1 second, the window opens.
(For details, see “Back window” on page
22 in this Section.)
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and the back door. (See “—Locking
and unlocking doors” on page 11 and
“Side doors” on page 16.)
To open the back door, pull the back door
opener.When the back door is opened, it can be
held in the half
−open position. However, it
cannot be held in this position when being
closed.
The back door can be fixed in its full
open position. (For details, see “—Back
door fixing function” on page 24.)
When closing the back door, make sure
it is securely closed.
See “Cargo and luggage” on page 226 for
precautions when loading luggage.
CAUTION
Keep the back window and back door
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
damper, do not apply any force, paint
or let any other foreign matter on it.
Back door—
Page 34 of 340
242007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
TS12026d
1.Lock
2.Unlock
The back door can be fixed when it is
fully open.
To lock: Fully open the back door and
then pull the damper. The back door is
fixed in the full open position.
Check to see that the back door is fixed.
To unlock: Push the damper. The fixed
back door is released.
NOTICE
To prevent damage to the damper, en-
sure that the damper is unlocked be-
fore closing the back door.
TS12020
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
TS12021
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
—Back door fixing function Hood
Page 35 of 340
252007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

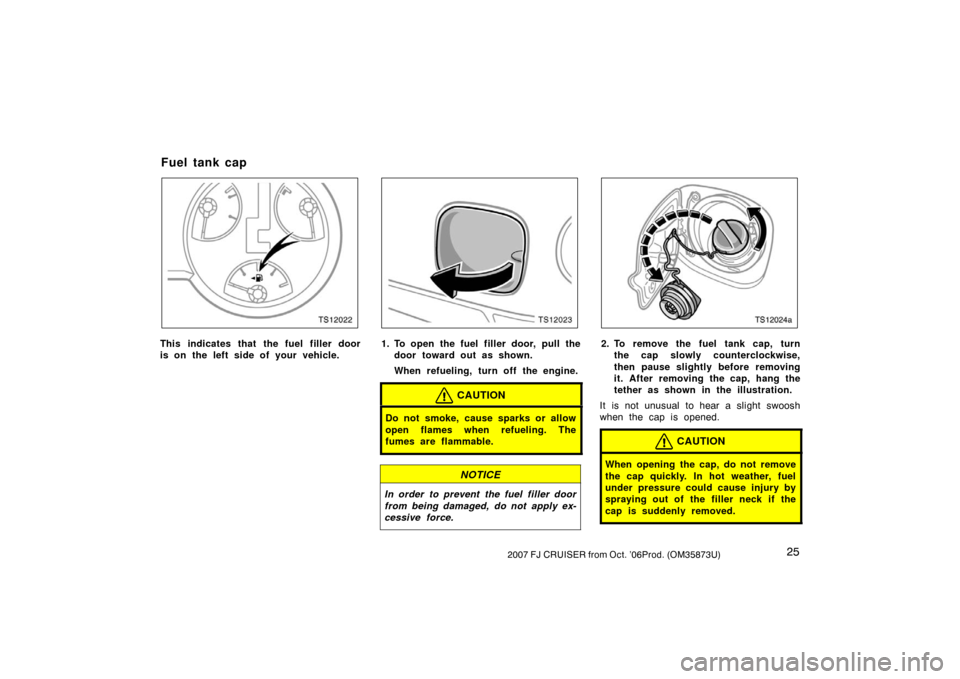

TS12022
This indicates that the fuel filler door
is on the left side of your vehicle.
TS12023
1. To open the fuel filler door, pull thedoor toward out as shown.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or allow
open flames when refueling. The
fumes are flammable.
NOTICE
In order to prevent the fuel f iller door
from being damaged, do not apply ex-
cessive force.
TS12024a
2. To remove the fuel tank cap, turn the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened.
CAUTION
When opening the cap, do not remove
the cap quickly. In hot weather, fuel
under pressure could cause injury by
spraying out of the filler neck if the
cap is suddenly removed.
Fuel tank cap
Page 36 of 340
262007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
When installing the cap, turn it clock-
wise until one click is heard, in order
to fully close it. The cap returns slight-
ly when your hand is released from the
cap after closure, however this does
not cause any problems.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Page 37 of 340
272007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Head restraints 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Armrest 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Seat belts 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 45
. . . . . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 53
. . . . . . . . . . . . . . . . . . . .
Front passenger occupant classification system 61
. . . . . . . . . . . . . . . .
Child restraint 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3
Page 38 of 340
282007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

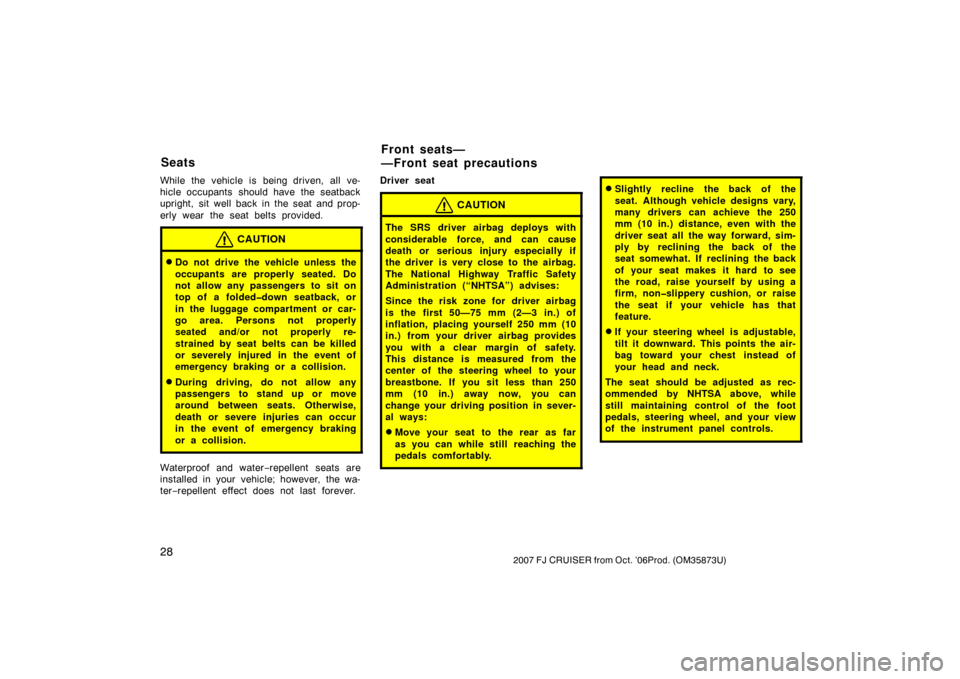

While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a folded down seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Waterproof and water−repellent seats are
installed in your vehicle; however, the wa-
ter −repellent effect does not last forever. Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non slippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions
Page 39 of 340
292007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seat lock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions
Page 40 of 340
302007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
TS13001
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB (driver ’s seat only)
To change the angle of the seat cush-
ion on the front side, turn the knob
either way.
3. SEAT HEIGHT ADJUSTING LEVER (driver ’s seat only)
To change the height of the seat, pull
up or push down the lever. 4. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
