TOYOTA FJ CRUISER 2009 1.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

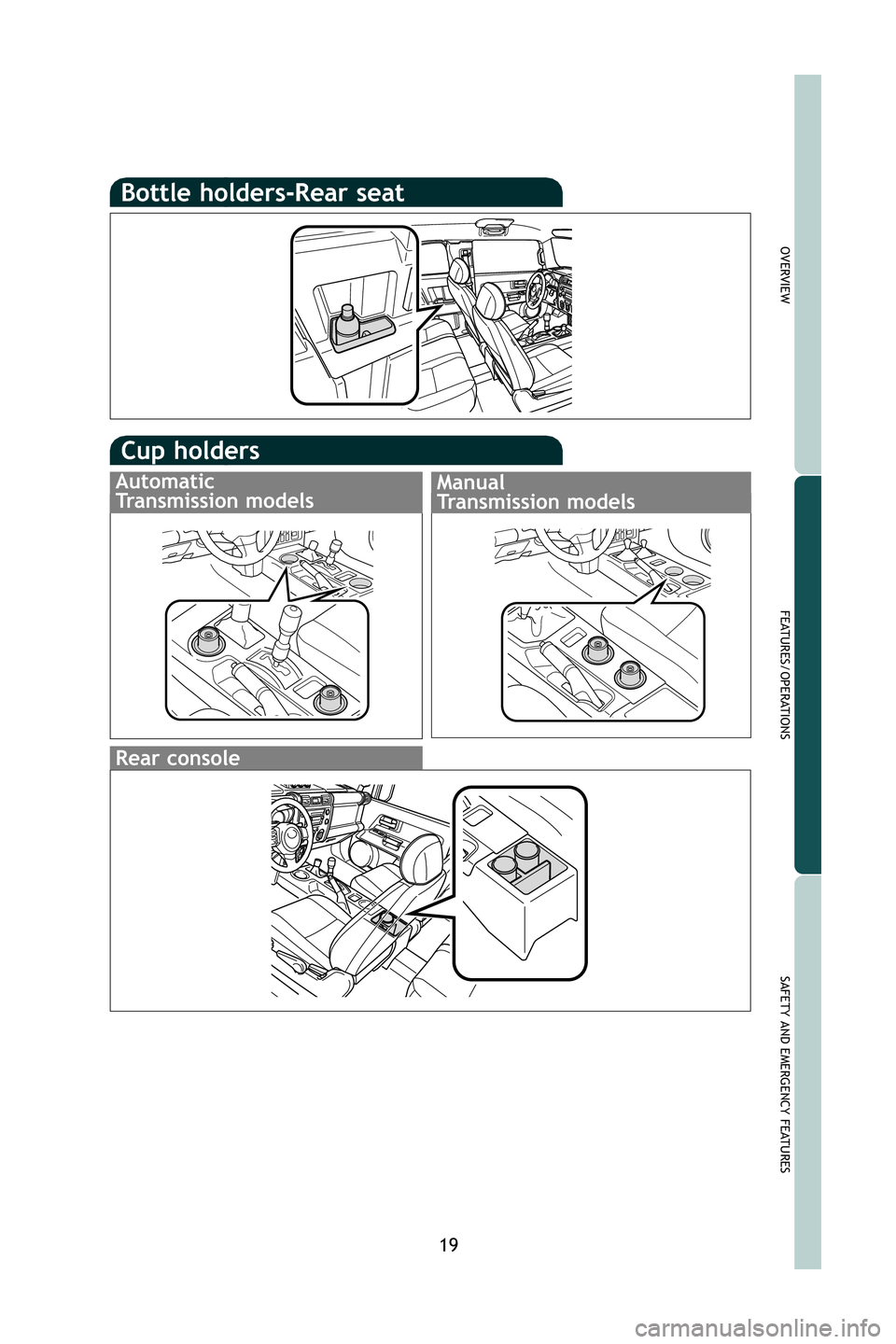

Bottle holders-Rear seat
Cup holders
Rear console
Manual
Transmission models
Automatic
Transmission models
M2.qxd 7/28/08 3:06 PM Page 19

20

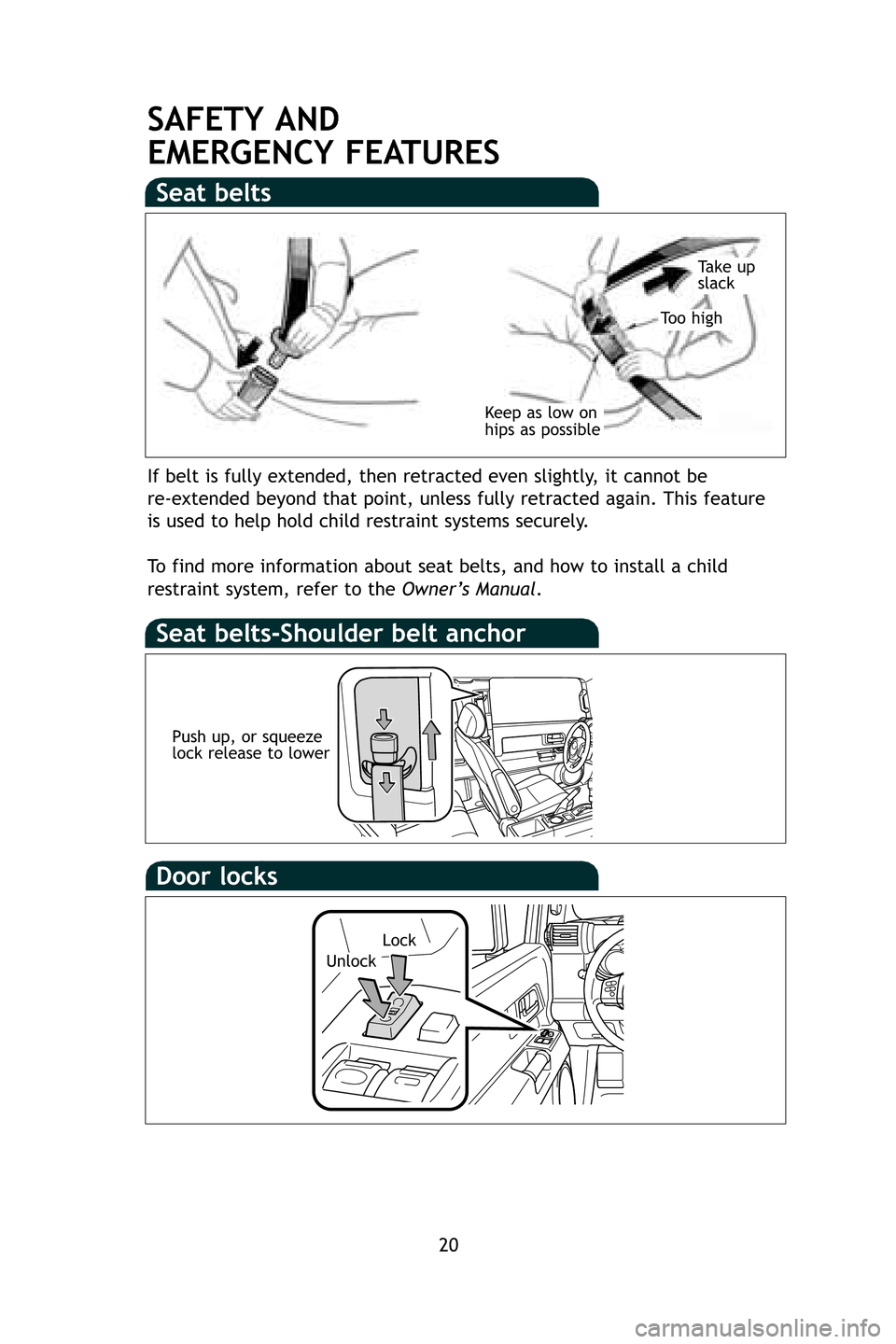

SAFETY AND
EMERGENCY FEATURES
Seat belts
Seat belts-Shoulder belt anchor
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Push up, or squeeze
lock release to lower
Door locks
Unlock
Lock
M2.qxd 7/28/08 3:06 PM Page 20

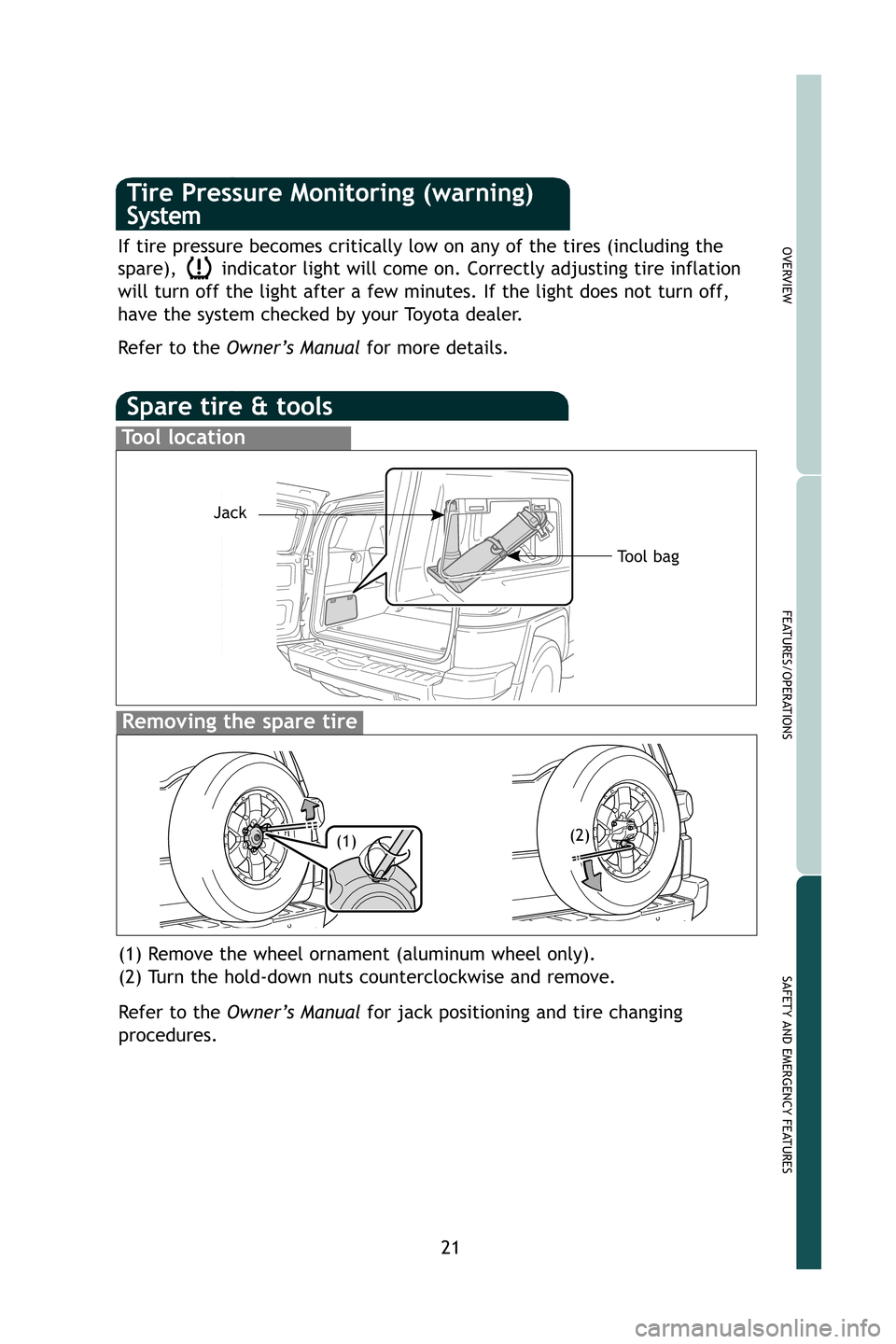

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the wheel ornament (aluminum wheel only).
(2) Turn the hold-down nuts counterclockwise and remove.
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
21
If tire pressure becomes critically low on any of the tires (including \
the
spare), indicator light will come on. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn \
off,
have the system checked by your Toyota dealer.
Refer to the
Owner’s Manual for more details.
Tool bag
Jack
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(2)
(1)
Tire Pressure Monitoring (warning)
System
M1.qxd 7/28/08 3:04 PM Page 3

MN 00505-QRG09-FJC
Printed in the USA 7/08
