TOYOTA FJ CRUISER 2009 1.G Quick Reference Guide

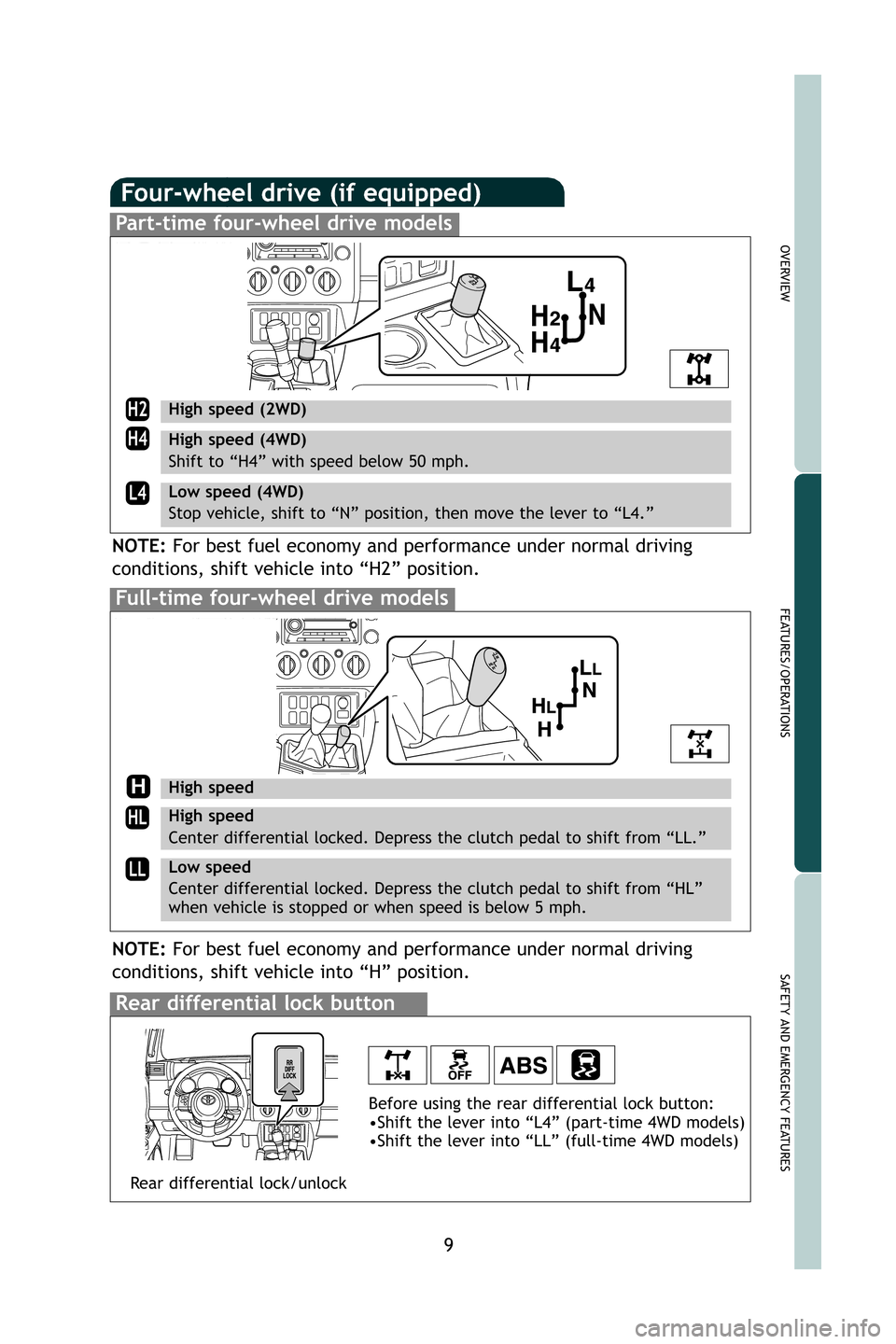

Four-wheel drive (if equipped)
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
H2
H4
L4
Full-time four-wheel drive models
Part-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N” position, then move the lever to “L4\
.”
Rear differential lock button
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H2” position.
Rear differential lock/unlock
Low speed
Center differential locked. Depress the clutch pedal to shift from “H\
L”
when vehicle is stopped or when speed is below 5 mph.
HL
LL
H
Before using the rear differential lock button:
•Shift the lever into “L4” (part-time 4WD models)
•Shift the lever into “LL” (full-time 4WD models)
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H” position.
High speed
High speed
Center differential locked. Depress the clutch pedal to shift from “L\
L.”
M2.qxd 7/28/08 3:06 PM Page 9

FEATURES/OPERATIONS
Seats-Head restraints
10
Lock release button

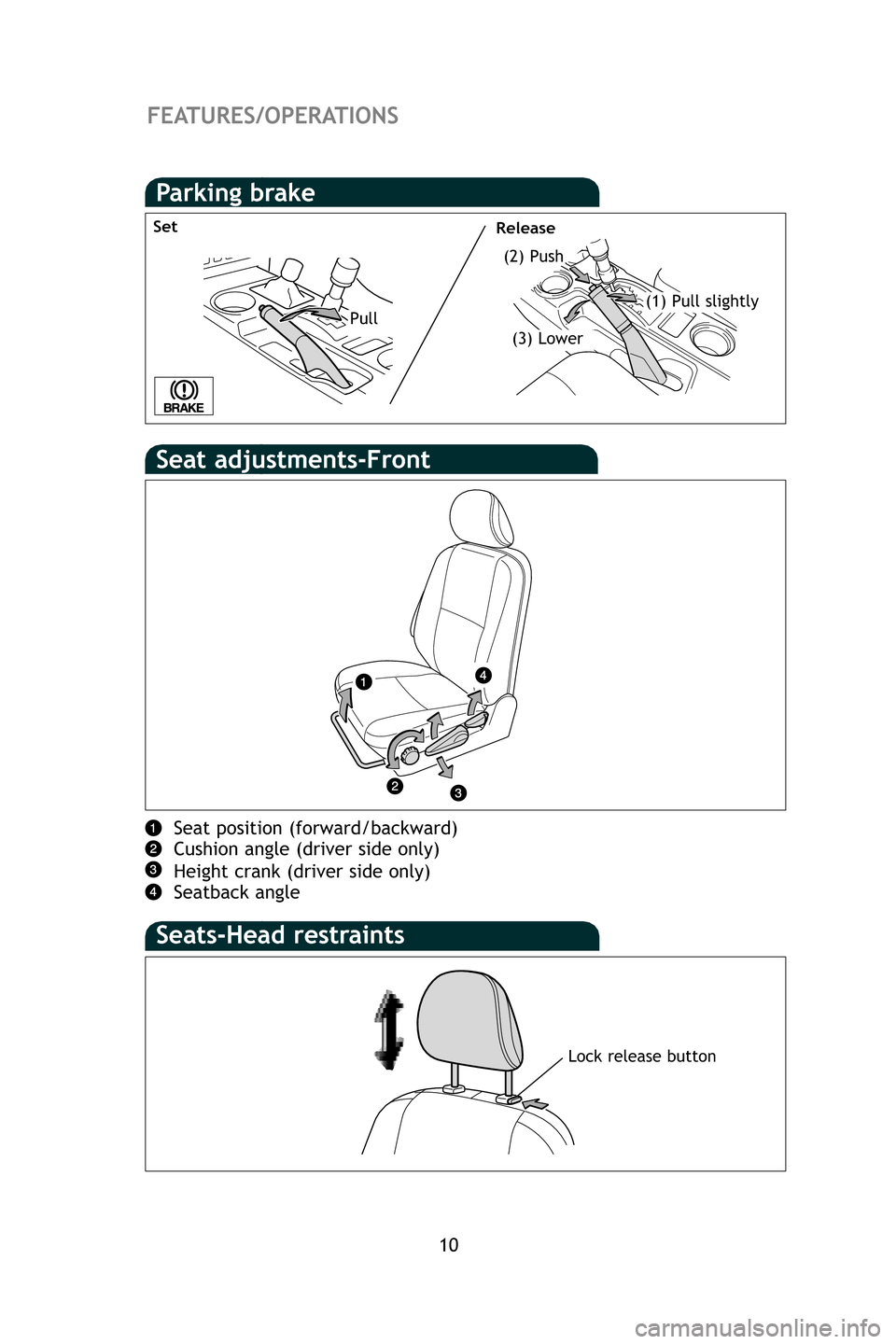

Seat adjustments-Front
Seat position (forward/backward)
Cushion angle (driver side only)
Height crank (driver side only)
Seatback angle
ReleaseSet
Pull(1) Pull slightly
(2) Push
(3) Lower
Parking brake
M2.qxd 7/28/08 3:06 PM Page 10

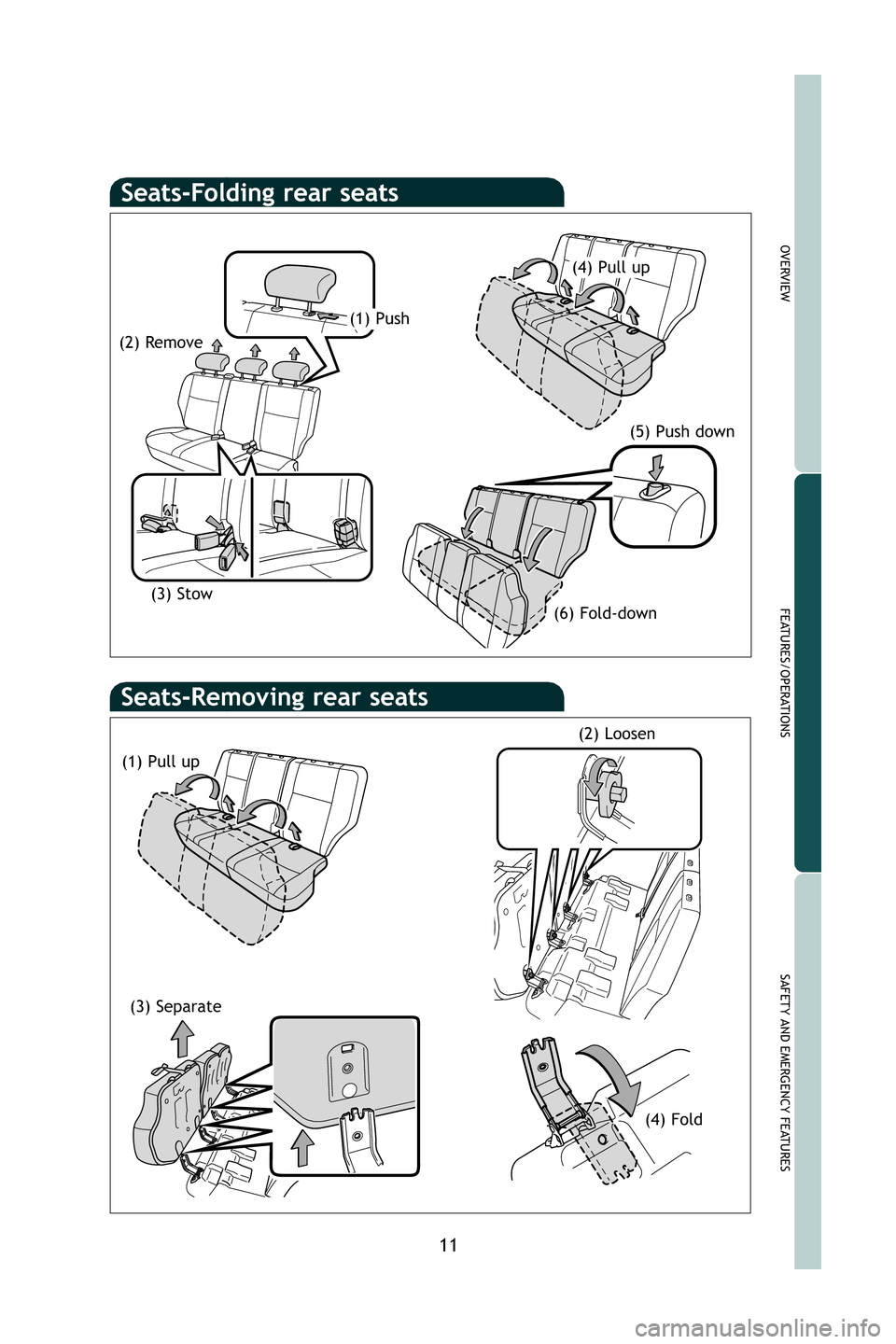

Seats-Folding rear seats
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seats-Removing rear seats
(1) Push
(2) Remove
(3) Stow (6) Fold-down(5) Push down
(1) Pull up
(2) Loosen
(3) Separate
(4) Fold
(4) Pull up
M2.qxd 7/28/08 3:06 PM Page 11

12
FEATURES/OPERATIONS
Windshield wipers & washers
Rear (if equipped)Front
Interval
wipe
Slow
Fast
Pull to wash and wipe
Adjust interval*
Wash and wipe
Wipe
Interval wipe
Wash and
wipe
NOTE: Rear wiper and washer
operate only when back window is
fully closed.

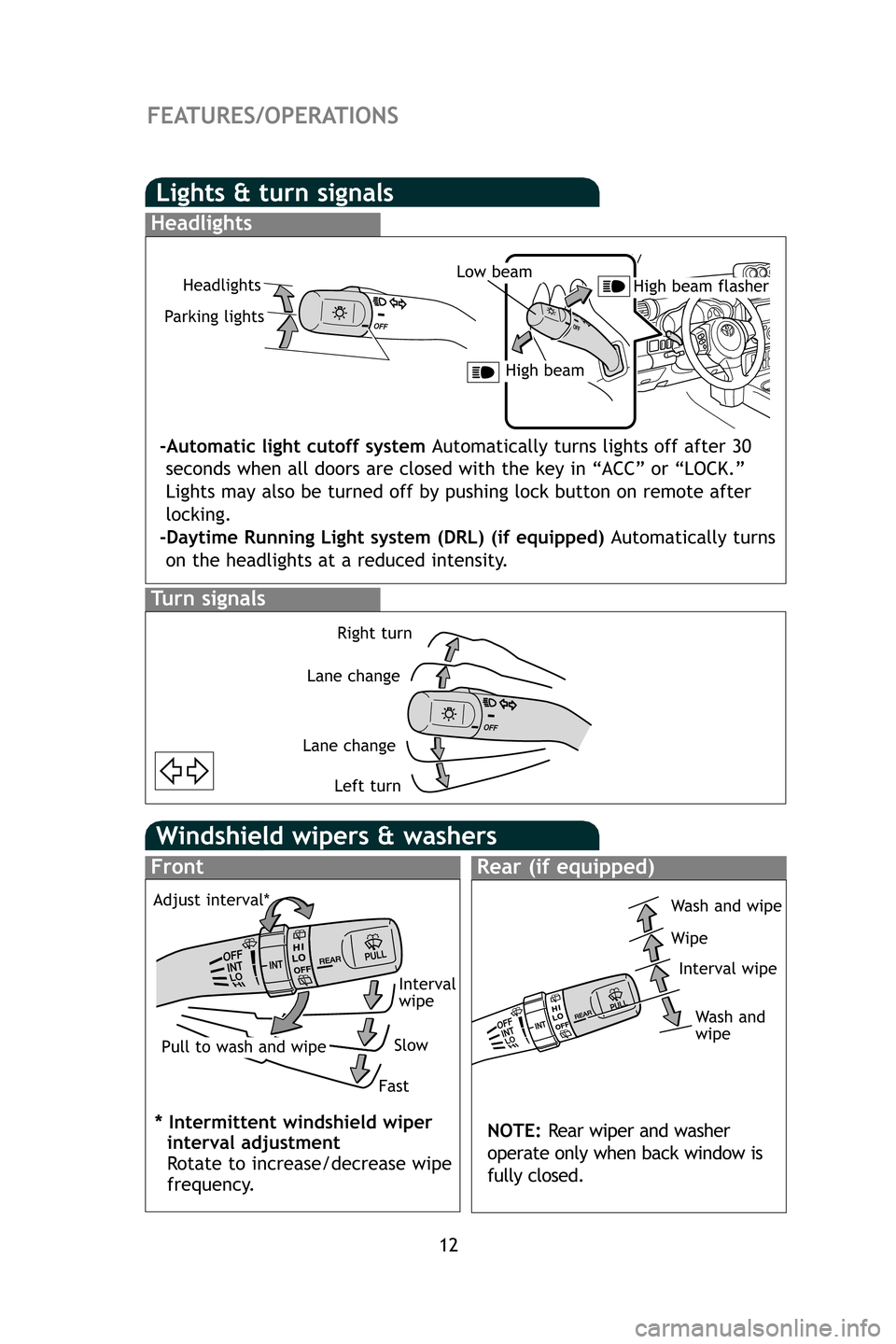

Lights & turn signals
Headlights
High beam flasherLow beam
Headlights
-Automatic light cutoff system Automatically turns lights off after 30
seconds when all doors are closed with the key in “ACC” or “LOC\
K.”
Lights may also be turned off by pushing lock button on remote after
locking.
-Daytime Running Light system (DRL) (if equipped) Automatically turns
on the headlights at a reduced intensity.
Parking lights
High beam
Turn signals
Right turn
Lane change
Lane change Left turn
* Intermittent windshield wiperinterval adjustment
Rotate to increase/decrease wipe
frequency.
M2.qxd 7/28/08 3:06 PM Page 12

13
Door-Back
Open/CloseLock in place
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
UnlockLock
PullUnlock
Lock
Back door can be locked into place
when it is fully open.

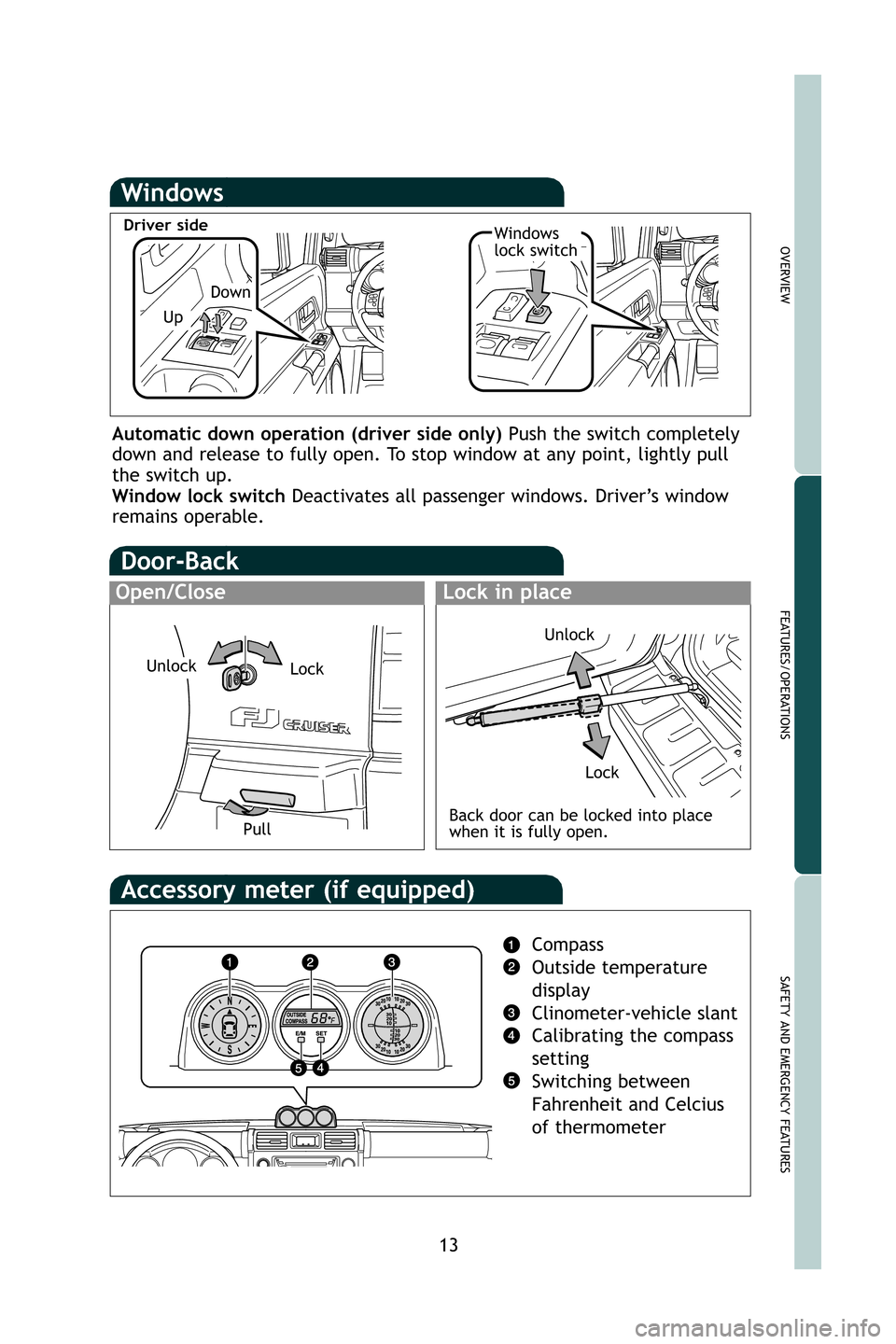

Windows
Driver side
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window at any point, lightly pull
the switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Windows
lock switch
Accessory meter (if equipped)
Compass
Outside temperature
display
Clinometer-vehicle slant
Calibrating the compass
setting
Switching between
Fahrenheit and Celcius
of thermometer
M2.qxd 7/28/08 3:06 PM Page 13

14
FEATURES/OPERATIONS

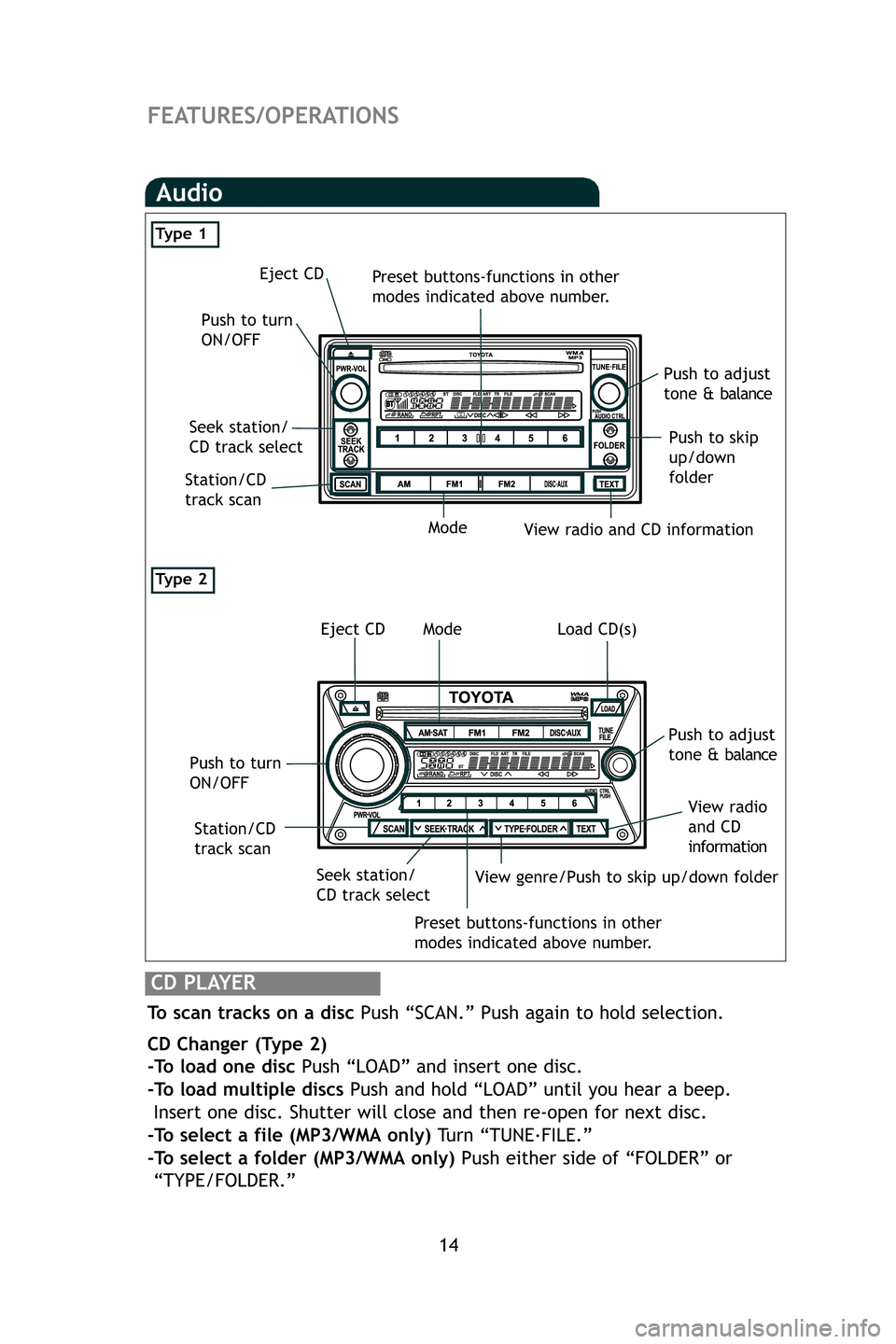

Audio
Ty p e 2
View radio and CD information
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
Push to skip
up/down
folder
Seek station/
CD track select
Station/CD
track scan Mode
Load CD(s)
Preset buttons-functions in other
modes indicated above number.
View genre/Push to skip up/down folder
Ty p e 1
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scan Mode
Preset buttons-functions in other
modes indicated above number.
View radio
and CD
information
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
-To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
-To select a folder (MP3/WMA only) Push either side of “FOLDER” or
“TYPE/FOLDER.”
M2.qxd 7/28/08 3:06 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

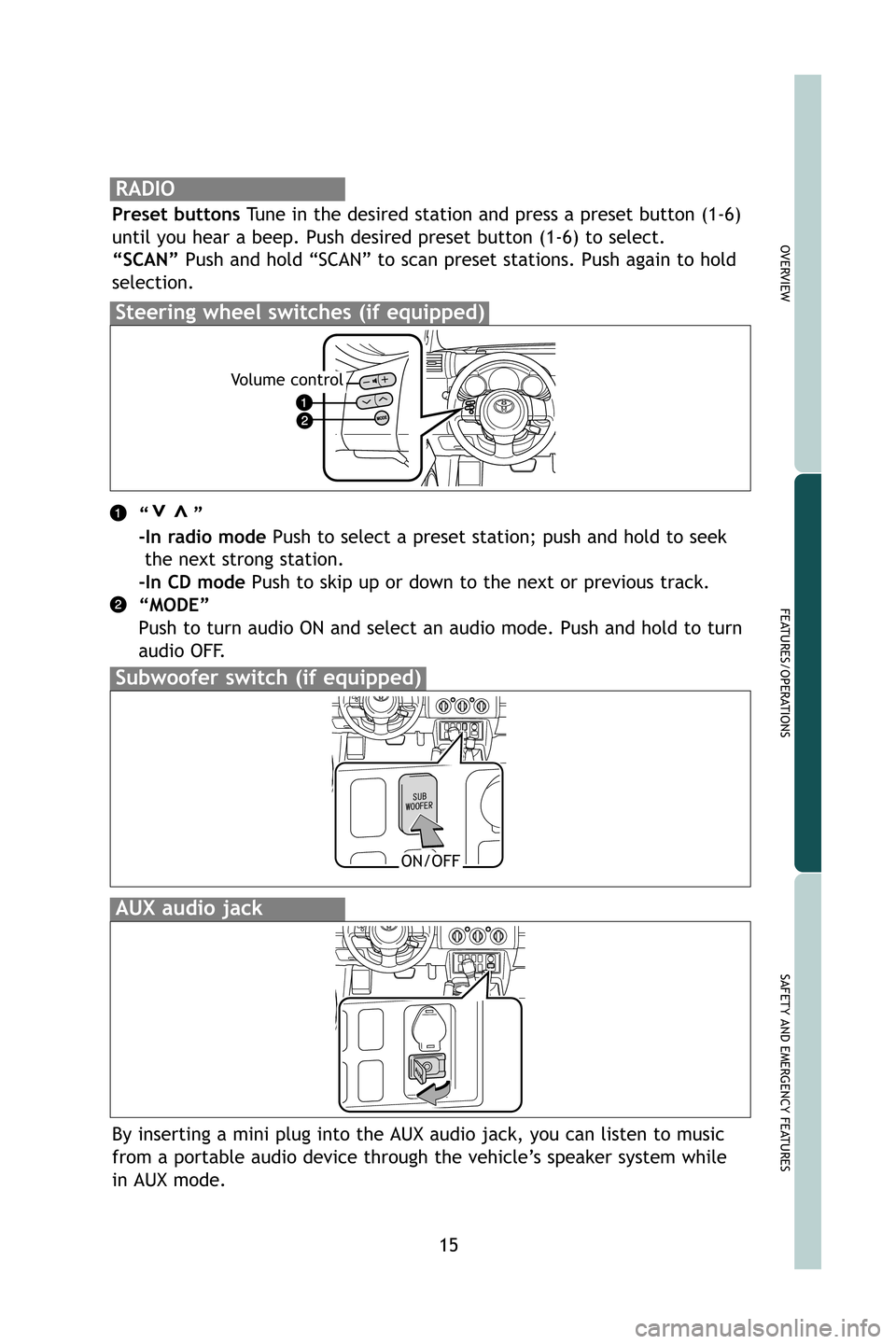

RADIO
Preset buttons Tune in the desired station and press a preset button (1-6)
until you hear a beep. Push desired preset button (1-6) to select.
“SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
“ ”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to the next or previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio OFF.
>>
Steering wheel switches (if equipped)
Subwoofer switch (if equipped)
ON/OFF
By inserting a mini plug into the AUX audio jack, you can listen to musi\
c
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
AUX audio jack
Volume control
M2.qxd 7/28/08 3:06 PM Page 15

16
FEATURES/OPERATIONS
Clock
H-Hour set
M- Minute set

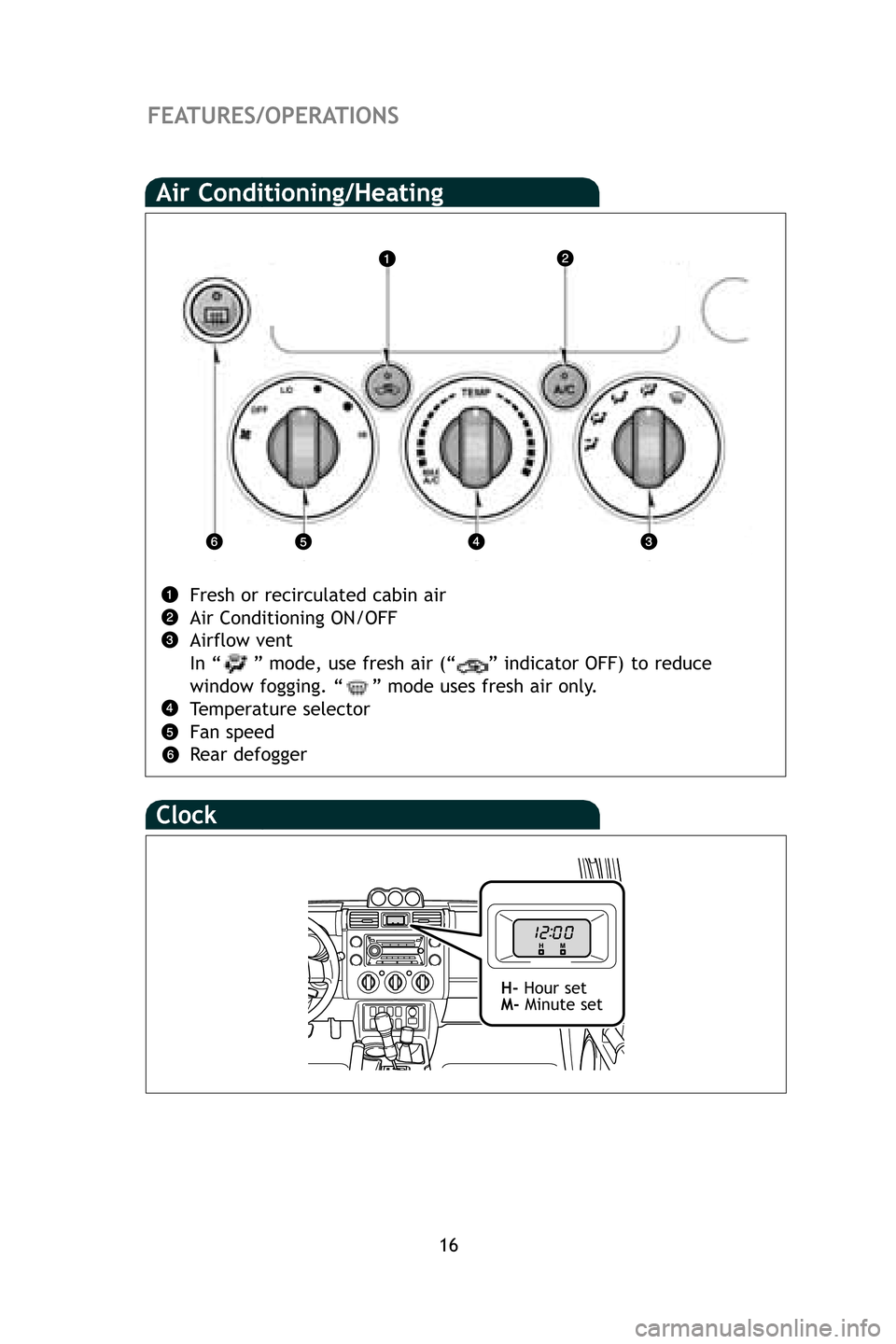

Air Conditioning/Heating
Fresh or recirculated cabin air
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Temperature selector
Fan speed
Rear defogger
M2.qxd 7/28/08 3:06 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESLight control-Instrument panel
Brightness
control
+
-
When vehicle is in reverse, a buzzer will sound to inform driver when
nearing an obstacle. The system can only be used when the transmission i\
s
in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)

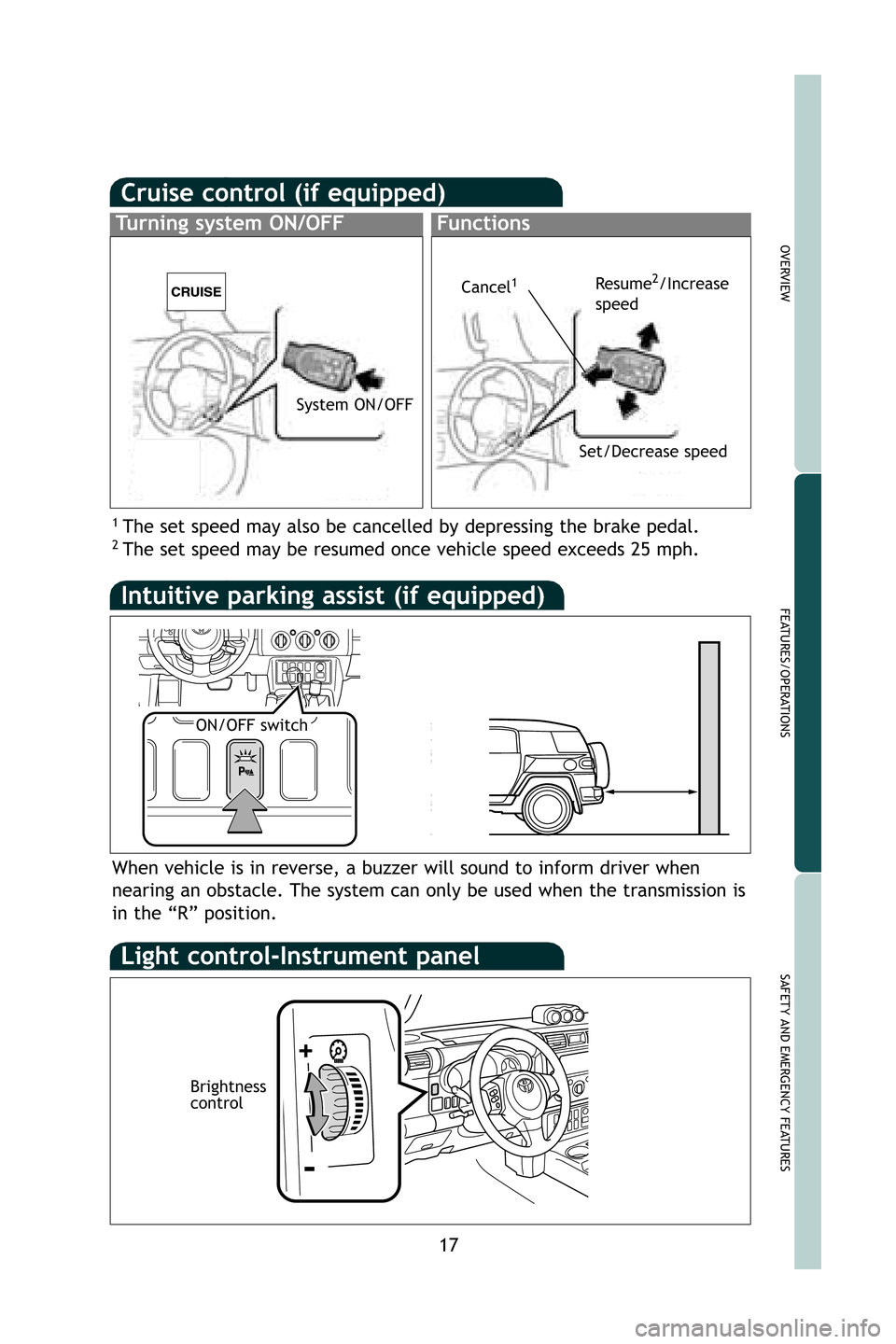

Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFFFunctions
System ON/OFFResume
2/Increase
speed
Set/Decrease speedCancel1
M2.qxd 7/28/08 3:06 PM Page 17

18
Power outlet-12V DC
ON/OFF switchLuggage compartment
Push
Instrument panel
The illumination changes according to the maximum available capacity.
•Green and Yellow115V AC/400W
•Yellow 115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Green light
Power outlet-115V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Yellow light

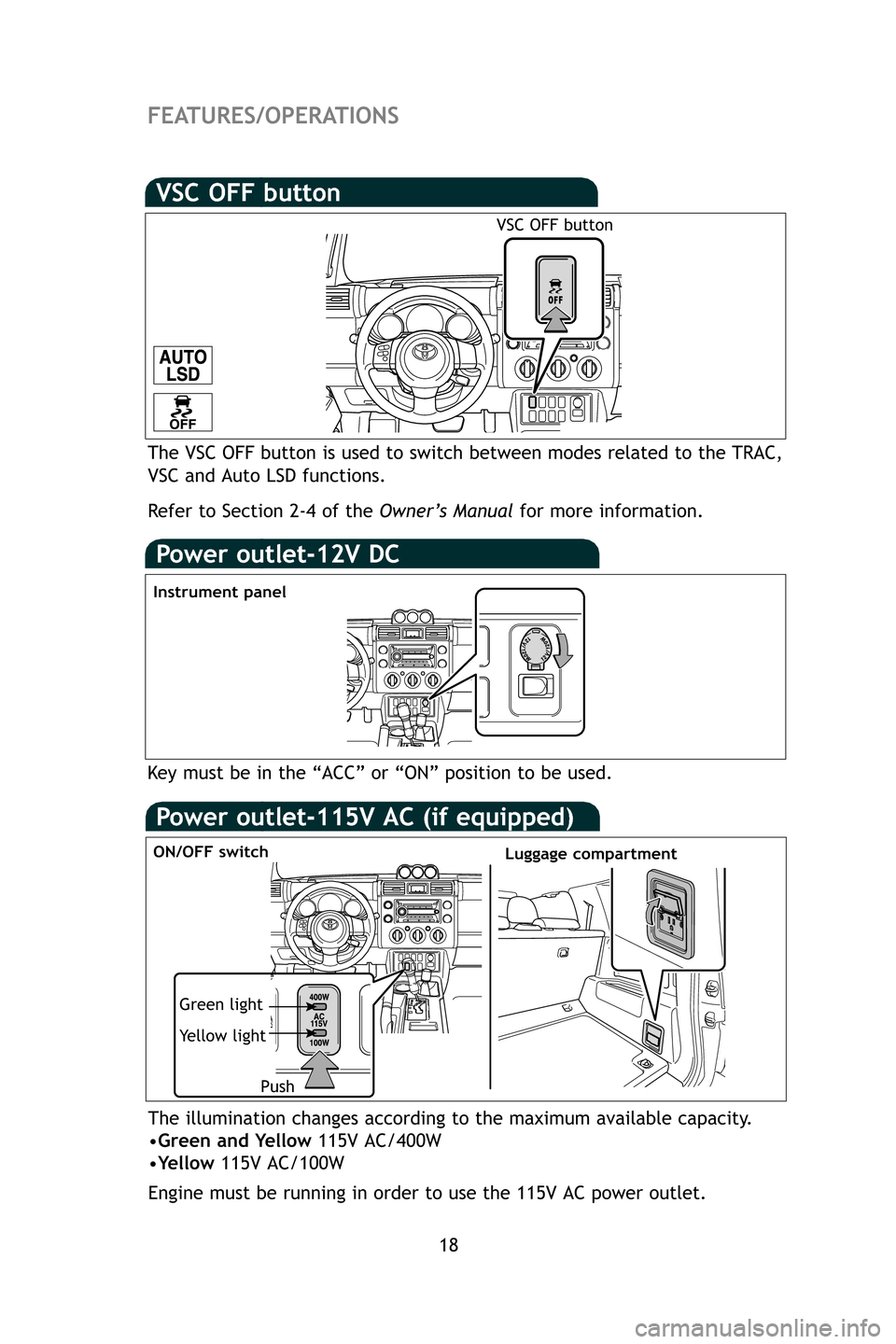

The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
