6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length 183.9 in. (4670 mm)
Overall width 75.0 in. (1905 mm)
Overall
height*2WD models 71.3 in. (1810 mm)
4WD models 72.0 in. (1830 mm)
Wheelbase 105.9 in. (2690 mm)
Front tread 63.2 in. (1605 mm)
Rear tread 63.2 in. (1605 mm)
Vehicle capacity weight
(Occupants + luggage)1130 lb. (510 kg)
Towing capacity
(Trailer weight + cargo)5000 lb. (2265 kg)

389 6-1. Specifications
6
Vehicle specifications
Vehicle identification
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.

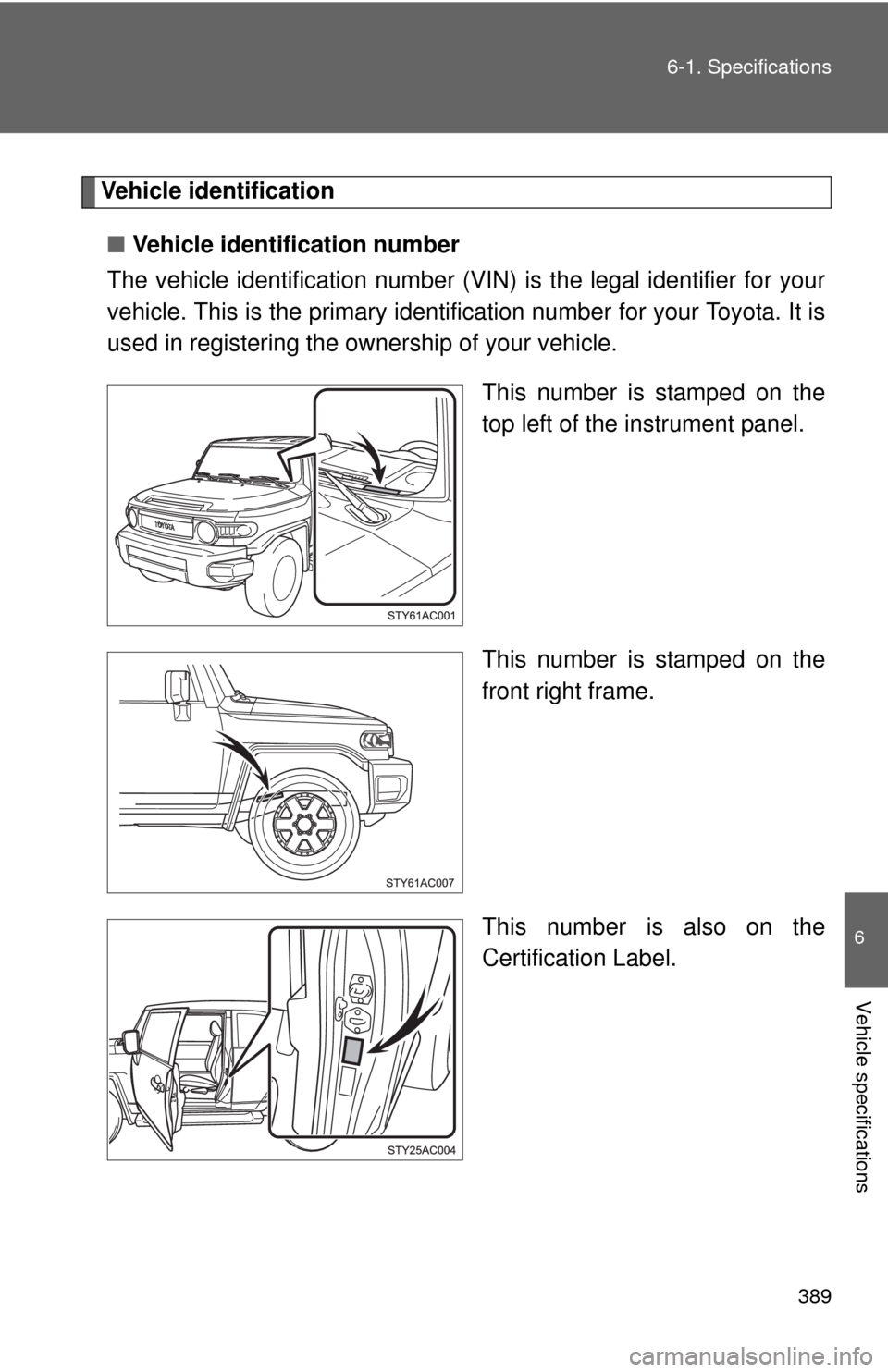

This number is stamped on the
top left of the instrument panel.
This number is stamped on the
front right frame.
This number is also on the
Certification Label.

390 6-1. Specifications
■Engine number

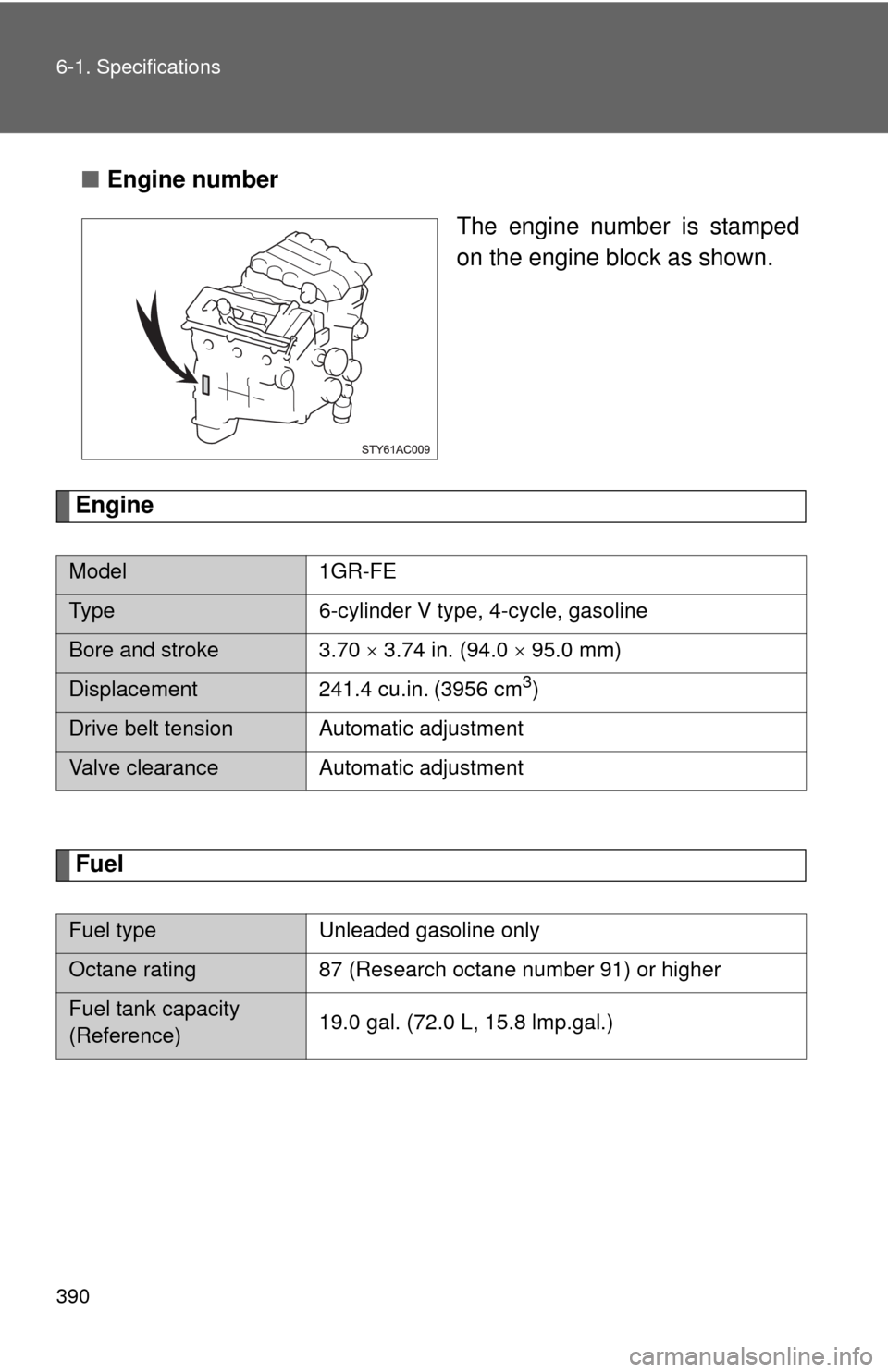

The engine number is stamped
on the engine block as shown.
Engine
Fuel
Model 1GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.74 in. (94.0  95.0 mm)
Displacement 241.4 cu.in. (3956 cm3)
Drive belt tension Automatic adjustment
Valve clearance Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)19.0 gal. (72.0 L, 15.8 lmp.gal.)

391 6-1. Specifications
6
Vehicle specifications
Lubrication system
■Engine oil selection
“Toyota” Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20

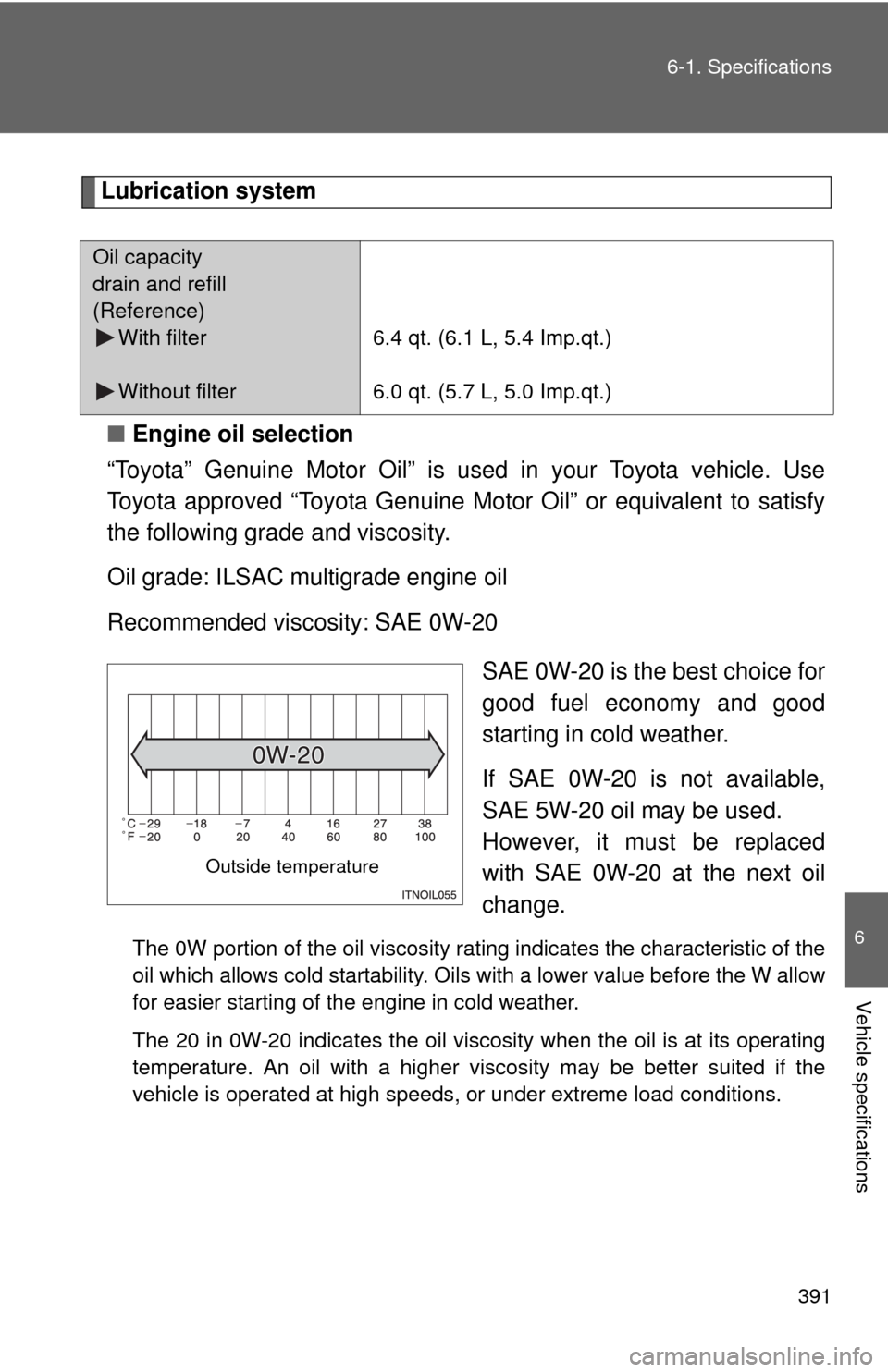

SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load conditions.
Oil capacity
drain and refill
(Reference)
With filter
Without filter6.4 qt. (6.1 L, 5.4 Imp.qt.)
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Outside temperature

392 6-1. Specifications
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Ignition system
CapacityVehicles with an automatic transmission
10.4 qt. (9.8 L, 8.6 Imp.qt.)
Vehicles with a manual transmission
9.9 qt. (9.4 L, 8.3 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO SK20HR11
Gap 0.043 in. (1.1 mm)

393 6-1. Specifications
6
Vehicle specifications
Electrical system
Differential
*: “Toyota Genuine Differential Gear Oil” is filled in your Toyota vehicle at
factory fill. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68F (20C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after
the key is removed with all the lights
turned off)
Charging rates 5 A max.
Oil capacity
Front
(4WD models)Vehicles with a manual transmission
1.48 qt. (1.40 L, 1.23 Imp.qt.)
Vehicles with an automatic transmission
1.64 qt. (1.55 L, 1.36 Imp.qt.)
RearVehicles with a rear differential lock
2.59 qt. (2.45 L, 2.16 Imp.qt.)
Vehicles without a rear differential lock
2.64 qt. (2.50 L, 2.20 Imp.qt.)
Oil type and
viscosity
*
Front
(4WD models)Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
RearToyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent

394 6-1. Specifications
Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact your Toyota dealer.
Manual transmission
Clutch
Fluid capacity *11.3 qt. (10.7 L, 9.4 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic
transmission of your vehicle.
Gear oil capacity (Reference) 1.9 qt. (1.8 L, 1.6 Imp.qt.)
Gear oil type Gear oil API GL-4 or GL-5
Recommended gear oil viscosity SAE 75W-90
Clutch free play 0.2  0.6 in. (5 15 mm)
Fluid type FMVSS No. 116 DOT 3 or SAE J1703

395 6-1. Specifications
6
Vehicle specifications
Transfer (4WD models)
*: “Toyota Genuine Transfer Gear oil LF” is filled in your Toyota vehicle at
factory fill. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2: Parking brake lever travel when pulled with a force of 44.1 lbf (196 N, 20.0
kgf).
Oil capacityVehicles with an automatic transmission
1.1 qt. (1.0 L, 0.9 Imp.qt.)
Vehicles with a manual transmission
1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or
equivalent
Recommended oil viscosity SAE 75W
Pedal clearance *12.1 in. (54 mm) Min.
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel *25 — 7 clicks
Fluid type FMVSS No. 116 DOT 3 or SAE J1703

396 6-1. Specifications
Chassis lubrication
Steering
Tires and wheels
Propeller shafts
Spider
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum — disulfide lithium base
chassis grease, NLGI No.2 or lithium
base multipurpose grease, NLGI No.2
Free playLess than 1.2 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or
III
Tire size P265/75R16 114T, P265/70R17 113S
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare tire:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size 16  7 J, 17  7 1/2 J
Wheel nut torque 85 ft·lbf (113 N·m, 11.5 kgf·m)

397 6-1. Specifications
6
Vehicle specifications
Light bulbs
A: HB2 halogen bulbs
B: Single end bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbs
Light BulbsBulb No.WTy p e
ExteriorHeadlights — 60/55 A
Front turn signal/
parking and front side
marker lights— 21/5 B
Outside rear view
mirror illumination
lights—5 C
Rear turn signal lights — 21 D
Stop/tail and rear side
marker lights7443 21/5 C
Back-up lights 921 16 C
License plate lights — 5 C
InteriorFront interior light 8 E
Personal lights — 8 C
Rear interior light 8 E
