4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs

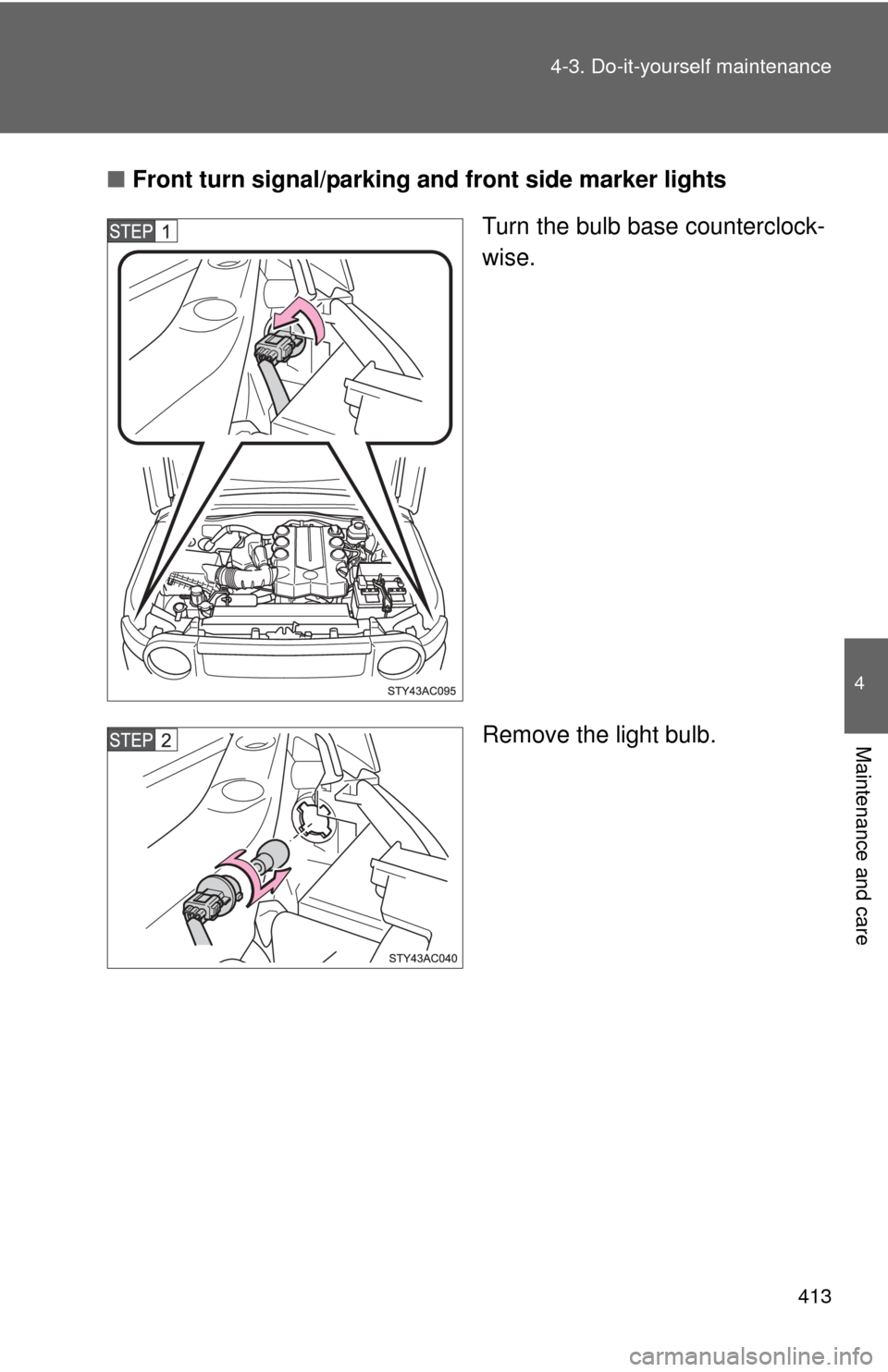

■ Headlights and daytime r unning lights (if equipped)
Unplug the connector.

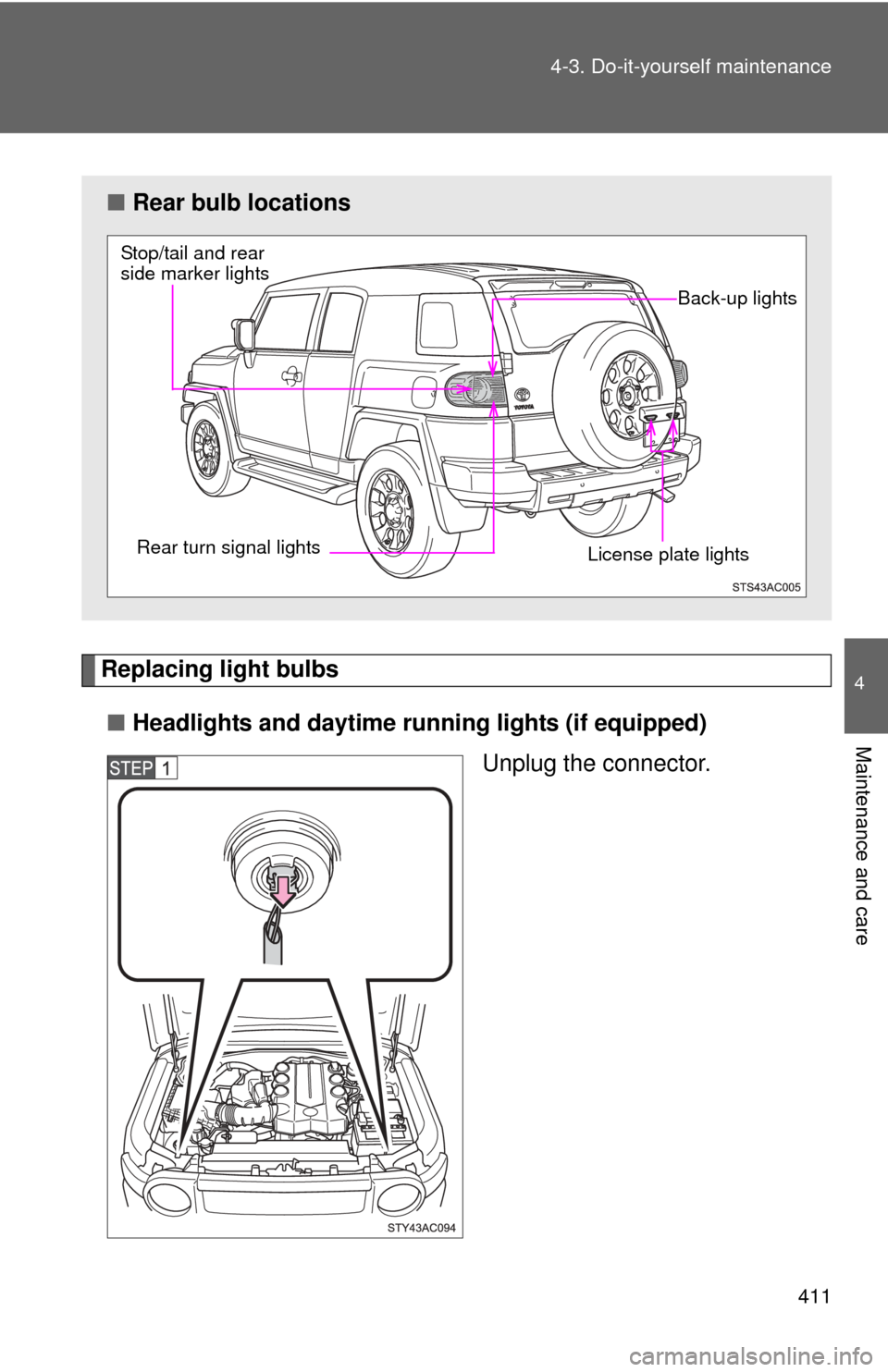

■Rear bulb locations
Stop/tail and rear
side marker lights
Rear turn signal lights
License plate lights
Back-up lights

412 4-3. Do-it-yourself maintenance

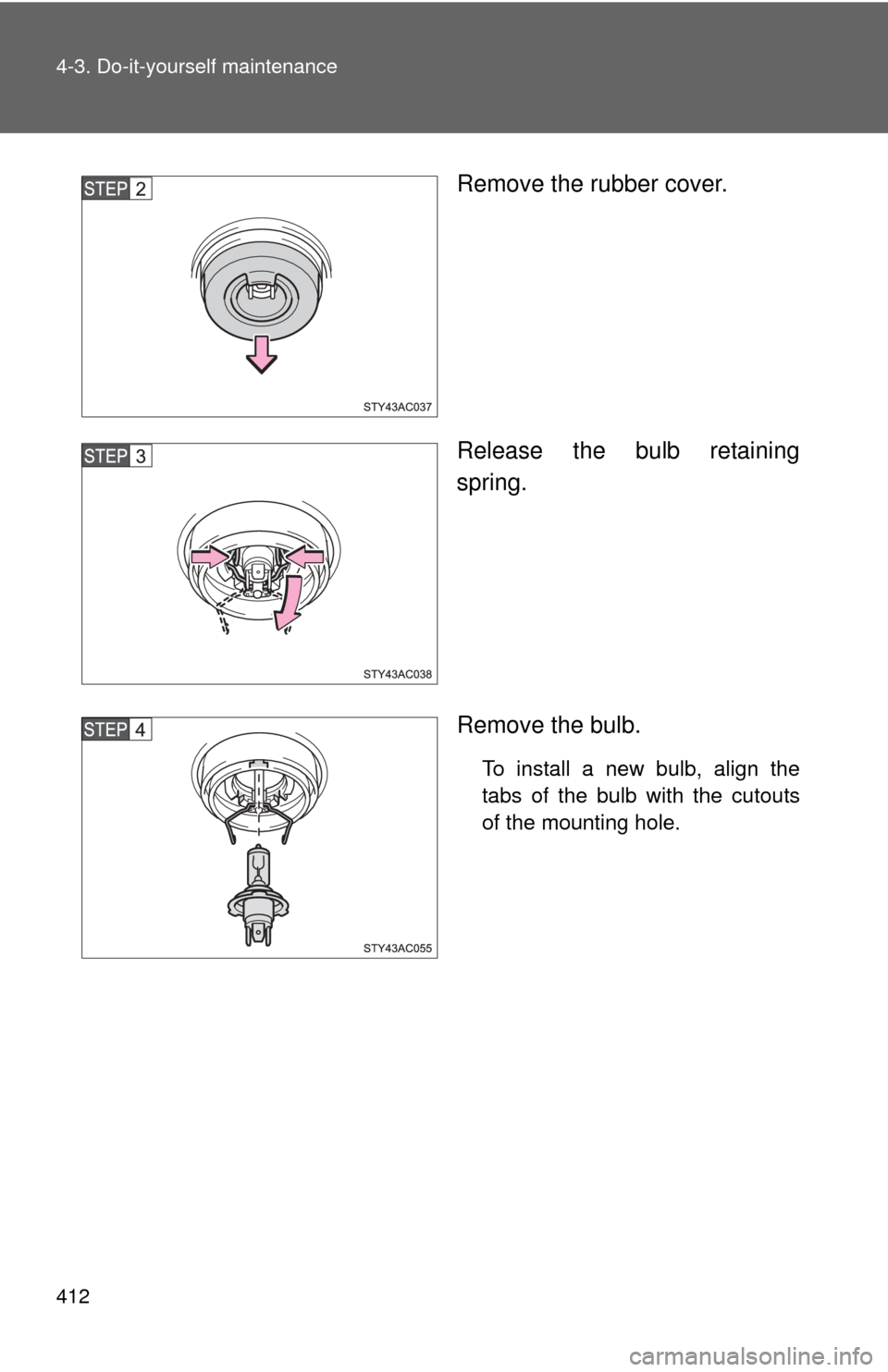

Remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Front turn signal/parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.

414 4-3. Do-it-yourself maintenance
■Back-up lights, stop/tail and rear side marker and rear turn
signal light bulbs

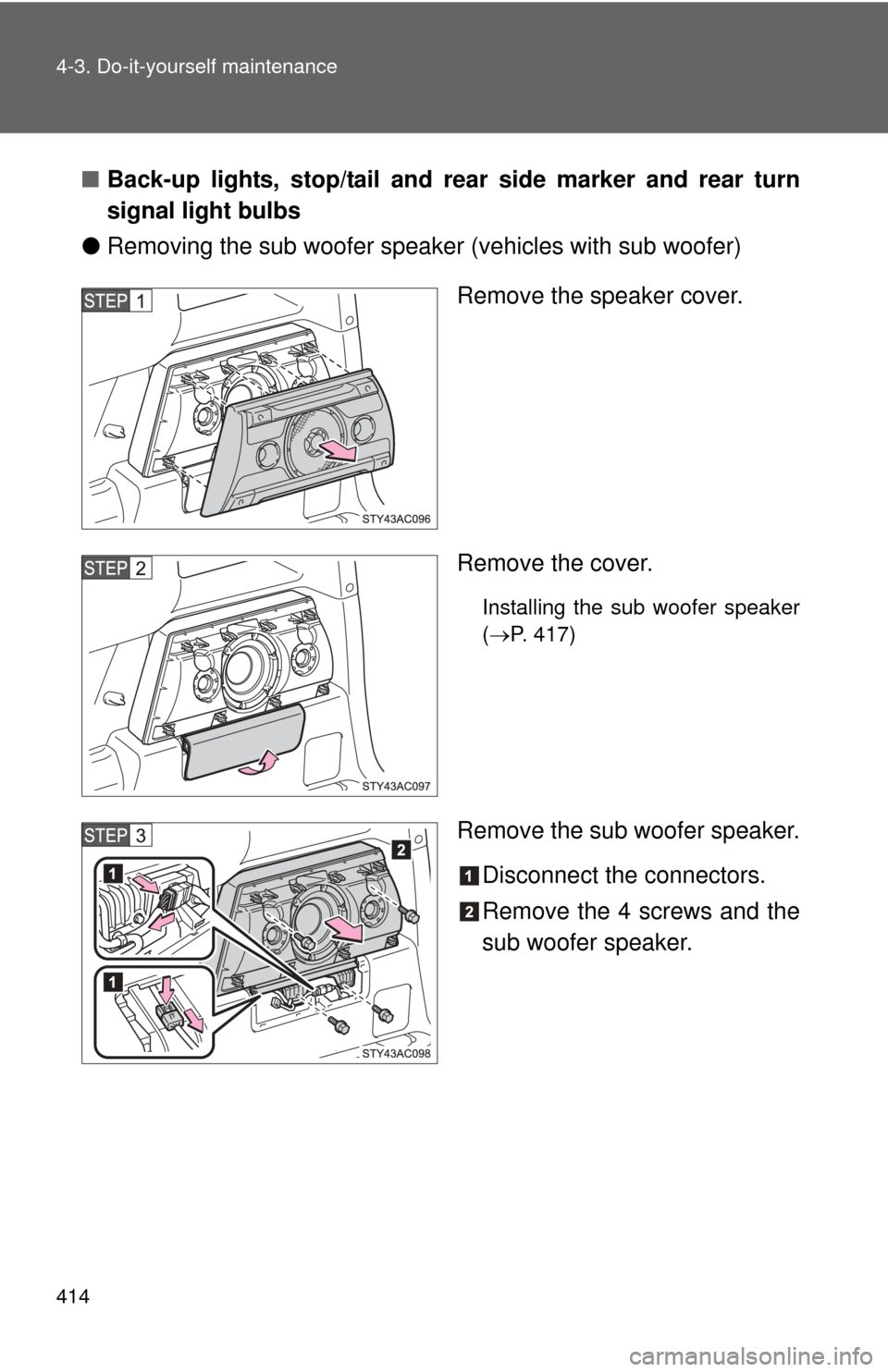

● Removing the sub woofer speaker (vehicles with sub woofer)
Remove the speaker cover.
Remove the cover.
Installing the sub woofer speaker
(P. 417)
Remove the sub woofer speaker.
Disconnect the connectors.
Remove the 4 screws and the
sub woofer speaker.

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
●

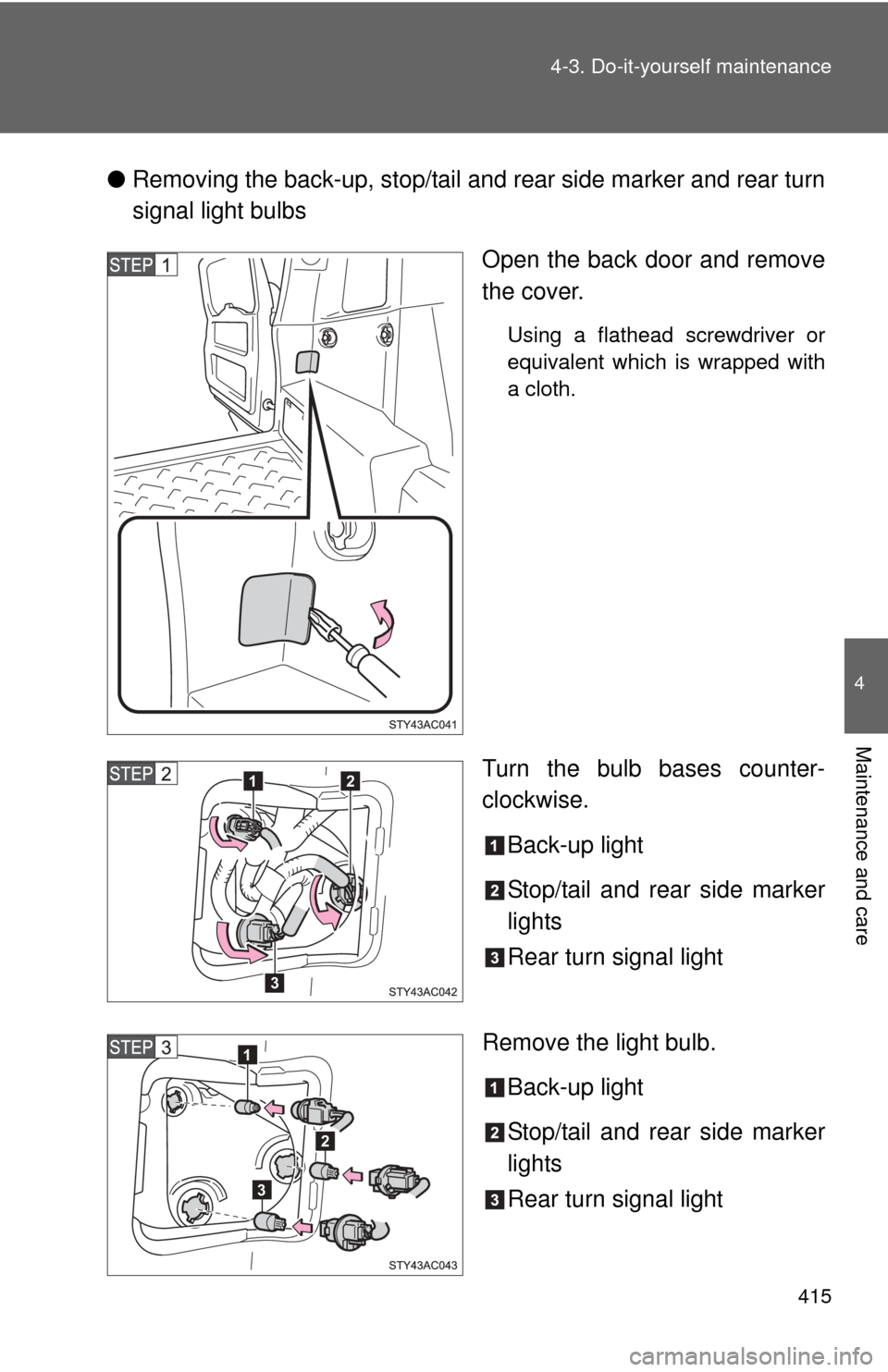

Removing the back-up, stop/tail and rear side marker and rear turn
signal light bulbs
Open the back door and remove
the cover.
Using a flathead screwdriver or
equivalent which is wrapped with
a cloth.
Turn the bulb bases counter-
clockwise.Back-up light
Stop/tail and rear side marker
lights
Rear turn signal light
Remove the light bulb. Back-up light
Stop/tail and rear side marker
lights
Rear turn signal light12
3
1
3
2

416 4-3. Do-it-yourself maintenance

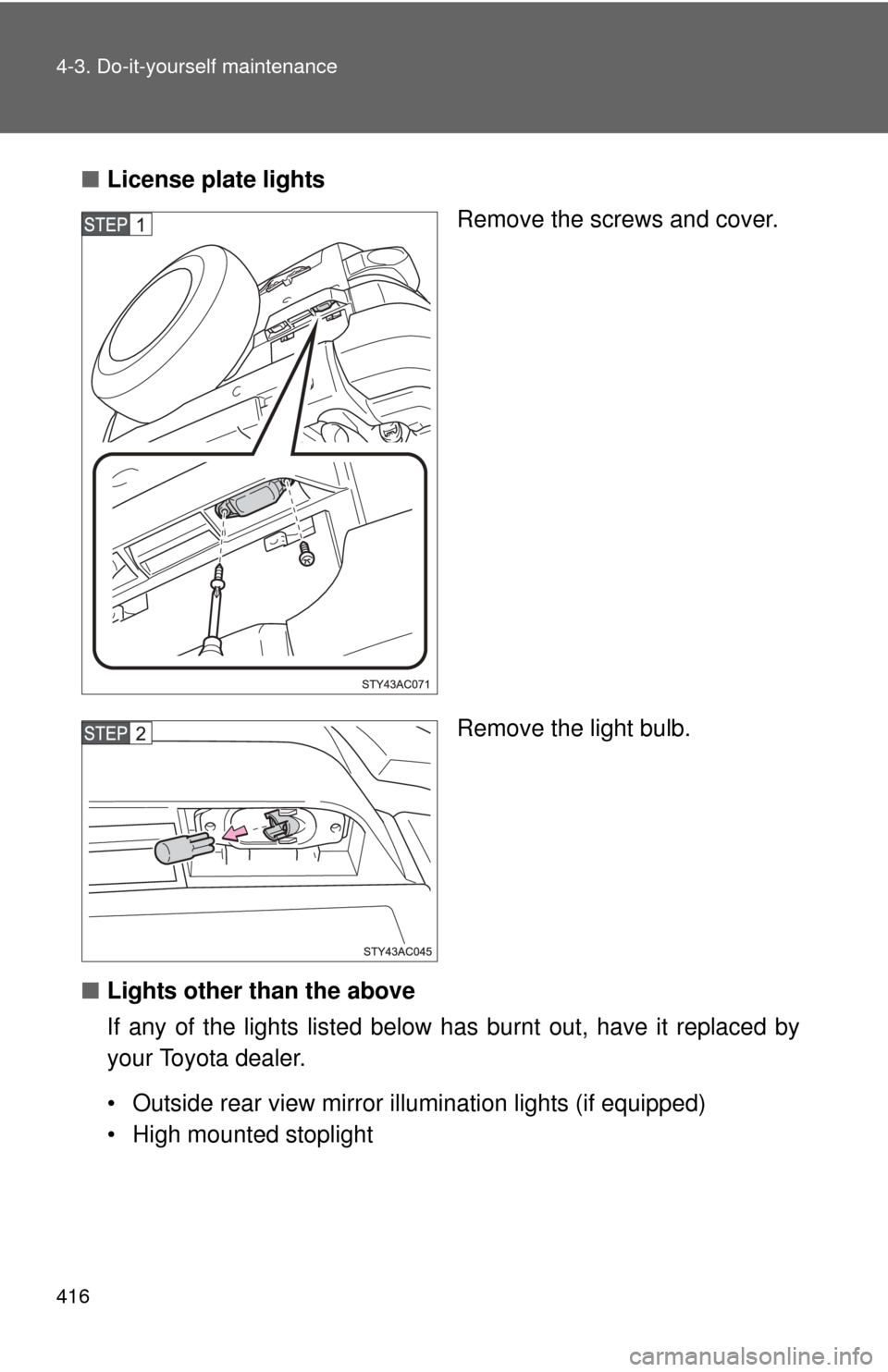

■License plate lights
Remove the screws and cover.
Remove the light bulb.
■ Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
• Outside rear view mirror illumination lights (if equipped)
• High mounted stoplight

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
■ Installing the sub woofer speaker (vehicles with sub woofer)
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

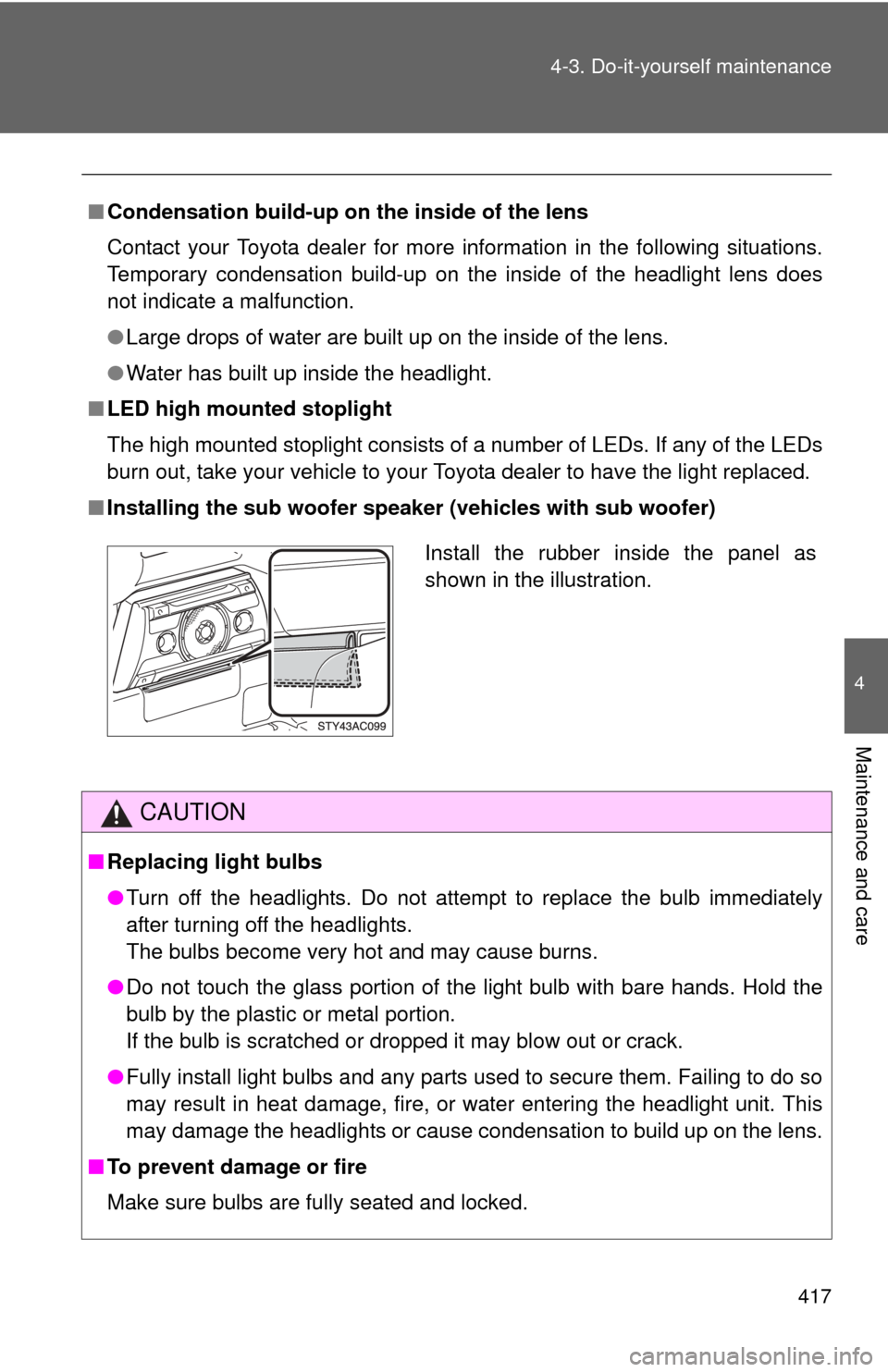

Install the rubber inside the panel as
shown in the illustration.

418 4-3. Do-it-yourself maintenance

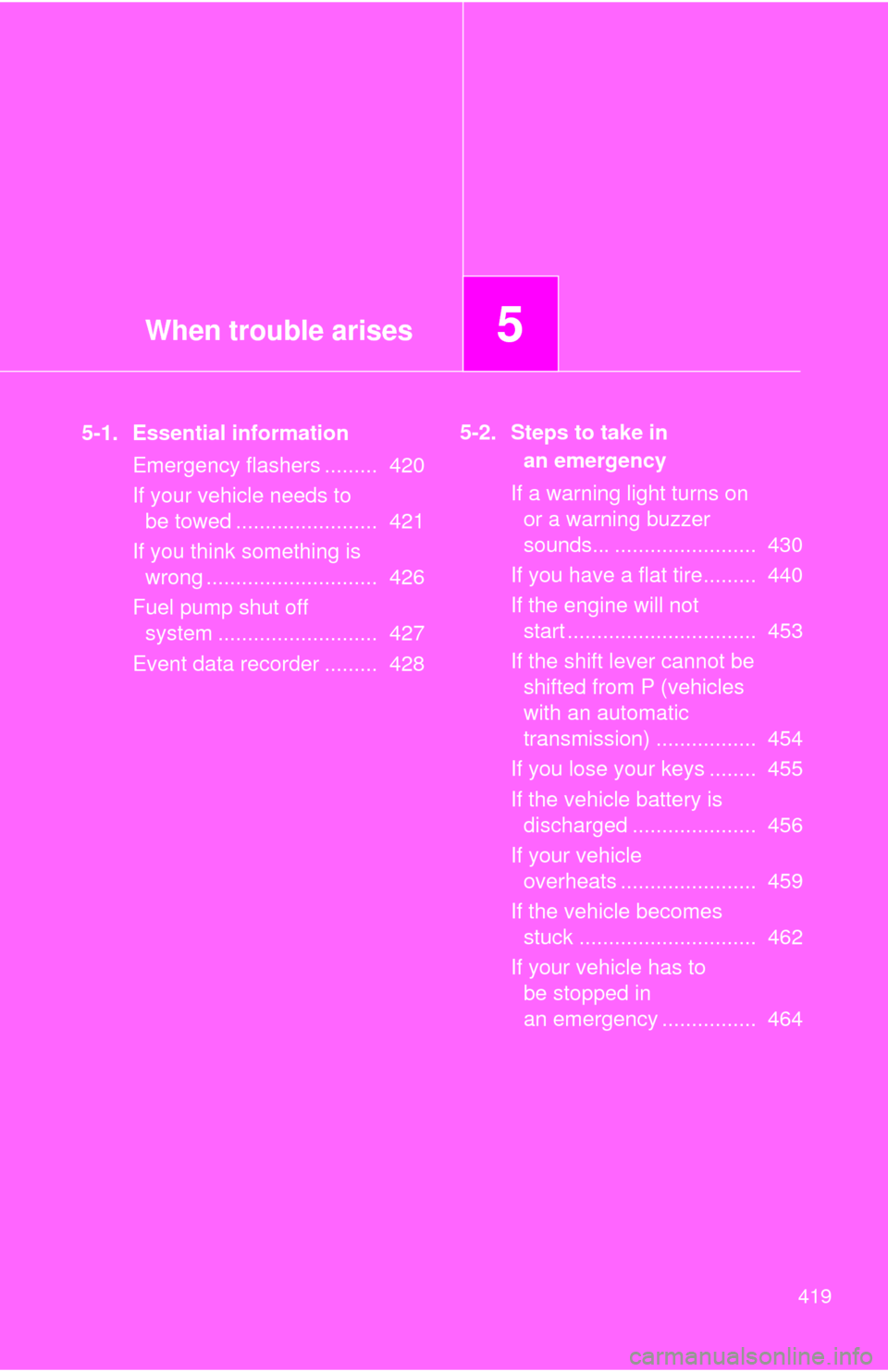

When trouble arises5
419
5-1. Essential informationEmergency flashers ......... 420
If your vehicle needs to be towed ........................ 421
If you think something is wrong ............................. 426
Fuel pump shut off system ........................... 427
Event data recorder ......... 428 5-2. Steps to take in
an emergency
If a warning light turns on or a warning buzzer
sounds... ........................ 430
If you have a flat tire......... 440
If the engine will not start ................................ 453
If the shift lever cannot be shifted from P (vehicles
with an automatic
transmission) ................. 454
If you lose your keys ........ 455
If the vehicle battery is discharged ..................... 456
If your vehicle overheats ....................... 459
If the vehicle becomes stuck .............................. 462
If your vehicle has to be stopped in
an emergency ................ 464

420
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.

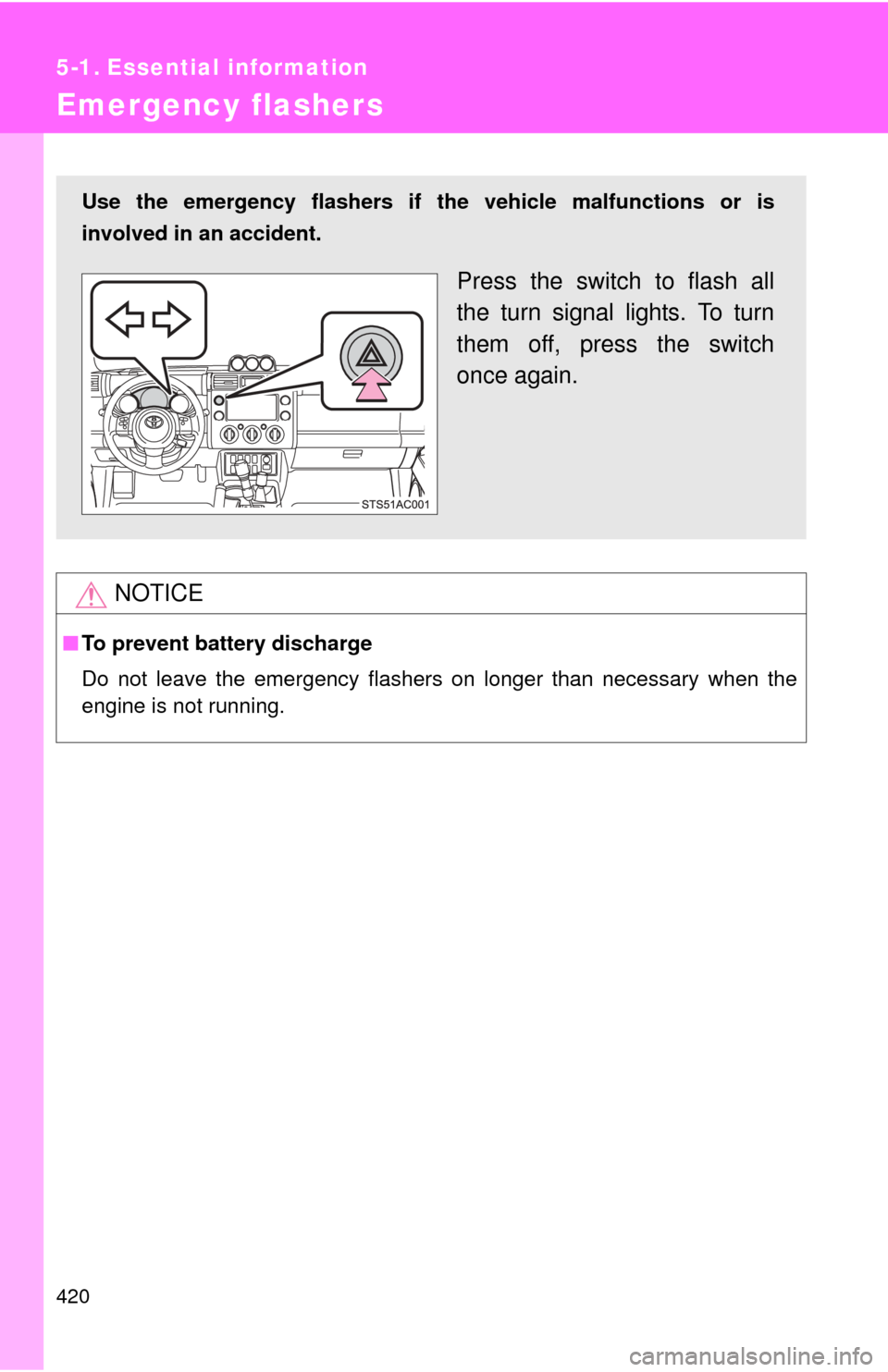

Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
