TOYOTA FJ CRUISER 2011 1.G Owners Manual

5
When trouble arises
441
5-2. Steps to take in an emergency

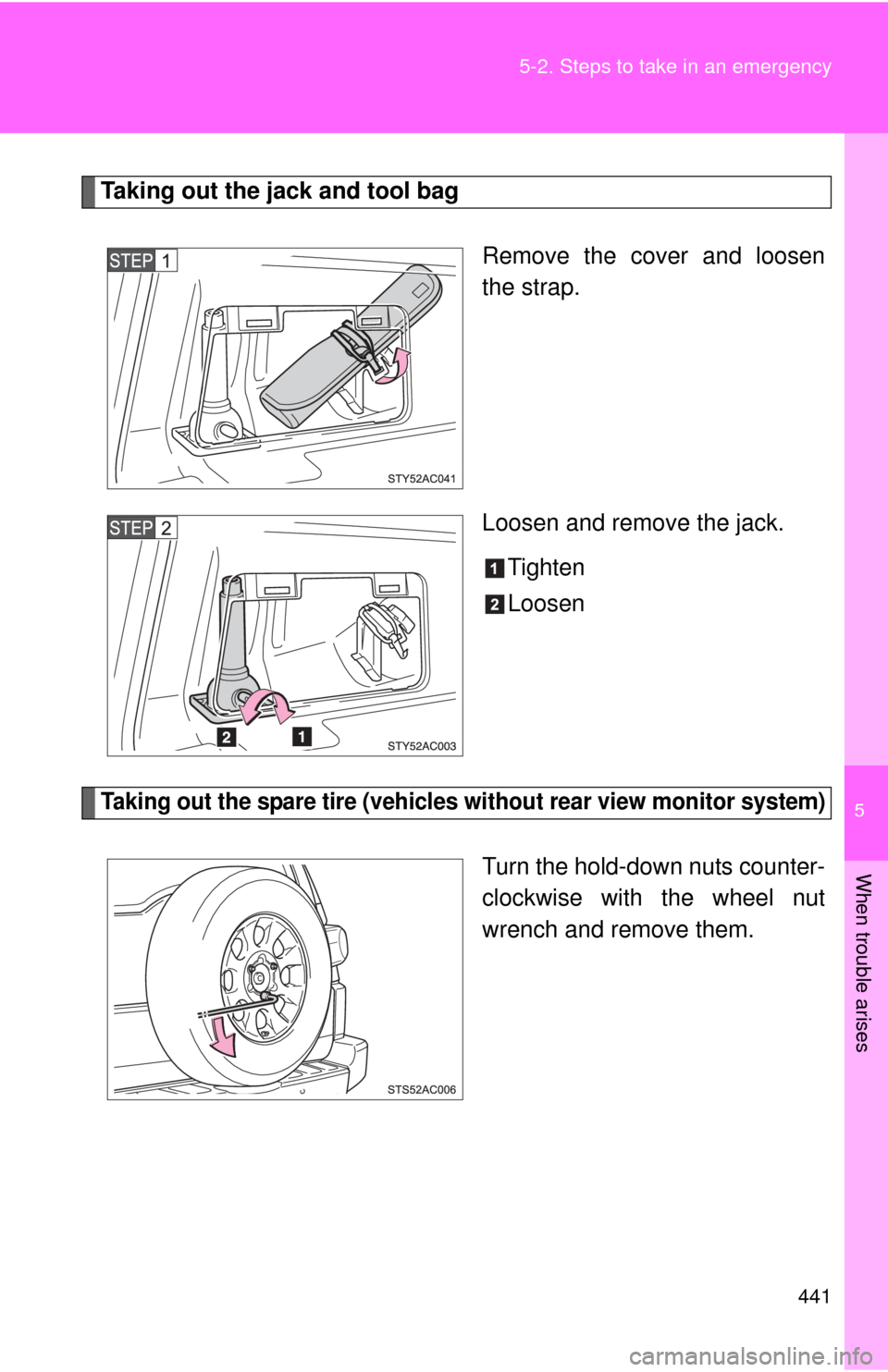

Taking out the jack and tool bag
Remove the cover and loosen
the strap.
Loosen and remove the jack.Tighten
Loosen
Taking out the spare tire (vehicles without rear view monitor system)
Turn the hold-down nuts counter-
clockwise with the wheel nut
wrench and remove them.

442 5-2. Steps to take in an emergency

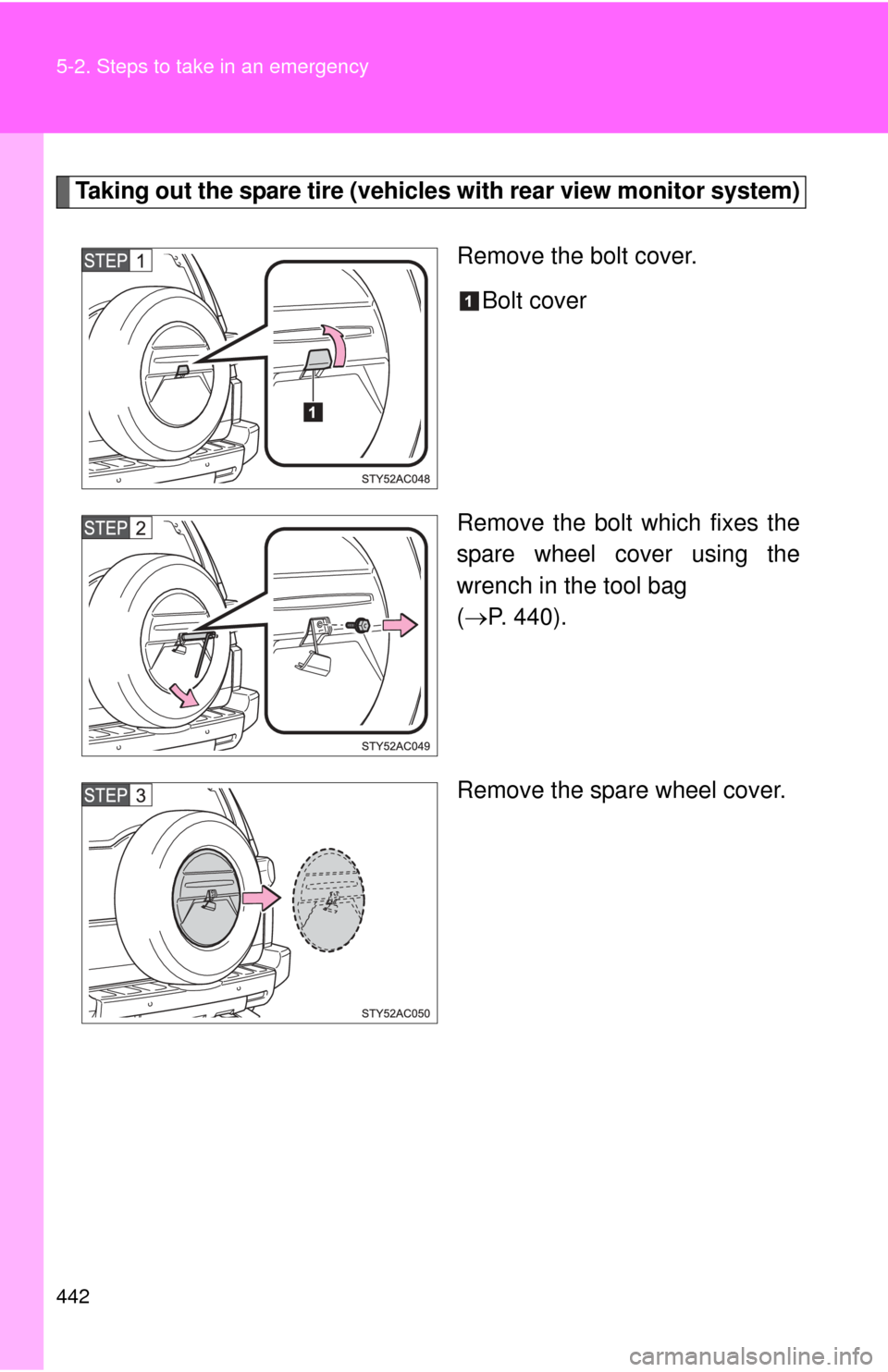

Taking out the spare tire (vehicles with rear view monitor system)
Remove the bolt cover. Bolt cover
Remove the bolt which fixes the
spare wheel cover using the
wrench in the tool bag
(  P. 440).
Remove the spare wheel cover.

5
When trouble arises
443
5-2. Steps to take in an emergency
Turn the hold-down nuts counter-
clockwise with the wheel nut
wrench and remove them.
Replacing a flat tire
Chock the tires.
Flat tire
Wheelchock
positions
Front Left-
hand
side
Behind the
rear right-
hand side
tire
Right-
hand
side Behind the
rear left-
hand side
tire
Rear Left-
hand
side
In front of
the front
right-hand
side tire
Right-
hand
side In front of
the front
left-hand
side tire

444 5-2. Steps to take in an emergency

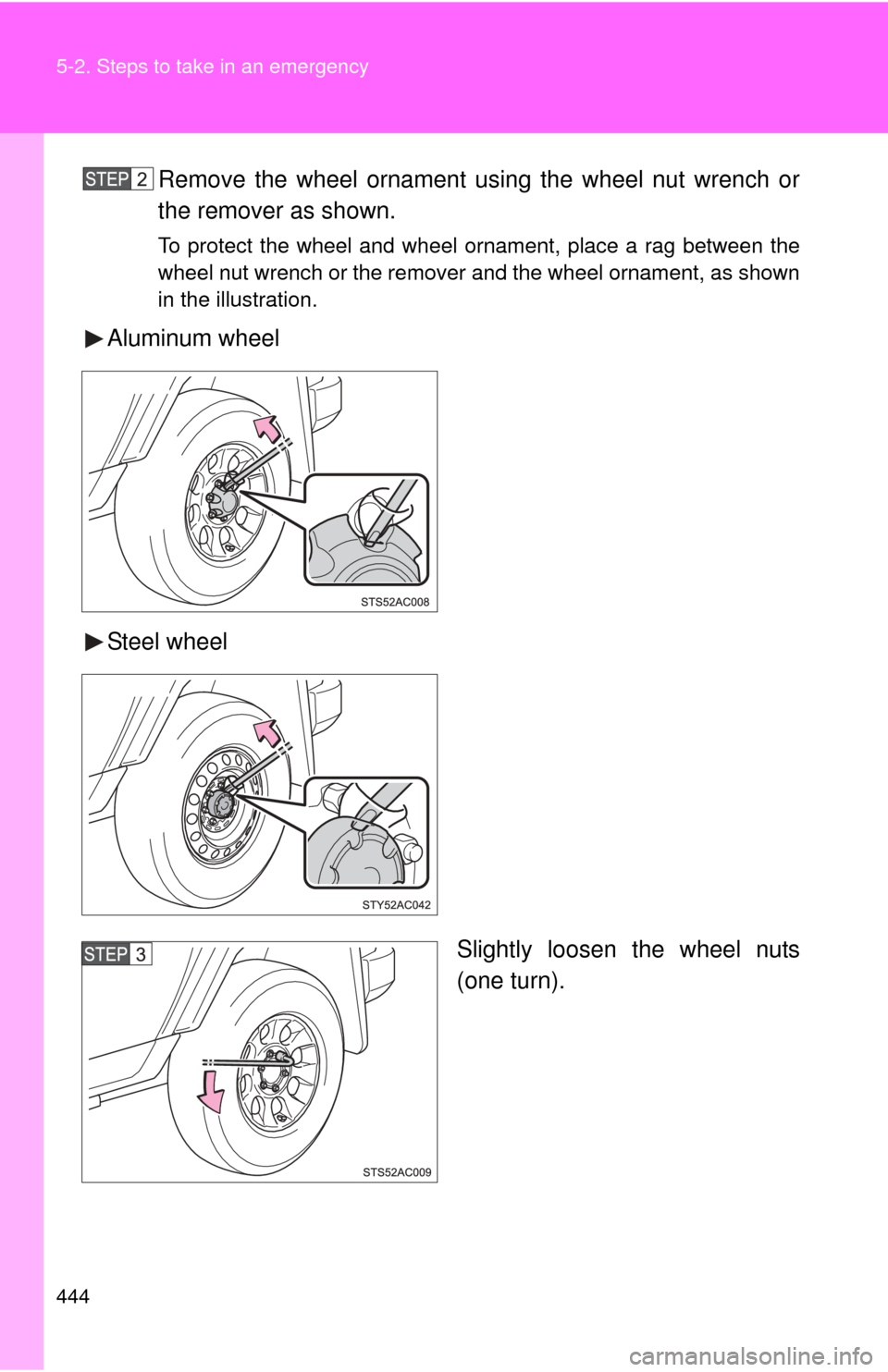

Remove the wheel ornament using the wheel nut wrench or
the remover as shown.
To protect the wheel and wheel ornament, place a rag between the
wheel nut wrench or the remover and the wheel ornament, as shown
in the illustration.
Aluminum wheel
Steel wheelSlightly loosen the wheel nuts
(one turn).

5
When trouble arises
445
5-2. Steps to take in an emergency

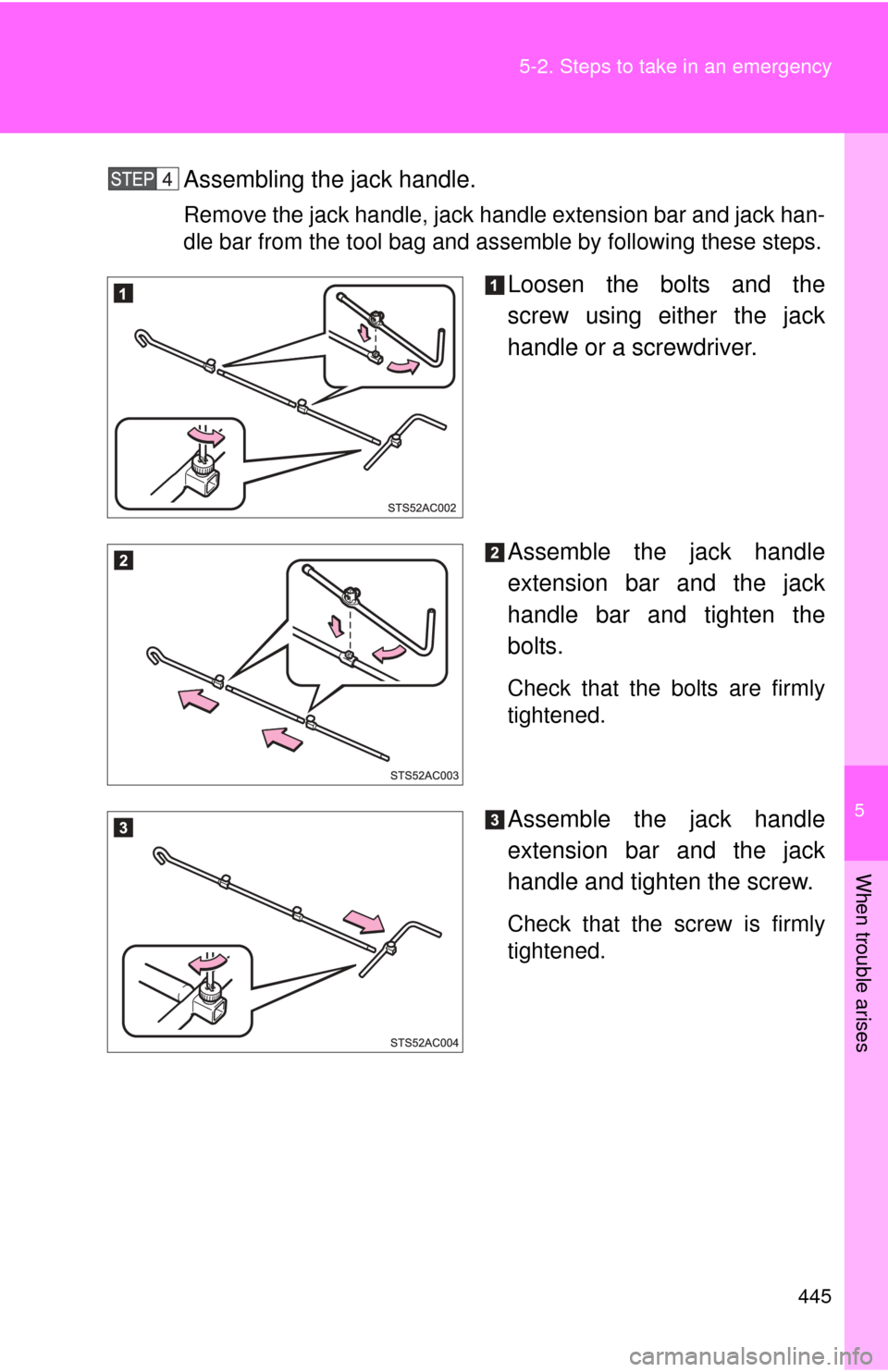

Assembling the jack handle.
Remove the jack handle, jack handle extension bar and jack han-
dle bar from the tool bag and assemble by following these steps.
Loosen the bolts and the
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
extension bar and the jack
handle bar and tighten the
bolts.
Check that the bolts are firmly
tightened.
Assemble the jack handle
extension bar and the jack
handle and tighten the screw.
Check that the screw is firmly
tightened.

446 5-2. Steps to take in an emergency

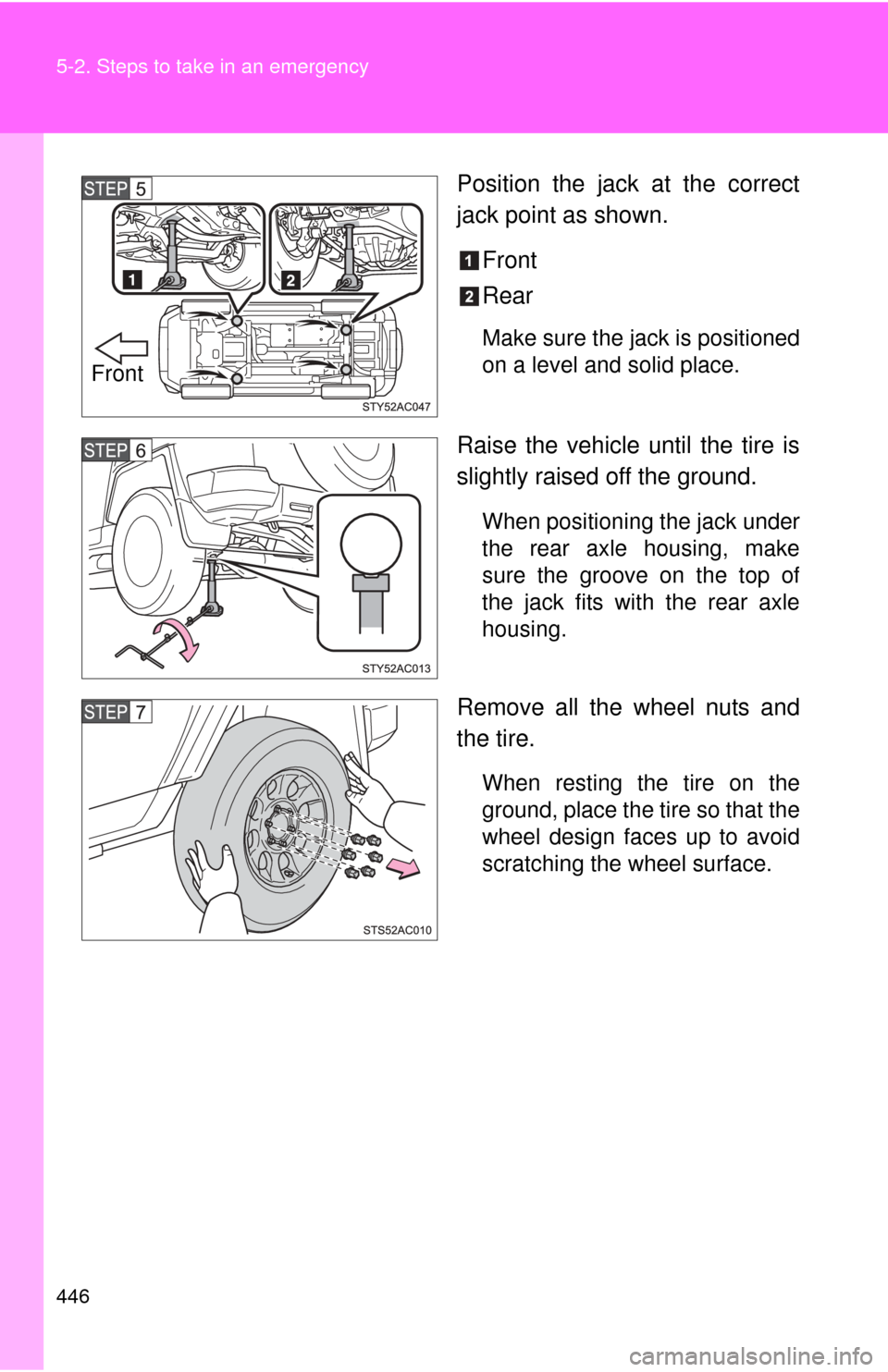

Position the jack at the correct
jack point as shown.Front
Rear
Make sure the jack is positioned
on a level and solid place.
Raise the vehicle until the tire is
slightly raised off the ground.
When positioning the jack under
the rear axle housing, make
sure the groove on the top of
the jack fits with the rear axle
housing.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Front

5
When trouble arises
447
5-2. Steps to take in an emergency

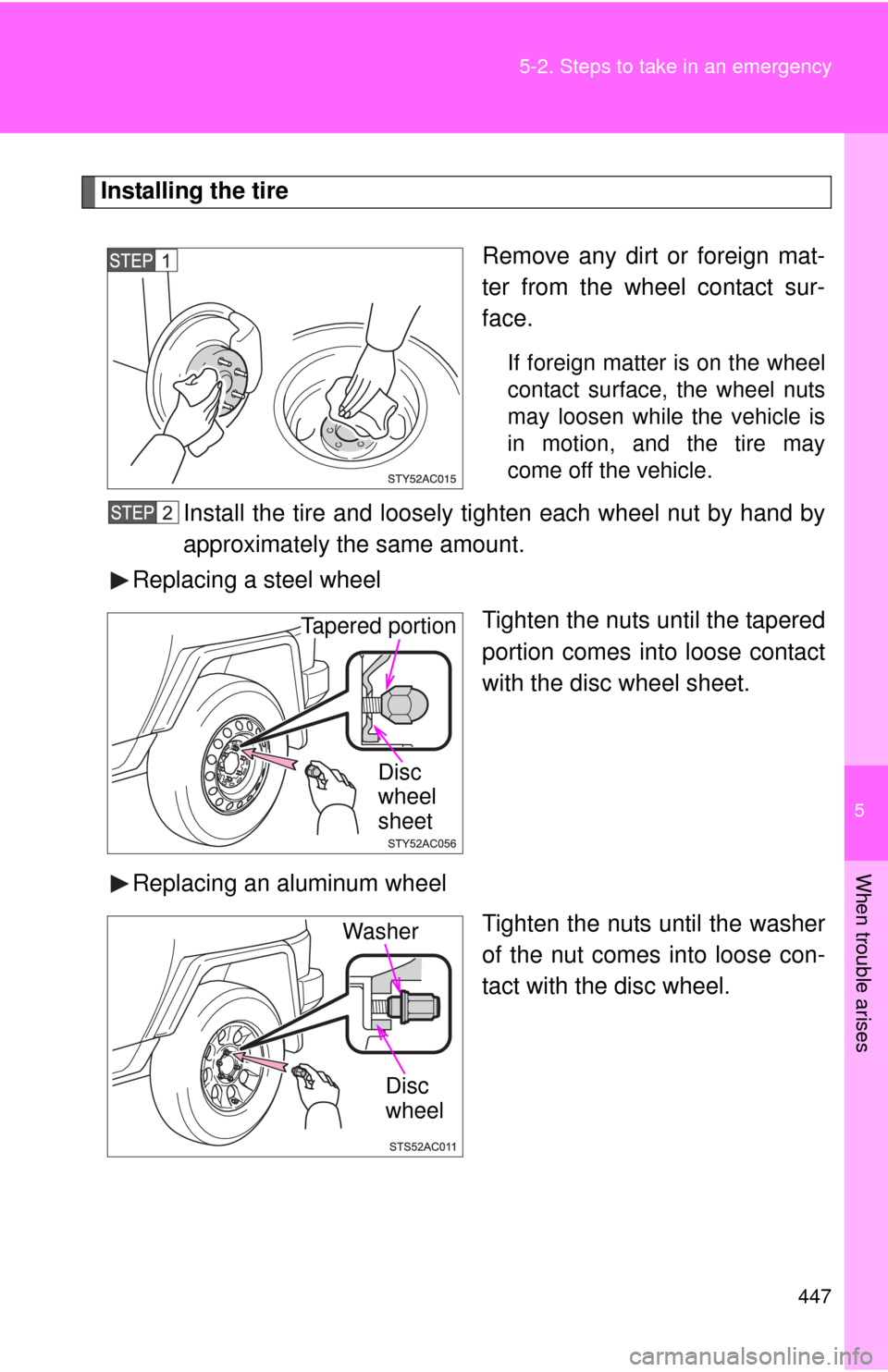

Installing the tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
Replacing an aluminum wheel Tighten the nuts until the washer
of the nut comes into loose con-
tact with the disc wheel.
Tapered portion
Disc
wheel
sheet
Disc
wheel
Washer

448 5-2. Steps to take in an emergency

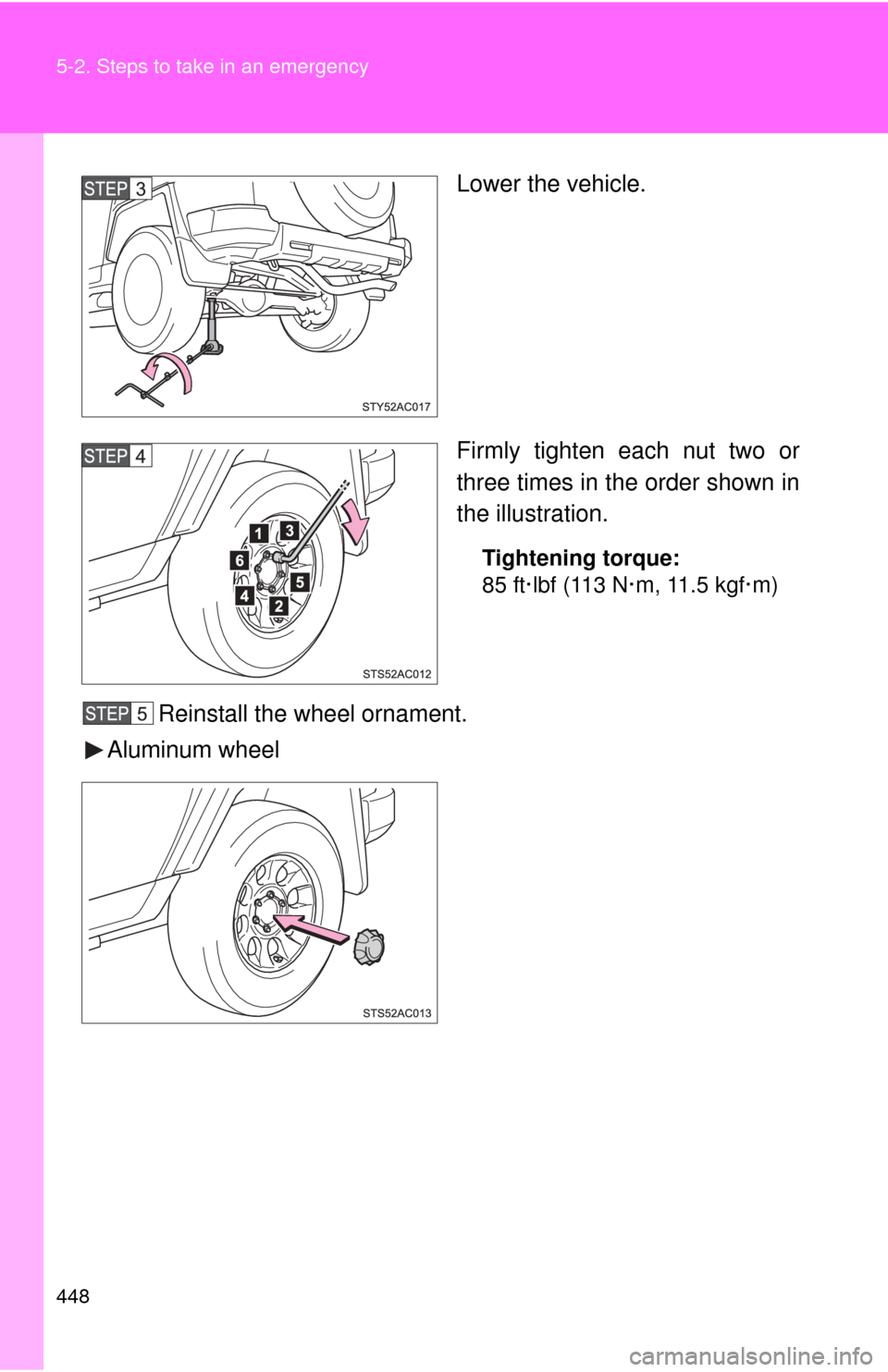

Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
85 ft·lbf (113 N·m, 11.5 kgf·m)
Reinstall the wheel ornament.
Aluminum wheel

5
When trouble arises
449
5-2. Steps to take in an emergency

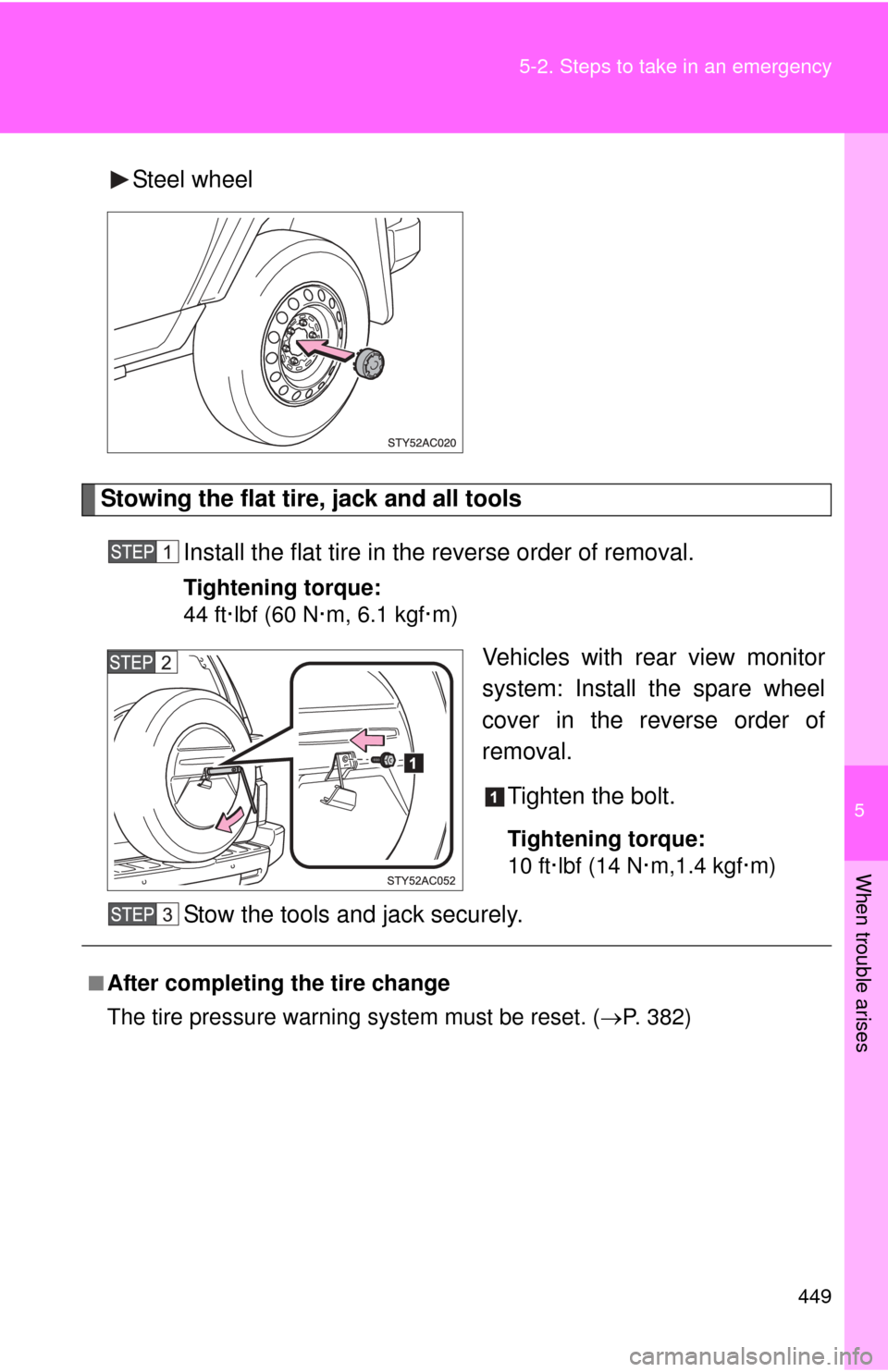

Steel wheel
Stowing the flat tire, jack and all tools
Install the flat tire in the reverse order of removal.
Tightening torque:
44 ft·lbf (60 N·m, 6.1 kgf·m)
Vehicles with rear view monitor
system: Install the spare wheel
cover in the reverse order of
removal.Tighten the bolt.
Tightening torque:
10 ft·lbf (14 N·m,1.4 kgf·m)
Stow the tools and jack securely.
■After completing the tire change
The tire pressure warning system must be reset. (P. 382)

450 5-2. Steps to take in an emergency
CAUTION
■Using the jack
Improper use of the jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
●Do not use the jack for any purpose ot her than replacing tires or install-
ing and removing tire chains.
●Only use the jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, an d do not use other jacks for replac-
ing tires on this vehicle.
●Always check that the jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle will be injured.
■Using the jack handle
Tighten all the square head bolts securely to prevent the extension parts
from coming apart unexpectedly.
