Page 311 of 568

311
3
Interior features
3-4. Using the hands-free phone system (for cellular phone)

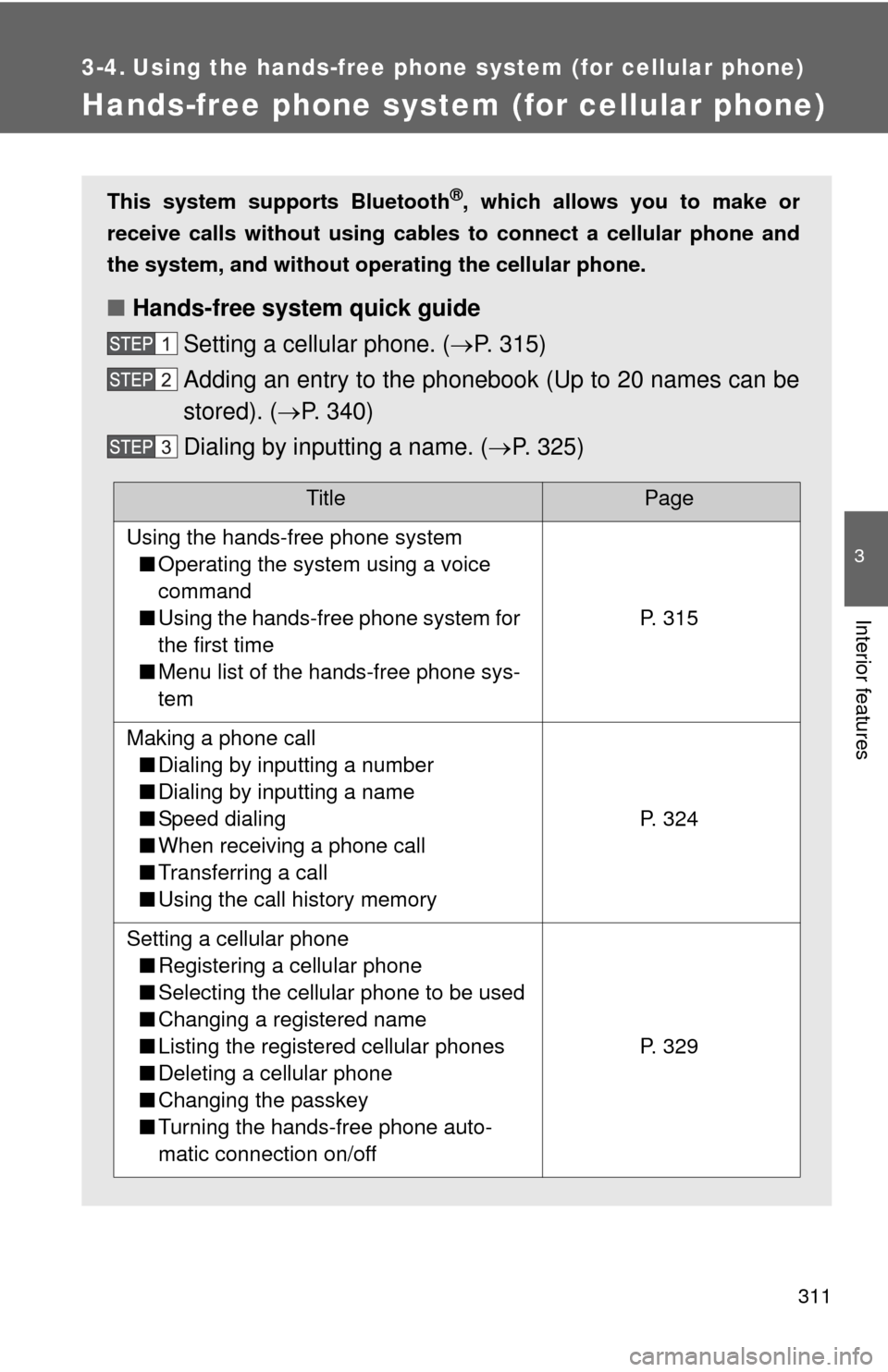

Hands-free phone system (for cellular phone)
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
â– Hands-free system quick guide
Setting a cellular phone. ( ď‚®P. 315)
Adding an entry to the phonebook (Up to 20 names can be
stored). ( ď‚®P. 340)
Dialing by inputting a name. ( ď‚®P. 325)
TitlePage
Using the hands-free phone system
â– Operating the system using a voice
command
â– Using the hands-free phone system for
the first time
â– Menu list of the hands-free phone sys-
tem
P. 315
Making a phone call
â– Dialing by inputting a number
â– Dialing by inputting a name
â– Speed dialing
â– When receiving a phone call
â– Transferring a call
â– Using the call history memory
P. 324
Setting a cellular phone
â– Registering a cellular phone
â– Selecting the cellular phone to be used
â– Changing a registered name
â– Listing the registered cellular phones
â– Deleting a cellular phone
â– Changing the passkey
â– Turning the hands-free phone auto-
matic connection on/off
P. 329
Page 312 of 568

312 3-4. Using the hands-free phone system (for cellular phone)
â– Conditions under which th e system will not operate
â—Ź If using a cellular phone that does not support Bluetooth
®
â—ŹIf the cellular phone is switched off
â—Ź If you are outside service range
â—Ź If the cellular phone is not connected
● If the cellular phone’s battery is low
â—Ź If the cellular phone is behind the seat or in the glove box or console box
â—Ź If metal is covering or touching the cellular phone
â– When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed.
â– Required profiles for the cellular phone
â—ŹHFP (Hands Free Profile) Ver. 1.0
â—Ź OPP (Object Push Profile) Ver. 1.1
TitlePage
Security and system setup
â– Setting or changing the PIN
â– Locking or unlocking the phone book
â– Setting voice guidance volume
â– Initialization
P. 335
Using the phone book
â– Adding a new phone number
â– Setting speed dials
â– Changing a registered name
â– Deleting registered data
â– Deleting speed dials
â– Listing the registered data
P. 340
Page 313 of 568

313
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
■About Bluetooth®
â– Certification for the hands-free phone system
For vehicles sold in the U.S.A.
• Vehicles with CD changer FCC ID: BABFT0001A
MADE IN JAPAN
• Vehicles without CD changer FCC ID: AJDK025
MADE IN JAPAN
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation. For vehicles sold in Canada
• Vehicles with CD changer IC ID: 2024B-FT0001A
MADE IN JAPAN
• Vehicles without CD changer IC ID: 775E-K025
MADE IN JAPAN
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
Page 314 of 568

314 3-4. Using the hands-free phone system (for cellular phone)
CAUTION
â– FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC/
IC radiation exposure limits set forth for uncontrolled equipment and meets
the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that it deemed to comply with-
out maximum permissive exposure evaluation (MPE). But it is desirable that
it should be installed and operated with at least 7.9 in. (20 cm) and more
between the radiator and person’s body (excluding extremities: hands,
wrists, feet and ankles).
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
â– Caution while driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
â– To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.
Page 315 of 568

315
3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Using the hands-free phone system (for cellular phone)

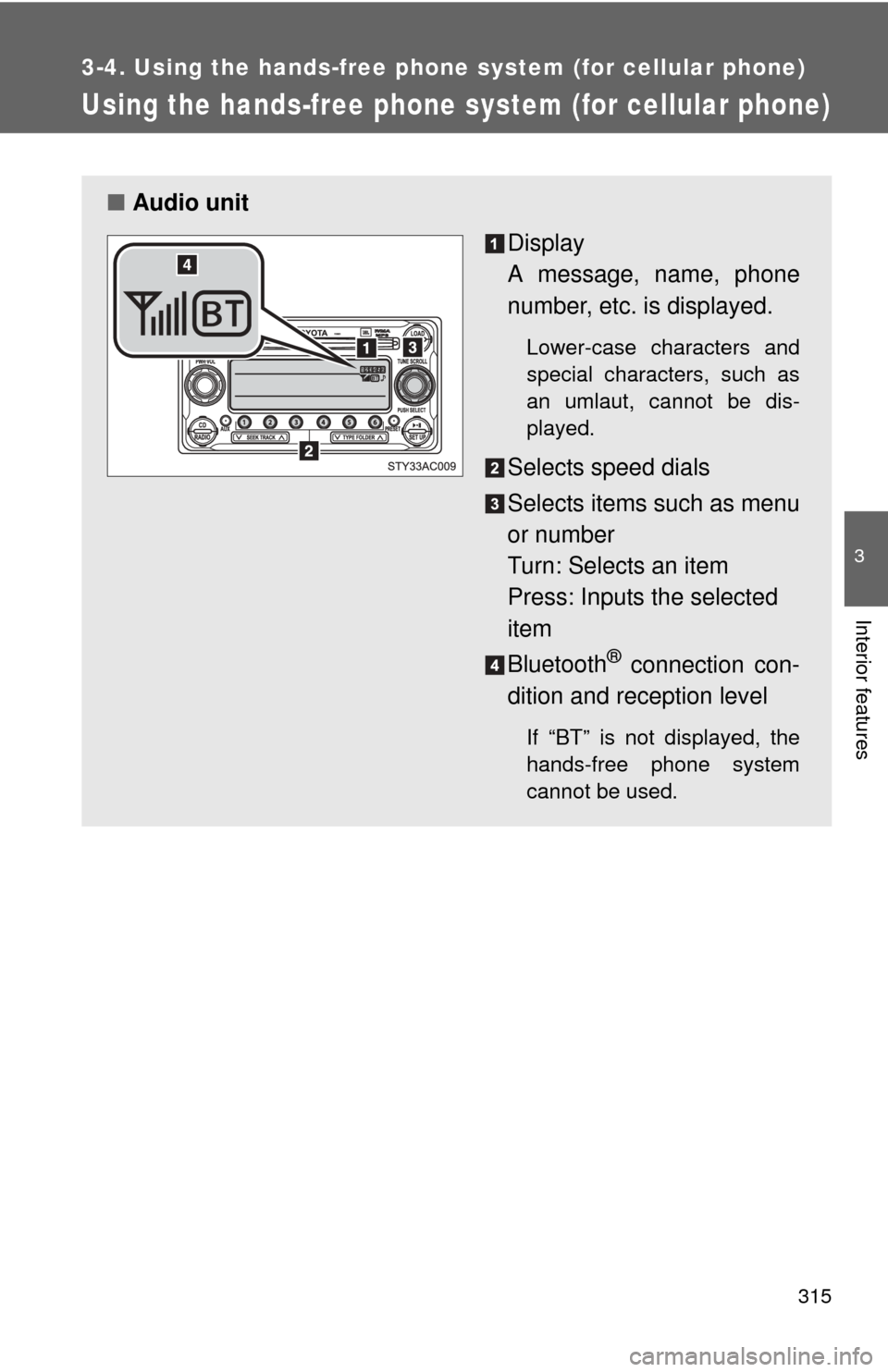

â– Audio unit
Display
A message, name, phone
number, etc. is displayed.
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition and reception level
If “BT” is not displayed, the
hands-free phone system
cannot be used.
Page 316 of 568

316 3-4. Using the hands-free phone system (for cellular phone)

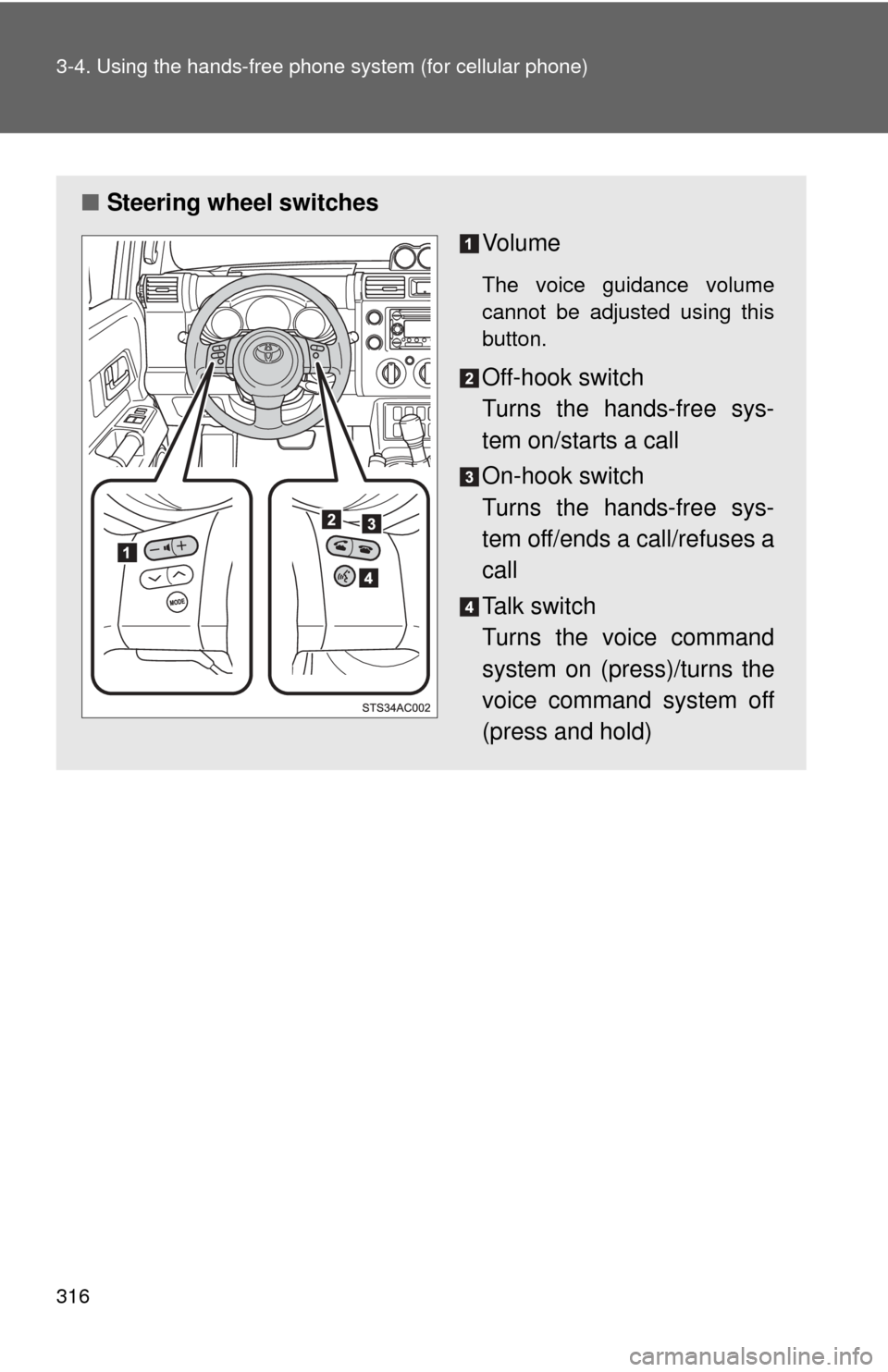

â– Steering wheel switches
Vo l u m e
The voice guidance volume
cannot be adjusted using this
button.
Off-hook switch
Turns the hands-free sys-
tem on/starts a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuses a
call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
Page 317 of 568

317
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features

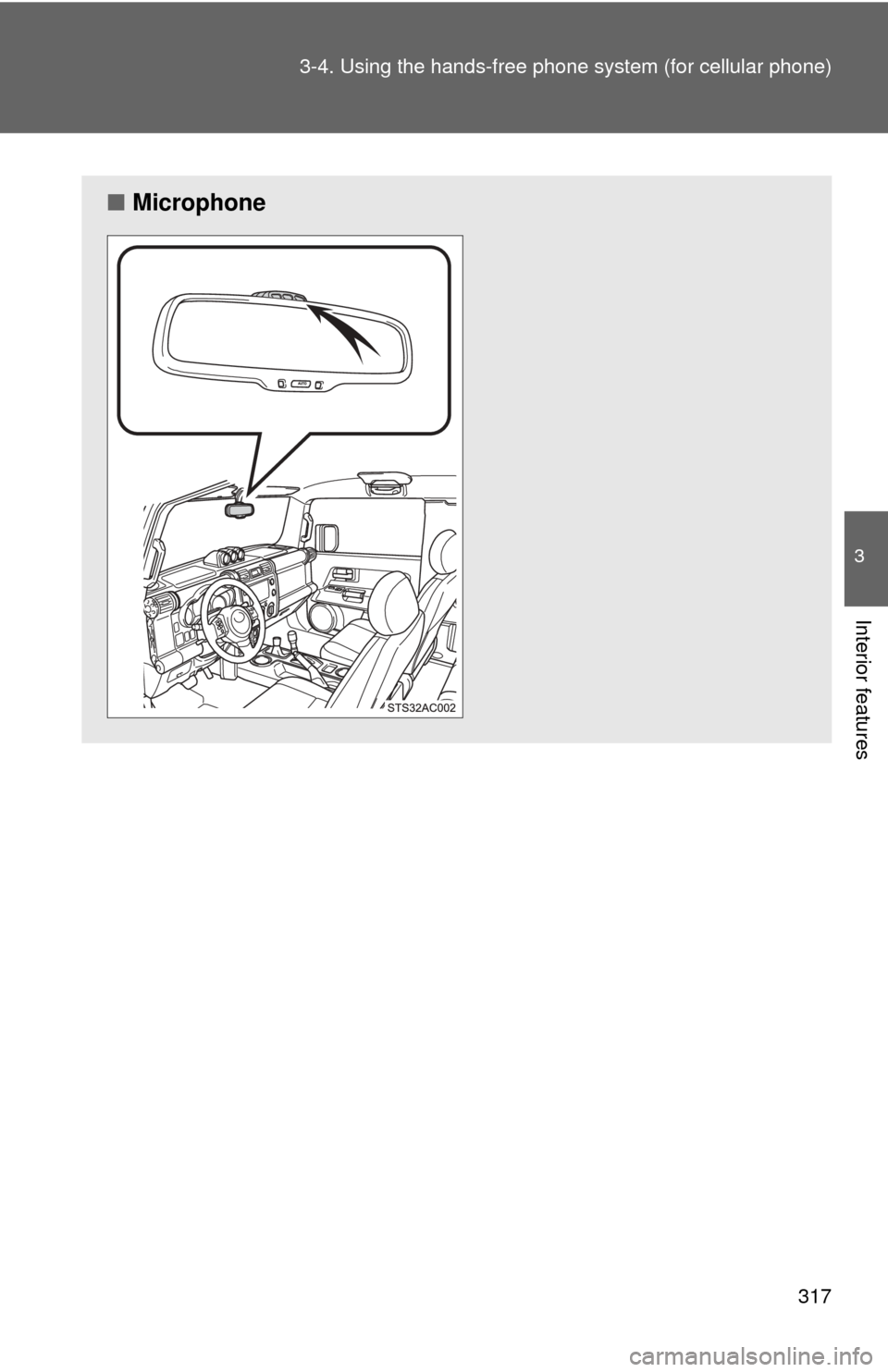

â– Microphone
Page 318 of 568

318 3-4. Using the hands-free phone system (for cellular phone)
Operating the system by using a voice command
By following the voice guidance inst ructions output from the speaker,
voice commands enable the operation of the hands-free phone sys-
tem without the need to check the display or operate .
â– Operation procedure when using a voice command
Press the talk switch and follow the voice guidance instructions.
â– Auxiliary commands when using a voice command
The following auxiliary commands can be used when operating the
system using a voice command:
“Cancel”: Exits the hands-free phone system
“Repeat”: Repeats the previous voice guidance instruction
“Go back”: Returns to the previous procedure
“Help”: Reads aloud the function summary if a help comment is
registered for the selected function
Using the hands-free phone system for the first time
Before using the hands-free phone system, it is necessary to register
a cellular phone in the system. Th e phone registration mode will be
entered automatically when starting the system with no cellular
phone registered. Follow the procedure below to register a cellular
phone:
Press the off-hook switch or the talk switch.
The introductory guidance and phone name registration instructions
are heard.
Select “Pair Phone” using a voice command or .
Page 319 of 568

319
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Register a phone name either of the following methods.
a. Select “Record Name” using , and say a name to
be registered.
b. Press the talk switch and say a name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” using a voice command or .
Registration to the hands-free phone system only
Select “Phone Only” using a voice command or .
Registration to the hands-free phone system and Bluetooth
® audio
system at the same time
Select “Int. Audio (Internal Audio)” using a voice command or
.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
Guidance for registration completion is heard.
Page 320 of 568

320 3-4. Using the hands-free phone system (for cellular phone)
Menu list of the hands-free phone system
â– Normal operation
First menuSecond
menuThird menuOperation detail
CallBack
(Callback) -- Dialing a number stored in
the incoming call history
memory
Redial - - Dialing a number stored in
the outgoing call history
memory
Dial by
Number - - Dialing by inputting a number
Dial by
Name
(Dial by
name) --
Dialing by inputting a name
registered in the phone book
Phonebook Add Entry - Adding a new number
Change
Name
-Changing a name in the
phone book
Delete
Entry -Deleting the phone book
data
Delete
Speed Dial -Deleting a registered speed
dial
List
Names - Listing the phone book data
Speed Dial
(Set speed
dial) - Registering a speed dial
