TOYOTA FJ CRUISER 2013 1.G Owners Manual

371
3-7. Other interior features
3
Interior features

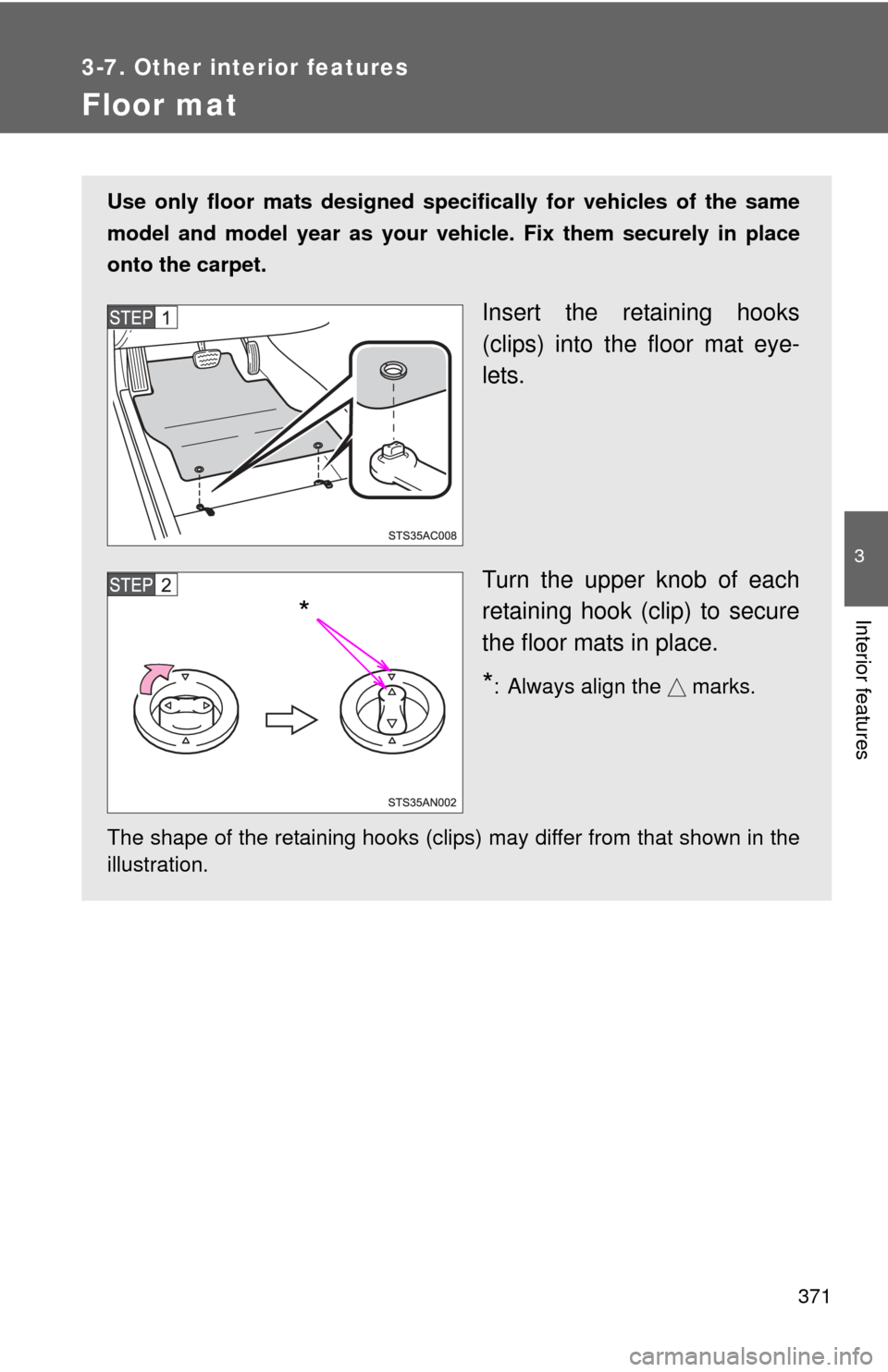

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
*

372 3-7. Other interior features
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

373
3-7. Other interior features
3
Interior features
Luggage storage box (vehicles without sub woofer)
CAUTION
■Caution while driving
Keep the luggage storage box closed. Injuries may result in the event of an
accident or sudden braking.
Push the lid down and pull it
towards you.

374
3-7. Other interior features
Luggage compartment features

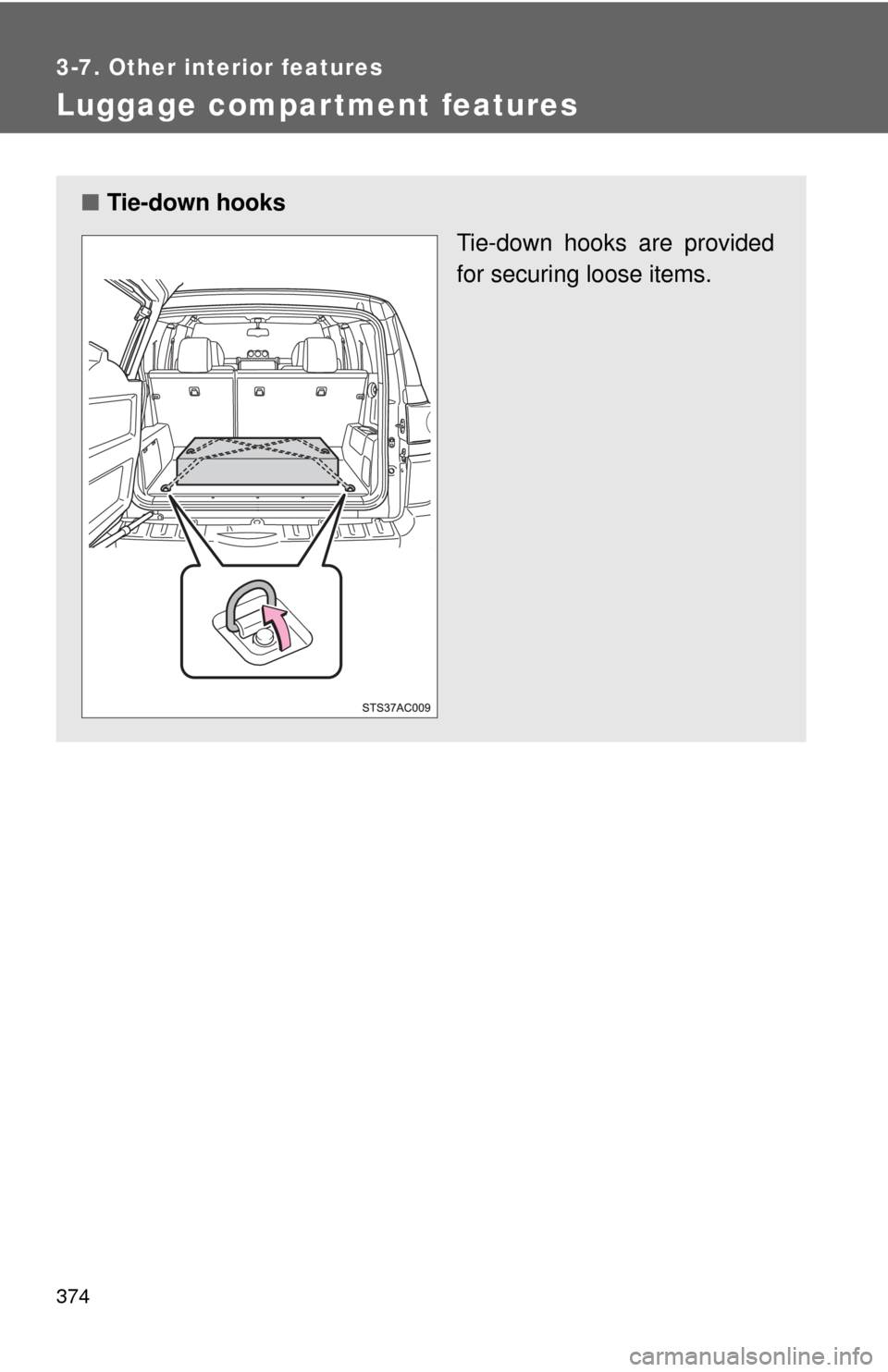

■Tie-down hooks
Tie-down hooks are provided
for securing loose items.

375
3-7. Other interior features
3
Interior features
■

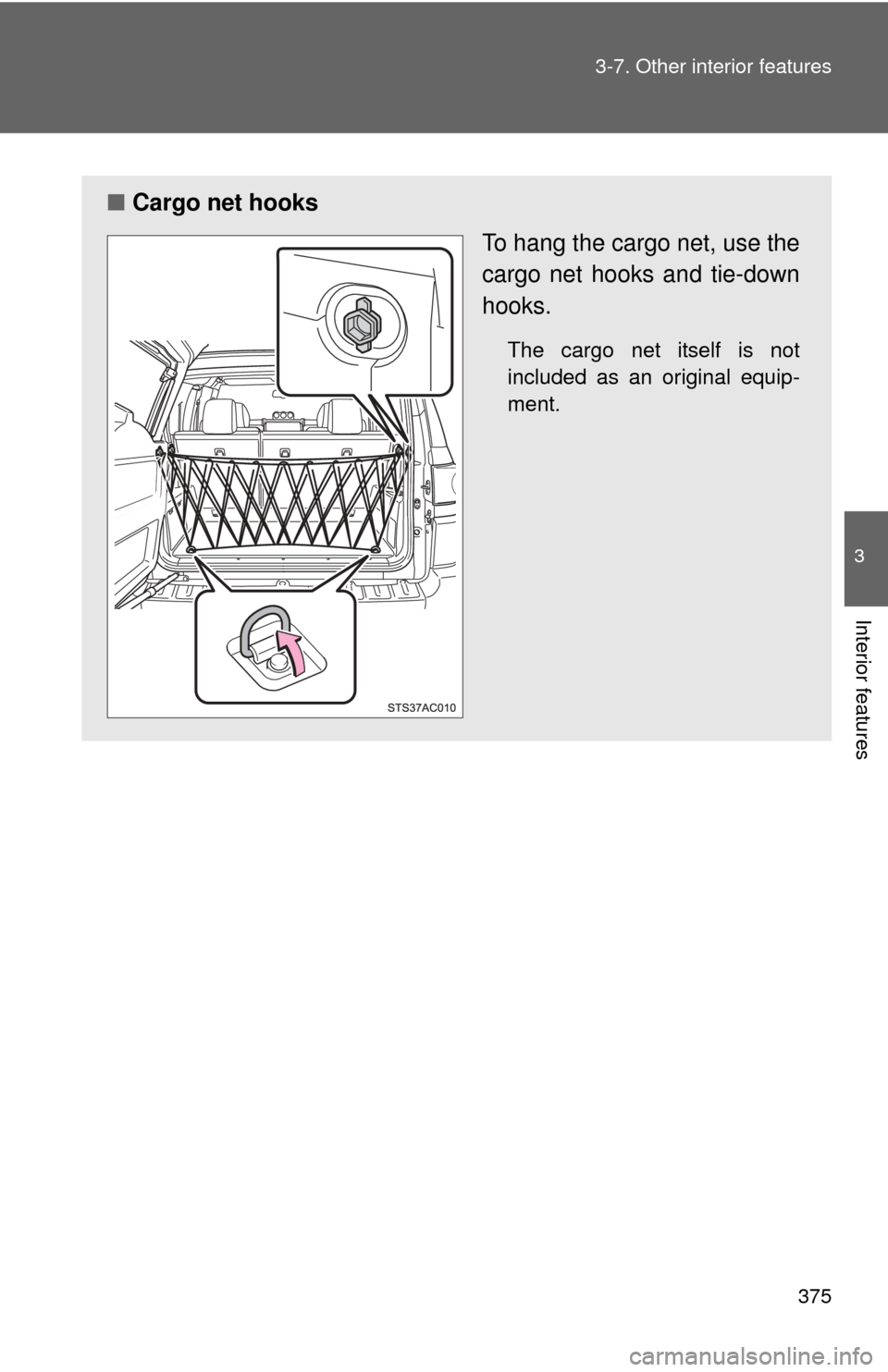

Cargo net hooks
To hang the cargo net, use the
cargo net hooks and tie-down
hooks.
The cargo net itself is not
included as an original equip-
ment.

376 3-7. Other interior features
CAUTION
■When the tie-down hooks and car go net hooks are not in use
To avoid injury, always return the tie-down hooks and cargo net hooks to
their positions when they are not in use.
NOTICE
■ To prevent damage to the cargo net hooks and shopping bag hooks
●Do not hang any object heavier than 8.8 lb. (4 kg) on them.
● Avoid hanging things other than a cargo net on it when using the hooks as
cargo net hooks.
■ Shopping bag hooks
To hang the shopping bag,
use the cargo net hooks.

377
3-7. Other interior features
3
Interior features
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufac-
tured under license from HomeLink®.
Training the HomeLink® (for U.S. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be trained to operate 3 different devices. Refer to the train-
ing method below appropriate for the device.
Indicator light
Buttons
: If equipped
The garage door opener can be trained to operate garage doors,
gates, entry doors, door locks, home lighting systems, security sys-
tems, and other devices.
The training procedure is displayed on the inside rear view mirror
display screen.

378 3-7. Other interior features
■Training the HomeLink®
Point the remote control trans-
mitter for the device 1 to 3 in. (25
to 75 mm) from the HomeLink
®
control buttons.
Keep the indicator on the
HomeLink® in view while training.
Press and hold down one of the
buttons on the HomeLink® and
the button on the transmitter.
When the indicator on the
HomeLink
® changes from a slow
to a rapid flash, you can release
both buttons.
If the HomeLink® indicator comes
on but does not flash, or flashes
rapidly for 2 seconds and remains
lit, the HomeLink
® button is
already trained. Use the other
buttons or follow the “Retraining a
HomeLink
® button” instructions.
( P. 382)

379
3-7. Other interior features
3
Interior features
Test the operation of the
HomeLink® by pressing the
newly trained button.
If training a garage door opener,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the
Rolling Code type. Press and
hold the trained HomeLink
®
button. The garage door has the
rolling code feature if the indicator
(on the HomeLink
®) flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is
the Rolling Code type, proceed to
the heading “Training a rolling
code system”.
Repeat the steps above to train another device for each of the
remaining HomeLink® buttons.

380 3-7. Other interior features
■Training a Rolling Code sys tem (for U.S. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Training the HomeLink
®” before proceeding with the
steps listed below.
Locate the learn button on t he ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the learning button.
Press the learning button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle’s trained HomeLink® button for 2
seconds and release it. Repeat this step once again. The
garage door may open.
If the garage door opens, the training process is complete. If the
door does not open, press and release the button a third time. This
third press and release will complete the training process by opening
the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
® transceiver and operate the garage door.
Repeat the steps abov e to train another rolling code system
for any of the remaining HomeLink® buttons.
