TOYOTA FJ CRUISER 2013 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9

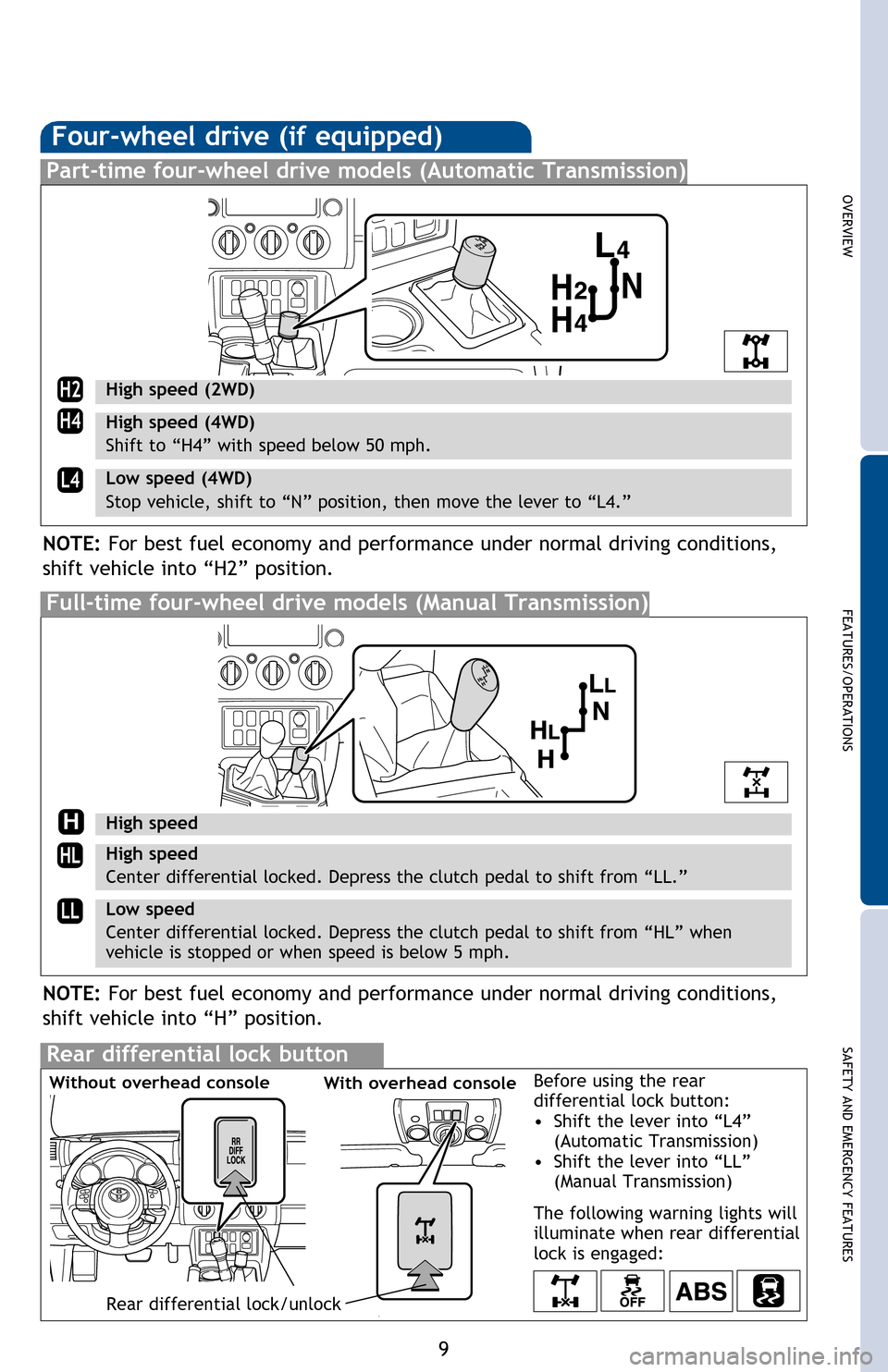

Four-wheel drive (if equipped)
Full-time four-wheel drive models (Manual Transmission)
Part-time four-wheel drive models (Automatic Transmission)
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N” position, then move the lever to “L4.”
Rear differential lock button
NOTE: For best fuel economy and performance under normal driving conditions,
shift vehicle into “H2” position.
Rear differential lock/unlock
Low speed
Center differential locked. Depress the clutch pedal to shift from “HL” when
vehicle is stopped or when speed is below 5 mph.
HL
LL
H
Before using the rear
differential lock button:
• Shift the lever into “L4”
(Automatic Transmission)
• Shift the lever into “LL”
(Manual Transmission)
The following warning lights will
illuminate when rear differential
lock is engaged:
NOTE: For best fuel economy and performance under normal driving conditions,
shift vehicle into “H” position.
High speed
High speed
Center differential locked. Depress the clutch pedal to shift from “LL.”
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Hold the steering wheel, pull the lock release lever, tilt to the desired angle and
release the lever.
NOTE: Do not attempt to adjust while the vehicle is in motion. * The key must be in the “ON” position and the brake pedal depressed to shift from Park.
H2
H4
L4
Without overhead consoleWith overhead console
(1) Pull slightly
2013FJ Cruiser.indd 98/6/12 9:28 PM

10
FEATURES/OPERATIONS

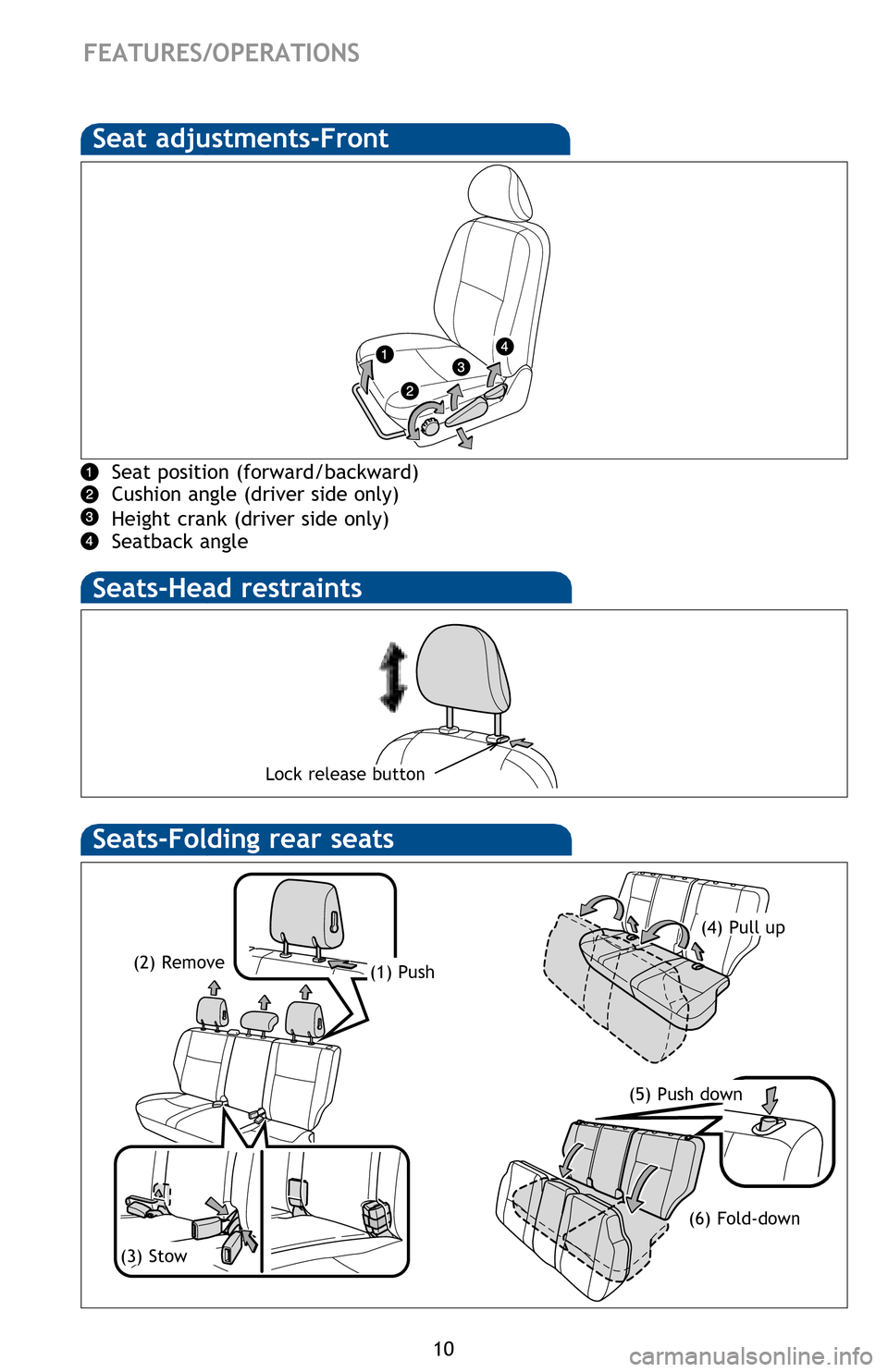

Seats-Removing rear seats
(1) Pull up(3) Separate
Seats-Folding rear seats
(1) Push
(2) Remove
(3) Stow (6) Fold-down
(5) Push down
(4) Pull up
Seats-Head restraints
Lock release button
Seat adjustments-Front
Seat position (forward/backward)
Cushion angle
(driver side only)
Height crank (driver side only)
Seatback angle
Windshield wipers & washers
Front
Pull to wash and wipe
Adjust frequency*
* Intermittent windshield wiper
frequency adjustment
Rotate to increase/decrease wipe
frequency.
2013FJ Cruiser.indd 108/6/12 9:28 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

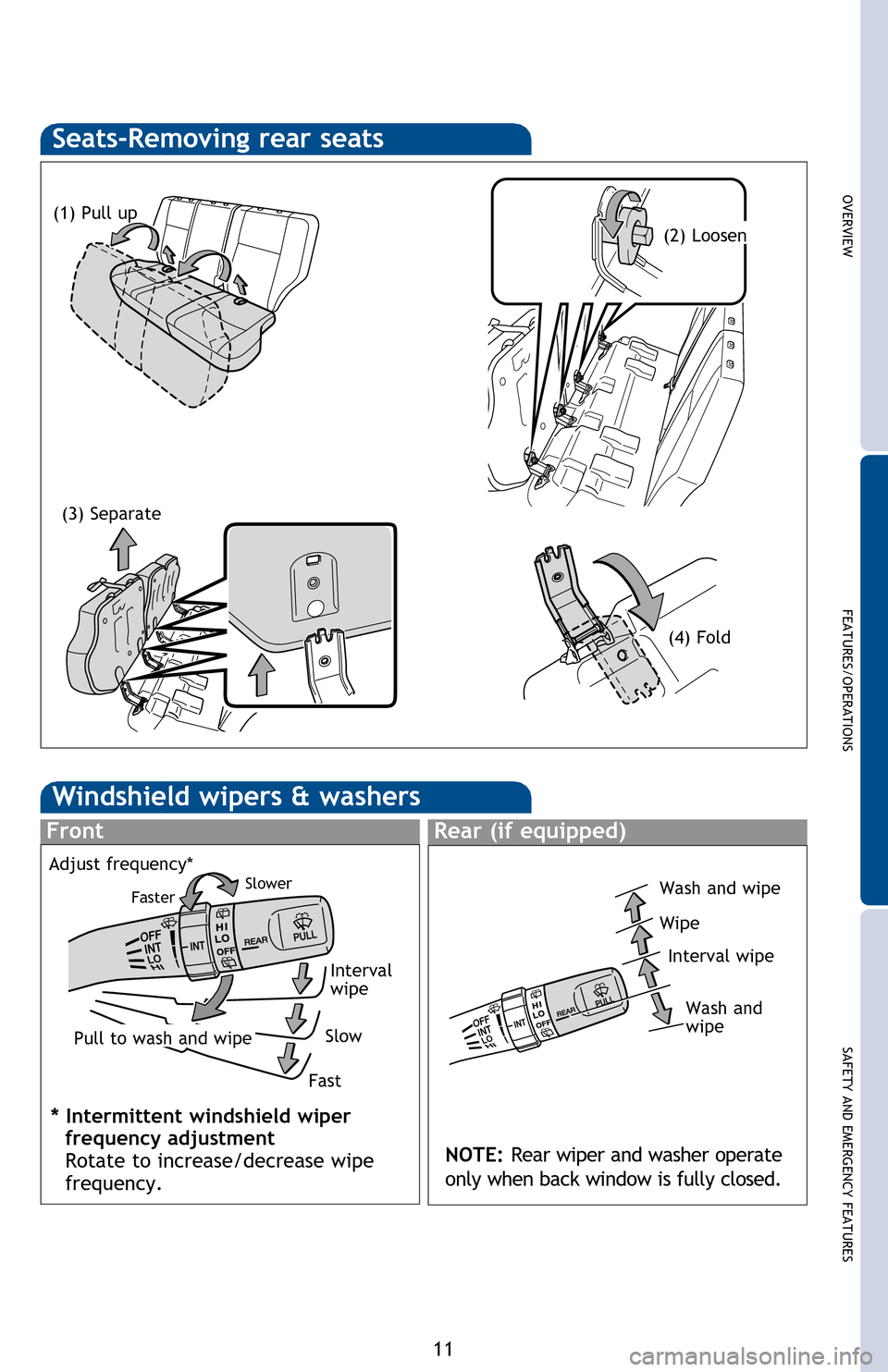

Seats-Removing rear seats
(1) Pull up
(2) Loosen
(3) Separate
(4) Fold
Seat position (forward/backward)
Cushion angle (driver side only)
Height crank (driver side only)
Seatback angle
Windshield wipers & washers
Rear (if equipped)Front
Interval
wipe
Slow
Fast
Pull to wash and wipe
Adjust frequency*
NOTE:
Rear wiper and washer operate
only when back window is fully closed.
* Intermittent windshield wiper
frequency adjustment
Rotate to increase/decrease wipe
frequency.
Wash and wipe
Wipe
Interval wipe
Wash and
wipeFaster Slower
2013FJ Cruiser.indd 118/6/12 9:28 PM

12
FEATURES/OPERATIONS
Door-Back
Open/Close
Windows
Driver side
Automatic down operation (driver side only) Push the switch completely down
and release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
UpDown
Window lock switch
Accessory meter (if equipped)
Compass
Outside temperature display
Clinometer (indicates vehicle slant)
Calibrating the compass setting
Switch between Fahrenheit and Celsius

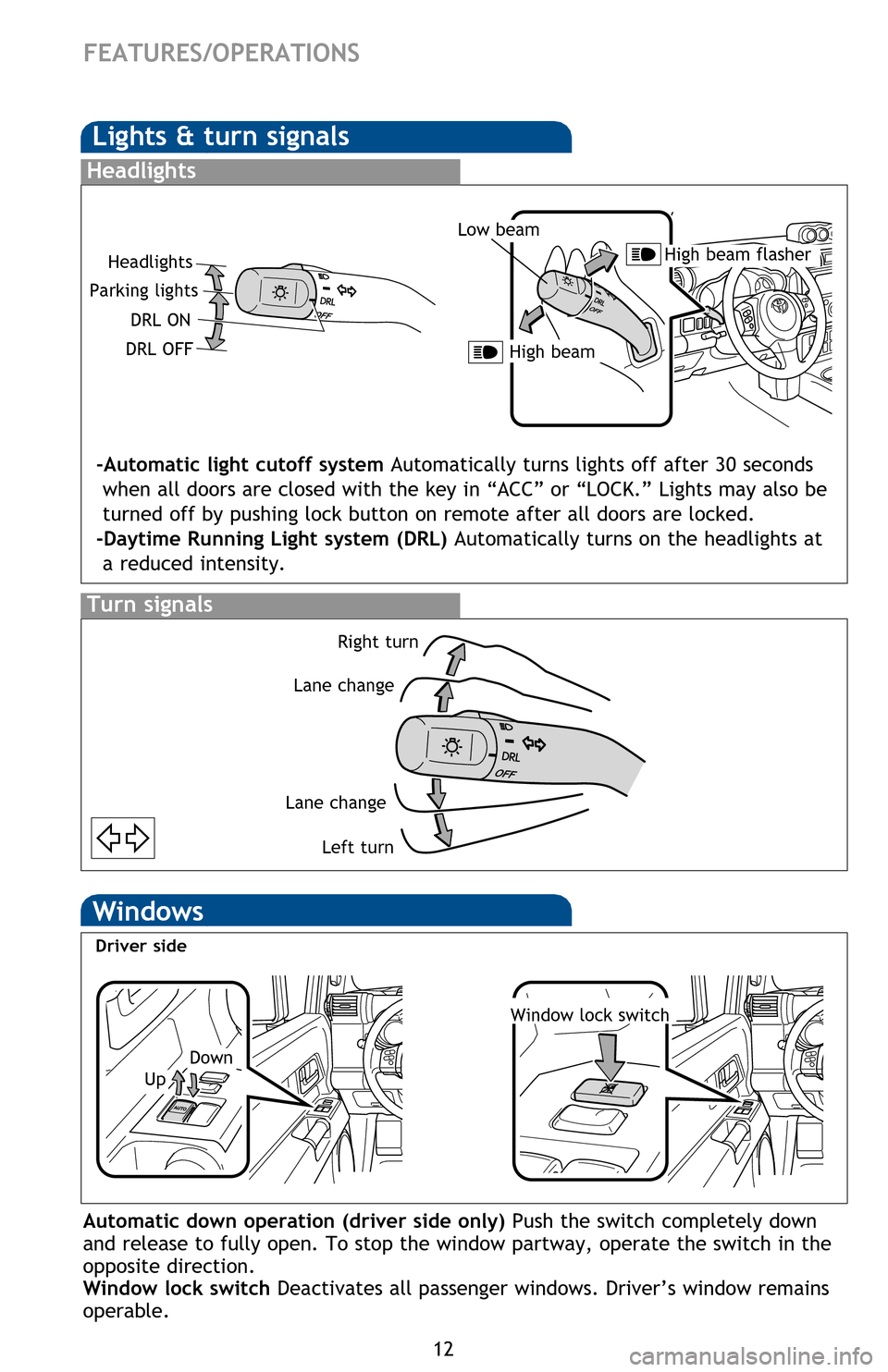

Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
-Automatic light cutoff system Automatically turns lights off after 30 seconds when all doors are closed with the key in “ACC” or “LOCK.” Lights may also be
turned off by pushing lock button on remote after all doors are locked.
-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
Parking lights
DRL ON
DRL OFF
High beam
Turn signals
Right turn
Lane change
Lane change Left turn
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
2013FJ Cruiser.indd 128/6/12 9:29 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

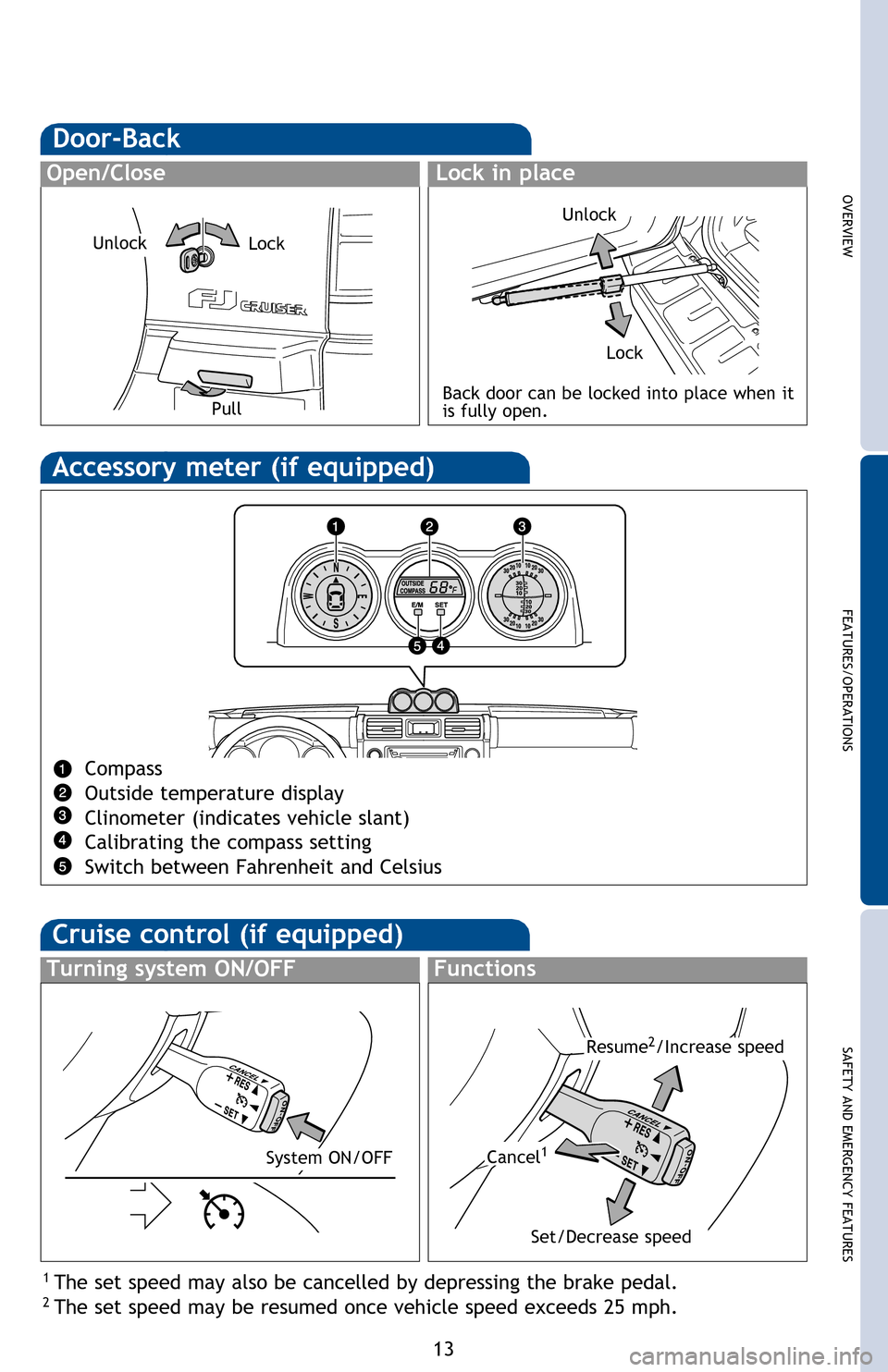

Door-Back
Open/CloseLock in place
UnlockLock
Pull Unlock
Lock
Back door can be locked into place when it
is fully open.
Automatic down operation (driver side only) Push the switch completely down
and release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains
operable.
Accessory meter (if equipped)
Compass
Outside temperature display
Clinometer (indicates vehicle slant)
Calibrating the compass setting
Switch between Fahrenheit and Celsius
High beam flasher
-Automatic light cutoff system Automatically turns lights off after 30 seconds
when all doors are closed with the key in “ACC” or “LOCK.” Lights may also be
turned off by pushing lock button on remote after all doors are locked.
-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFFFunctions
System ON/OFF
Resume2 /Increase speed
Set/Decrease speed
Cancel1
2013FJ Cruiser.indd 138/6/12 9:29 PM

14
FEATURES/OPERATIONS
Radio
Preset buttons Tune in the desired station and press a preset button (1-6) until you
hear a beep. Push desired preset button (1-6) to select.
“SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold selection.
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
OFF.
>
Steering wheel switches
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system while in USB mode.
AUX port/USB port
Audio
Type 2 additional function
View radio and
CD information
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
Push to skip
up/down
folder
Seek station/
CD track select
Station/CD
track scan
Mode
Load CD(s)
Preset buttons-functions in other
modes indicated above number
Type 1
CD player
To scan tracks on a disc
Push “SCAN.” Push again to hold selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one
disc. Shutter will close and then re-open for next disc.
-To select a file (MP3/WMA only) Turn “TUNE/SCROLL.”
-To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.”
Menu
Mute/
playback/pause
Setting preset
button
Clock
2013FJ Cruiser.indd 148/6/12 9:28 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Preset buttons Tune in the desired station and press a preset button (1-6) until you
hear a beep. Push desired preset button (1-6) to select.
“SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold selection.
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
OFF.>>
Steering wheel switches
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system while in USB mode.
AUX port/USB port
Volume control
View radio and
CD information
Push to adjust
tone & balance
Load CD(s)
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one
disc. Shutter will close and then re-open for next disc.
-To select a file (MP3/WMA only) Turn “TUNE/SCROLL.”
-To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.”
Mute/
playback/pause
Clock
H- Hour set
M- Minute set
2013FJ Cruiser.indd 158/6/12 9:29 PM

16
FEATURES/OPERATIONS
When vehicle is in reverse, a buzzer will sound to inform driver when nearing an
obstacle. The system can only be used when the transmission is in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)

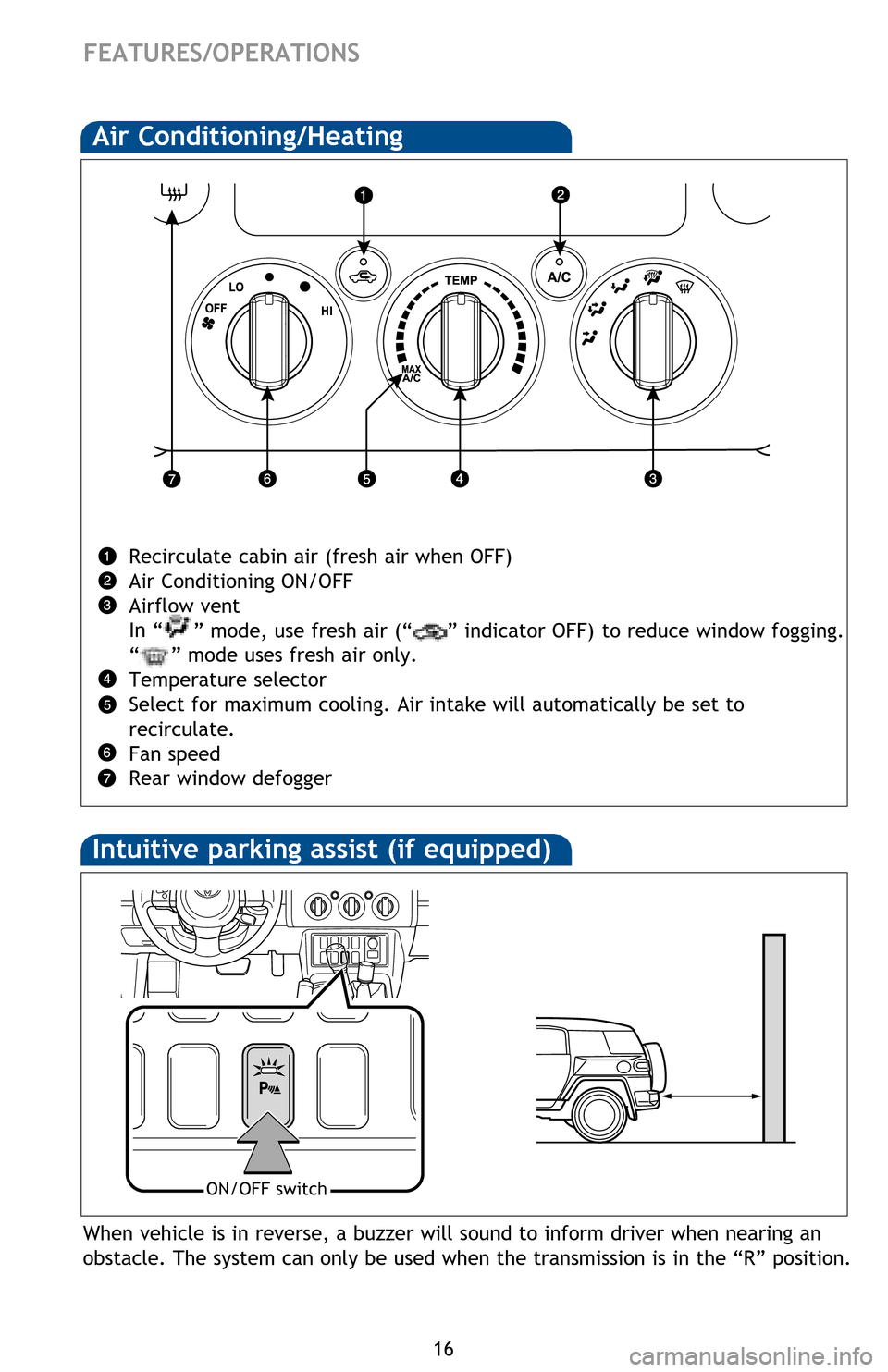

Air Conditioning/Heating
Recirculate cabin air (fresh air when OFF)
Air Conditioning ON/OFF
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window fogging.
“
” mode uses fresh air only.
Temperature selector
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Fan speed
Rear window defogger
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Using the hands-free phone system (for cellular phones),” Section
3-4 in the Owner’s Manual , for more information about phone connections and
compatibility.
Audio unit
Volume
Telephone controls (Bluetooth®)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manual, for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
2013FJ Cruiser.indd 168/6/12 9:29 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
When vehicle is in reverse, a buzzer will sound to inform driver when nearing an
obstacle. The system can only be used when the transmission is in the “R” position.
Recirculate cabin air (fresh air when OFF)
Air Conditioning ON/OFF
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window fogging.
“
” mode uses fresh air only.
Temperature selector
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Fan speed
Rear window defogger
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Using the hands-free phone system (for cellular phones),” Section
3-4 in the Owner’s Manual , for more information about phone connections and
compatibility.
Microphone
Audio unit
Steering wheel telephone switches
VolumeEnd call
Start call
Voice command button
Telephone controls (Bluetooth®)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manual, for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
*
HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
2013FJ Cruiser.indd 178/6/12 9:29 PM

18
Bottle holders-Rear seat
Cup holders
Rear console
Automatic Transmission models
Power outlet-12V DC
Instrument panel
The illumination changes according to the maximum available capacity.
•Green and Yellow 120V AC/400W
•Yellow 120V AC/100W
Engine must be running in order to use the 120V AC power outlet.
Power outlet-120V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.

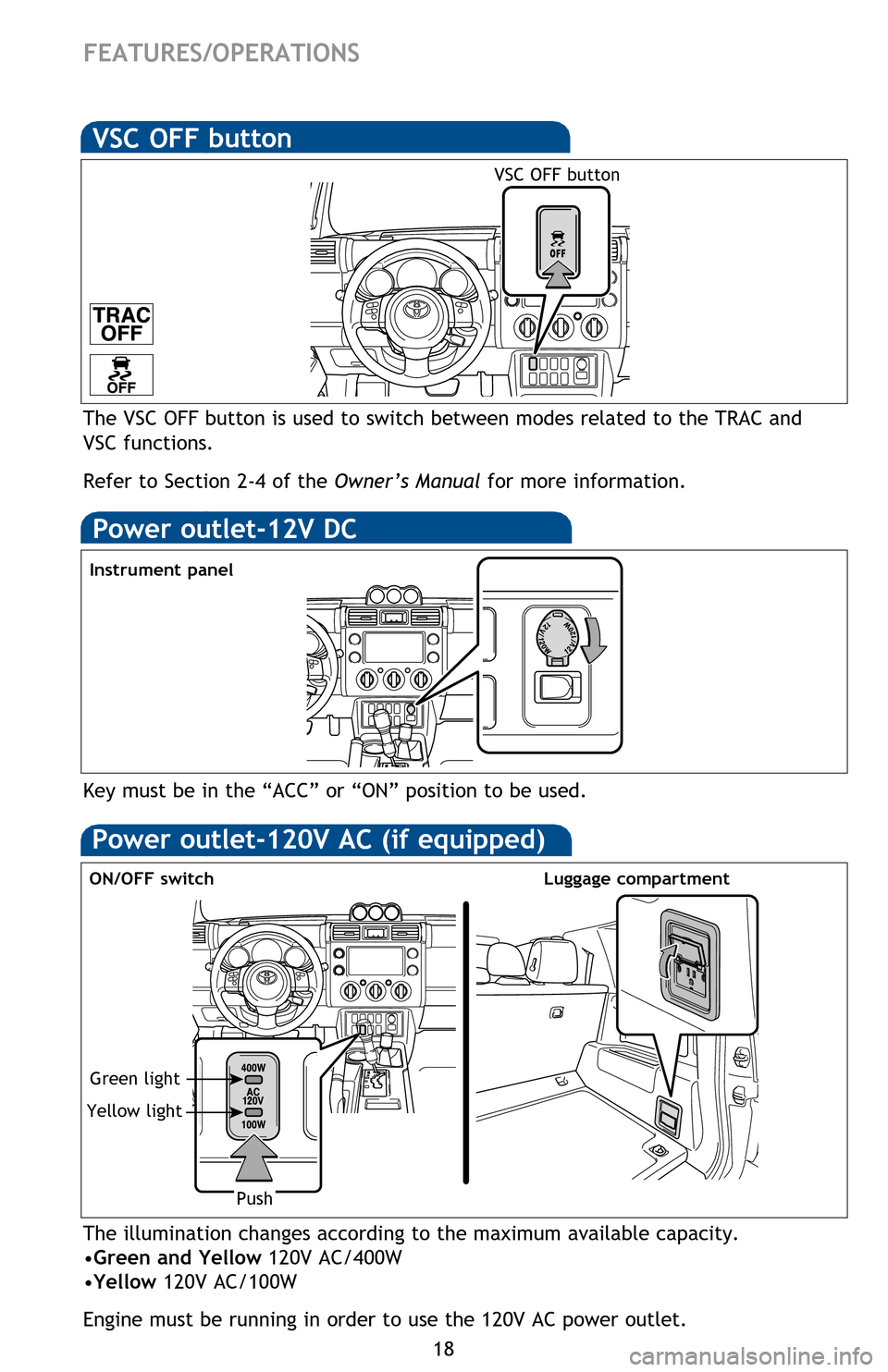

FEATURES/OPERATIONS
The VSC OFF button is used to switch between modes related to the TRAC and
VSC functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
VSC OFF button
VSC OFF button
Light control-Instrument panel
ON/OFF switch Luggage compartment
Push
Green light
Yellow light
2013FJ Cruiser.indd 188/6/12 9:30 PM
