TOYOTA FR-S 2013 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2013, Model line: FR-S, Model: TOYOTA FR-S 2013Pages: 24, PDF Size: 1.2 MB
Page 1 of 24
Quick
RefeRence
G ui De
FR-S2 013
Get info Rme D.
R oll.
126339.indd 14/6/12 6:47 PM
Page 2 of 24

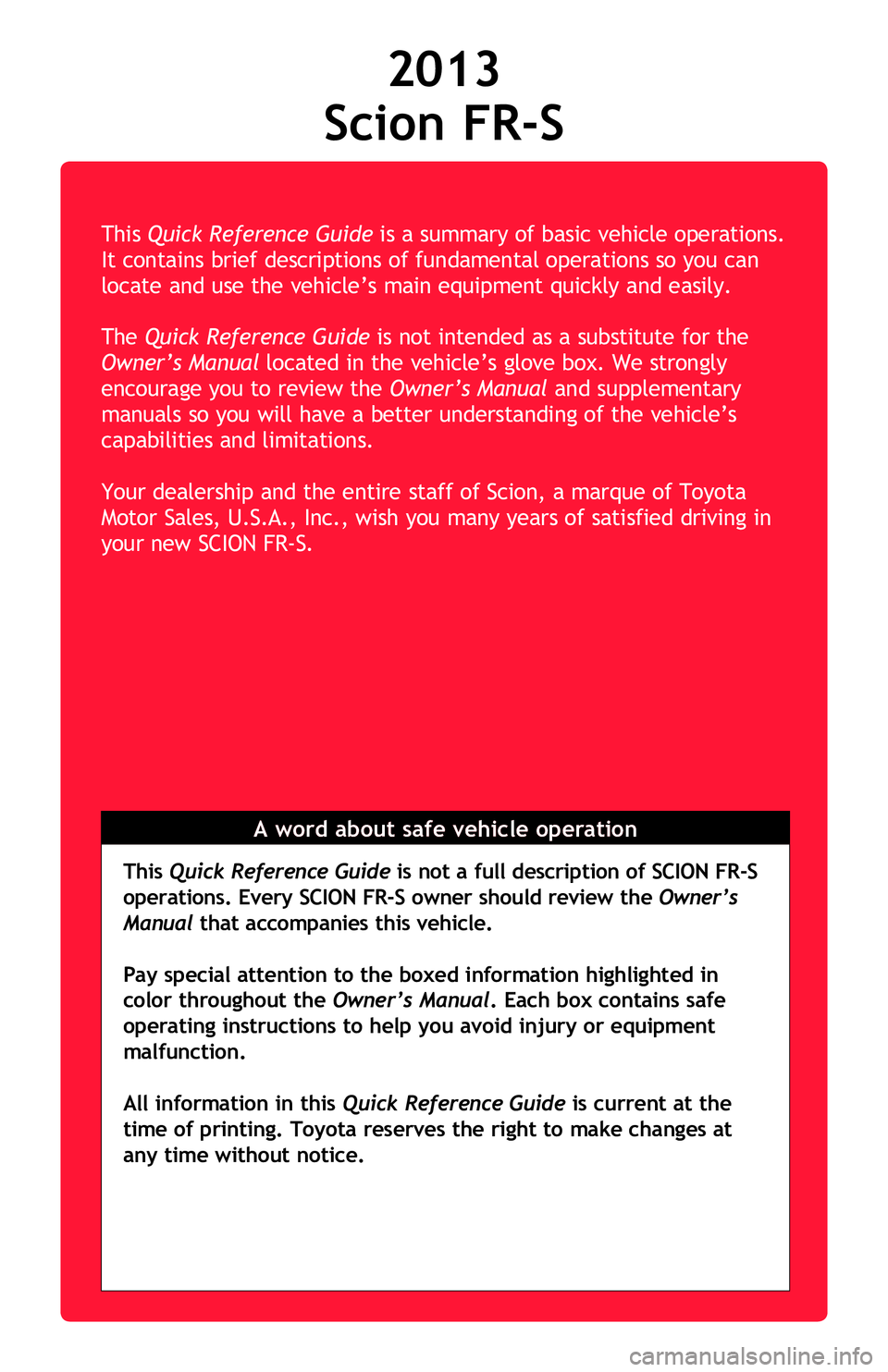

This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Scion, a marque of Toyota
Motor Sales, U.S.A., Inc., wish you many years of satisfied driving in
your new SCION FR-S.
A word about safe vehicle operation
This Quick Reference Guide is not a full description of SCION FR-S
operations. Every SCION FR-S owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Scion FR-S
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY
FEATURES
INDEX
126339.indd 24/5/12 12:46 AM
Page 3 of 24

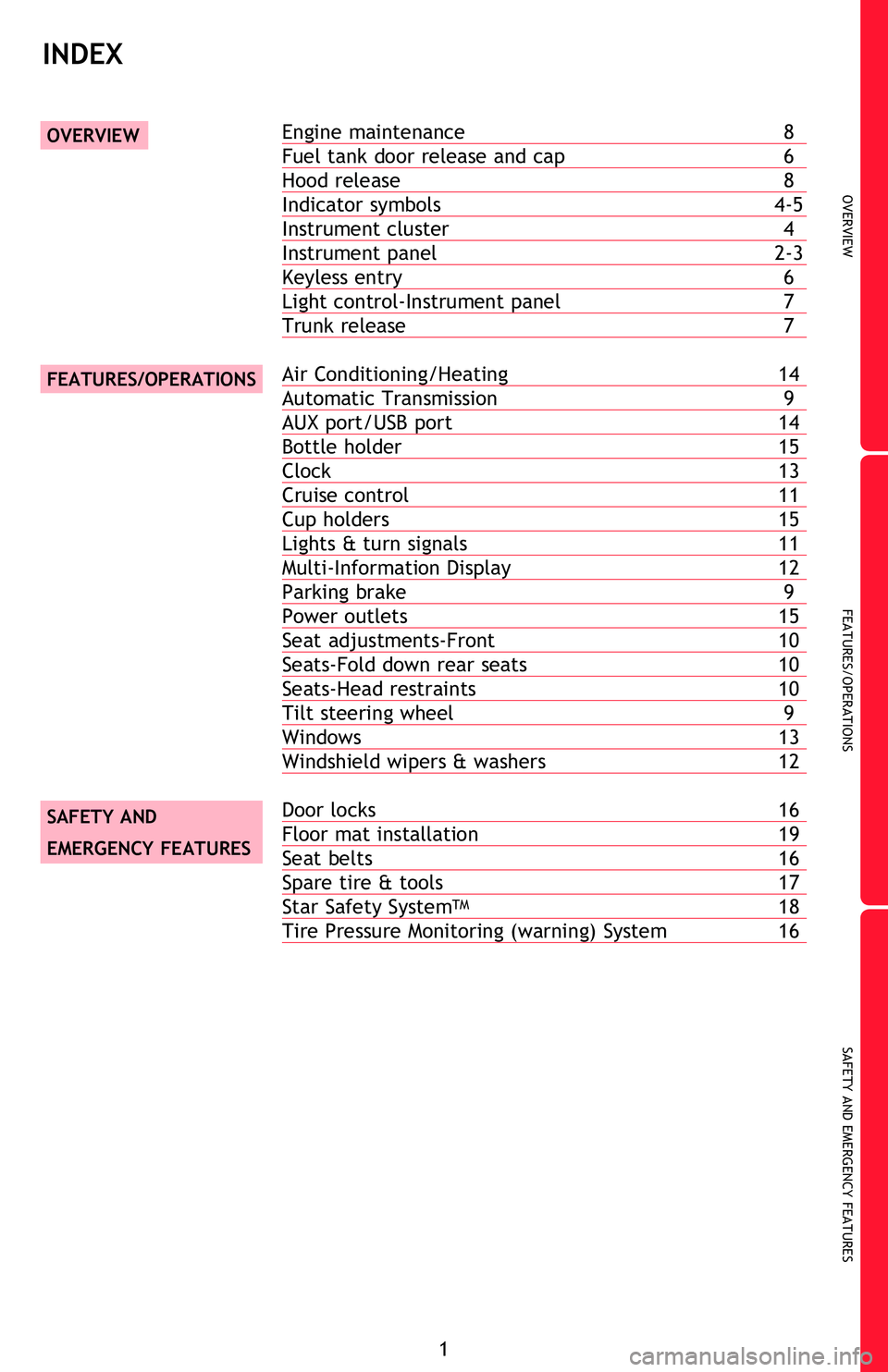

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Scion FR-S
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
Engine maintenance 8
Fuel tank door release and cap 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
Light control-Instrument panel 7
Trunk release 7
Air Conditioning/Heating 14
Automatic Transmission 9
AUX port/USB port 14
Bottle holder 15
Clock 13
Cruise control 11
Cup holders 15
Lights & turn signals 11
Multi-Information Display 12
Parking brake 9
Power outlets 15
Seat adjustments-Front 10
Seats-Fold down rear seats 10
Seats-Head restraints 10
Tilt steering wheel 9
Windows 13
Windshield wipers & washers 12
Door locks 16
Floor mat installation 19
Seat belts 16
Spare tire & tools 17
Star Safety System
TM 18
Tire Pressure Monitoring (warning) System 16
126339.indd 14/6/12 11:44 AM
Page 4 of 24
2
OVERVIEW
Paddle shift switches*
Ignition switch
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Clock
Emergency flasher switch
Air Conditioning controls
Rear window defogger switchAUX port/USB port
Tilt and telescopic steering lock release
Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control
* If equipped

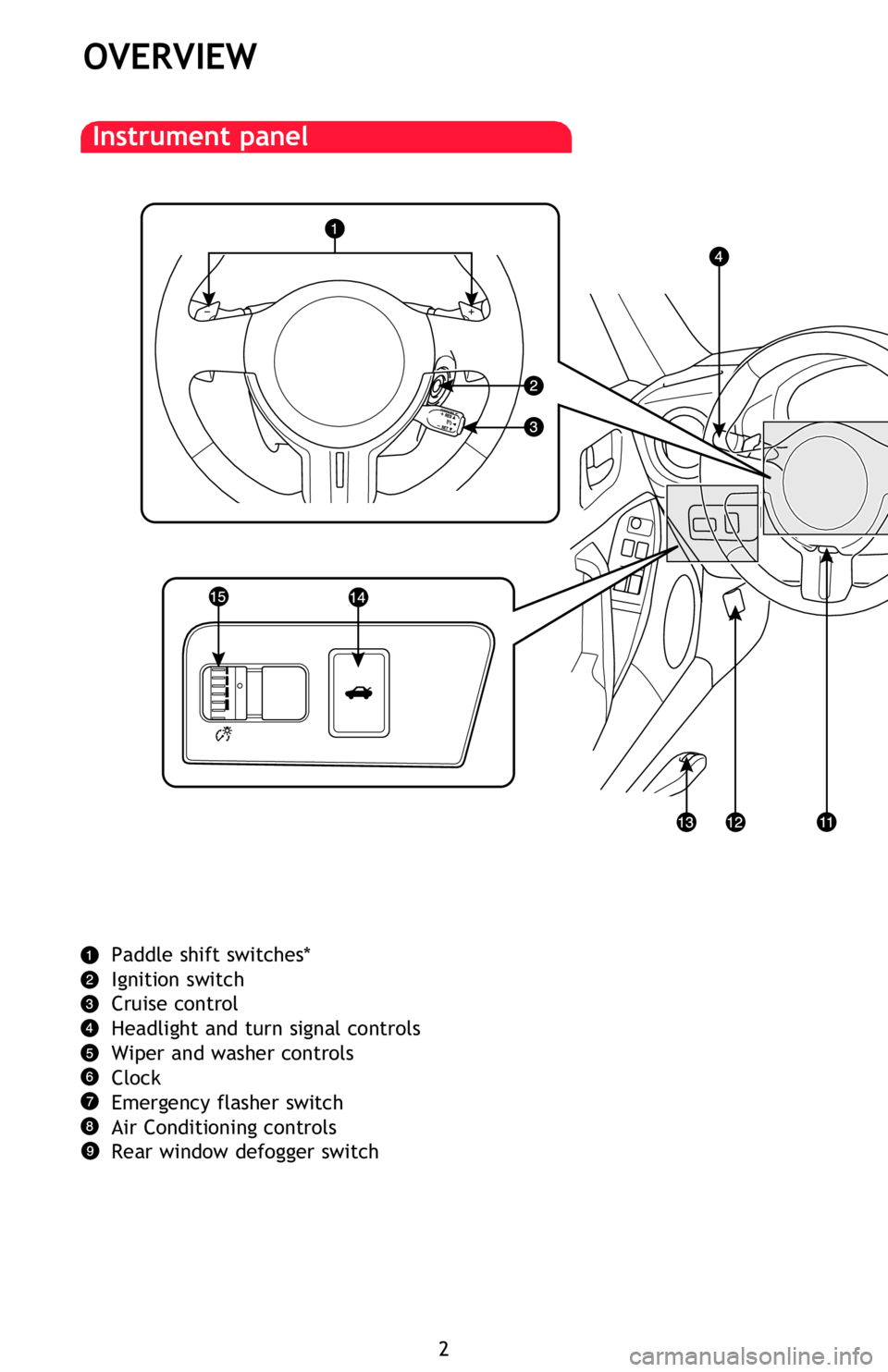

Instrument panel
126339.indd 24/5/12 12:47 AM

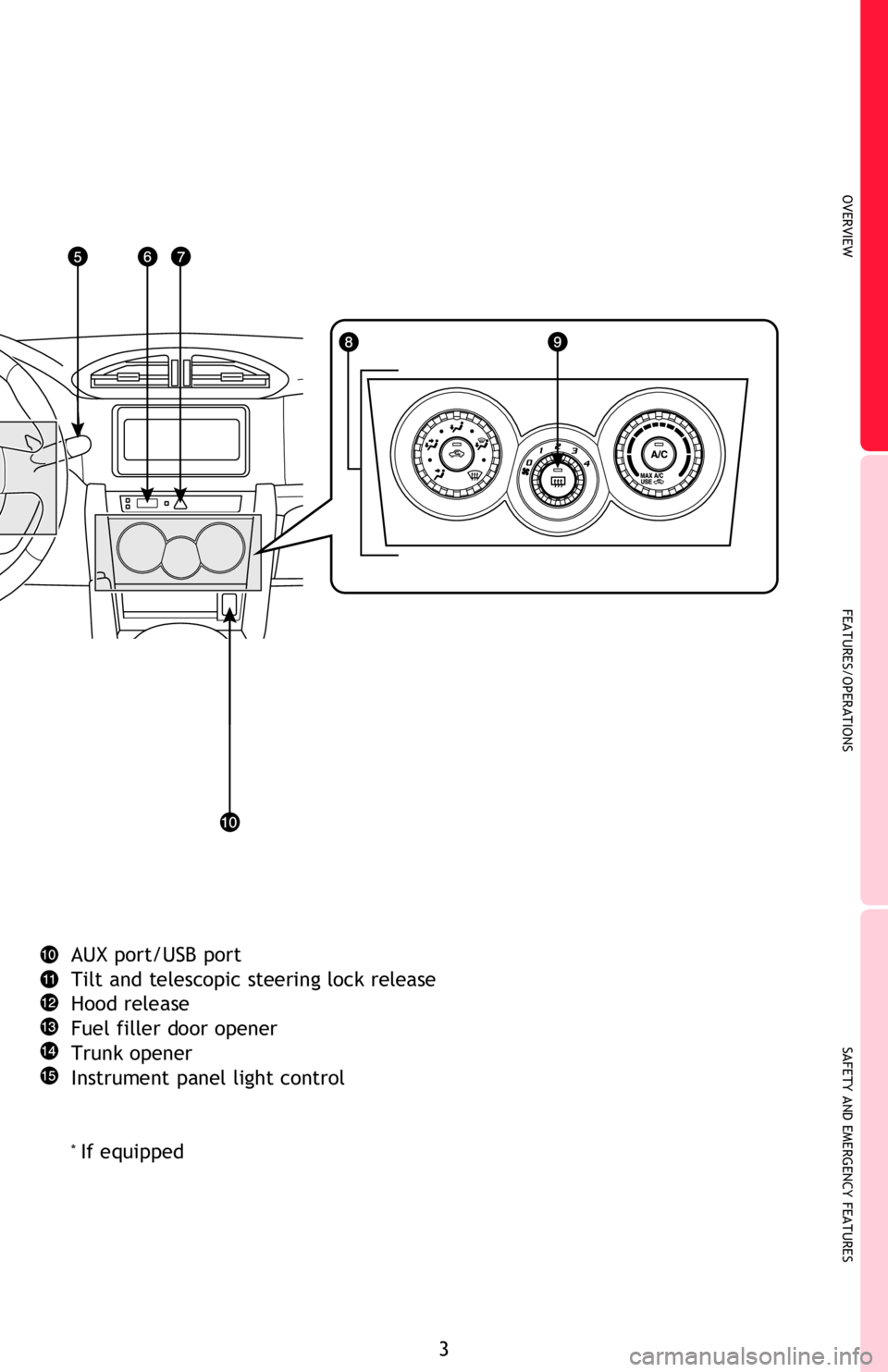

Page 5 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
OVERVIEW
Paddle shift switches*
Ignition switch
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Clock
Emergency flasher switch
Air Conditioning controls
Rear window defogger switchAUX port/USB port
Tilt and telescopic steering lock release
Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control
* If equipped
126339.indd 34/5/12 12:47 AM
Page 6 of 24
4
OVERVIEW
2 If this light come on in yellow, refer to “Cruise control” Section 2-4, 2013 Owner’s Manual.

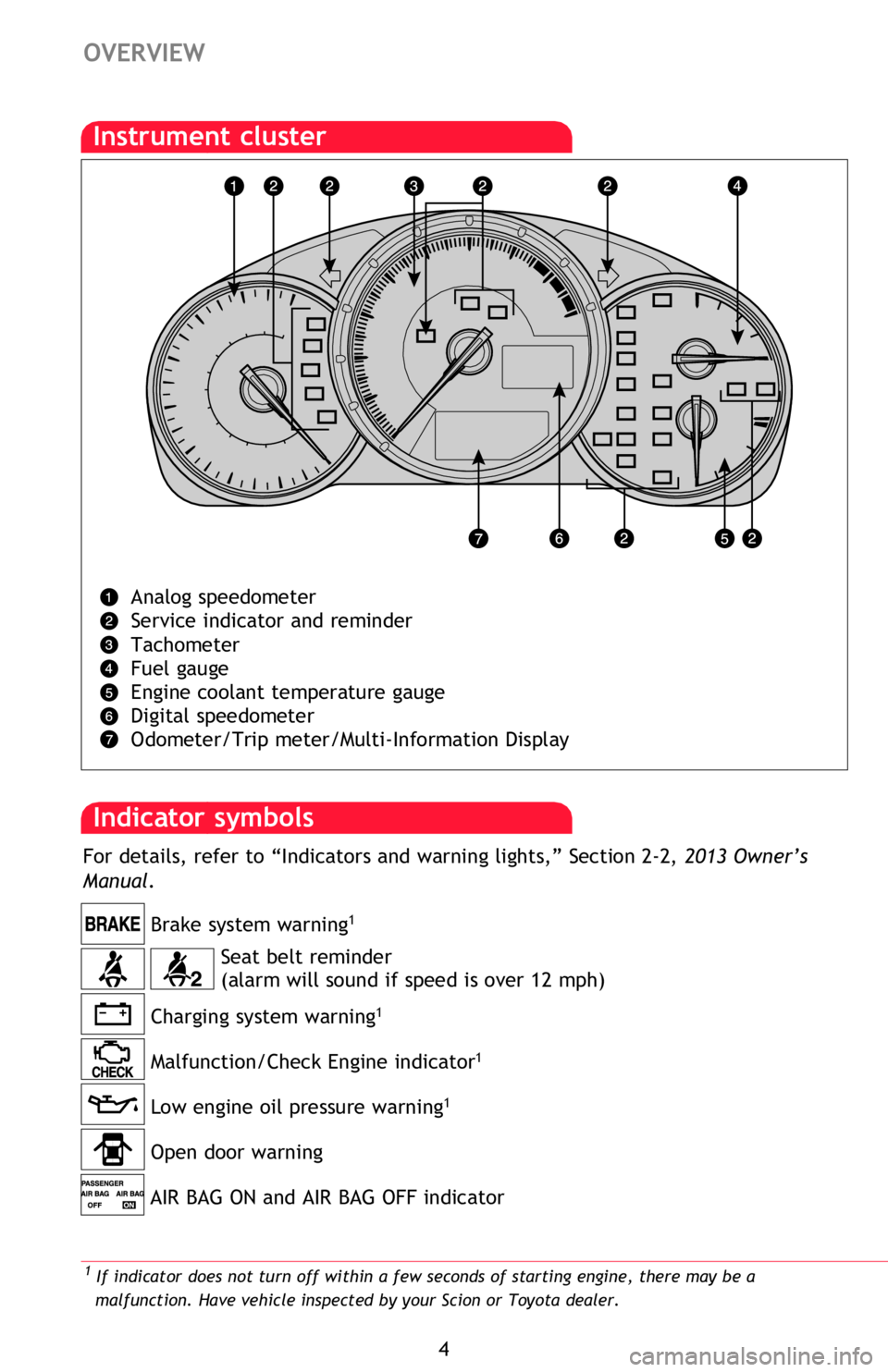

Instrument cluster
Seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning
1
Charging system warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning
AIR BAG ON and AIR BAG OFF indicator
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Scion or Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
Analog speedometer
Service indicator and reminder
Tachometer
Fuel gauge
Engine coolant temperature gauge
Digital speedometer
Odometer/Trip meter/Multi-Information Display
126339.indd 44/5/12 12:47 AM

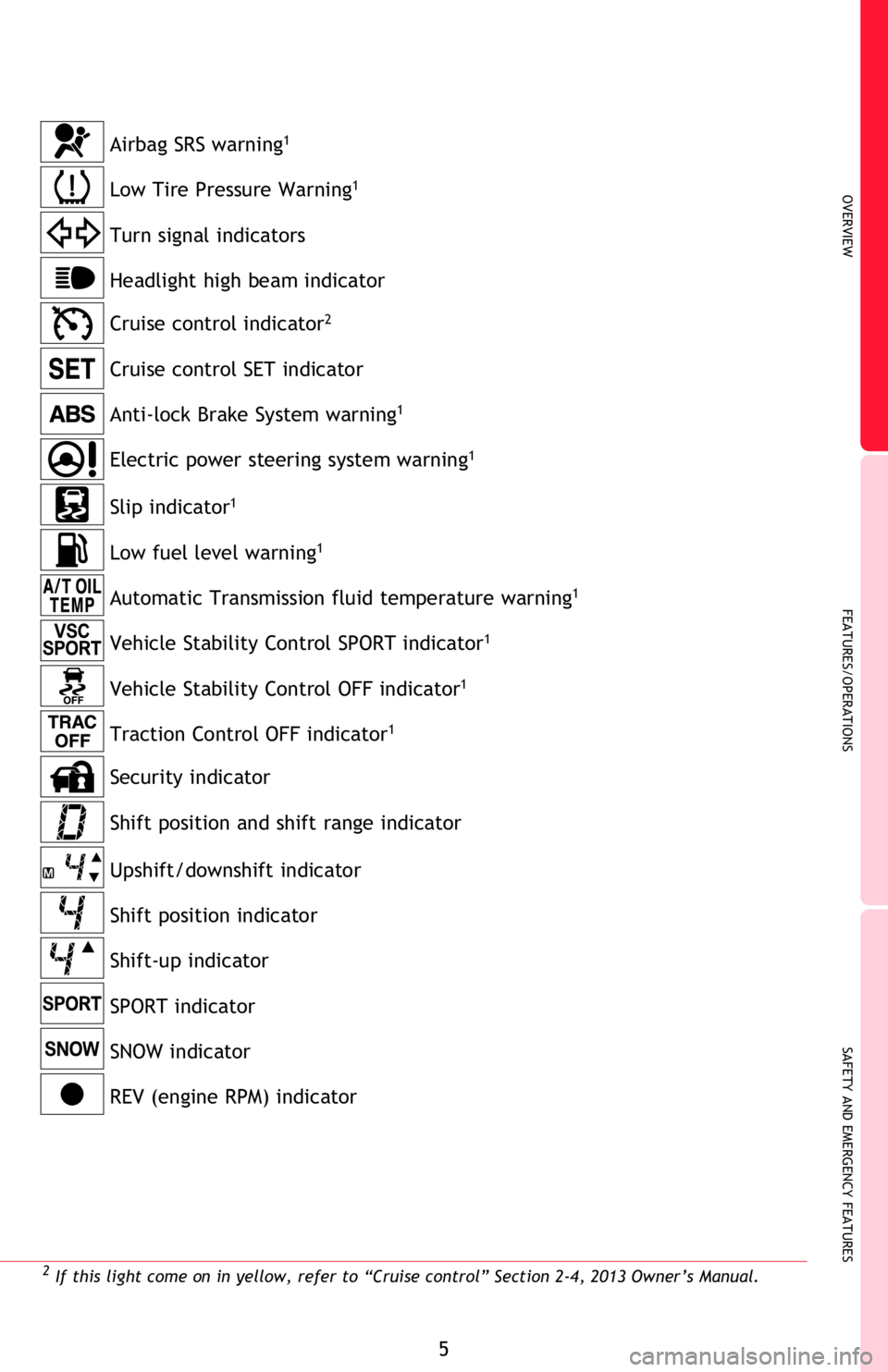

Page 7 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
2 If this light come on in yellow, refer to “Cruise control” Section 2-4, 2013 Owner’s Manual.
Seat belt reminder
(alarm will sound if speed is over 12 mph)
Cruise control SET indicator
Turn signal indicators
Headlight high beam indicator Airbag SRS warning
1
Low Tire Pressure Warning1
Cruise control indicator2
Slip indicator1
Low fuel level warning1
Automatic Transmission fluid temperature warning1
Vehicle Stability Control OFF indicator1
Traction Control OFF indicator1
Electric power steering system warning1
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Scion or Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
Anti-lock Brake System warning1
Vehicle Stability Control SPORT indicator1
Upshift/downshift indicator
Shift position indicator
Shift-up indicator
SNOW indicator
REV (engine RPM) indicator Shift position and shift range indicator Security indicator
SPORT indicator
126339.indd 54/5/12 12:47 AM
Page 8 of 24
6
OVERVIEW

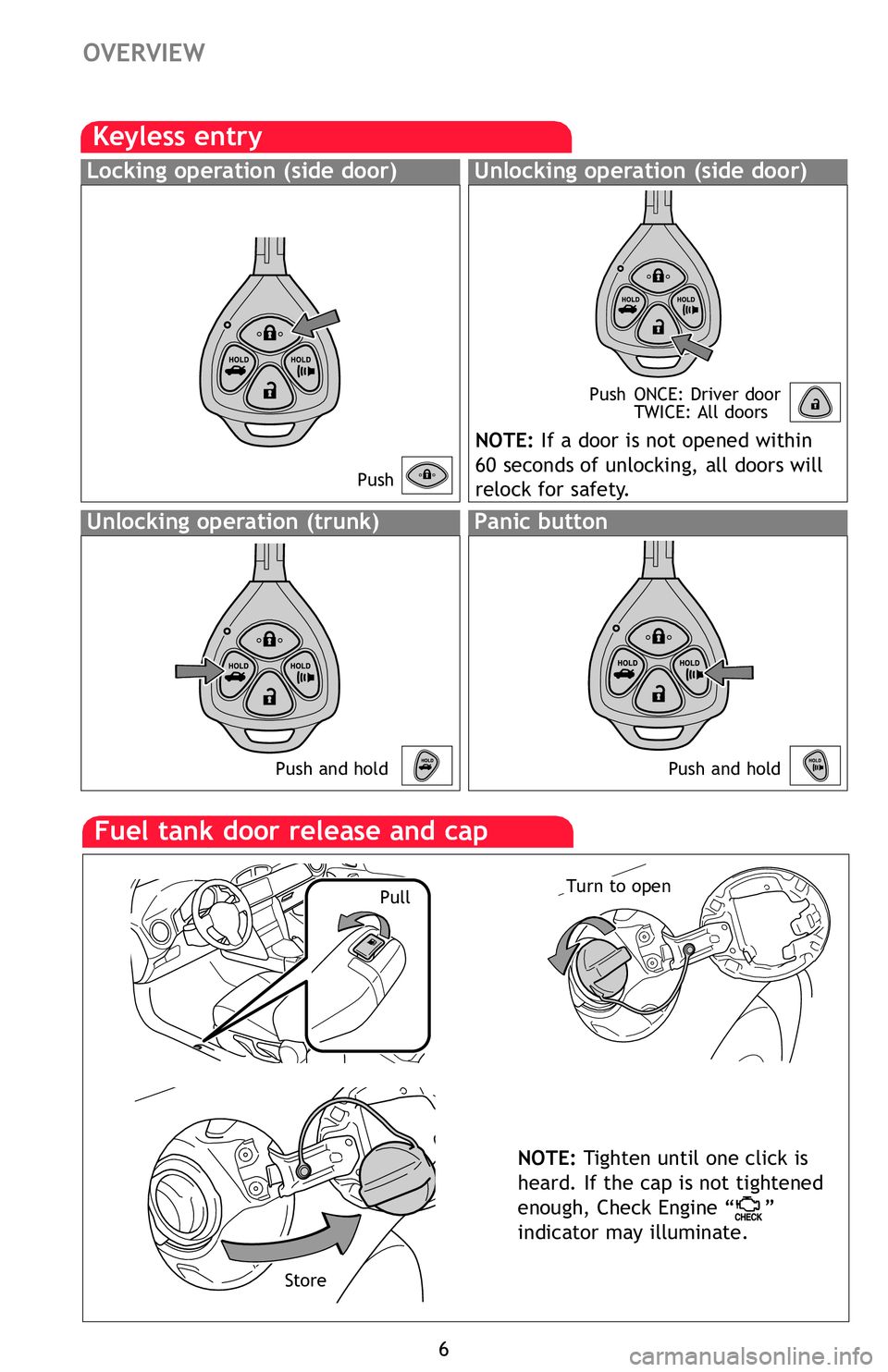

Keyless entry
PushPush
ONCE: Driver door
TWICE: All doors
Locking operation (side door)Unlocking operation (side door)
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Push and hold
Unlocking operation (trunk)Panic button
Pull
StoreTurn to open
Trunk release
Light control-Instrument panel
Push and hold
Trunk opener
126339.indd 64/5/12 12:47 AM
Page 9 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Unlocking operation (side door)
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Panic button

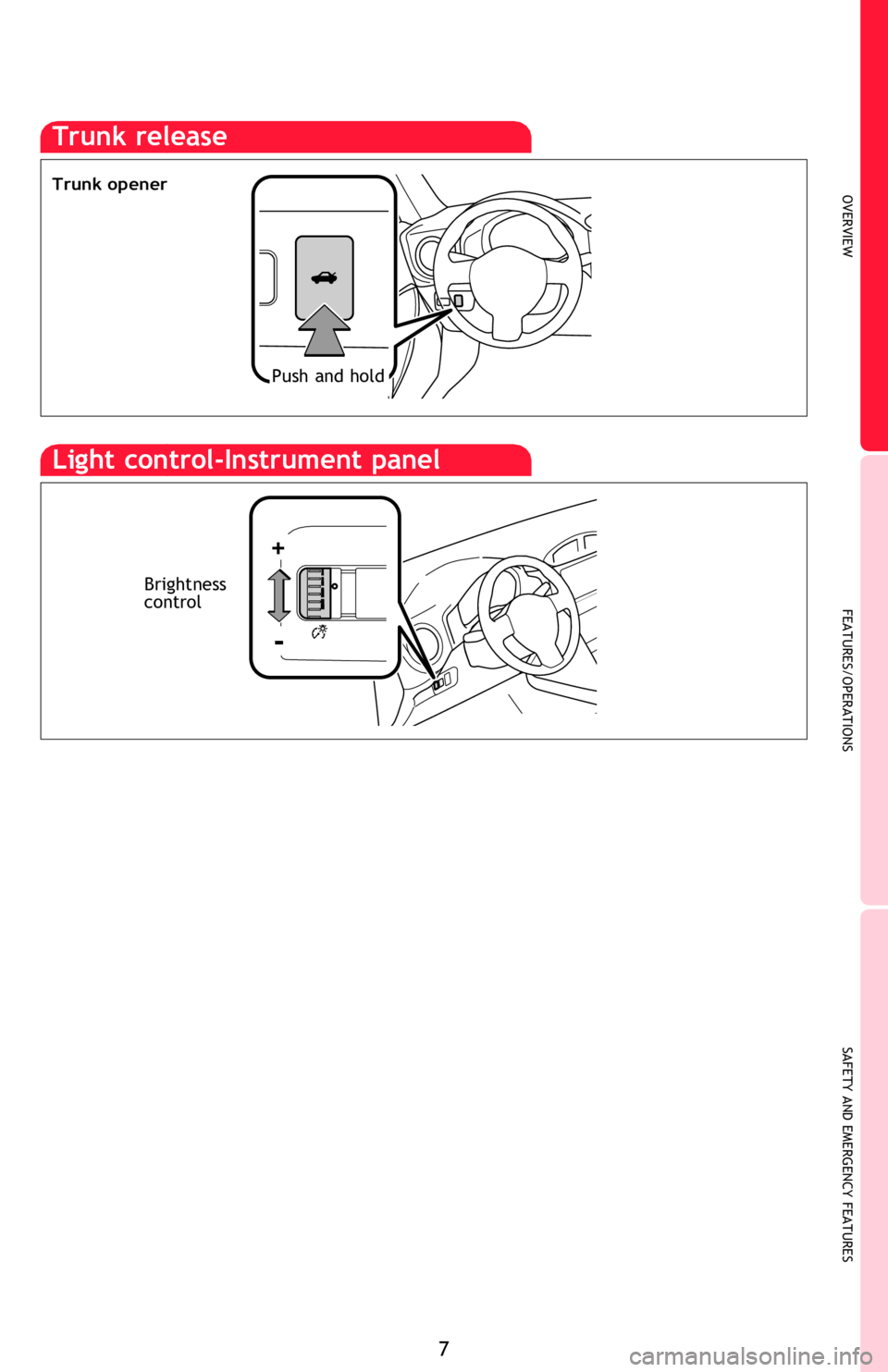

Trunk release
Push and hold
Light control-Instrument panel
Brightness
control
+
-
Trunk opener
126339.indd 74/5/12 12:47 AM
Page 10 of 24
8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
Tilt steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Parking brake

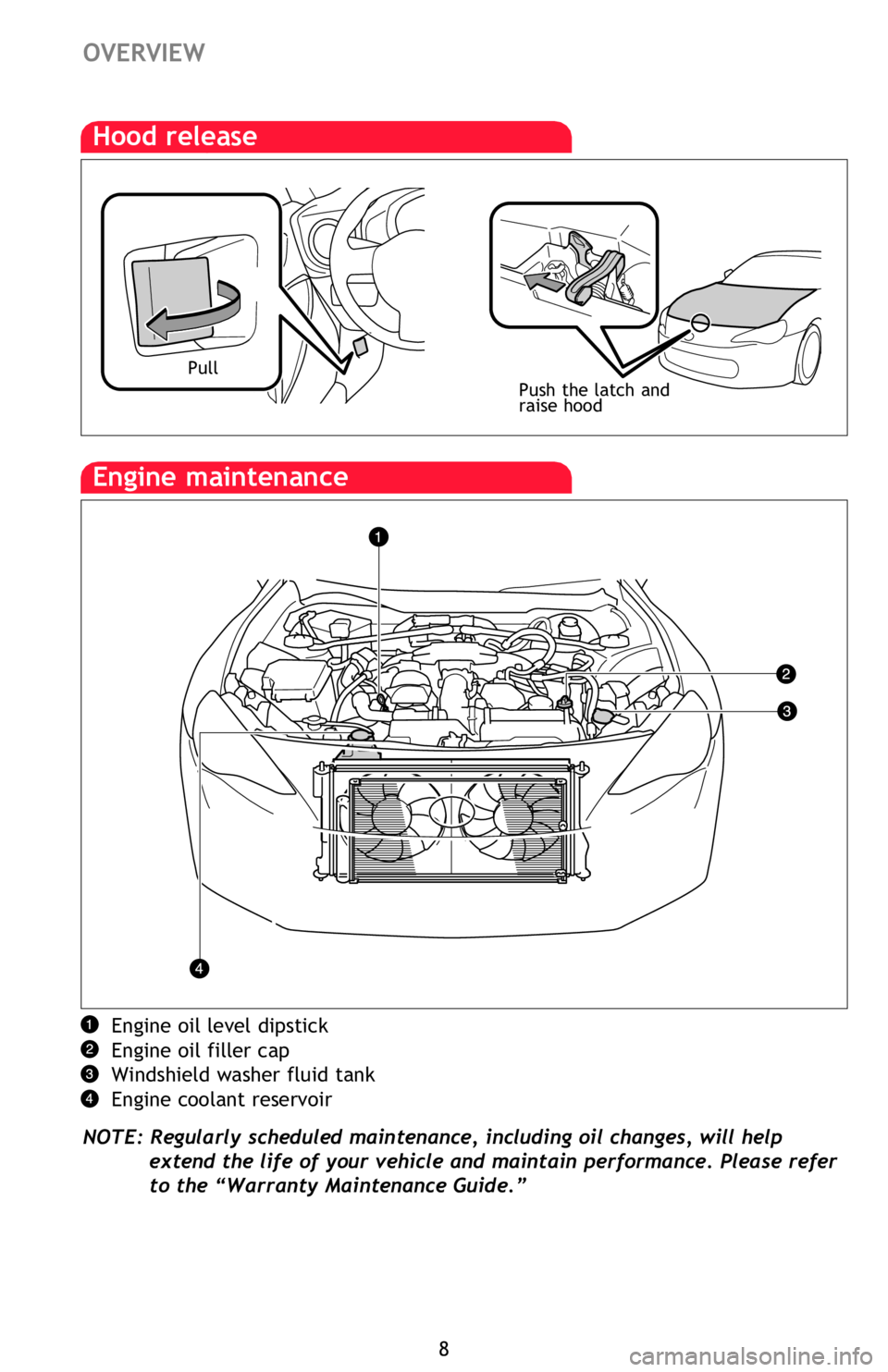

Engine maintenance
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Hood release
OVERVIEW
Pull
Push the latch and
raise hood
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Refer to the Owner’s Manual for more details.
“M” (Manual) mode
126339.indd 84/5/12 12:48 AM
