manual transmission TOYOTA FR-S 2013 Warranties & Maintenance Guides (in English)

JOBNAME: 1139278-2013-sfr-toy PAGE: 12 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects
in materials or workmanship of any
part supplied by Scion, subject to the
exceptions indicated under “What Is
Not Covered” on pages 13-14.
Coverage is for 36 months or
36,000 miles, whichever occurs first,
with the exception of wheel alignment
and wheel balancing, which are
covered for 12 months or 20,000 miles,
whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed
in the next two columns and supplied
by Scion, subject to the exceptions
indicated under “What Is Not Covered”
on pages 13-14.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
Engine
Cylinder block and head and all
internal parts, timing gears and
gaskets, timing chain/belt and cover,
flywheel, valve covers, oil pan, oil
pump, engine mounts, turbocharger
housing and all internal parts, super
charger housing and all internal parts,
engine control computer, water pump,
fuel pump, seals and gaskets.Transmission and Transaxle
Case and all internal parts, torque
converter, clutch cover, transmission
mounts, transfer case and all internal
parts, engine control computer, seals
and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal
parts, axle shafts, drive shafts,
constant velocity joints, front hub and
bearings, seals and gaskets.
Rear-Wheel-Drive System
Axle housing and all internal parts,
propeller shafts, U-joints, axle shafts,
drive shafts, bearings, supports, seals
and gaskets.
Corrosion Perforation
Warranty
This warranty covers repair or
replacement of any original body panel
that develops perforation from
corrosion (rust-through), subject to the
exceptions indicated under “What Is
Not Covered” on pages 13-14.
Coverage is for 60 months, regardless
of mileage.
For information on how to protect your
vehicle from corrosion, see the section
entitled “Corrosion Prevention and
Appearance Care” in the
Owner’s
Manual.
NEW VEHICLE LIMITED WARRANTY
WARRANTY
Your Warranties in Detail12

JOBNAME: 1139278-2013-sfr-toy PAGE: 24 SESS: 2 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
PARTS LIST:
LONG-TERM EMISSION
DEFECT WARRANTY
The parts listed here are covered for
seven years or 70,000 miles from the
vehicle’s in-service date, whichever
occurs first.
Air/Fuel Metering System
>Engine control computer (engine
control module)
>Throttle body
>Transmission control computer
(transmission control module)
Air Induction System
>Intake manifold and intake air surge
tank
Catalyst System
>Exhaust front pipe (including
catalytic converter)
>Exhaust manifold (including
Evaporative Control System
>Fuel tank
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in
the
Owner’s Manualand this booklet.
Scion will not deny a warranty claim
solely because you do not have records
to show that you maintained your
vehicle. However, any failure or
noncompliance caused by lack of
maintenance is not covered by this
warranty.
When maintenance and repairs are
paid for by you, these services may be
performed by you or by any
automotive service provider you
choose. Scion will not deny a warranty
claim solely because you used a
service provider other than an
Authorized Servicing Dealership for
maintenance and repairs. However,
any failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
CALIFORNIA EMISSION CONTROL WARRANTY
WARRANTY
Your Warranties in Detail24
catalytic converter)

JOBNAME: 1139278-2013-sfr-toy PAGE: 39 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Fuel tank cap gasket I I I
Manual transmission oil I I I I
Parking brake linings and
drums Normal I I I
Severe When operating in areas where road salts or other corrosive materials are
used; if living in coastal areas, inspect every 7,500 miles or 7.5 months,whichever occurs first
Rear differential oil IIIIIIIIIII I
Spark plugs R
Steering gear box Normal
IIII I I
Driving on dirt or
dusty roads IIIIIIIIIII I
Severe When operating on rough and/or muddy roads; driving in extremely cold
weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Scheduled Maintenance
MAINTENANCE
39Maintenance Log

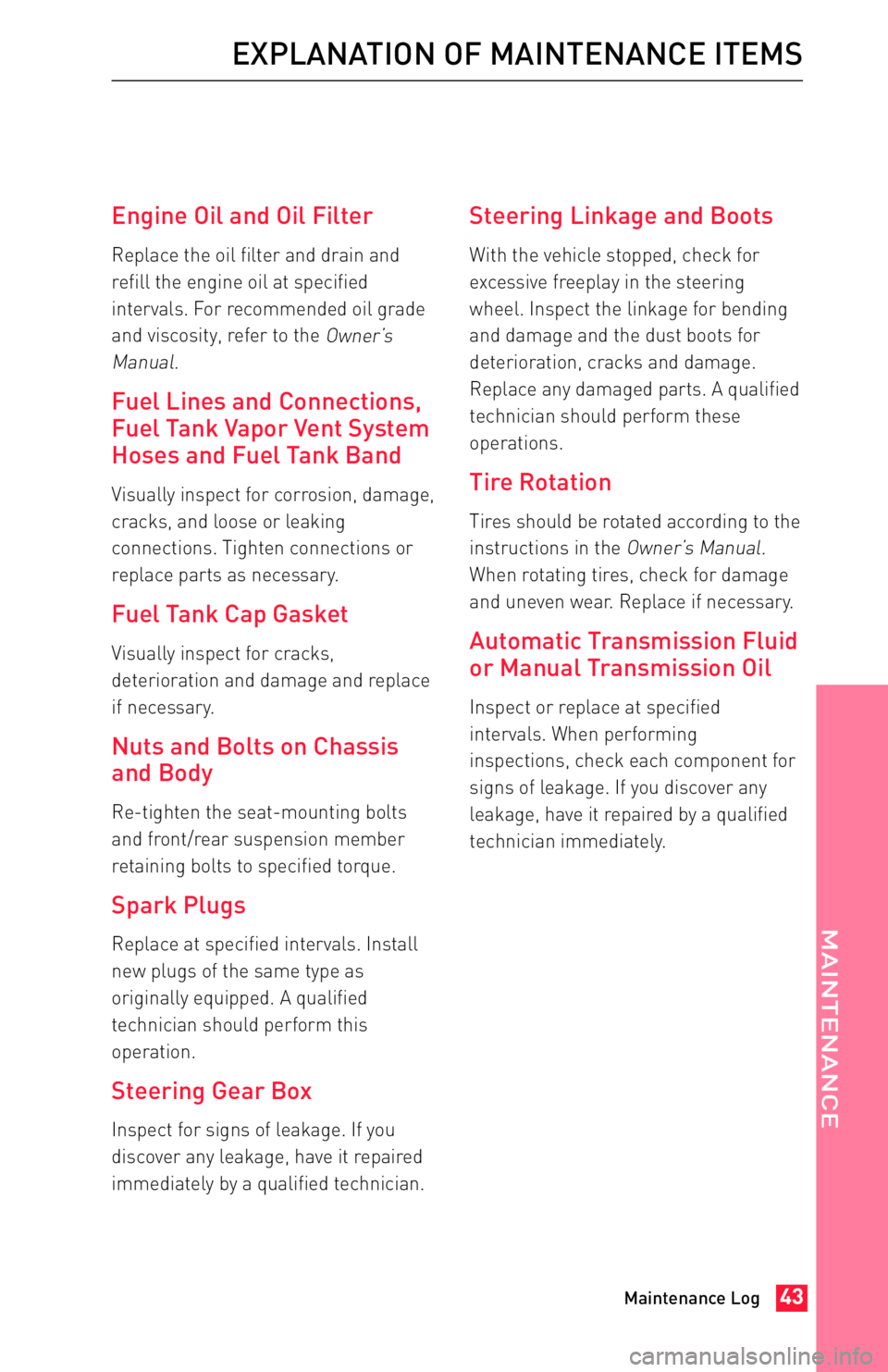

JOBNAME: 1139278-2013-sfr-toy PAGE: 43 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified
intervals. For recommended oil grade
and viscosity, refer to the
Owner’s
Manual.
Fuel Lines and Connections,
Fuel Tank Vapor Vent System
Hoses and Fuel Tank Band
Visually inspect for corrosion, damage,
cracks, and loose or leaking
connections. Tighten connections or
replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks,
deterioration and damage and replace
if necessary.
Nuts and Bolts on Chassis
and Body
Re-tighten the seat-mounting bolts
and front/rear suspension member
retaining bolts to specified torque.
Spark Plugs
Replace at specified intervals. Install
new plugs of the same type as
originally equipped. A qualified
technician should perform this
operation.
Steering Gear Box
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering
wheel. Inspect the linkage for bending
and damage and the dust boots for
deterioration, cracks and damage.
Replace any damaged parts. A qualified
technician should perform these
operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.
When rotating tires, check for damage
and uneven wear. Replace if necessary.
Automatic Transmission Fluid
or Manual Transmission Oil
Inspect or replace at specified
intervals. When performing
inspections, check each component for
signs of leakage. If you discover any
leakage, have it repaired by a qualified
technician immediately.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log43
MAINTENANCE
