TOYOTA FR-S 2014 Accessories, Audio & Navigation (in English)

71
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
3
Bluetooth
® HANDS-FREE SYSTEM

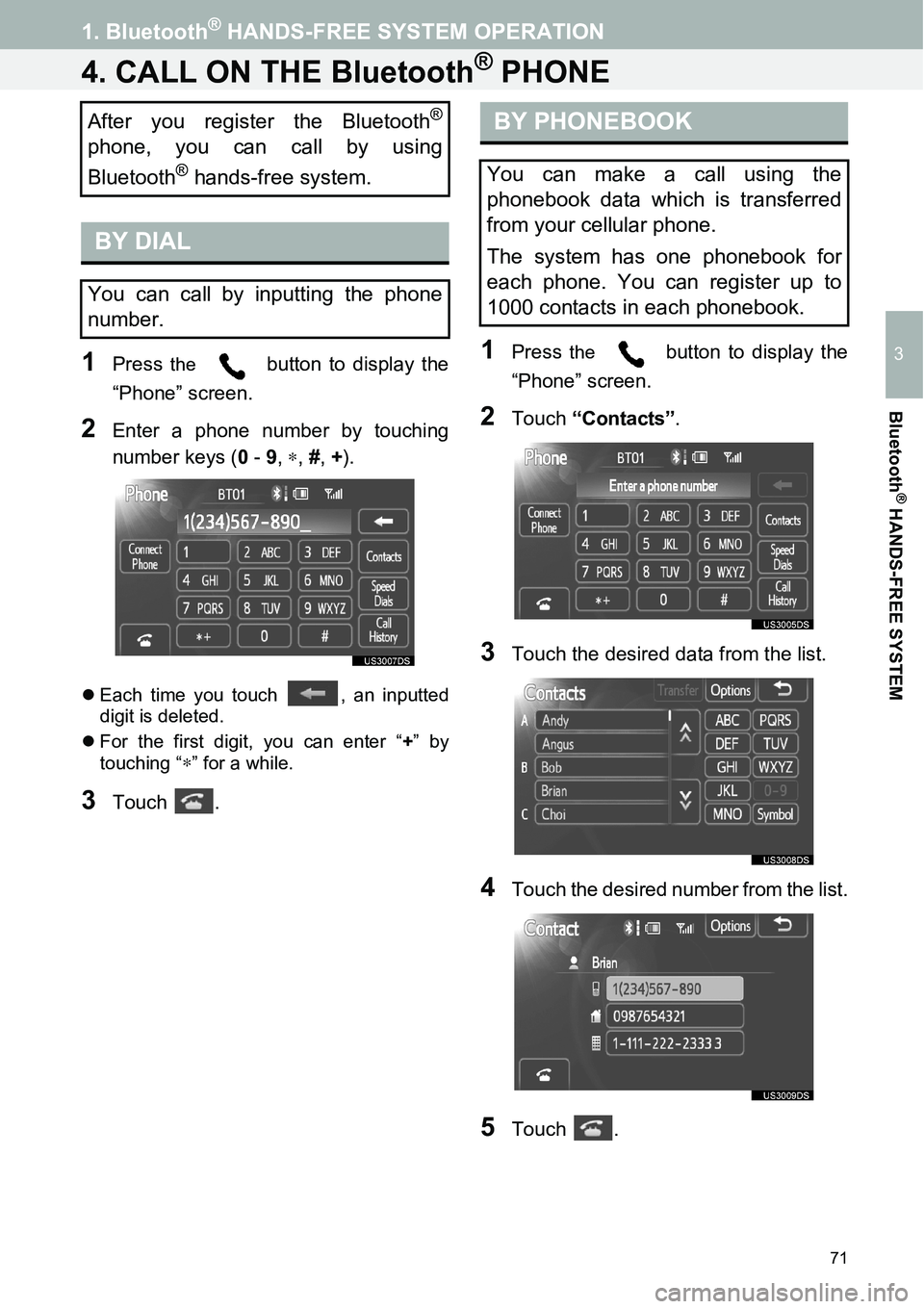

4. CALL ON THE Bluetooth® PHONE
1Press the button to display the
“Phone” screen.
2Enter a phone number by touching
number keys (0 - 9, ∗, #, +).
zEach time you touch , an inputted
digit is deleted.
zFor the first digit, you can enter “+” by
touching “
∗” for a while.
3Touch .
1Press the button to display the
“Phone” screen.
2Touch “Contacts”.
3Touch the desired data from the list.
4Touch the desired number from the list.
5Touch .
After you register the Bluetooth®
phone, you can call by using
Bluetooth
® hands-free system.
BY DIAL
You can call by inputting the phone
number.
BY PHONEBOOK
You can make a call using the
phonebook data which is transferred
from your cellular phone.
The system has one phonebook for
each phone. You can register up to
1000 contacts in each phonebook.

72
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
1Touch “Contacts”.
zIf your phone does not support either
PBAP or OPP service, you cannot transfer
contacts.
XPBAP compatible models
2Touch “Yes” if you want to transfer
new contacts from a cellular phone.
zTouch “No” if you want to cancel transfer-
ring the contacts.
XPBAP incompatible but OPP compatible
models
2Touch “Transfer” if you want to trans-
fer new contacts from a cellular phone.
zYou need to operate your phone to trans-
fer new contacts.
zTouch “Cancel” if you want to cancel
transferring the contacts.
1Press the button to display the
“Phone” screen.
2Touch “Speed Dials”.
3Touch the desired number to call.
zYou can change the page by touching
“Speed Dial 2” or “Speed Dial 3” tab.
WHEN THE PHONEBOOK IS
EMPTYBY SPEED DIAL
You can call using registered phone
numbers which can be selected from a
phonebook. (See “SPEED DIALS
SETTING” on page 102 for registering
the speed dial.)

73
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
3
Bluetooth
® HANDS-FREE SYSTEM
1Press the button to display the
“Phone” screen.
2Touch “Call History”.
3Touch the desired data from the list.
zWhen the list is switched, touch “All”,
“Missed”, “Incoming” or “Outgoing”
tab.
4Touch .
zWhen you call using the phonebook, the
name (if registered) is displayed.
zWhen you call the same number continu-
ously, only the newest number is regis-
tered.
zWhen a phone number registered in the
phonebook is received, the name and the
number are displayed.

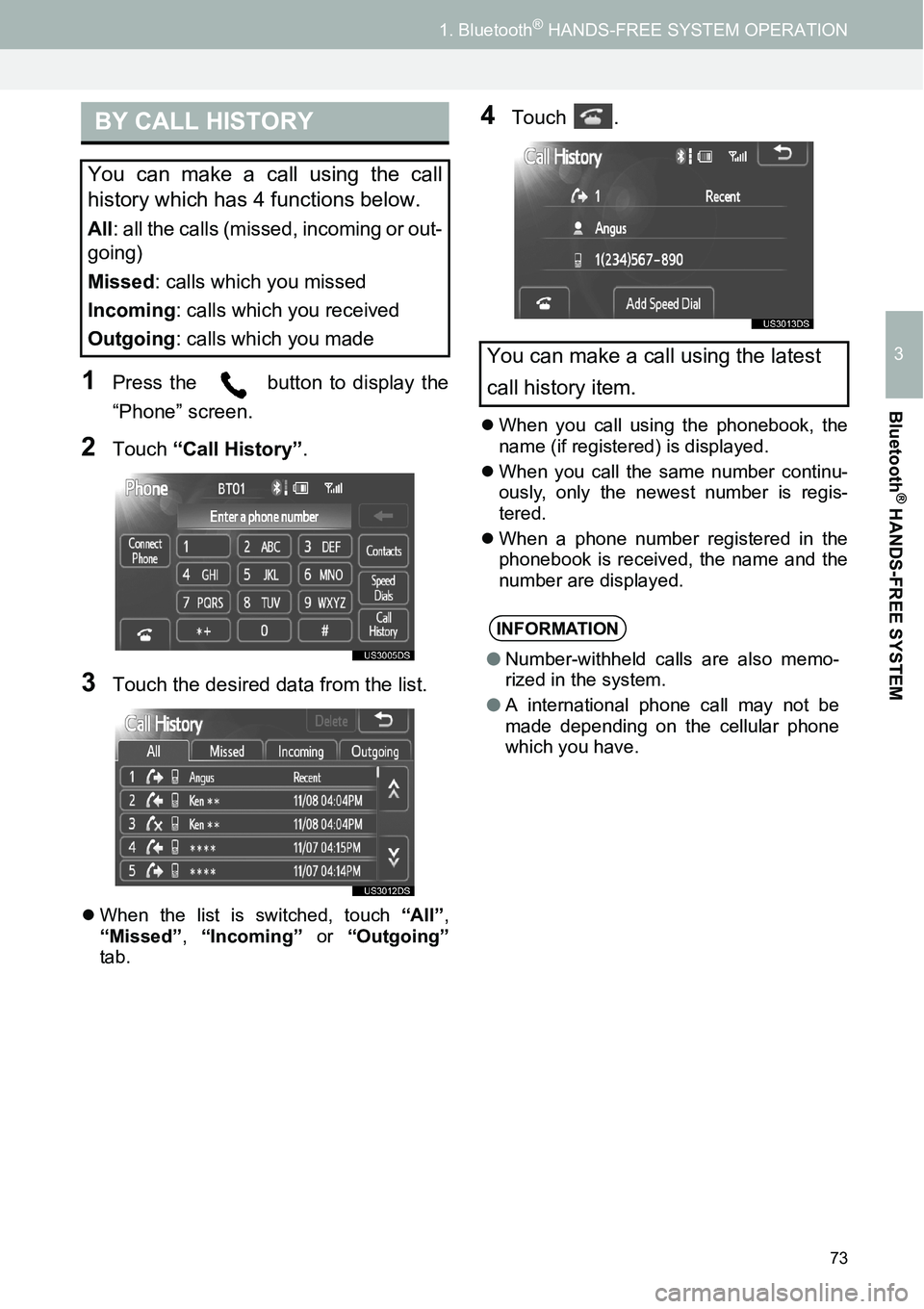

BY CALL HISTORY
You can make a call using the call
history which has 4 functions below.
All: all the calls (missed, incoming or out-
going)
Missed: calls which you missed
Incoming: calls which you received
Outgoing: calls which you made
You can make a call using the latest
call history item.
INFORMATION
●Number-withheld calls are also memo-
rized in the system.
●A international phone call may not be
made depending on the cellular phone
which you have.

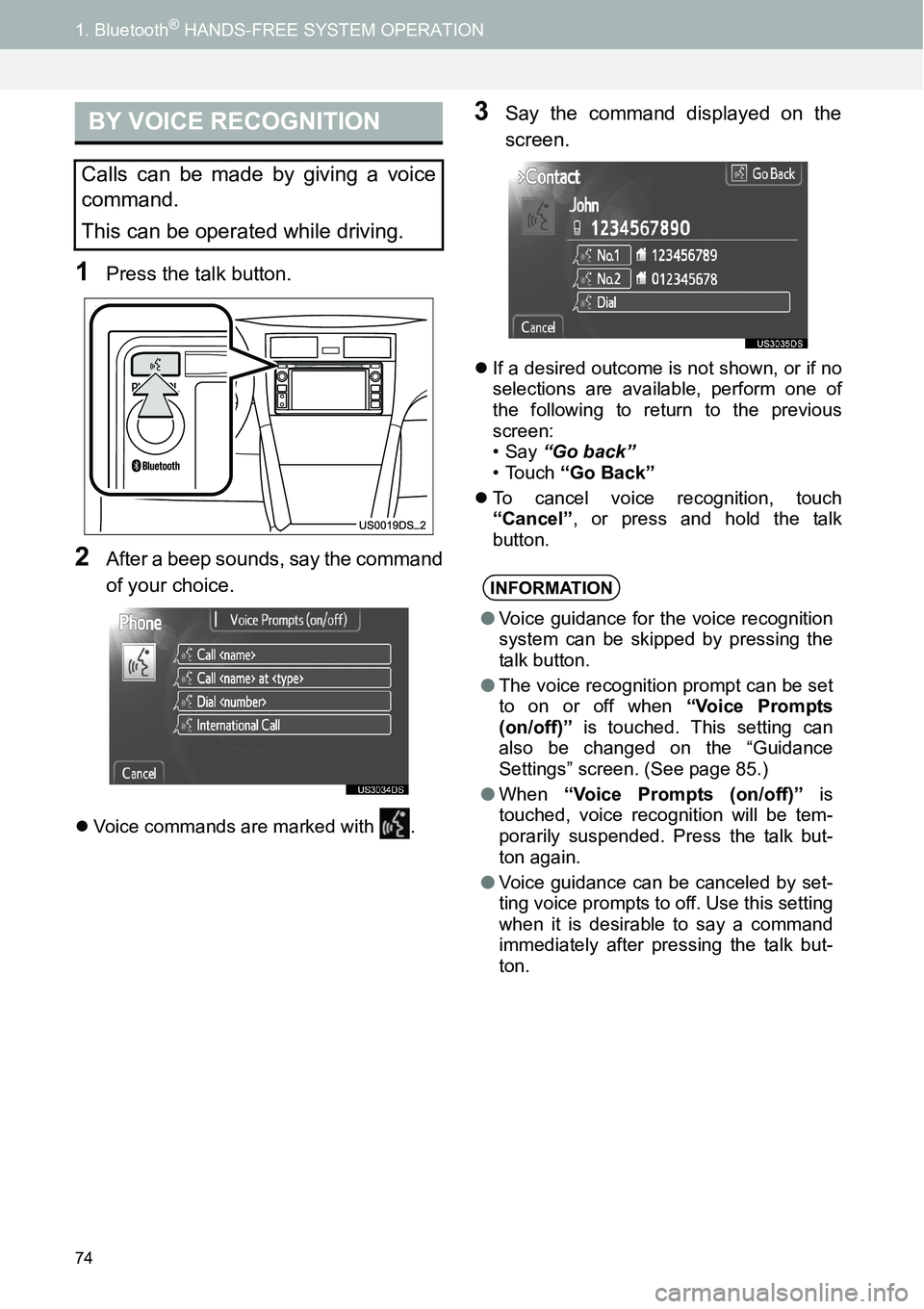

74
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
1Press the talk button.
2After a beep sounds, say the command
of your choice.
zVoice commands are marked with .
3Say the command displayed on the
screen.
zIf a desired outcome is not shown, or if no
selections are available, perform one of
the following to return to the previous
screen:
•Say “Go back”
• Touch “Go Back”
zTo cancel voice recognition, touch
“Cancel”, or press and hold the talk
button.
BY VOICE RECOGNITION
Calls can be made by giving a voice
command.
This can be operated while driving.
INFORMATION
●Voice guidance for the voice recognition
system can be skipped by pressing the
talk button.
●The voice recognition prompt can be set
to on or off when “Voice Prompts
(on/off)” is touched. This setting can
also be changed on the “Guidance
Settings” screen. (See page 85.)
●When “Voice Prompts (on/off)” is
touched, voice recognition will be tem-
porarily suspended. Press the talk but-
ton again.
●Voice guidance can be canceled by set-
ting voice prompts to off. Use this setting
when it is desirable to say a command
immediately after pressing the talk but-
ton.

75
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
3
Bluetooth
® HANDS-FREE SYSTEM
1Press the talk button.
2Say the name, or the name and type of
phone, of a registered contact.
zIn the same manner as it is displayed on
the screen, “Call ” or “Call
at ,” after saying “Call”
say the name, or the name and type of
phone, of a contact.
For example: “Call”, “John Smith” or
“Call”, “Mary Davis”, “at”, “Mobile”
zThere are 4 types of phones: Home,
Mobile, Work and Other.
zShort or abbreviated names in the phone-
book may not be recognized. Change
names in the phonebook to full names.
zSometimes a voice recognition result con-
firmation screen will be displayed. After
confirming the result, say “Yes” or “No”.
zWhen the system recognizes multiple
names from the phonebook, a name can-
didate list will be displayed on the screen.
If the desired name is not displayed on the
top of the screen, say the number of the
name from the candidate list (number 1 or
number 2) to select a name from the can-
didate list.
zWhen a contact has multiple phone num-
bers registered in the phonebook, a candi-
date list will be displayed. If the desired
phone number is not displayed on the top
of the screen, say the number of the
desired phone number from the candidate
list (number 1 or number 2) to select a
phone number from the candidate list.
3Say “Dial” to call the phone number.
1Press the talk button.
2Say the phone number.
zIn the same manner as it is displayed on
the screen, “Dial ”, after saying
“Dial” say the phone number.
zSay the phone number one digit at a time.
For example, if the phone number is
2345678:
Say “two three four five six seven
eight”
Do not say “twenty three forty five sixty
seven eight”
zThe system can recognize the following
types of the phone numbers:
3 digit numbers (911, 411, 611)
7 digit numbers (Local phone numbers)
10 digit numbers (Area code + Local
phone number)
11 digit phone numbers (1 + Area code +
Local phone number)

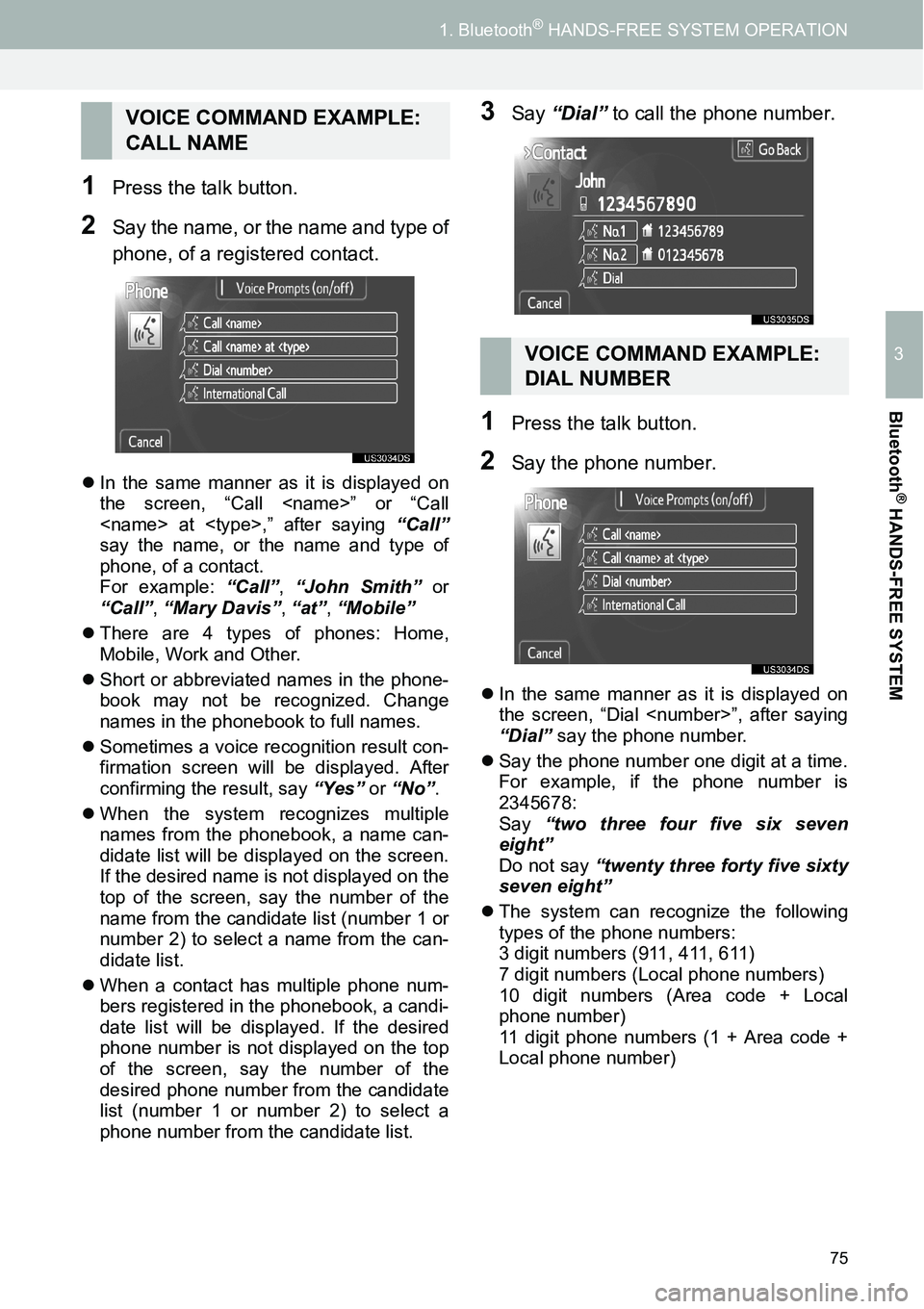

VOICE COMMAND EXAMPLE:
CALL NAME
VOICE COMMAND EXAMPLE:
DIAL NUMBER

76

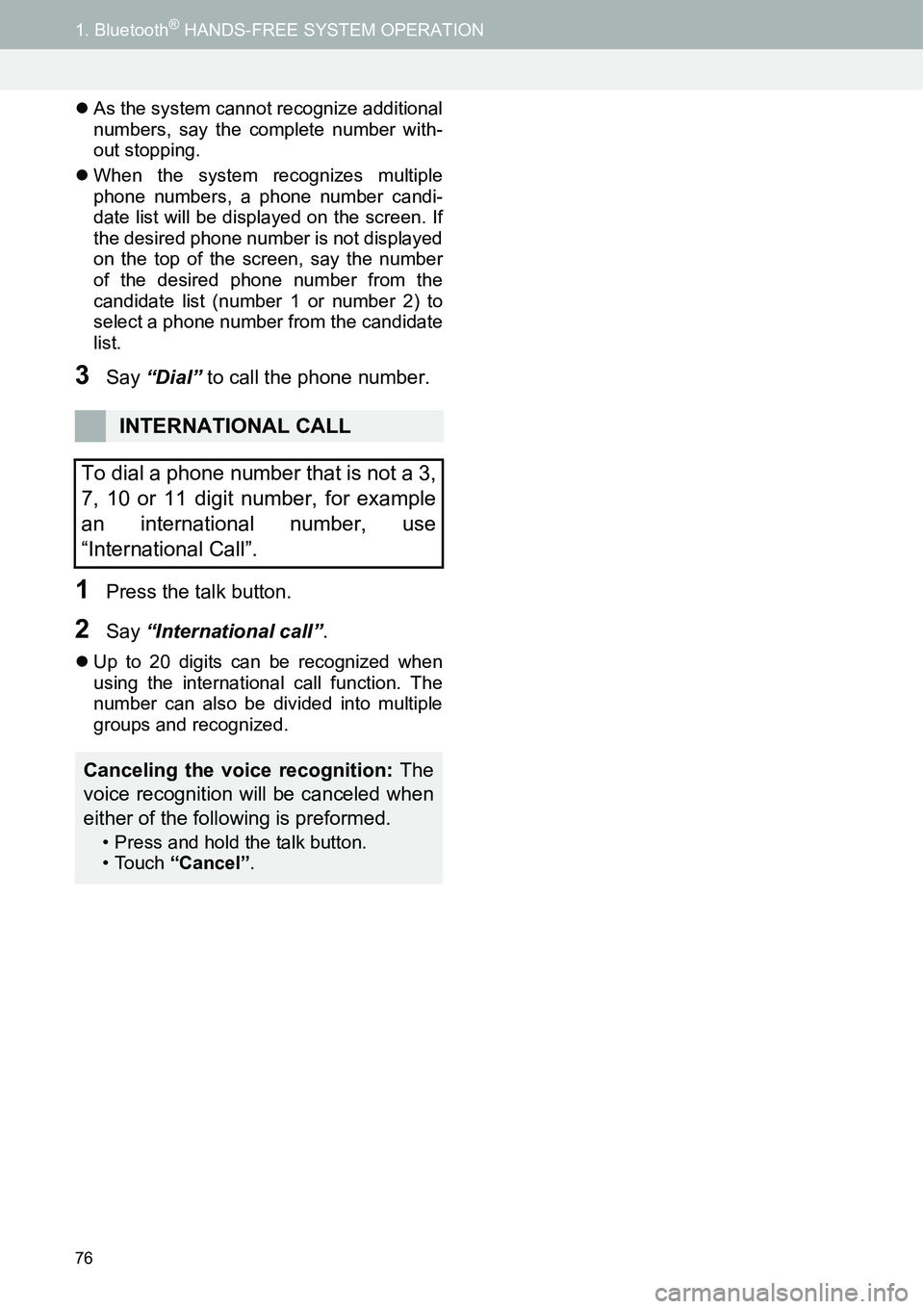

1. Bluetooth® HANDS-FREE SYSTEM OPERATION
zAs the system cannot recognize additional
numbers, say the complete number with-
out stopping.
zWhen the system recognizes multiple
phone numbers, a phone number candi-
date list will be displayed on the screen. If
the desired phone number is not displayed
on the top of the screen, say the number
of the desired phone number from the
candidate list (number 1 or number 2) to
select a phone number from the candidate
list.
3Say “Dial” to call the phone number.
1Press the talk button.
2Say “International call”.
zUp to 20 digits can be recognized when
using the international call function. The
number can also be divided into multiple
groups and recognized.
INTERNATIONAL CALL
To dial a phone number that is not a 3,
7, 10 or 11 digit number, for example
an international number, use
“International Call”.
Canceling the voice recognition: The
voice recognition will be canceled when
either of the following is preformed.
• Press and hold the talk button.
• Touch “Cancel”.

77
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
3
Bluetooth
® HANDS-FREE SYSTEM

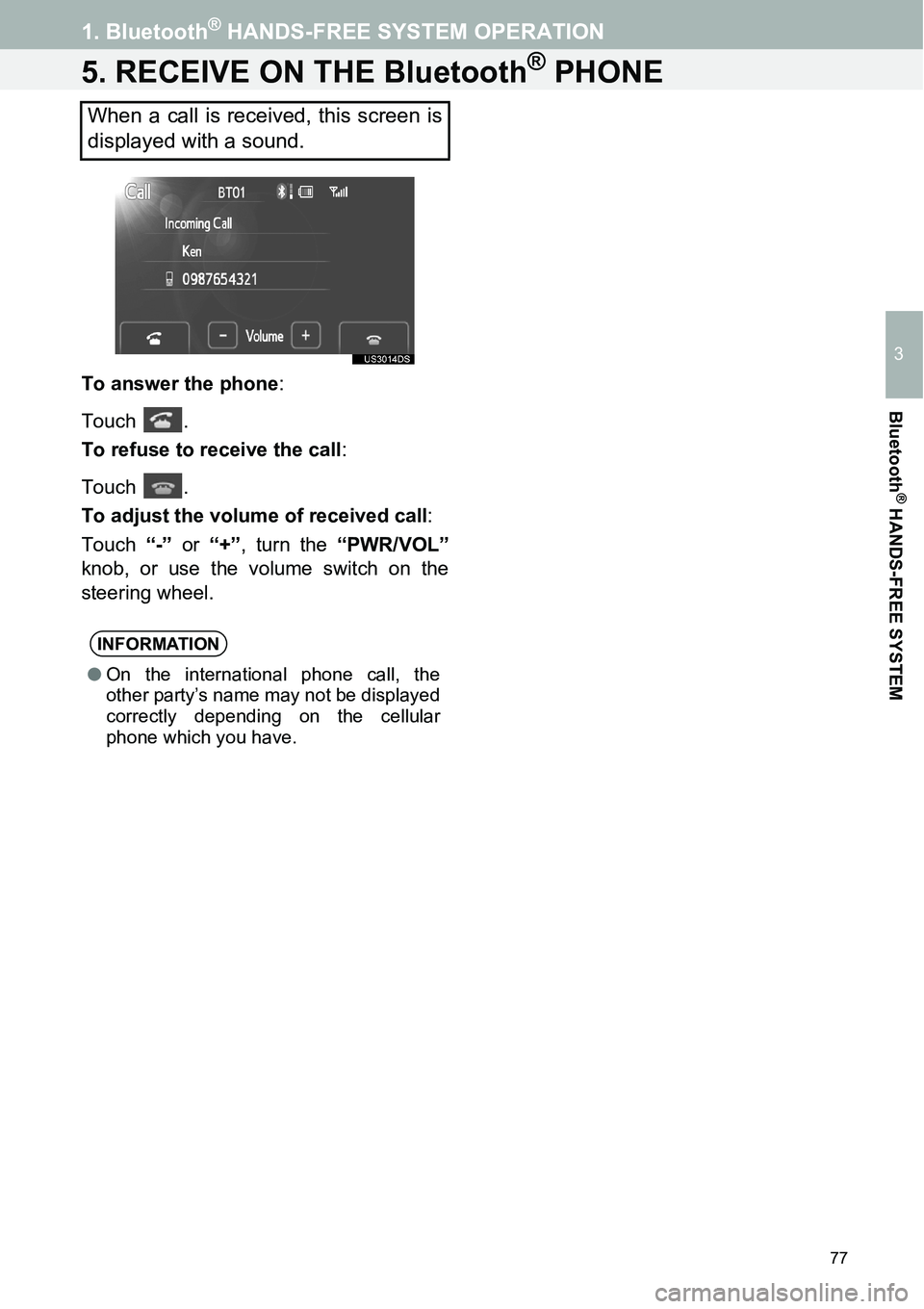

5. RECEIVE ON THE Bluetooth® PHONE
To answer the phone:
Touch .
To refuse to receive the call:
Touch .
To adjust the volume of received call:
Touch “-” or “+”, turn the “PWR/VOL”
knob, or use the volume switch on the
steering wheel.
When a call is received, this screen is
displayed with a sound.
INFORMATION
●On the international phone call, the
other party’s name may not be displayed
correctly depending on the cellular
phone which you have.

78
1. Bluetooth® HANDS-FREE SYSTEM OPERATION

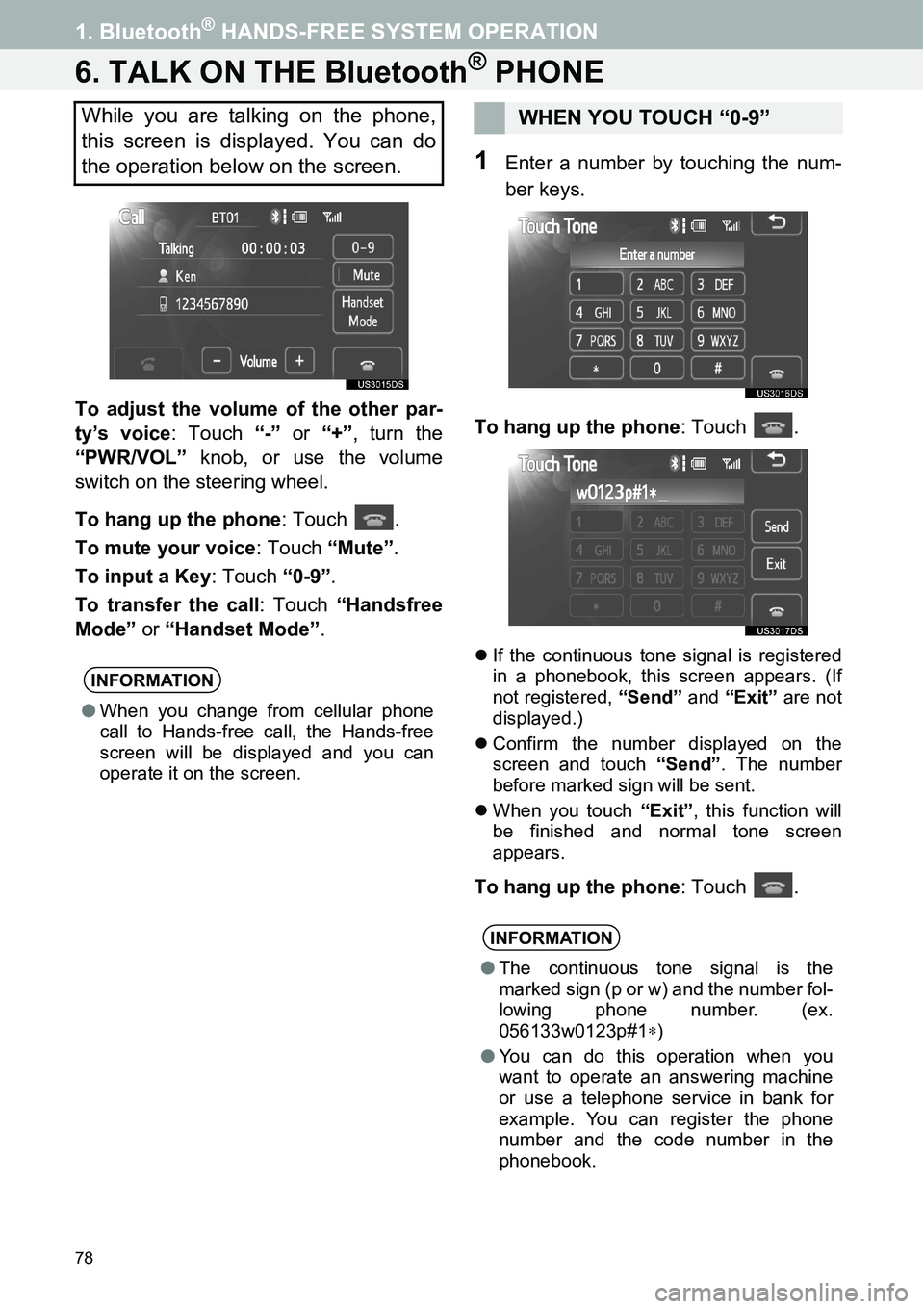

6. TALK ON THE Bluetooth® PHONE
To adjust the volume of the other par-
ty’s voice: Touch “-” or “+”, turn the
“PWR/VOL” knob, or use the volume
switch on the steering wheel.
To hang up the phone: Touch .
To mute your voice: Touch “Mute”.
To input a Key: Touch “0-9”.
To transfer the call: Touch “Handsfree
Mode” or “Handset Mode”.
1Enter a number by touching the num-
ber keys.
To hang up the phone: Touch .
zIf the continuous tone signal is registered
in a phonebook, this screen appears. (If
not registered, “Send” and “Exit” are not
displayed.)
zConfirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
zWhen you touch “Exit”, this function will
be finished and normal tone screen
appears.
To hang up the phone: Touch .
While you are talking on the phone,
this screen is displayed. You can do
the operation below on the screen.
INFORMATION
●When you change from cellular phone
call to Hands-free call, the Hands-free
screen will be displayed and you can
operate it on the screen.
WHEN YOU TOUCH “0-9”
INFORMATION
●The continuous tone signal is the
marked sign (p or w) and the number fol-
lowing phone number. (ex.
056133w0123p#1∗)
●You can do this operation when you
want to operate an answering machine
or use a telephone service in bank for
example. You can register the phone
number and the code number in the
phonebook.

79
1. Bluetooth® HANDS-FREE SYSTEM OPERATION
3
Bluetooth
® HANDS-FREE SYSTEM
To answer the phone:
Touch .
To refuse to receive the call:
Touch .
zEverytime you touch while interrupt
call, the other party will be switched.

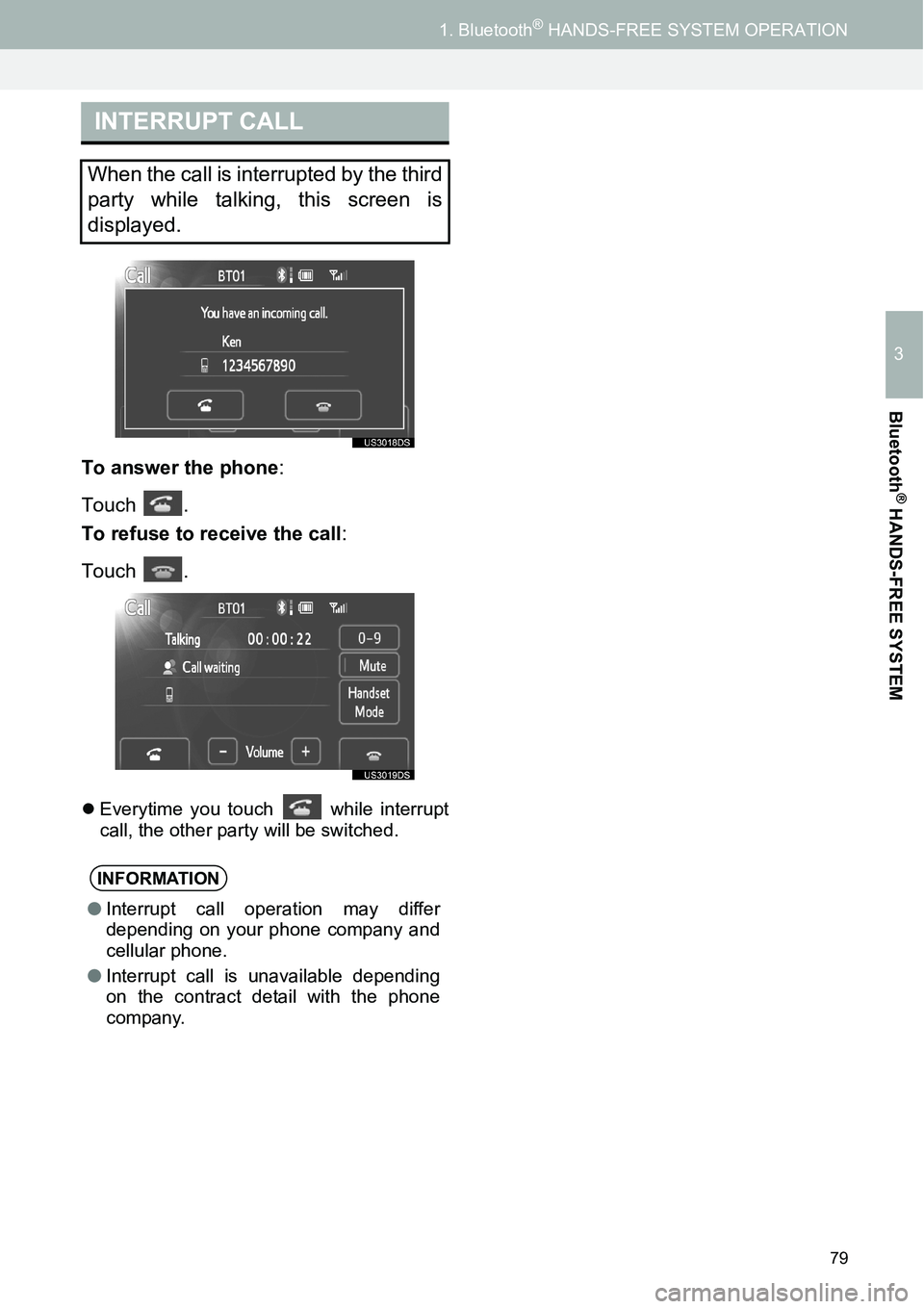

INTERRUPT CALL
When the call is interrupted by the third
party while talking, this screen is
displayed.
INFORMATION
●Interrupt call operation may differ
depending on your phone company and
cellular phone.
●Interrupt call is unavailable depending
on the contract detail with the phone
company.

80

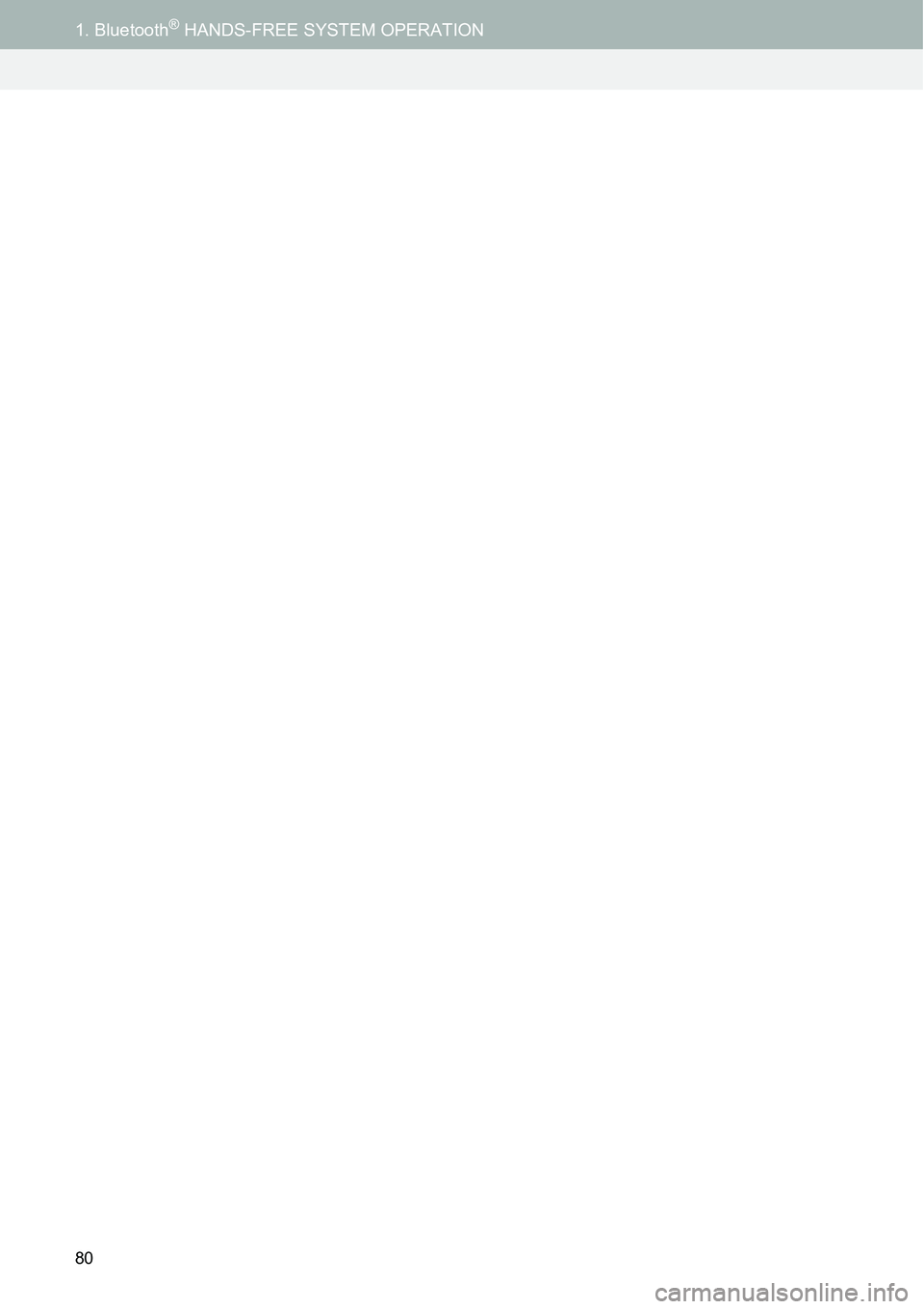

1. Bluetooth® HANDS-FREE SYSTEM OPERATION
