2014 Scion FR-S
Quick Reference Guide
Page 2 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Scion, a marque of Toyota
Motor Sales, U.S.A., Inc., wish you many years of satisfied driving in
your new SCION FR-S.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of SCION FR-S
operations. Every SCION FR-S owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
Scion FR-S
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
Engine maintenance 8
Fuel tank door release and cap 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
Light control-instrument panel 7
Trunk release 7
Air Conditioning/Heating 14
Automatic Transmission 9
AUX port/USB port 14
Bottle holder 15
Clock 13
Cruise control 11
Cup holders 15
Lights & turn signals 11
Multi-Information Display 12
Parking brake 9
Power outlets 15
Seat adjustments-Front 10
Seats-Fold down rear seats 10
Seats-Head restraints 10
Tilt steering wheel 9
Windows 13
Windshield wipers & washers 12
Door locks 16
Floor mat installation 19
Seat belts 16
Spare tire & tools 17
Star Safety System
TM 18
Tire Pressure Monitoring (warning) System 16
Page 3 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
OVERVIEW
Paddle shift switches*
Ignition switch
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Clock
Emergency flasher switch
Air Conditioning controls
Rear window defogger switchAUX port/USB port
Tilt and telescopic steering lock release
Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control
* If equipped

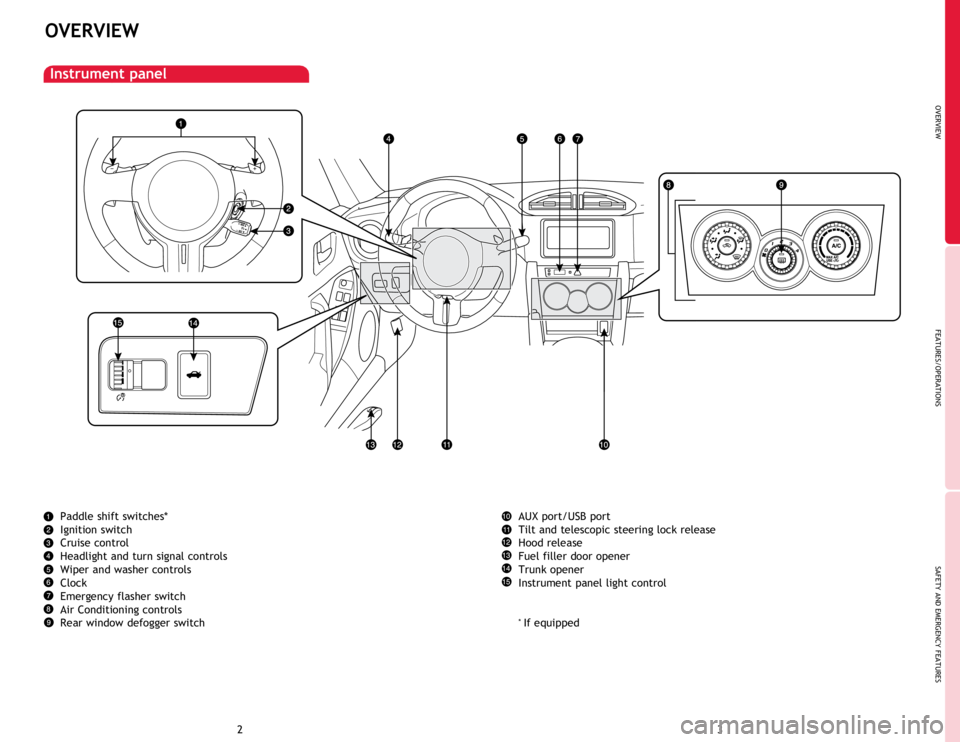

Instrument panel
Page 4 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
45
OVERVIEW
2 If this light come on in yellow, refer to “Cruise control” Section 2-4, 2014 Owner’s Manual.

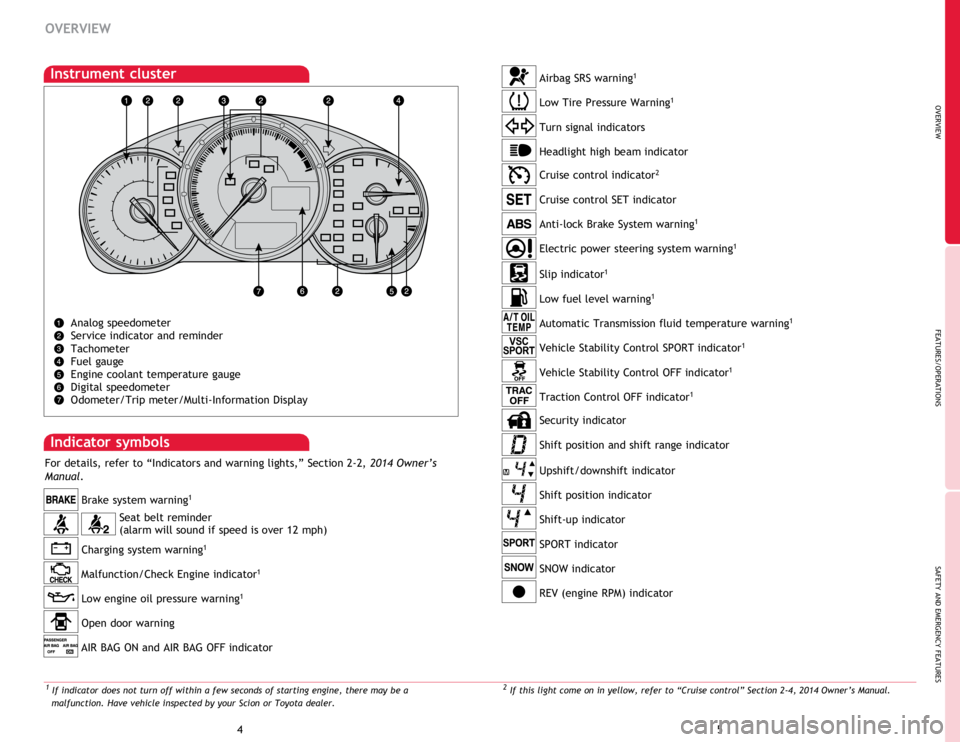

Instrument cluster
Seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning
1
Charging system warning1
Low engine oil pressure warning1
Cruise control SET indicator
Malfunction/Check Engine indicator
1
Indicator symbols
Open door warning Turn signal indicators
Headlight high beam indicator Airbag SRS warning
1
Low Tire Pressure Warning1
Cruise control indicator2
Slip indicator1
Low fuel level warning1
Automatic Transmission fluid temperature warning1
Vehicle Stability Control OFF indicator1
AIR BAG ON and AIR BAG OFF indicator
Traction Control OFF indicator1
Electric power steering system warning1
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Scion or Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual .
Analog speedometer
Service indicator and reminder
Tachometer
Fuel gauge
Engine coolant temperature gauge
Digital speedometer
Odometer/Trip meter/Multi-Information Display
Anti-lock Brake System warning1
Vehicle Stability Control SPORT indicator1
Upshift/downshift indicator
Shift position indicator
Shift-up indicator
SNOW indicator
REV (engine RPM) indicator Shift position and shift range indicator Security indicator
SPORT indicator
Page 5 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
67
OVERVIEW

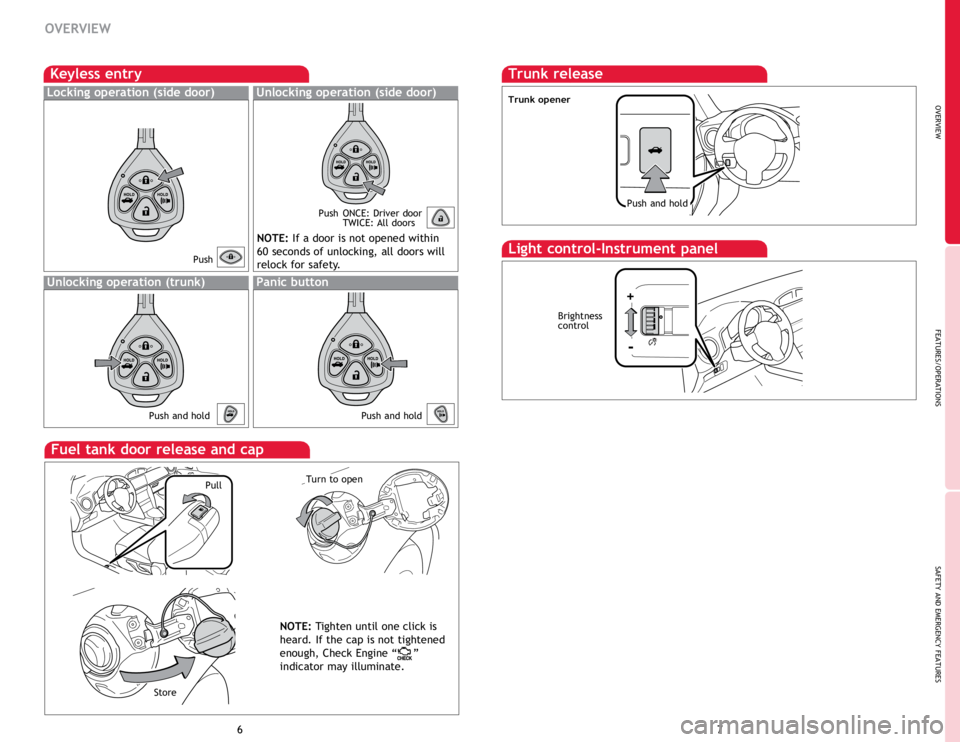

Keyless entry
PushPush
ONCE: Driver door
TWICE: All doors
Locking operation (side door)Unlocking operation (side door)
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Push and hold
Unlocking operation (trunk)Panic button
Pull
StoreTurn to open
Trunk release
Push and hold
Light control-Instrument panel
Brightness
control
+
-
Push and hold
Trunk opener
Page 6 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
89
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
P
R
N
D
M
Park*
Reverse
Neutral
Drive
“M” mode
Tilt steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Parking brake

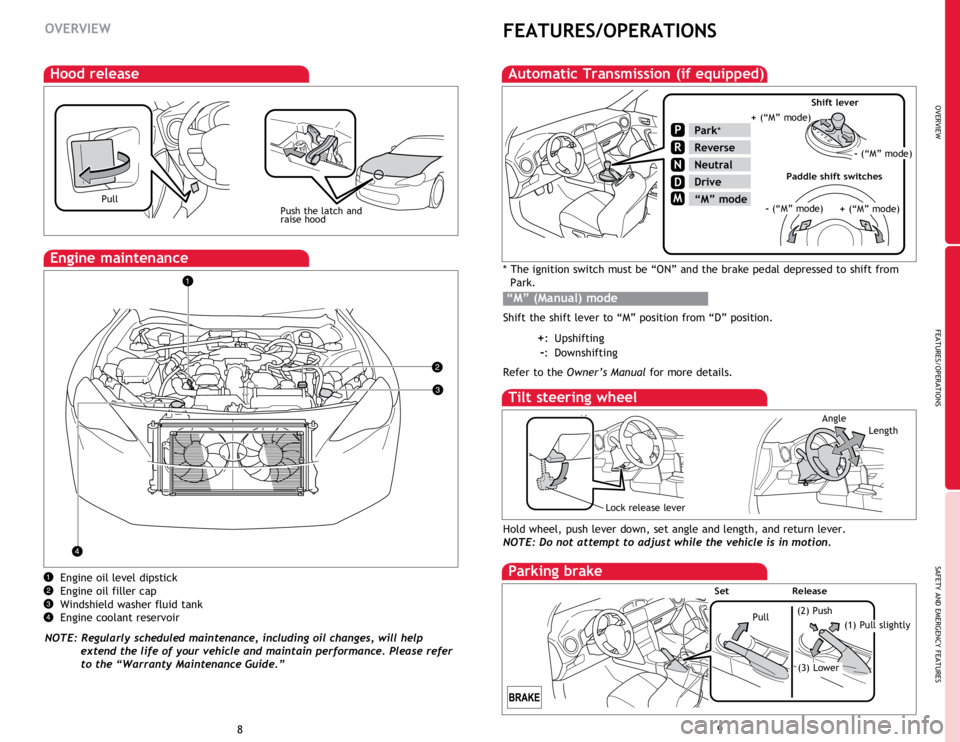

Engine maintenance
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Hood release
OVERVIEW
Pull
Push the latch and
raise hood
+ (“M” mode)
- (“M” mode)
+ (“M” mode)- (“M” mode)
Paddle shift switchesShift lever
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Refer to the Owner’s Manual for more details.
“M” (Manual) mode
Lock release lever
Angle
Length
Pull(2) Push
(1) Pull slightly
(3) Lower
Set Release
Page 7 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
10
FEATURES/OPERATIONS
Lights & turn signals
Headlights
Turn signals
Parking lights Low beam
Headlights
Right turn
Left turn
Lane change
Lane change
High beam

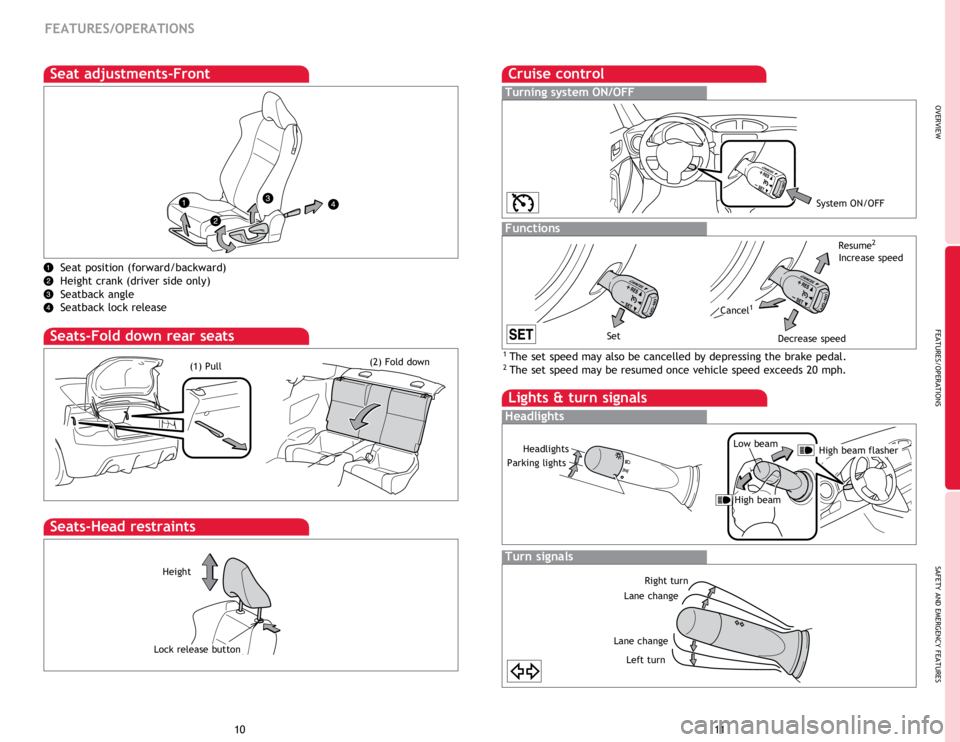

Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seatback lock release
Seats-Fold down rear seats
(1) Pull(2) Fold down
Seats-Head restraints
Height
Lock release button
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 20 mph.
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
High beam flasher
Turning system ON/OFF
Page 8 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1213
FEATURES/OPERATIONS
Windows
Automatic operation Push the switch completely down or pull it completely up
and release to fully open. To stop window midway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Windshield wipers & washers
00
Clock
Interval wipe
Slow
FastPull to wash and wipe
Single wipe

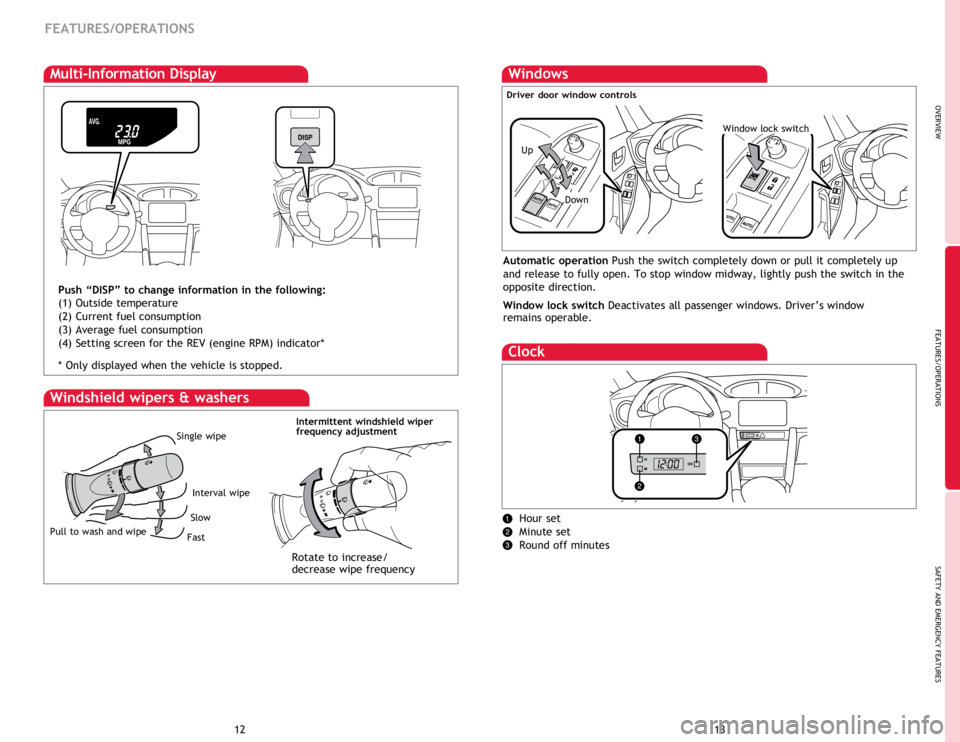

Multi-Information Display
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Current fuel consumption
(3) Average fuel consumption
(4) Setting screen for the REV (engine RPM) indicator*
* Only displayed when the vehicle is stopped.
Window lock switch
Driver door window controls
Up
Down
Hour set
Minute set
Round off minutes
Intermittent windshield wiper
frequency adjustment
Rotate to increase/
decrease wipe frequency
Page 9 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1415

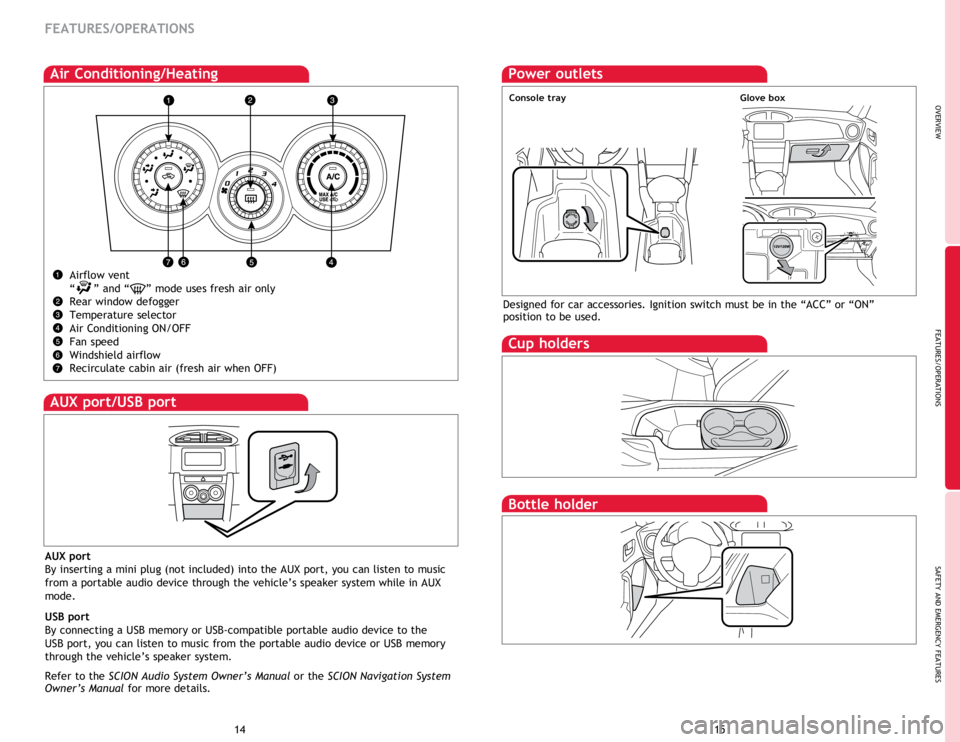

Air Conditioning/Heating
Airflow vent
“ ” and “
” mode uses fresh air only
Rear window defogger
Temperature selector
Air Conditioning ON/OFF
Fan speed
Windshield airflow
Recirculate cabin air (fresh air when OFF)
AUX port/USB port
FEATURES/OPERATIONS
AUX port
By inserting a mini plug (not included) into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
Refer to the SCION Audio System Owner’s Manual or the SCION Navigation System
Owner’s Manual for more details.
Cup holders
Power outlets
Designed for car accessories. Ignition switch must be in the “ACC” or “ON”
position to be used.
Console trayGlove box
Bottle holder
Page 10 of 13

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1617
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Lock
Unlock
Door locksSpare tire & tools
Tool location
Removing the spare tire
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
Towing eyelet
Wheel nut wrench
Jack handle
Spare tire
Jack
(1)
(2)
If tire pressure becomes critically low on any of the tires (excluding the spare),
“
” indicator will illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Scion or Toyota dealer.
Refer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
