TOYOTA FR-S 2014 Owners Manual (in English)

201
3
Interior features
3-2. Using the audio system

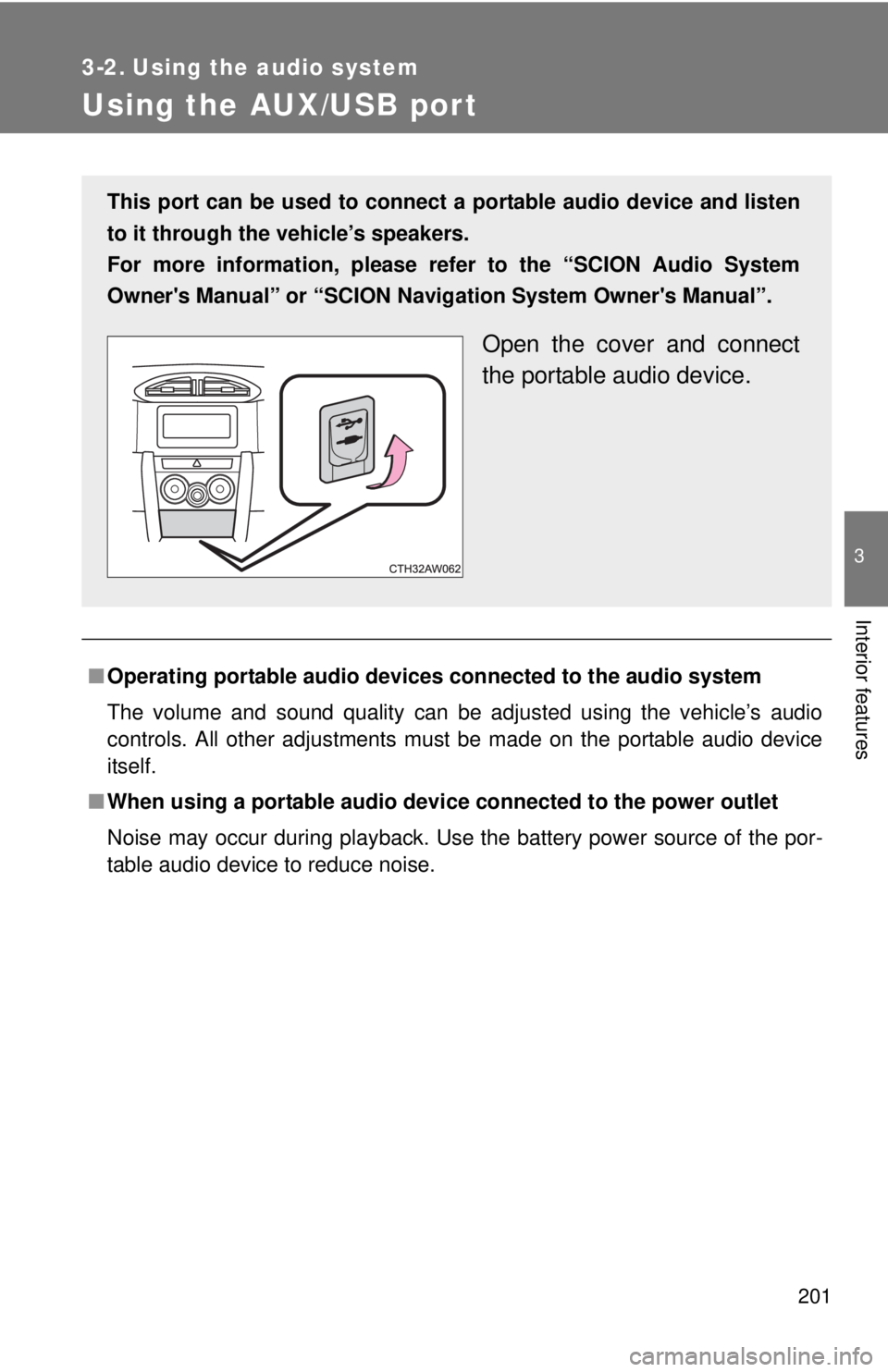

Using the AUX/USB port
■Operating portable audio devices connected to the audio system
The volume and sound quality can be adjusted using the vehicle’s audio
controls. All other adjustments must be made on the portable audio device
itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the battery power source of the por-
table audio device to reduce noise.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers. 
For more information, please refer to the “SCION Audio System
Owner's Manual” or “SCION Navigation System Owner's Manual”.
Open the cover and connect
the portable audio device.

202
3-3. Using the interior lights

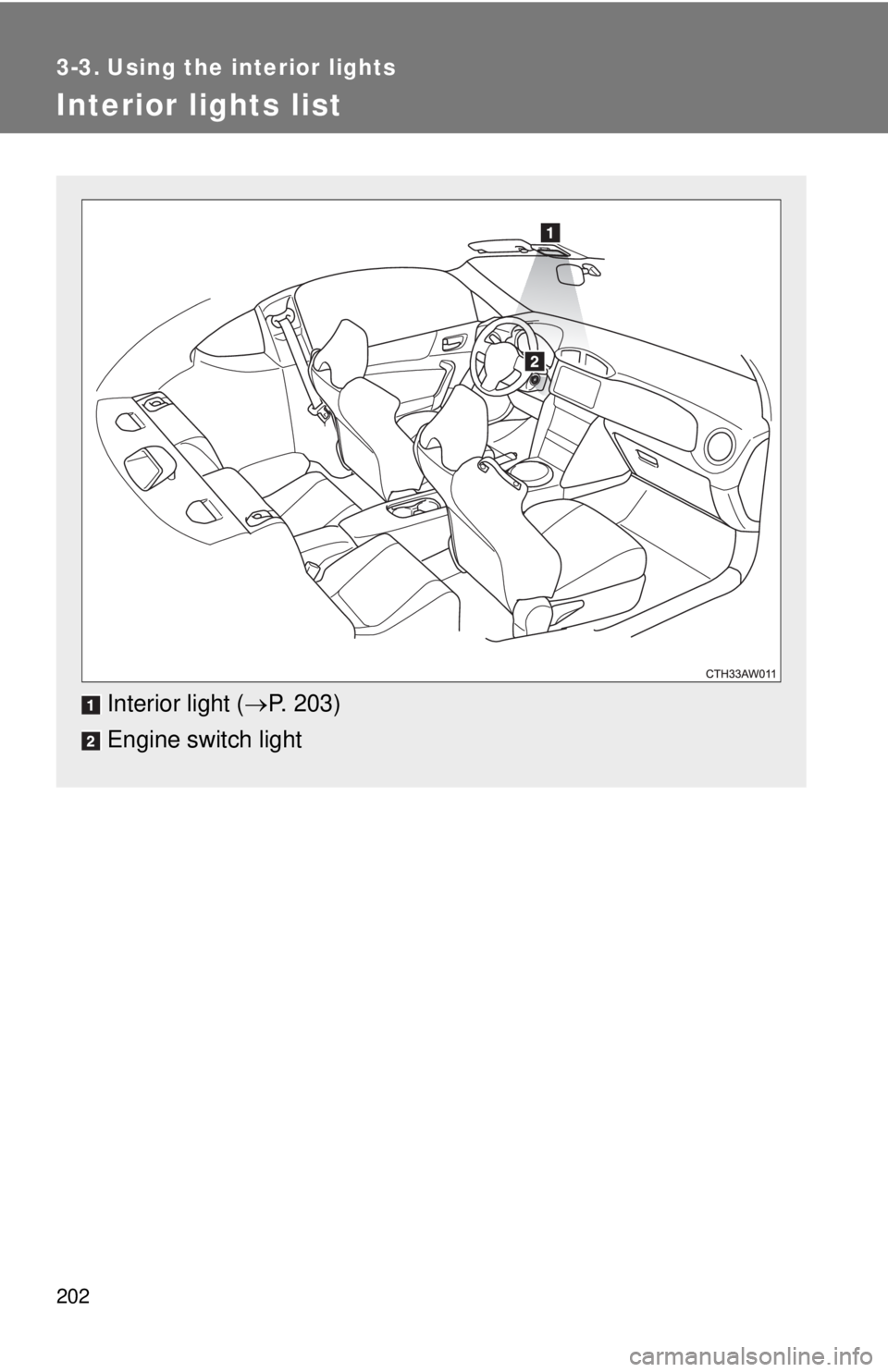

Interior lights list
Interior light (P. 203)
Engine switch light

203 3-3. Using the interior lights
3
Interior features
Interior light
Turns the light off
Turns the door position on
Turns the light on
■Illuminated entry system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
■To prevent battery discharge
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
●Interior light (when the switch is in the
“DOOR” position)
●Engine switch light
■Customization that can be configured at Scion dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features
P. 369)
Interior light

204
3-4. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
●Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Bottle holders
Cup holders/console tray

205 3-4. Using the storage features
3
Interior features
Glove box
Pull up the lever to open the
glove box.
CAUTION
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box

206 3-4. Using the storage features
Bottle holders
■When using the bottle holder
●When storing a bottle, close the cap.
●The bottle may not be stored depending on its size or shape.
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than a pet bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■Items unsuitable for the bottle holder
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

207 3-4. Using the storage features
3
Interior features
Cup holders/console tray
■Changing the cup holder position
■Changing the console tray size
Remove the cup holder and change the
holder position.
Remove the cup holder.
Cup holders/console tray

208 3-4. Using the storage features
CAUTION
■Caution while driving
Observe the following precautions.
Failure to do so may cause an accident resulting in death or serious injury.
●Before driving, place the cup holder in the rear position so that it does not
hinder shift lever operation.
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
●When placing the cup holder, make
sure it is facing the correct direction.
Failure to do so will cause the cup
holder to not be secure in the console
tray and hinder shift lever operation.
Cup holders/console tray

209
3
Interior features
3-5. Other interior features

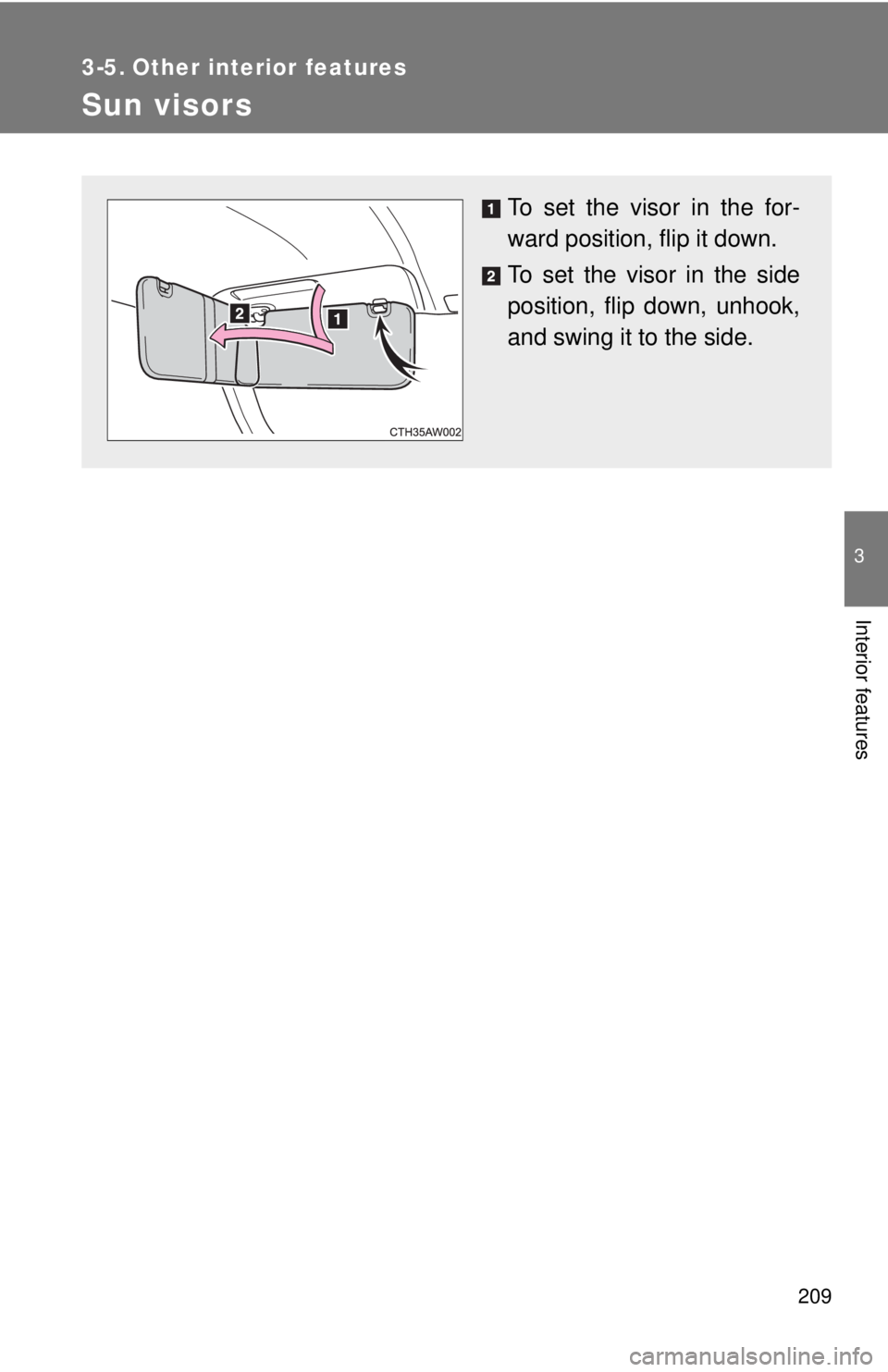

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.

210
3-5. Other interior features

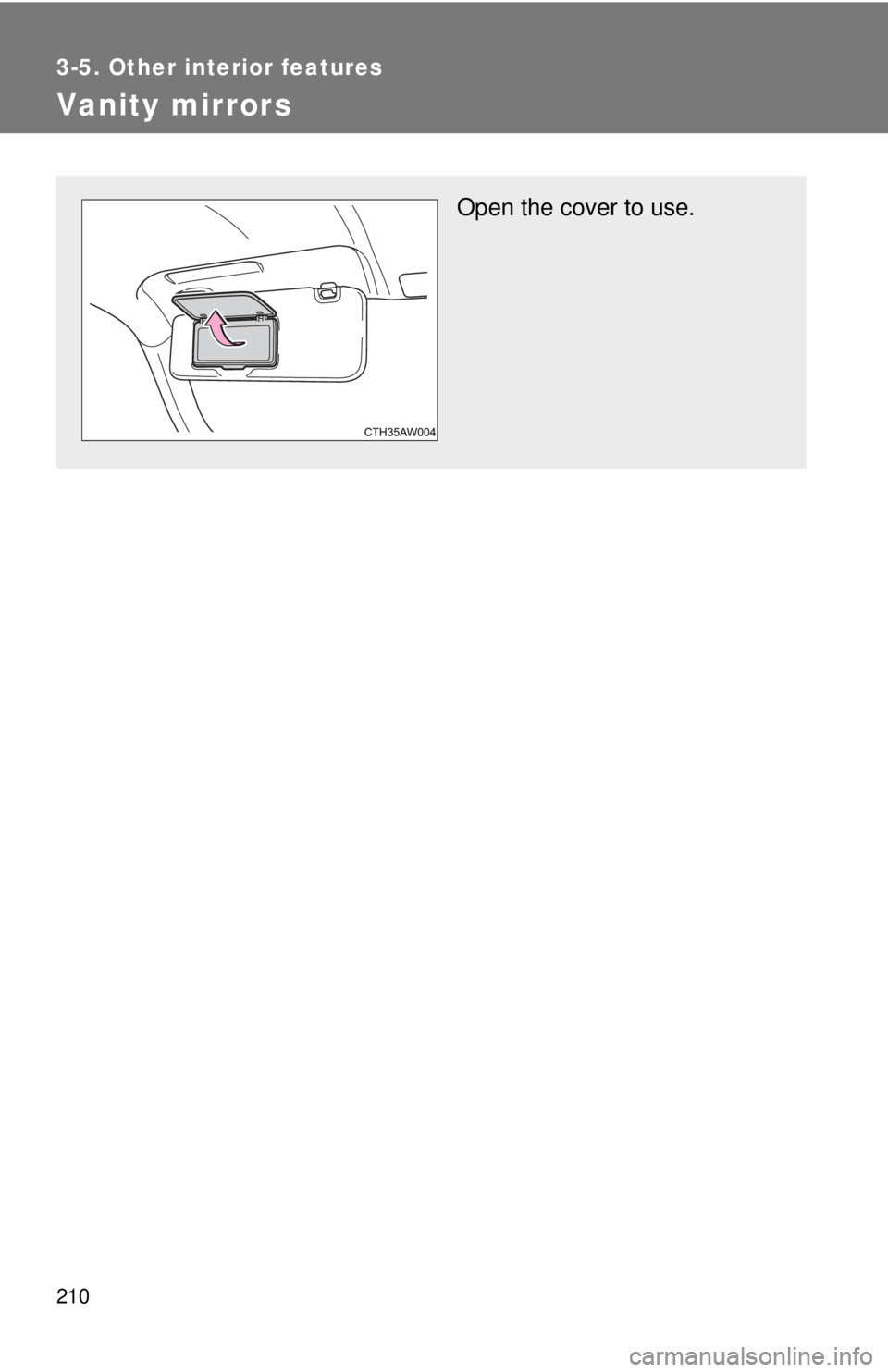

Vanity mirrors
Open the cover to use.
