TOYOTA FR-S 2014 (in English) Owner's Manual

21 1-1. Key information
1
Before driving
NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the key.
■When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Scion dealer immediately with all remaining keys that were provided
with your vehicle.

22
1-2. Opening, closing and locking the doors and trunk
Wireless remote control
■Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that
the doors have been locked/unlocked. (Locked: once; Unlocked:
twice)
Trunk: A buzzer sounds to indicate that the trunk has been unlocked.
■Panic mode
The wireless remote control can be used to lock and unlock the vehi-
cle.
Locks both side doors
Sounds the alarm
(press and hold)
Unlocks both side doors
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks the trunk
(press and hold)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.

23 1-2. Opening, closing and locking the doors and trunk
1
Before driving
■Vehicle finder function
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations:
●When the wireless key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
●When carrying a portable radio, cellular phone or other wireless commu-
nication devices
●When the wireless key is in contact with, or is covered by a metallic
object
●When other wireless key (that emit radio waves) is being used nearby
●If window tint with a metallic content or metallic objects are attached to
the rear window
When the function is set, a buzzer
(sounds once) and the emergency flash-
ers (flash 3 times) are used to inform the
driver of the vehicle’s location.
Press 3 times within 5 seconds
while within a circumference of approxi-
mately 30 ft. (10 m) from of the vehicle.
However, if the interval between the 3
presses is short, the system may not be
activated. This setting must be custom-
ized at your Scion dealer.

24 1-2. Opening, closing and locking the doors and trunk
■Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 270)
■When the wireless remote control battery is fully depleted
P. 270
■Customization that can be configured at your Scion dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 369)
■Certification for wireless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAA FCC ID: HYQ12BBY
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS stan-
dard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interfer-
ence, including interference that may cause undesired operation of the
device.
NOTE:
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionne-
ment.

25
1
1-2. Opening, closing and locking the doors and trunk
Before driving

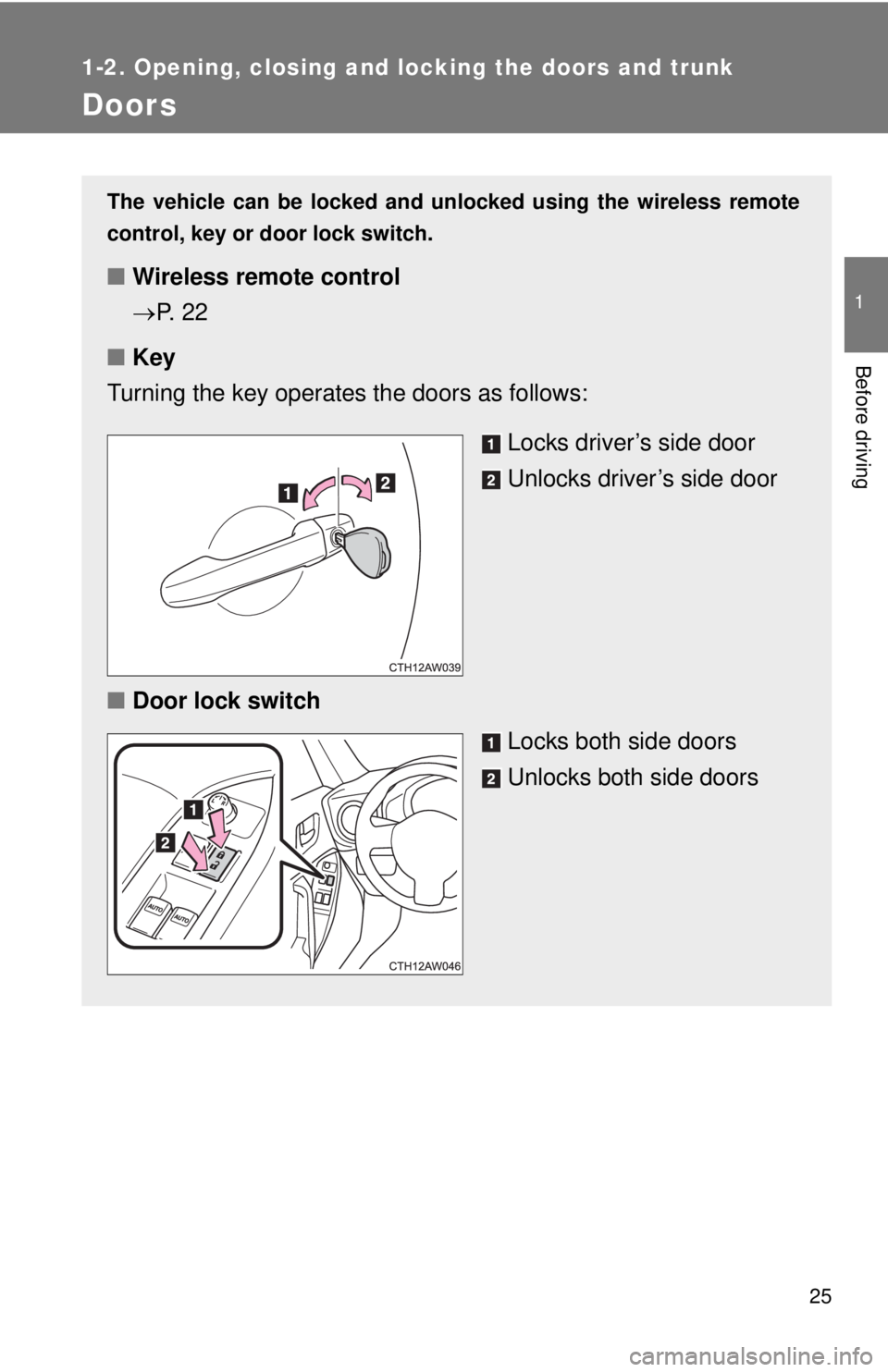

Doors
The vehicle can be locked and unlocked using the wireless remote
control, key or door lock switch.
■Wireless remote control
P. 2 2
■Key
Turning the key operates the doors as follows:
Locks driver’s side door
Unlocks driver’s side door
■Door lock switch
Locks both side doors
Unlocks both side doors

26 1-2. Opening, closing and locking the doors and trunk
Locking the doors from the outside without a key
Move the inside lock button to the lock position.
Close the door.
■Window open/close function linked to door operation
In order to make opening and closing the doors easier, completely closed
windows are linked to door operations. Therefore, when a door is opened, its
window opens slightly. When a door is closed, its window closes completely.
However, if the battery has discharged or is disconnected, this function will
not operate. (P. 331)
■Inside lock button
Locks the door
Unlocks the door
STEP 1
STEP 2

27 1-2. Opening, closing and locking the doors and trunk
1
Before driving
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
●Always lock both side doors.
●Ensure that both side doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.

28
1-2. Opening, closing and locking the doors and trunk

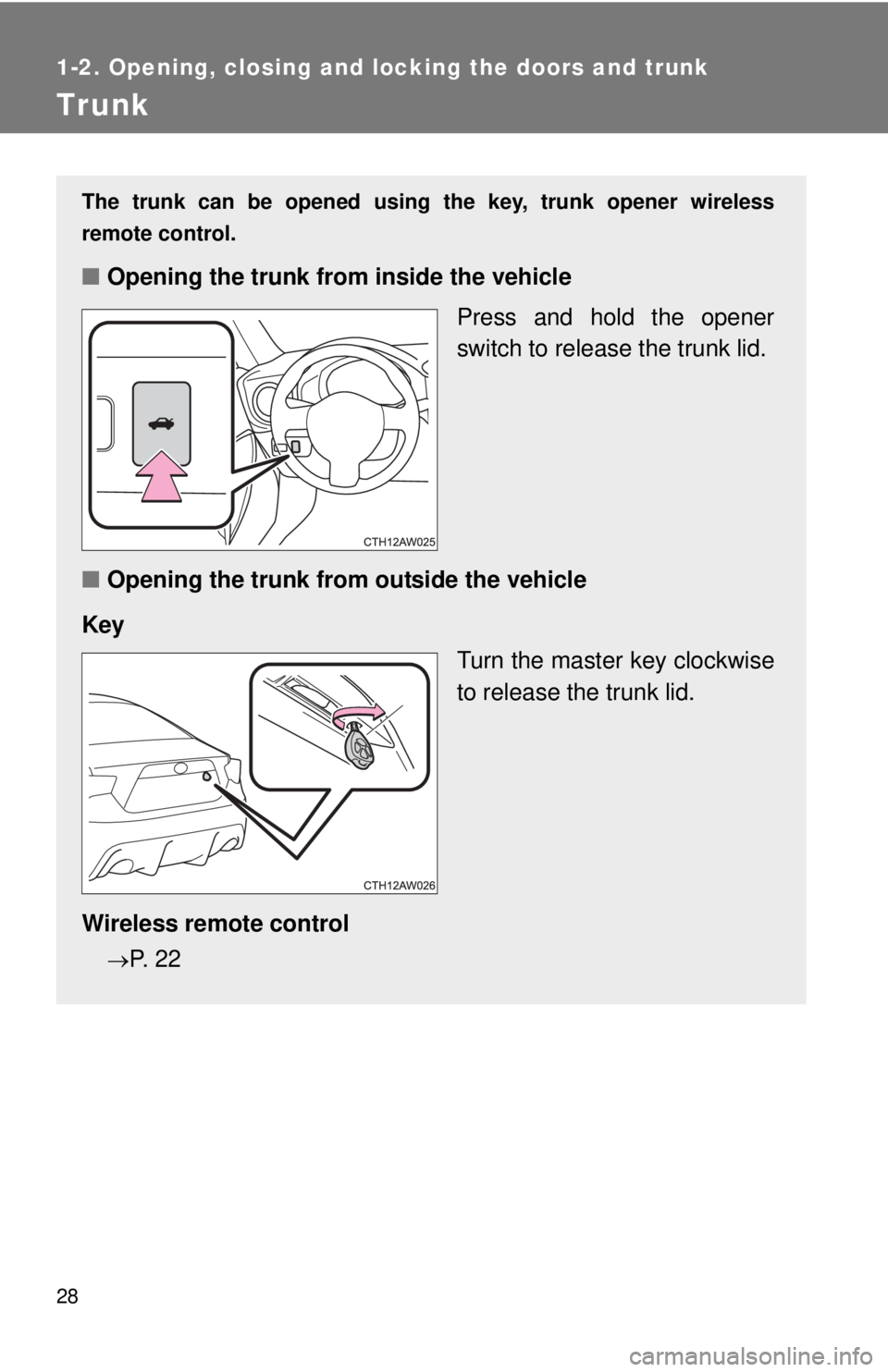

Trunk
The trunk can be opened using the key, trunk opener wireless
remote control.
■Opening the trunk from inside the vehicle
Press and hold the opener
switch to release the trunk lid.
■Opening the trunk from outside the vehicle
Key
Turn the master key clockwise
to release the trunk lid.
Wireless remote control
P. 2 2

29 1-2. Opening, closing and locking the doors and trunk
1
Before driving
Canceling the trunk opener feature
To protect luggage stored in the trunk against theft, do the following:
Turn the main switch in the trunk
off to disable the trunk opener.
On
Off
The trunk lid can only be opened
with the master key.
■Internal trunk release lever
■Which key to the vehicle is to leave with a parking attendant after dis-
abling the trunk opener main switch
P. 2 0
The trunk lid can be opened by pulling on
the glow-in-the-dark lever located on the
inside of the trunk lid.
The lever will continue to glow for some
time after the trunk lid is closed.

30 1-2. Opening, closing and locking the doors and trunk
CAUTION
■Caution while driving
●Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or lug-
gage in the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the trunk lid before driving.
●Before driving the vehicle, make sure that the trunk lid is fully closed. If the
trunk lid is not fully closed, it may open unexpectedly while driving, caus-
ing an accident.
●Never let anyone sit in the trunk. In the event of sudden braking or a colli-
sion, they are susceptible to death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play in the trunk.
If a child is accidentally locked in the trunk, they could suffer from heat
exhaustion, suffocation or other injuries.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing trunk lid.
