Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the
recommended intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Engine coolant Inspect
II I
Replace First replace at 137,500 miles or 132 months, then replace at every
75,000 miles or 72 months, whichever occurs first
Note: See the “Explanation of Maintenance Items” section in the back of this guide for
more information.
Engine air filter Normal
RR R
Driving on dirt or
dusty roads I I IRIIIR I I I R
Note: When the vehicle is used in extremely dusty conditions, the air filter cleaner
element should be replace more often
Exhaust pipes and mountings I I I III
Driver’s floor mat proper installation IIIIIIII I I I I
Fuel lines and
connections, fuel tank
vapor vent system hoses
and fuel tank band Normal
II I
Severe When operating in areas where road salts or other corrosive materials
are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Scheduled Maintenance
MAINTENANCE
39Maintenance Log

JOBNAME: 1491141-2014-sfrWG-E PAGE: 40 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg
Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the
recommended intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Fuel filter Normal
R
Note: When operating the vehicle in extremely cold or hot weather conditions,
contamination of the filter may occur and filter replacement should be performed more
often
Fuel tank cap gasket II I
Manual transmission oil II I I
Parking brake linings and
drums Normal
II I
Severe When operating in areas where road salts or other corrosive materials
are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Rear differential oil IIIIIIII I I I I
Spark plugs R
Scheduled Maintenance
MAINTENANCE
40Maintenance Log

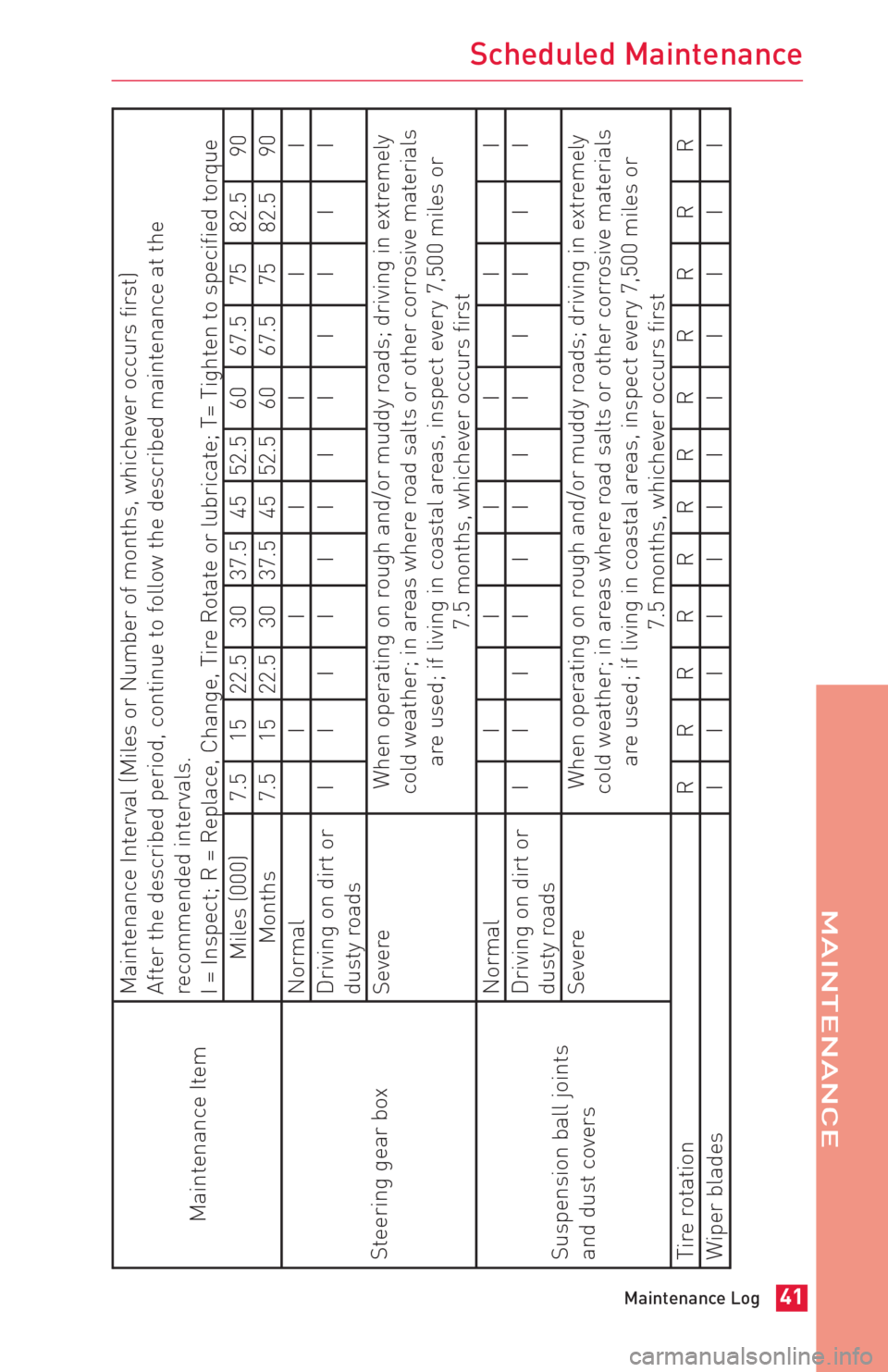

JOBNAME: 1491141-2014-sfrWG-E PAGE: 41 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg
Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the
recommended intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Steering gear box Normal
I I I I II
Driving on dirt or
dusty roads IIIIIIII I I I I
Severe When operating on rough and/or muddy roads; driving in extremely
cold weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Suspension ball joints
and dust covers Normal
I I I I II
Driving on dirt or
dusty roads IIIIIIII I I I I
Severe When operating on rough and/or muddy roads; driving in extremely
cold weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Tire rotation RRRRRRRR R R R R
Wiper blades IIIIIIII I I I I
Scheduled Maintenance
MAINTENANCE
41Maintenance Log

JOBNAME: 1491141-2014-sfrWG-E PAGE: 42 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg

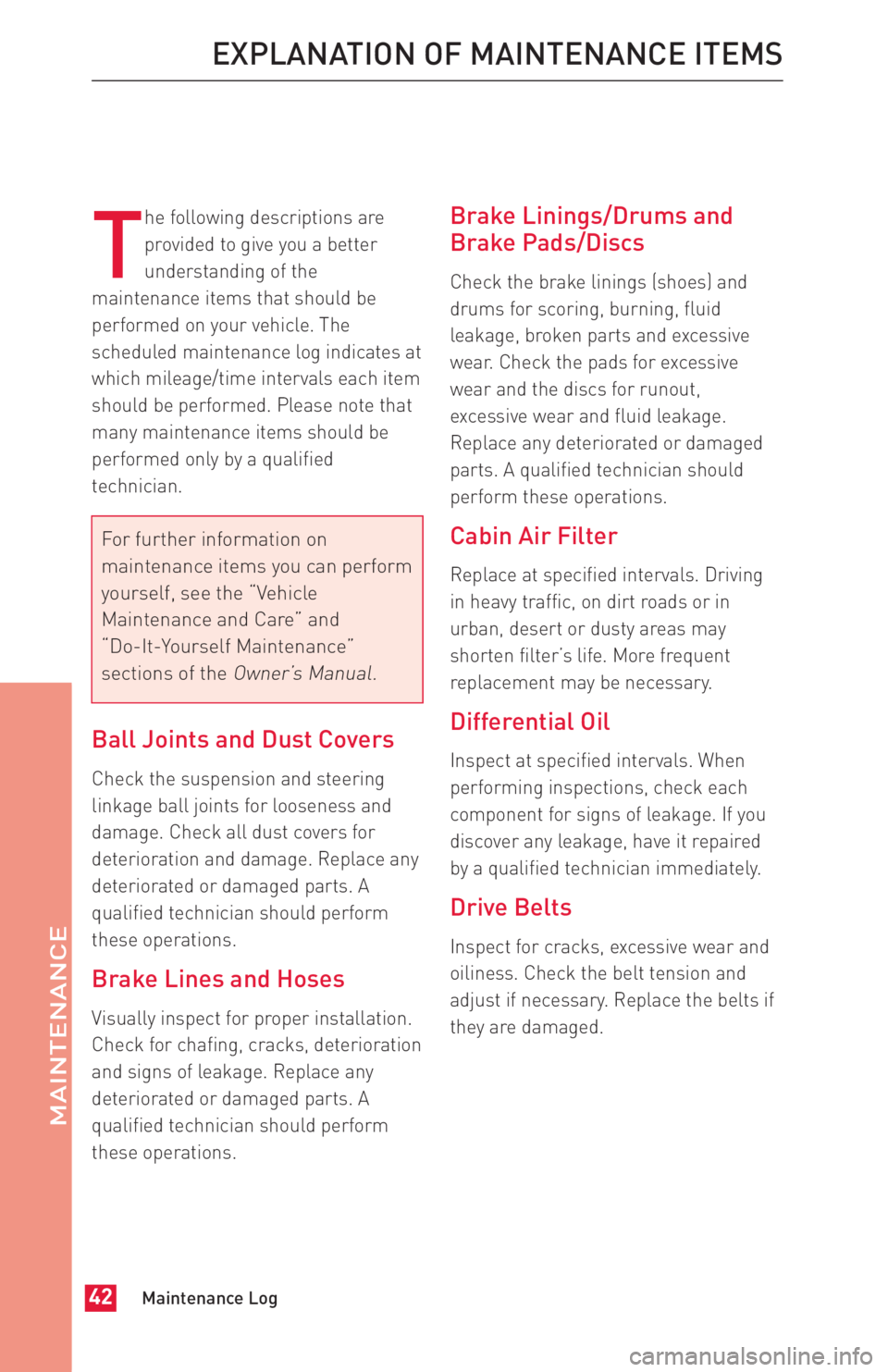

T
he following descriptions are
provided to give you a better
understanding of the
maintenance items that should be
performed on your vehicle. The
scheduled maintenance log indicates at
which mileage/time intervals each item
should be performed. Please note that
many maintenance items should be
performed only by a qualified
technician.
For further information on
maintenance items you can perform
yourself, see the “Vehicle
Maintenance and Care” and
“Do-It-Yourself Maintenance”
sections of the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage. Check all dust covers for
deterioration and damage. Replace any
deteriorated or damaged parts. A
qualified technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A
qualified technician should perform
these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid
leakage, broken parts and excessive
wear. Check the pads for excessive
wear and the discs for runout,
excessive wear and fluid leakage.
Replace any deteriorated or damaged
parts. A qualified technician should
perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving
in heavy traffic, on dirt roads or in
urban, desert or dusty areas may
shorten filter’s life. More frequent
replacement may be necessary.
Differential Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired
by a qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and
adjust if necessary. Replace the belts if
they are damaged.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log42
MAINTENANCE

JOBNAME: 1491141-2014-sfrWG-E PAGE: 43 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg

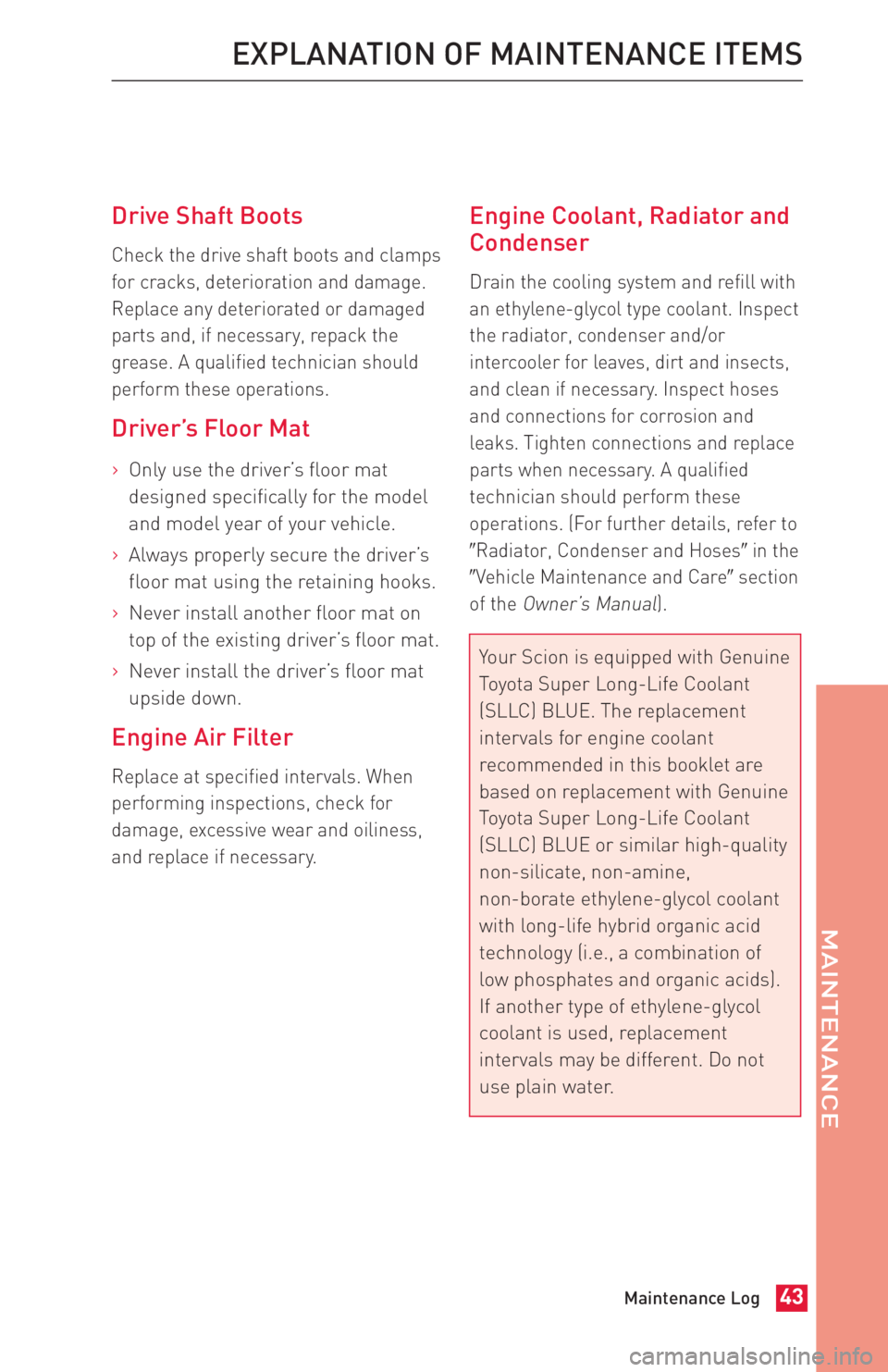

Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged
parts and, if necessary, repack the
grease. A qualified technician should
perform these operations.
Driver’s Floor Mat
>Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
>Always properly secure the driver’s
floor mat using the retaining hooks.
>Never install another floor mat on
top of the existing driver’s floor mat.
>Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specified intervals. When
performing inspections, check for
damage, excessive wear and oiliness,
and replace if necessary.
Engine Coolant, Radiator and
Condenser
Drain the cooling system and refill with
an ethylene-glycol type coolant. Inspect
the radiator, condenser and/or
intercooler for leaves, dirt and insects,
and clean if necessary. Inspect hoses
and connections for corrosion and
leaks. Tighten connections and replace
parts when necessary. A qualified
technician should perform these
operations. (For further details, refer to
Radiator, Condenser and Hosesin the
Vehicle Maintenance and Care section
of the
Owner’s Manual).
Your Scion is equipped with Genuine
Toyota Super Long-Life Coolant
(SLLC) BLUE. The replacement
intervals for engine coolant
recommended in this booklet are
based on replacement with Genuine
Toyota Super Long-Life Coolant
(SLLC) BLUE or similar high-quality
non-silicate, non-amine,
non-borate ethylene-glycol coolant
with long-life hybrid organic acid
technology (i.e., a combination of
low phosphates and organic acids).
If another type of ethylene-glycol
coolant is used, replacement
intervals may be different. Do not
use plain water.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log43
MAINTENANCE

JOBNAME: 1491141-2014-sfrWG-E PAGE: 44 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg

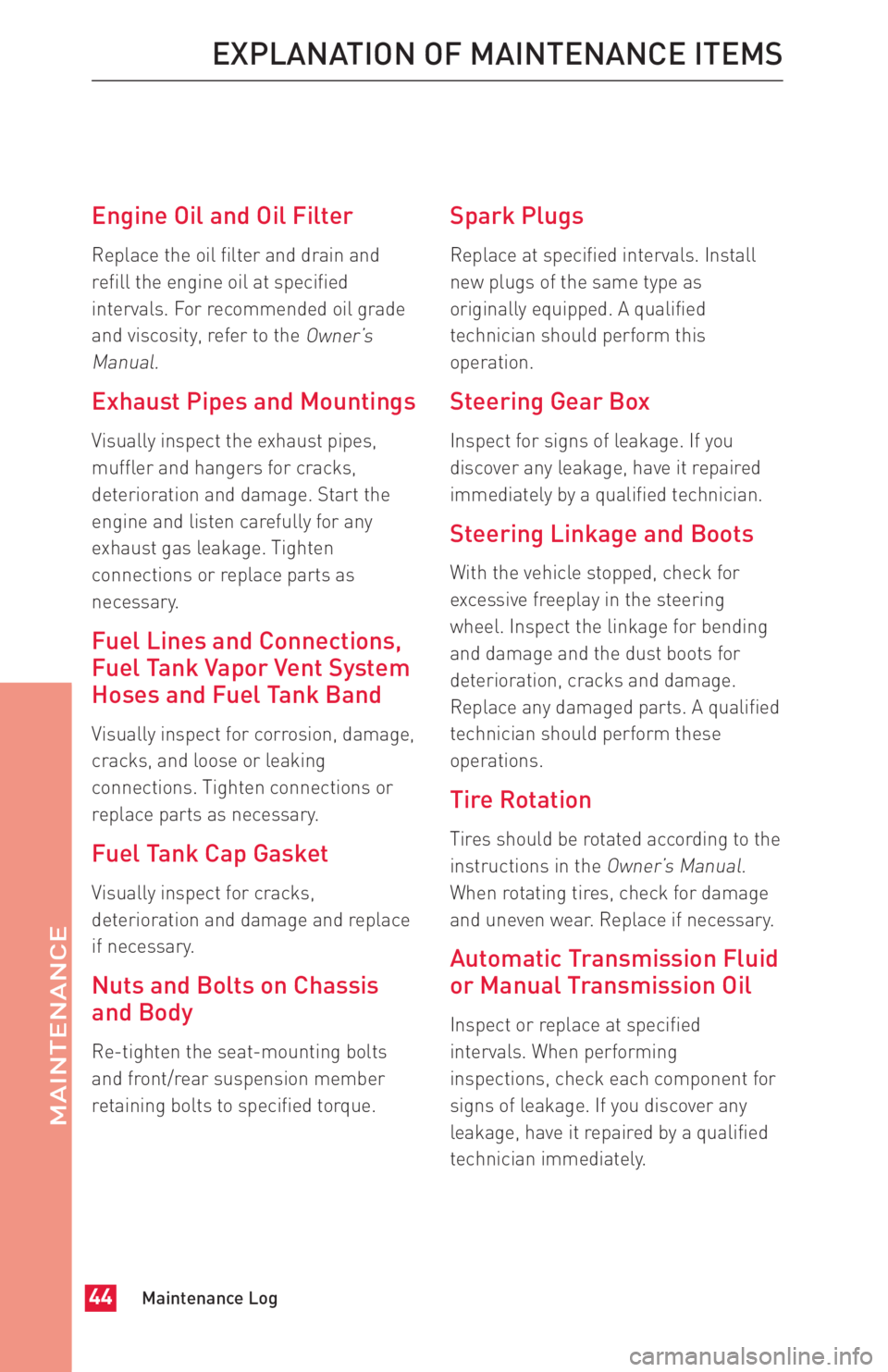

Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified
intervals. For recommended oil grade
and viscosity, refer to the
Owner’s
Manual.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration and damage. Start the
engine and listen carefully for any
exhaust gas leakage. Tighten
connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Vapor Vent System
Hoses and Fuel Tank Band
Visually inspect for corrosion, damage,
cracks, and loose or leaking
connections. Tighten connections or
replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks,
deterioration and damage and replace
if necessary.
Nuts and Bolts on Chassis
and Body
Re-tighten the seat-mounting bolts
and front/rear suspension member
retaining bolts to specified torque.
Spark Plugs
Replace at specified intervals. Install
new plugs of the same type as
originally equipped. A qualified
technician should perform this
operation.
Steering Gear Box
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering
wheel. Inspect the linkage for bending
and damage and the dust boots for
deterioration, cracks and damage.
Replace any damaged parts. A qualified
technician should perform these
operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.
When rotating tires, check for damage
and uneven wear. Replace if necessary.
Automatic Transmission Fluid
or Manual Transmission Oil
Inspect or replace at specified
intervals. When performing
inspections, check each component for
signs of leakage. If you discover any
leakage, have it repaired by a qualified
technician immediately.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log44
MAINTENANCE

JOBNAME: 1491141-2014-sfrWG-E PAGE: 45 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The
wiper blades should clear the
windshield without streaking or
skipping.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log45
MAINTENANCE

JOBNAME: 1491141-2014-sfrWG-E PAGE: 46 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
VEHICLE IDENTIFICATION
MAINTENANCE
Maintenance Log46

JOBNAME: 1491141-2014-sfrWG-E PAGE: 47 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg
NOTES
MAINTENANCE
Maintenance Log47

JOBNAME: 1491141-2014-sfrWG-E PAGE: 48 SESS: 11 OUTPUT: Thu Jul 25 14:53:20 2013
/tweddle/toyota/sched-maint/1491141-en-sfr/wg
NOTES
MAINTENANCE
Maintenance Log48
