TOYOTA FR-S 2016 Accessories, Audio & Navigation (in English)

131
5. SETUP
5
SETUP

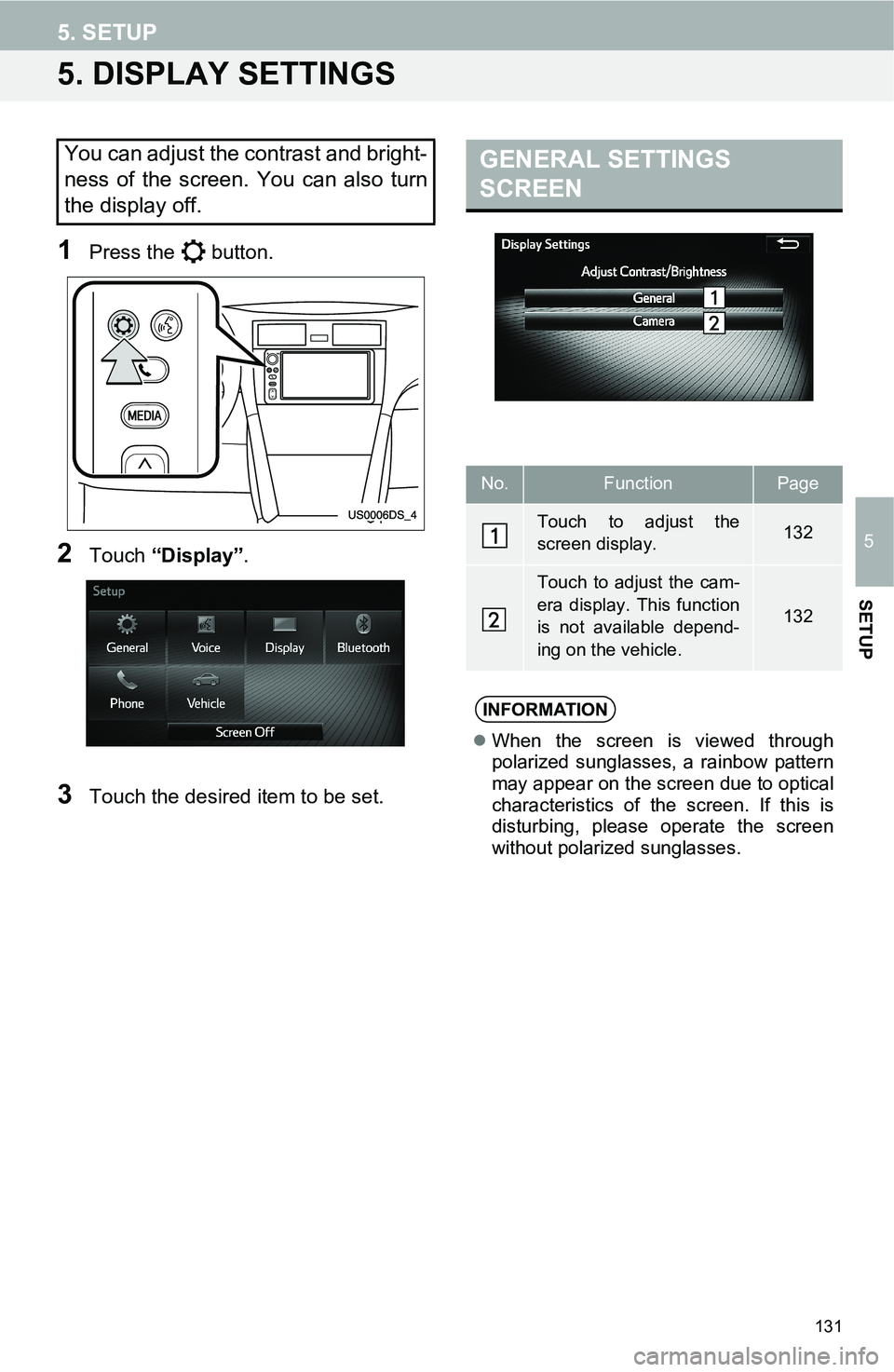

5. DISPLAY SETTINGS
1Press the button.
2Touch “Display”.
3Touch the desired item to be set.
You can adjust the contrast and bright-
ness of the screen. You can also turn
the display off.GENERAL SETTINGS
SCREEN
No.FunctionPage
Touch to adjust the
screen display.132
Touch to adjust the cam-
era display. This function
is not available depend-
ing on the vehicle.
132
INFORMATION
When the screen is viewed through
polarized sunglasses, a rainbow pattern
may appear on the screen due to optical
characteristics of the screen. If this is
disturbing, please operate the screen
without polarized sunglasses.

132
5. SETUP

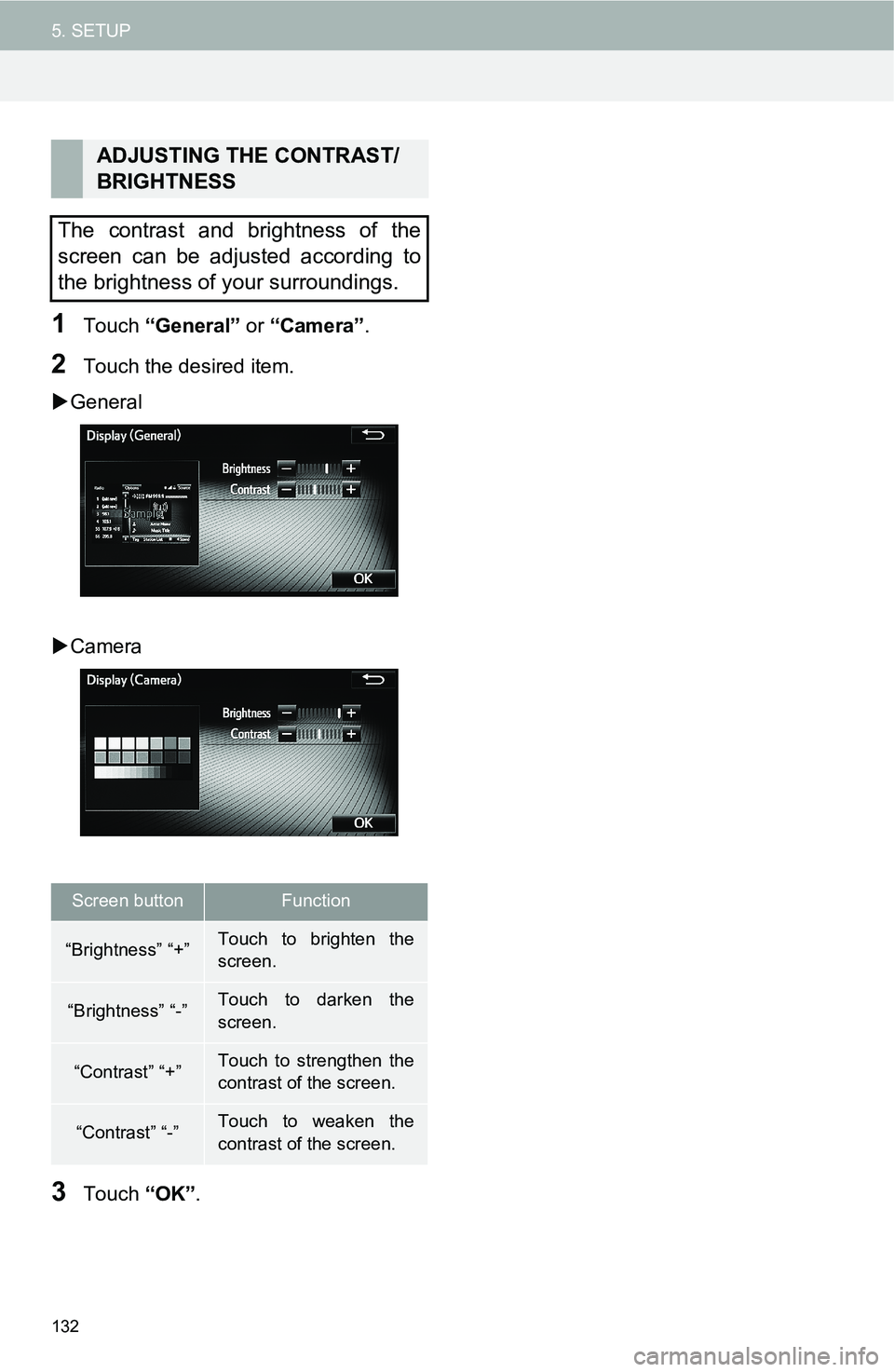

1Touch “General” or “Camera”.
2Touch the desired item.
General
Camera
3Touch “OK”.
ADJUSTING THE CONTRAST/
BRIGHTNESS
The contrast and brightness of the
screen can be adjusted according to
the brightness of your surroundings.
Screen buttonFunction
“Brightness” “+”Touch to brighten the
screen.
“Brightness” “-”Touch to darken the
screen.
“Contrast” “+”Touch to strengthen the
contrast of the screen.
“Contrast” “-”Touch to weaken the
contrast of the screen.

133
5. SETUP
5
SETUP

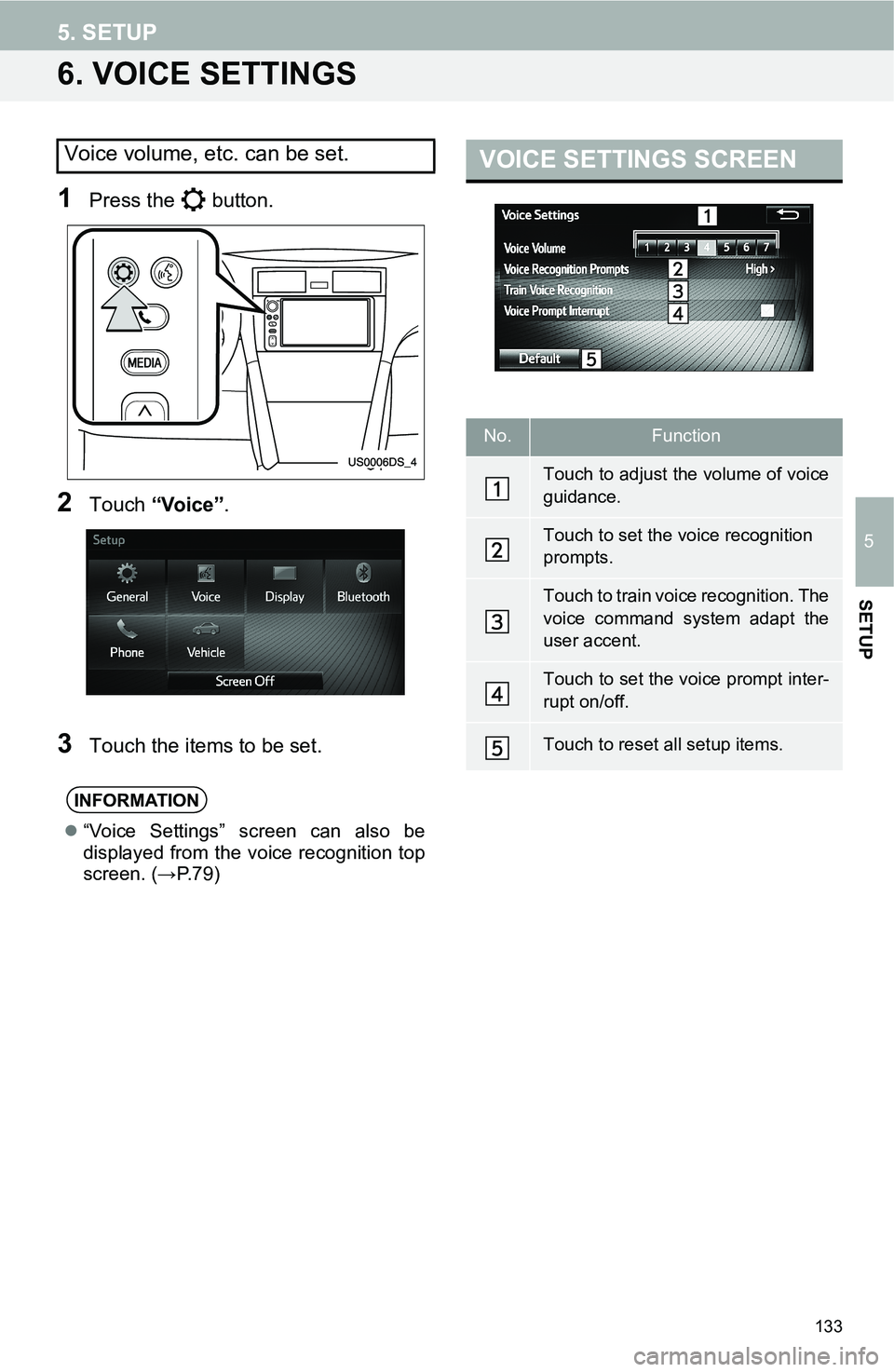

6. VOICE SETTINGS
1Press the button.
2Touch “Voice”.
3Touch the items to be set.
Voice volume, etc. can be set.
INFORMATION
“Voice Settings” screen can also be
displayed from the voice recognition top
screen. (→P.79)
VOICE SETTINGS SCREEN
No.Function
Touch to adjust the volume of voice
guidance.
Touch to set the voice recognition
prompts.
Touch to train voice recognition. The
voice command system adapt the
user accent.
Touch to set the voice prompt inter-
rupt on/off.
Touch to reset all setup items.

134
5. SETUP

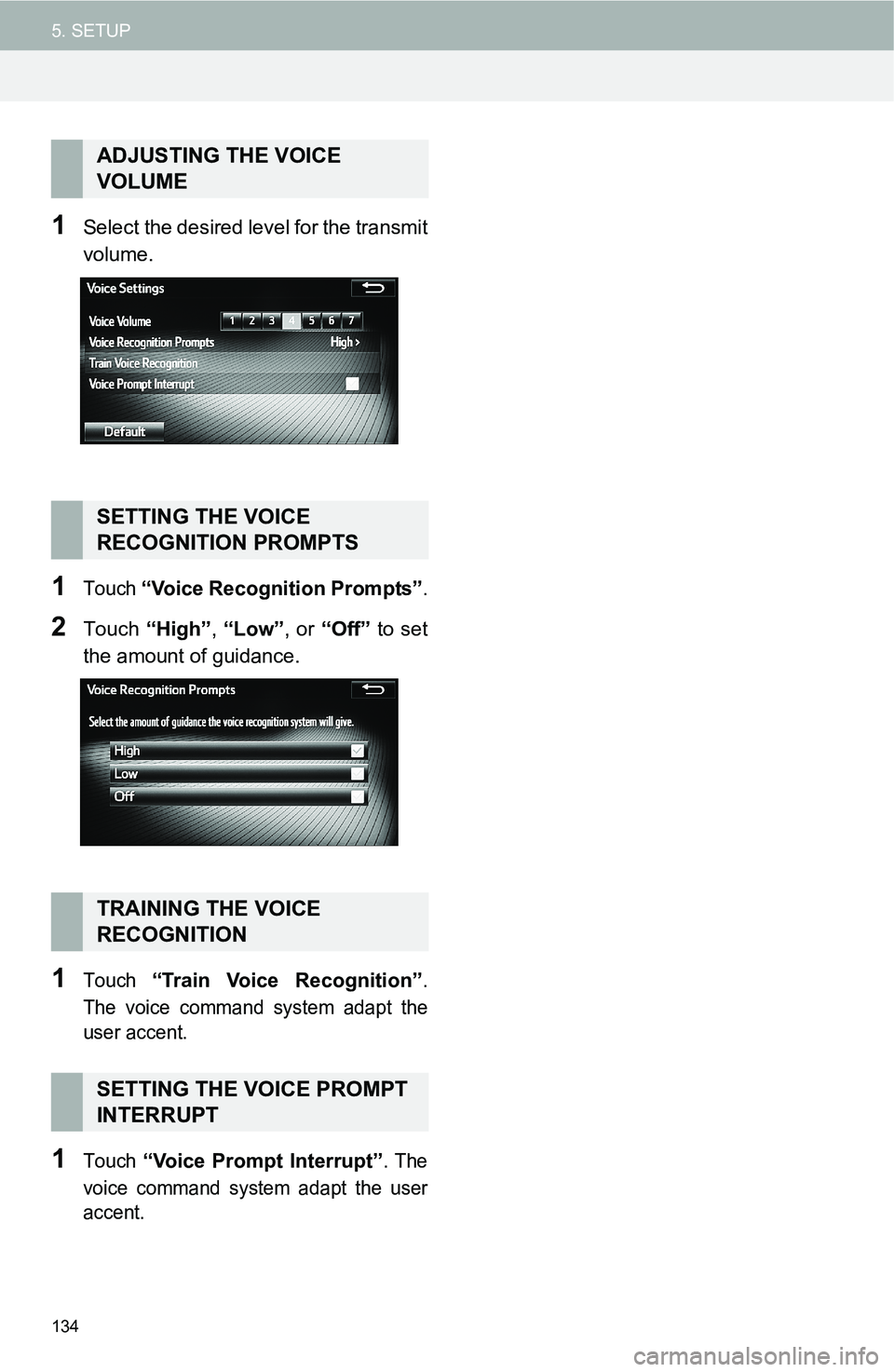

1Select the desired level for the transmit
volume.
1Touch “Voice Recognition Prompts”.
2Touch “High”, “Low”, or “Off” to set
the amount of guidance.
1Touch “Train Voice Recognition”.
The voice command system adapt the
user accent.
1Touch “Voice Prompt Interrupt”. The
voice command system adapt the user
accent.
ADJUSTING THE VOICE
VOLUME
SETTING THE VOICE
RECOGNITION PROMPTS
TRAINING THE VOICE
RECOGNITION
SETTING THE VOICE PROMPT
INTERRUPT

135
5. SETUP
5
SETUP

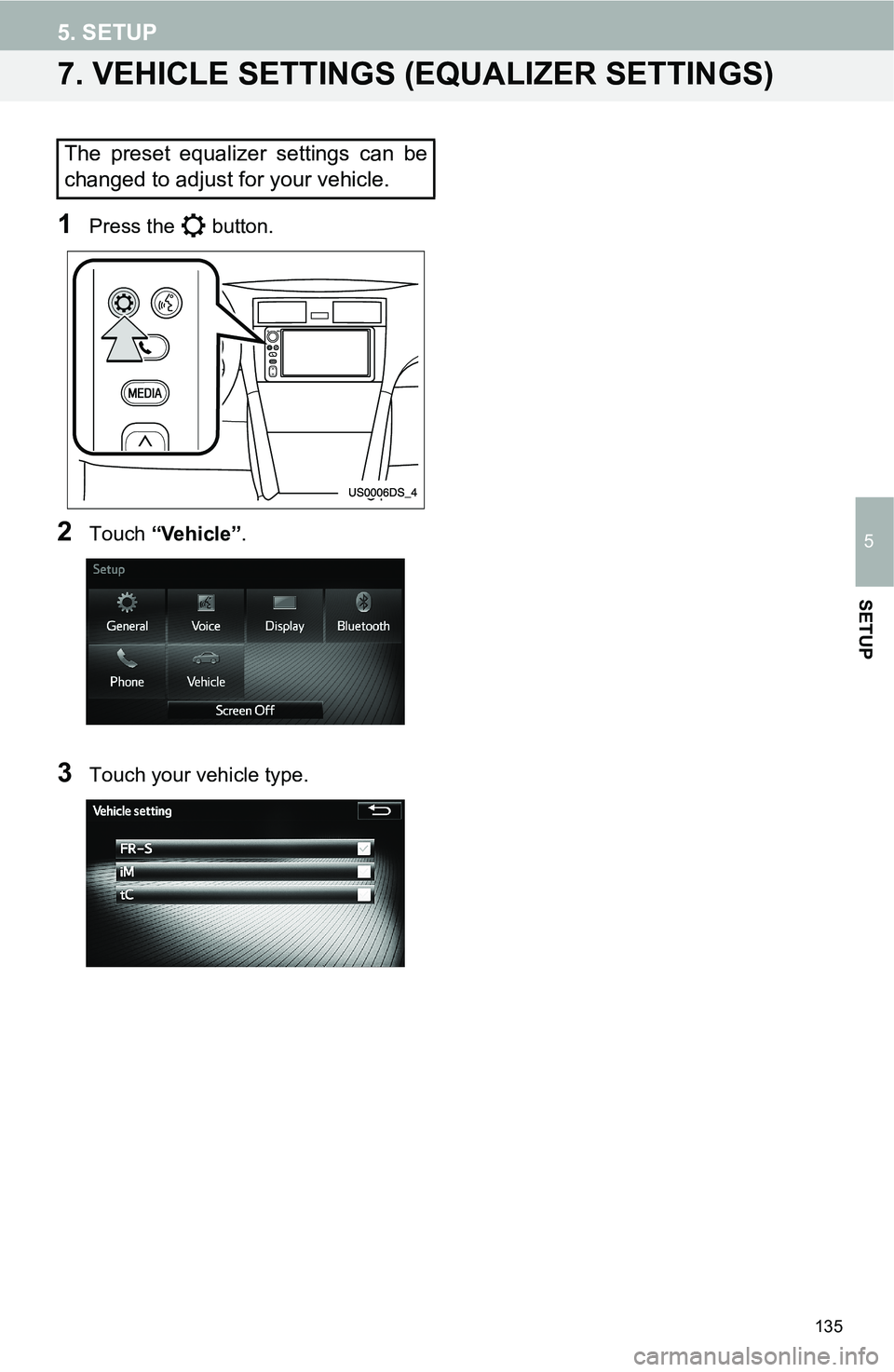

7. VEHICLE SETTINGS (EQUALIZER SETTINGS)
1Press the button.
2Touch “Vehicle”.
3Touch your vehicle type.
The preset equalizer settings can be
changed to adjust for your vehicle.

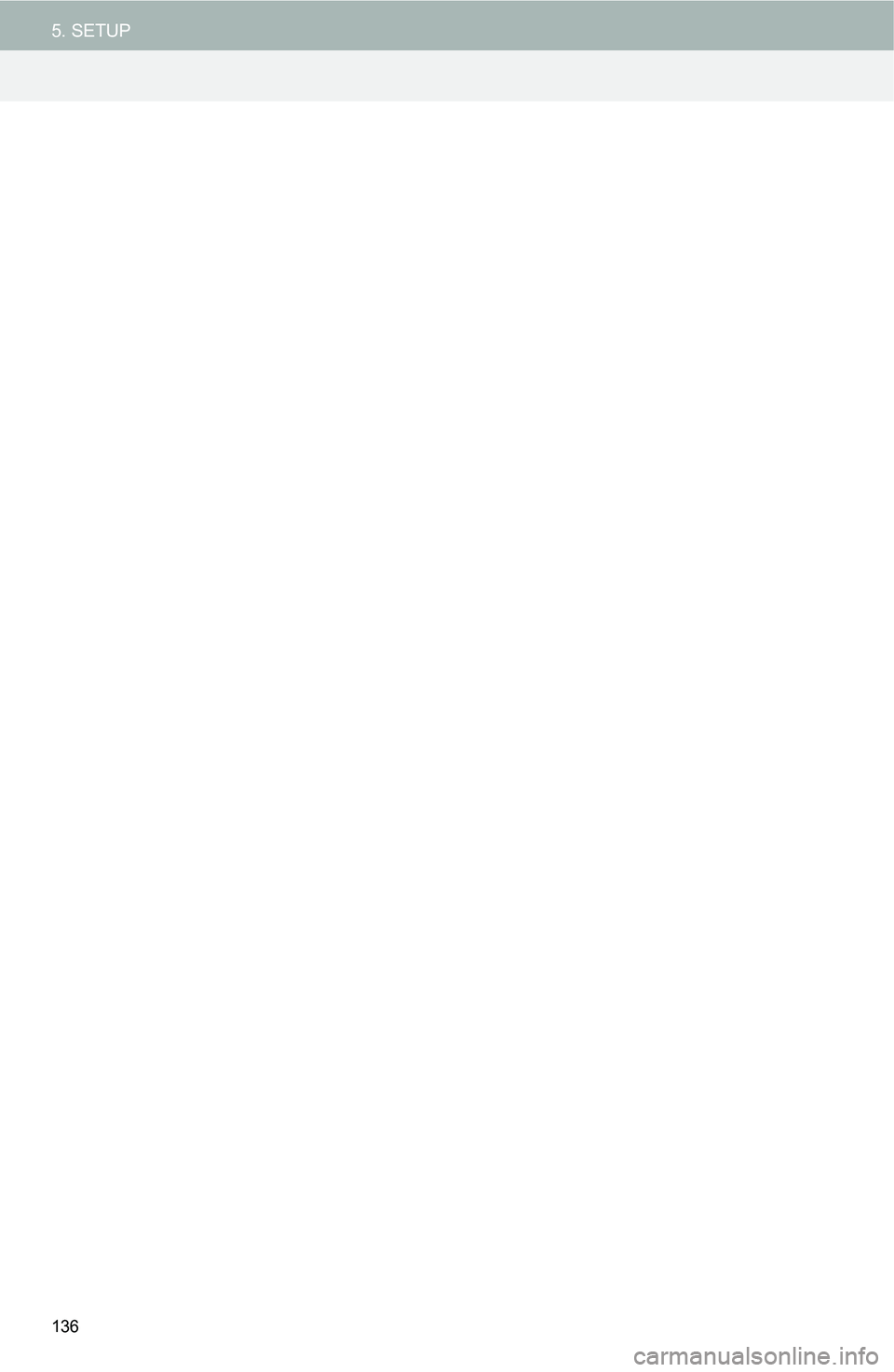

136
5. SETUP

137
1
2
3
4
5

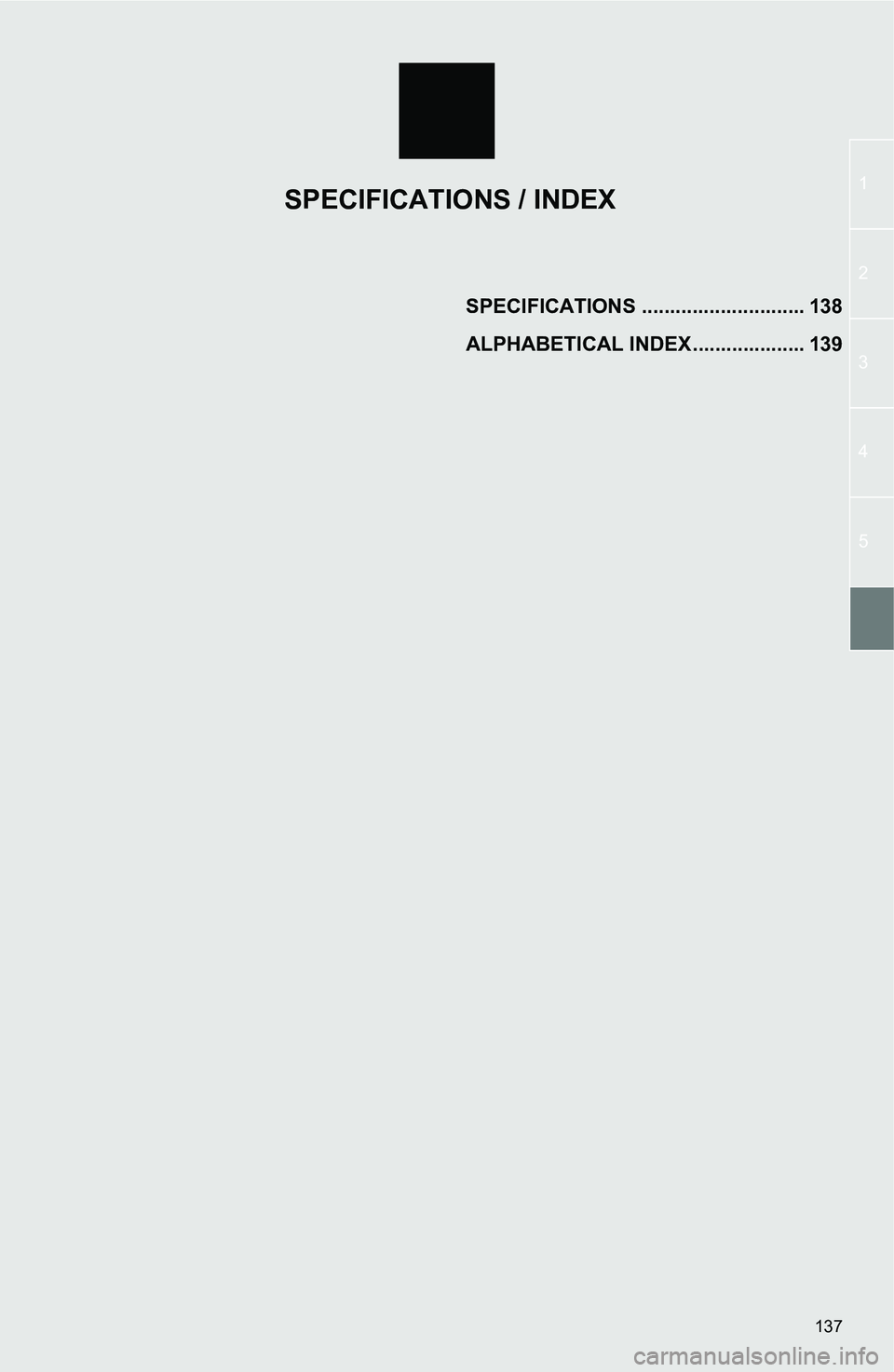

SPECIFICATIONS ............................. 138
ALPHABETICAL INDEX .................... 139
SPECIFICATIONS / INDEX

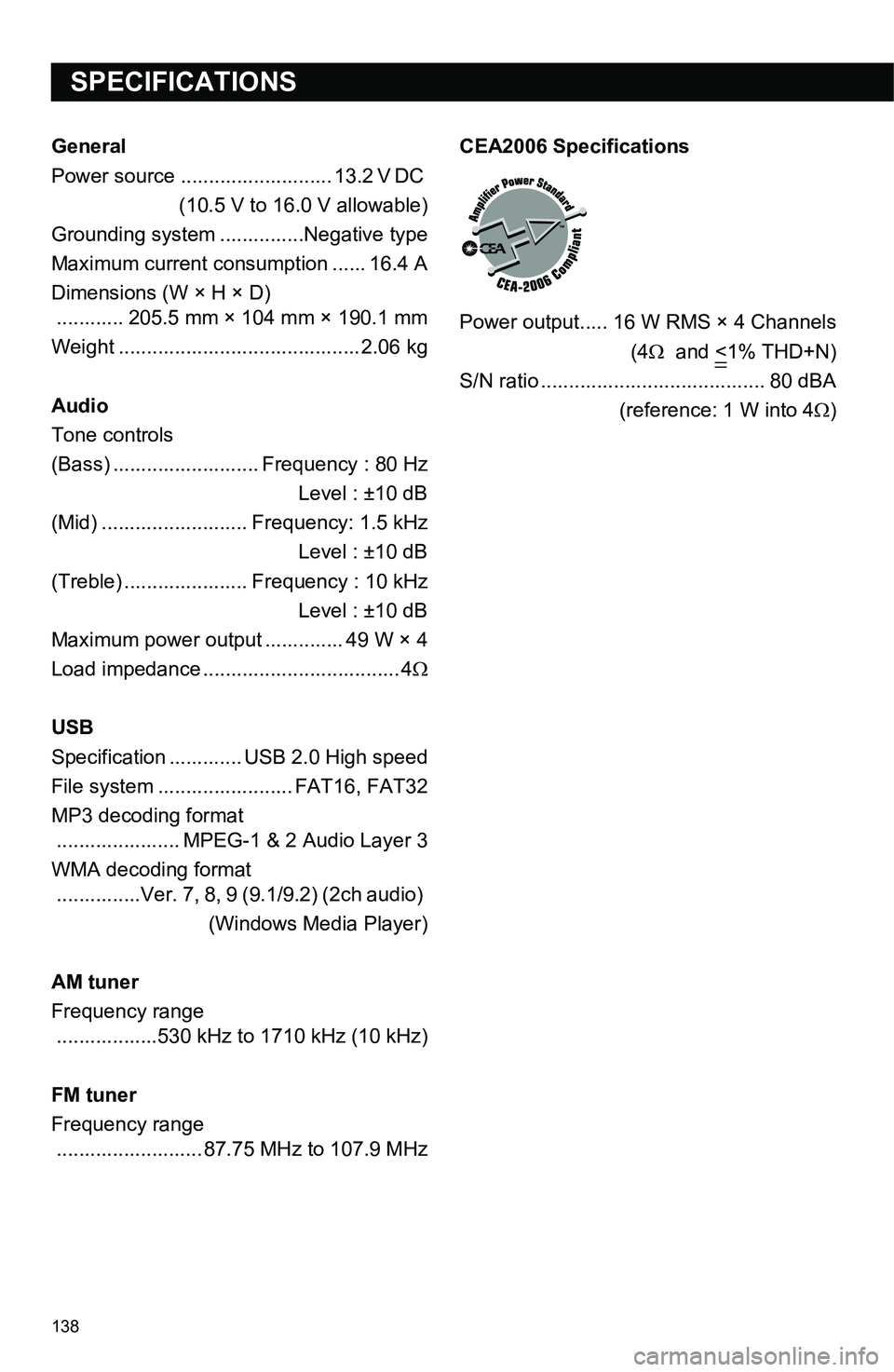

138
General
Power source ........................... 13.2 V DC
(10.5 V to 16.0 V allowable)
Grounding system ...............Negative type
Maximum current consumption ...... 16.4 A
Dimensions (W × H × D)
............ 205.5 mm × 104 mm × 190.1 mm
Weight ........................................... 2.06 kg
Audio
Tone controls
(Bass) .......................... Frequency : 80 Hz
Level : ±10 dB
(Mid) .......................... Frequency: 1.5 kHz
Level : ±10 dB
(Treble) ...................... Frequency : 10 kHz
Level : ±10 dB
Maximum power output .............. 49 W × 4
Load impedance ................................... 4
USB
Specification ............. USB 2.0 High speed
File system ........................ FAT16, FAT32
MP3 decoding format
...................... MPEG-1 & 2 Audio Layer 3
WMA decoding format
...............Ver. 7, 8, 9 (9.1/9.2) (2ch audio)
(Windows Media Player)
AM tuner
Frequency range
..................530 kHz to 1710 kHz (10 kHz)
FM tuner
Frequency range
.......................... 87.75 MHz to 107.9 MHzCEA2006 Specifications
Power output..... 16 W RMS × 4 Channels
(4 and <
1% THD+N)
S/N ratio ........................................ 80 dBA
(reference: 1 W into 4)
SPECIFICATIONS

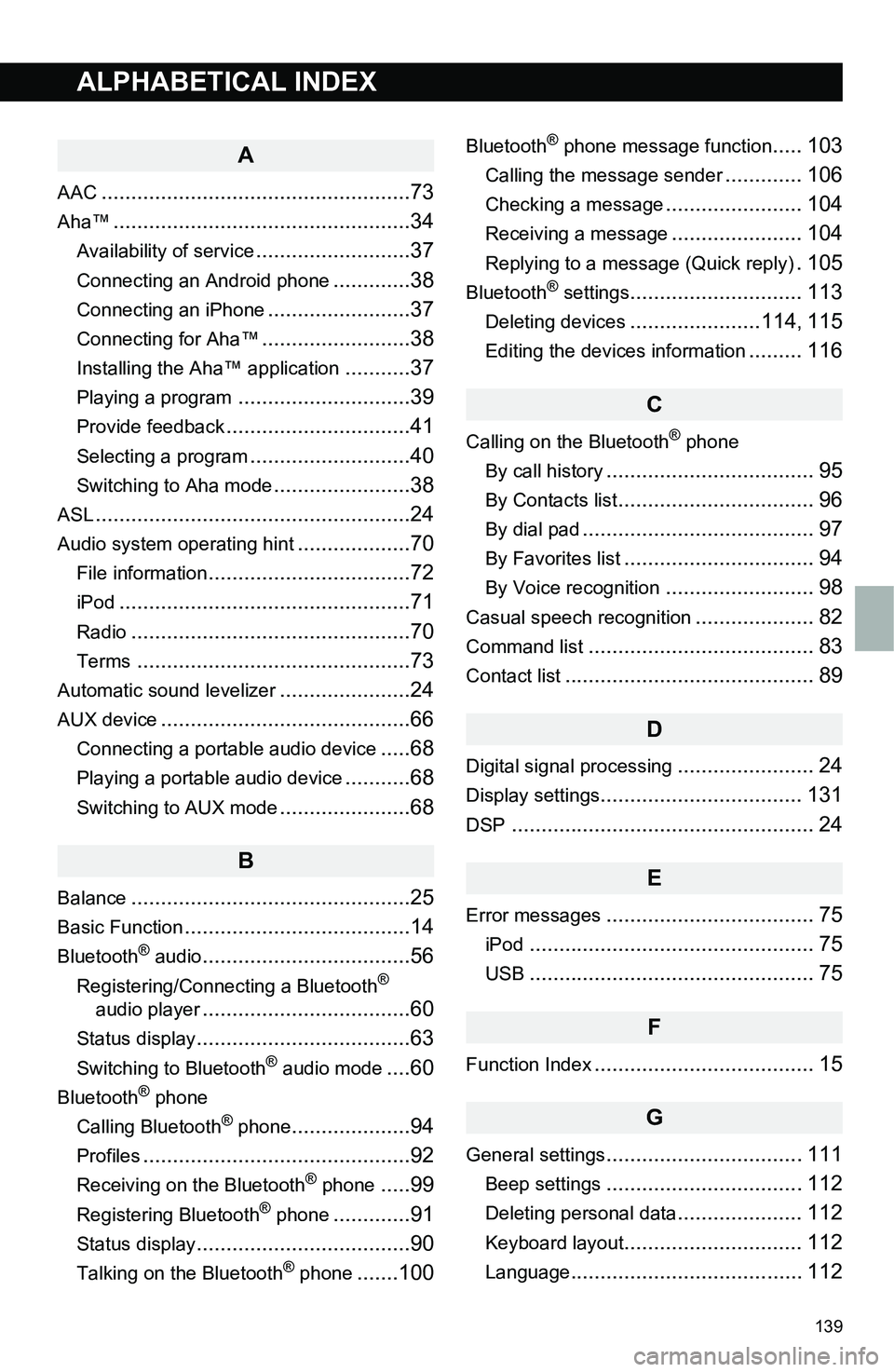

139
A
AAC....................................................73
Aha™..................................................34
Availability of service..........................37
Connecting an Android phone.............38
Connecting an iPhone........................37
Connecting for Aha™.........................38
Installing the Aha™ application...........37
Playing a program.............................39
Provide feedback...............................41
Selecting a program...........................40
Switching to Aha mode.......................38
ASL.....................................................24
Audio system operating hint...................70
File information..................................72
iPod.................................................71
Radio...............................................70
Terms..............................................73
Automatic sound levelizer......................24
AUX device..........................................66
Connecting a portable audio device.....68
Playing a portable audio device...........68
Switching to AUX mode......................68
B
Balance...............................................25
Basic Function......................................14
Bluetooth® audio...................................56
Registering/Connecting a Bluetooth®
audio player
...................................60
Status display....................................63
Switching to Bluetooth® audio mode....60
Bluetooth® phone
Calling Bluetooth® phone....................94
Profiles.............................................92
Receiving on the Bluetooth® phone.....99
Registering Bluetooth® phone.............91
Status display....................................90
Talking on the Bluetooth® phone.......100
Bluetooth® phone message function..... 103
Calling the message sender............. 106
Checking a message....................... 104
Receiving a message...................... 104
Replying to a message (Quick reply). 105
Bluetooth® settings............................. 113
Deleting devices......................114, 115
Editing the devices information......... 116
C
Calling on the Bluetooth® phone
By call history
................................... 95
By Contacts list................................. 96
By dial pad....................................... 97
By Favorites list................................ 94
By Voice recognition......................... 98
Casual speech recognition.................... 82
Command list...................................... 83
Contact list.......................................... 89
D
Digital signal processing....................... 24
Display settings.................................. 131
DSP................................................... 24
E
Error messages................................... 75
iPod................................................ 75
USB................................................ 75
F
Function Index..................................... 15
G
General settings................................. 111
Beep settings................................. 112
Deleting personal data..................... 112
Keyboard layout.............................. 112
Language....................................... 112
ALPHABETICAL INDEX

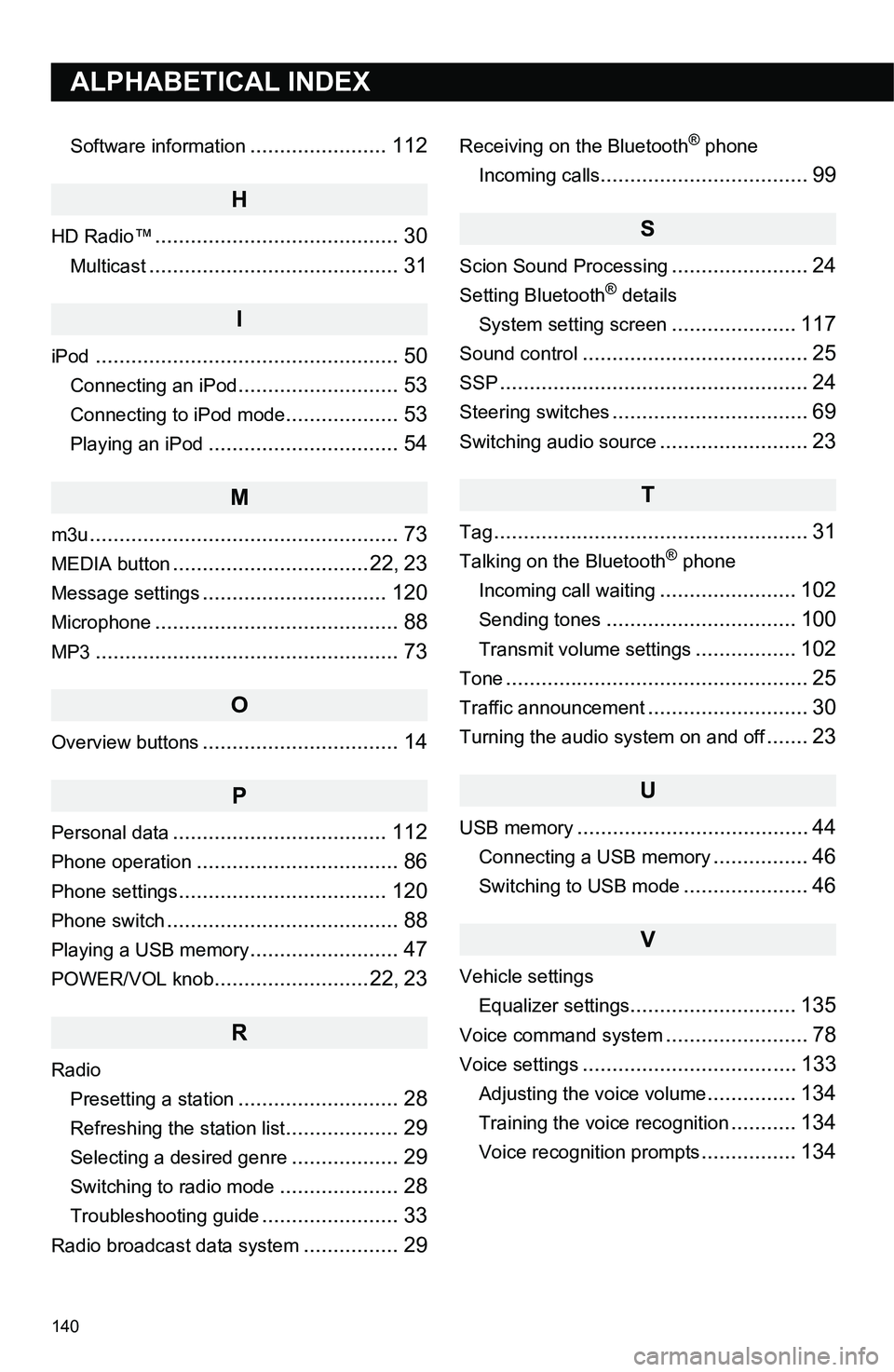

140
Software information....................... 112
H
HD Radio™......................................... 30
Multicast.......................................... 31
I
iPod................................................... 50
Connecting an iPod........................... 53
Connecting to iPod mode................... 53
Playing an iPod................................ 54
M
m3u.................................................... 73
MEDIA button................................. 22, 23
Message settings............................... 120
Microphone......................................... 88
MP3................................................... 73
O
Overview buttons................................. 14
P
Personal data.................................... 112
Phone operation.................................. 86
Phone settings................................... 120
Phone switch....................................... 88
Playing a USB memory......................... 47
POWER/VOL knob.......................... 22, 23
R
Radio
Presetting a station
........................... 28
Refreshing the station list................... 29
Selecting a desired genre.................. 29
Switching to radio mode.................... 28
Troubleshooting guide....................... 33
Radio broadcast data system................ 29
Receiving on the Bluetooth® phone
Incoming calls
................................... 99
S
Scion Sound Processing....................... 24
Setting Bluetooth® details
System setting screen
..................... 117
Sound control...................................... 25
SSP.................................................... 24
Steering switches................................. 69
Switching audio source......................... 23
T
Tag..................................................... 31
Talking on the Bluetooth® phone
Incoming call waiting
....................... 102
Sending tones................................ 100
Transmit volume settings................. 102
Tone................................................... 25
Traffic announcement........................... 30
Turning the audio system on and off....... 23
U
USB memory....................................... 44
Connecting a USB memory................ 46
Switching to USB mode..................... 46
V
Vehicle settings
Equalizer settings
............................ 135
Voice command system........................ 78
Voice settings.................................... 133
Adjusting the voice volume............... 134
Training the voice recognition........... 134
Voice recognition prompts................ 134
ALPHABETICAL INDEX
