TOYOTA FR-S 2016 Owners Manual (in English)

189
2-5. Driving information
2
When driving

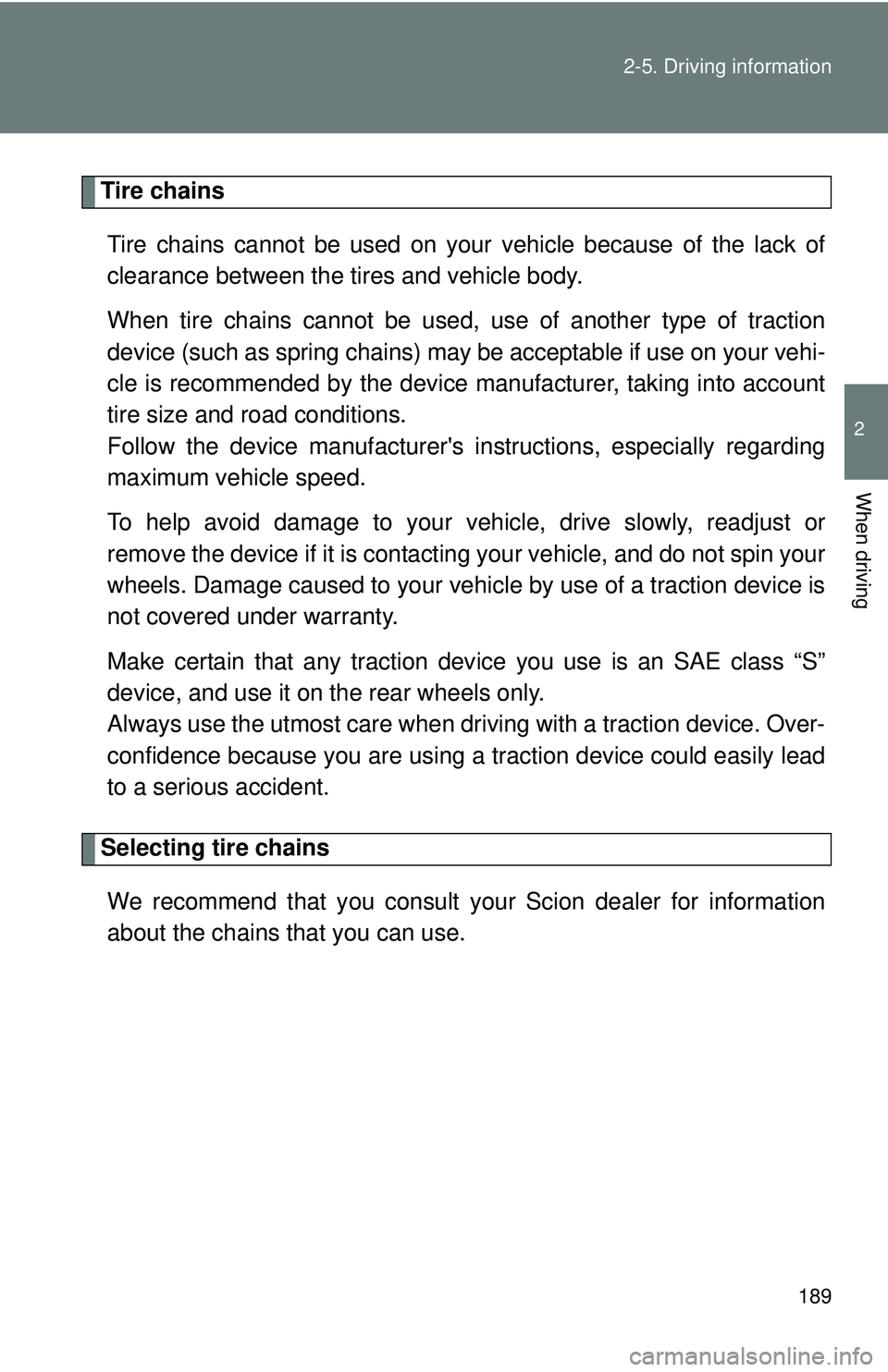

Tire chains
Tire chains cannot be used on your vehicle because of the lack of
clearance between the tires and vehicle body.
When tire chains cannot be used, use of another type of traction
device (such as spring chains) may be acceptable if use on your vehi-
cle is recommended by the device manufacturer, taking into account
tire size and road conditions.
Follow the device manufacturer's in structions, especially regarding
maximum vehicle speed.
To help avoid damage to your vehicle, drive slowly, readjust or
remove the device if it is contacti ng your vehicle, and do not spin your
wheels. Damage caused to your vehi cle by use of a traction device is
not covered under warranty.
Make certain that any traction device you use is an SAE class “S”
device, and use it on the rear wheels only.
Always use the utmost care when driving with a traction device. Over-
confidence because you are using a tr action device could easily lead
to a serious accident.
Selecting tire chains
We recommend that y ou consult your Scion dealer for information
about the chains that you can use.

190 2-5. Driving information

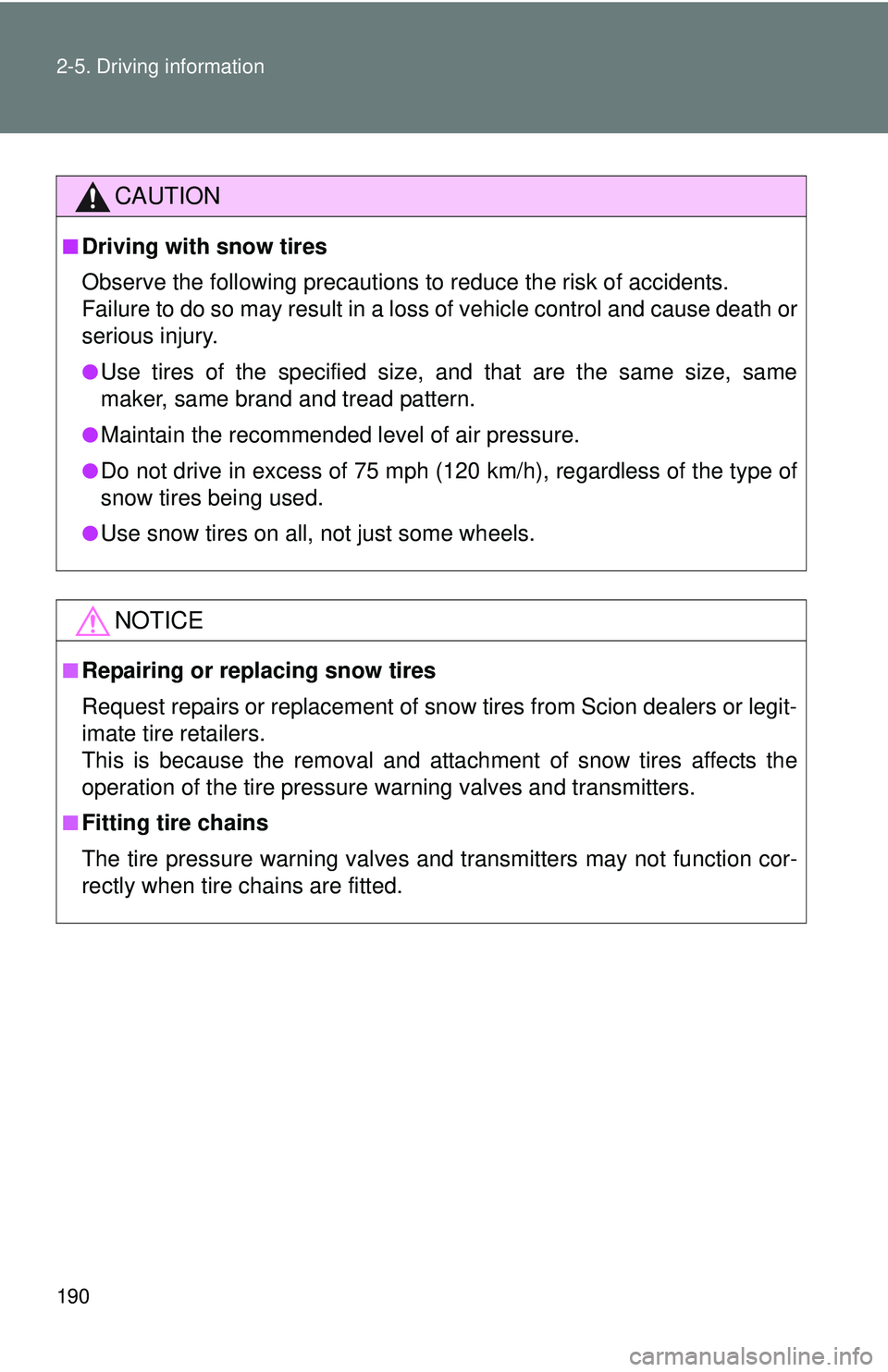

CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the specified size, and that are the same size, same
maker, same brand and tread pattern.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
●Use snow tires on all, not just some wheels.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Scion dealers or legit-
imate tire retailers.
This is because the removal and atta chment of snow tires affects the
operation of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function cor-
rectly when tire chains are fitted.

191
2-5. Driving information
2
When driving

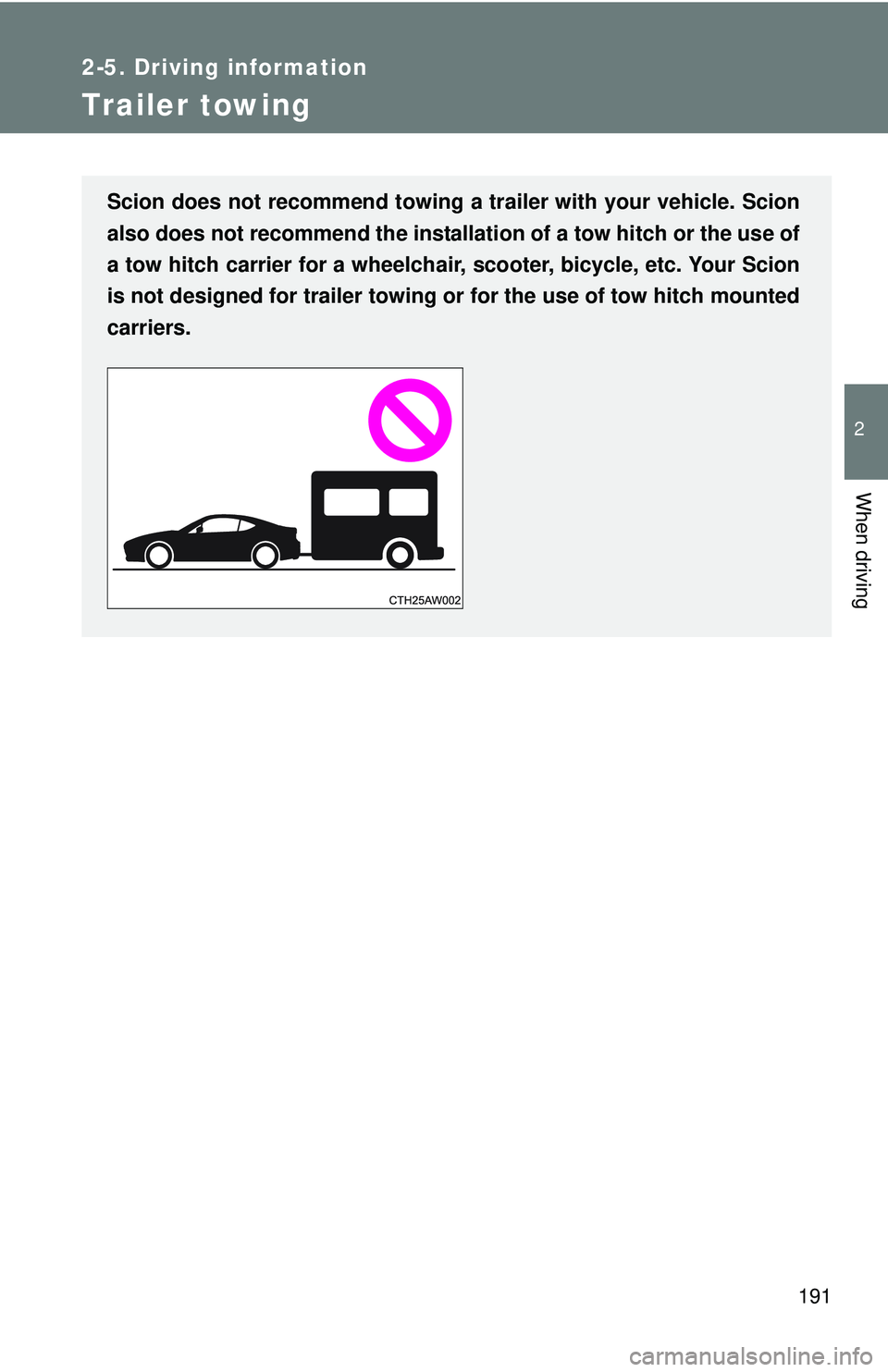

Trailer towing
Scion does not recommend towing a trailer with your vehicle. Scion
also does not recommend the installation of a tow hitch or the use of
a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your Scion
is not designed for trailer towing or for the use of tow hitch mounted
carriers.

192
2-5. Driving information

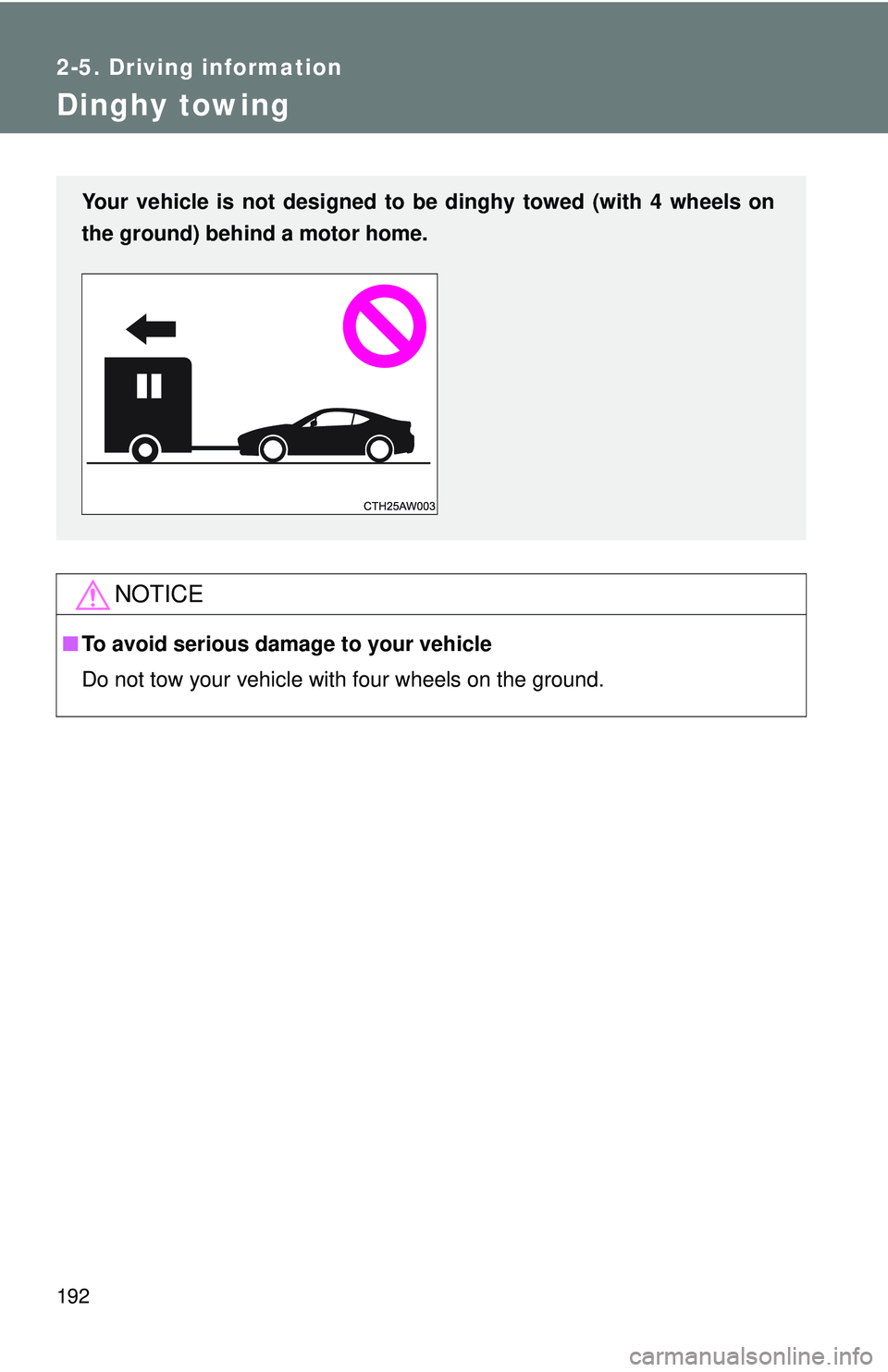

Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

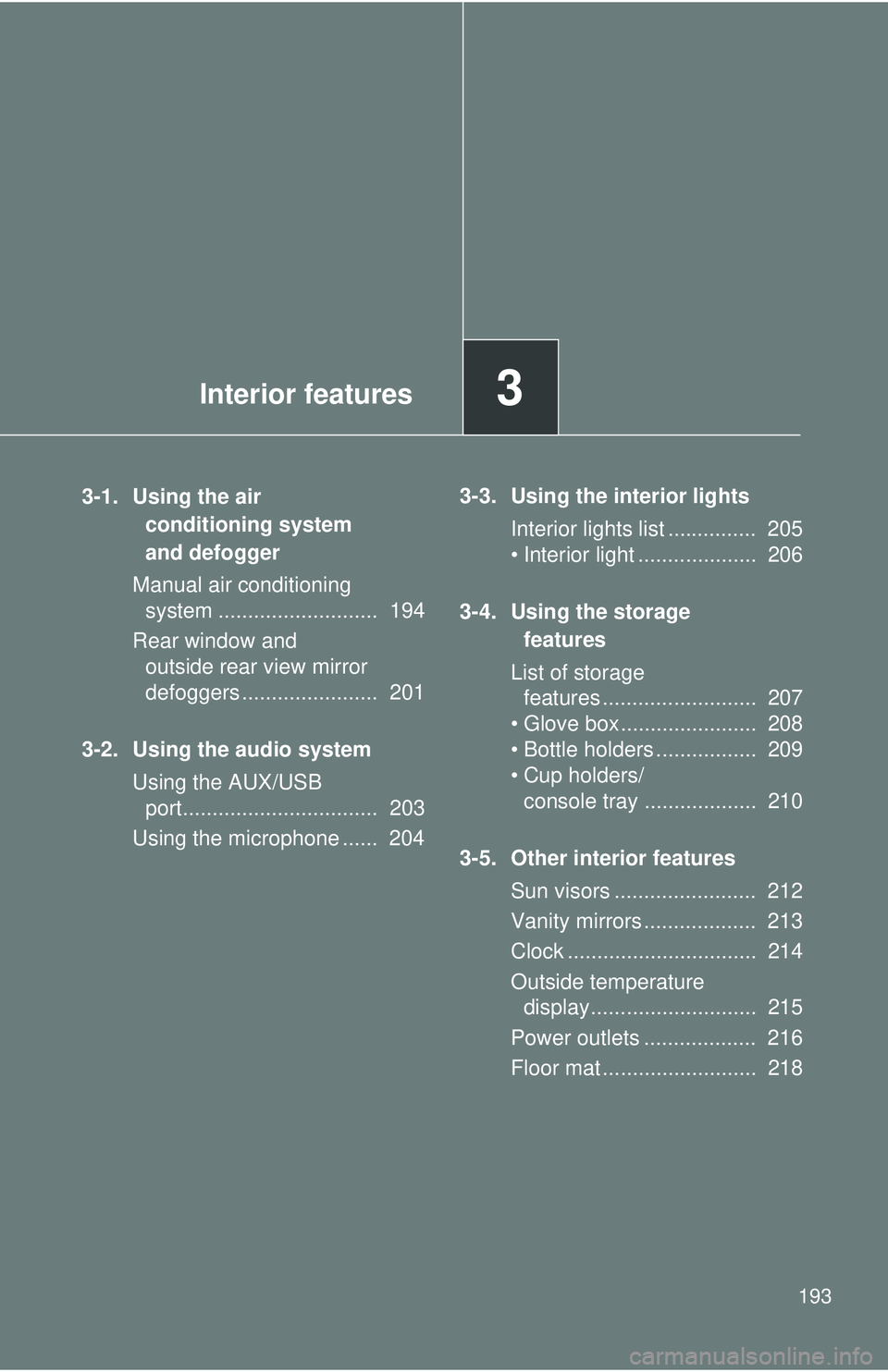

Interior features3
193
3-1. Using the air conditioning system
and defogger
Manual air conditioning system ........................... 194
Rear window and outside rear view mirror
defoggers ....................... 201
3-2. Using the audio system Using the AUX/USB port................................. 203
Using the microphone ...... 204 3-3. Using the interior lights
Interior lights list ............... 205
• Interior light .................... 206
3-4. Using the storage features
List of storage features .......................... 207
• Glove box....................... 208
• Bottle holders ................. 209
• Cup holders/ console tray ................... 210
3-5. Other interior features Sun visors ........................ 212
Vanity mirrors ................... 213
Clock ................................ 214
Outside temperature display............................ 215
Power outlets ................... 216
Floor mat .......................... 218

194
3-1. Using the air conditioning system and defogger

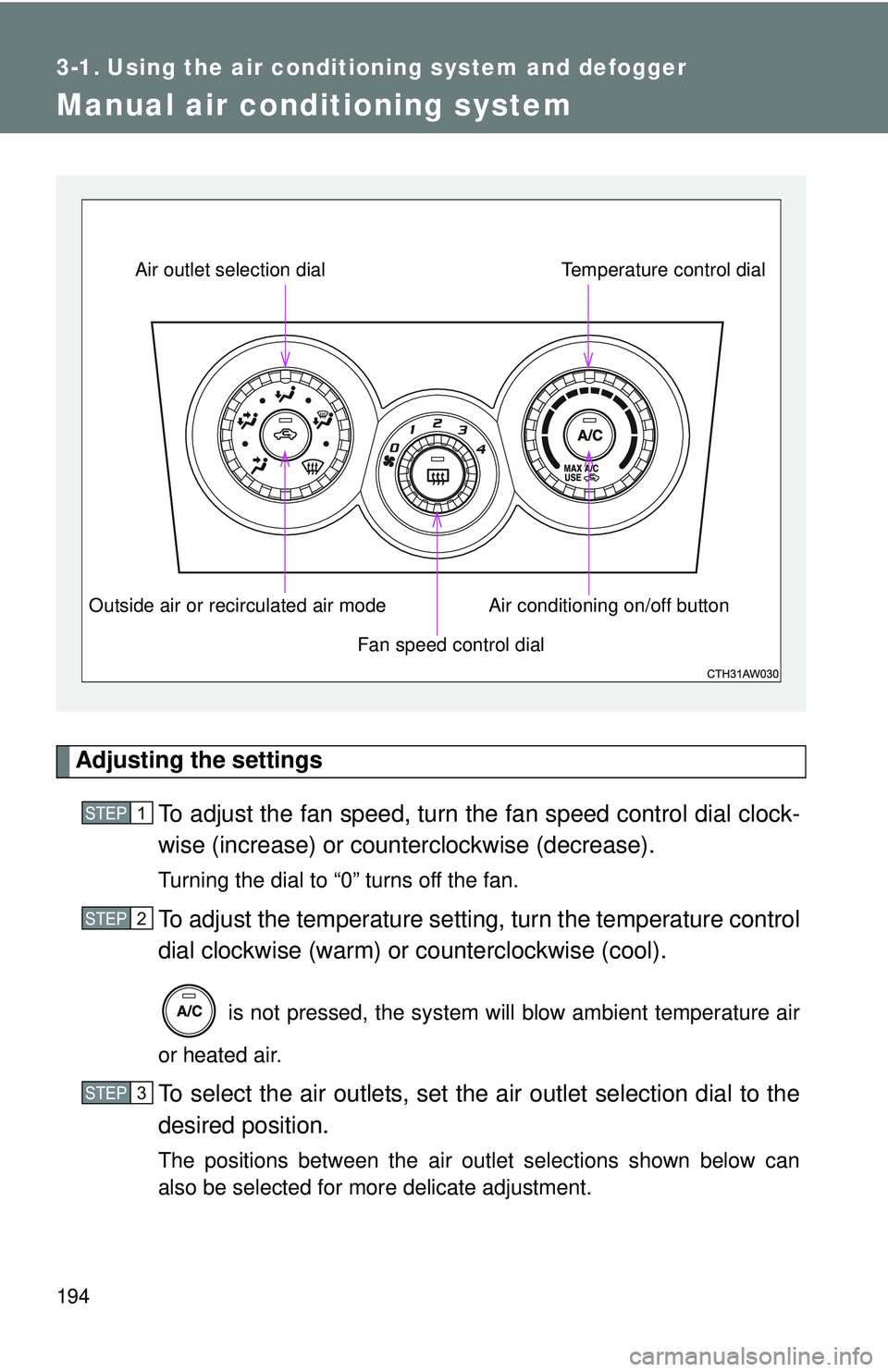

Manual air conditioning system
Adjusting the settingsTo adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or count erclockwise (decrease).
Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
dial clockwise (warm) or counterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
Fan speed control dial
Air outlet selection dial
Air conditioning on/off buttonTemperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2
STEP 3

195
3-1. Using the air conditioning system
and defogger
3
Interior features

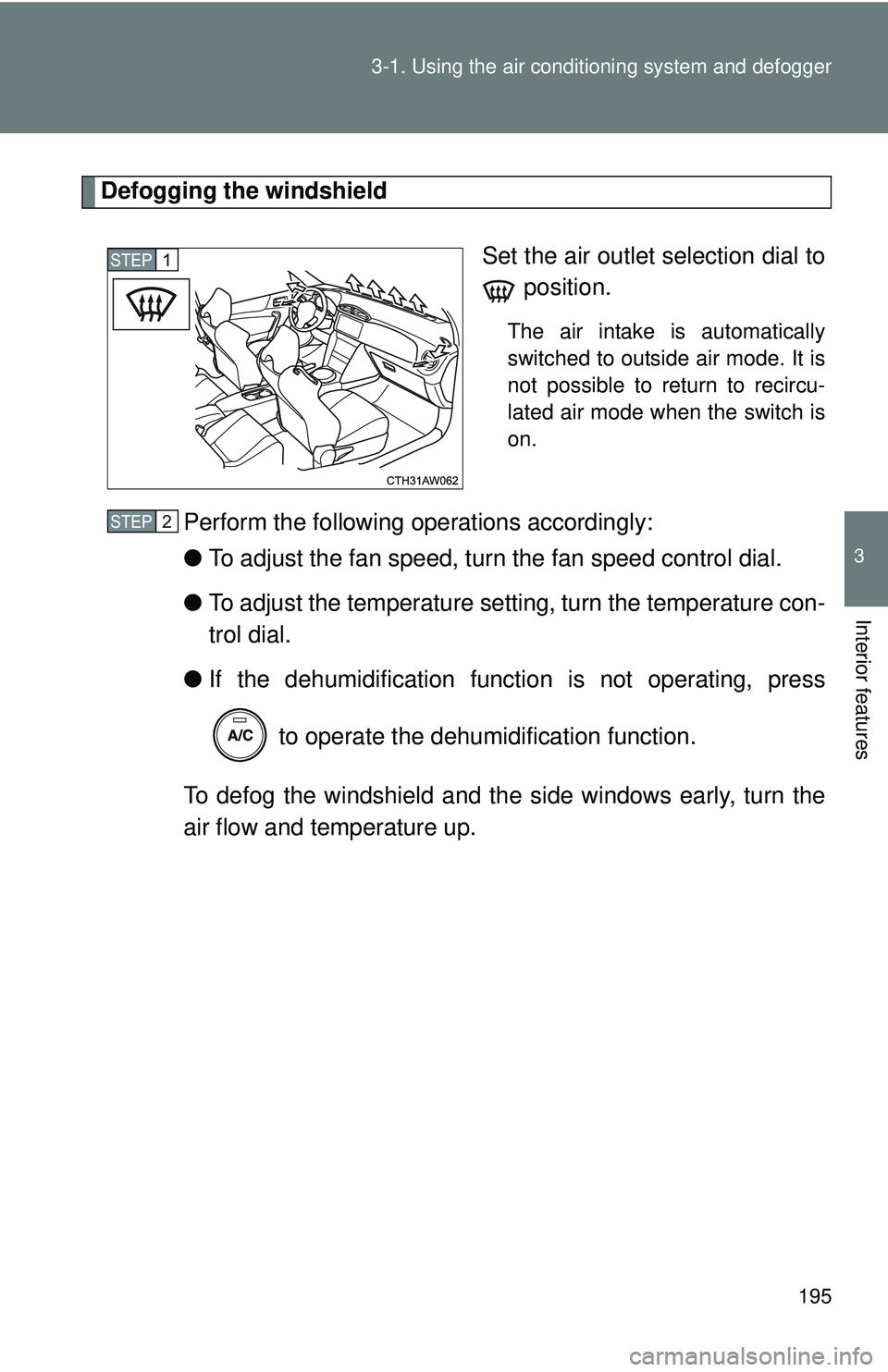

Defogging the windshield
Set the air outlet selection dial to position.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.
Perform the following operations accordingly:
●To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature con-
trol dial.
● If the dehumidificat ion function is not operating, press
to operate the dehumidification function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.
STEP 1
STEP 2

196 3-1. Using the air conditioning system and defogger

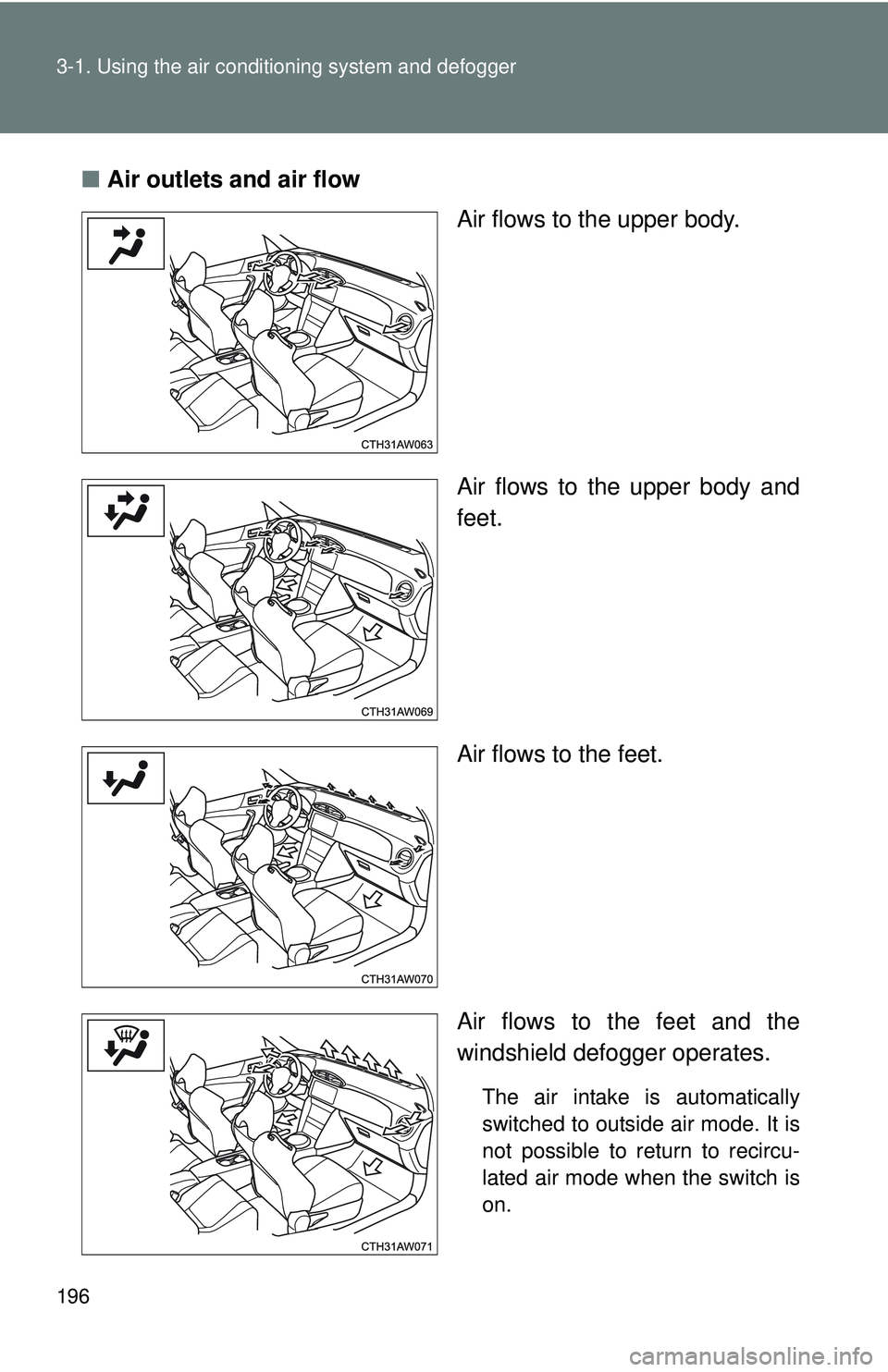

■Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.

197
3-1. Using the air conditioning system
and defogger
3
Interior features
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from out-
side the vehicle) (indicator off) and recirculated air mode (recycles air
inside the vehicle) (indicator on) each time the button is pressed.
Adjusting the position of the air outlets Center outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or right,
up or down.
When defrosting the side win-
dows, face the right and left side
outlets toward them.

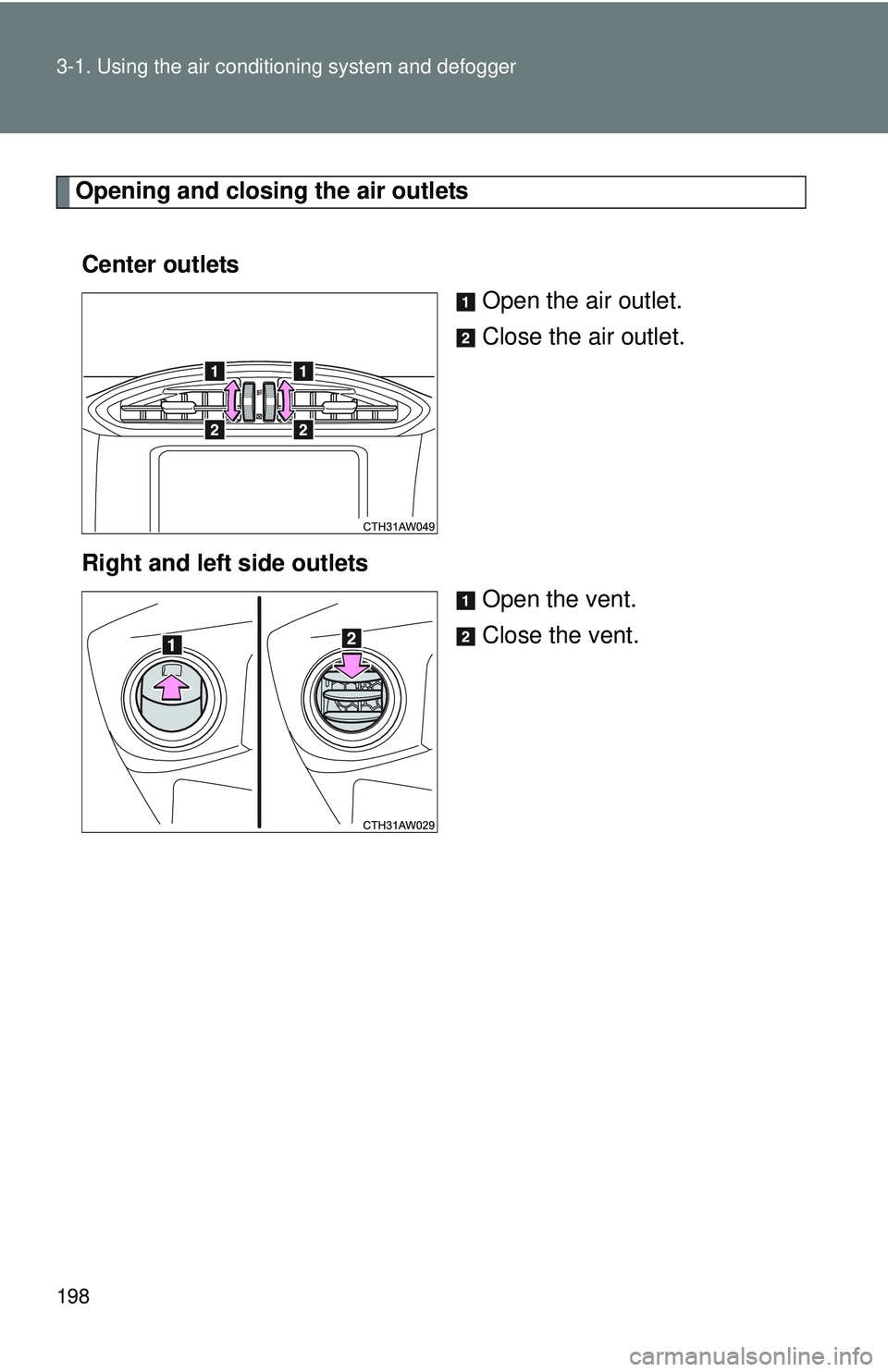

198 3-1. Using the air conditioning system and defogger
Opening and closing the air outlets
Center outlets Open the air outlet.
Close the air outlet.
Right and left side outlets Open the vent.
Close the vent.
