TOYOTA FR-S 2016 Owners Manual (in English)

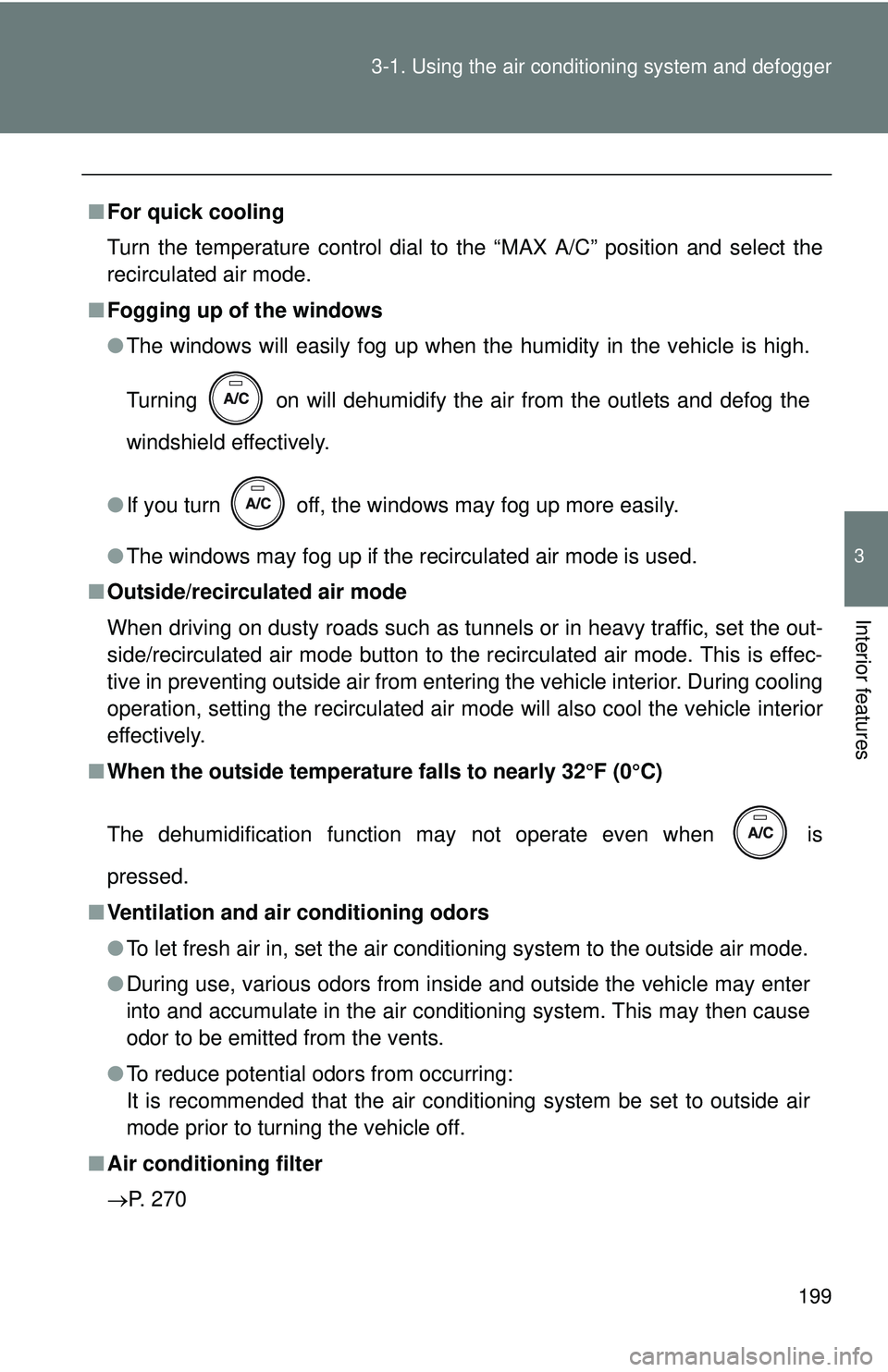

199
3-1. Using the air conditioning system
and defogger
3
Interior features
■For quick cooling
Turn the temperature control dial to the “MAX A/C” position and select the
recirculated air mode.
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning
on will dehumidify the air from the outlets and defog the
windshield effectively.
● If you turn
off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from enter ing the vehicle interior. During cooling
operation, setting the recirculated air m ode will also cool the vehicle interior
effectively.
■ When the outside temperature falls to nearly 32°F (0°C)
The dehumidification function may not operate even when is
pressed.
■ Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■ Air conditioning filter
P. 270

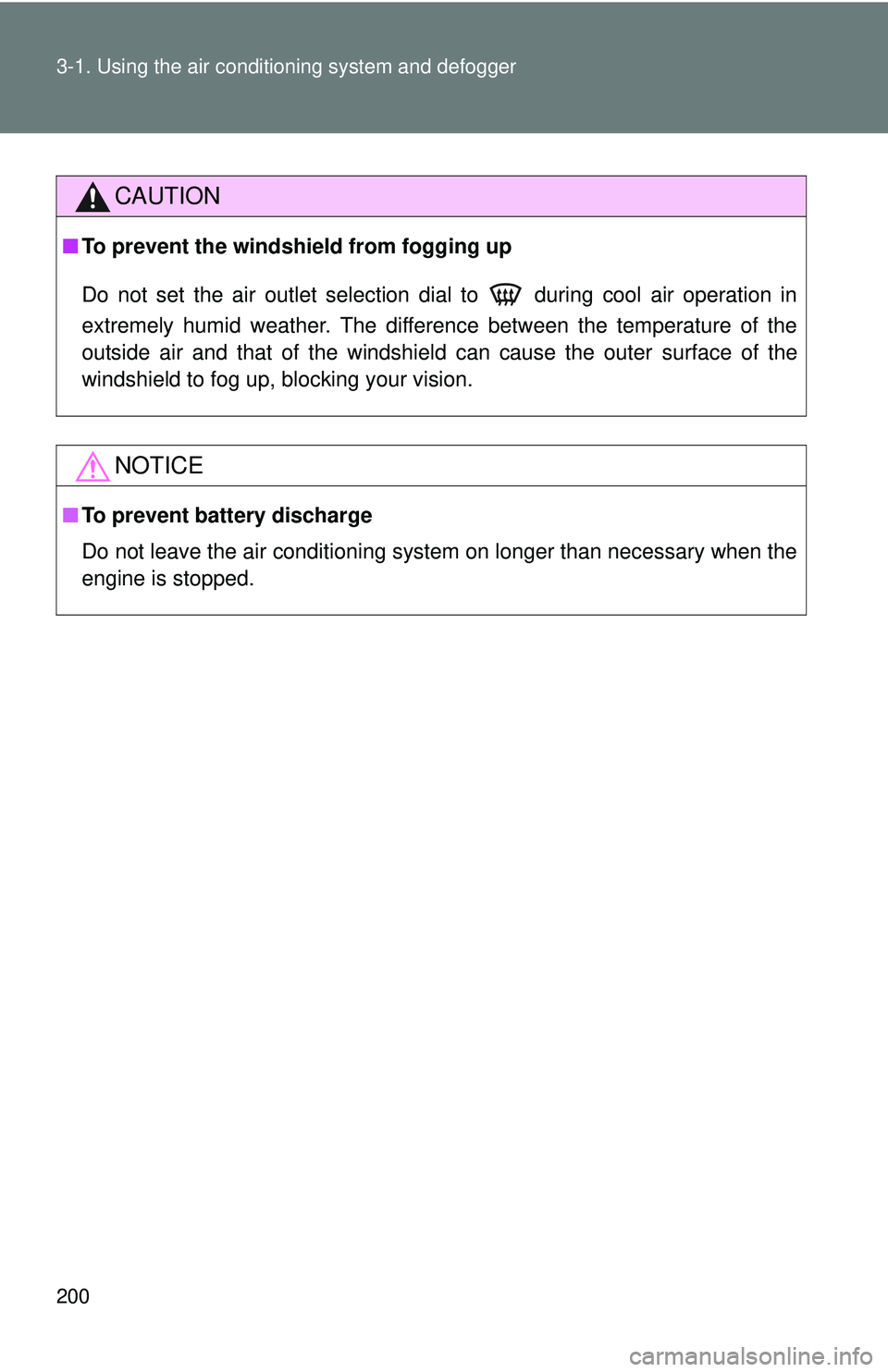

200 3-1. Using the air conditioning system and defogger
CAUTION
■To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

201
3-1. Using the air conditioning system and defogger
3
Interior features

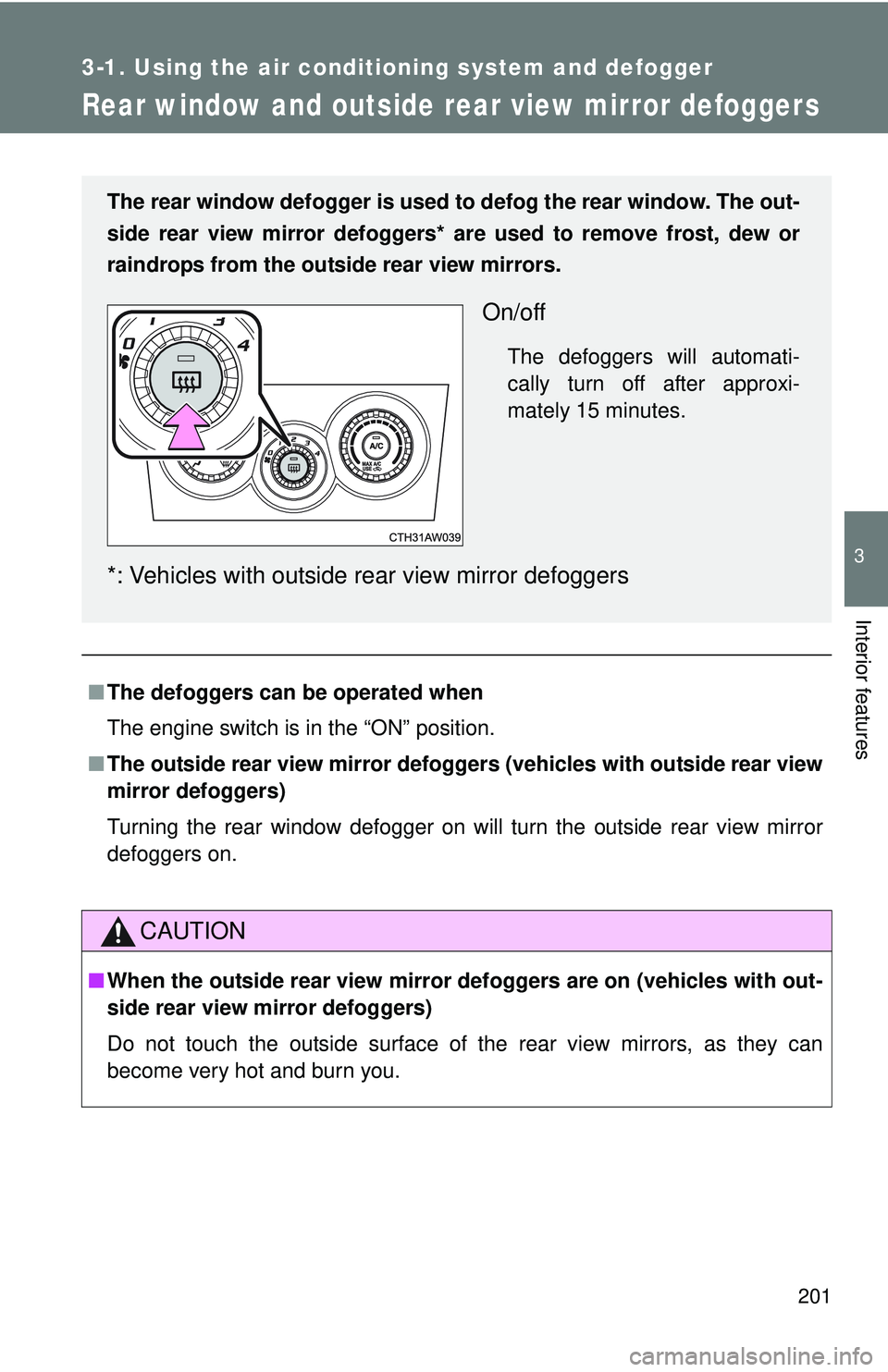

Rear window and outside rear view mirror defoggers
■The defoggers can be operated when
The engine switch is in the “ON” position.
■ The outside rear view mirror defogg ers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■ When the outside rear view mirror defoggers are on (vehicles with out-
side rear view mirror defoggers)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
The rear window defogger is used to defog the rear window. The out-
side rear view mirror defoggers* are used to remove frost, dew or
raindrops from the outside rear view mirrors.
On/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.
*: Vehicles with outside rear view mirror defoggers

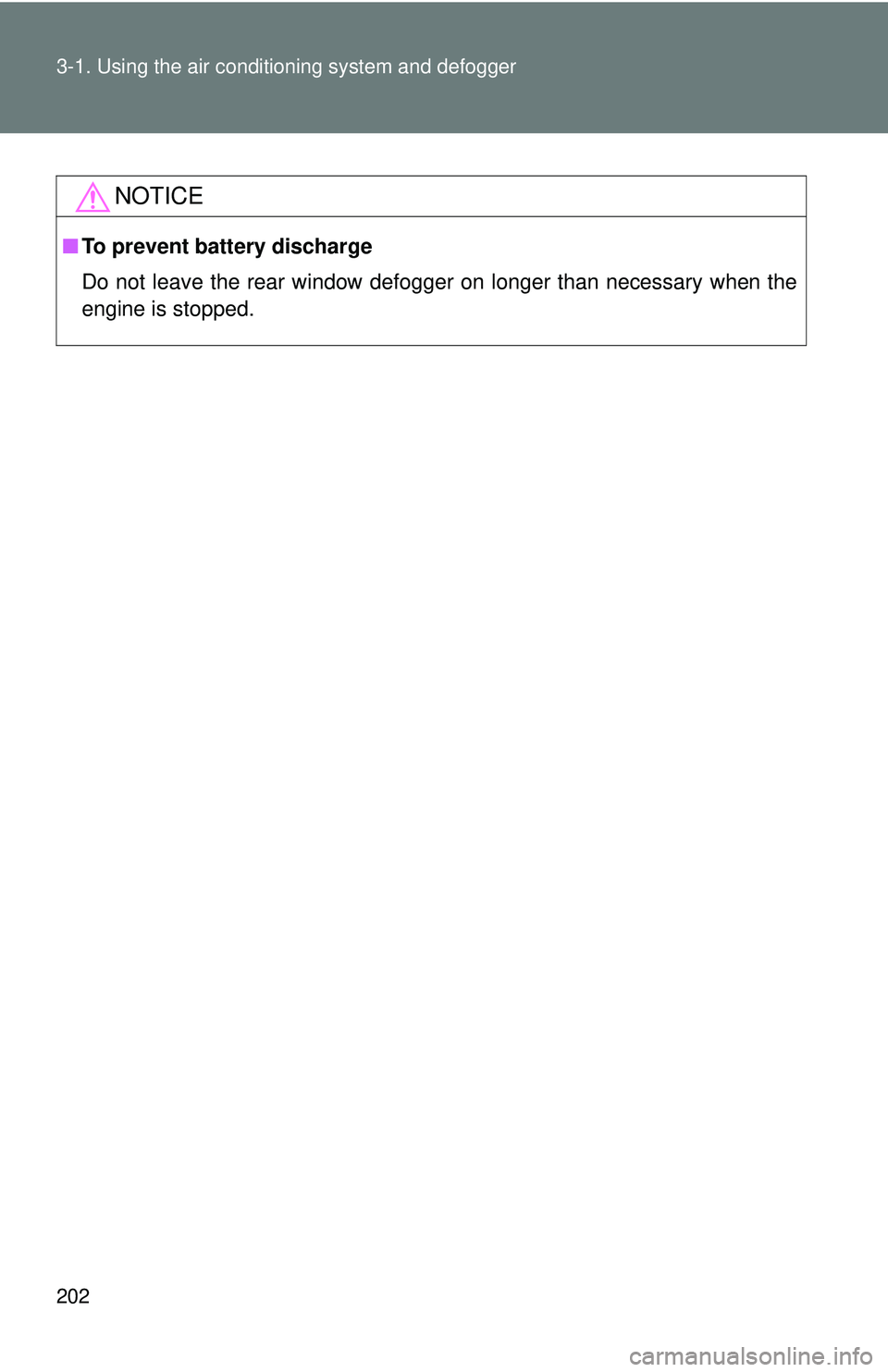

202 3-1. Using the air conditioning system and defogger
NOTICE
■To prevent battery discharge
Do not leave the rear window defogger on longer than necessary when the
engine is stopped.

203
3
Interior features

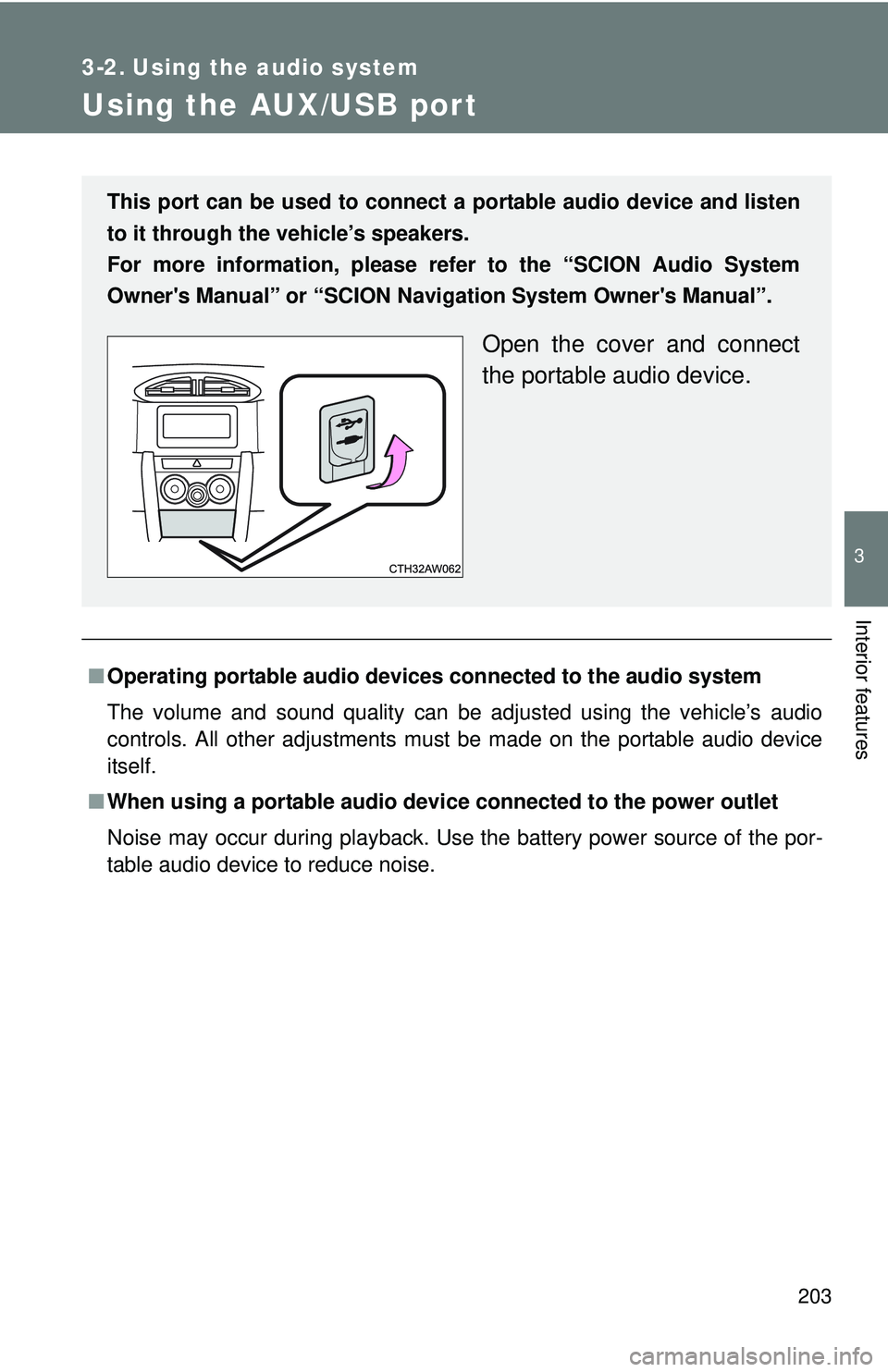

3-2. Using the audio system
Using the AUX/USB port
■Operating portable audio devices connected to the audio system
The volume and sound quality can be adjusted using the vehicle’s audio
controls. All other adjustments must be made on the portable audio device
itself.
■ When using a portable audio devi ce connected to the power outlet
Noise may occur during playback. Use the battery power source of the por-
table audio device to reduce noise.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
For more information, please re fer to the “SCION Audio System
Owner's Manual” or “SCION Navigation System Owner's Manual”.
Open the cover and connect
the portable audio device.

204

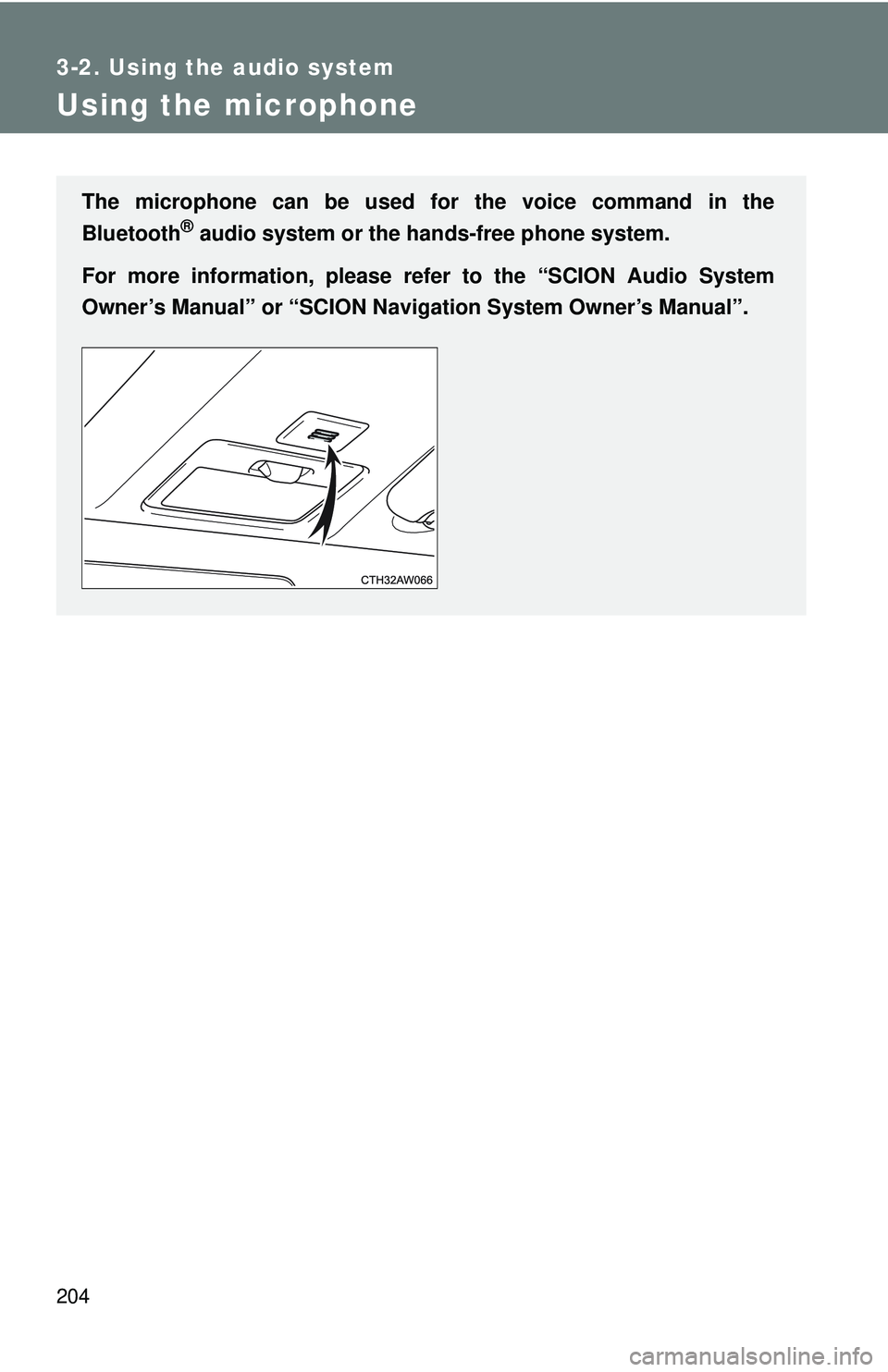

3-2. Using the audio system
Using the microphone
The microphone can be used for the voice command in the
Bluetooth
® audio system or the hands-free phone system.
For more information, please re fer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.

205
3
Interior features

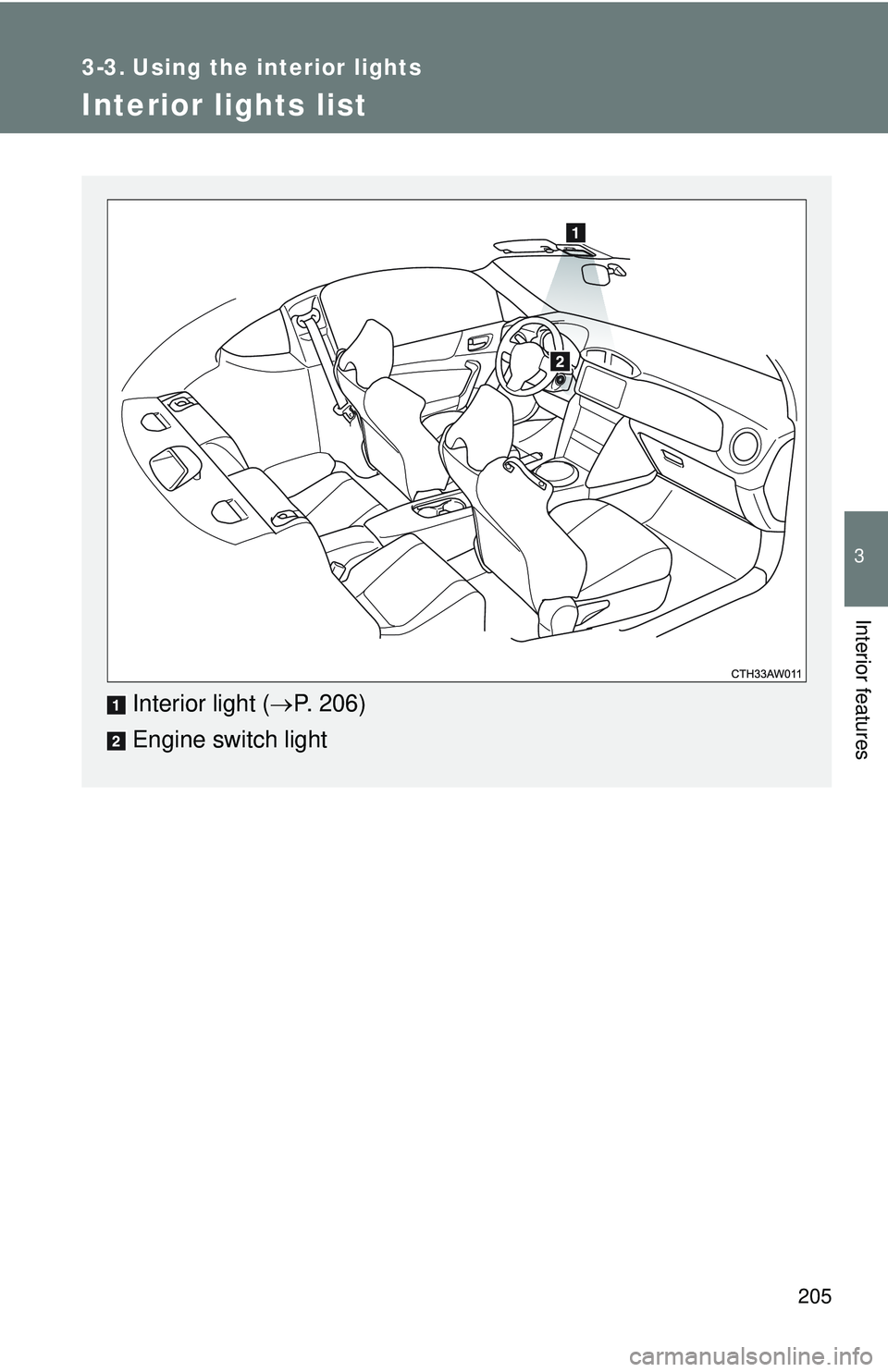

3-3. Using the interior lights
Interior lights list
Interior light (P. 206)
Engine switch light

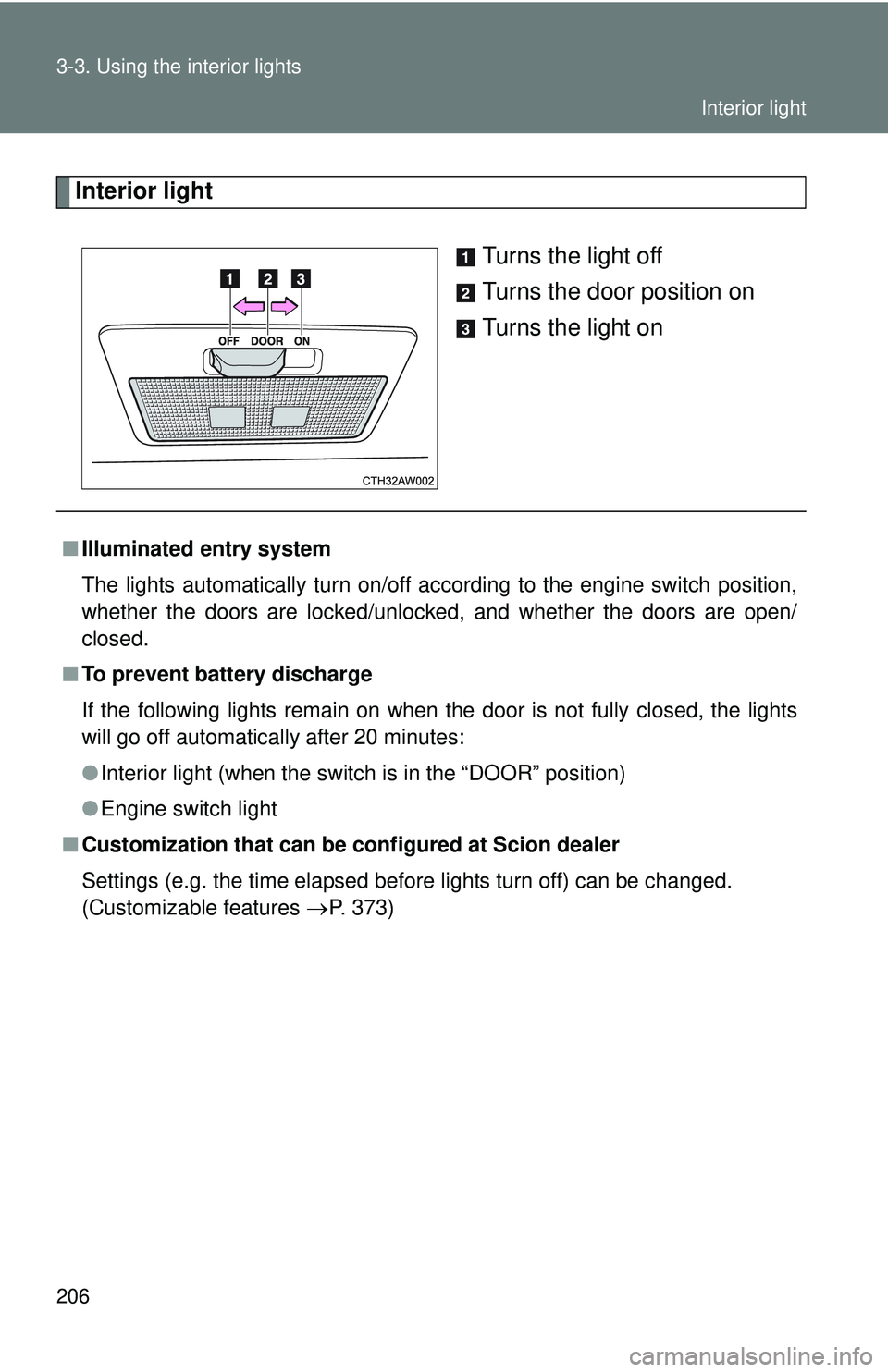

206 3-3. Using the interior lights
Interior lightTurns the light off
Turns the door position on
Turns the light on
■Illuminated entry system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
■ To prevent battery discharge
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
●Interior light (when the switch is in the “DOOR” position)
● Engine switch light
■ Customization that can be configured at Scion dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features
P. 373)
Interior light

207
3
Interior features

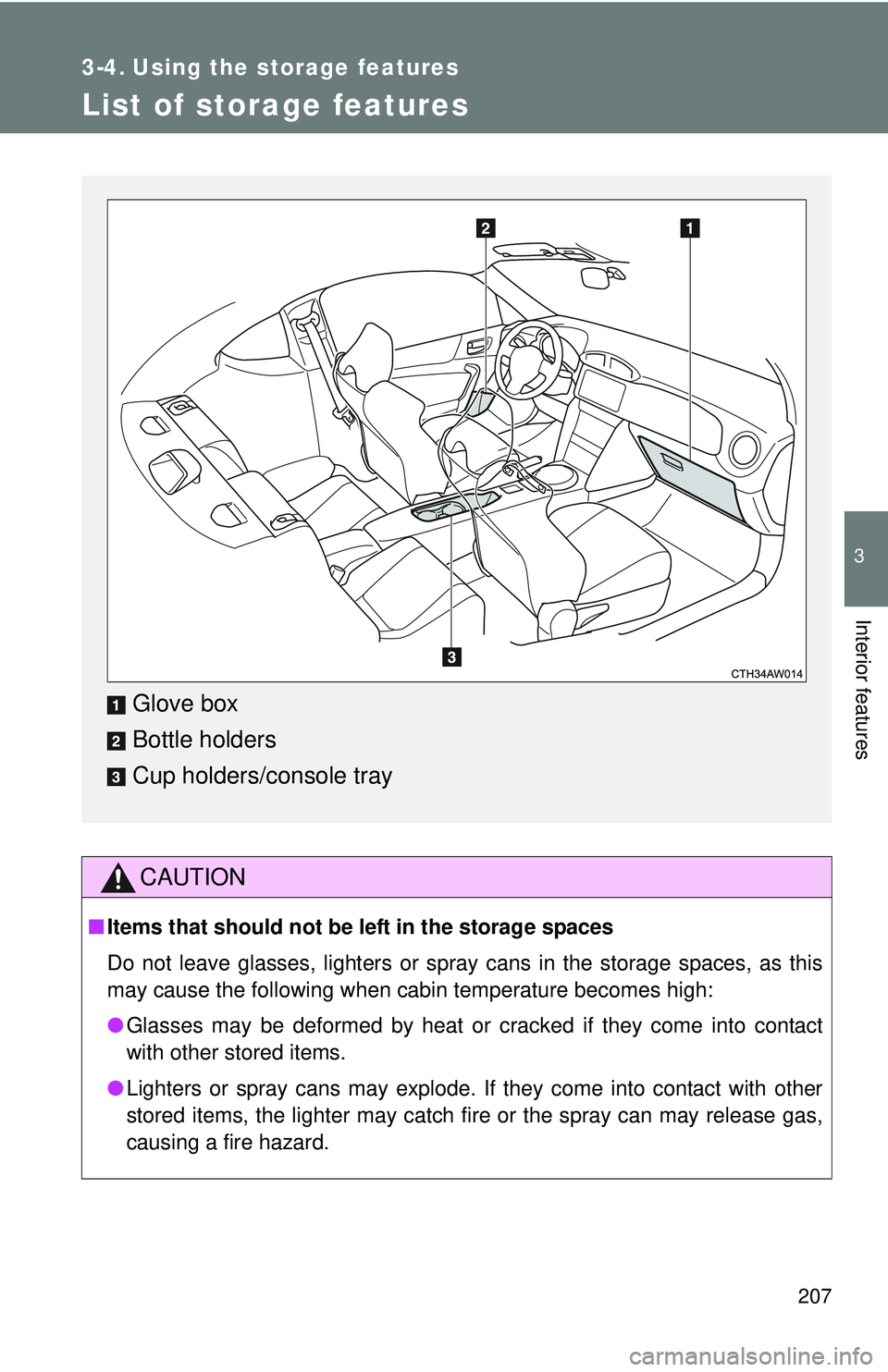

3-4. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Bottle holders
Cup holders/console tray

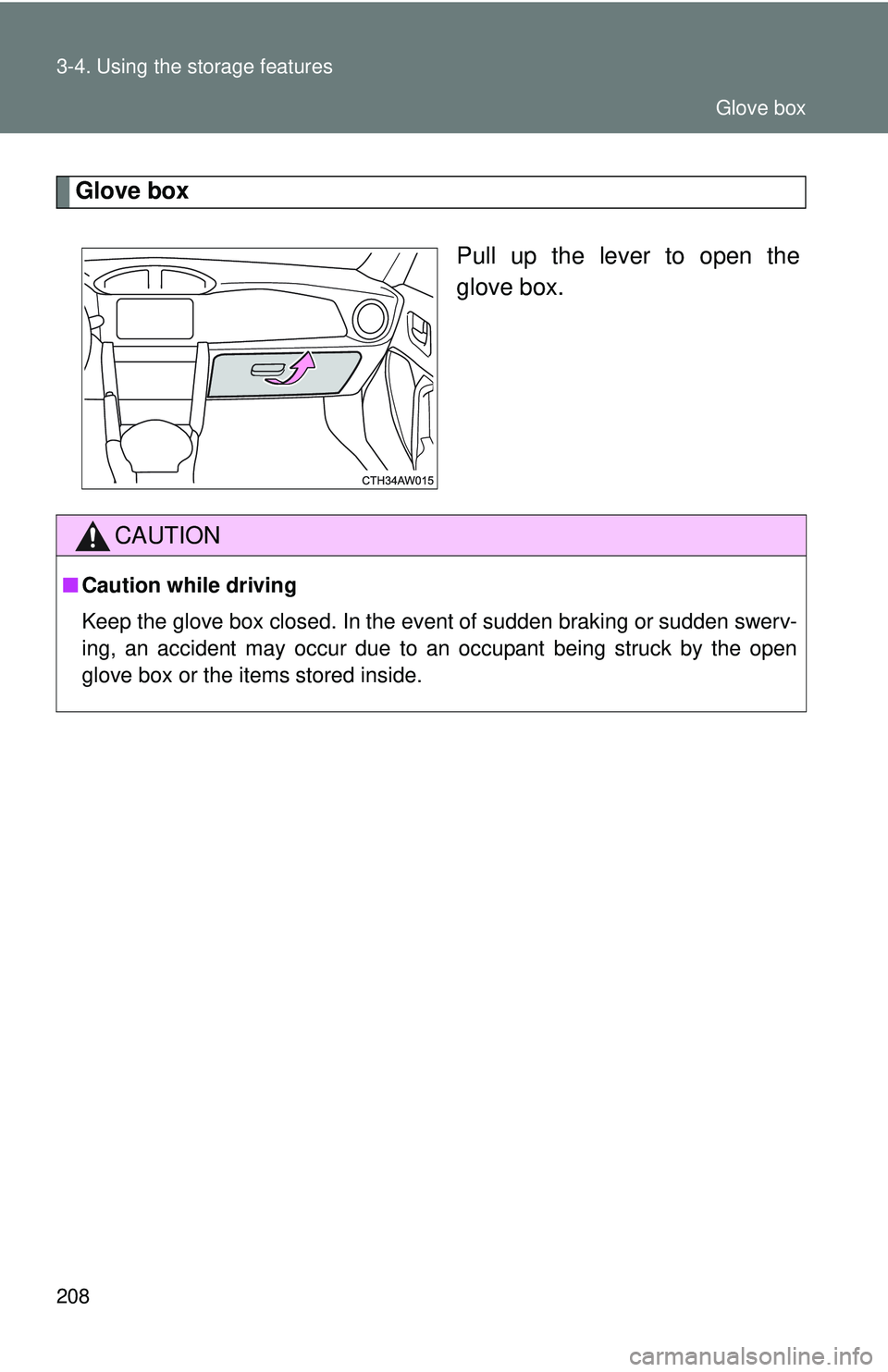

208 3-4. Using the storage features
Glove boxPull up the lever to open the
glove box.
CAUTION
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box
