Page 241 of 420

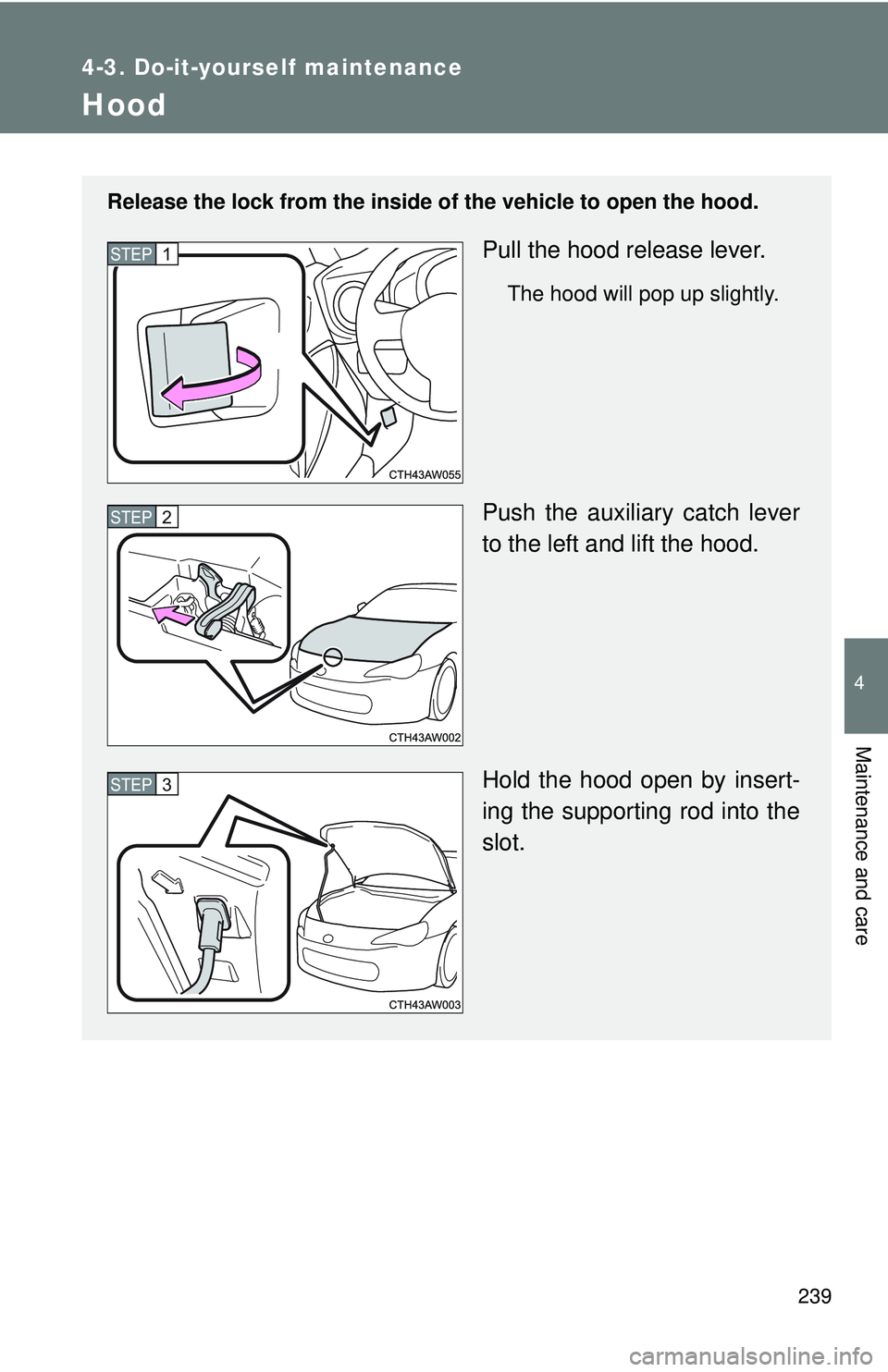

TOYOTA FR-S 2016  Owners Manual (in English) 239
4-3. Do-it-yourself maintenance
4
Maintenance and care
Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Push the a

Page 242 of 420

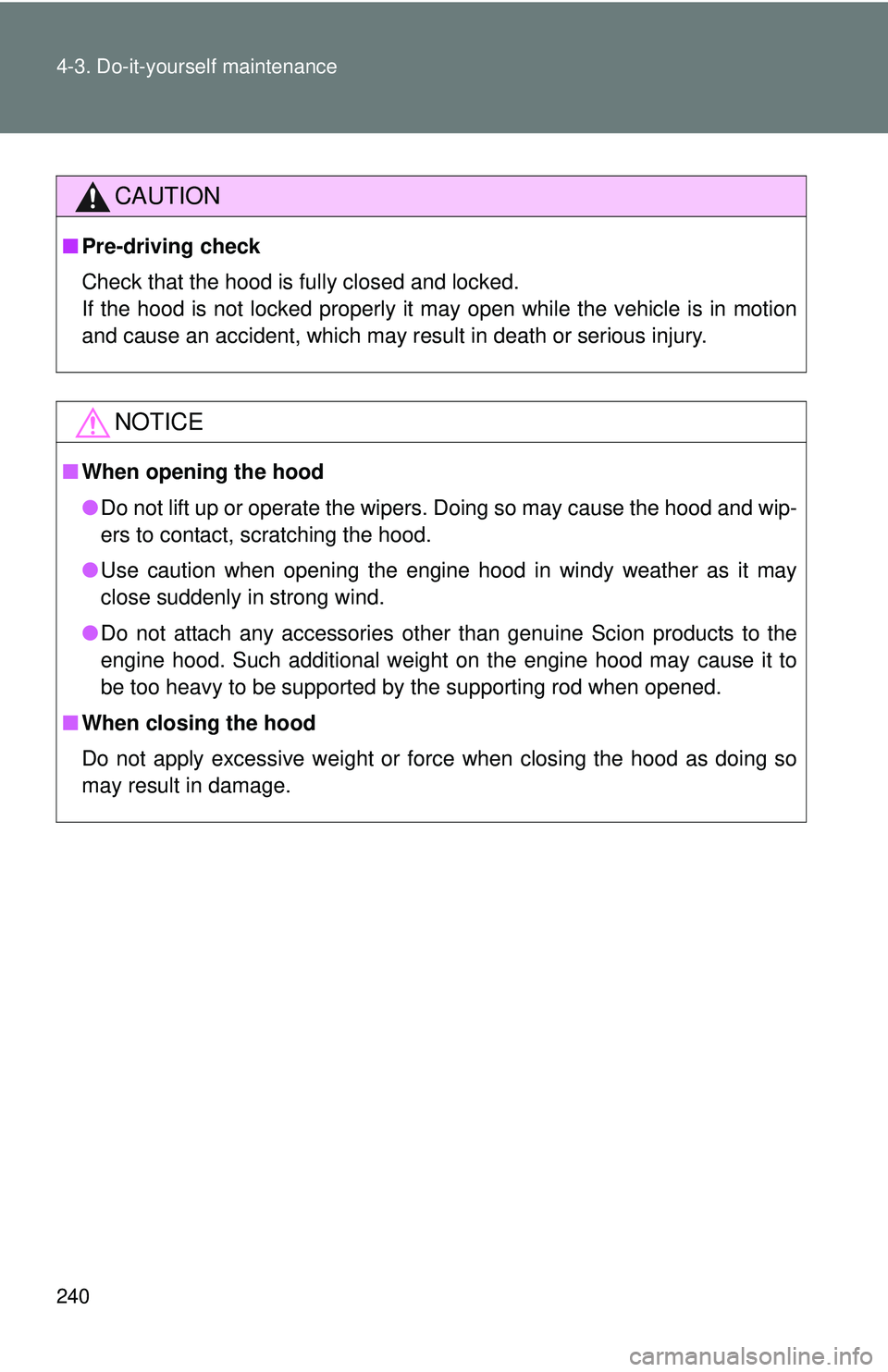

TOYOTA FR-S 2016  Owners Manual (in English) 240 4-3. Do-it-yourself maintenance
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion
and caus

Page 243 of 420

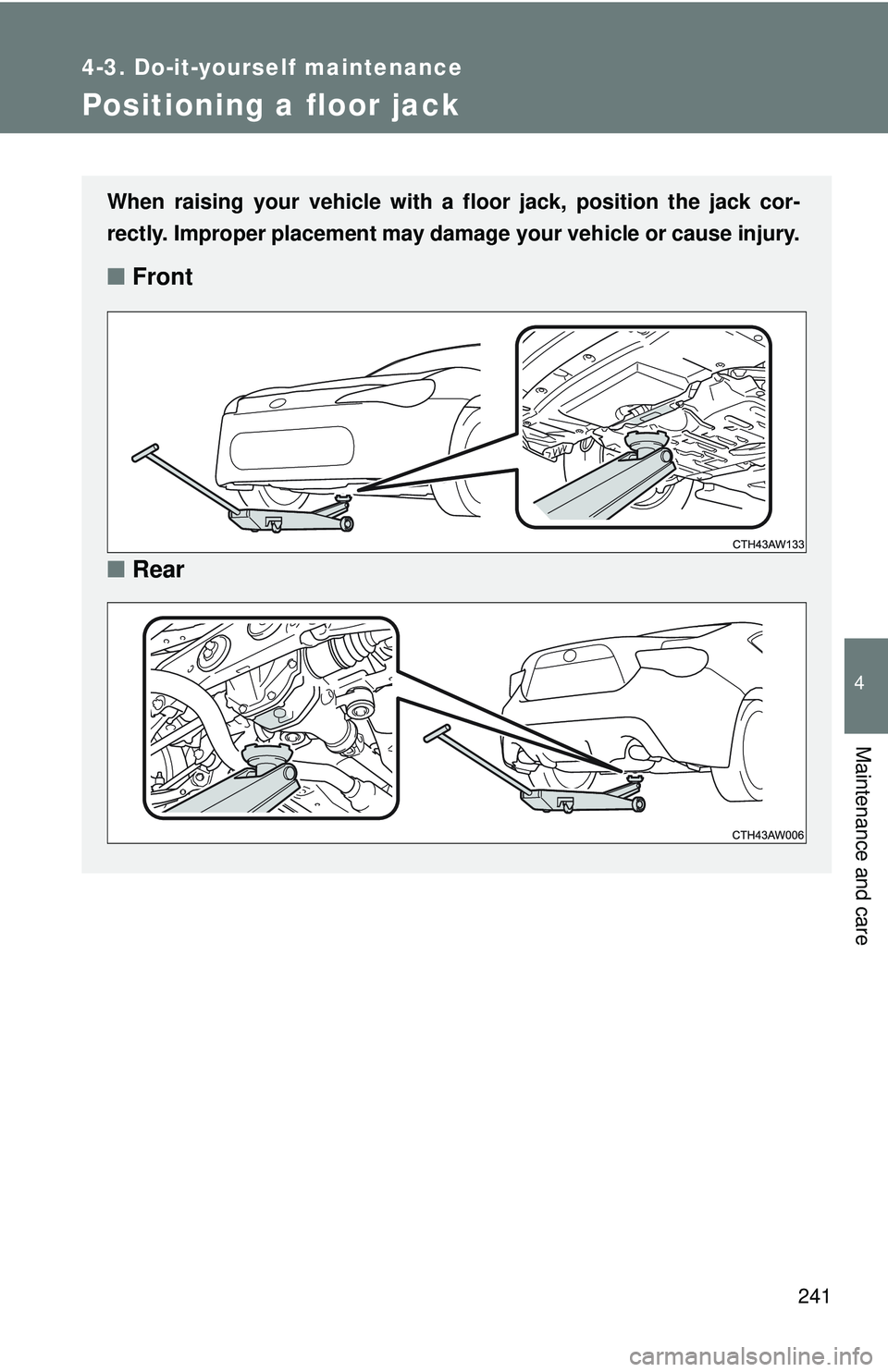

TOYOTA FR-S 2016  Owners Manual (in English) 241
4-3. Do-it-yourself maintenance
4
Maintenance and care
Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehic

Page 244 of 420

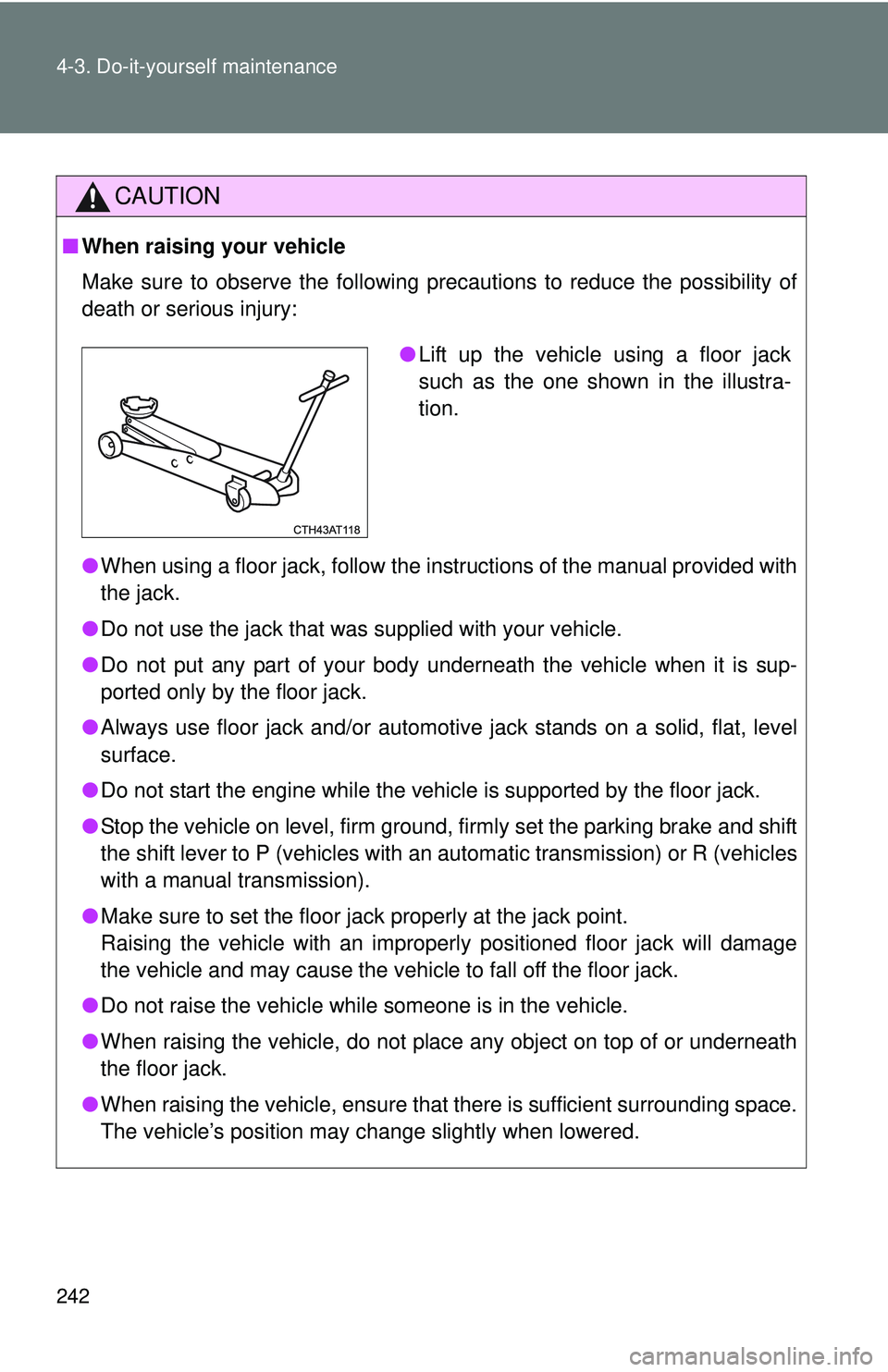

TOYOTA FR-S 2016  Owners Manual (in English) 242 4-3. Do-it-yourself maintenance
CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
●When using a floor jack

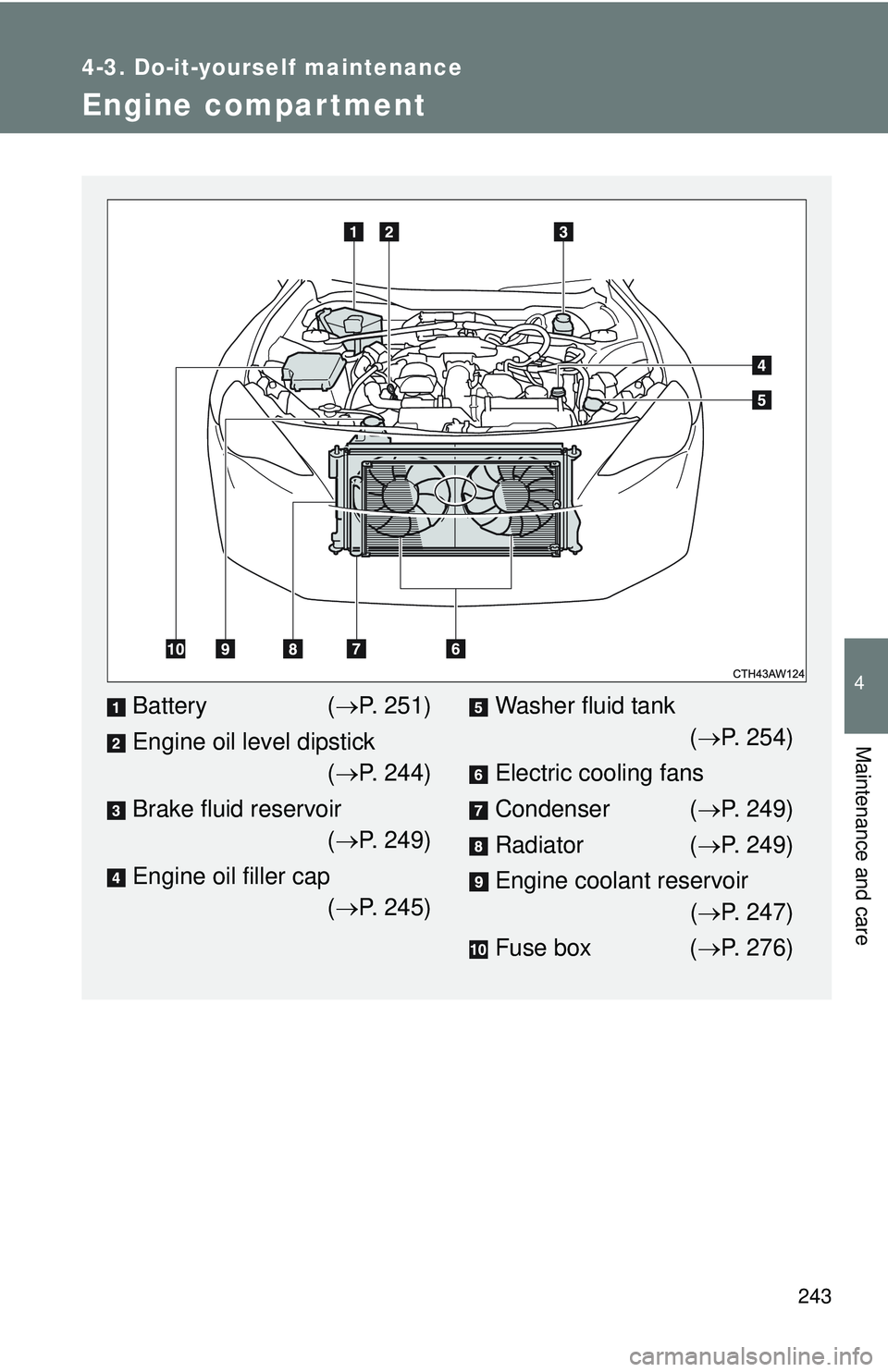

Page 245 of 420

TOYOTA FR-S 2016  Owners Manual (in English) 243
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compar tment
Battery( P. 251)
Engine oil level dipstick ( P. 244)
Brake fluid reservoir ( P. 249)
Engine oil filler cap (

Page 246 of 420

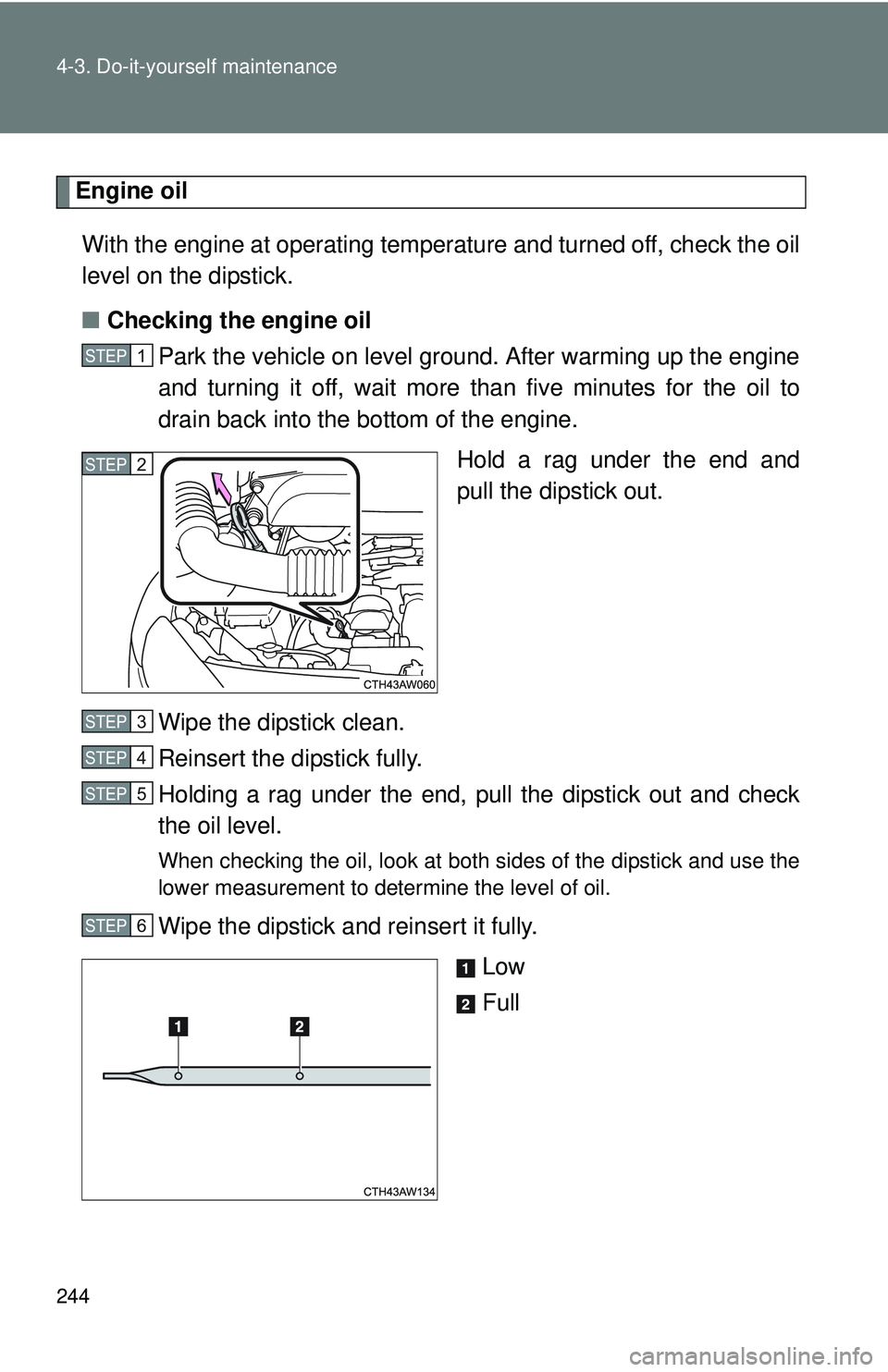

TOYOTA FR-S 2016  Owners Manual (in English) 244 4-3. Do-it-yourself maintenance
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground

Page 247 of 420

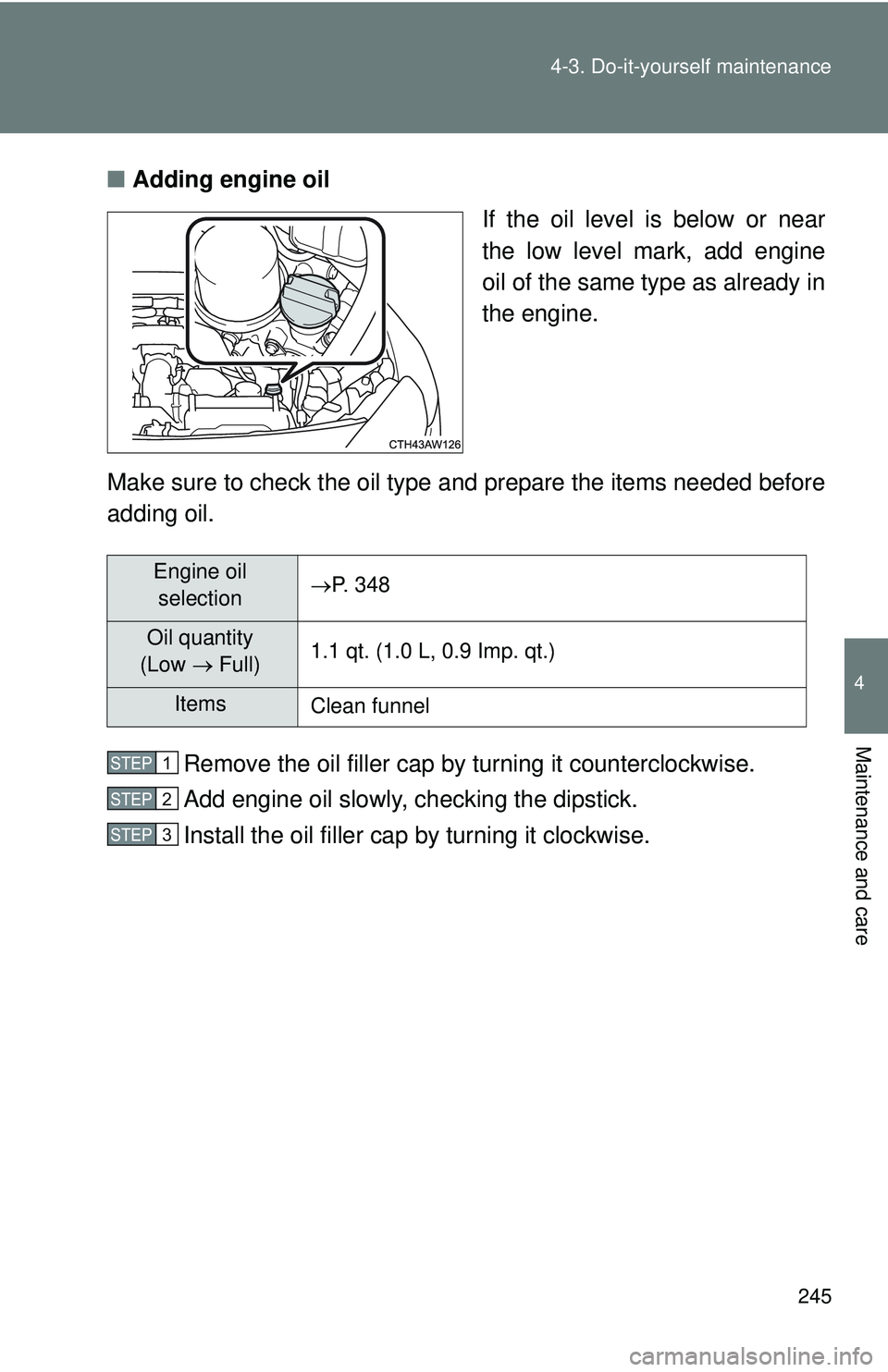

TOYOTA FR-S 2016  Owners Manual (in English) 245
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make su

Page 248 of 420

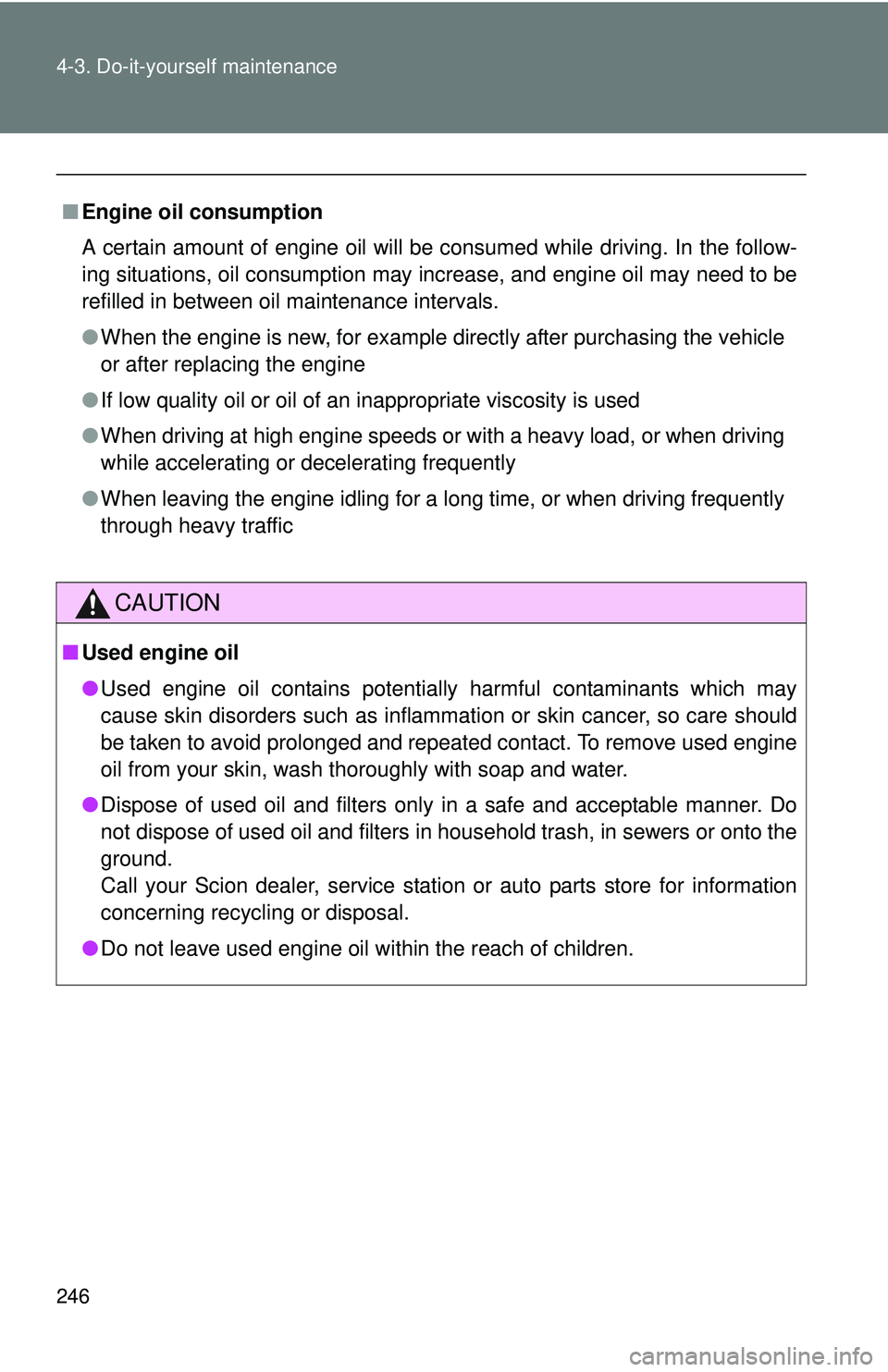

TOYOTA FR-S 2016  Owners Manual (in English) 246 4-3. Do-it-yourself maintenance
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil

Page 249 of 420

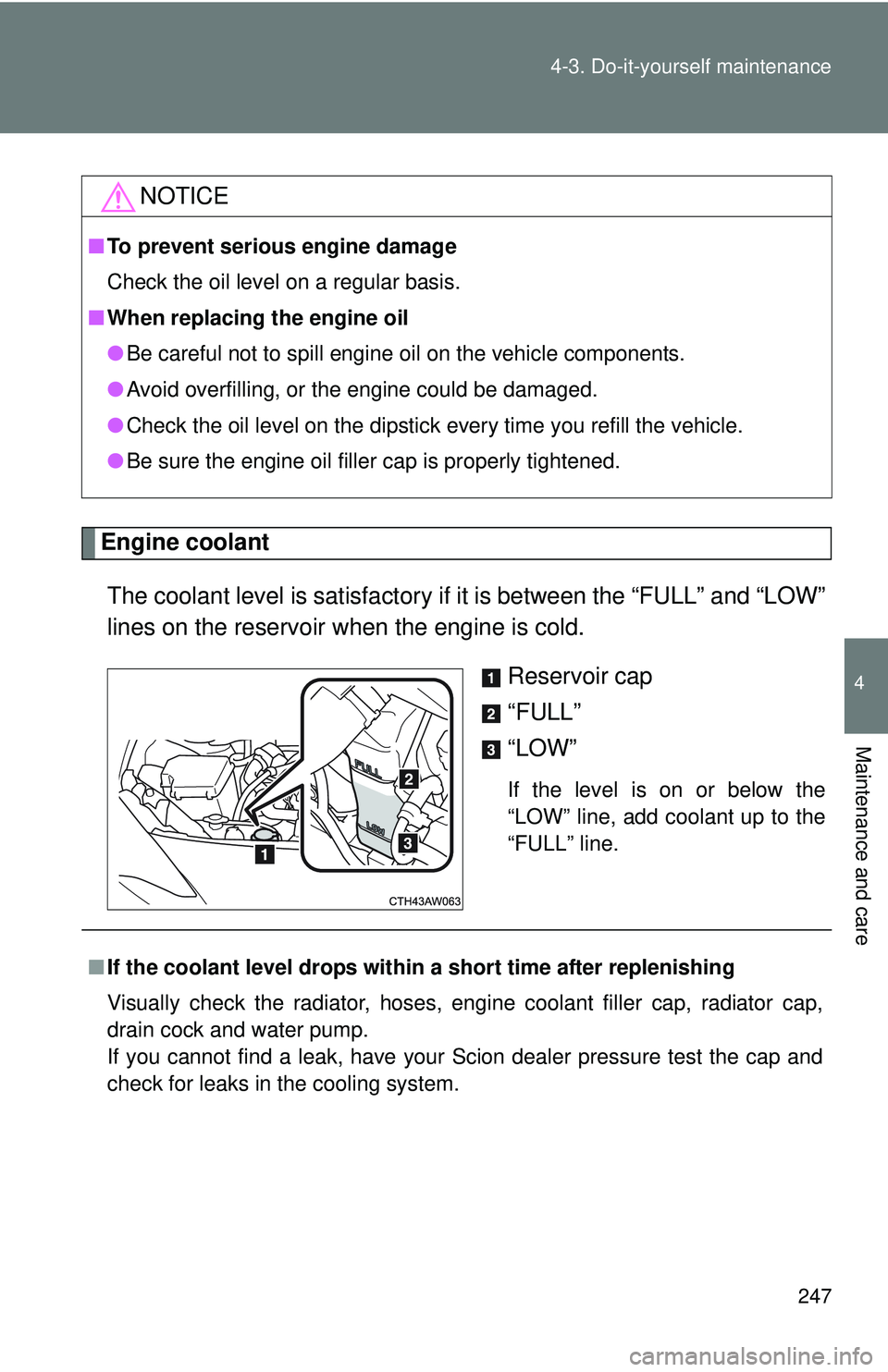

TOYOTA FR-S 2016  Owners Manual (in English) 247
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine coolant
The coolant level is satisfactory if  it is between the “FULL” and “LOW”
lines on the reservoir when the engine is col

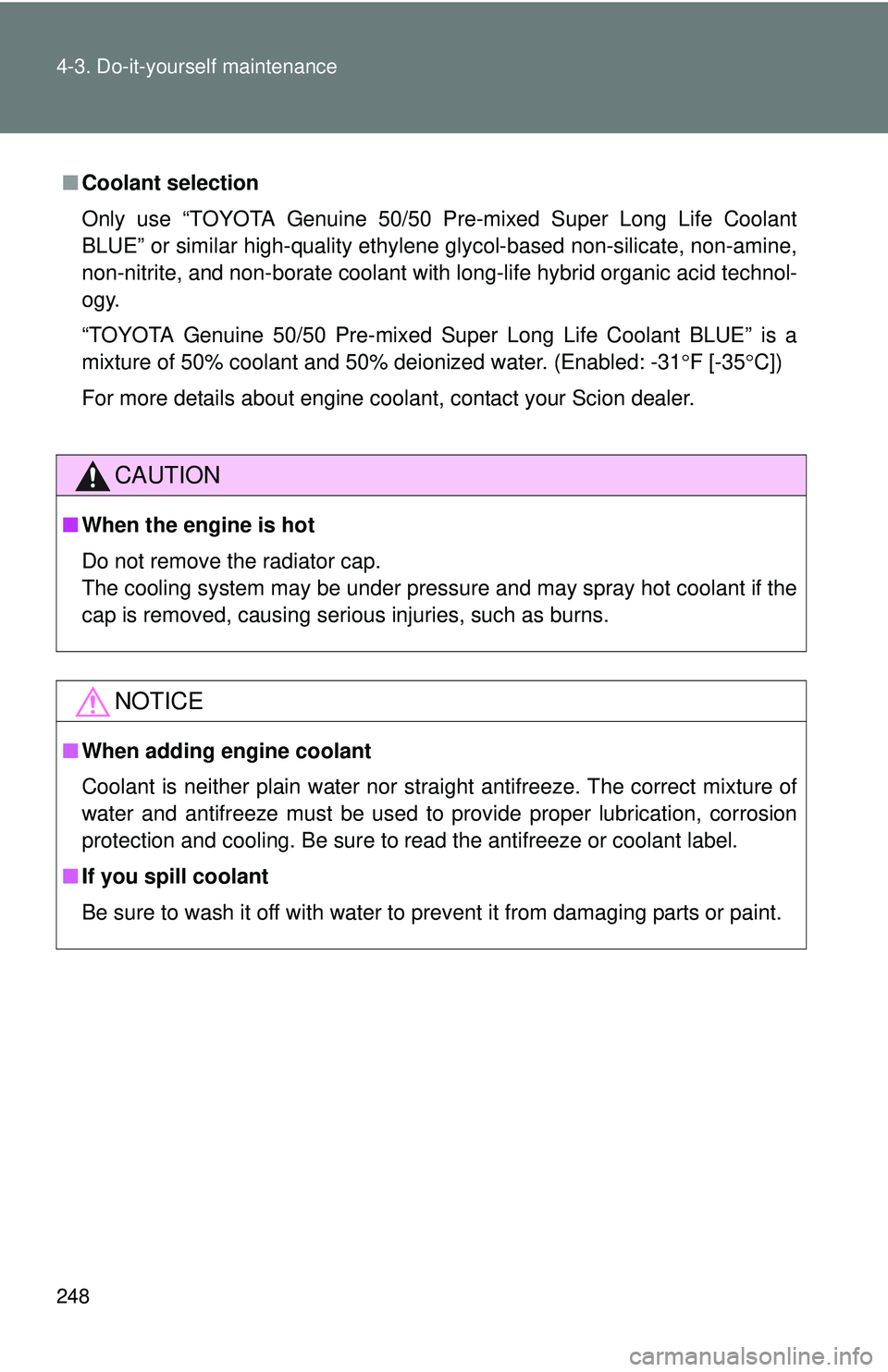

Page 250 of 420

TOYOTA FR-S 2016  Owners Manual (in English) 248 4-3. Do-it-yourself maintenance
■Coolant selection
Only use “TOYOTA Genuine 50/50 Pre-mixed Super Long Life Coolant
BLUE” or similar high-quality ethylene glycol-based non-silicate, non-amin
