4-3. Do-it-yourself maintenance
4
Maintenance and care

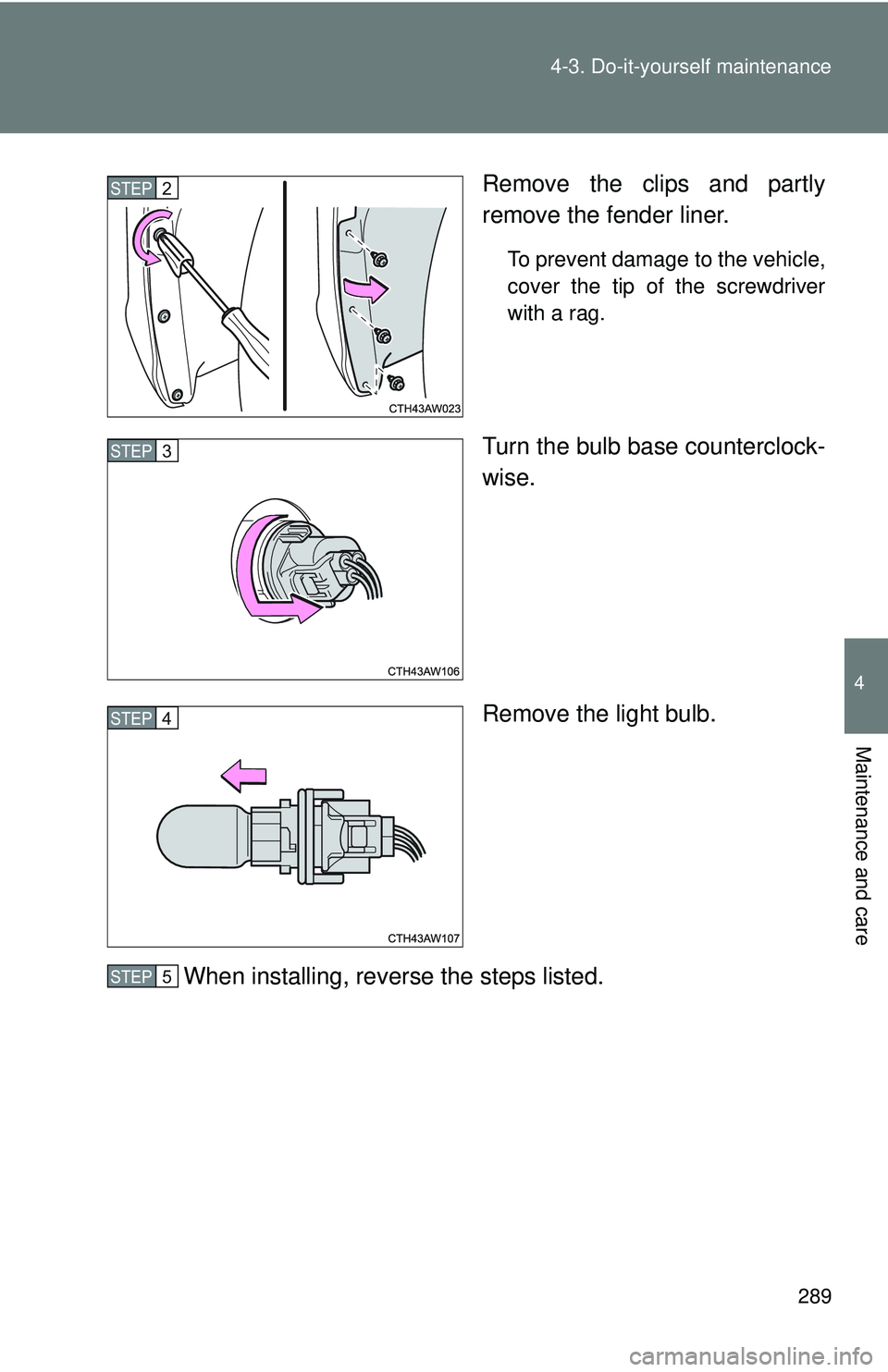

Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 2
STEP 3
STEP 4
STEP 5

290 4-3. Do-it-yourself maintenance

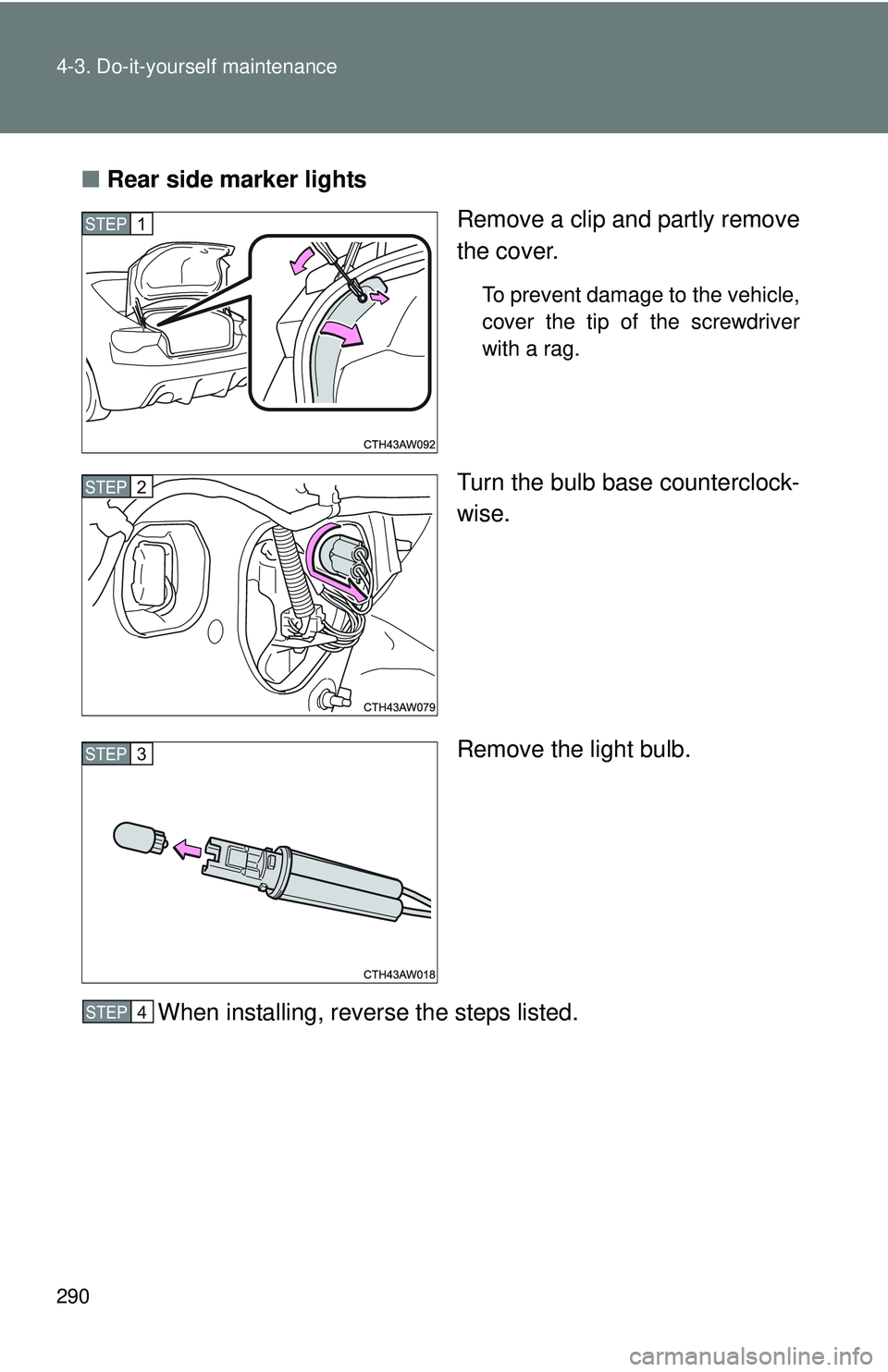

■Rear side marker lights
Remove a clip and partly remove
the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

291
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

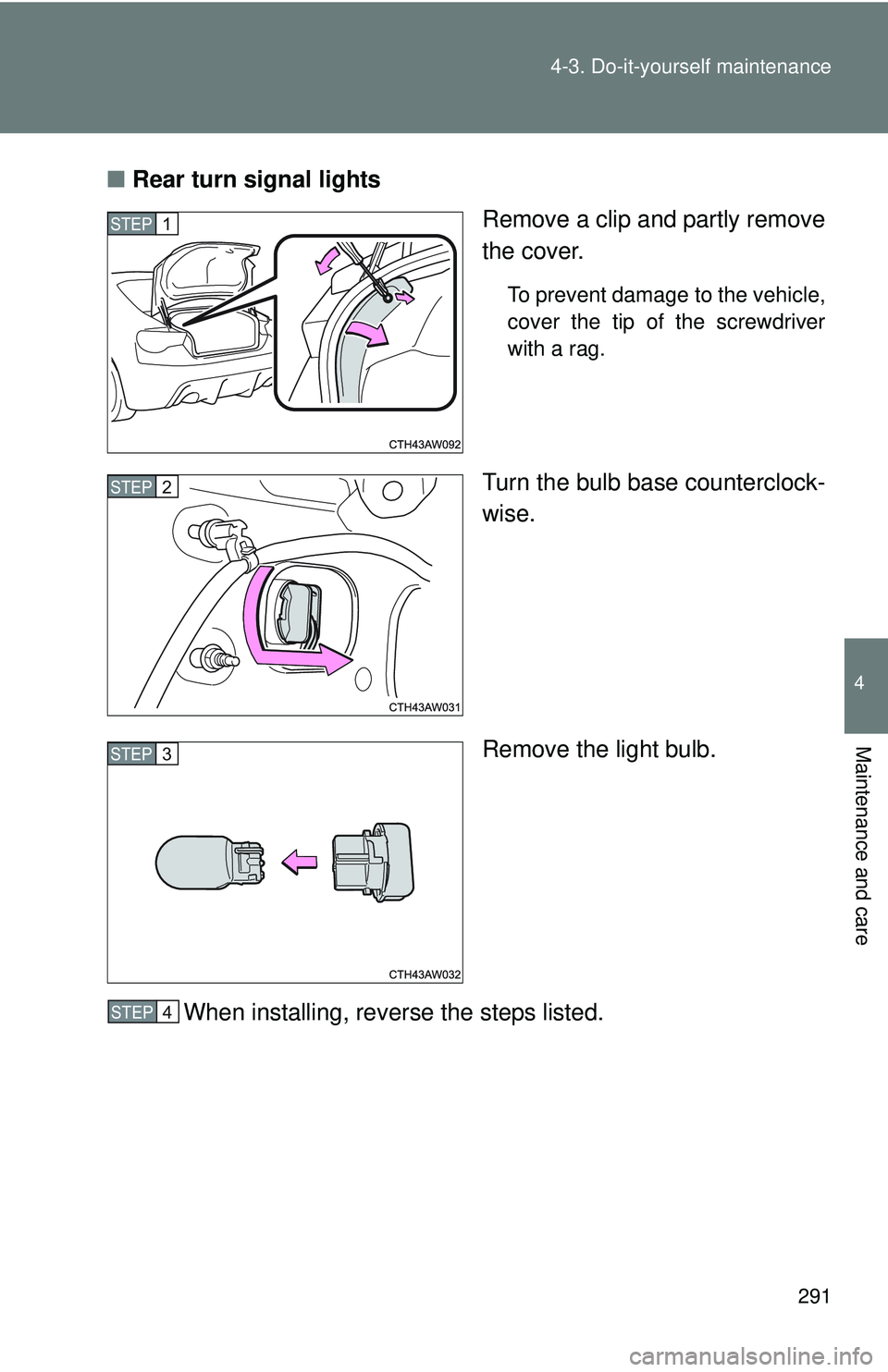

Rear turn signal lights
Remove a clip and partly remove
the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

292 4-3. Do-it-yourself maintenance

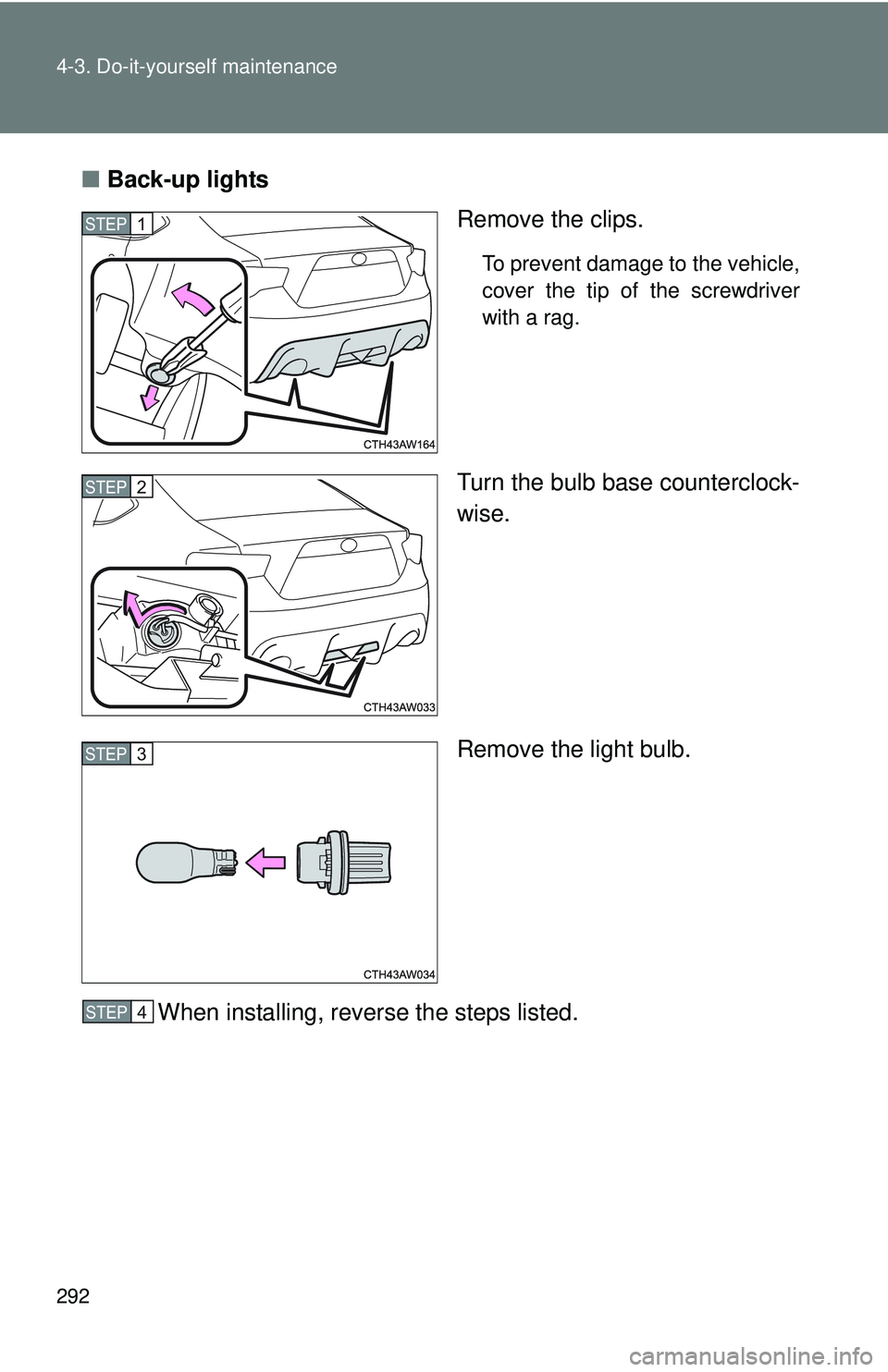

■Back-up lights
Remove the clips.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

293
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

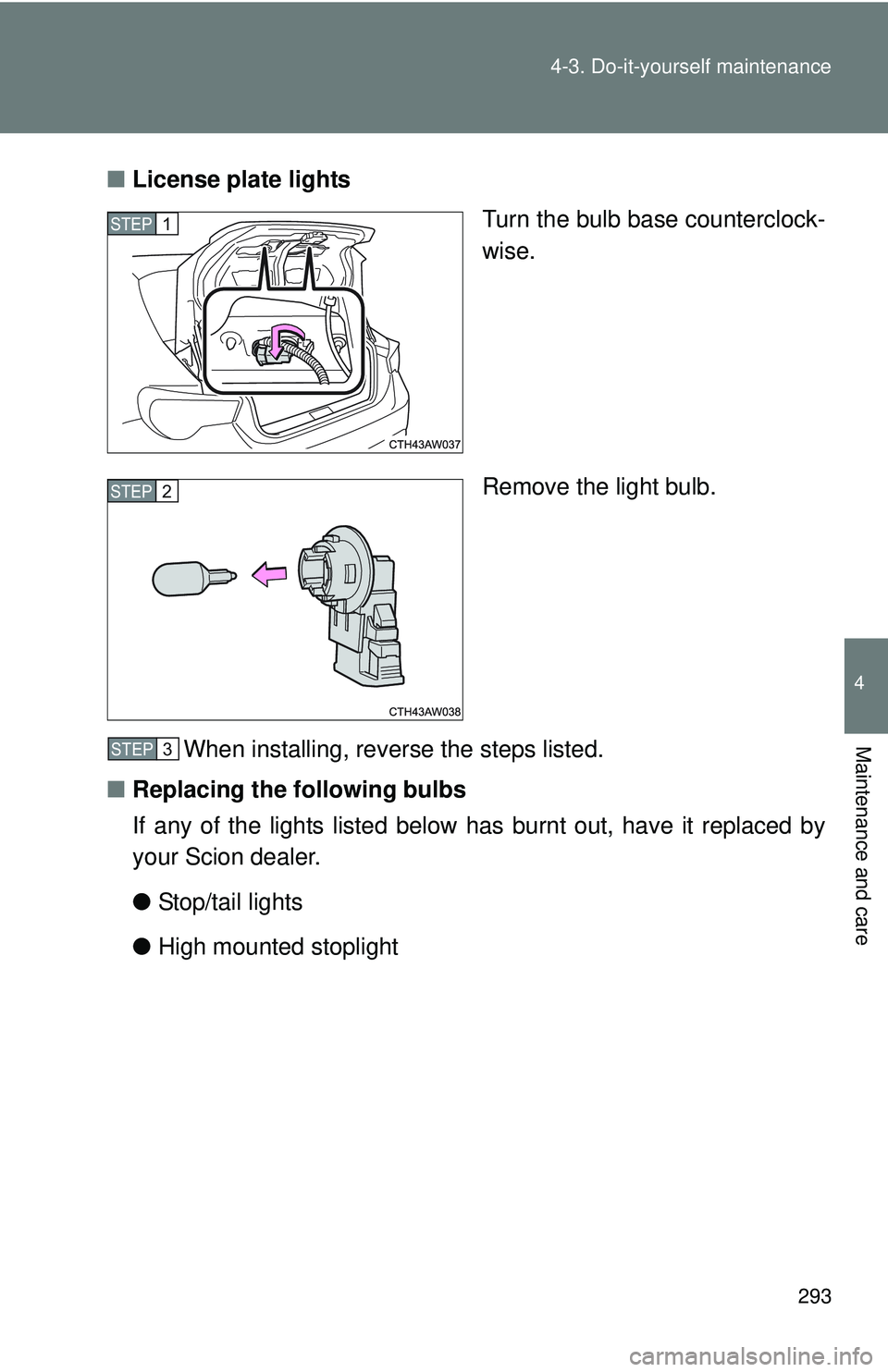

License plate lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
■ Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Scion dealer.
● Stop/tail lights
● High mounted stoplight
STEP 1
STEP 2
STEP 3

294 4-3. Do-it-yourself maintenance

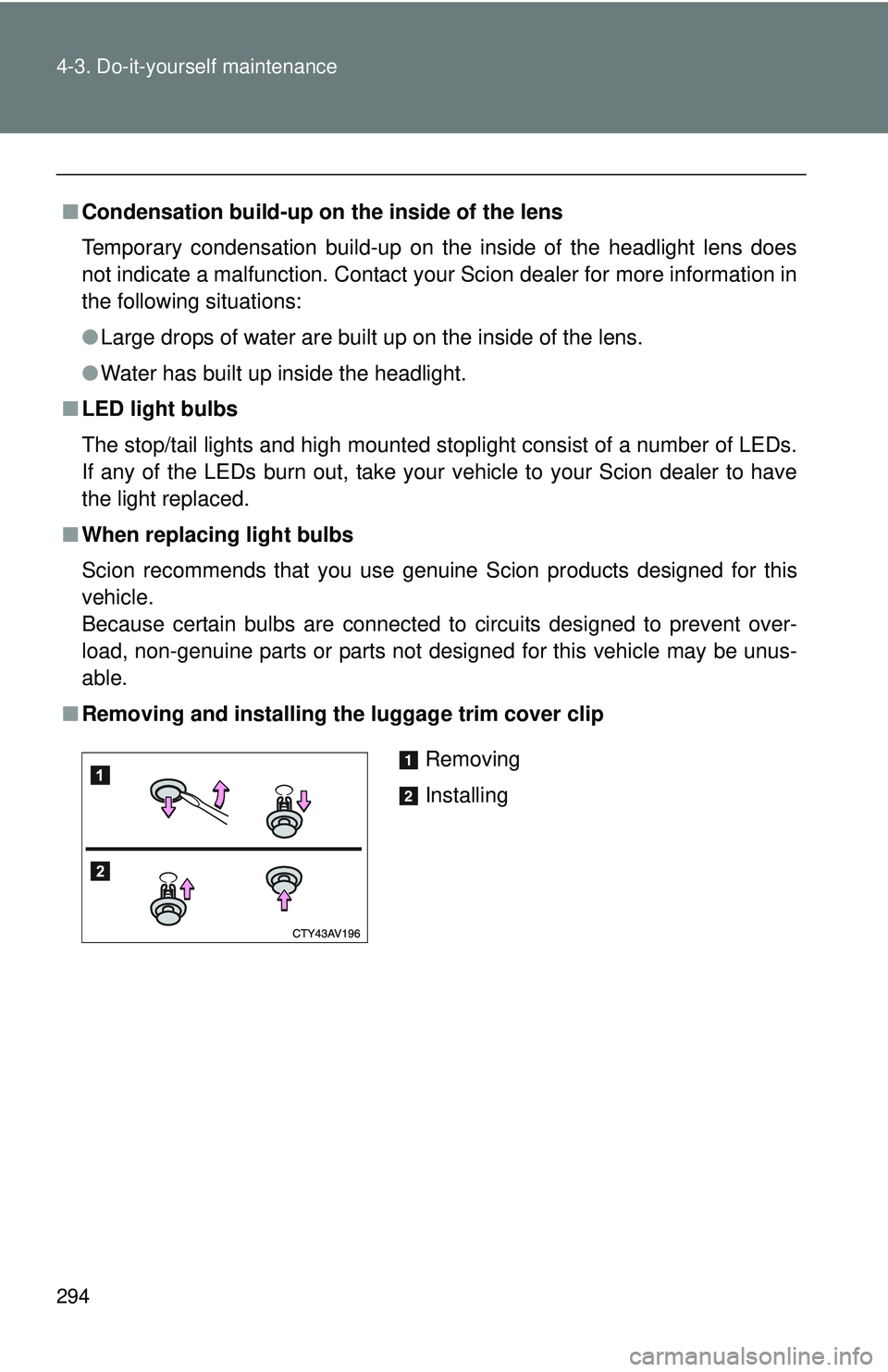

■Condensation build-up on th e inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Scion dealer for more information in
the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The stop/tail lights and high mounted stoplight consist of a number of LEDs.
If any of the LEDs burn out, take your vehicle to your Scion dealer to have
the light replaced.
■ When replacing light bulbs
Scion recommends that you use genuine Scion products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
■ Removing and installing the luggage trim cover clip
Removing
Installing

295
4-3. Do-it-yourself maintenance
4
Maintenance and care

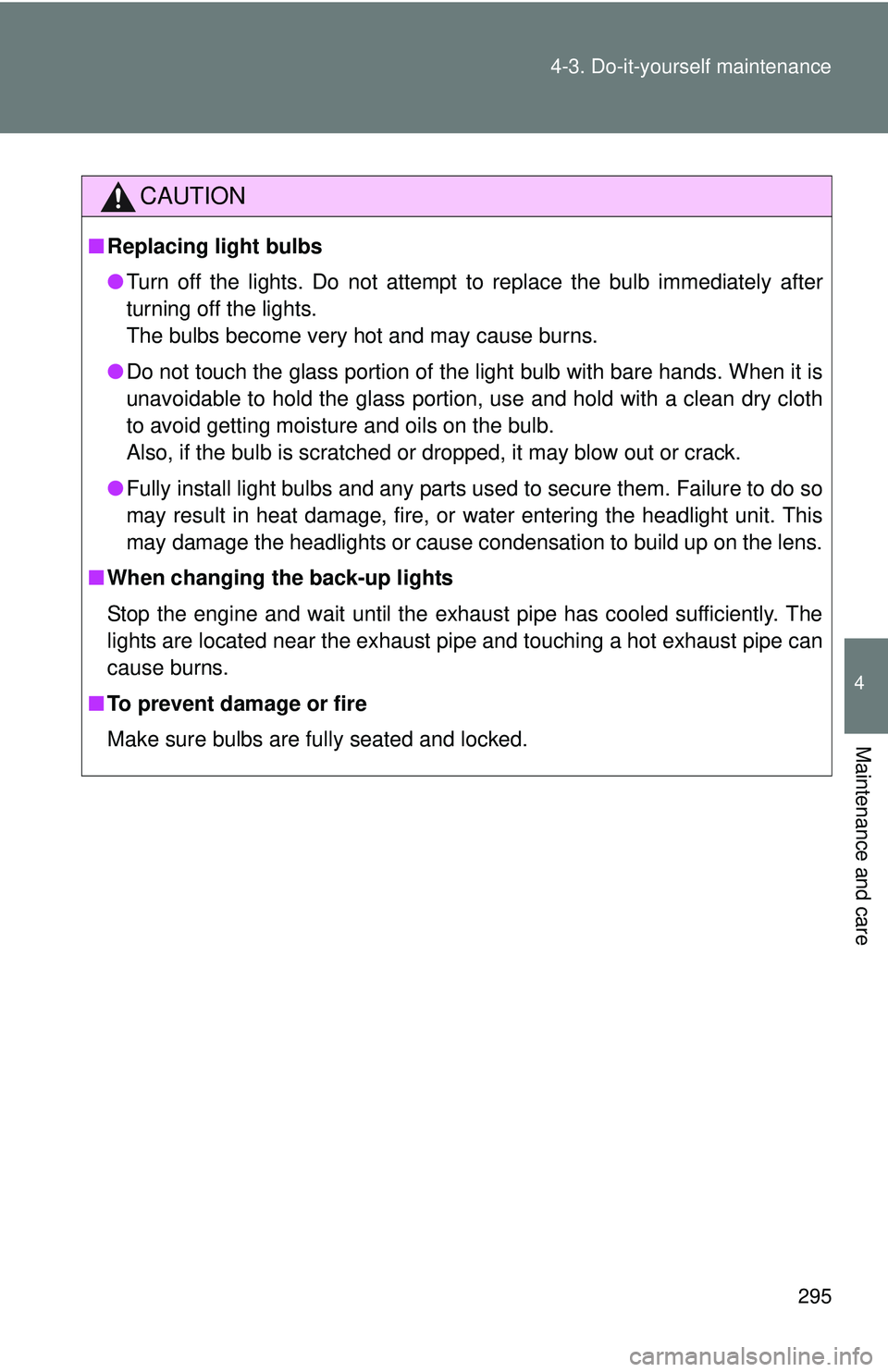

CAUTION
■
Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When i\
t is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ When changing the back-up lights
Stop the engine and wait until the exhaust pipe has cooled sufficiently. The
lights are located near the exhaust pipe and touching a hot exhaust pipe can
cause burns.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

296 4-3. Do-it-yourself maintenance

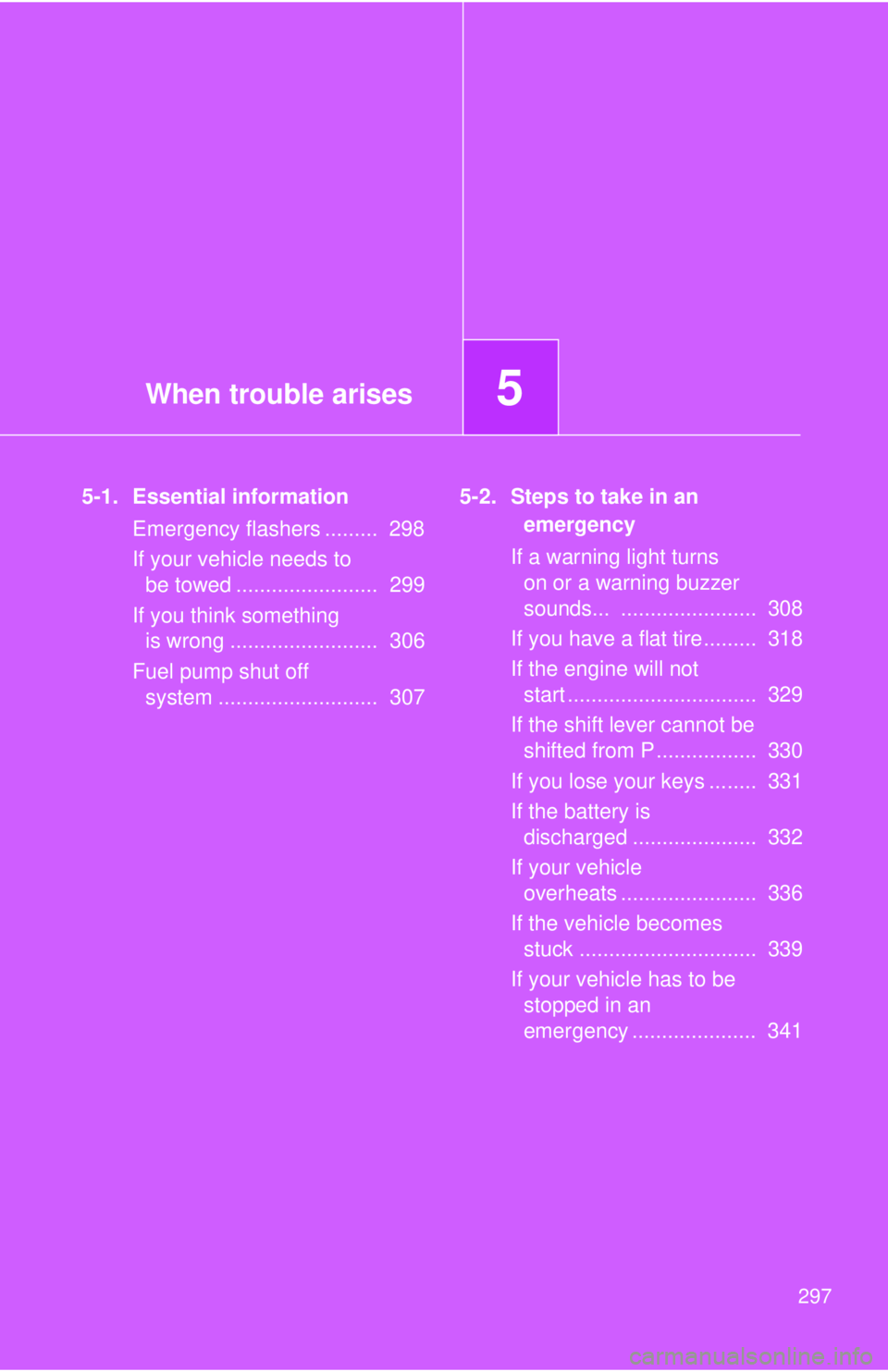

When trouble arises5
297
5-1. Essential informationEmergency flashers ......... 298
If your vehicle needs to be towed ........................ 299
If you think something is wrong ......................... 306
Fuel pump shut off system ........................... 307 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 308
If you have a flat tire......... 318
If the engine will not start ................................ 329
If the shift lever cannot be shifted from P................. 330
If you lose your keys ........ 331
If the battery is discharged ..................... 332
If your vehicle overheats ....................... 336
If the vehicle becomes stuck .............................. 339
If your vehicle has to be stopped in an
emergency ..................... 341

298
5-1. Essential information

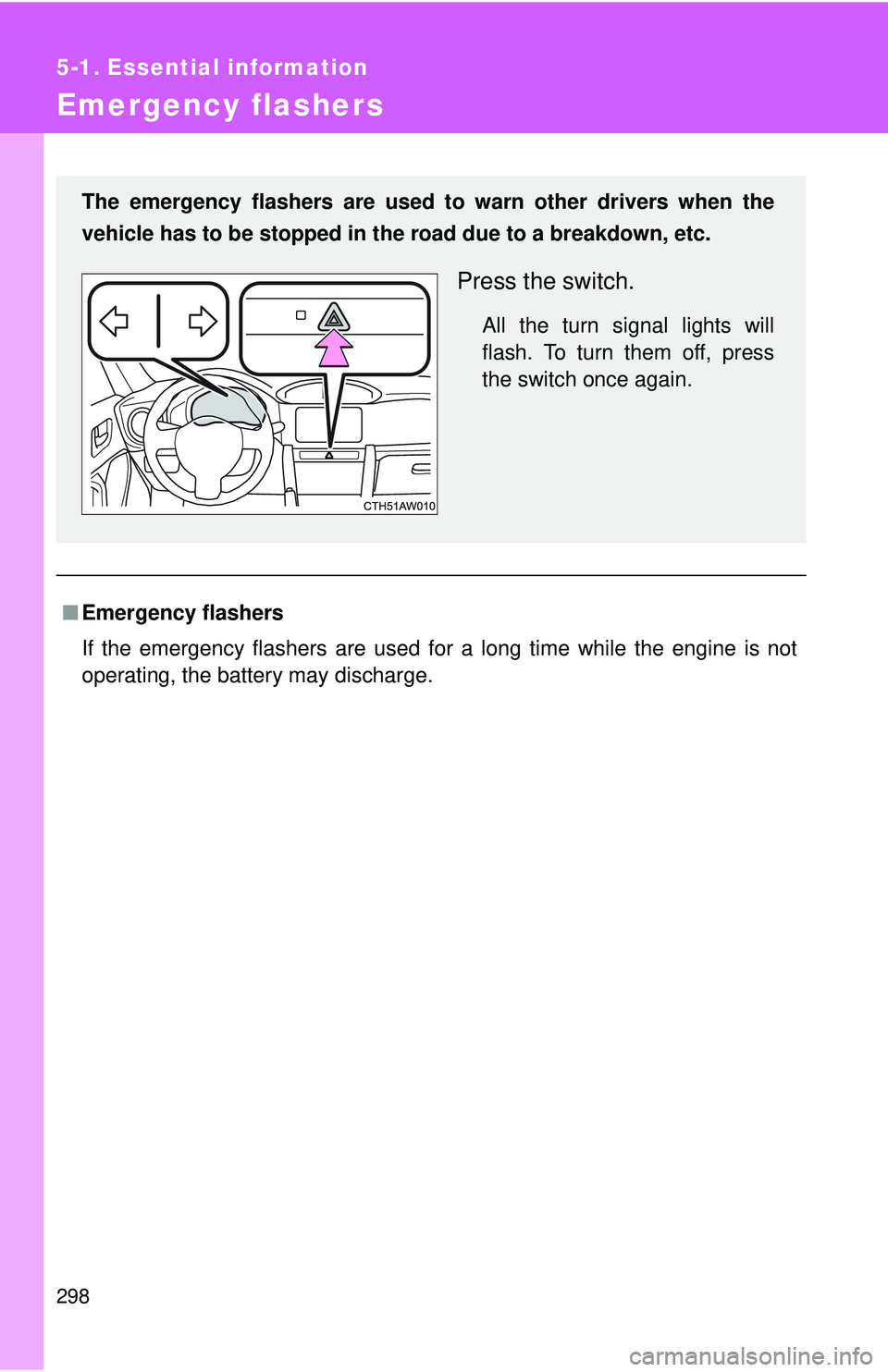

Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.
