3316-1. REFERENCE
6
REFERENCE
Observe further information on fuel quality, refer to page 293.

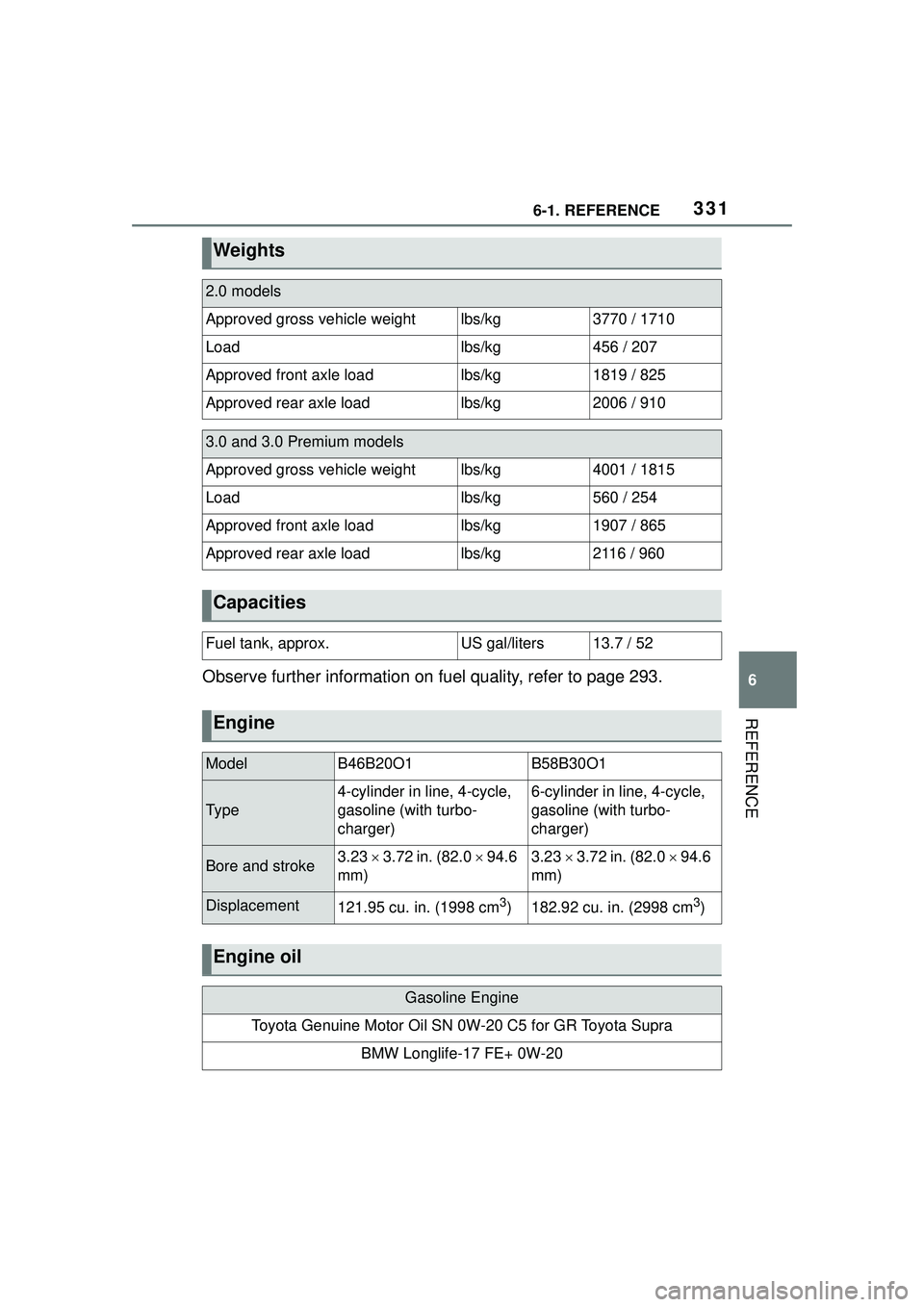

Weights
2.0 models
Approved gross vehicle weightlbs/kg3770 / 1710
Loadlbs/kg456 / 207
Approved front axle loadlbs/kg1819 / 825
Approved rear axle loadlbs/kg2006 / 910
3.0 and 3.0 Premium models
Approved gross vehicle weightlbs/kg4001 / 1815
Loadlbs/kg560 / 254
Approved front axle loadlbs/kg1907 / 865
Approved rear axle loadlbs/kg2116 / 960
Capacities
Fuel tank, approx.US gal/liters13.7 / 52
Engine
ModelB46B20O1B58B30O1
Ty p e
4-cylinder in line, 4-cycle,
gasoline (with turbo-
charger)6-cylinder in line, 4-cycle,
gasoline (with turbo-
charger)
Bore and stroke3.23  3.72 in. (82.0  94.6
mm)3.23  3.72 in. (82.0  94.6
mm)
Displacement121.95 cu. in. (1998 cm3)182.92 cu. in. (2998 cm3)
Engine oil
Gasoline Engine
Toyota Genuine Motor Oil SN 0W -20 C5 for GR Toyota Supra
BMW Longlife-17 FE+ 0W-20

3326-1. REFERENCE

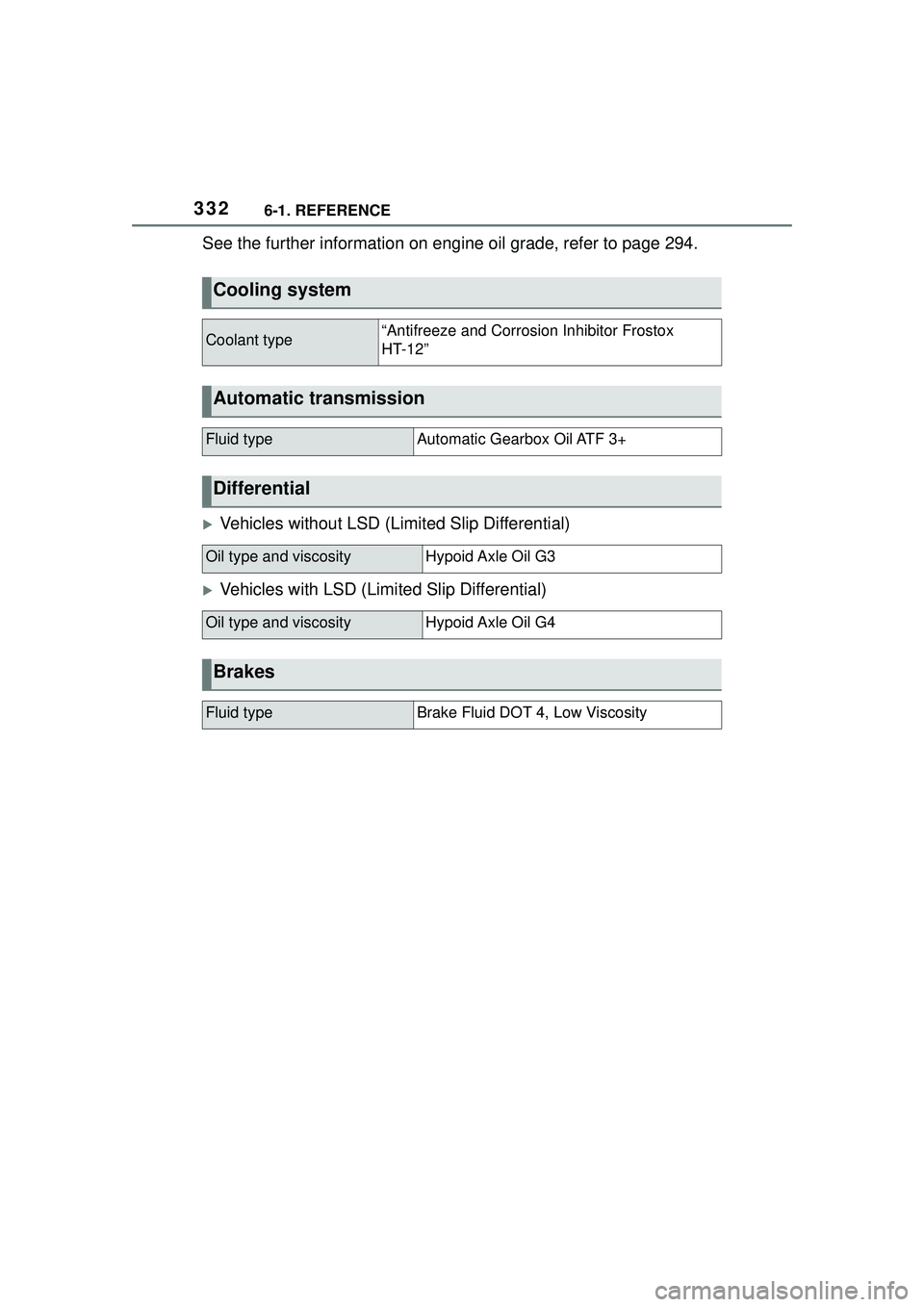

See the further information on engine oil grade, refer to page 294.
Vehicles without LSD (Limited Slip Differential)
Vehicles with LSD (Limited Slip Differential)
Cooling system
Coolant type“Antifreeze and Corrosion Inhibitor Frostox
HT-12”
Automatic transmission
Fluid typeAutomatic Gearbox Oil ATF 3+
Differential
Oil type and viscosityHypoid Axle Oil G3
Oil type and viscosityHypoid Axle Oil G4
Brakes
Fluid typeBrake Fluid DOT 4, Low Viscosity

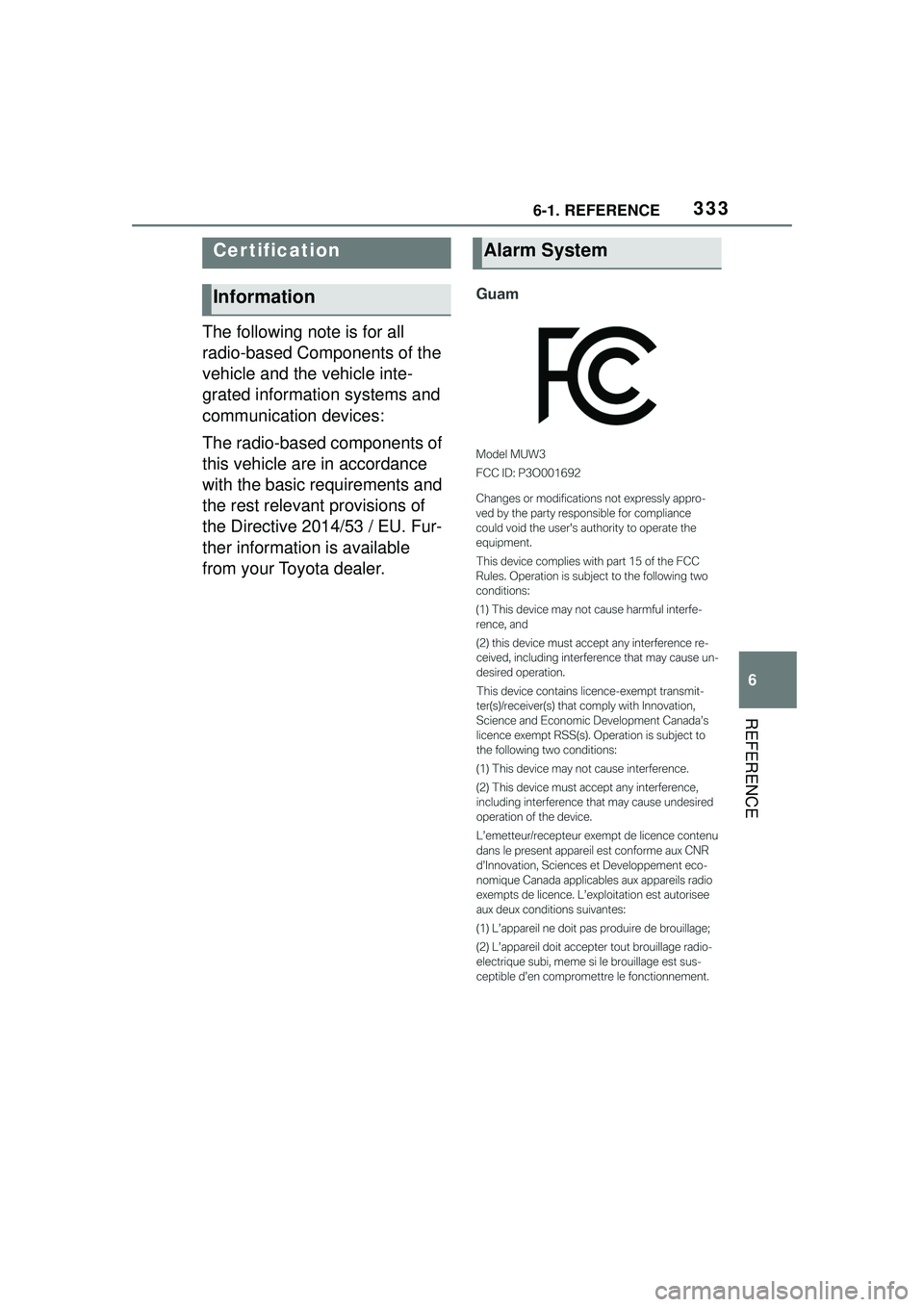

3336-1. REFERENCE
6
REFERENCE
The following note is for all
radio-based Components of the
vehicle and the vehicle inte-
grated information systems and
communication devices:
The radio-based components of
this vehicle are in accordance
with the basic requirements and
the rest relevant provisions of
the Directive 2014/53 / EU. Fur-
ther information is available
from your Toyota dealer.
Cer tification
Information
Alarm System

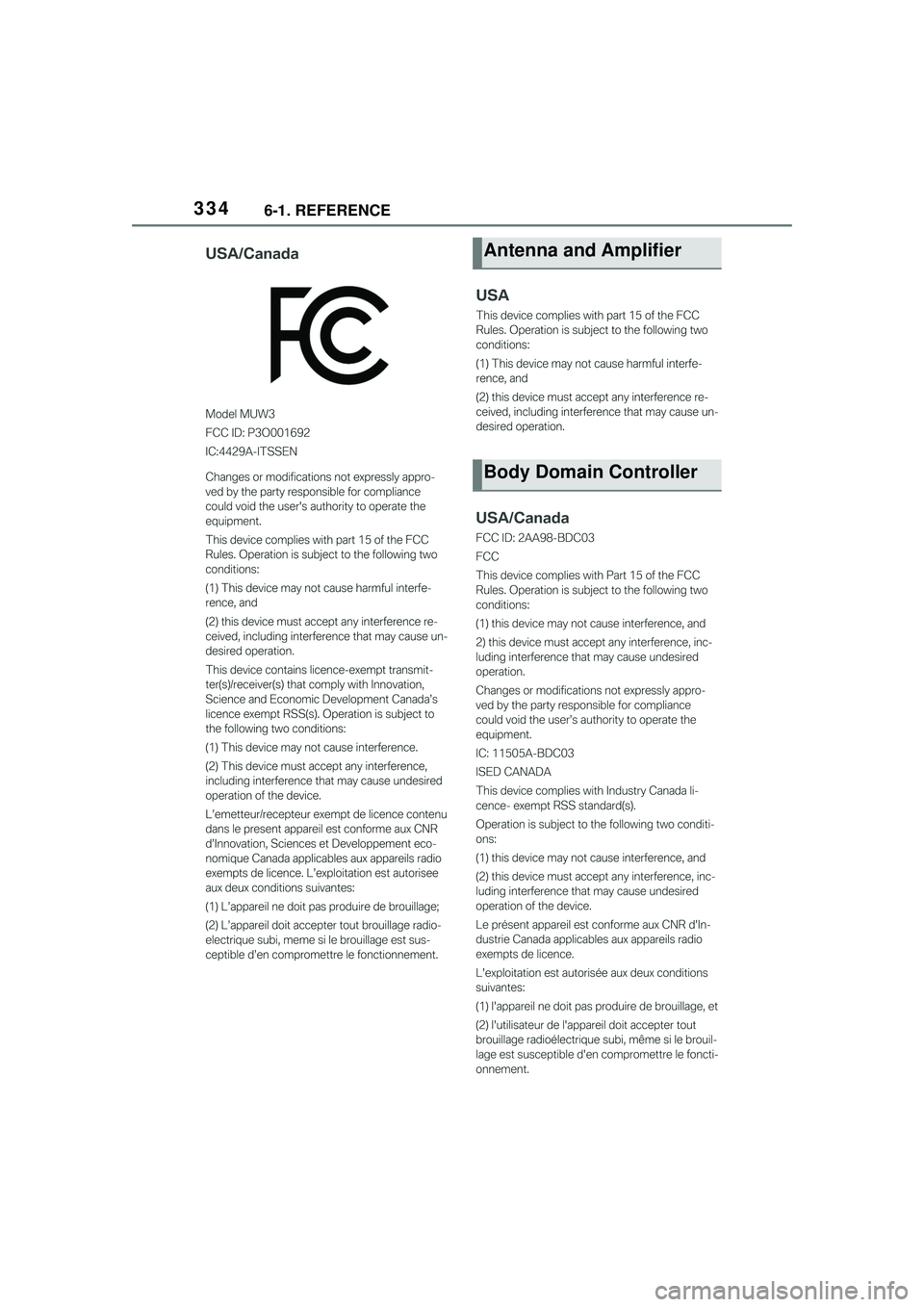

3346-1. REFERENCE
Antenna and Amplifier
Body Domain Controller

3356-1. REFERENCE
6
REFERENCE

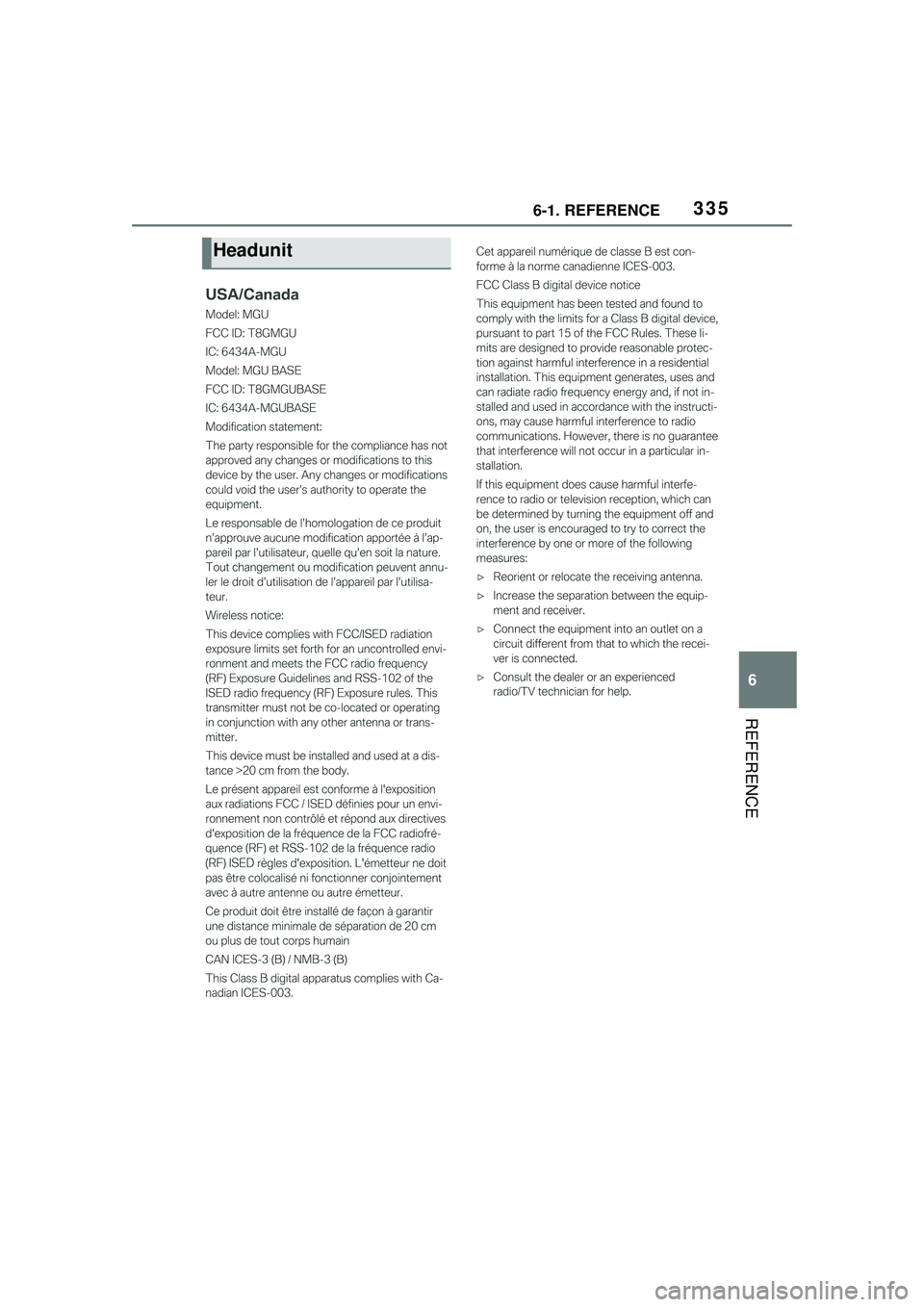

Headunit

3366-1. REFERENCE

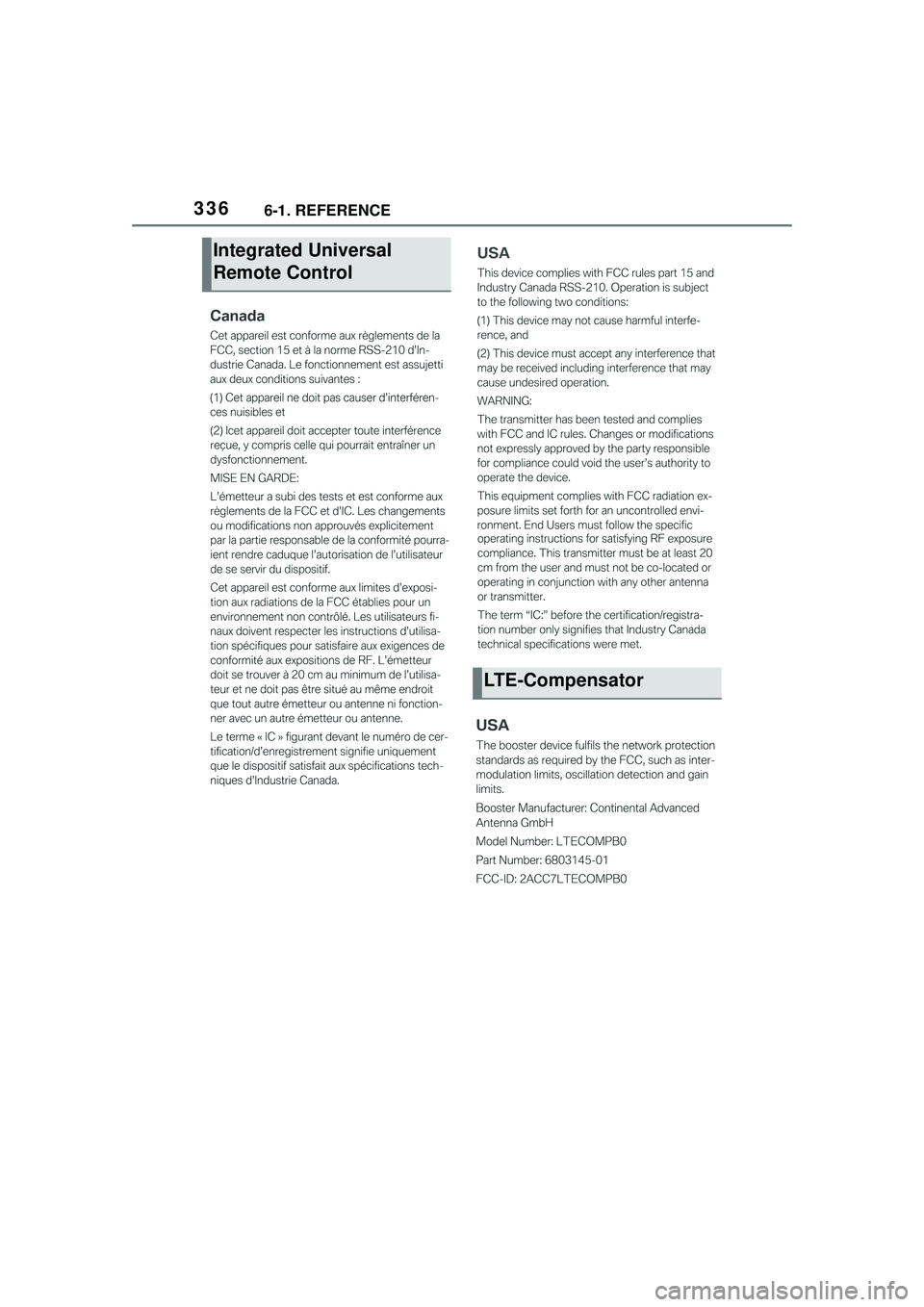

Integrated Universal
Remote Control
LTE-Compensator

3376-1. REFERENCE
6
REFERENCE

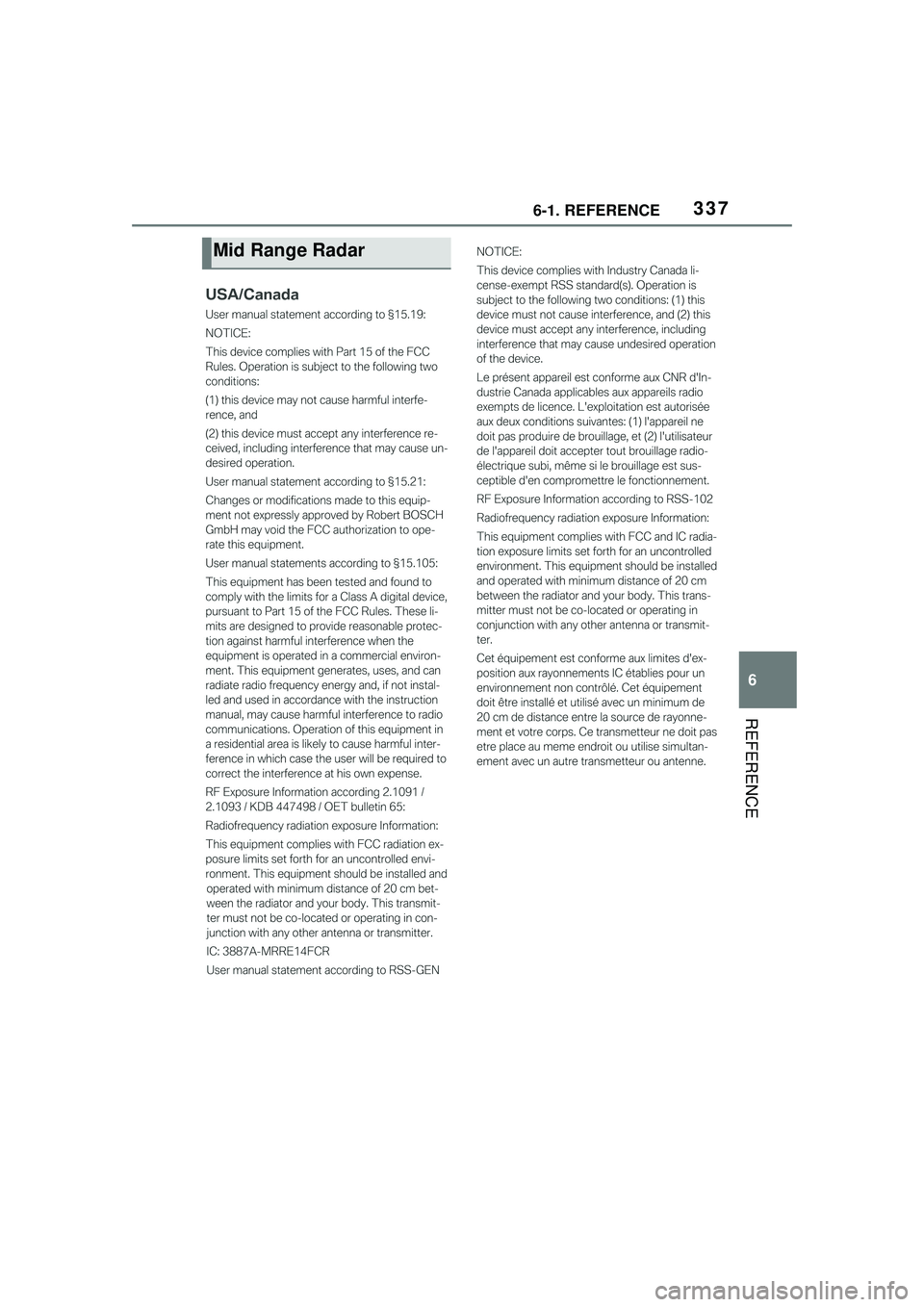

Mid Range Radar

3386-1. REFERENCE

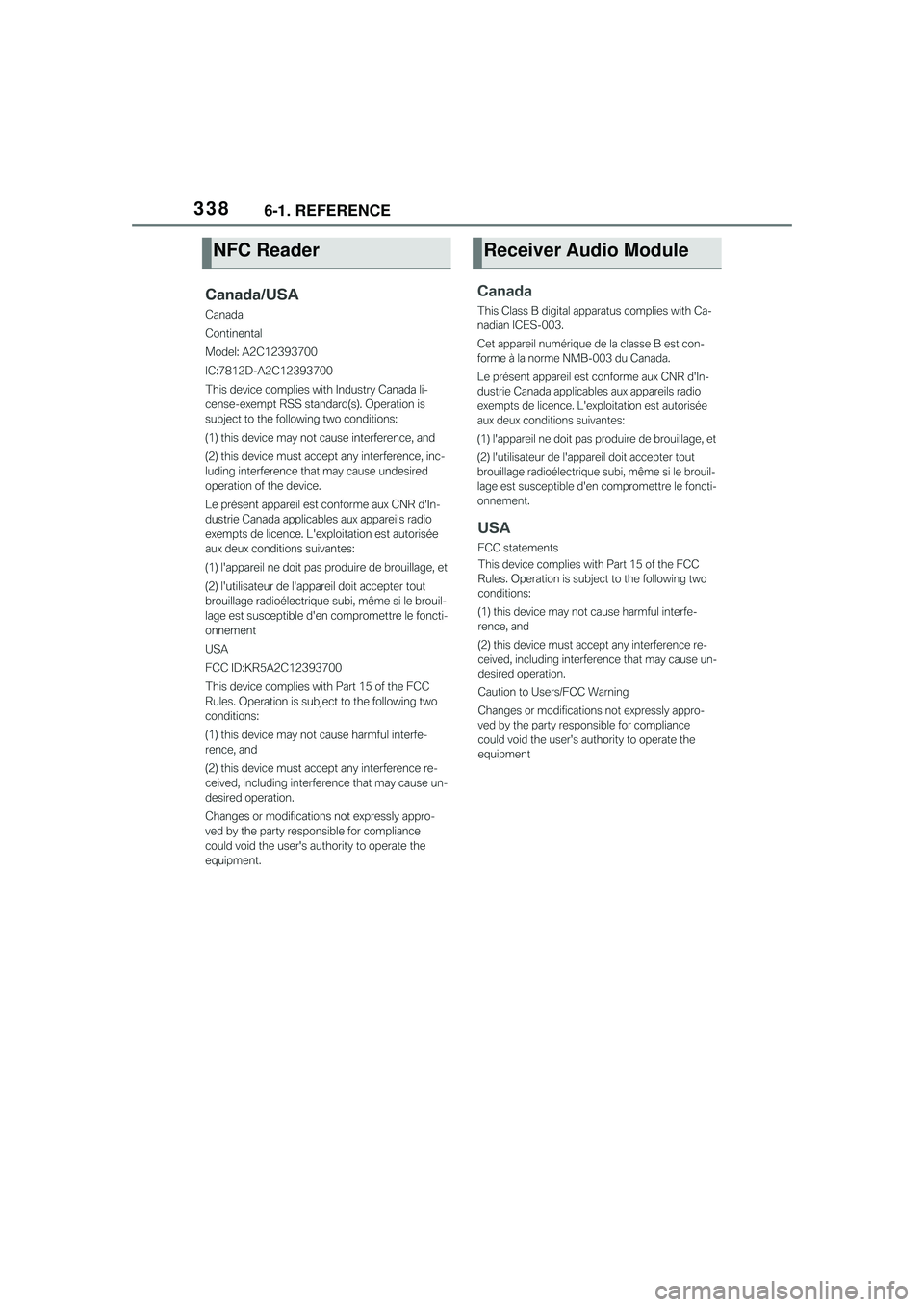

NFC ReaderReceiver Audio Module

3396-1. REFERENCE
6
REFERENCE

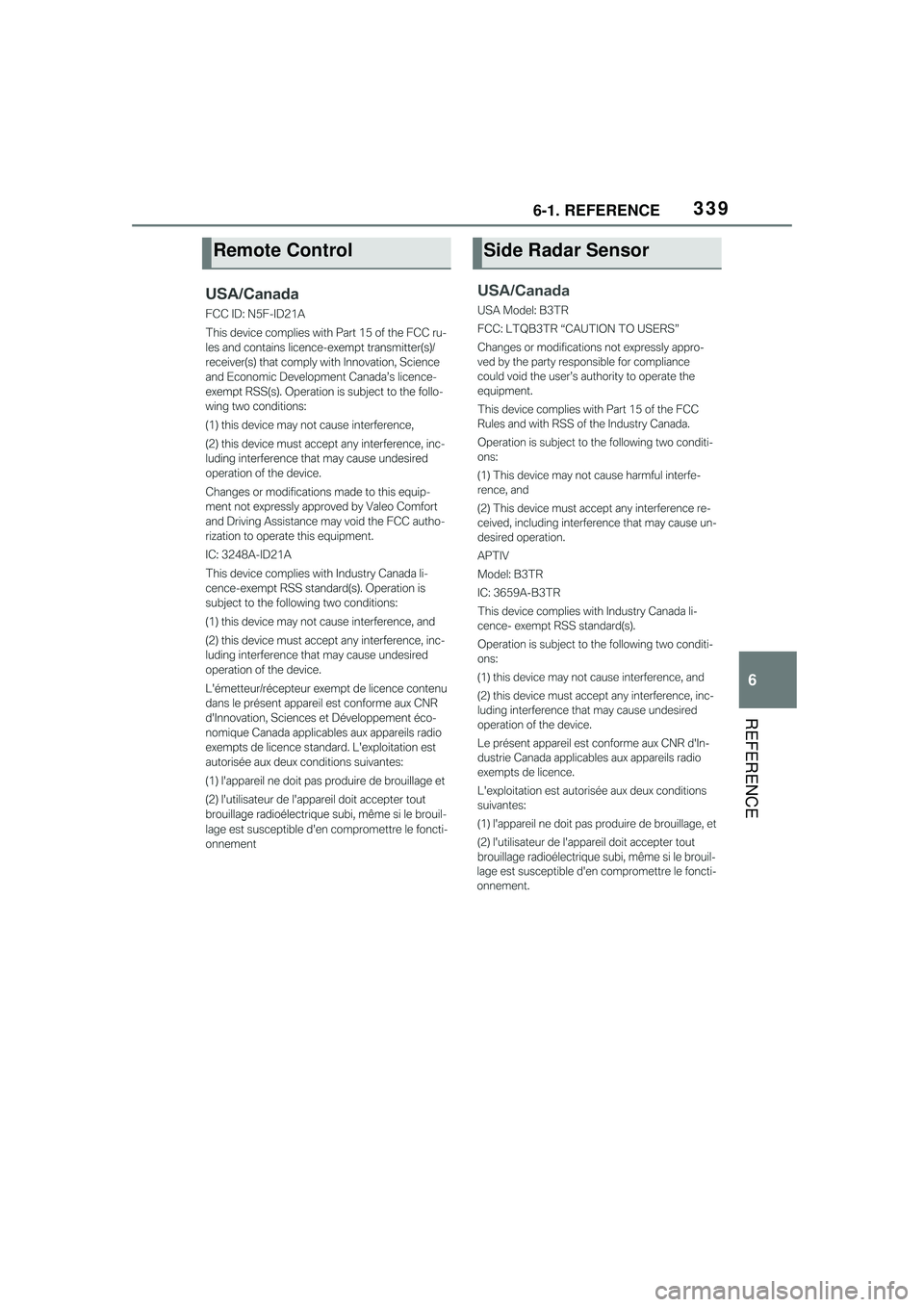

Remote ControlSide Radar Sensor

3406-1. REFERENCE

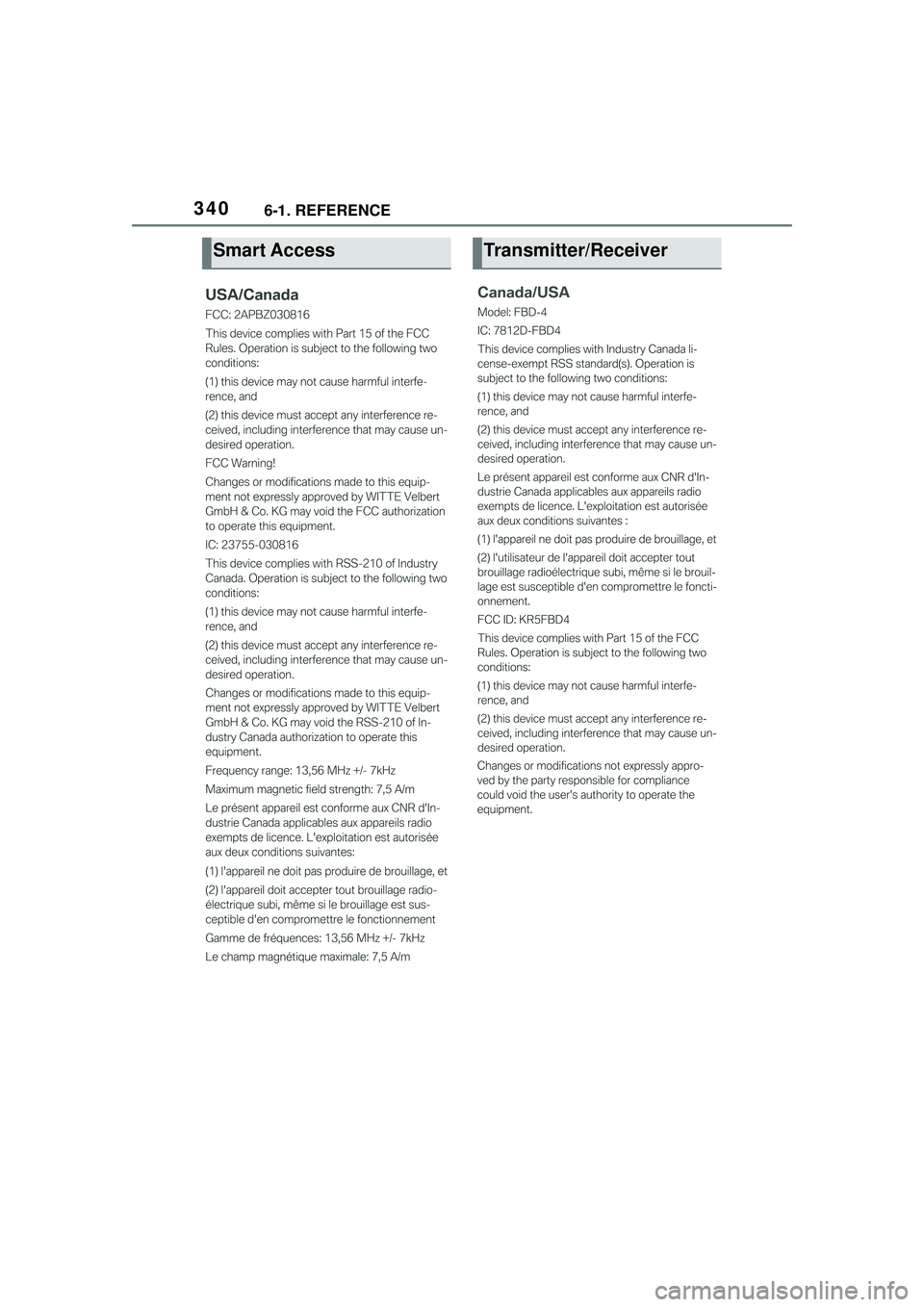

Smart AccessTransmitter/Receiver
