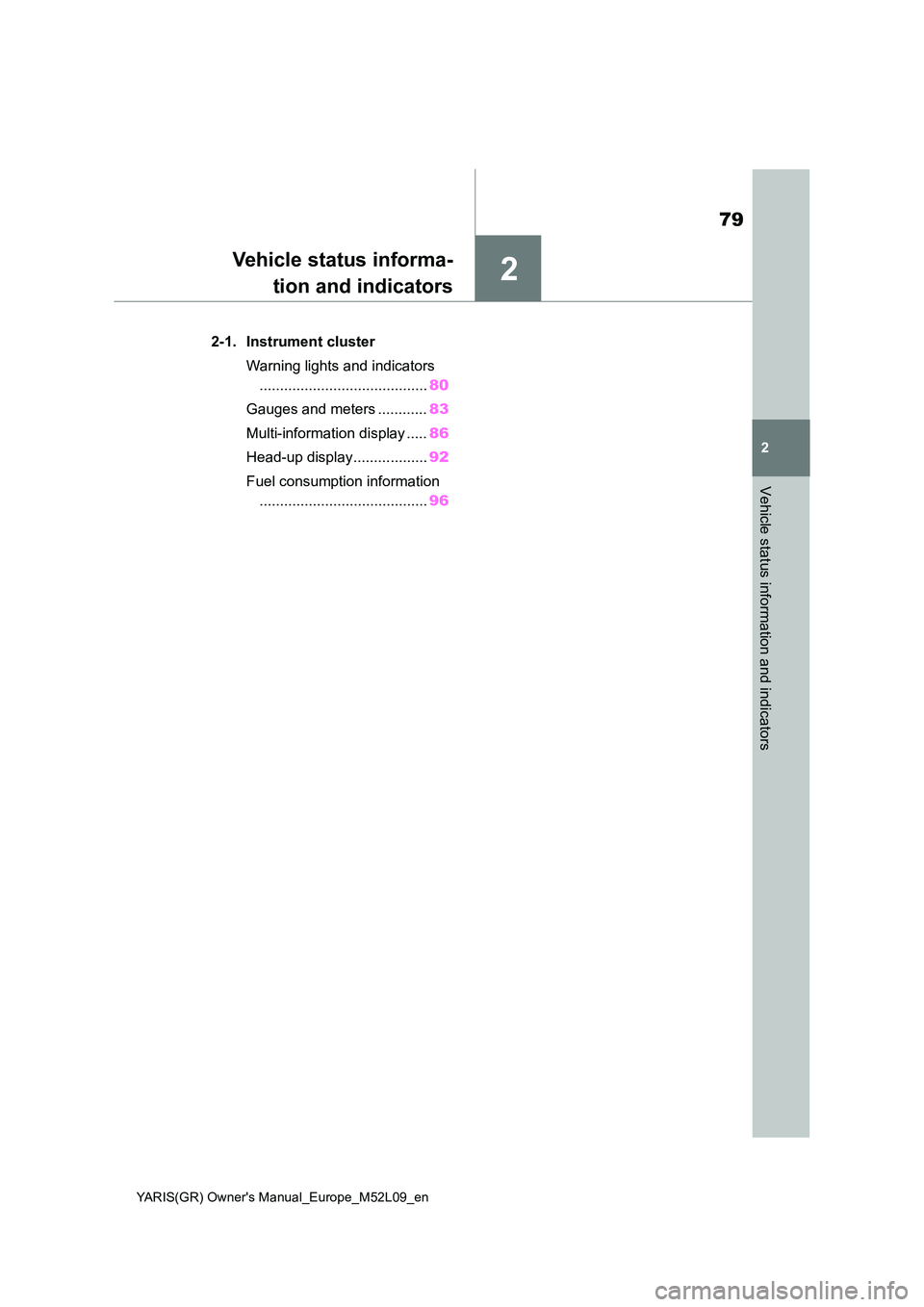

79
YARIS(GR) Owner's Manual_Europe_M52L09_en
2
Vehicle status information and indicators
Vehicle status informa-
tion and indicators
2-1. Instrument cluster
Warning lights and indicators
......................................... 80
Gauges and meters ............ 83
Multi-information display ..... 86
Head-up display.................. 92
Fuel consumption information
......................................... 96

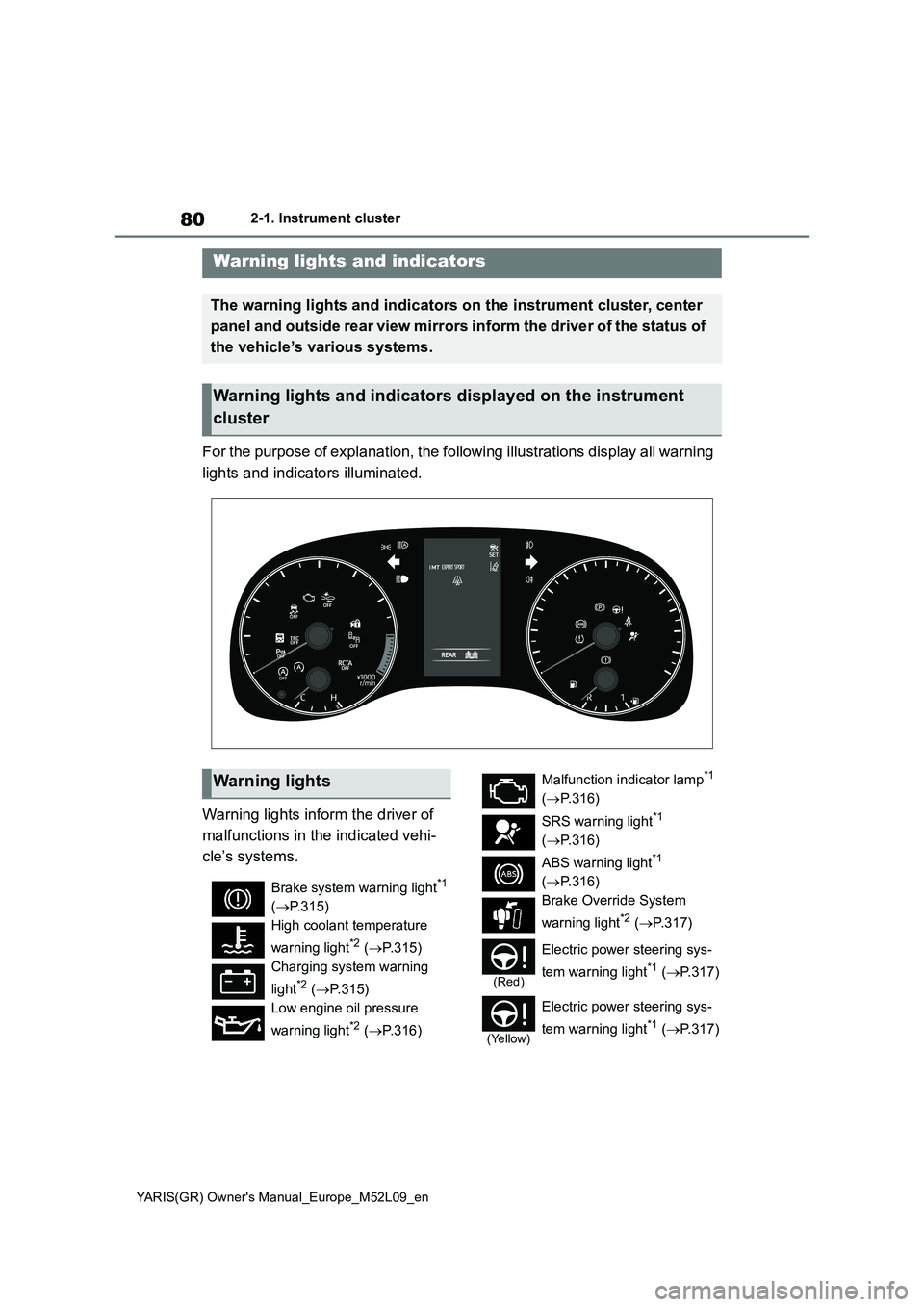

80
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
2-1.In strument clu ste r
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
Warning lights and indicators displayed on the instrument
cluster
Warning lights
Brake system warning light*1
( →P.315)
High coolant temperature
warning light*2 ( →P.315)
Charging system warning
light*2 ( →P.315)
Low engine oil pressure
warning light*2 ( →P.316)
Malfunction indicator lamp*1
( →P.316)
SRS warning light*1
( →P.316)
ABS warning light*1
( →P.316)
Brake Override System
warning light*2 ( →P. 3 1 7 )
(Red)
Electric power steering sys-
tem warning light*1 ( →P.317)
(Yellow)
Electric power steering sys-
tem warning light*1 ( →P.317)

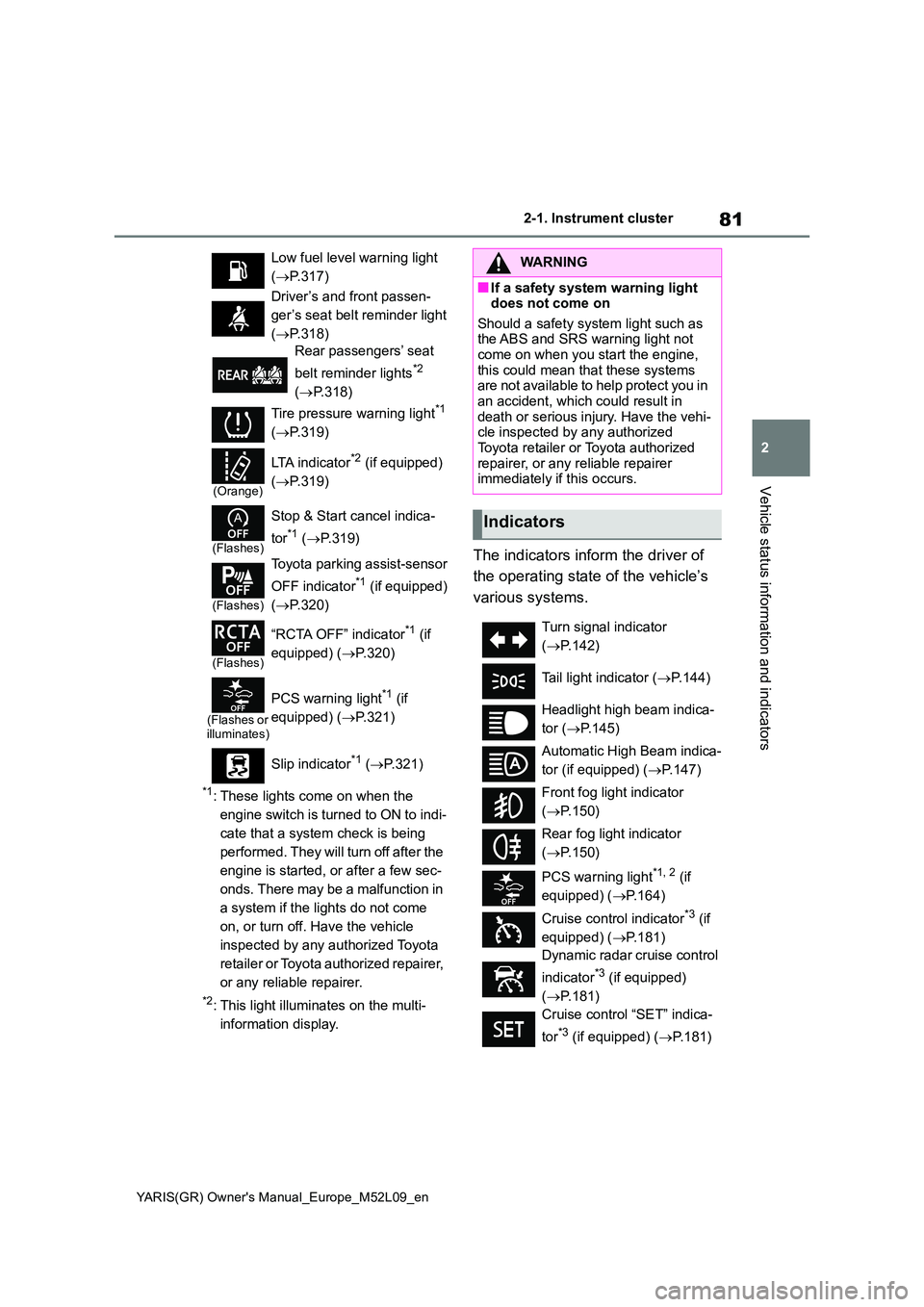

81
2
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
Vehicle status information and indicators
*1: These lights come on when the
engine switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if the lights do not come
on, or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
*2: This light illuminates on the multi-
information display.
The indicators inform the driver of
the operating state of the vehicle’s
various systems.
Low fuel level warning light
( →P.317)
Driver’s and front passen-
ger’s seat belt reminder light
( →P.318)
Rear passengers’ seat
belt reminder lights*2
( →P.318)
Tire pressure warning light*1
( →P.319)
(Orange)
LTA indicator*2 (if equipped)
( →P.319)
(Flashes)
Stop & Start cancel indica-
tor*1 ( →P.319)
(Flashes)
Toyota parking assist-sensor
OFF indicator*1 (if equipped)
( →P.320)
(Flashes)
“RCTA OFF” indicator*1 (if
equipped) ( →P.320)
(Flashes or illuminates)
PCS warning light*1 (if
equipped) ( →P.321)
Slip indicator*1 ( →P.321)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the engine,
this could mean that these systems are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehi- cle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( →P.142)
Tail light indicator ( →P.144)
Headlight high beam indica-
tor ( →P.145)
Automatic High Beam indica-
tor (if equipped) ( →P.147)
Front fog light indicator
( →P.150)
Rear fog light indicator
( →P.150)
PCS warning light*1, 2 (if
equipped) ( →P.164)
Cruise control indicator*3 (if
equipped) ( →P.181)
Dynamic radar cruise control
indicator*3 (if equipped)
( →P.181)
Cruise control “SET” indica-
tor*3 (if equipped) ( →P.181)

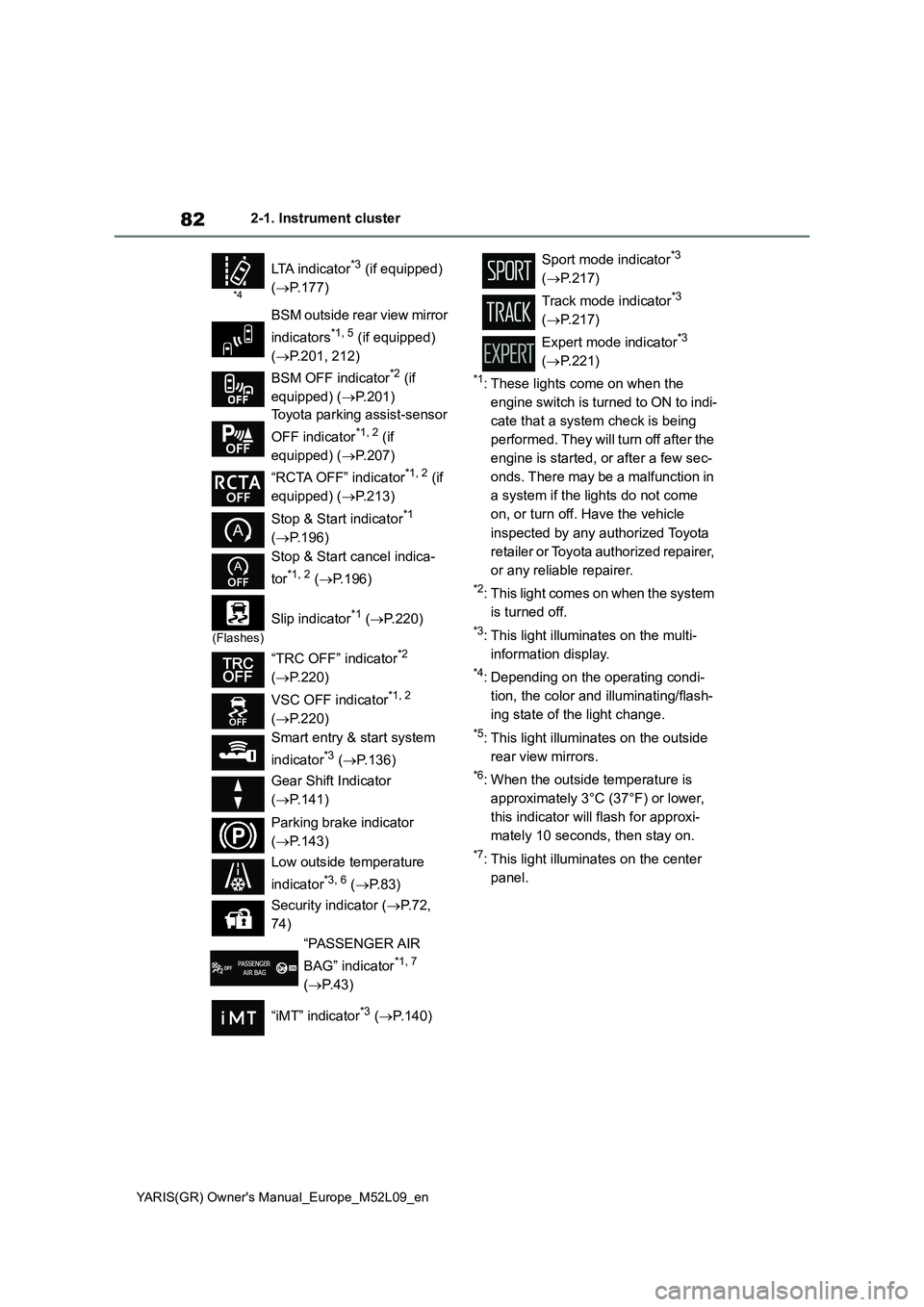

82
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
*1: These lights come on when the
engine switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if the lights do not come
on, or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
*2: This light comes on when the system
is turned off.
*3: This light illuminates on the multi-
information display.
*4: Depending on the operating condi-
tion, the color and illuminating/flash-
ing state of the light change.
*5: This light illuminates on the outside
rear view mirrors.
*6: When the outside temperature is
approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.
*7: This light illuminates on the center
panel.
*4
LTA indicator*3 (if equipped)
(→P.177)
BSM outside rear view mirror
indicators
*1, 5 (if equipped)
(→P.201, 212)
BSM OFF indicator
*2 (if
equipped) (→P.201)
Toyota parking assist-sensor
OFF indicator
*1, 2 (if
equipped) (→P.207)
“RCTA OFF” indicator
*1, 2 (if
equipped) (→P.213)
Stop & Start indicator
*1
(→P.196)
Stop & Start cancel indica-
tor
*1, 2 (→P.196)
(Flashes)
Slip indicator*1 (→P.220)
“TRC OFF” indicator
*2
(→P.220)
VSC OFF indicator
*1, 2
(→P.220)
Smart entry & start system
indicator
*3 (→P.136)
Gear Shift Indicator
(→P.141)
Parking brake indicator
(→P.143)
Low outside temperature
indicator
*3, 6 (→P. 8 3 )
Security indicator (→P. 7 2 ,
74)
“PASSENGER AIR
BAG” indicator
*1, 7
(→P.43)
“iMT” indicator
*3 (→P.140)
Sport mode indicator*3
(→P.217)
Track mode indicator
*3
(→P.217)
Expert mode indicator
*3
(→P.221)

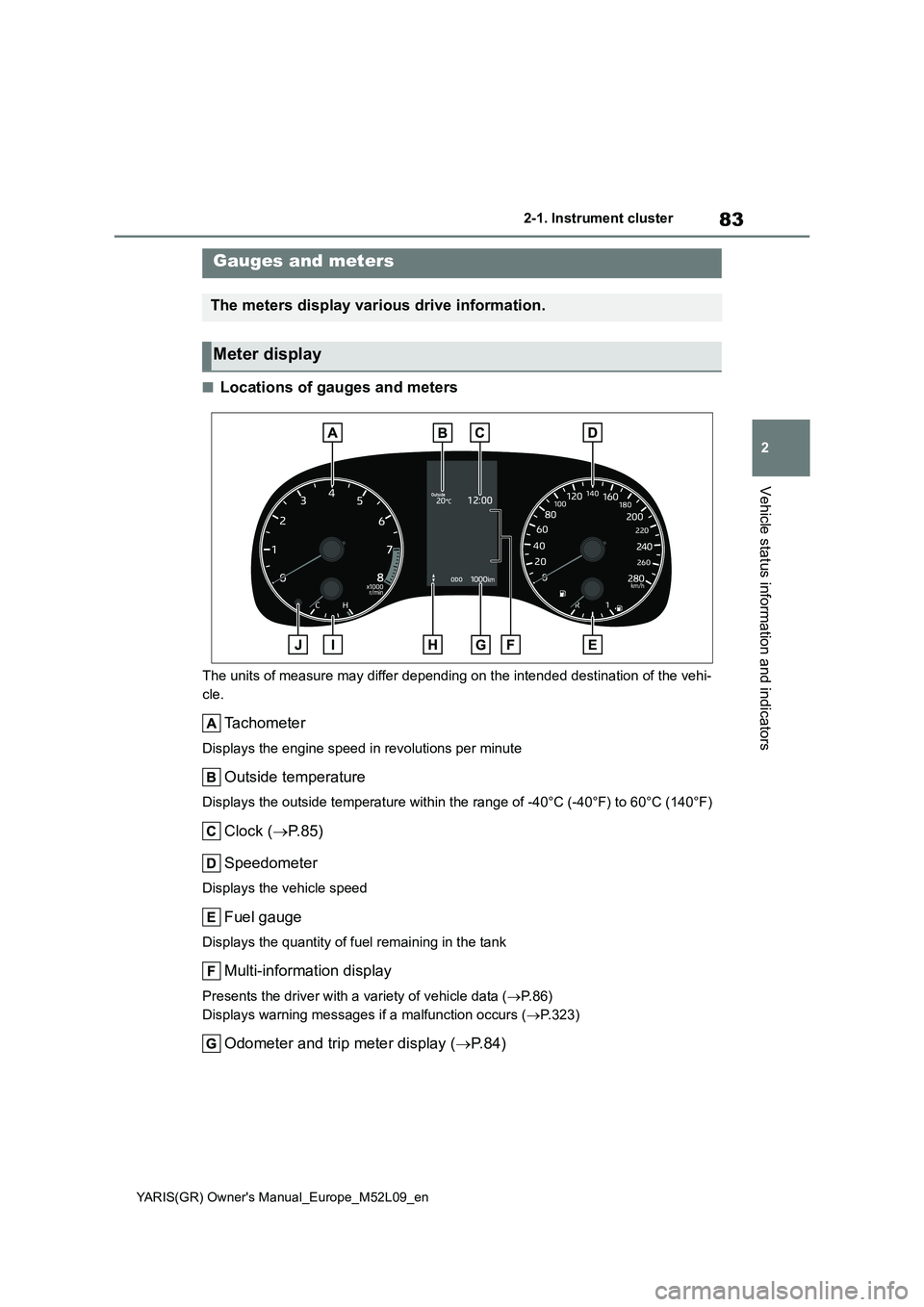

83
2
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
Vehicle status information and indicators
■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehi-
cle.
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 60°C (140°F)
Clock ( →P.85)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data ( →P. 8 6 )
Displays warning messages if a malfunction occurs ( →P.323)
Odometer and trip meter display (→P. 8 4 )
Gauges and meters
The meters display various drive information.
Meter display

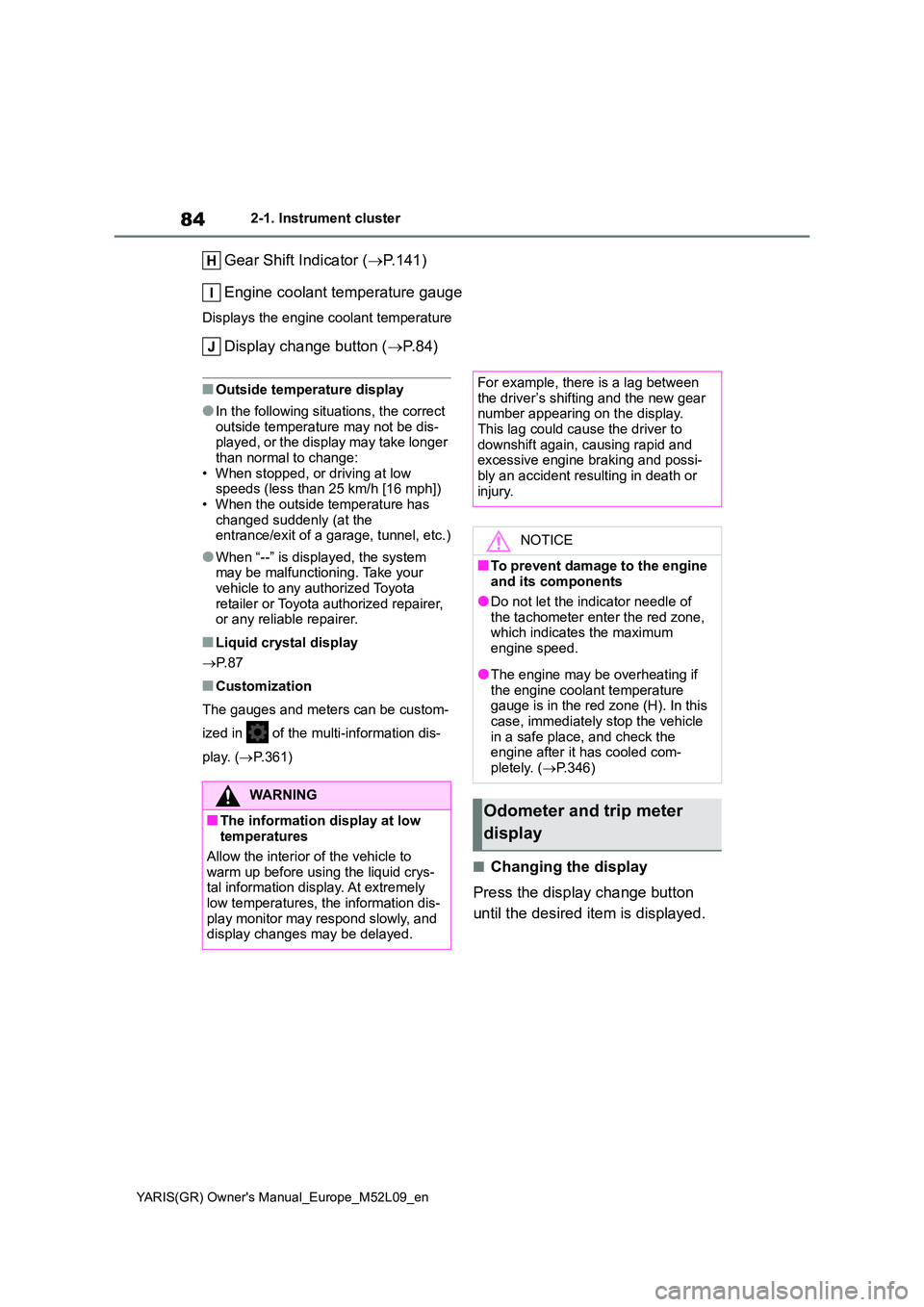

84
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
Gear Shift Indicator (→P.141)
Engine coolant temperature gauge
Displays the engine coolant temperature
Display change button ( →P. 8 4 )
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis- played, or the display may take longer than normal to change:
• When stopped, or driving at low speeds (less than 25 km/h [16 mph])• When the outside temperature has
changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
●When “--” is displayed, the system may be malfunctioning. Take your
vehicle to any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Liquid crystal display
→ P. 8 7
■Customization
The gauges and meters can be custom-
ized in of the multi-information dis-
play. ( →P.361)
■Changing the display
Press the display change button
until the desired item is displayed.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to
warm up before using the liquid crys- tal information display. At extremely low temperatures, the information dis-
play monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between
the driver’s shifting and the new gear number appearing on the display. This lag could cause the driver to
downshift again, causing rapid and excessive engine braking and possi-bly an accident resulting in death or
injury.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum
engine speed.
●The engine may be overheating if
the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled com-pletely. ( →P.346)
Odometer and trip meter
display

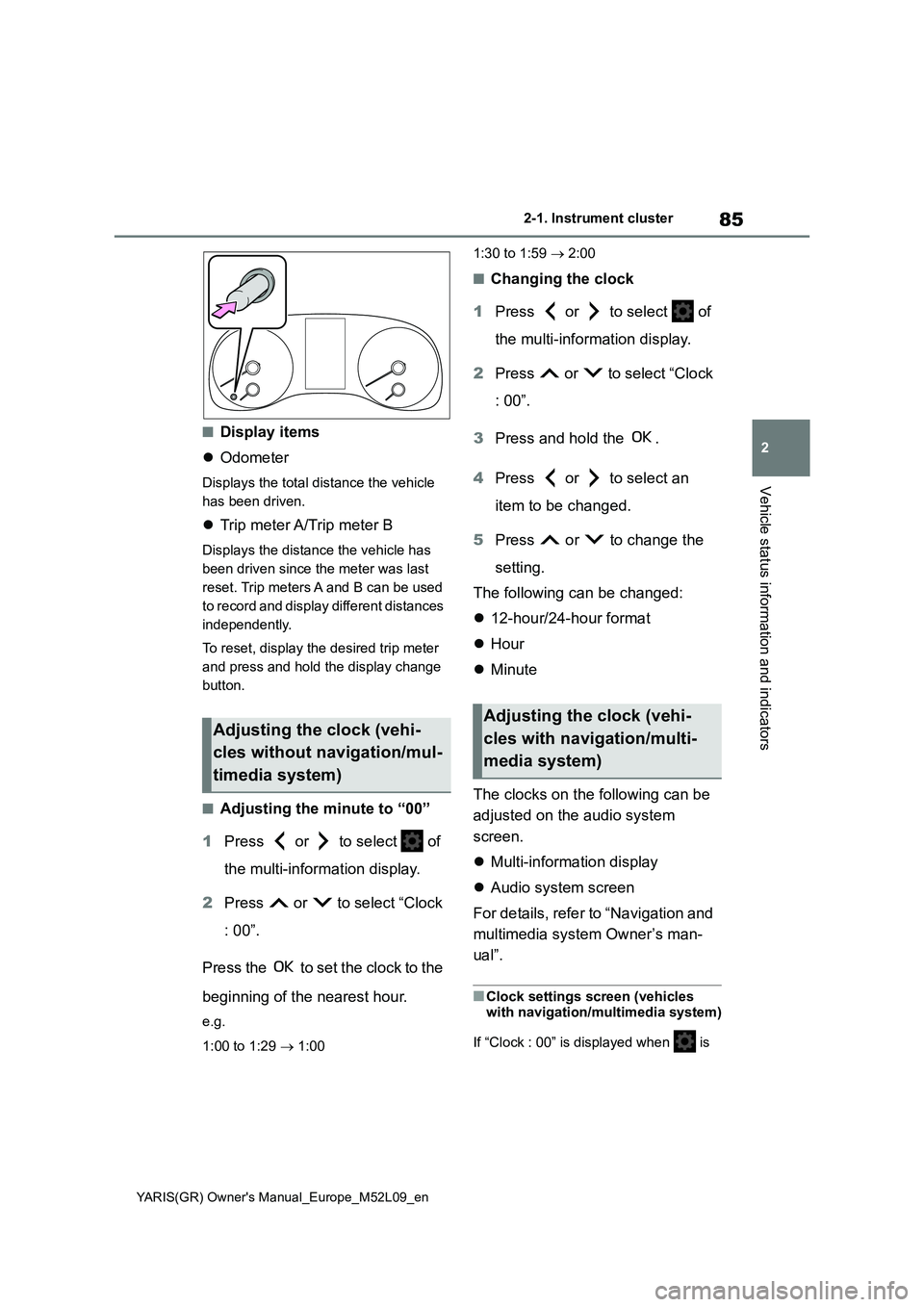

85
2
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
Vehicle status information and indicators
■Display items
zOdometer
Displays the total distance the vehicle
has been driven.
zTrip meter A/Trip meter B
Displays the distance the vehicle has
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
■Adjusting the minute to “00”
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29 → 1:001:30 to 1:59 → 2:00
■Changing the clock
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
3Press and hold the .
4Press or to select an
item to be changed.
5Press or to change the
setting.
The following can be changed:
z12-hour/24-hour format
zHour
zMinute
The clocks on the following can be
adjusted on the audio system
screen.
zMulti-information display
zAudio system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with navigation/multimedia system)
If “Clock : 00” is displayed when is
Adjusting the clock (vehi-
cles without navigation/mul-
timedia system)Adjusting the clock (vehi-
cles with navigation/multi-
media system)

86
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
selected on the multi-information dis-
play, the system may be malfunctioning.
Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The brightness of the instrument
panel lights can be adjusted on
select to the multi-information
display.
The brightness of the instrument panel
lights can be adjusted separately for
when the tail lights are on and off.
1Press or to select of
the multi-information display.
2Press or to select ,
and then press and hold the
.
3Press or to change the
brightness.
■Instrument cluster brightness
adjustment
The instrument cluster brightness levels
when the tail lights are on and off can be
adjusted individually. However, when
the surroundings are bright (daytime,
etc.), turning on the tail lights will not
change the instrument cluster bright-
ness.
■Display
Driving support system status
display area
Displays an image when the following
systems are operating and a menu icon
other than is selected:
• LTA (Lane Tracing Assist) (if
equipped) (→P.172)
• Dynamic radar cruise control (if
equipped) (→P.181)
• RSA (Road Sign Assist) (if equipped)
(→P.192)
Content display area
By selecting menu icons on the multi-
information display, a variety of driving-
related information can be displayed.
Adjusting the instrument
panel light control
Multi-information display
The multi-information display
is used to display fuel effi-
ciency related information and
various types of driving-
related information. The multi-
information display can also
be used to change the display
settings and other settings.
Display and menu icons

87
2
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
Vehicle status information and indicators
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.
■Menu icons
The menu icons will be displayed
by pressing the or meter
control switch.
■When changing driving mode
Multi-information display color is changed following the selected driving
mode. ( →P.217)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to use the display.
The multi-information display is
operated using the meter control
switches.
/ : Select menu icons
/ : Change displayed con-
tent, scroll up/down the screen
and move the cursor up/down
Press: Enter/Set
Press and hold: Reset/Display
customizable items
Return to the previous screen
Call sending/receiving and his-
tory display
Linked with the hands-free system,
sending or receiving call is displayed.
For details regarding the hands-free
system, refer to the “Navigation and
Driving information display
( →P.88)
Driving support system infor-
mation display (if equipped)
( →P.89)
Audio system-linked display
(if equipped) ( →P.89)
Vehicle information display
( →P.89)
Settings display ( →P. 9 0 )
Warning message display
( →P.323)
WARNING
■Caution for use while driving
●When operating the multi-informa- tion display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driv-ing as you may fail to see pedestri-
ans, objects on the road, etc., ahead of the vehicle.
■The information display at low temperatures
→ P. 8 4
Changing the meter display

88
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
multimedia system Owner’s manual”.
■Display items
zSpeedometer display/Driving
range
zFuel economy
■Speedometer display/Driving
range
zSpeedometer display
zDriving range
Displays driving range with remaining
fuel. Use the displayed values as a ref-
erence only.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.
■Fuel economy
Use the displayed values as a refer-
ence only.
Driving range
Displays driving range with remaining
fuel.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.
Current fuel consumption
Displays instantaneous current fuel
consumption.
Average fuel economy (after
reset)
To reset the average fuel economy dis-
play, press and hold the meter
control switch.
The average fuel economy display
can be changed in . (→P. 9 0 )
zAverage fuel economy (after
start)
Displays the average fuel consumption
since engine start.
zAverage fuel economy (after
refuel)
Displays the average fuel consumption
since the vehicle was refueled.
Content of driving informa-
tion
