TOYOTA GR YARIS 2020 Owners Manual

359
8
YARIS(GR) Owner's Manual_Europe_M52L09_en

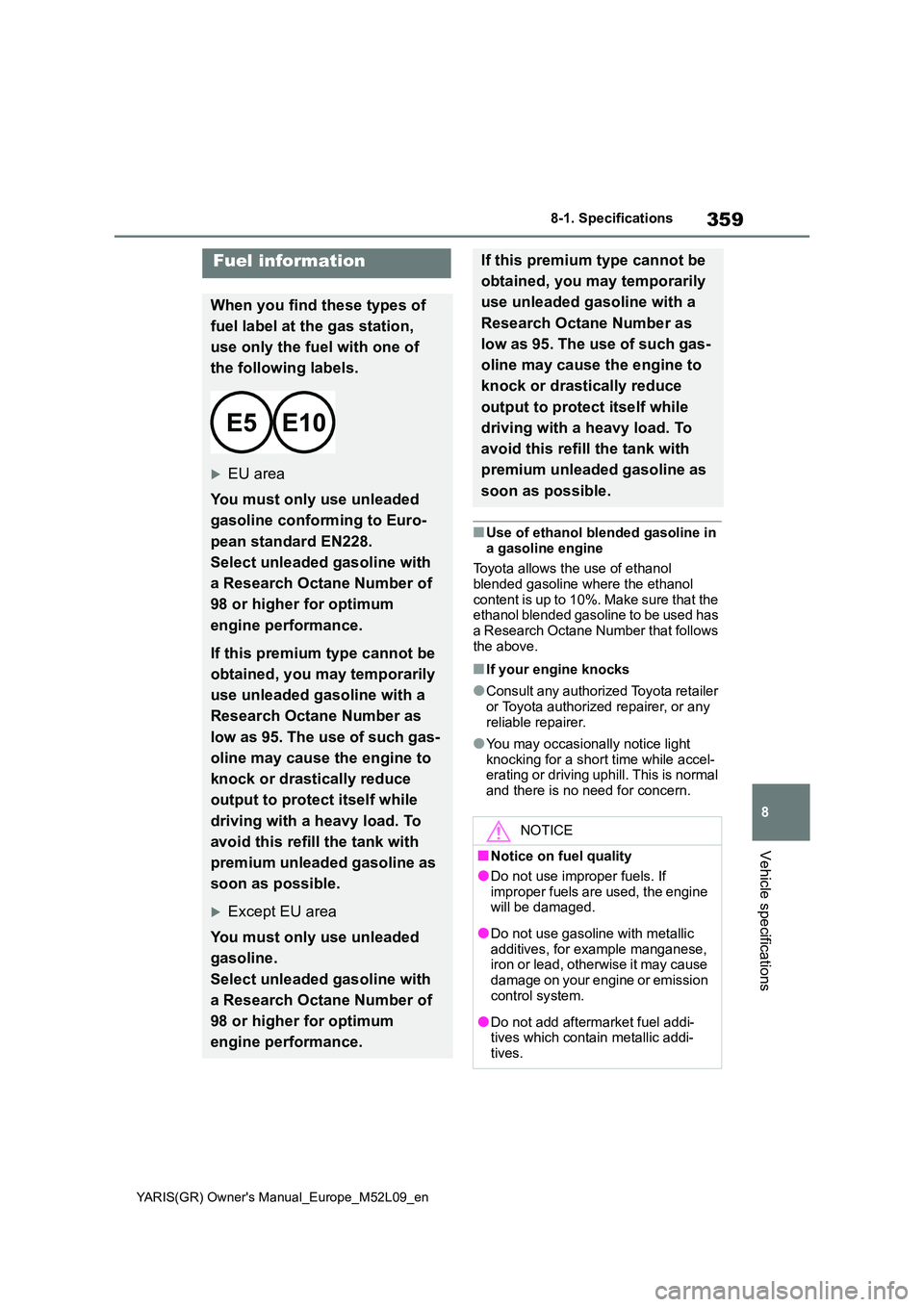

8-1. Specifications
Vehicle specifications
■Use of ethanol blended gasoline in
a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol
content is up to 10%. Make sure that the ethanol blended gasoline to be used has a Research Octane Number that follows
the above.
■If your engine knocks
●Consult any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-erating or driving uphill. This is normal
and there is no need for concern.
Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
98 or higher for optimum
engine performance.
If this premium type cannot be
obtained, you may temporarily
use unleaded gasoline with a
Research Octane Number as
low as 95. The use of such gas-
oline may cause the engine to
knock or drastically reduce
output to protect itself while
driving with a heavy load. To
avoid this refill the tank with
premium unleaded gasoline as
soon as possible.
Except EU area
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
98 or higher for optimum
engine performance.
If this premium type cannot be
obtained, you may temporarily
use unleaded gasoline with a
Research Octane Number as
low as 95. The use of such gas-
oline may cause the engine to
knock or drastically reduce
output to protect itself while
driving with a heavy load. To
avoid this refill the tank with
premium unleaded gasoline as
soon as possible.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine will be damaged.
●Do not use gasoline with metallic additives, for example manganese, iron or lead, otherwise it may cause
damage on your engine or emission control system.
●Do not add aftermarket fuel addi-tives which contain metallic addi-tives.

360
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications

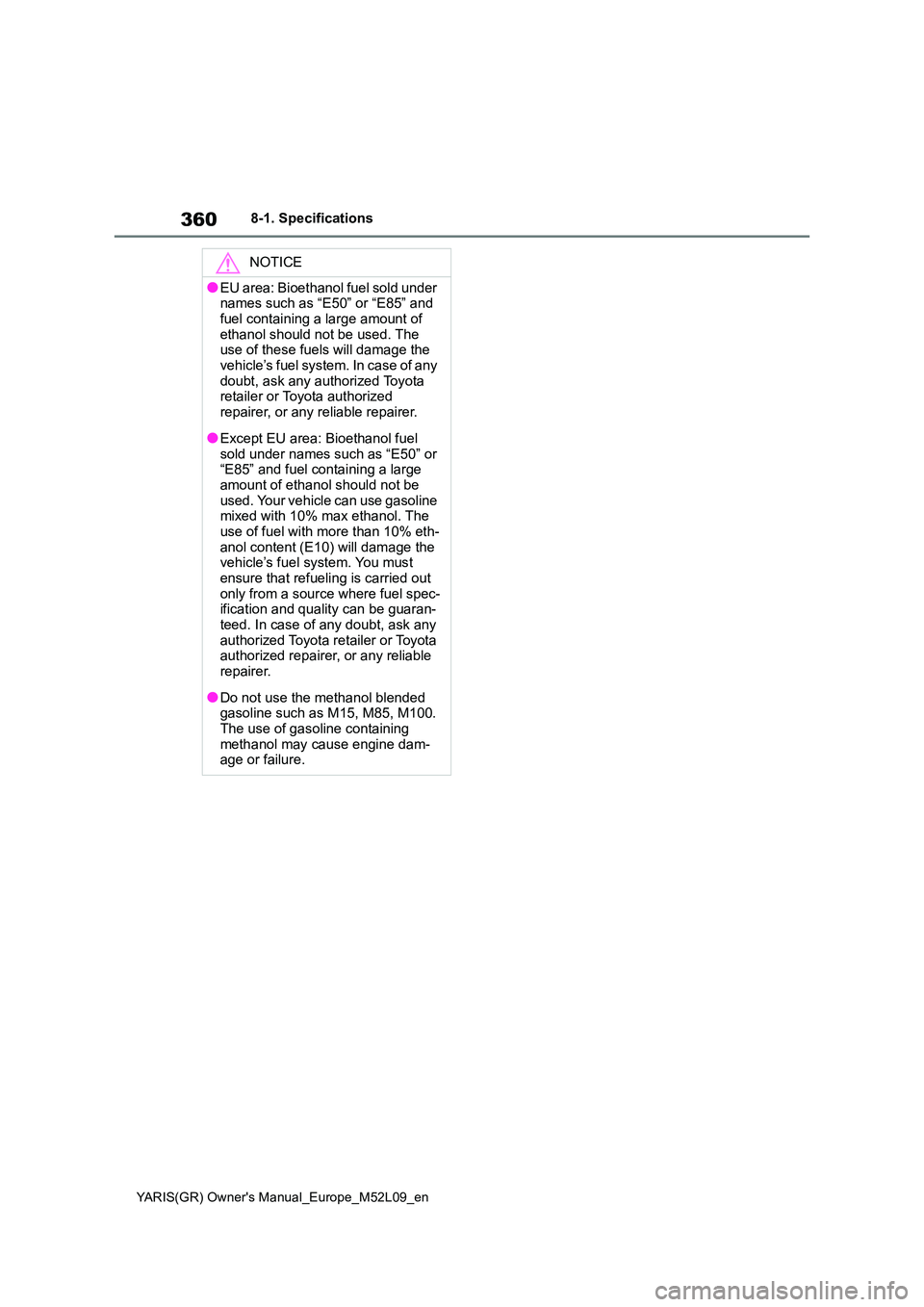

NOTICE
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of these fuels will damage the
vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel
sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be
used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10% eth-
anol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out
only from a source where fuel spec- ification and quality can be guaran-teed. In case of any doubt, ask any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine dam-age or failure.

361
8
YARIS(GR) Owner's Manual_Europe_M52L09_en

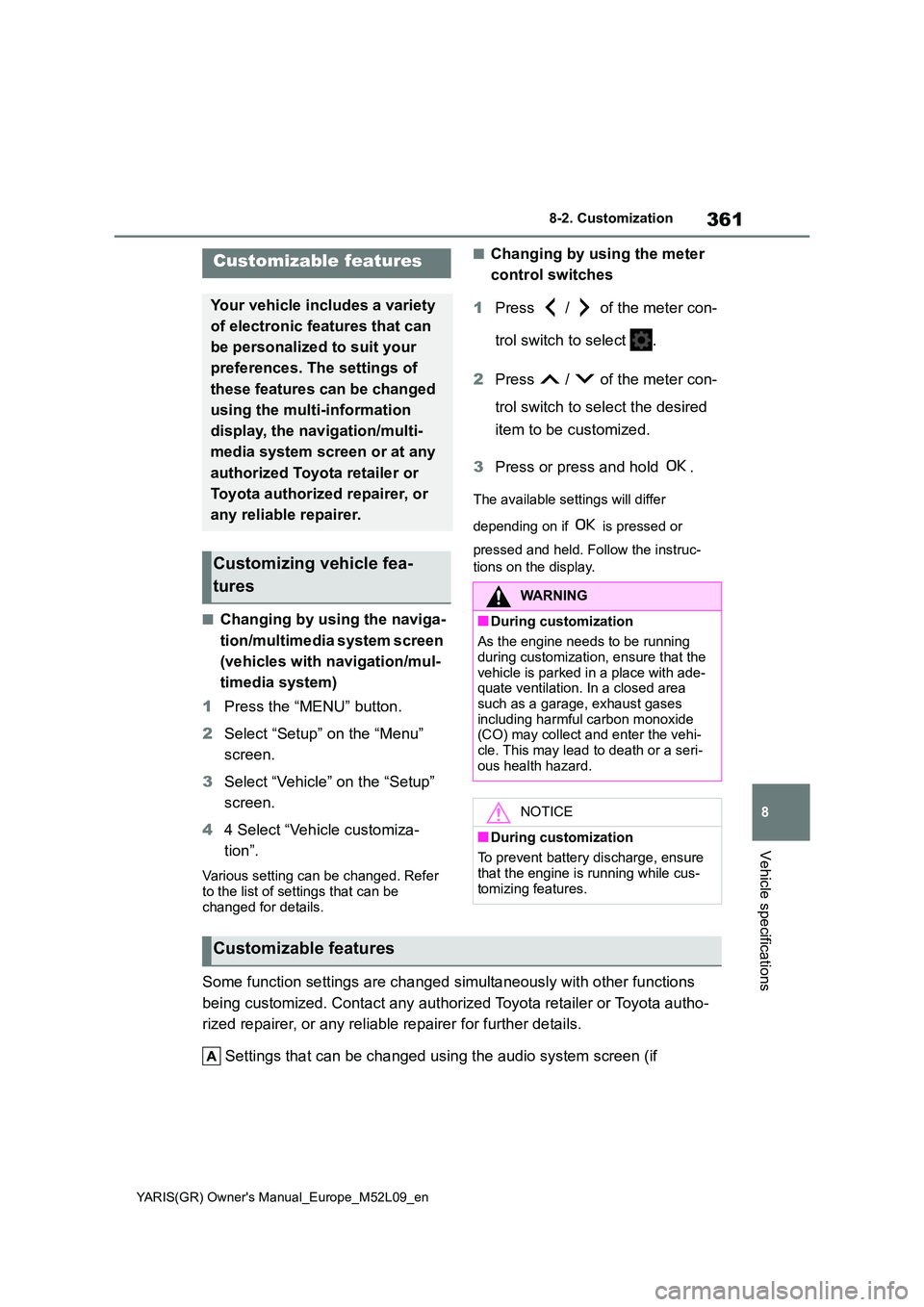

8-2. Customization
Vehicle specifications
8-2.Customiz ation
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with navigation/mul-
timedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
4 4 Select “Vehicle customiza-
tion”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter
control switches
1 Press / of the meter con-
trol switch to select .
2 Press / of the meter con-
trol switch to select the desired
item to be customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the audio system screen (if
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the navigation/multi-
media system screen or at any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
Customizing vehicle fea-
turesWARNING
■During customization
As the engine needs to be running
during customization, ensure that the vehicle is parked in a place with ade-quate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehi-
cle. This may lead to death or a seri- ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
Customizable features

362
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-2. Customization
equipped)
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* (→P.74)
*: If equipped
■Gauges, meters and multi-information display (→P.83, 86)
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])
—O—Tank average (Aver-
age fuel consump-
tion [after refuel])
Audio system linked dis-
play
*4OnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle
speed
—O—
Elapsed time

363
8
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-2. Customization
Vehicle specifications
*1: For details about each function: →P. 9 0
*2: The default setting varies according to country.
*3: Arabic, Spanish, Russian, French, German, Italian, Dutch, Turkish, Polish,
Hebrew, Norwegian, Swedish, Danish, Ukrainian, Finnish, Greek, Czech, Portu-
guese, Romanian, Slovakian, Hungarian, Flemish
*4: If equipped

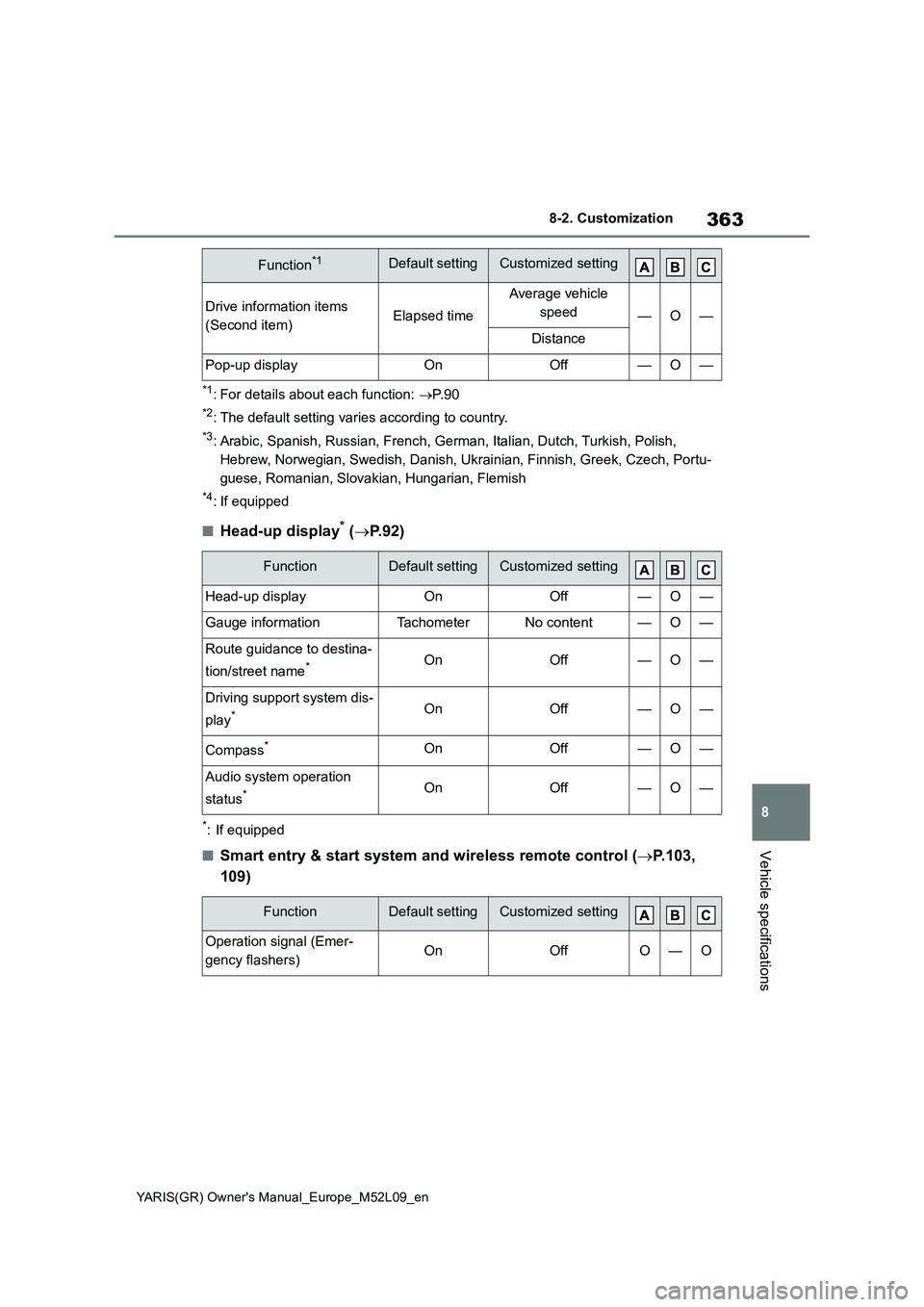

■Head-up display* (→P. 9 2 )
*: If equipped
■Smart entry & start system and wireless remote control (→P.103,
109)
Drive information items
(Second item)Elapsed time
Average vehicle
speed
—O—
Distance
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometerNo content—O—
Route guidance to destina-
tion/street name
*OnOff—O—
Driving support system dis-
play
*OnOff—O—
Compass*OnOff—O—
Audio system operation
status
*OnOff—O—
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Function*1Default settingCustomized setting

364
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-2. Customization

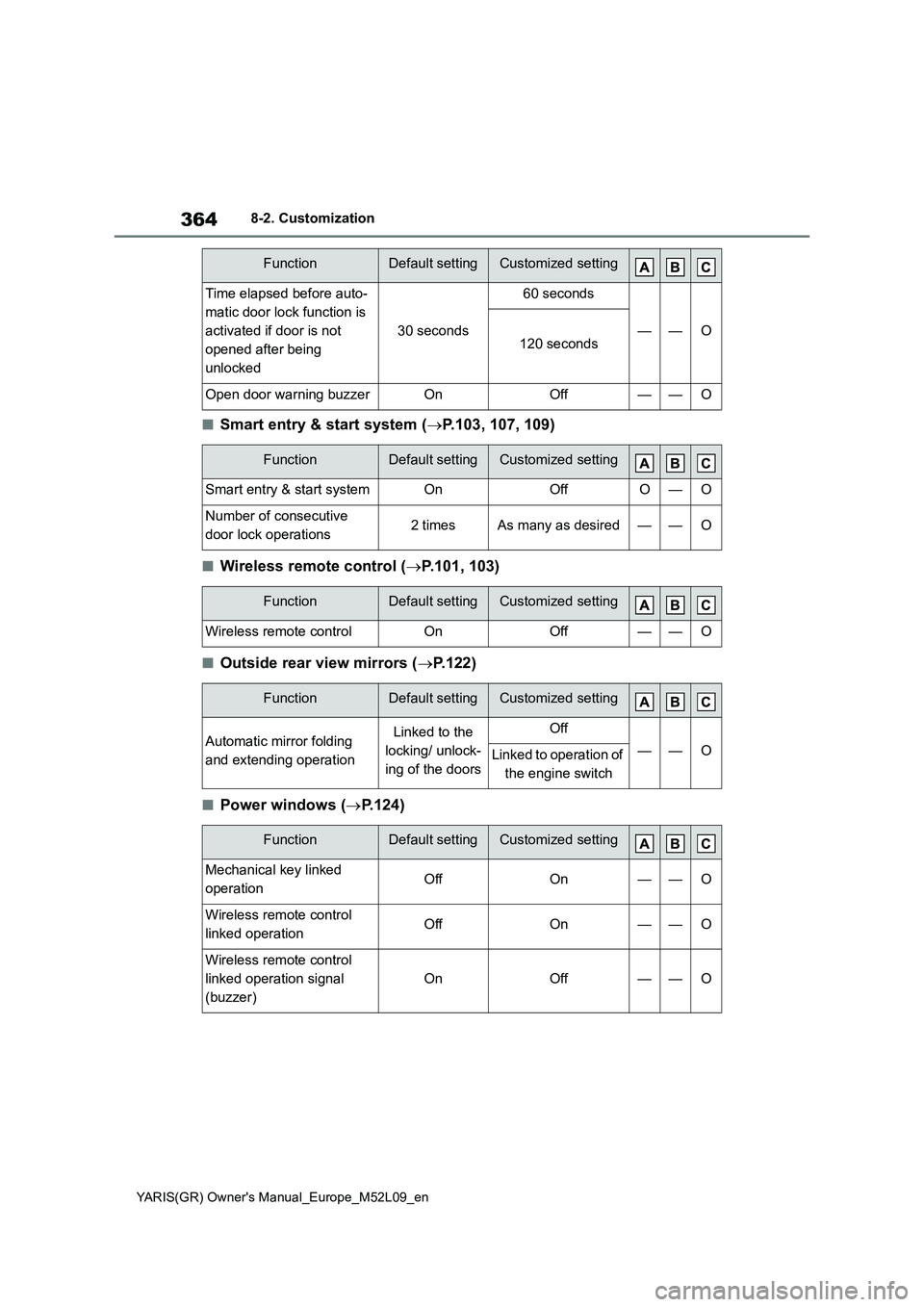

■Smart entry & start system (→P.103, 107, 109)
■Wireless remote control (→P.101, 103)
■Outside rear view mirrors (→P.122)
■Power windows (→P.124)
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operationLinked to the
locking/ unlock-
ing of the doorsOff
——OLinked to operation of
the engine switch
FunctionDefault settingCustomized setting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting

365
8
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-2. Customization
Vehicle specifications

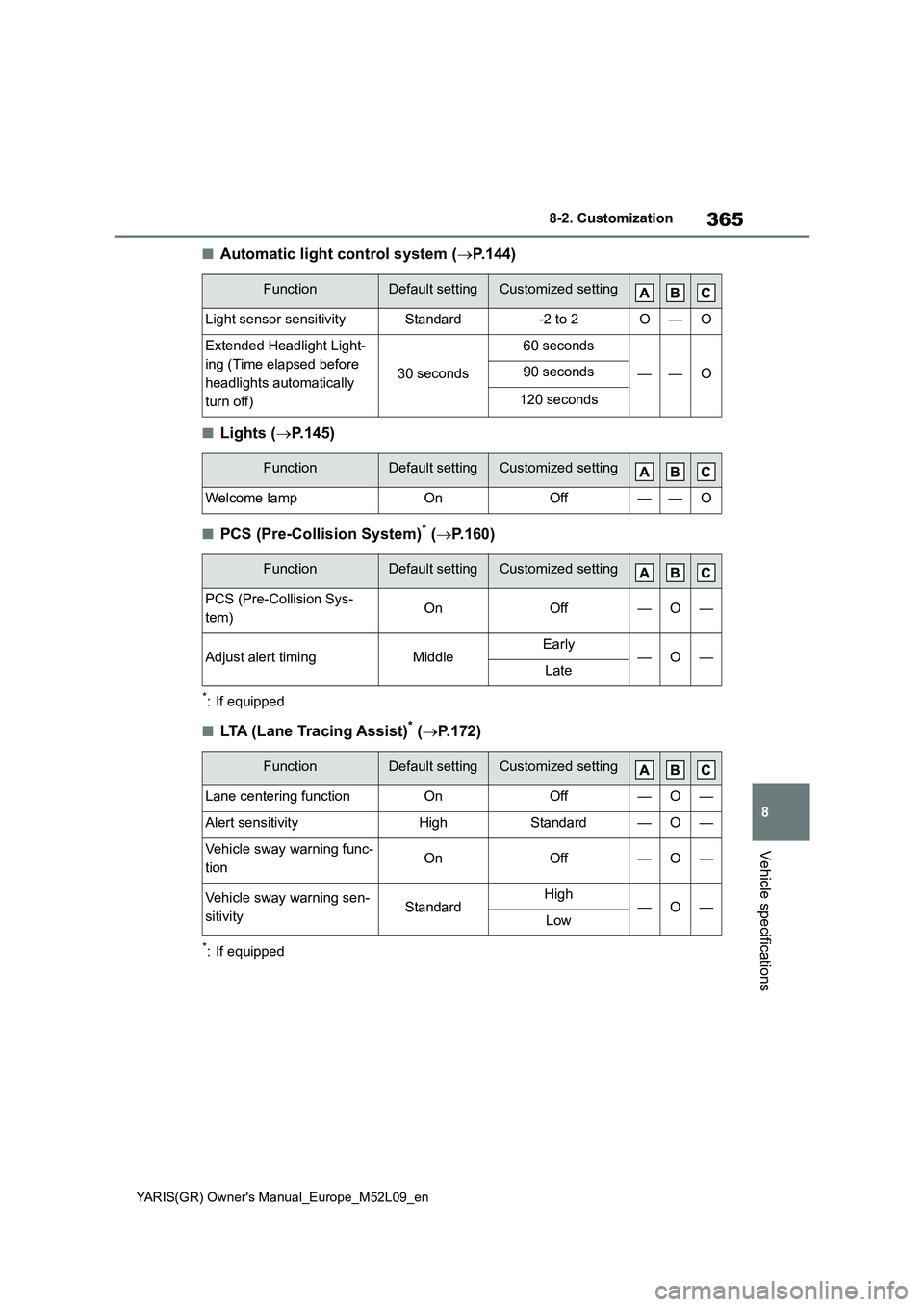

■Automatic light control system (→P.144)
■Lights (→P.145)
■PCS (Pre-Collision System)* (→P.160)
*: If equipped
■LTA (Lane Tracing Assist)* (→P.172)
*: If equipped
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Extended Headlight Light-
ing (Time elapsed before
headlights automatically
turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lampOnOff——O
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
FunctionDefault settingCustomized setting
Lane centering functionOnOff—O—
Alert sensitivityHighStandard—O—
Vehicle sway warning func-
tionOnOff—O—
Vehicle sway warning sen-
sitivityStandardHigh—O—Low

366
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-2. Customization

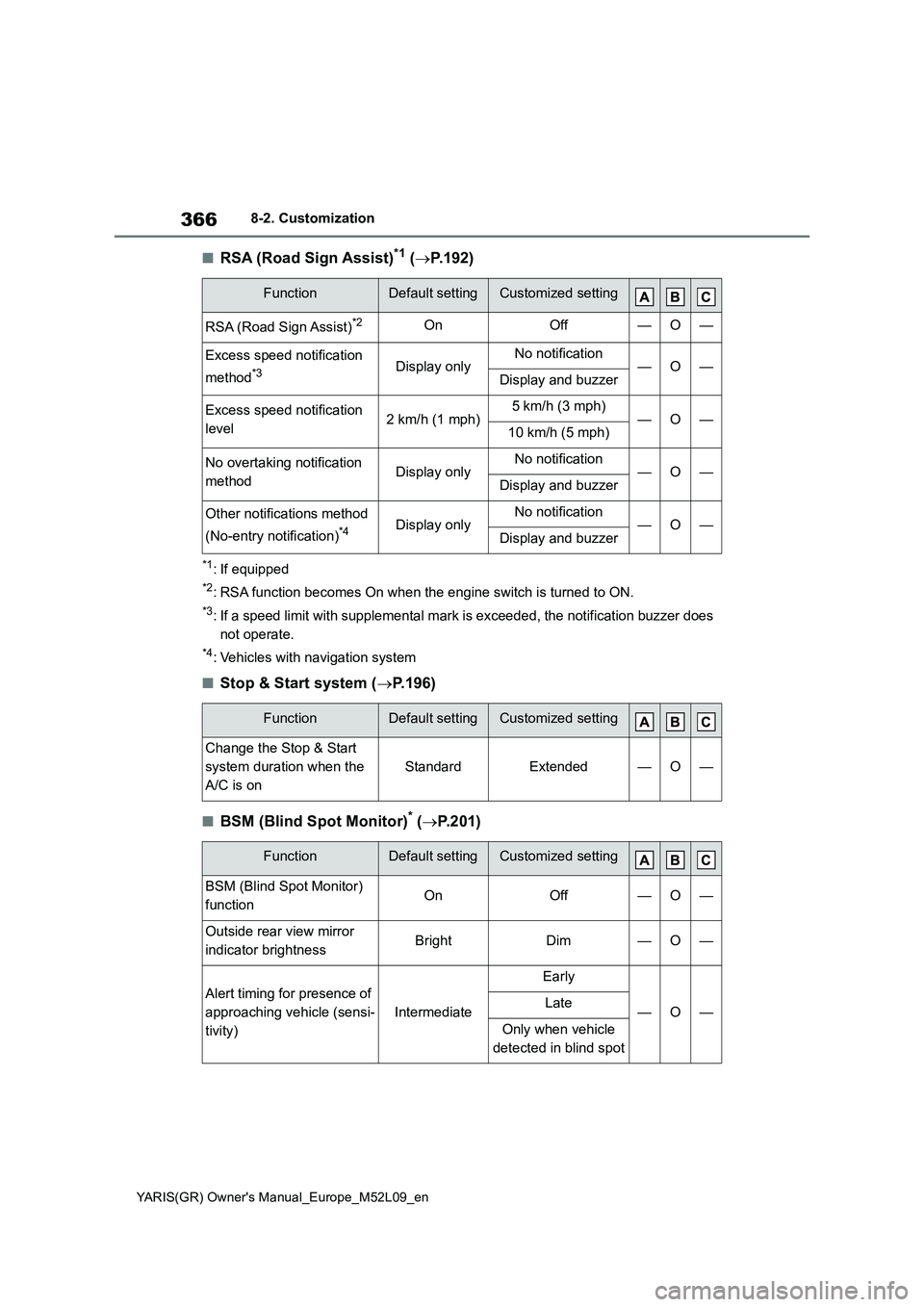

■RSA (Road Sign Assist)*1 (→P.192)
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
■Stop & Start system (→P.196)
■BSM (Blind Spot Monitor)* (→P.201)
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)*2OnOff—O—
Excess speed notification
method
*3Display onlyNo notification—O—Display and buzzer
Excess speed notification
level2 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
No overtaking notification
methodDisplay onlyNo notification—O—Display and buzzer
Other notifications method
(No-entry notification)
*4Display onlyNo notification—O—Display and buzzer
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot

367
8
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-2. Customization
Vehicle specifications
*: If equipped

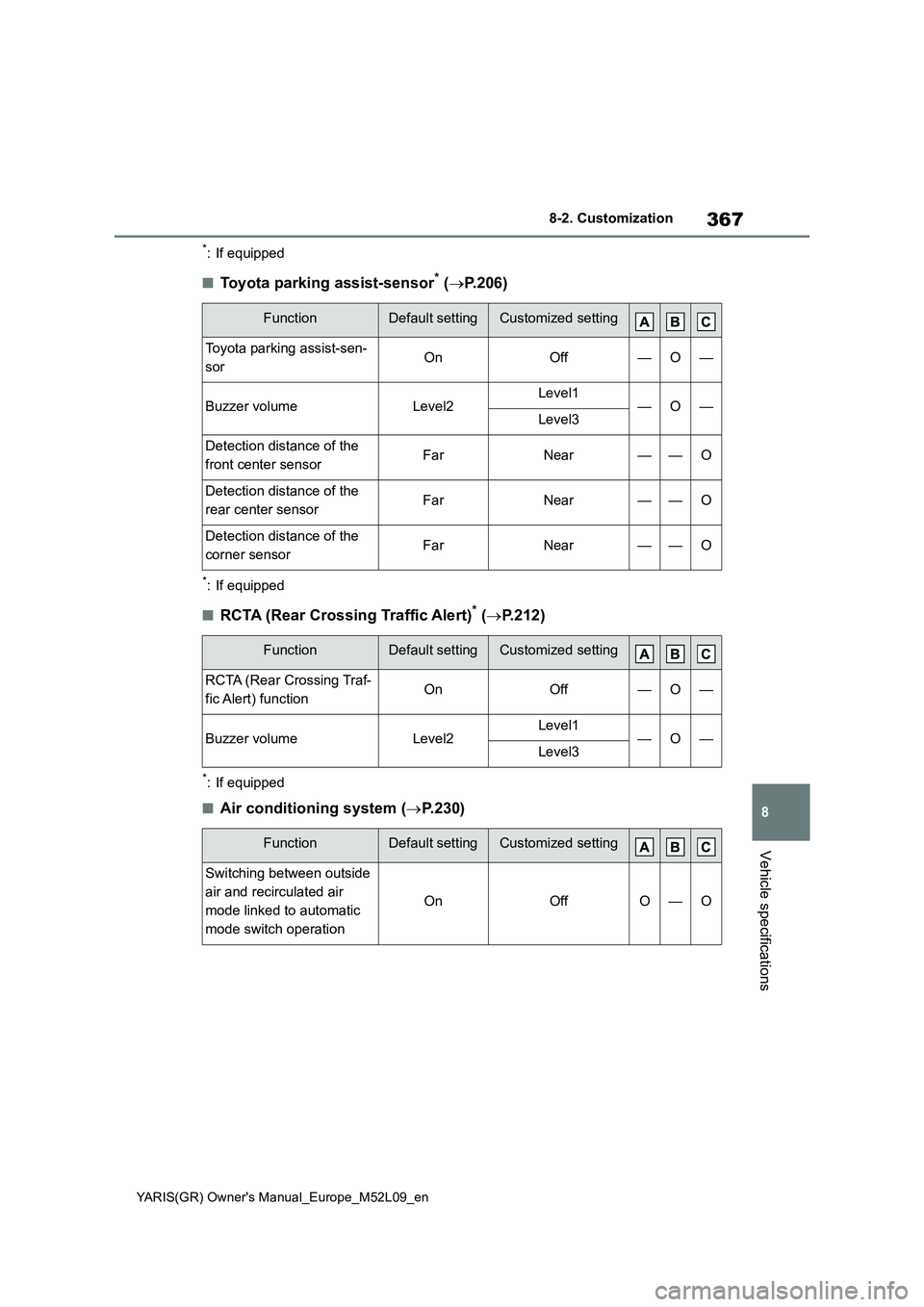

■Toyota parking assist-sensor* (→P.206)
*: If equipped
■RCTA (Rear Crossing Traffic Alert)* (→P.212)
*: If equipped
■Air conditioning system (→P. 2 3 0 )
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
Detection distance of the
front center sensorFarNear——O
Detection distance of the
rear center sensorFarNear——O
Detection distance of the
corner sensorFarNear——O
FunctionDefault settingCustomized setting
RCTA (Rear Crossing Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O

368
YARIS(GR) Owner's Manual_Europe_M52L09_en

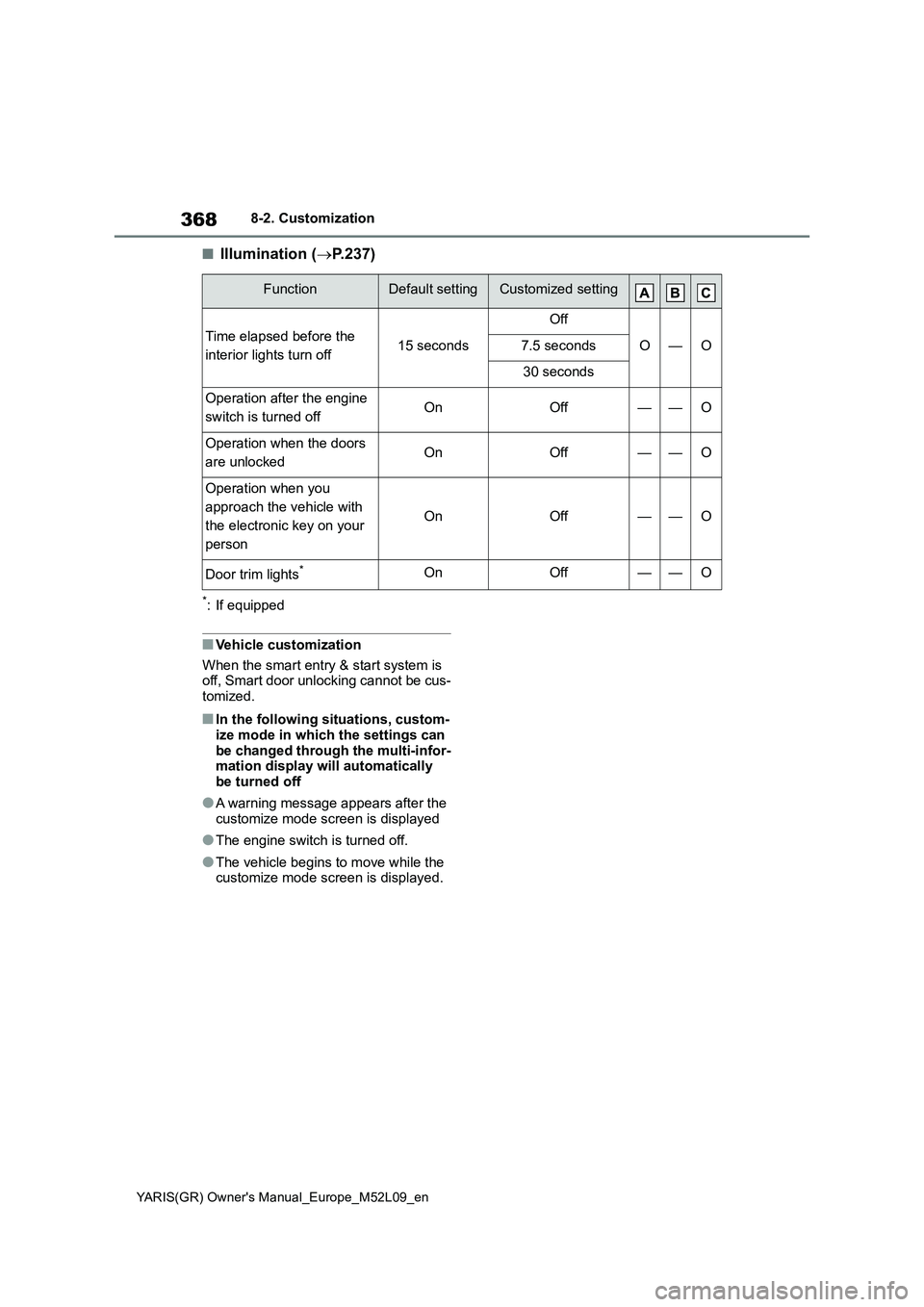

8-2. Customization
■Illumination (→P.237)
*: If equipped
■Vehicle customization
When the smart entry & start system is
off, Smart door unlocking cannot be cus-
tomized.
■In the following situations, custom-
ize mode in which the settings can
be changed through the multi-infor-
mation display will automatically
be turned off
●A warning message appears after the
customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the
customize mode screen is displayed.
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Door trim lights*OnOff——O
