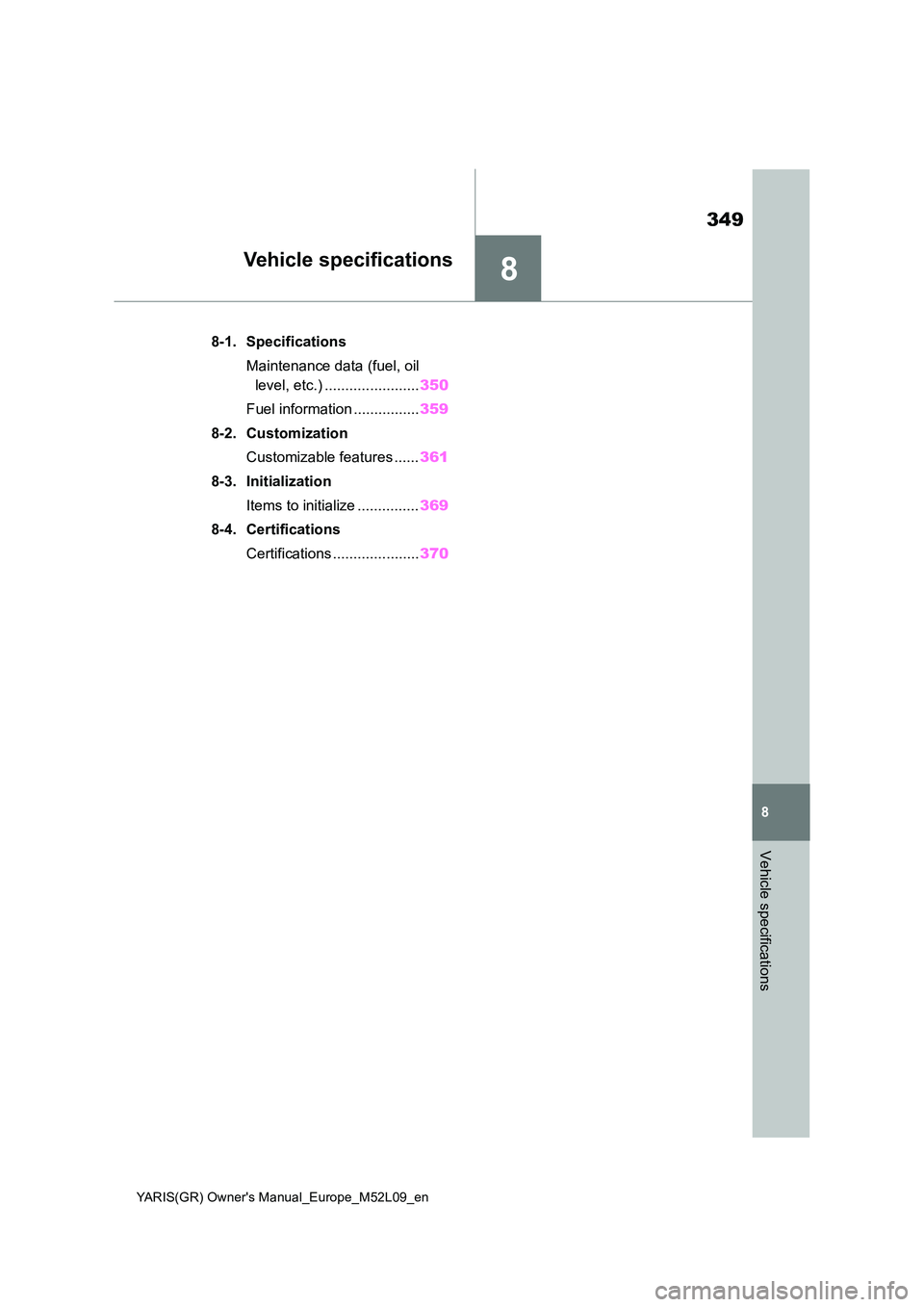

8-1. Specifications
Maintenance data (fuel, oil
level, etc.) ....................... 350
Fuel information ................ 359
8-2. Customization
Customizable features ...... 361
8-3. Initialization
Items to initialize ............... 369
8-4. Certifications
Certifications ..................... 370

350
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
8-1.Spec ific ations
*: Unladen vehicles

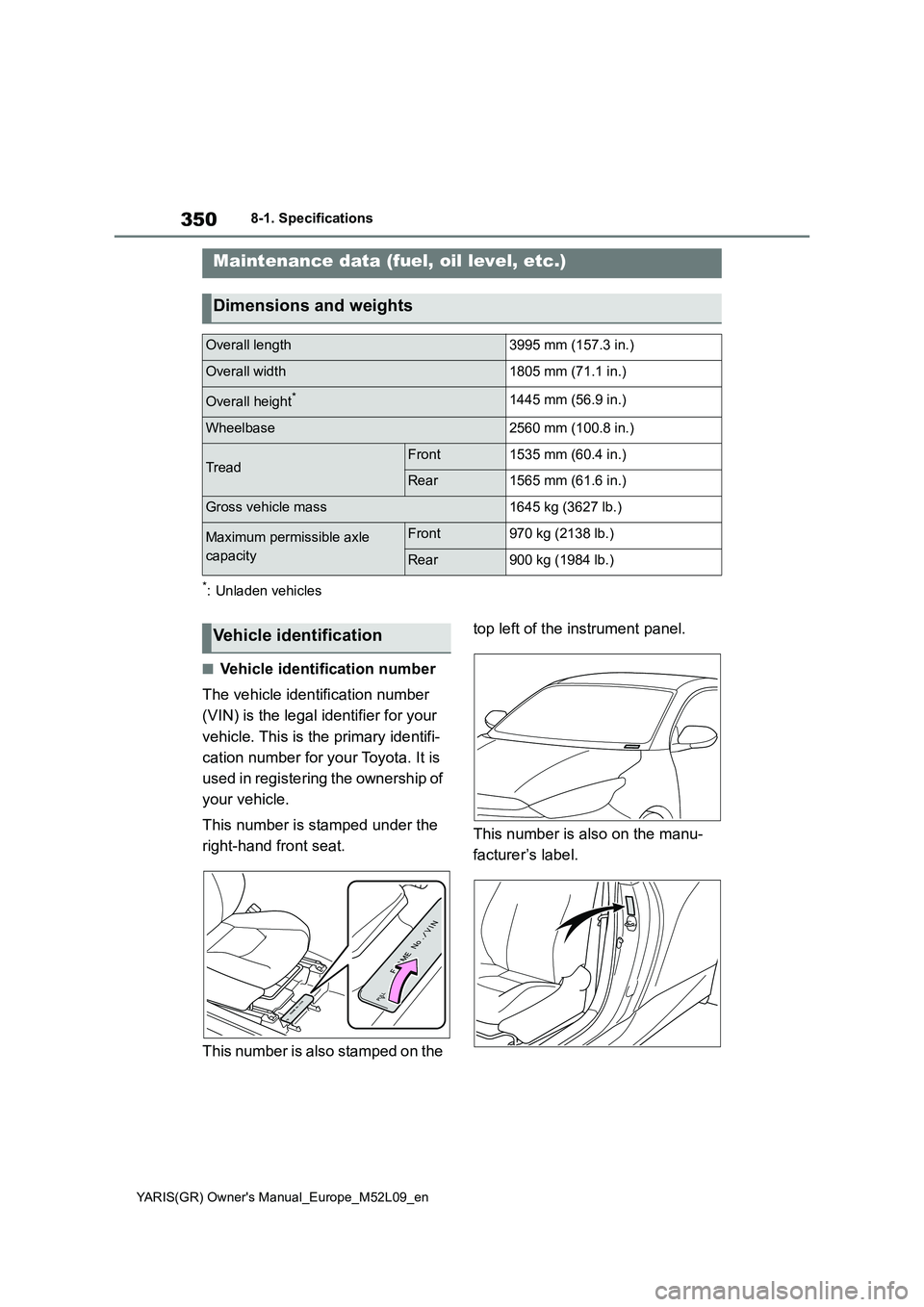

■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat.
This number is also stamped on the top left of the instrument panel.
This number is also on the manu-
facturer’s label.
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length3995 mm (157.3 in.)
Overall width1805 mm (71.1 in.)
Overall height*1445 mm (56.9 in.)
Wheelbase2560 mm (100.8 in.)
TreadFront1535 mm (60.4 in.)
Rear1565 mm (61.6 in.)
Gross vehicle mass1645 kg (3627 lb.)
Maximum permissible axle
capacityFront970 kg (2138 lb.)
Rear900 kg (1984 lb.)
Vehicle identification

351
8
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
Vehicle specifications

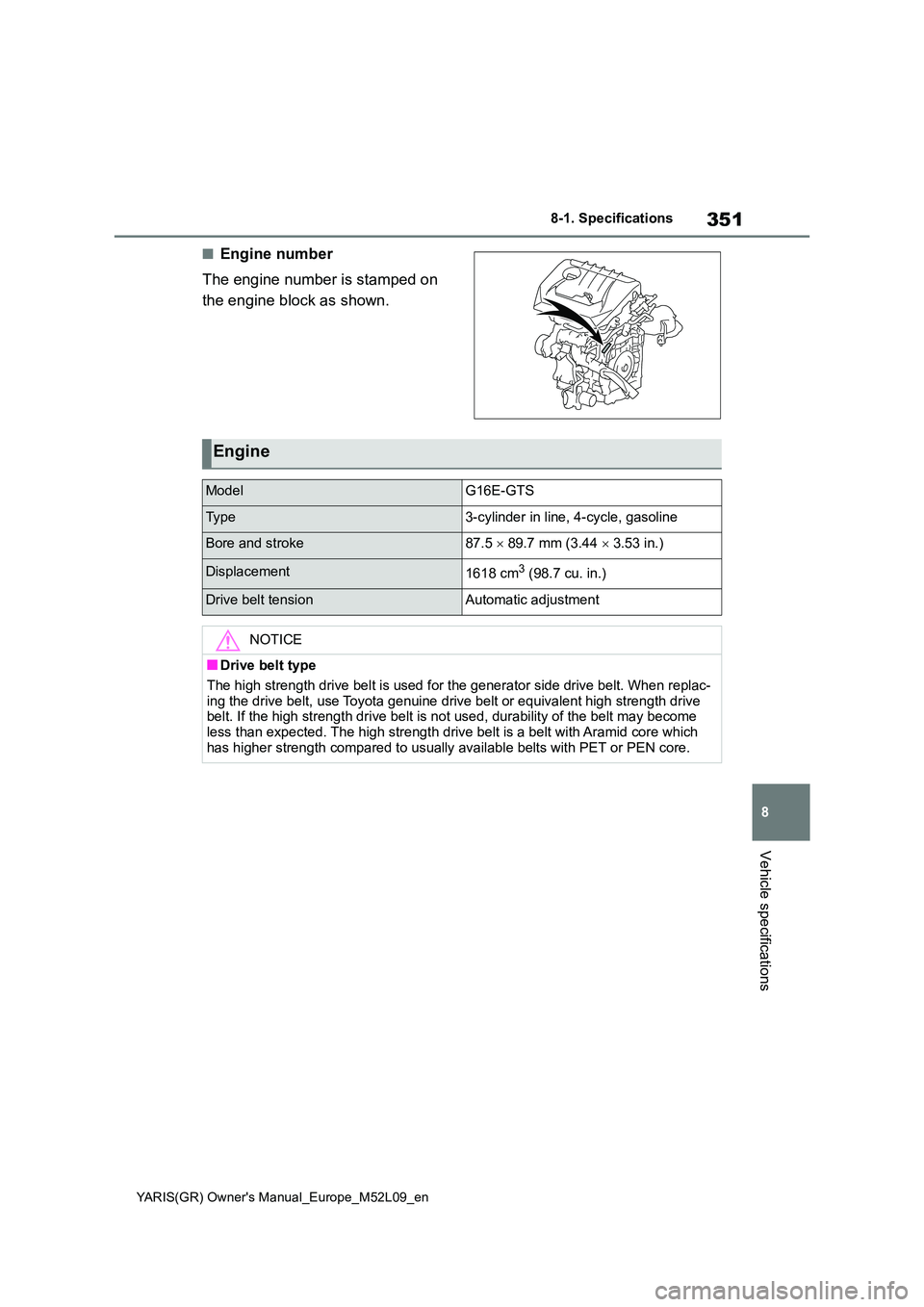

■Engine number
The engine number is stamped on
the engine block as shown.
Engine
ModelG16E-GTS
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke87.5 × 89.7 mm (3.44 × 3.53 in.)
Displacement1618 cm3 (98.7 cu. in.)
Drive belt tensionAutomatic adjustment
NOTICE
■Drive belt type
The high strength drive belt is used for the generator side drive belt. When replac-
ing the drive belt, use Toyota genuine drive belt or equivalent high strength drive belt. If the high strength drive belt is not used, durability of the belt may become less than expected. The high strength drive belt is a belt with Aramid core which
has higher strength compared to usually available belts with PET or PEN core.

352
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
*: If unleaded gasoline with a Research Octane Number of 98 is not available,
unleaded gasoline with a Research Octane Number of 95 may be used with no
detriment to engine durability or driveability.
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up and turn off
the engine, wait more than 8 minutes,
and check the oil level on the dip-
stick.
■Engine oil selection
Gasoline Engine ⎯
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
API grade SN PLUS “Resource-
Conserving” or SP “Resource-Con-
serving”; or ILSAC GF-6A multi-
grade engine oil
Recommended viscosity (SAE):
SAE 0W-20

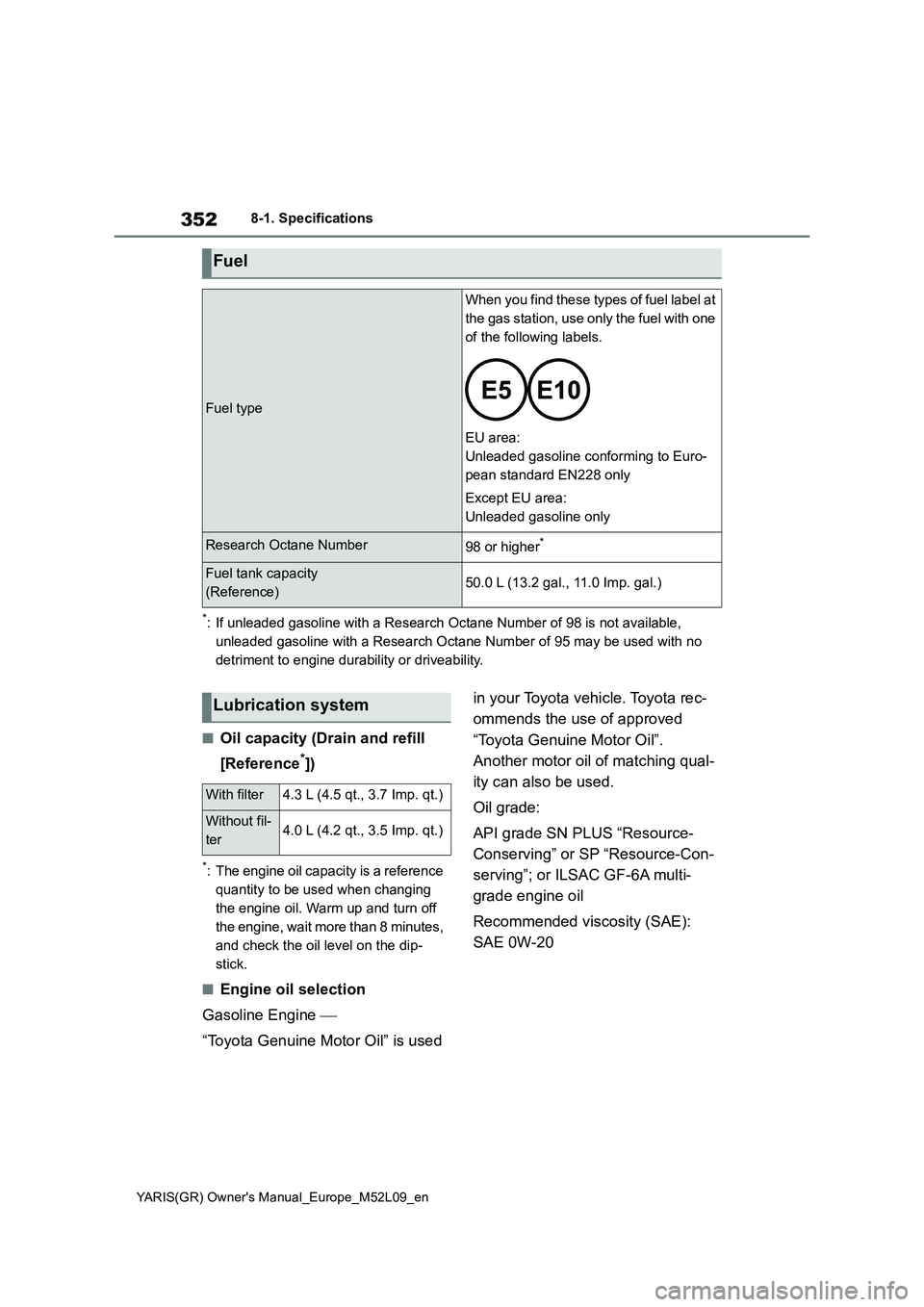

Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number98 or higher*
Fuel tank capacity
(Reference)50.0 L (13.2 gal., 11.0 Imp. gal.)
Lubrication system
With filter4.3 L (4.5 qt., 3.7 Imp. qt.)
Without fil-
ter4.0 L (4.2 qt., 3.5 Imp. qt.)

353
8
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
Vehicle specifications

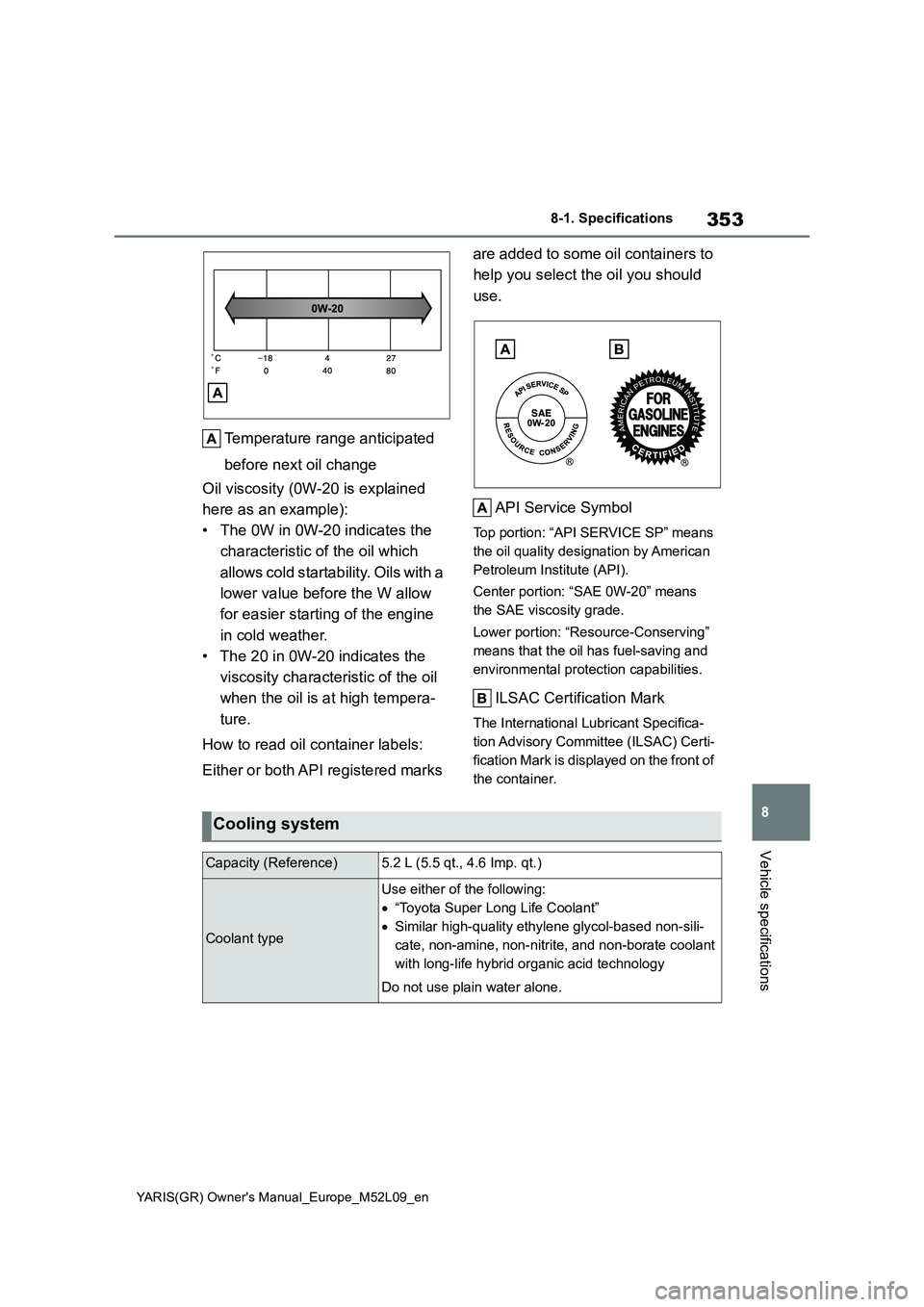

Temperature range anticipated
before next oil change
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the
characteristic of the oil which
allows cold startability. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 20 in 0W-20 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
Cooling system
Capacity (Reference)5.2 L (5.5 qt., 4.6 Imp. qt.)
Coolant type
Use either of the following:
•“Toyota Super Long Life Coolant”
•Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.

354
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications

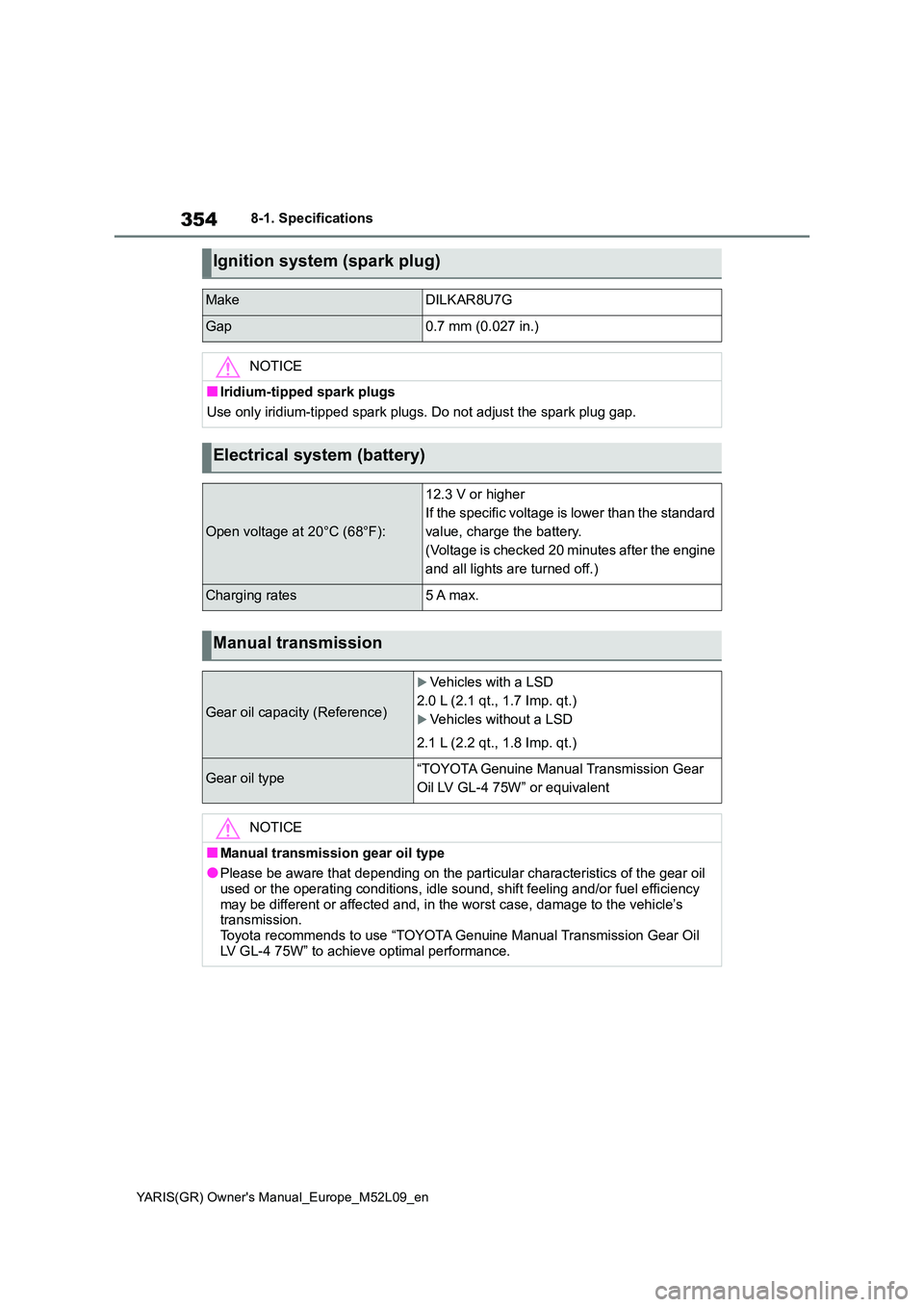

Ignition system (spark plug)
MakeDILKAR8U7G
Gap0.7 mm (0.027 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system (battery)
Open voltage at 20°C (68°F):
12.3 V or higher
If the specific voltage is lower than the standard
value, charge the battery.
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Manual transmission
Gear oil capacity (Reference)
Vehicles with a LSD
2.0 L (2.1 qt., 1.7 Imp. qt.)
Vehicles without a LSD
2.1 L (2.2 qt., 1.8 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristics of the gear oil
used or the operating conditions, idle sound, shift feeling and/or fuel efficiency may be different or affected and, in the worst case, damage to the vehicle’s transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission Gear Oil LV GL-4 75W” to achieve optimal performance.

355
8
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
Vehicle specifications
*: If a fluid type with “TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6”, FMVSS
No.116 DOT4 or SAE J1704LV is not available, fluid type with TOYOTA GENU-
INE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or SAE J1703 may be used
with no detriment to brake durability.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy the above specification. Please contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for further details.
NOTICE
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil LV GL- 4 75W” or an equivalent oil of matching quality that satisfies the above specifica-tions.
Please contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for further details.

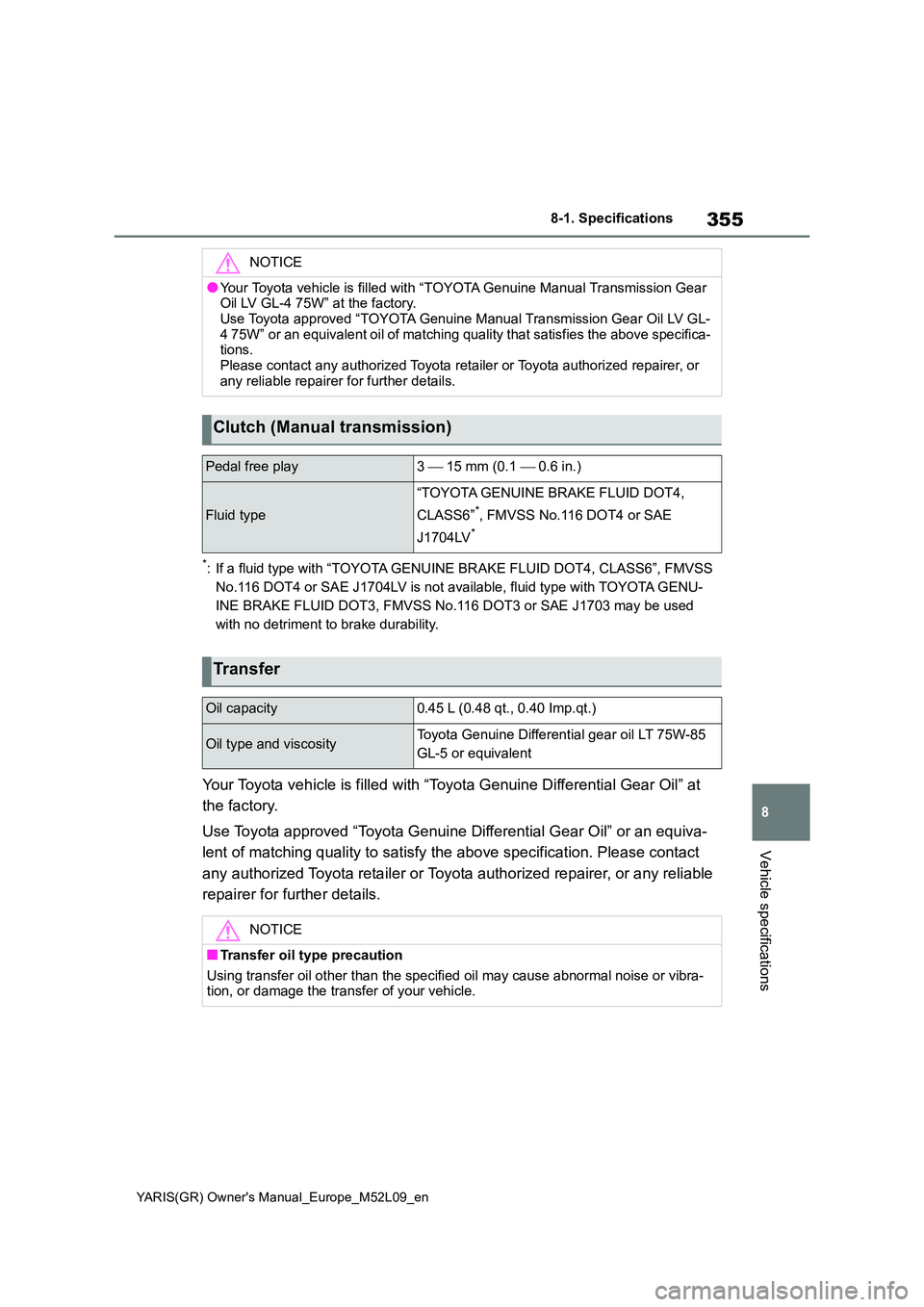

Clutch (Manual transmission)
Pedal free play3 ⎯ 15 mm (0.1 ⎯ 0.6 in.)
Fluid type
“TOYOTA GENUINE BRAKE FLUID DOT4,
CLASS6”*, FMVSS No.116 DOT4 or SAE
J1704LV*
Transfer
Oil capacity0.45 L (0.48 qt., 0.40 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent
NOTICE
■Transfer oil type precaution
Using transfer oil other than the specified oil may cause abnormal noise or vibra- tion, or damage the transfer of your vehicle.

356
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy the above specification. Please contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for further details.
*1: Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf, 67.4
lbf) while the engine is running.
*2: Right-hand drive vehicles
*3: Left-hand drive vehicles
*4: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0
lbf)
*5: If a fluid type with “TOYOTA GENUI NE BRAKE FLUID DOT4, CLASS6”, FMVSS
No.116 DOT4 or SAE J1704LV is not available, fluid type with TOYOTA GENU-
INE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or SAE J1703 may be used
with no detriment to brake durability.

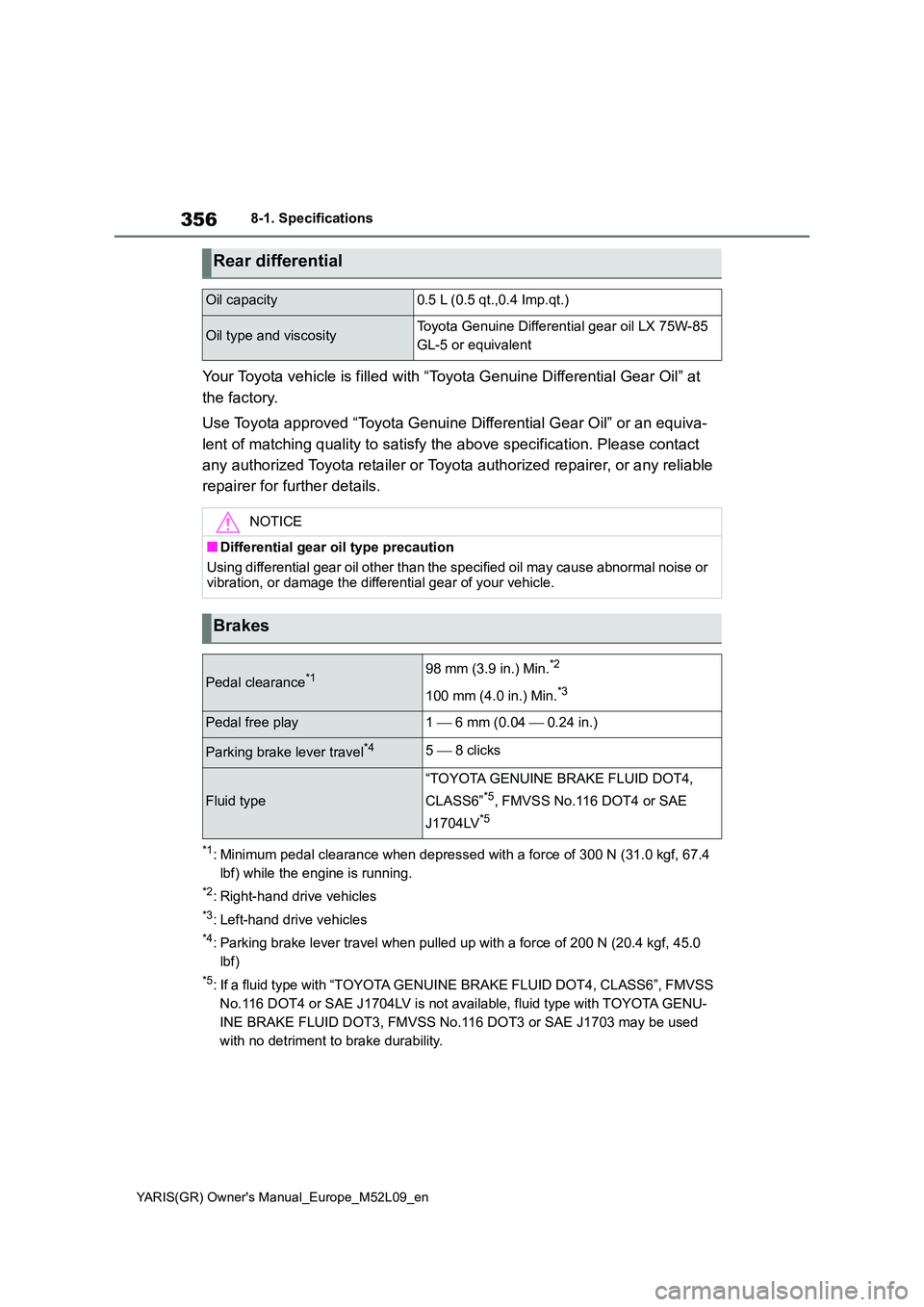

Rear differential
Oil capacity0.5 L (0.5 qt.,0.4 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LX 75W-85
GL-5 or equivalent
NOTICE
■Differential gear oil type precaution
Using differential gear oil other than the specified oil may cause abnormal noise or vibration, or damage the differential gear of your vehicle.
Brakes
Pedal clearance*198 mm (3.9 in.) Min.*2
100 mm (4.0 in.) Min.*3
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake lever travel*45  8 clicks
Fluid type
“TOYOTA GENUINE BRAKE FLUID DOT4,
CLASS6”*5, FMVSS No.116 DOT4 or SAE
J1704LV*5

357
8
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications
Vehicle specifications
Type A
Type B
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation pressure,
and drive at speeds below 100 km/h (62 mph).
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size225/40ZR18 (92Y)
Tire inflation pressure
(Recommended cold tire inflation pres-
sure)Front wheel
kPa (kgf/cm
2 or bar,
psi)
Rear wheel
kPa (kgf/cm
2 or bar,
psi)
220 (2.2, 32)200 (2.0, 29)
Wheel size18  8J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size225/40R18 88W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm
2 or bar,
psi)
Rear wheel
kPa (kgf/cm
2 or bar,
psi)
More than 200 km/h
(124 mph)250 (2.5, 36)230 (2.3, 33)
200 km/h (124
mph) or less220 (2.2, 32)200 (2.0, 29)
Wheel size18  8J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

358
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-1. Specifications

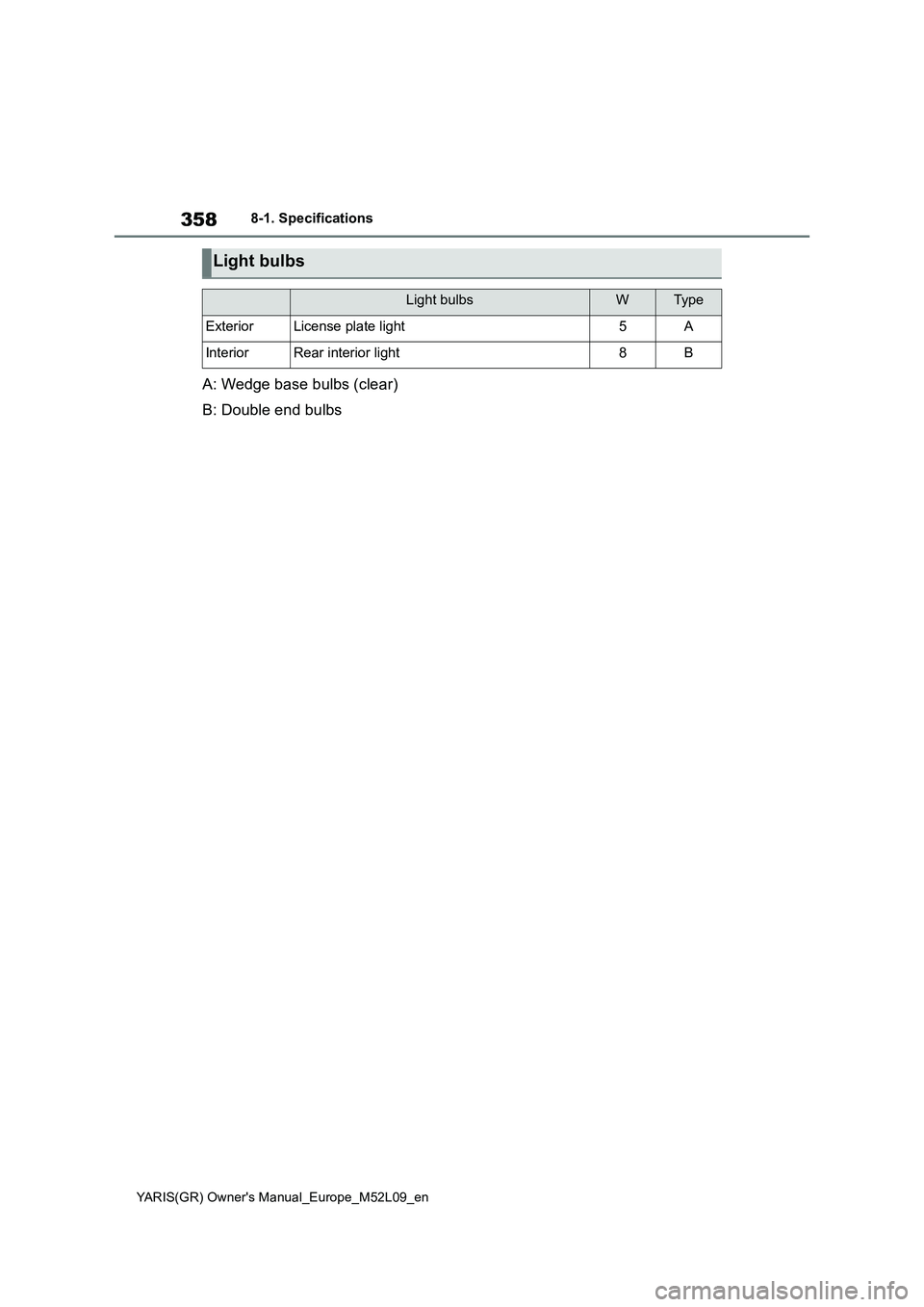

A: Wedge base bulbs (clear)
B: Double end bulbs
Light bulbs
Light bulbsWTyp e
ExteriorLicense plate light5A
InteriorRear interior light8B
