TOYOTA GR YARIS 2021 Owners Manual

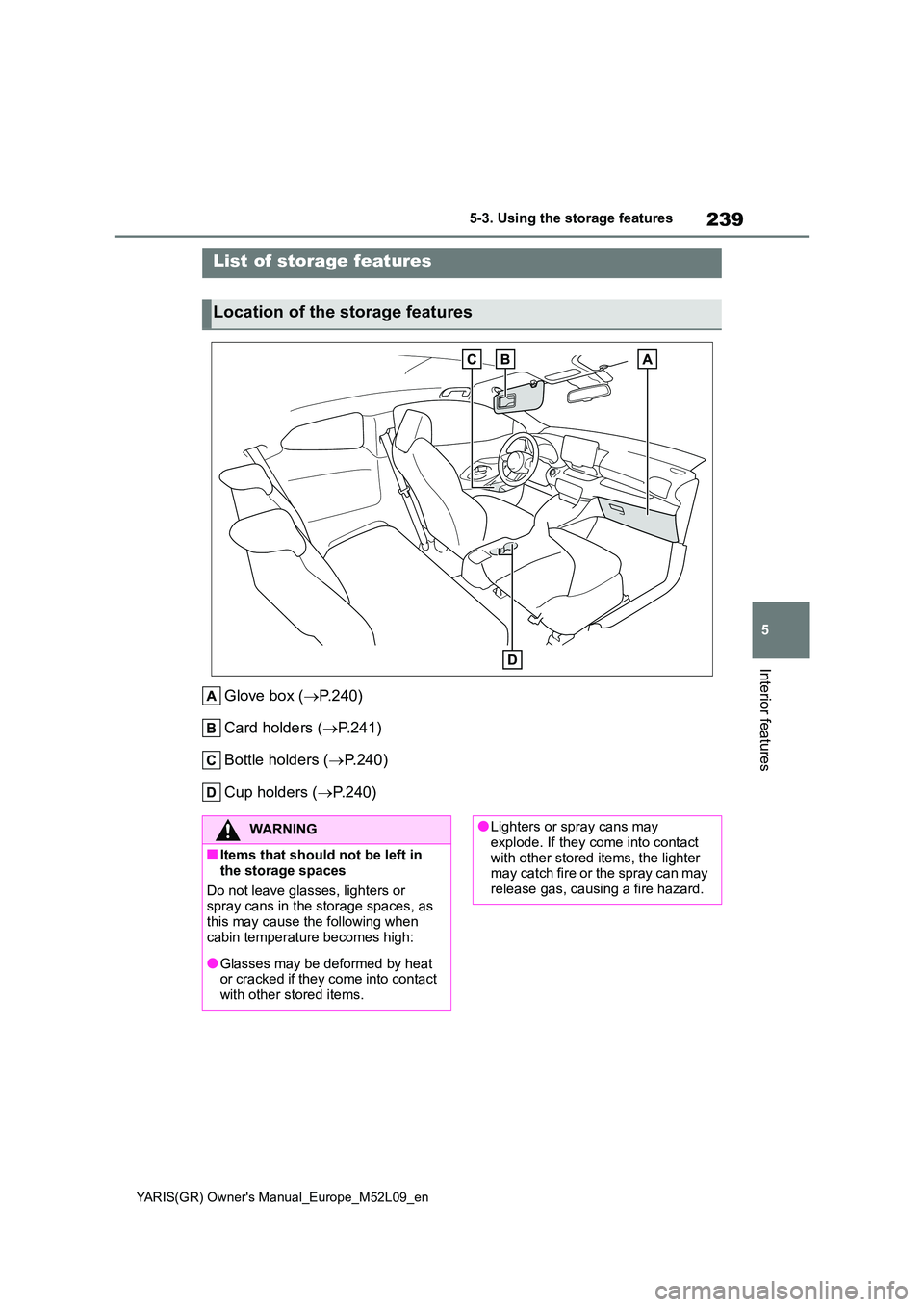

239
5
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-3. Using the storage features
Interior features
5-3.Using the s torage feature s
Glove box (→P.240)
Card holders ( →P.241)
Bottle holders ( →P.240)
Cup holders ( →P.240)
List of storage features
Location of the storage features
WARNING
■Items that should not be left in
the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as
this may cause the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with other stored items.
●Lighters or spray cans may explode. If they come into contact
with other stored items, the lighter may catch fire or the spray can may release gas, causing a fire hazard.

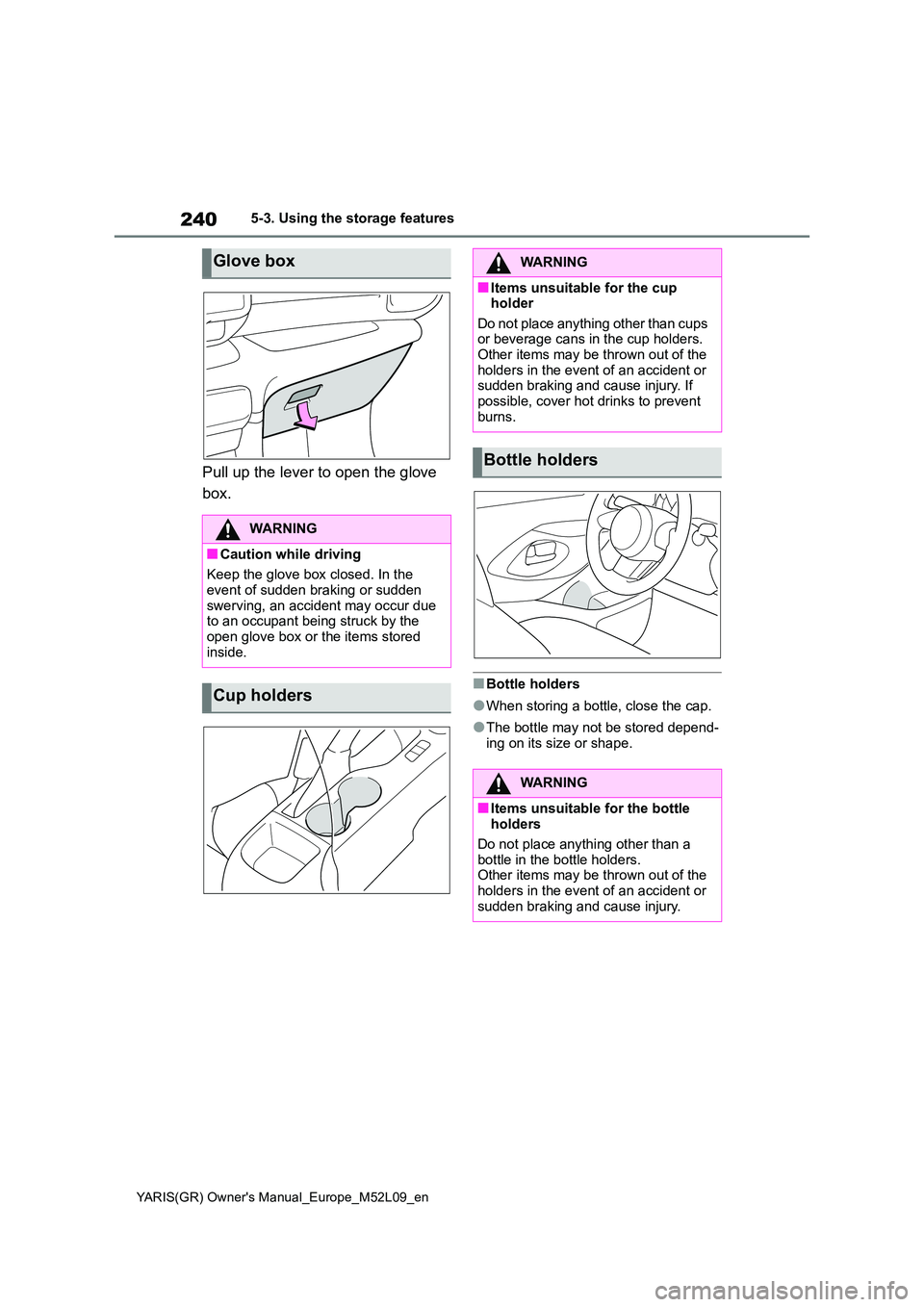

240
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-3. Using the storage features
Pull up the lever to open the glove
box.
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depend-
ing on its size or shape.
Glove box
WARNING
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the
open glove box or the items stored inside.
Cup holders
WARNING
■Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.Other items may be thrown out of the
holders in the event of an accident or sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
Bottle holders
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders.Other items may be thrown out of the
holders in the event of an accident or sudden braking and cause injury.

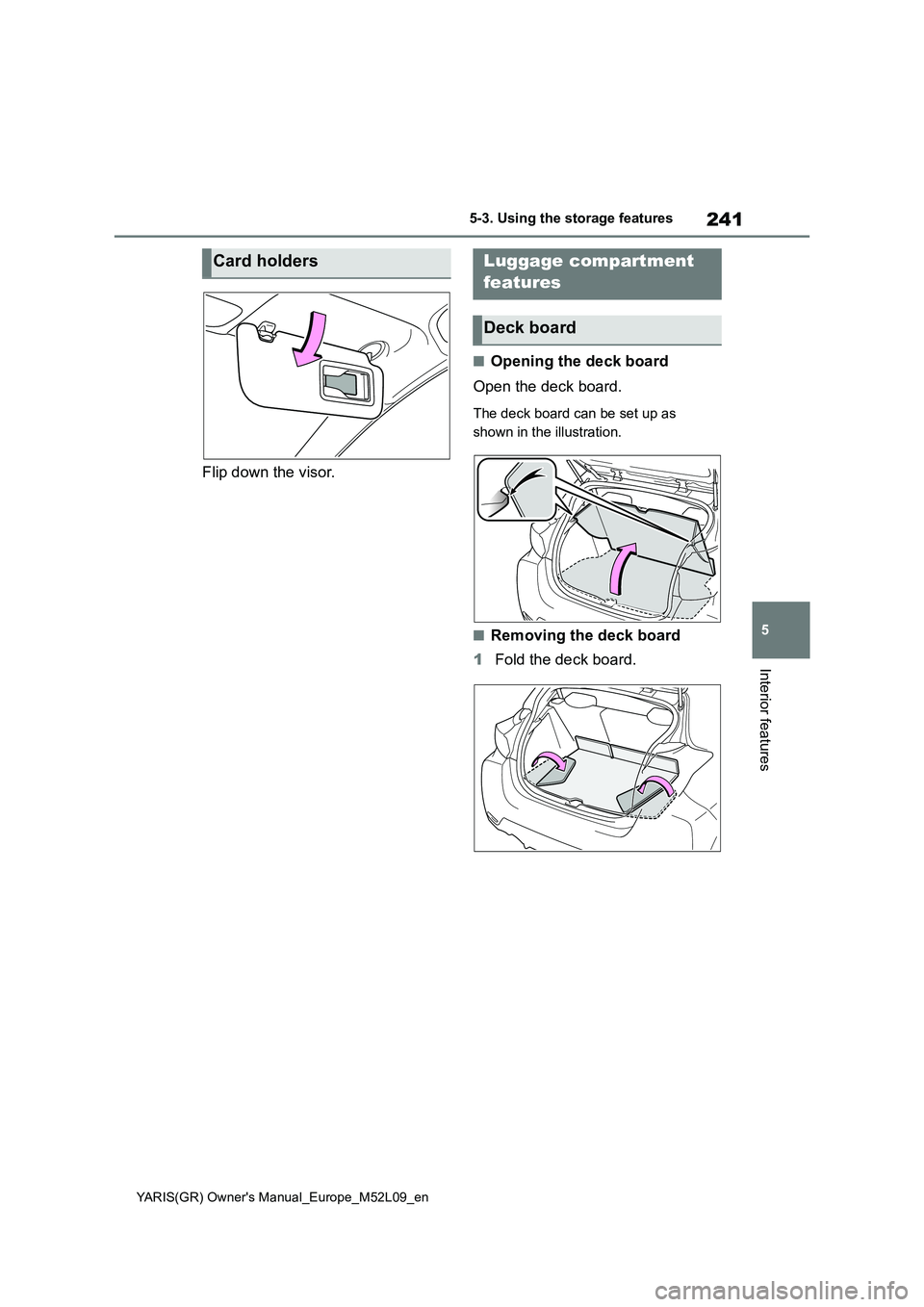

241
5
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-3. Using the storage features
Interior features
Flip down the visor.
■Opening the deck board
Open the deck board.
The deck board can be set up as
shown in the illustration.
■Removing the deck board
1 Fold the deck board.
Card holdersLuggage compartment
features
Deck board

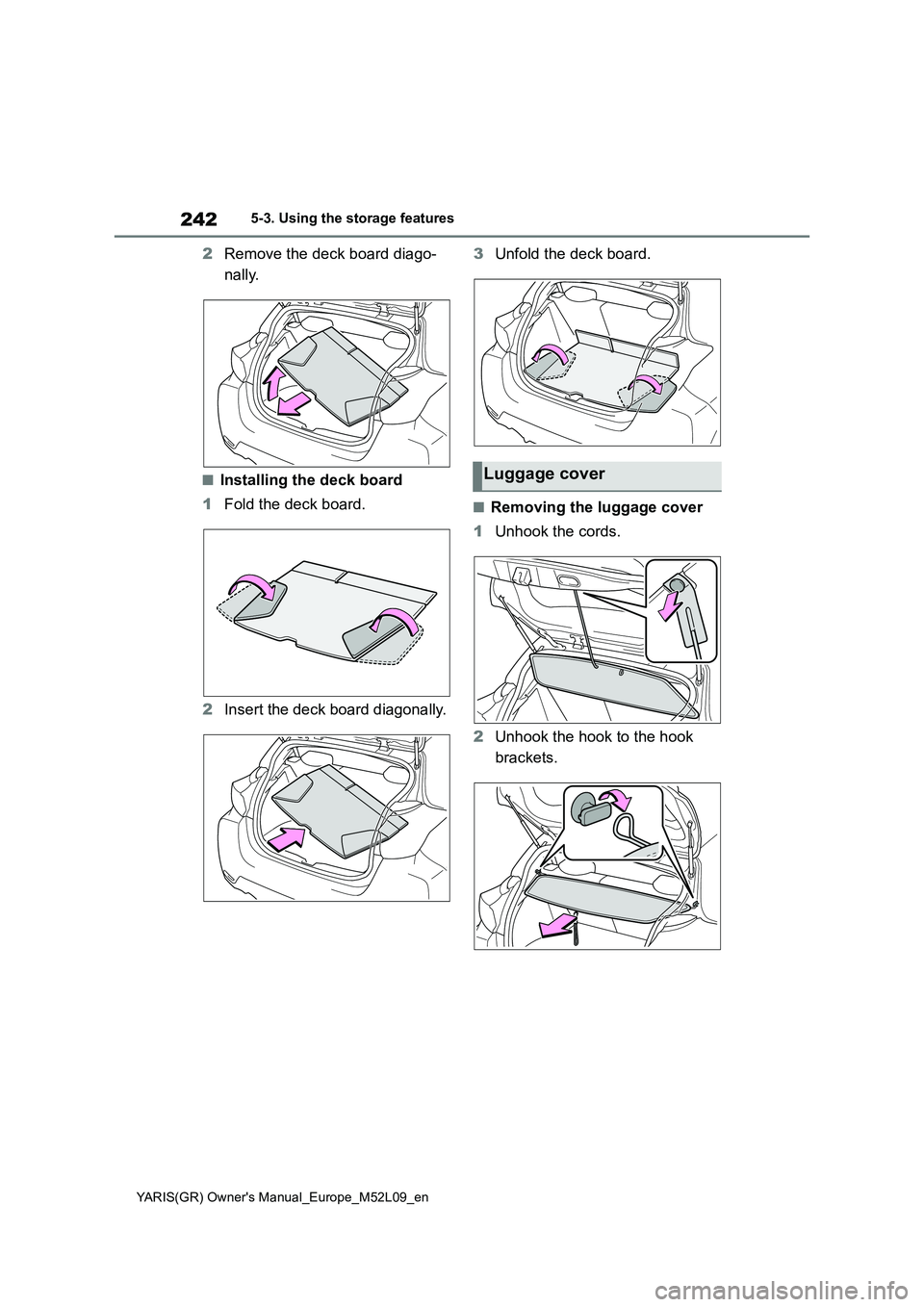

242
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-3. Using the storage features
2Remove the deck board diago-
nally.
■Installing the deck board
1 Fold the deck board.
2 Insert the deck board diagonally.
3 Unfold the deck board.
■Removing the luggage cover
1 Unhook the cords.
2 Unhook the hook to the hook
brackets.
Luggage cover

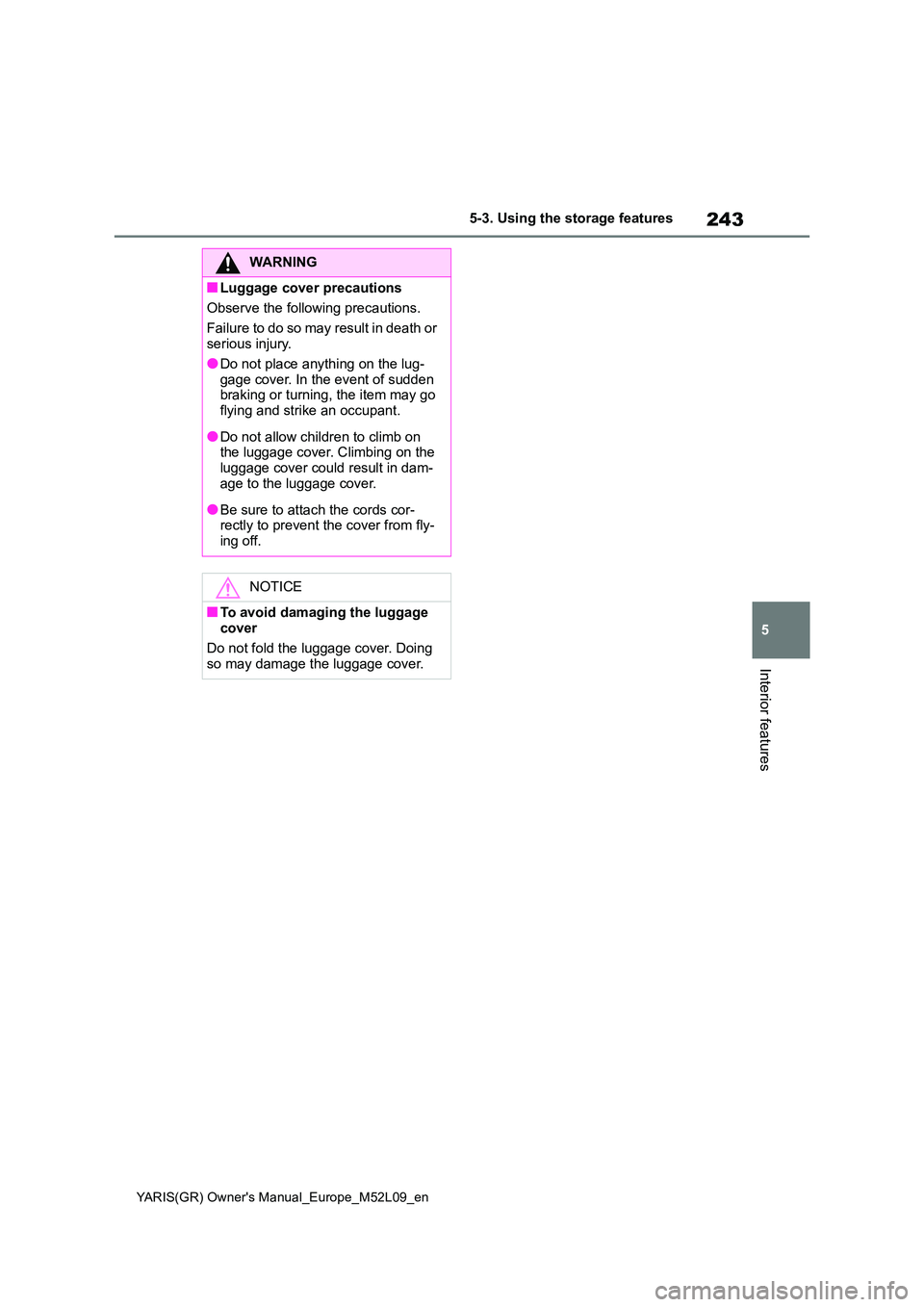

243
5
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-3. Using the storage features
Interior features
WARNING
■Luggage cover precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not place anything on the lug-
gage cover. In the event of sudden braking or turning, the item may go flying and strike an occupant.
●Do not allow children to climb on the luggage cover. Climbing on the
luggage cover could result in dam- age to the luggage cover.
●Be sure to attach the cords cor-rectly to prevent the cover from fly-ing off.
NOTICE
■To avoid damaging the luggage cover
Do not fold the luggage cover. Doing so may damage the luggage cover.

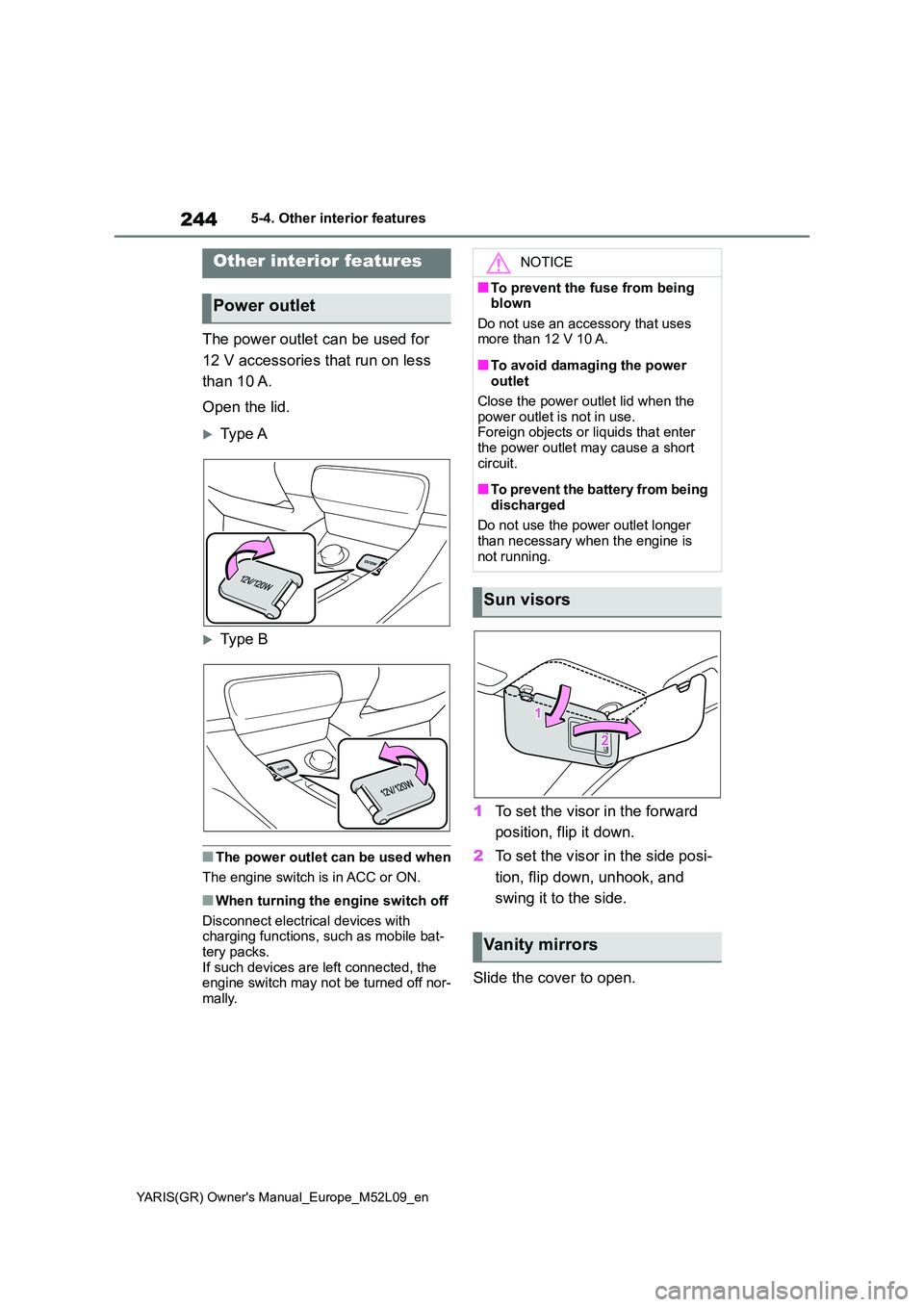

244
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-4. Other interior features
5-4.Othe r in terior fe atu res
The power outlet can be used for
12 V accessories that run on less
than 10 A.
Open the lid.
Type A
Type B
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile bat-
tery packs. If such devices are left connected, the engine switch may not be turned off nor-
mally.
1 To set the visor in the forward
position, flip it down.
2 To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
Other interior features
Power outlet
NOTICE
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To avoid damaging the power outlet
Close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short
circuit.
■To prevent the battery from being
discharged
Do not use the power outlet longer than necessary when the engine is
not running.
Sun visors
Vanity mirrors

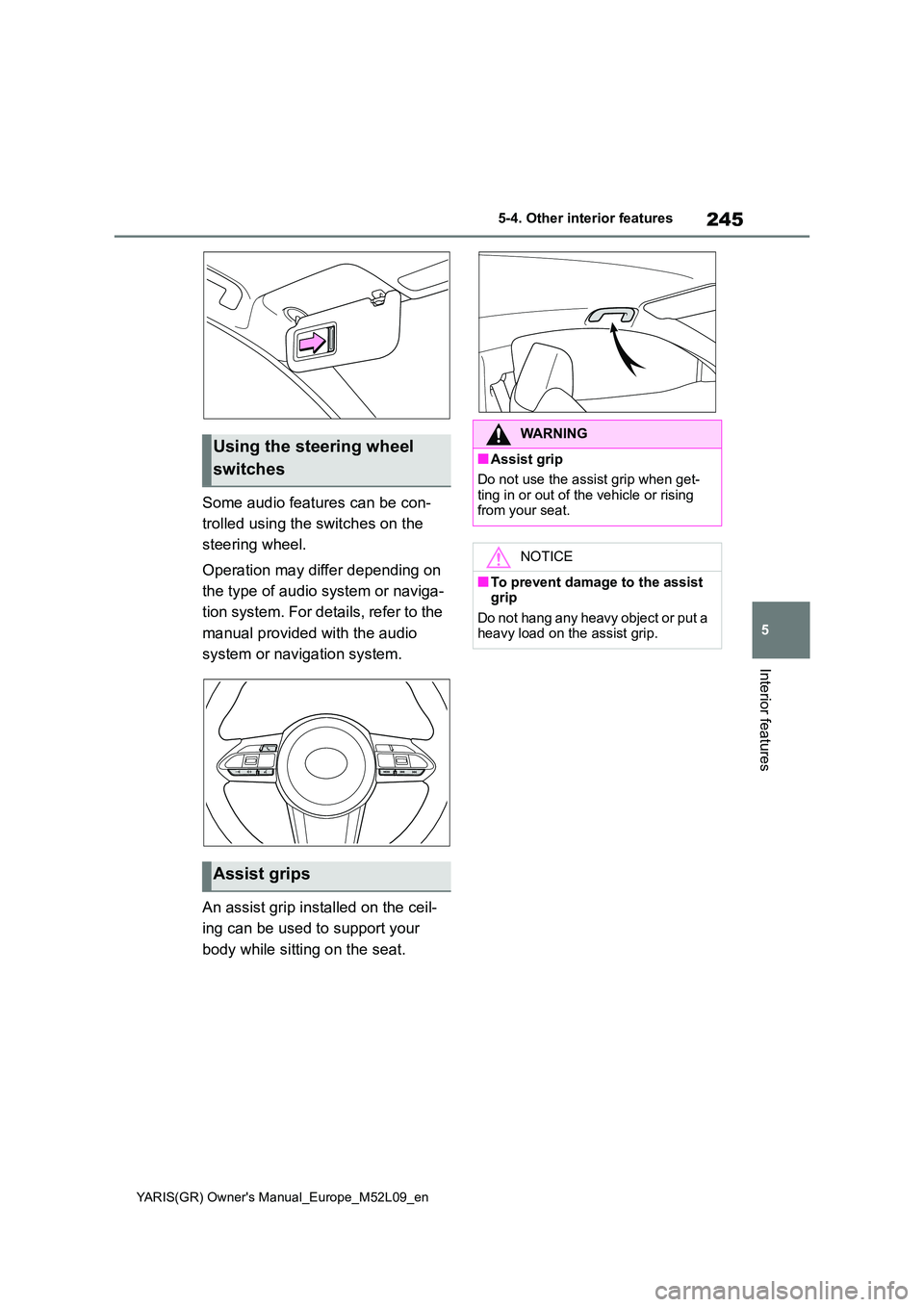

245
5
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-4. Other interior features
Interior features
Some audio features can be con-
trolled using the switches on the
steering wheel.
Operation may differ depending on
the type of audio system or naviga-
tion system. For details, refer to the
manual provided with the audio
system or navigation system.
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Using the steering wheel
switches
Assist grips
WARNING
■Assist grip
Do not use the assist grip when get- ting in or out of the vehicle or rising from your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.

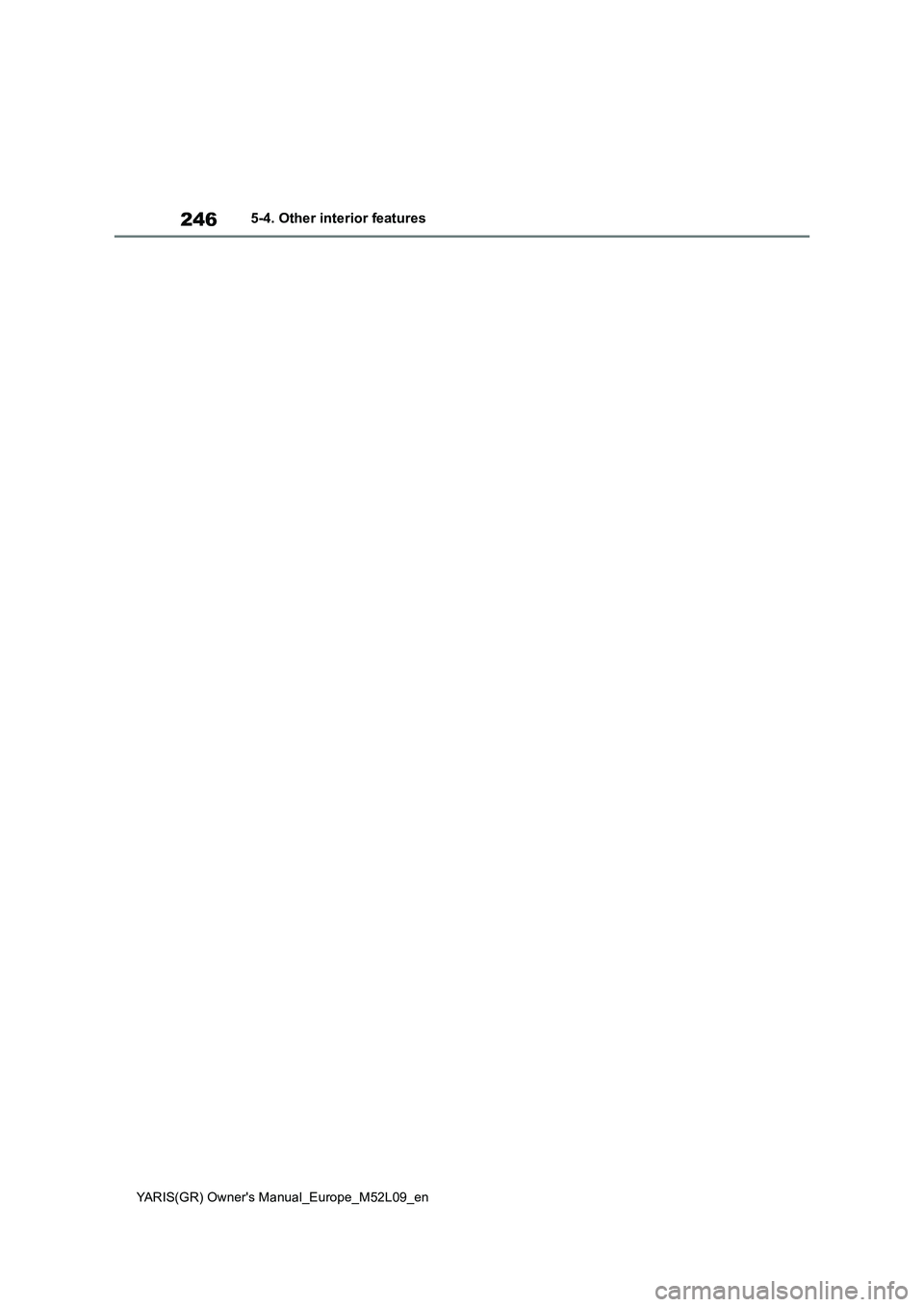

246
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-4. Other interior features

6

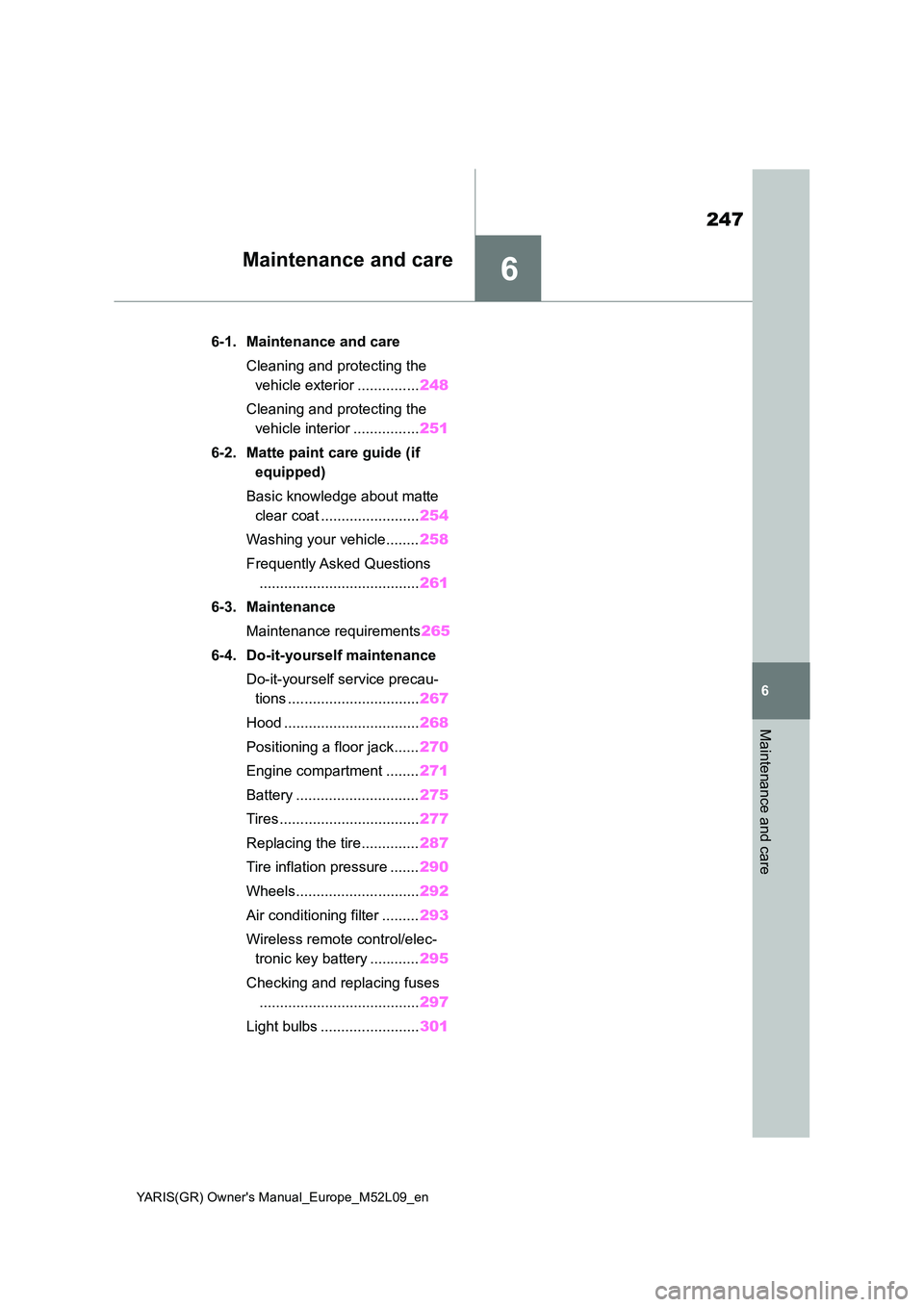

247
YARIS(GR) Owner's Manual_Europe_M52L09_en
6
Maintenance and care
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ............... 248
Cleaning and protecting the
vehicle interior ................ 251
6-2. Matte paint care guide (if
equipped)
Basic knowledge about matte
clear coat ........................ 254
Washing your vehicle........ 258
Frequently Asked Questions
....................................... 261
6-3. Maintenance
Maintenance requirements 265
6-4. Do-it-yourself maintenance
Do-it-yourself service precau-
tions ................................ 267
Hood ................................. 268
Positioning a floor jack...... 270
Engine compartment ........ 271
Battery .............................. 275
Tires .................................. 277
Replacing the tire.............. 287
Tire inflation pressure ....... 290
Wheels.............................. 292
Air conditioning filter ......... 293
Wireless remote control/elec-
tronic key battery ............ 295
Checking and replacing fuses
....................................... 297
Light bulbs ........................ 301

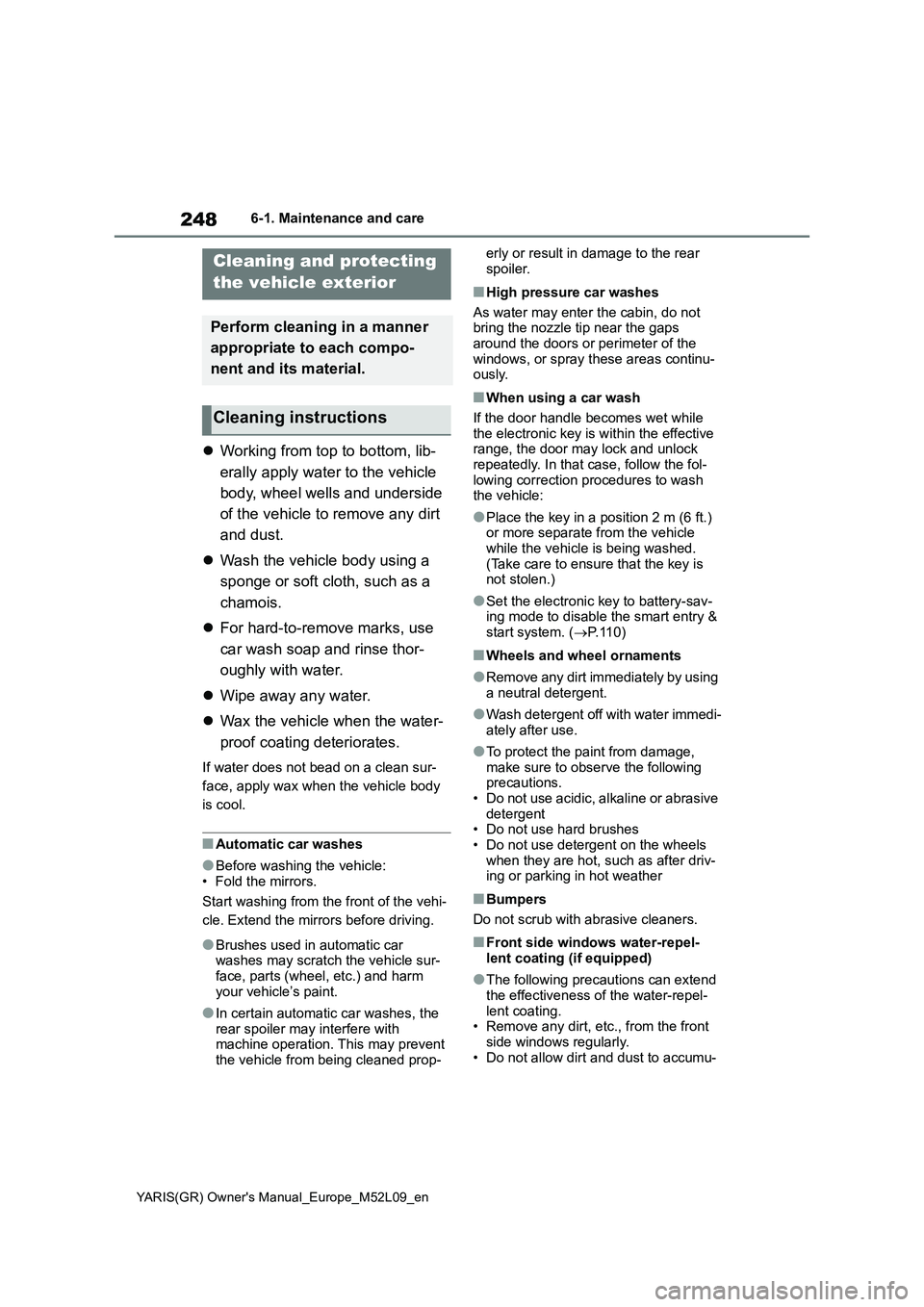

248
YARIS(GR) Owner's Manual_Europe_M52L09_en
6-1. Maintenance and care
6-1.Mainte nance a nd care
zWorking from top to bottom, lib-
erally apply water to the vehicle
body, wheel wells and underside
of the vehicle to remove any dirt
and dust.
zWash the vehicle body using a
sponge or soft cloth, such as a
chamois.
zFor hard-to-remove marks, use
car wash soap and rinse thor-
oughly with water.
zWipe away any water.
zWax the vehicle when the water-
proof coating deteriorates.
If water does not bead on a clean sur-
face, apply wax when the vehicle body
is cool.
■Automatic car washes
●Before washing the vehicle:
• Fold the mirrors.
Start washing from the front of the vehi-
cle. Extend the mirrors before driving.
●Brushes used in automatic car
washes may scratch the vehicle sur-
face, parts (wheel, etc.) and harm
your vehicle’s paint.
●In certain automatic car washes, the
rear spoiler may interfere with
machine operation. This may prevent
the vehicle from being cleaned prop-erly or result in damage to the rear
spoiler.
■High pressure car washes
As water may enter the cabin, do not
bring the nozzle tip near the gaps
around the doors or perimeter of the
windows, or spray these areas continu-
ously.
■When using a car wash
If the door handle becomes wet while
the electronic key is within the effective
range, the door may lock and unlock
repeatedly. In that case, follow the fol-
lowing correction procedures to wash
the vehicle:
●Place the key in a position 2 m (6 ft.)
or more separate from the vehicle
while the vehicle is being washed.
(Take care to ensure that the key is
not stolen.)
●Set the electronic key to battery-sav-
ing mode to disable the smart entry &
start system. (→P.110)
■Wheels and wheel ornaments
●Remove any dirt immediately by using
a neutral detergent.
●Wash detergent off with water immedi-
ately after use.
●To protect the paint from damage,
make sure to observe the following
precautions.
• Do not use acidic, alkaline or abrasive
detergent
• Do not use hard brushes
• Do not use detergent on the wheels
when they are hot, such as after driv-
ing or parking in hot weather
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repel-
lent coating (if equipped)
●The following precautions can extend
the effectiveness of the water-repel-
lent coating.
• Remove any dirt, etc., from the front
side windows regularly.
• Do not allow dirt and dust to accumu-
Cleaning and protecting
the vehicle exterior
Perform cleaning in a manner
appropriate to each compo-
nent and its material.
Cleaning instructions
