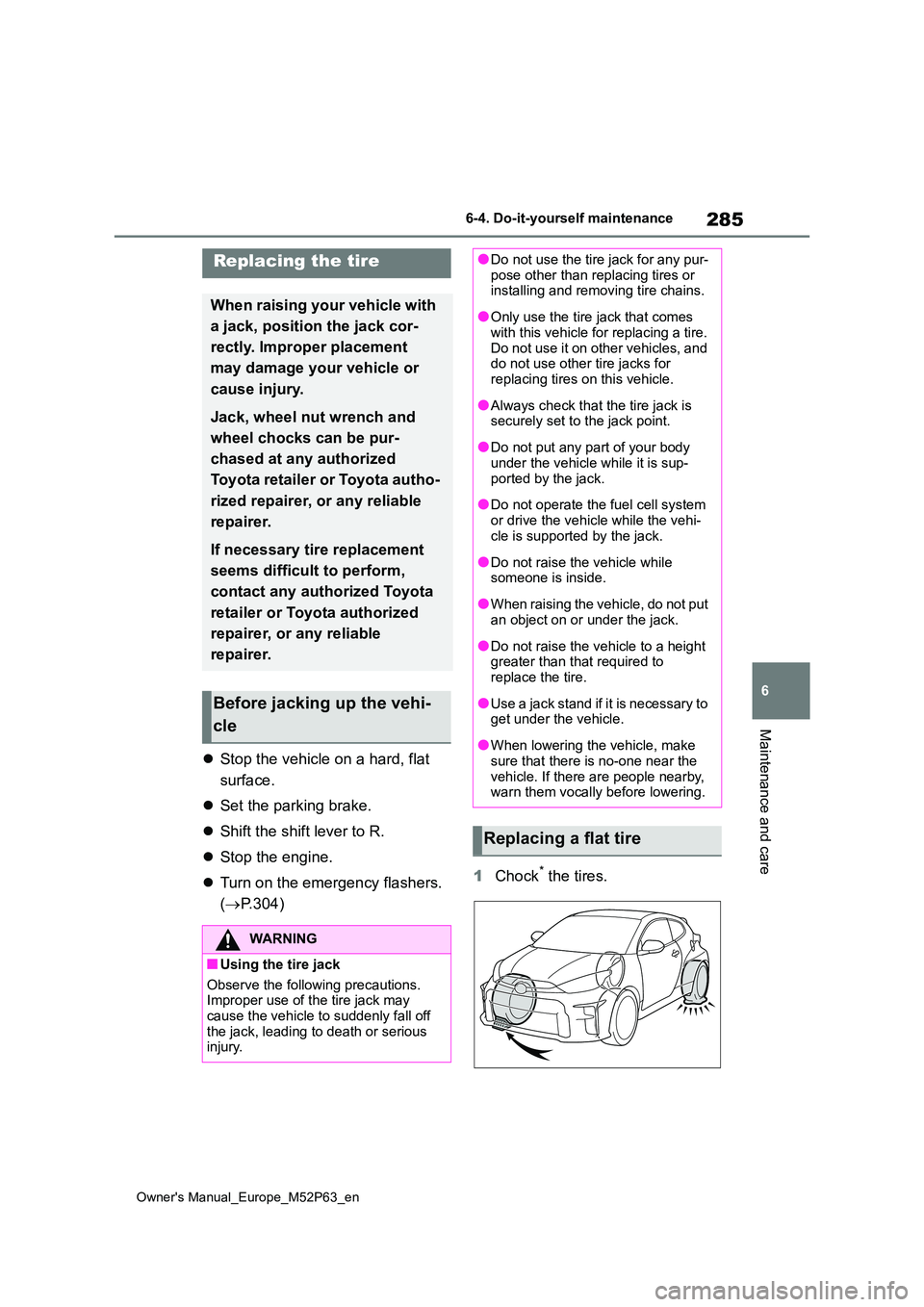

6-4. Do-it-yourself maintenance
Maintenance and care
Stop the vehicle on a hard, flat
surface.
Set the parking brake.
Shift the shift lever to R.
Stop the engine.
Turn on the emergency flashers.
( P.304)
1 Chock* the tires.
Replacing the tire
When raising your vehicle with
a jack, position the jack cor-
rectly. Improper placement
may damage your vehicle or
cause injury.
Jack, wheel nut wrench and
wheel chocks can be pur-
chased at any authorized
Toyota retailer or Toyota autho-
rized repairer, or any reliable
repairer.
If necessary tire replacement
seems difficult to perform,
contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer.
Before jacking up the vehi-
cle
WARNING
■Using the tire jack
Observe the following precautions. Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any pur-pose other than replacing tires or installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is sup-
ported by the jack.
●Do not operate the fuel cell system
or drive the vehicle while the vehi- cle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
Replacing a flat tire
