TOYOTA GR86 2022 (in English) Owner's Manual

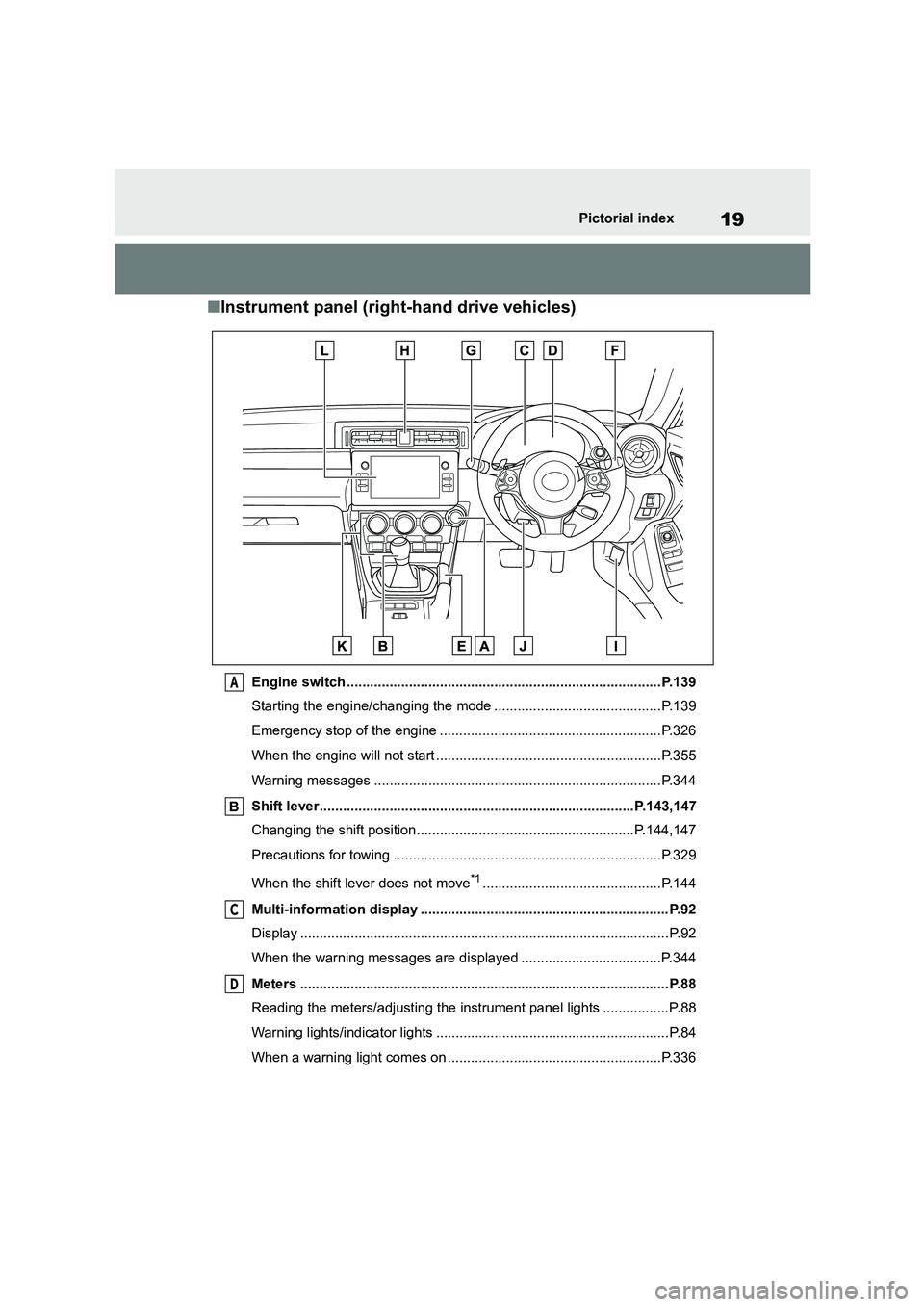

19Pictorial index
■Instrument panel (right-hand drive vehicles)
Engine switch .................................................................................P.139
Starting the engine/changing the mode ...........................................P.139
Emergency stop of the engine .........................................................P.326
When the engine will not start ..........................................................P.355
Warning messages ..........................................................................P.344
Shift lever.................................................................................P.143,147
Changing the shift position........................................................P.144,147
Precautions for towing .....................................................................P.329
When the shift lever does not move*1..............................................P.144
Multi-information display ................................................................P.92
Display ...............................................................................................P.92
When the warning messages are displayed ....................................P.344
Meters ...............................................................................................P.88
Reading the meters/adjusting the instrument panel lights .................P.88
Warning lights/indicator lights ............................................................P.84
When a warning light comes on .......................................................P.336
A
C
D

20Pictorial index
Parking brake .................................................................................P.151
Applying/releasing............................................................................P.151
Precautions for winter season..........................................................P.261
Warning lights ..................................................................................P.336
Windshield wiper and washer switch ..........................................P.160
Usage...............................................................................................P.160
Adding washer fluid..........................................................................P.300
Headlight cleaners ...........................................................................P.160
Headlight switch ...........................................................................P.153
Turn signal lever ............................................................................P.150
Headlights/front position lights/tail lights/daytime running lights ......P.153
Rear fog light....................................................................................P.159
Emergency flasher switch.............................................................P.326
Hood lock release lever .................................................................P.293
Tilt and telescopic steering lock release lever ............................P.122
Adjustment .......................................................................................P.122
Air conditioning system ................................................................P.264
Usage...............................................................................................P.264
Rear window defogger .....................................................................P.266
Audio system*2
*1: Vehicles with an automatic transmission
*2: Refer to “Multimedia owner’s manual”.

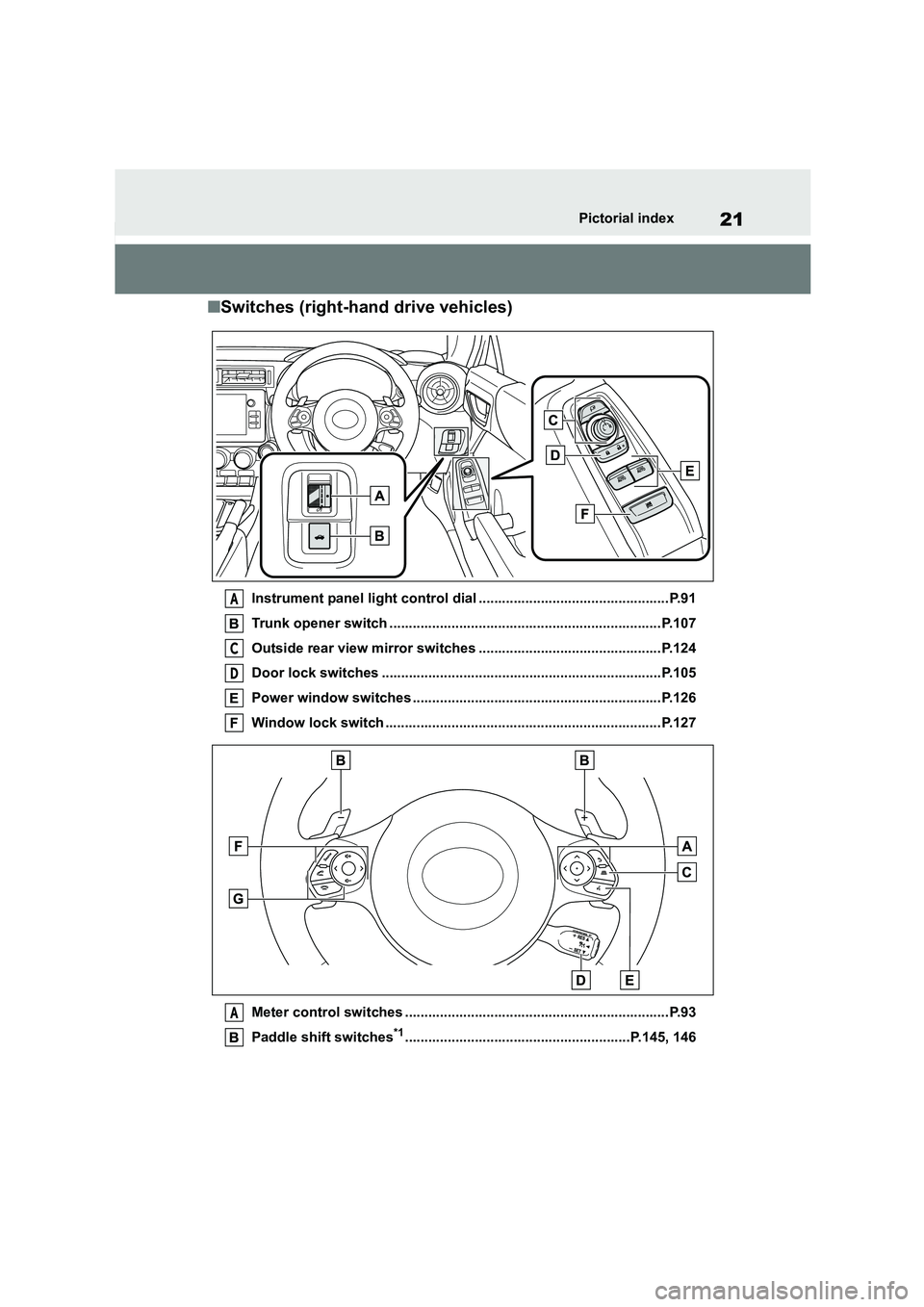

21Pictorial index
■Switches (right-hand drive vehicles)
Instrument panel light control dial .................................................P.91
Trunk opener switch ......................................................................P.107
Outside rear view mirror switches ...............................................P.124
Door lock switches ........................................................................P.105
Power window switches ................................................................P.126
Window lock switch .......................................................................P.127
Meter control switches ....................................................................P.93
Paddle shift switches*1..........................................................P.145, 146
A
C
D
A

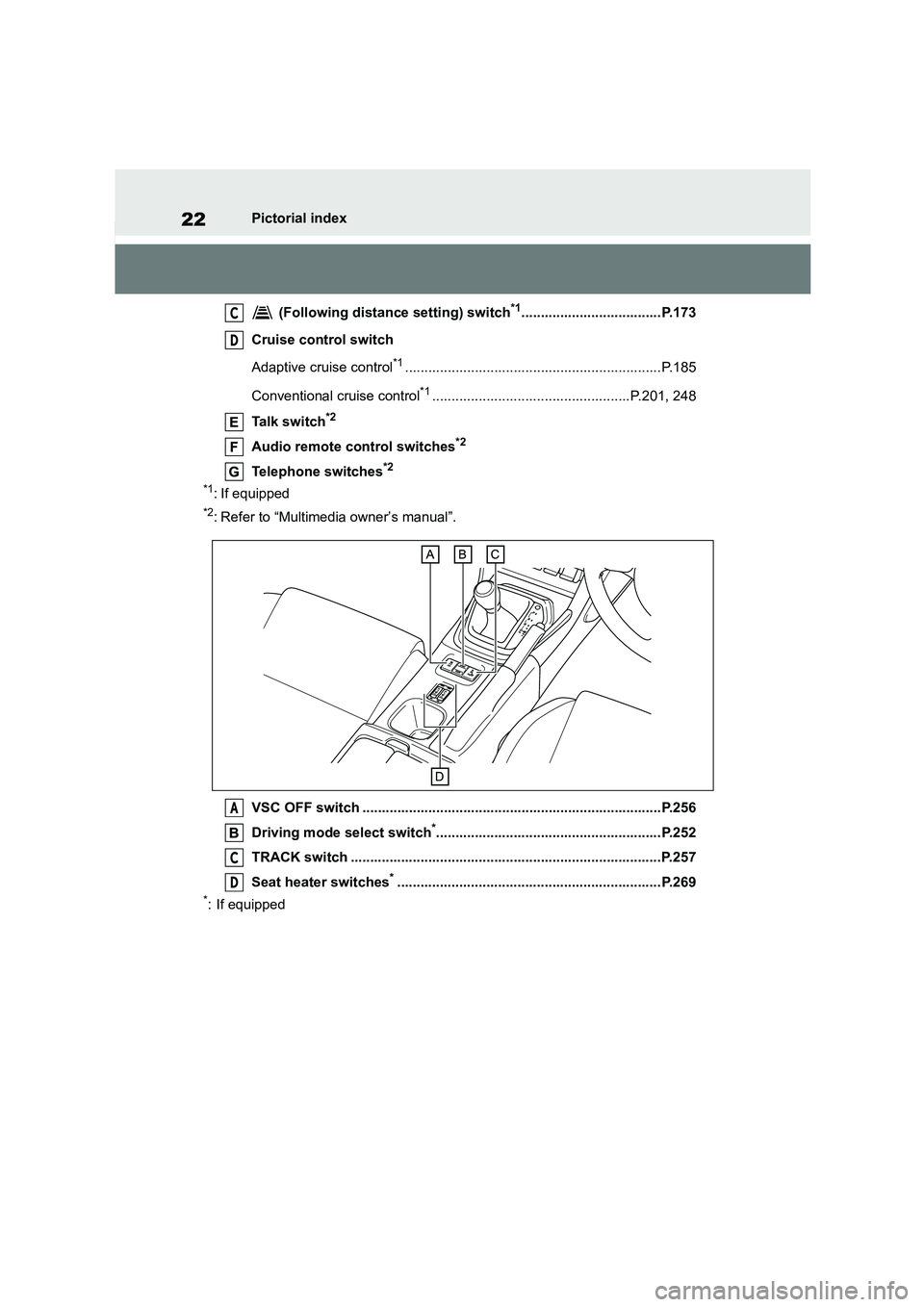

22Pictorial index
(Following distance setting) switch*1....................................P.173
Cruise control switch
Adaptive cruise control*1..................................................................P.185
Conventional cruise control*1...................................................P.201, 248
Talk switch*2
Audio remote control switches*2
Telephone switches*2
*1: If equipped
*2: Refer to “Multimedia owner’s manual”.
VSC OFF switch .............................................................................P.256
Driving mode select switch*..........................................................P.252
TRACK switch .............. ..................................................................P.257
Seat heater switches*....................................................................P.269
*: If equipped
C
D
A
C
D

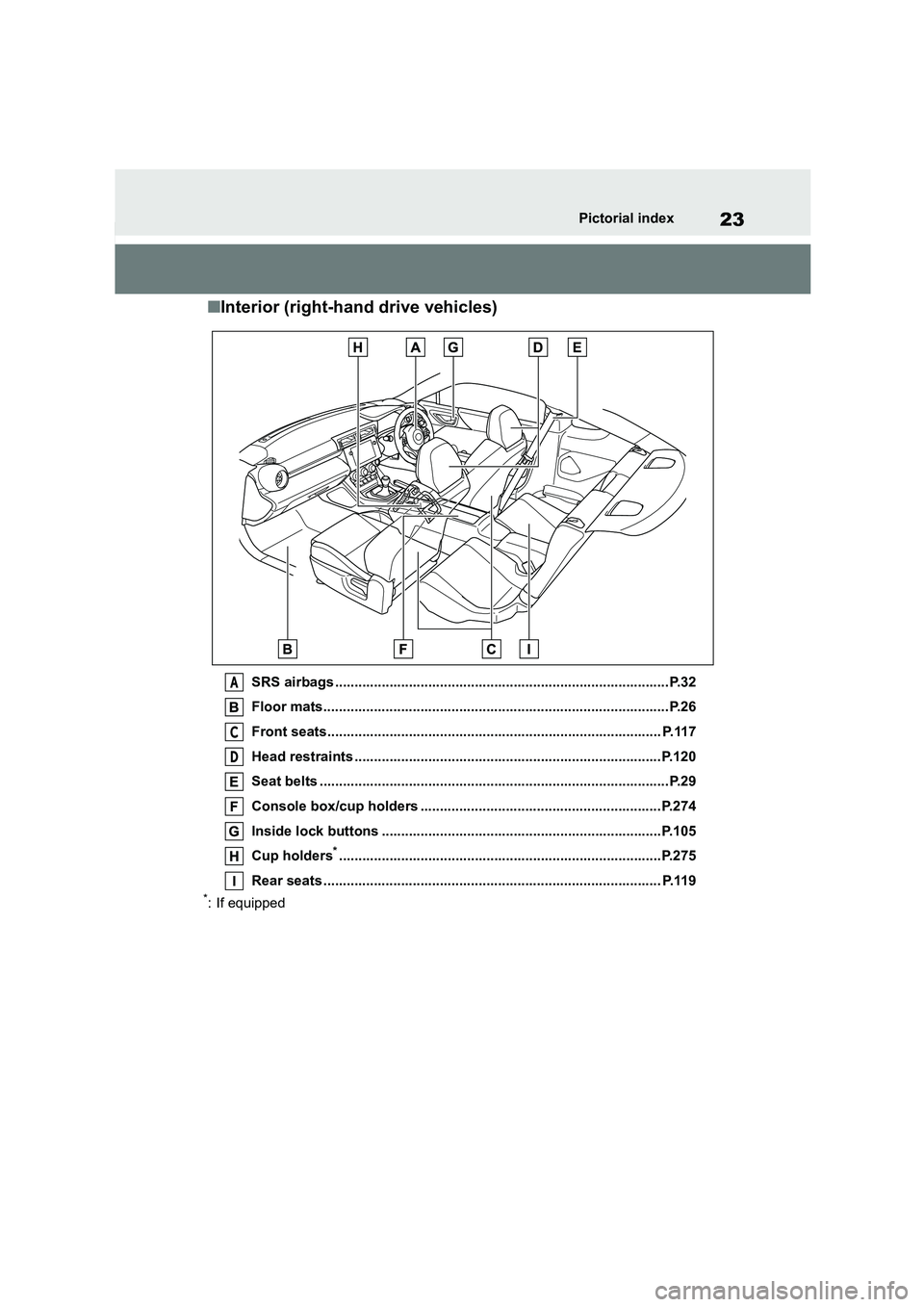

23Pictorial index
■Interior (right-hand drive vehicles)
SRS airbags ......................................................................................P.32
Floor mats.........................................................................................P.26
Front seats...................................................................................... P.117
Head restraints ...............................................................................P.120
Seat belts ..........................................................................................P.29
Console box/cup holders ..............................................................P.274
Inside lock buttons ........................................................................P.105
Cup holders*...................................................................................P.275
Rear seats ....................................................................................... P.119
*: If equipped
A
C
D

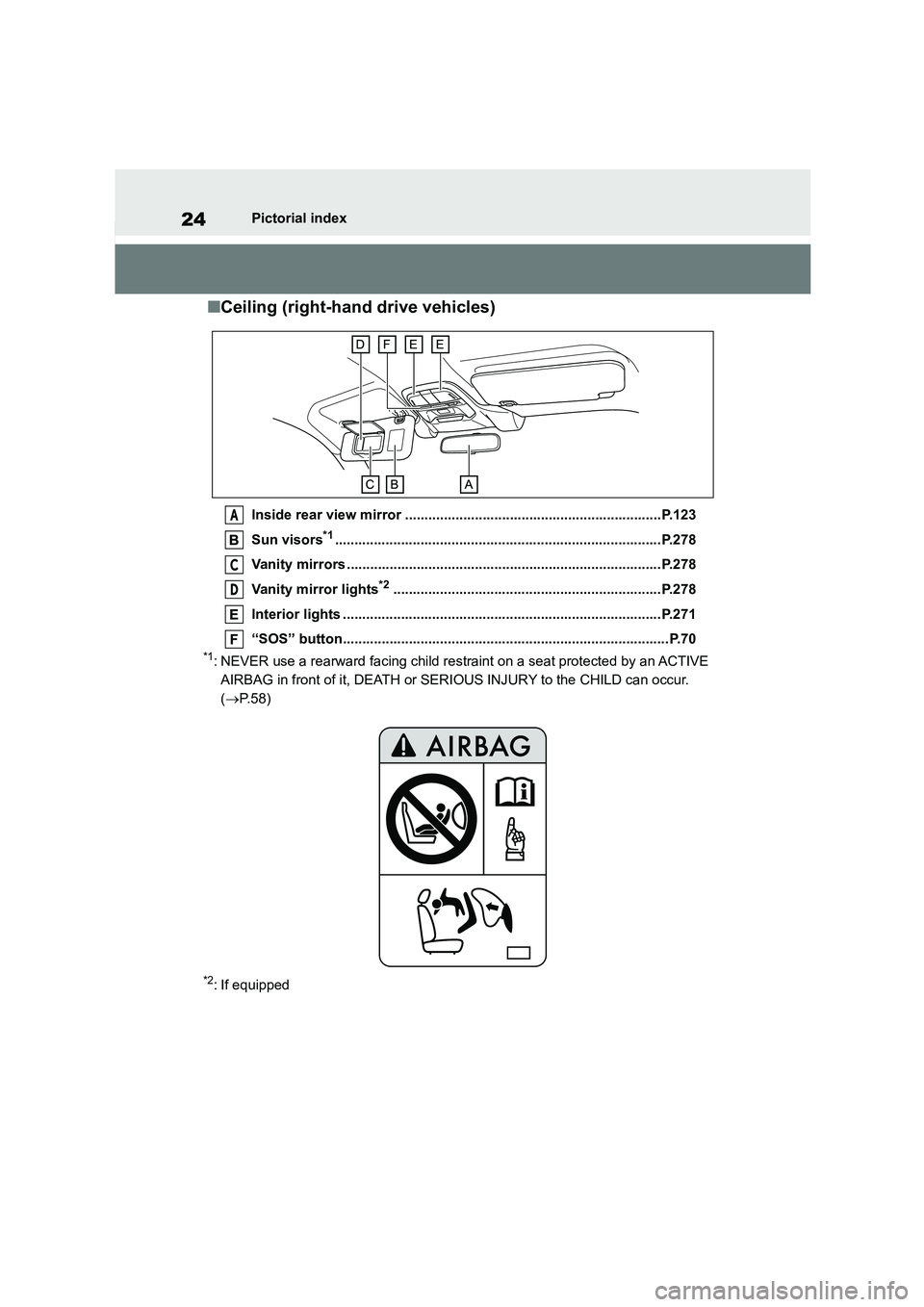

24Pictorial index
■Ceiling (right-hand drive vehicles)
Inside rear view mirror ..................................................................P.123
Sun visors*1....................................................................................P.278
Vanity mirrors .................................................................................P.278
Vanity mirror lights*2.....................................................................P.278
Interior lights ..................................................................................P.271
“SOS” button....................................................................................P.70
*1: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE
AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.
( P. 5 8 )
*2: If equipped
A
C
D

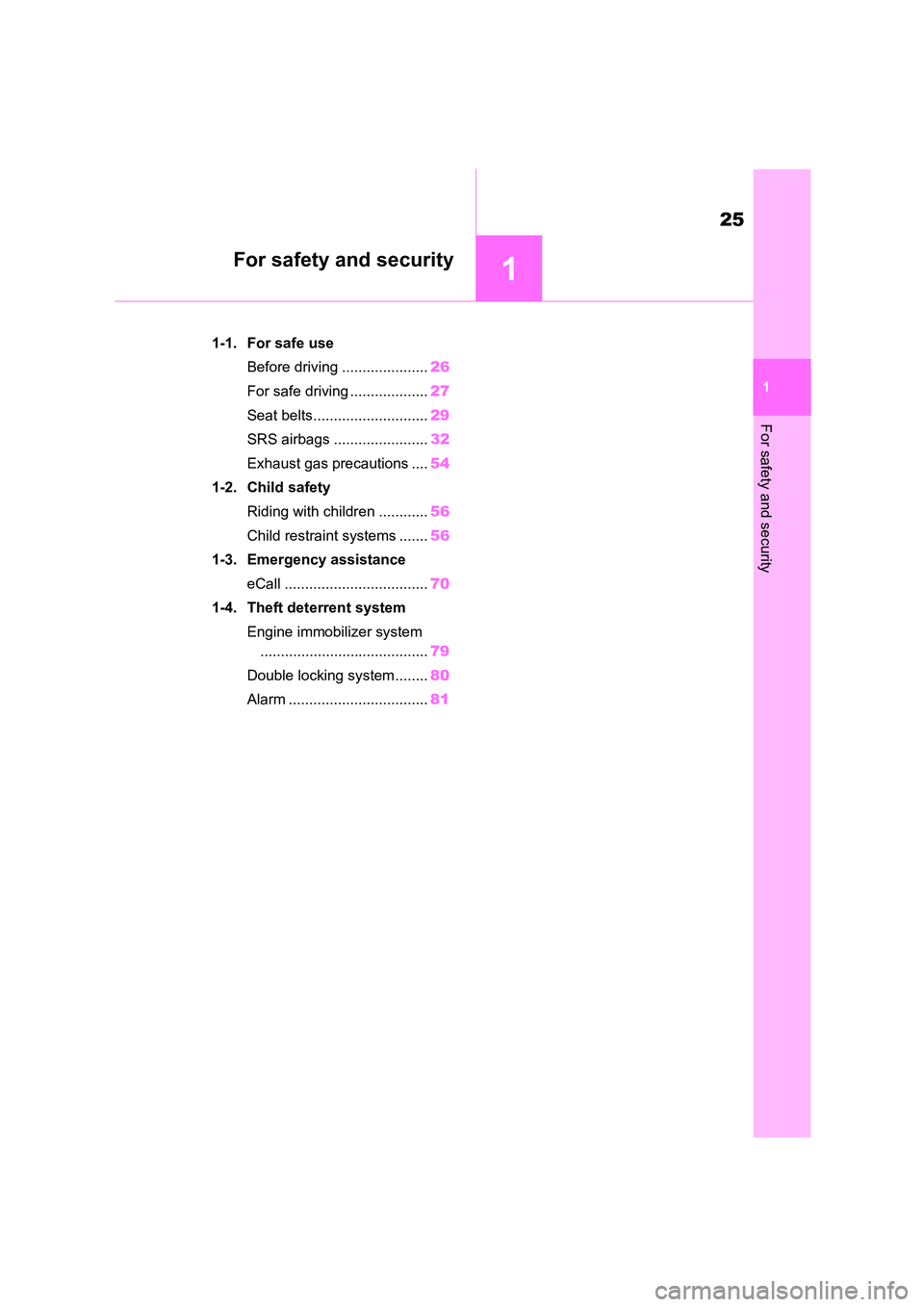

1
25
For safety and security
1
For safety and security
.1-1. For safe use
Before driving ..................... 26
For safe driving ................... 27
Seat belts............................ 29
SRS airbags ....................... 32
Exhaust gas precautions .... 54
1-2. Child safety
Riding with children ............ 56
Child restraint systems ....... 56
1-3. Emergency assistance
eCall ................................... 70
1-4. Theft deterrent system
Engine immobilizer system
......................................... 79
Double locking system ........ 80
Alarm .................................. 81

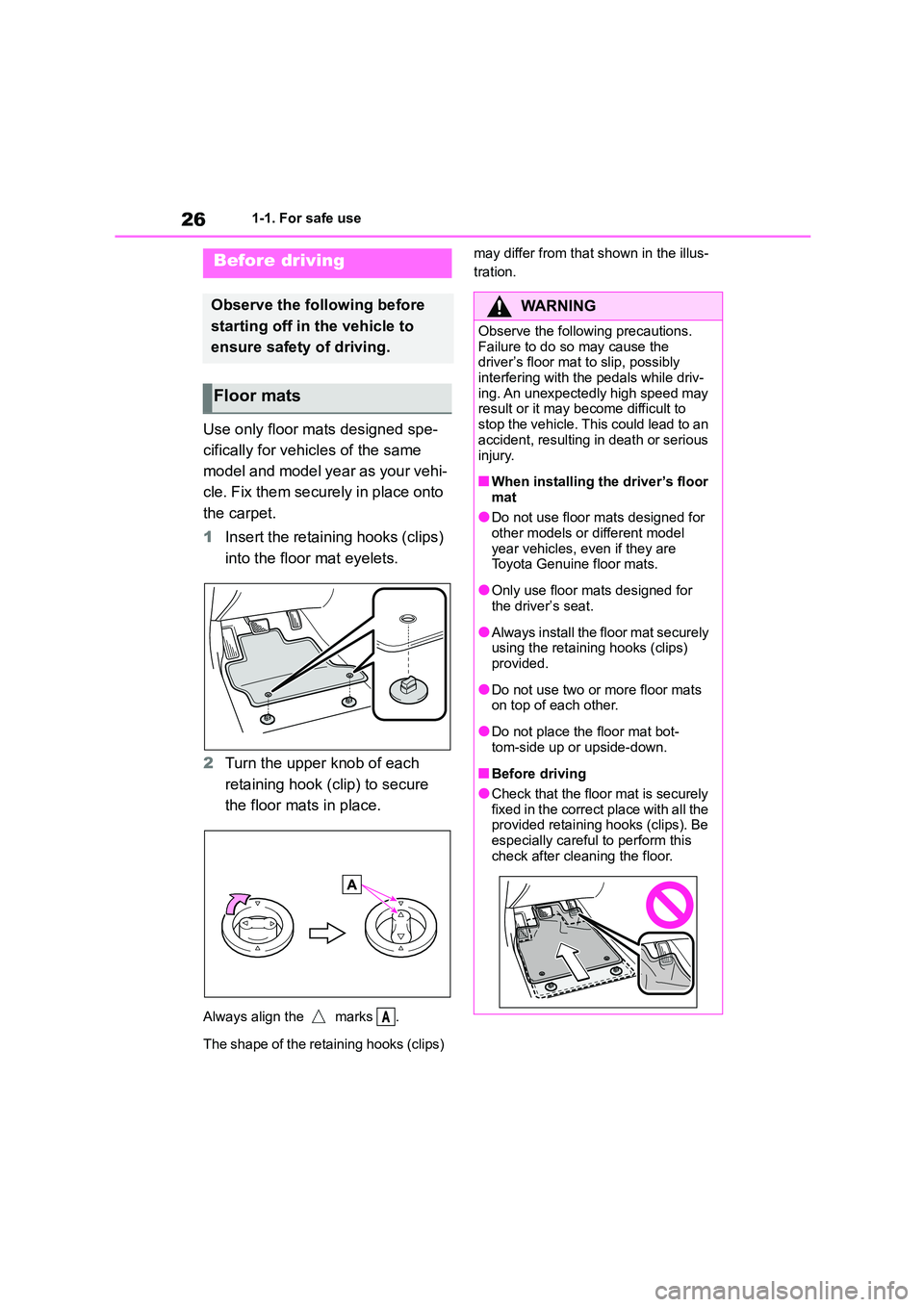

261-1. For safe use
1-1.For safe use
Use only floor mats designed spe-
cifically for vehicles of the same
model and model year as your vehi-
cle. Fix them securely in place onto
the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
Always align the marks .
The shape of the retaining hooks (clips)
may differ from that shown in the illus-
tration.Before driving
Observe the following before
starting off in the vehicle to
ensure safety of driving.
Floor mats
A
WA R N I N G
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly
interfering with the pedals while driv-
ing. An unexpectedly high speed may result or it may become difficult to
stop the vehicle. This could lead to an
accident, resulting in death or serious
injury.
■When installing the driver’s floor
mat
●Do not use floor mats designed for
other models or different model
year vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips)
provided.
●Do not use two or more floor mats
on top of each other.
●Do not place the floor mat bot-
tom-side up or upside-down.
■Before driving
●Check that the floor mat is securely
fixed in the correct place with all the provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.

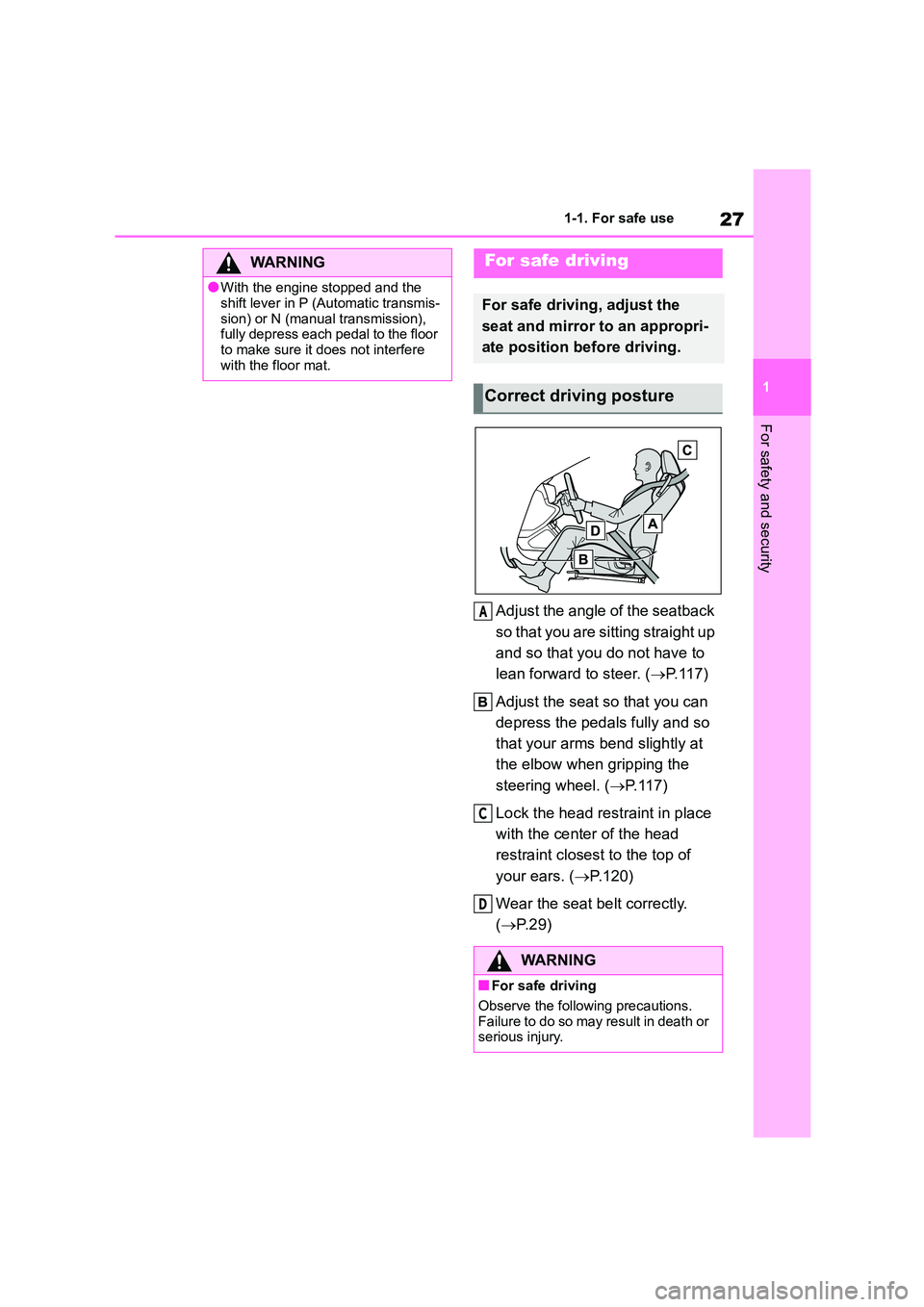

27
1
1-1. For safe use
For safety and security
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. ( P. 1 1 7 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P.117)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. ( P. 1 2 0 )
Wear the seat belt correctly.
( P. 2 9 )
WA R N I N G
●With the engine stopped and the
shift lever in P (Automatic transmis-
sion) or N (manual transmission), fully depress each pedal to the floor
to make sure it does not interfere
with the floor mat.
For safe driving
For safe driving, adjust the
seat and mirror to an appropri-
ate position before driving.
Correct driving posture
WA R N I N G
■For safe driving
Observe the following precautions.
Failure to do so may result in death or serious injury.
A
C
D

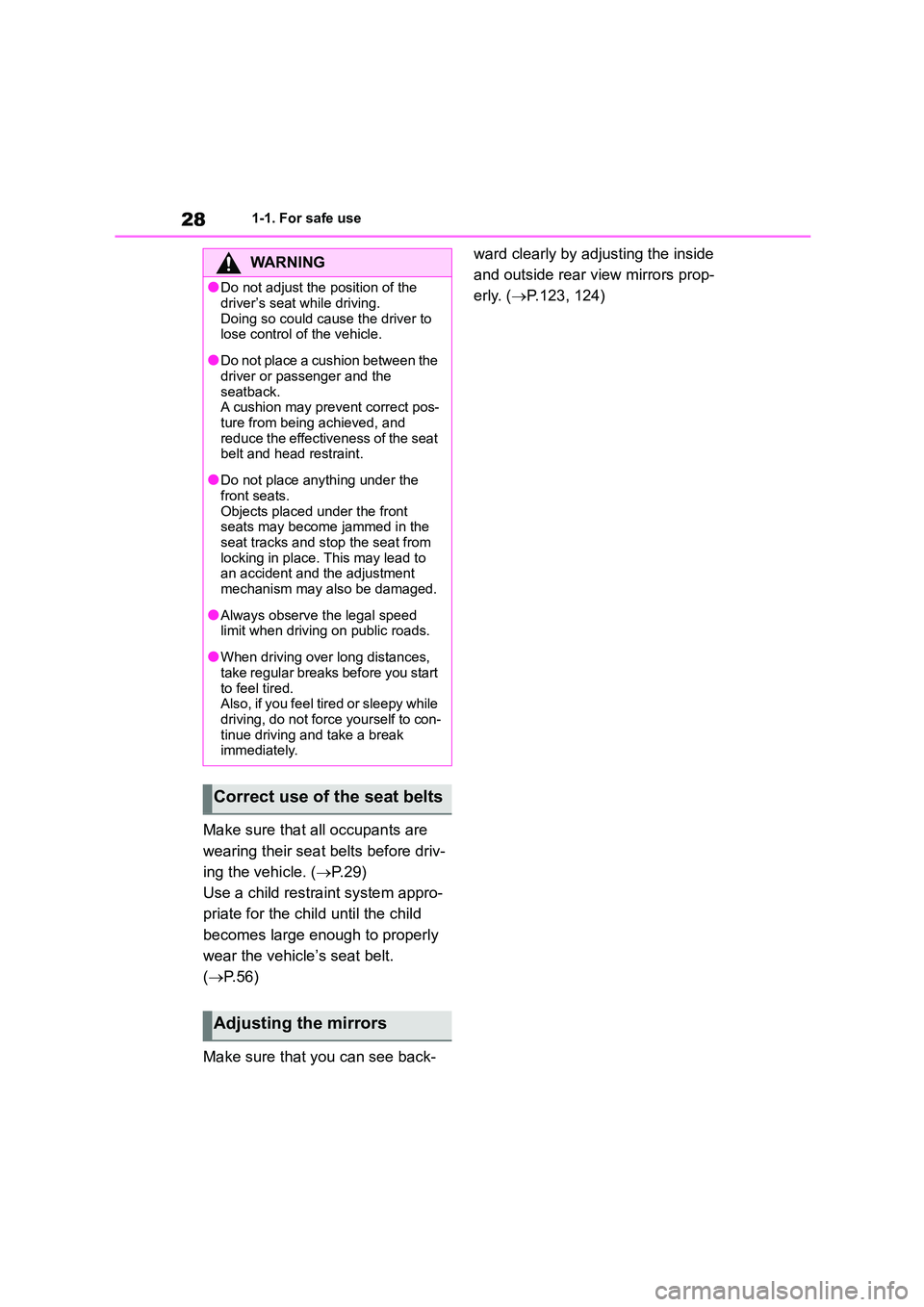

281-1. For safe use
Make sure that all occupants are
wearing their seat belts before driv-
ing the vehicle. ( P. 2 9 )
Use a child restraint system appro-
priate for the child until the child
becomes large enough to properly
wear the vehicle’s seat belt.
( P. 5 6 )
Make sure that you can see back-
ward clearly by adjusting the inside
and outside rear view mirrors prop-
erly. ( P.123, 124)
WA R N I N G
●Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the
seatback.
A cushion may prevent correct pos-
ture from being achieved, and reduce the effectiveness of the seat
belt and head restraint.
●Do not place anything under the
front seats.
Objects placed under the front seats may become jammed in the
seat tracks and stop the seat from
locking in place. This may lead to an accident and the adjustment
mechanism may also be damaged.
●Always observe the legal speed
limit when driving on public roads.
●When driving over long distances,
take regular breaks before you start
to feel tired. Also, if you feel tired or sleepy while
driving, do not force yourself to con-
tinue driving and take a break immediately.
Correct use of the seat belts
Adjusting the mirrors
