6-3. Do-it-yourself maintenance
Maintenance and care
Check the wattage of the light bulb
to be replaced. ( P.375)
Back-up light
Rear fog lights
■Bulbs that need to be replaced
by your Toyota dealer
 Headlights
 Front position lights/daytime run-
ning lights
 Front turn signal lights
 Side turn signal lights
 Stop/tail lights
 Rear turn signal lights
 High mounted stoplight
 License plate lights
 Door courtesy lights (if equipped)
■LED light bulbs
The lights consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to any authorized Toyota retailer
or Toyota authorized repairer, or any reli- able repairer to have the light replaced.
■Condensation build-up on the
inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for more information in the fol-
lowing situations:
●Large drops of water have built up on
the inside of the lens.
●Water has built up inside the head-
light.
■When replacing light bulbs
 P. 3 2 0
■Back-up light
1 Remove the clips.
To prevent damage to the vehicle,
cover the tip of the screwdriver with a

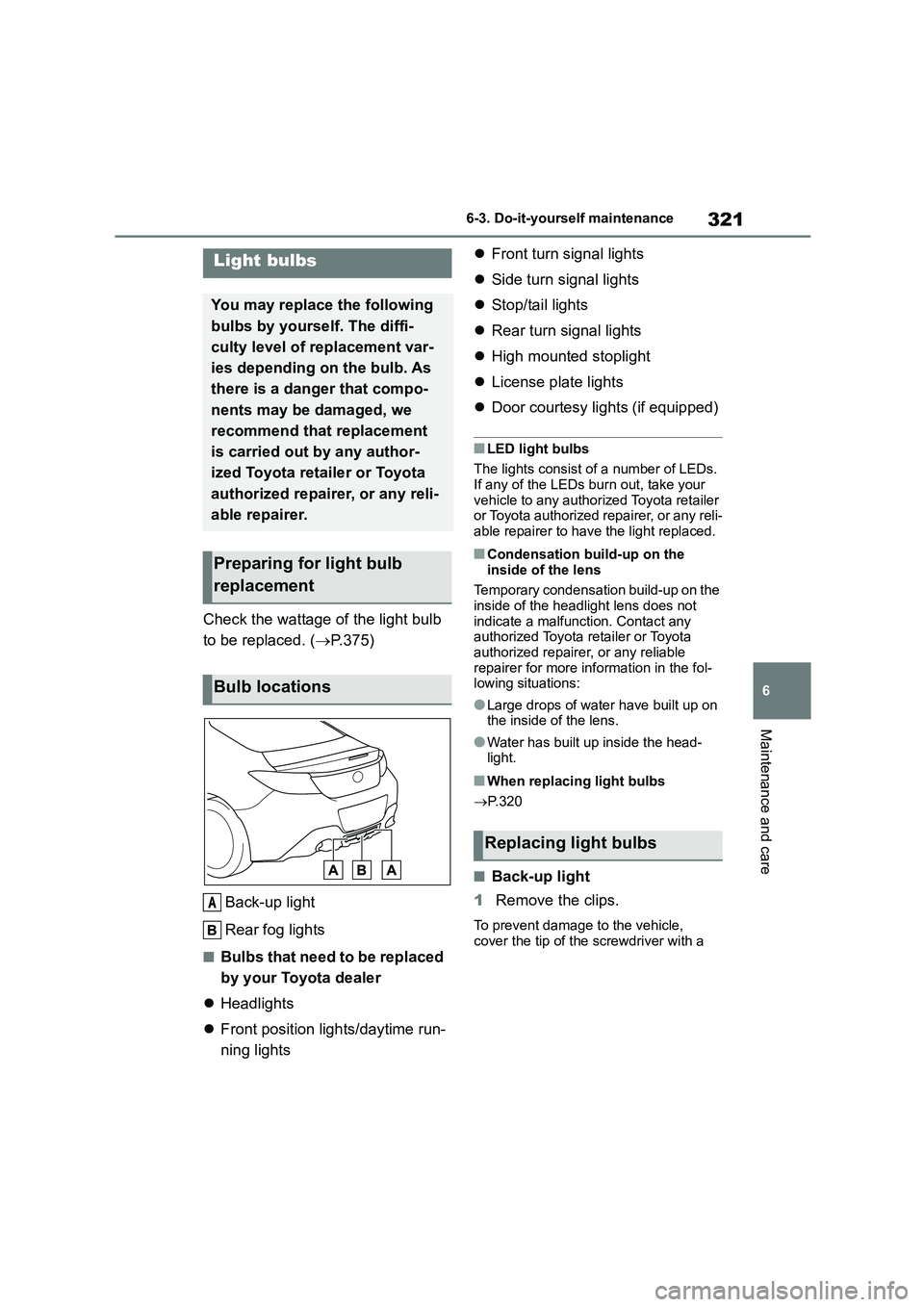

Light bulbs
You may replace the following
bulbs by yourself. The diffi-
culty level of replacement var-
ies depending on the bulb. As
there is a danger that compo-
nents may be damaged, we
recommend that replacement
is carried out by any author-
ized Toyota reta iler or Toyota
authorized repairer, or any reli-
able repairer.
Preparing for light bulb
replacement
Bulb locations
A
Replacing light bulbs

341
7
7-2. Steps to take in an emergency
When trouble arises

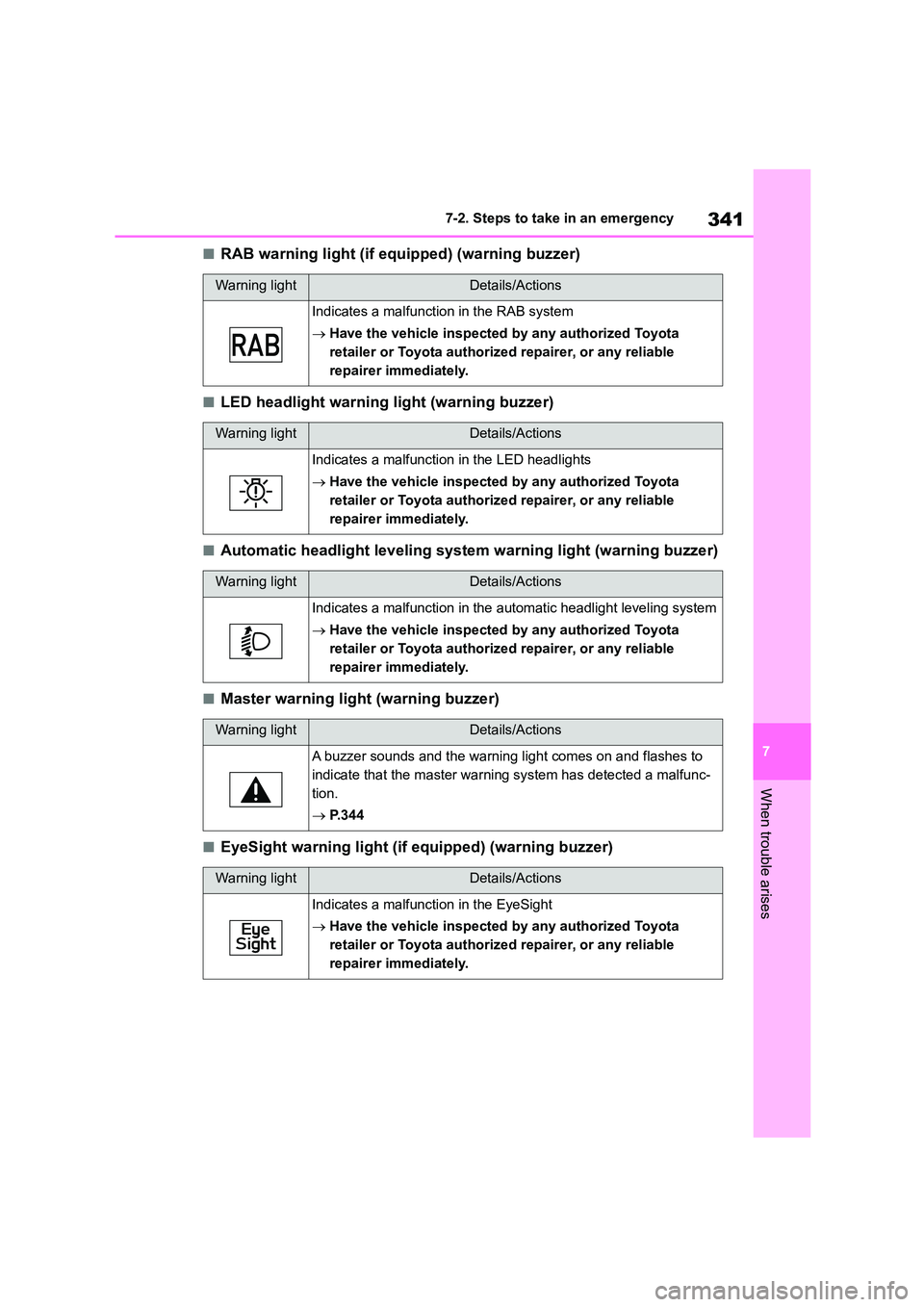

■RAB warning light (if equipped) (warning buzzer)
■LED headlight warning light (warning buzzer)
■Automatic headlight leveling system warning light (warning buzzer)
■Master warning light (warning buzzer)
■EyeSight warning light (if equipped) (warning buzzer)
Warning lightDetails/Actions
Indicates a malfunction in the RAB system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightDetails/Actions
Indicates a malfunction in the LED headlights
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightDetails/Actions
Indicates a malfunction in the automatic headlight leveling system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightDetails/Actions
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warn ing system has detected a malfunc-
tion.
 P.344
Warning lightDetails/Actions
Indicates a malfunction in the EyeSight
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.

345
7
7-2. Steps to take in an emergency
When trouble arises

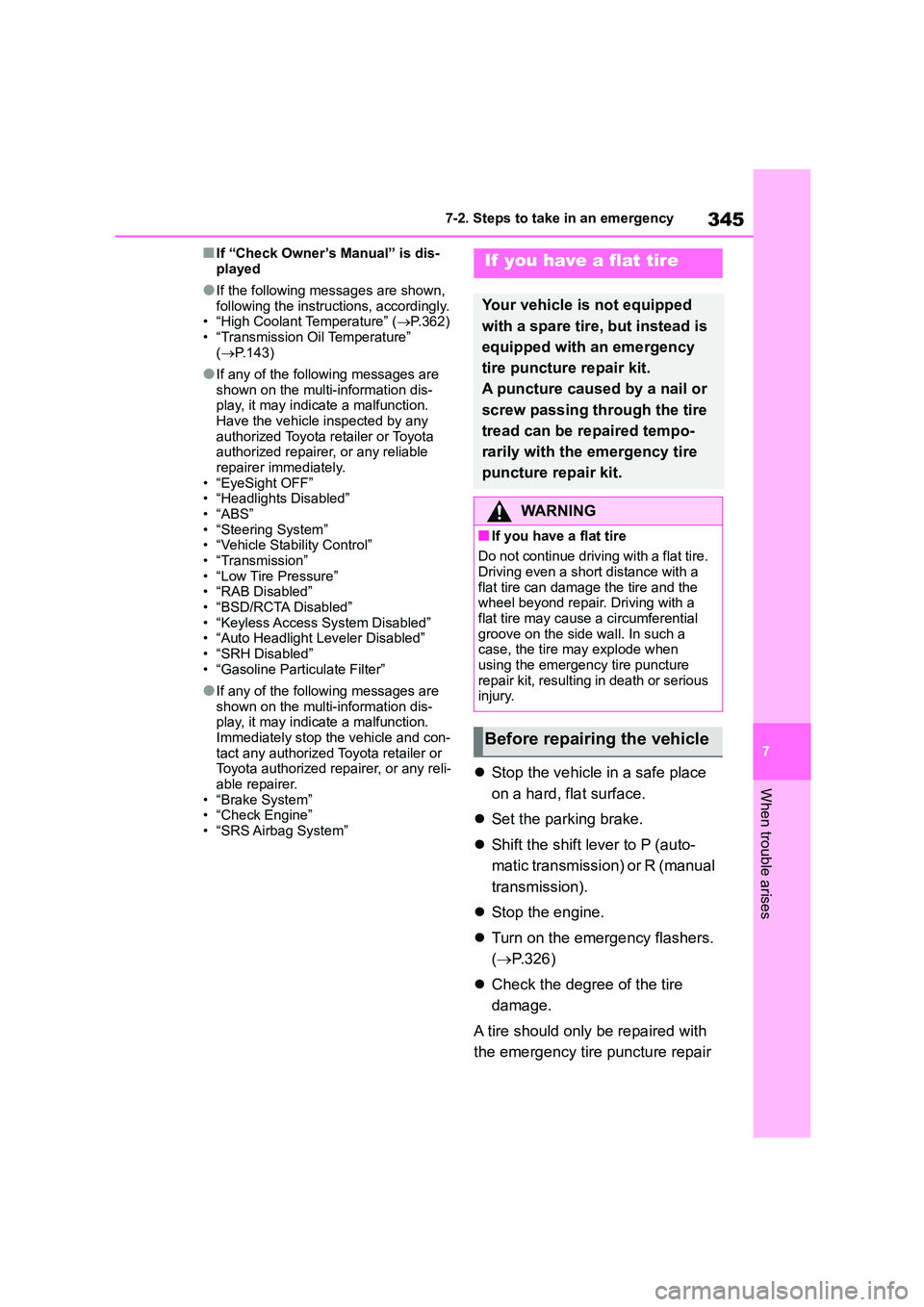

■If “Check Owner’s Manual” is dis-
played
●If the following messages are shown,
following the instructions, accordingly. • “High Coolant Temperature” ( P.362)
• “Transmission Oil Temperature”
( P.143)
●If any of the following messages are
shown on the multi-information dis- play, it may indicate a malfunction.
Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
• “EyeSight OFF” • “Headlights Disabled”
• “ABS”
• “Steering System” • “Vehicle Stability Control”
• “Transmission”
• “Low Tire Pressure” • “RAB Disabled”
• “BSD/RCTA Disabled”
• “Keyless Access System Disabled” • “Auto Headlight Leveler Disabled”
• “SRH Disabled”
• “Gasoline Particulate Filter”
●If any of the following messages are
shown on the multi-information dis- play, it may indicate a malfunction.
Immediately stop the vehicle and con-
tact any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
• “Brake System” • “Check Engine”
• “SRS Airbag System”
 Stop the vehicle in a safe place
on a hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P (auto-
matic transmission) or R (manual
transmission).
 Stop the engine.
 Turn on the emergency flashers.
( P.326)
 Check the degree of the tire
damage.
A tire should only be repaired with
the emergency tire puncture repair
If you have a flat tire
Your vehicle is not equipped
with a spare tire, but instead is
equipped with an emergency
tire puncture repair kit.
A puncture caused by a nail or
screw passing through the tire
tread can be repaired tempo-
rarily with the emergency tire
puncture repair kit.
WA R N I N G
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair. Driving with a
flat tire may cause a circumferential groove on the side wall. In such a
case, the tire may explode when
using the emergency tire puncture repair kit, resulting in death or serious
injury.
Before repairing the vehicle

355
7
7-2. Steps to take in an emergency
When trouble arises
One of the following may be the
cause of the problem:
 There may not be sufficient fuel
in the vehicle’s tank.
Refuel the vehicle.
 The engine may be flooded.
Try to restart the engine again
following correct starting proce-
dures. ( P.139)
 There may be a malfunction in
the engine immobilizer system.
( P. 7 9 )
One of the following may be the
cause of the problem:
 The battery may be discharged.
( P.359)
 The battery terminal connec-
tions may be loose or corroded.
( P.298)
The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key bat-
tery depletion or a blown fuse.
However, an interim measure is
available to start the engine.
( P. 3 5 5 )
One of the following may be the
cause of the problem:
 One or both of the battery termi-
nals may be disconnected.
( P.298)
 The battery may be discharged.
( P.359)
 There may be a malfunction in
the steering lock system.
Contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer if the problem cannot
be repaired, or if repair procedures are
unknown.
When the engine does not start, the
following steps can be used as an

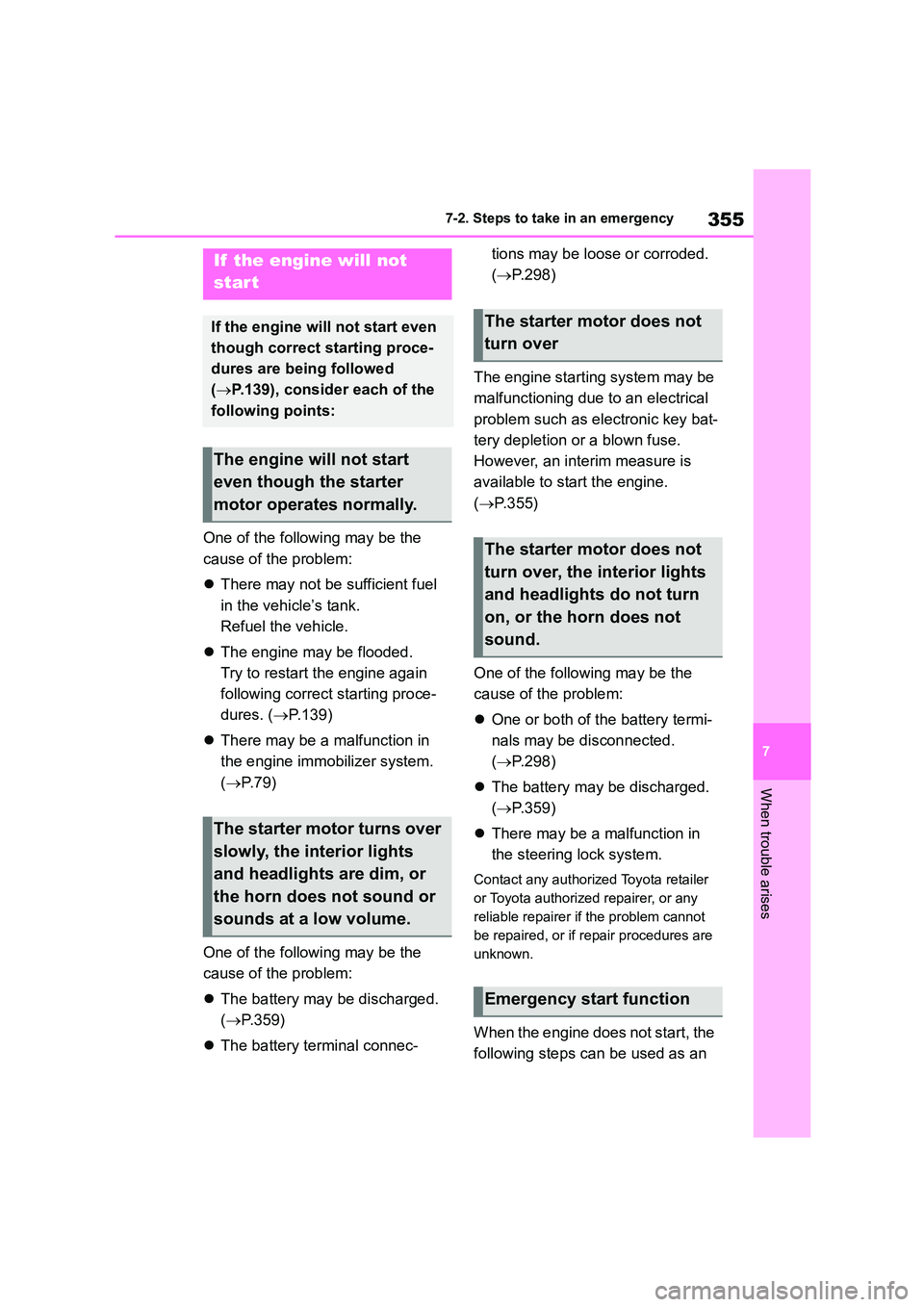

If the engine will not
start
If the engine will not start even
though correct starting proce-
dures are being followed
( P.139), consider each of the
following points:
The engine will not start
even though the starter
motor operates normally.
The starter motor turns over
slowly, the interior lights
and headlights are dim, or
the horn does not sound or
sounds at a low volume.
The starter motor does not
turn over
The starter motor does not
turn over, the interior lights
and headlights do not turn
on, or the horn does not
sound.
Emergency start function

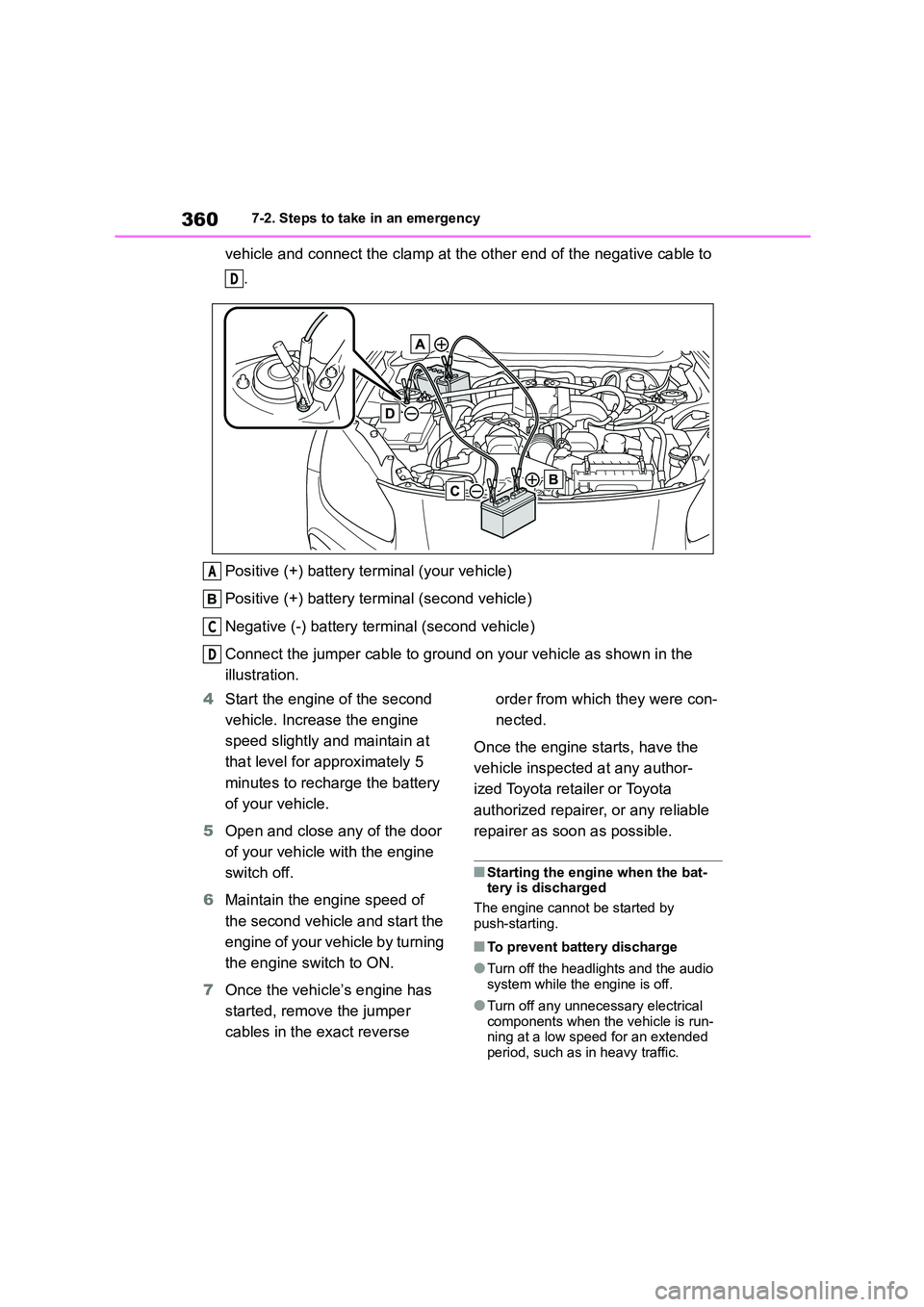

3607-2. Steps to take in an emergency
vehicle and connect the clamp at the other end of the negative cable to
.
Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Connect the jumper cable to ground on your vehicle as shown in the
illustration.
4 Start the engine of the second
vehicle. Increase the engine
speed slightly and maintain at
that level for approximately 5
minutes to recharge the battery
of your vehicle.
5 Open and close any of the door
of your vehicle with the engine
switch off.
6 Maintain the engine speed of
the second vehicle and start the
engine of your vehicle by turning
the engine switch to ON.
7 Once the vehicle’s engine has
started, remove the jumper
cables in the exact reverse
order from which they were con-
nected.
Once the engine starts, have the
vehicle inspected at any author-
ized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
■Starting the engine when the bat-
tery is discharged
The engine cannot be started by
push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio
system while the engine is off.
●Turn off any unnecessary electrical
components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic.
D
A
C
D

381
8
8-2. Customization
Vehicle specifications

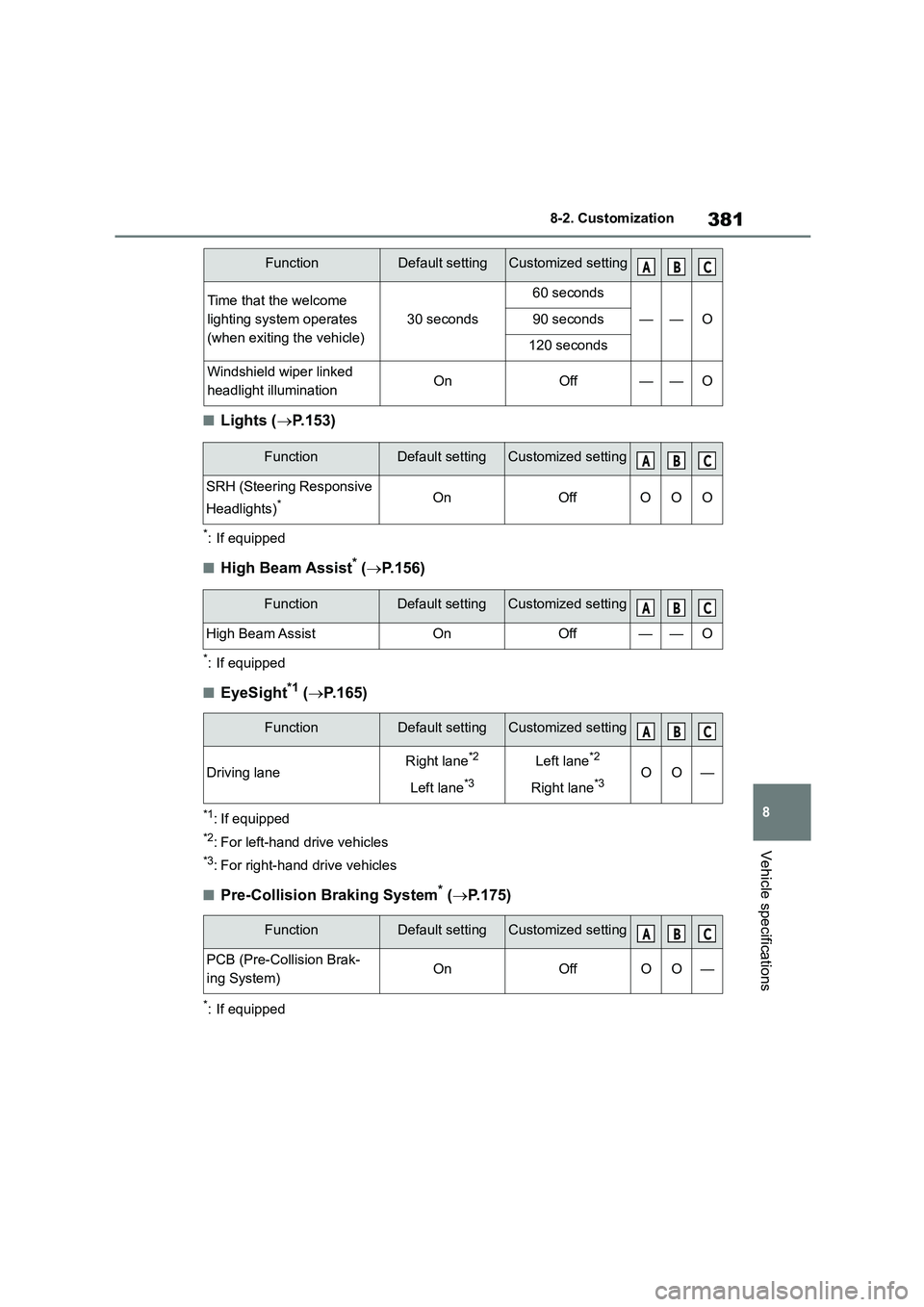

■Lights ( P.153)
*: If equipped
■High Beam Assist* (P.156)
*: If equipped
■EyeSight*1 (P.165)
*1: If equipped
*2: For left-hand drive vehicles
*3: For right-hand drive vehicles
■Pre-Collision Braking System* (P.175)
*: If equipped
Time that the welcome
lighting system operates
(when exiting the vehicle)
30 seconds
60 seconds
——O90 seconds
120 seconds
Windshield wiper linked
headlight illuminationOnOff——O
FunctionDefault settingCustomized settingABC
FunctionDefault settingCustomized setting
SRH (Steering Responsive
Headlights)*OnOffOOO
ABC
FunctionDefault settingCustomized setting
High Beam AssistOnOff——O
ABC
FunctionDefault settingCustomized setting
Driving laneRight lane*2
Left lane*3
Left lane*2
Right lane*3OO—
FunctionDefault settingCustomized setting
PCB (Pre-Collision Brak-
ing System)OnOffOO—
ABC
ABC

392Alphabetical Index

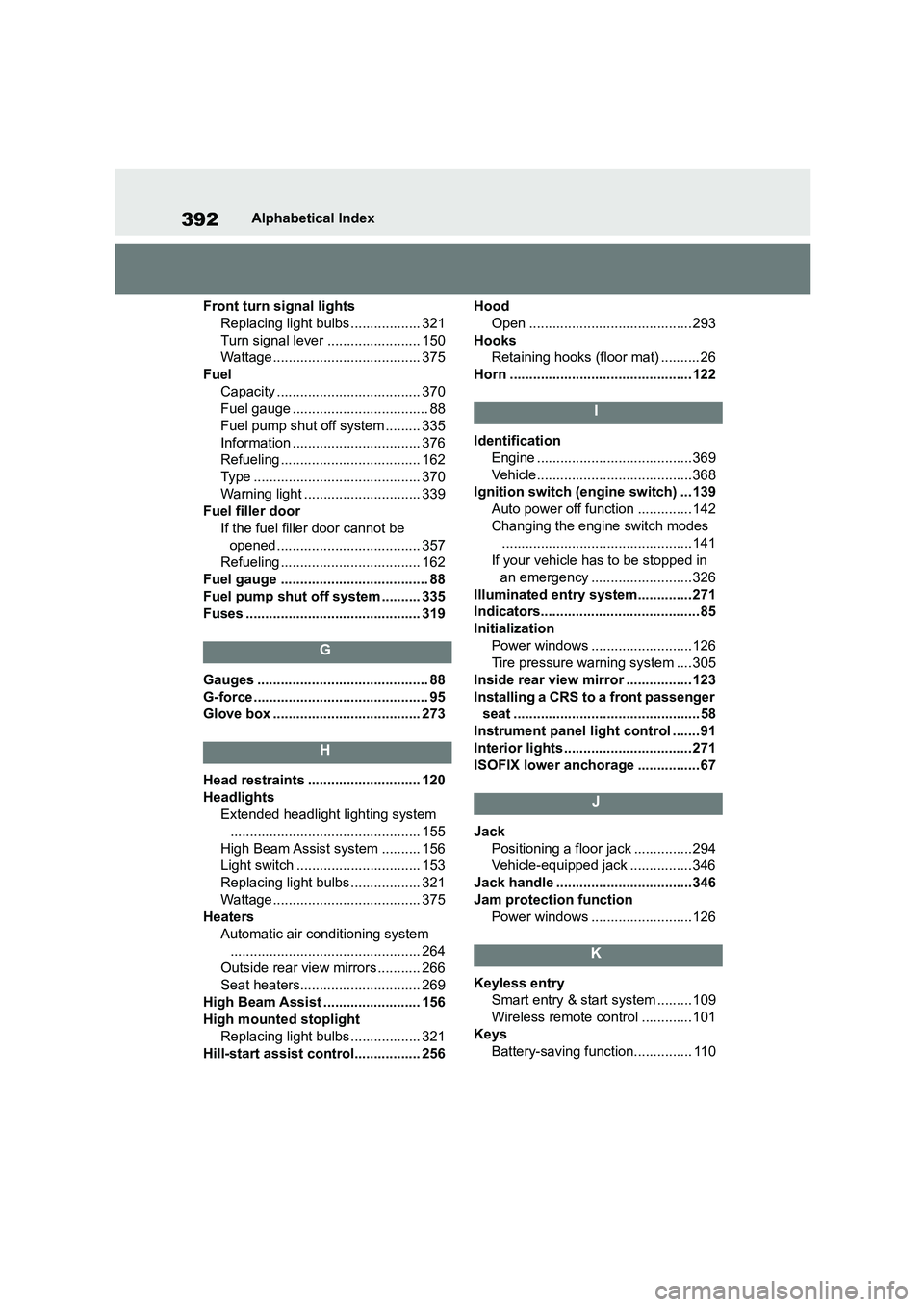

Front turn signal lights
Replacing light bulbs .................. 321
Turn signal lever ........................ 150
Wattage...................................... 375
Fuel
Capacity ..................................... 370
Fuel gauge ................................... 88
Fuel pump shut of f system ......... 335
Information ................................. 376
Refueling .................................... 162
Type ........................................... 370
Warning light .............................. 339
Fuel filler door
If the fuel filler door cannot be
opened..................................... 357
Refueling .................................... 162
Fuel gauge ...................................... 88
Fuel pump shut off system .......... 335
Fuses ............................................. 319
G
Gauges ............................................ 88
G-force............................................. 95
Glove box ...................................... 273
H
Head restraints ............................. 120
Headlights
Extended headlight lighting system
................................................. 155
High Beam Assist system .......... 156
Light switch ................................ 153
Replacing light bulbs .................. 321
Wattage...................................... 375
Heaters
Automatic air conditioning system
................................................. 264
Outside rear view mirrors ........... 266
Seat heaters............................... 269
High Beam Assist ......................... 156
High mounted stoplight
Replacing light bulbs .................. 321
Hill-start assist control................. 256
Hood
Open .......................................... 293
Hooks
Retaining hooks (floor mat) .......... 26
Horn ............................................... 122
I
Identification
Engine ........................................369
Vehicle........................................368
Ignition switch (engine switch) ... 139
Auto power off function .............. 142
Changing the engine switch modes
.................................................141
If your vehicle has to be stopped in
an emergency ..........................326
Illuminated entry system.............. 271
Indicators......................................... 85
Initialization
Power windows .......................... 126
Tire pressure warning system .... 305
Inside rear view mirror ................. 123
Installing a CRS to a front passenger
seat ................................................ 58
Instrument panel light control ....... 91
Interior lights ................................. 271
ISOFIX lower anchorage ................ 67
J
Jack
Positioning a floor jack ...............294
Vehicle-equipped jack ................346
Jack handle ...................................346
Jam protection function
Power windows .......................... 126
K
Keyless entry
Smart entry & start system .........109
Wireless remote control .............101
Keys
Battery-saving function............... 110
