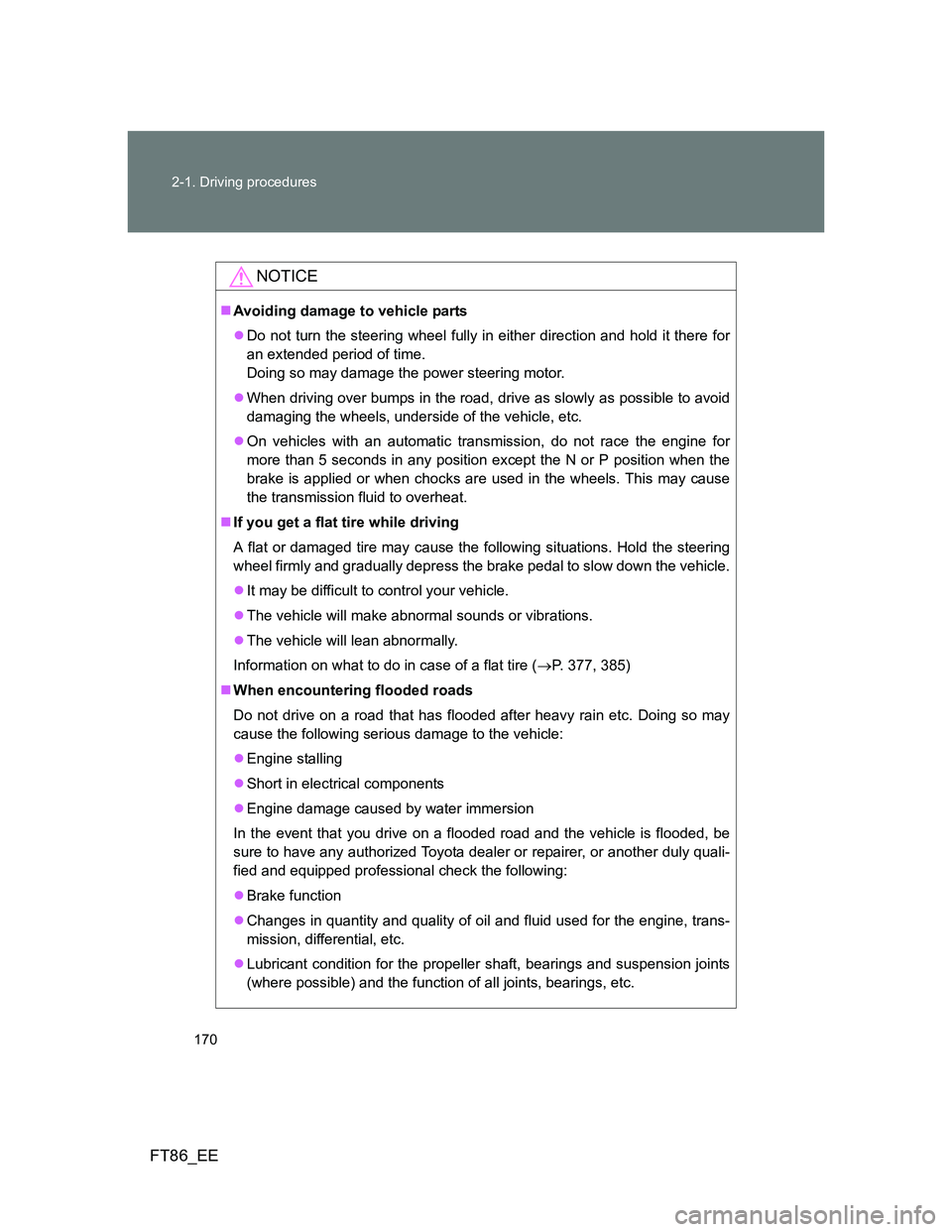

170 2-1. Driving procedures
FT86_EE
NOTICE
Avoiding damage to vehicle parts
Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
On vehicles with an automatic transmission, do not race the engine for
more than 5 seconds in any position except the N or P position when the
brake is applied or when chocks are used in the wheels. This may cause
the transmission fluid to overheat.
If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehicle.
It may be difficult to control your vehicle.
The vehicle will make abnormal sounds or vibrations.
The vehicle will lean abnormally.
Information on what to do in case of a flat tire (P. 377, 385)
When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
Engine stalling
Short in electrical components
Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional check the following:
Brake function
Changes in quantity and quality of oil and fluid used for the engine, trans-
mission, differential, etc.
Lubricant condition for the propeller shaft, bearings and suspension joints
(where possible) and the function of all joints, bearings, etc.

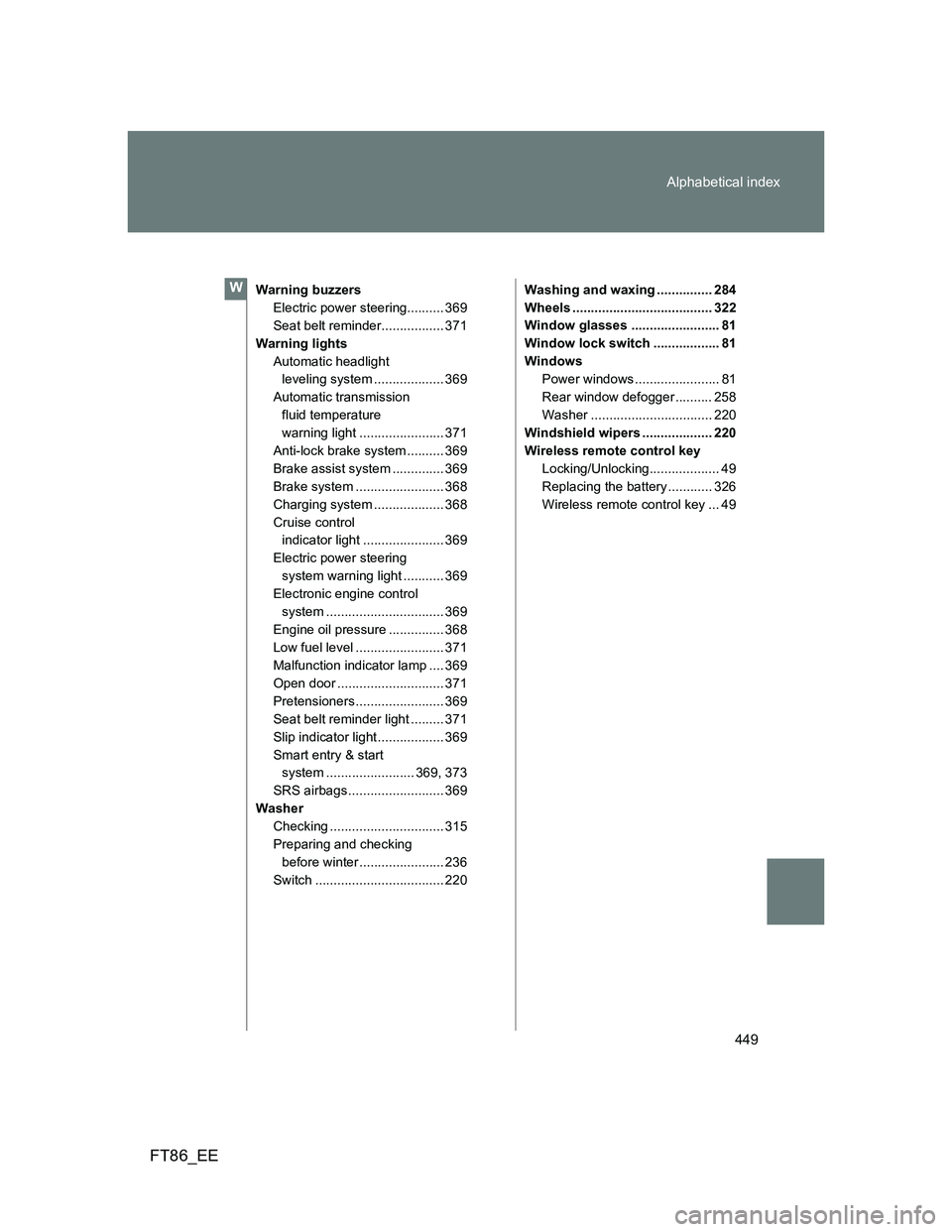

449 Alphabetical index
FT86_EE
Warning buzzers
Electric power steering.......... 369
Seat belt reminder................. 371
Warning lights
Automatic headlight
leveling system ................... 369
Automatic transmission
fluid temperature
warning light ....................... 371
Anti-lock brake system .......... 369
Brake assist system .............. 369
Brake system ........................ 368
Charging system ................... 368
Cruise control
indicator light ...................... 369
Electric power steering
system warning light ........... 369
Electronic engine control
system ................................ 369
Engine oil pressure ............... 368
Low fuel level ........................ 371
Malfunction indicator lamp .... 369
Open door ............................. 371
Pretensioners ........................ 369
Seat belt reminder light ......... 371
Slip indicator light .................. 369
Smart entry & start
system ........................ 369, 373
SRS airbags .......................... 369
Washer
Checking ............................... 315
Preparing and checking
before winter ....................... 236
Switch ................................... 220Washing and waxing ............... 284
Wheels ...................................... 322
Window glasses ........................ 81
Window lock switch .................. 81
Windows
Power windows ....................... 81
Rear window defogger .......... 258
Washer ................................. 220
Windshield wipers ................... 220
Wireless remote control key
Locking/Unlocking................... 49
Replacing the battery ............ 326
Wireless remote control key ... 49W

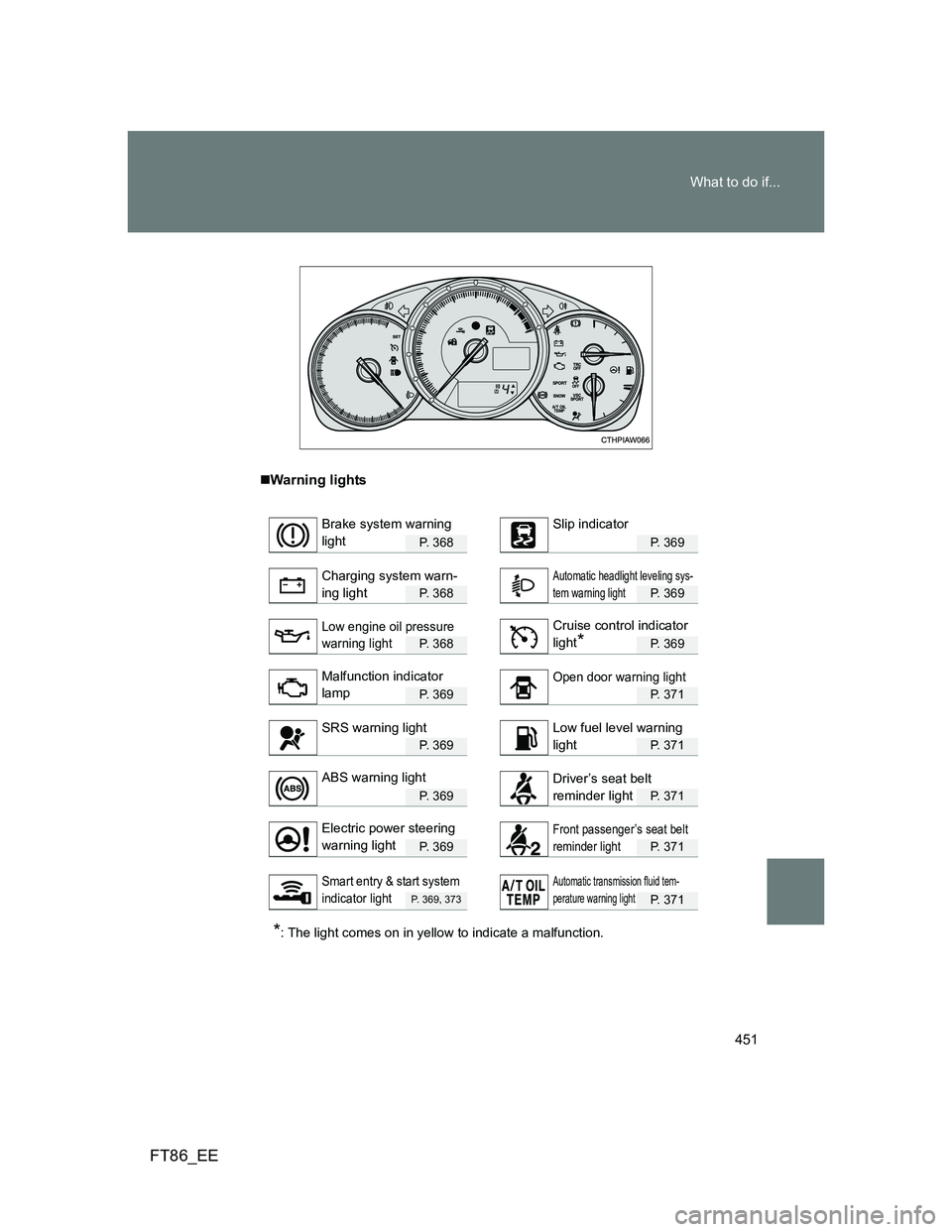

451 What to do if...
FT86_EE
Warning lights
P. 3 6 8P. 369
P. 3 6 8P. 369
P. 3 6 8P. 369
P. 3 6 9P. 371
P. 3 6 9P. 371
P. 3 6 9P. 371
P. 3 6 9P. 371
P. 369, 373P. 371
*: The light comes on in yellow to indicate a malfunction.
Brake system warning
lightSlip indicator
Charging system warn-
ing lightAutomatic headlight leveling sys-
tem warning light
Low engine oil pressure
warning lightCruise control indicator
light
*
Malfunction indicator
lampOpen door warning light
SRS warning lightLow fuel level warning
light
ABS warning lightDriver’s seat belt
reminder light
Electric power steering
warning lightFront passenger’s seat belt
reminder light
Smart entry & start system
indicator lightAutomatic transmission fluid tem-
perature warning light
