2-2. Instrument cluster
Gauges and meters ............ 194
Indicators and warning
lights ................................. 198
Multi-information
display .............................. 203
2-3. Operating the lights and
windshield wipers
Headlight switch.................. 208
Fog light switch ................... 215
Windshield wipers and
washer .............................. 217
2-4. Using other driving
systems
Cruise control...................... 220
Driving assist systems ........ 225
2-5. Driving information
Cargo and luggage ............. 231
Winter driving tips ............... 233
Trailer towing ...................... 237
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................. 240
Automatic air conditioning
system .............................. 248
Rear window and
outside rear view mirror
defoggers.......................... 2563-2. Using the audio system
Using the AUX/
USB port .......................... 258
3-3. Using the interior lights
Interior lights list ................. 259
• Interior light ...................... 260
3-4. Using the storage
features
List of storage features....... 261
• Glove box ......................... 262
• Bottle holders ................... 263
• Cup holders/
console tray...................... 264
3-5. Other interior features
Sun visors .......................... 266
Vanity mirrors ..................... 267
Clock .................................. 268
Outside temperature
display .............................. 269
Ashtray ............................... 270
Power outlets ..................... 271
Seat heaters ....................... 273
Floor mat ............................ 275
Trunk features .................... 278
3Interior features

TABLE OF CONTENTSIndex
4
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior
............. 282
Cleaning and protecting
the vehicle interior ............ 285
Cleaning and protecting
the Alcantara
® area .......... 289
4-2. Maintenance
Maintenance
requirements..................... 291
4-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ....................... 294
Hood ................................... 297
Positioning a floor jack ........ 299
Engine compartment........... 301
Tires .................................... 314
Tire inflation pressure ......... 323
Wheels ................................ 325
Air conditioning filter ........... 328
Wireless remote control/
electronic key battery........ 331
Checking and replacing
fuses ................................. 335
Light bulbs .......................... 3435-1. Essential information
Emergency flashers ........... 362
If your vehicle needs to
be towed .......................... 363
If you think something is
wrong ............................... 370
Fuel pump shut off
system.............................. 371
5-2. Steps to take in
an emergency
If a warning light turns
on or a warning buzzer
sounds... ......................... 372
If you have a flat tire
(vehicles with
a spare tire) ...................... 384
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit) ........... 393
If the engine will
not start ............................ 409
If the shift lever cannot be
shifted from P ................... 412
If you lose your keys .......... 413
If the electronic key does
not operate properly ......... 414
If the battery is
discharged ....................... 418
4Maintenance and care5When trouble arises

14
C
BB
Paddle shift switches  P. 184, 186
Engine (ignition) switch (vehicles
without a smart entry & start system)
P. 178
Cruise control switch  P. 220Horn
SRS driver airbag P. 193
P. 104
Instrument panel light control dial P. 196
Manual headlight leveling dial  P. 210
Trunk opener P. 58
: If equipped
Pictorial index

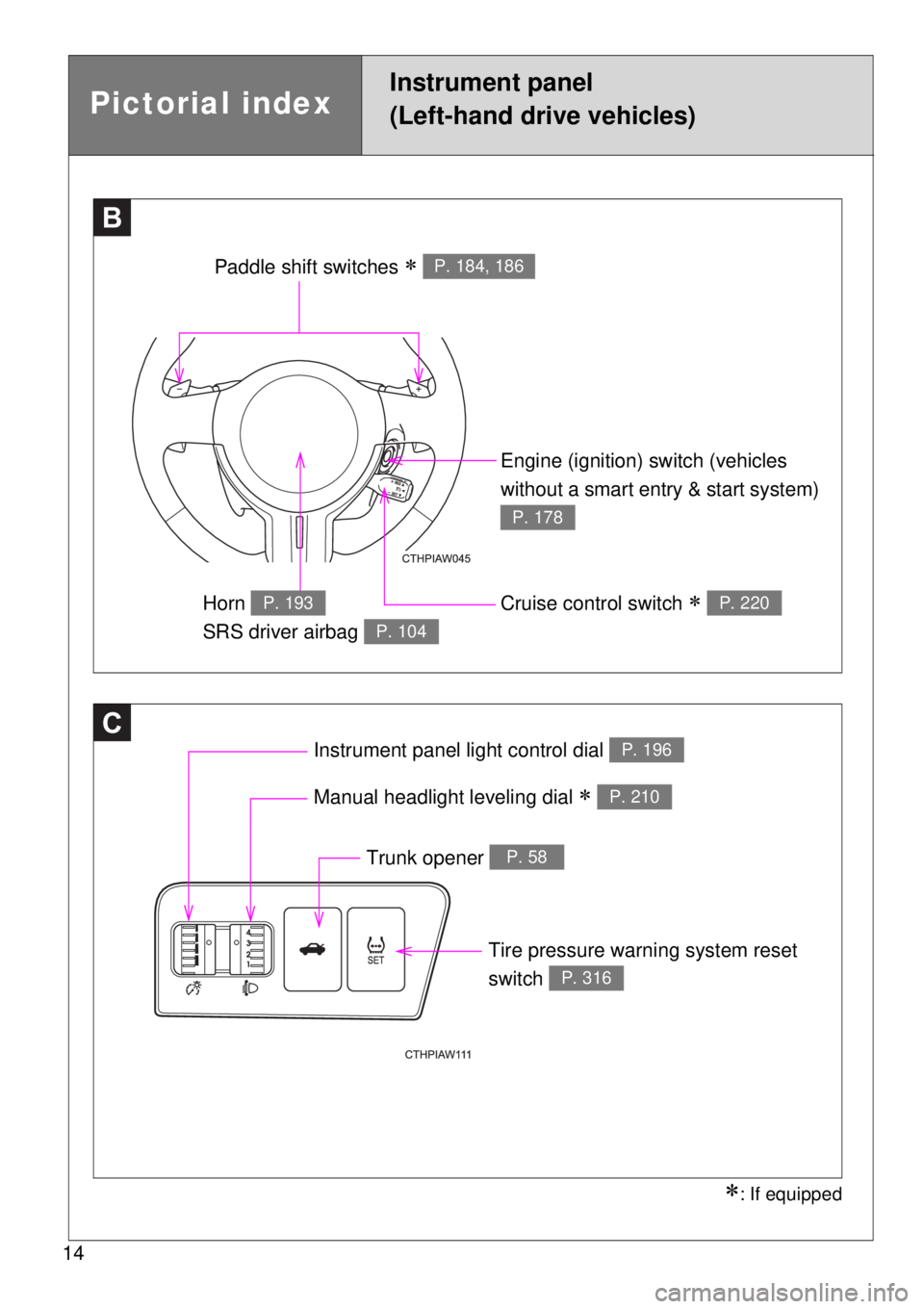

Instrument panel
(Left-hand drive vehicles)
Tire pressure warning system reset
switch
P. 316

21
C
B
Engine (ignition) switch (vehicles
without a smart entry & start system)
P. 178
Cruise control switch  P. 220Horn
SRS driver airbag P. 193
P. 104
Instrument panel light control dial P. 196
Manual headlight leveling dial 
P. 210
Trunk opener P. 58
: If equipped
Paddle shift switches  P. 184, 186
Tire pressure warning system reset switch
P. 316

37 1-2. Opening, closing and locking the doors and trunk
1
Before driving

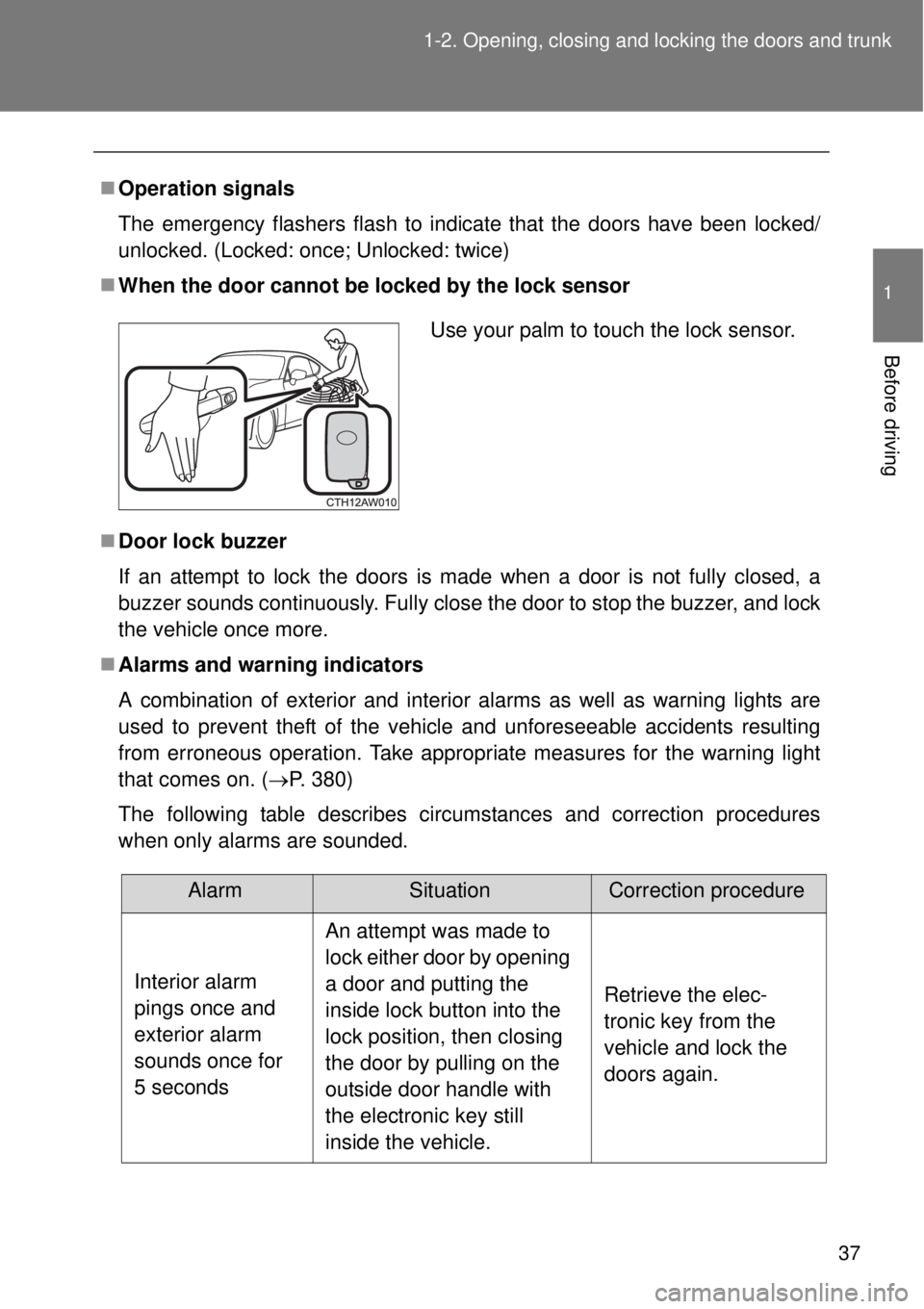

Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
When the door cannot be locked by the lock sensor
Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
Alarms and warning indicators
A combination of exterior and interior alarms as well as warning lights are
used to prevent theft of the vehicle and unforeseeable accidents resulting
from erroneous operation. Take appropriate measures for the warning light
that comes on. (P. 380)
The following table describes circumstances and correction procedures
when only alarms are sounded.
Use your palm to touch the lock sensor.
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds once for
5 secondsAn attempt was made to
lock either door by opening
a door and putting the
inside lock button into the
lock position, then closing
the door by pulling on the
outside door handle with
the electronic key still
inside the vehicle.Retrieve the elec-
tronic key from the
vehicle and lock the
doors again.

76 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
To obtain maximum protection, the occupants should sit in an upright posi-
tion with their seat belts properly fastened.
Do not modify, remove or strike the front seat belt retractor assemblies or
surrounding area. This could result in accidental activation of the seat belt
pretensioners or could make the system inoperative, possibly resulting in
serious injury. Seat belt pretensioners have no user-serviceable parts. For
required servicing of front seat belt retractors equipped with seat belt pre-
tensioners, see any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When discarding front seat belt retractor assemblies or scrapping the
entire vehicle due to collision damage or for other reasons, consult any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Seat belt damage and wear
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious damage.

90 1-5. Refueling
CAUTION
When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
Securely insert the fuel nozzle into the fuel filler neck.
Stop filling the tank after the fuel nozzle automatically clicks off.
Do not top off the fuel tank.
Observe other precautions that are posted at the service station.
Turn the cap to the right until it clicks to ensure that it is fully tightened. If
the cap is not securely tightened, fuel spillage could occur in the event of
an accident, creating a fire hazard.
When replacing the fuel cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle's painted surface.
Never add any cleaning agents to the fuel tank. The addition of a cleaning
agent may cause damage to the fuel system.
Immediately put fuel in the tank whenever the low fuel warning light illumi-
nates. Engine misfires as a result of an empty tank could cause damage to
the engine.

112 1-7. Safety information
Normal operation
When the system is malfunctioning
ONOFF
Front airbag for front passenger Activated Deactivated
Seat belt pretensioner for front pas-
senger
Activated Activated Side air bag for front passenger
Curtain shield air bag for front pas-
senger
SRS warning light Not illuminated Not illuminated
Airbag manual on-off indicator “ON” Illuminated Not illuminated
Airbag manual on-off indicator
“OFF”Not illuminated IlluminatedAirbag manual on-off
switch
Airbag system
Airbag systemOperation
Front airbag for front passenger Deactivated
Seat belt pretensioner for front pas-
senger
Activated Side air bag for front passenger
Curtain shield air bag for front pas-
senger
SRS warning light Illuminated
Airbag manual on-off indicator “ON” Not illuminated
Airbag manual on-off indicator
“OFF”Illuminated

130 1-7. Safety information
SRS airbag system monitor
SRS warning light
A diagnostic system continually
monitors the readiness of the
SRS airbag system (including
front seat belt pretensioners)
while the vehicle is being driven.
The SRS warning light will show
normal system operation by illu-
minating for approximately 6
seconds when the engine switch
is turned to the “ON” position
(vehicles without a smart entry &
start system), or the “ENGINE
START STOP” switch is turned
to IGNITION ON mode (vehicles
with a smart entry & start sys-
tem).
The following components are monitored by the indicator.
Front sub sensor
• Right-hand side
• Left-hand side
Airbag control module (including impact sensor)
Front airbag module
• Driver’s side
• Front passenger’s side
Knee airbag module (driver’s side)

132 1-7. Safety information
CAUTION
SRS warning light
If the warning light exhibits any of the following conditions, there may be a
malfunction in the seat belt pretensioners and/or SRS airbag system. We
recommend that you have the system checked immediately by your nearest
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional. Unless checked and properly repaired, the seat belt
pretensioners and/or SRS airbags will operate improperly (e.g. SRS airbags
may inflate in a very minor collision or not inflate in a severe collision), which
may increase the risk of injury.
Flashing or flickering of the warning light
No illumination of the warning light when the engine switch is first turned to
the “ON” position (vehicles without a smart entry & start system), or the
“ENGINE START STOP” switch is turned to IGNITION ON mode (vehicles
with a smart entry & start system).
Continuous illumination of the warning light
Illumination of the warning light while driving
