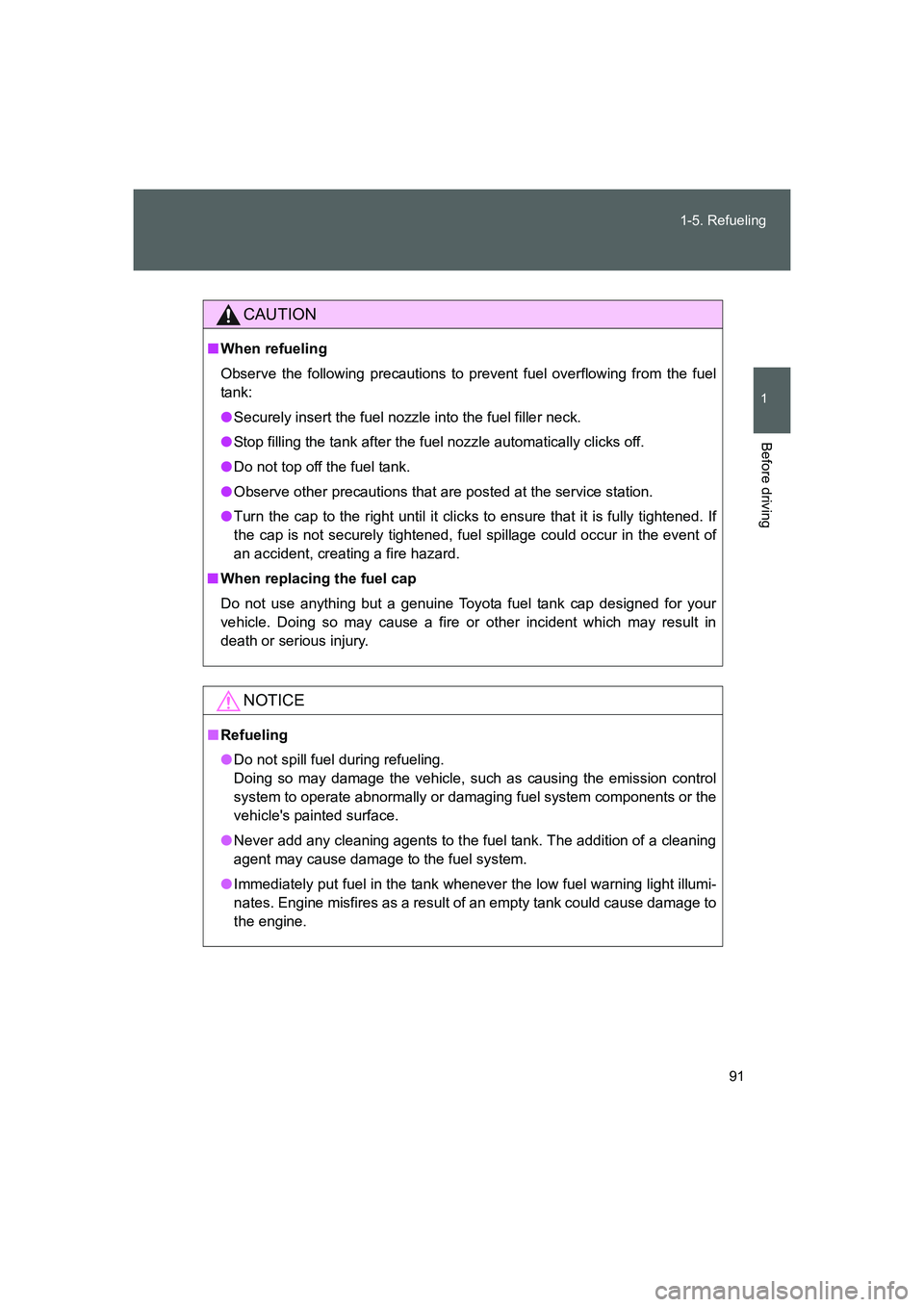

91 1-5. Refueling
1
Before driving
FT86_EE
CAUTION
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.
●Observe other precautions that are posted at the service station.
●Turn the cap to the right until it clicks to ensure that it is fully tightened. If
the cap is not securely tightened, fuel spillage could occur in the event of
an accident, creating a fire hazard.
■When replacing the fuel cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE
■Refueling
●Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle's painted surface.
●Never add any cleaning agents to the fuel tank. The addition of a cleaning
agent may cause damage to the fuel system.
●Immediately put fuel in the tank whenever the low fuel warning light illumi-
nates. Engine misfires as a result of an empty tank could cause damage to
the engine.
86_OM_EE_OM18058E.book 91 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

92
FT86_EE
1-6. Theft deterrent system

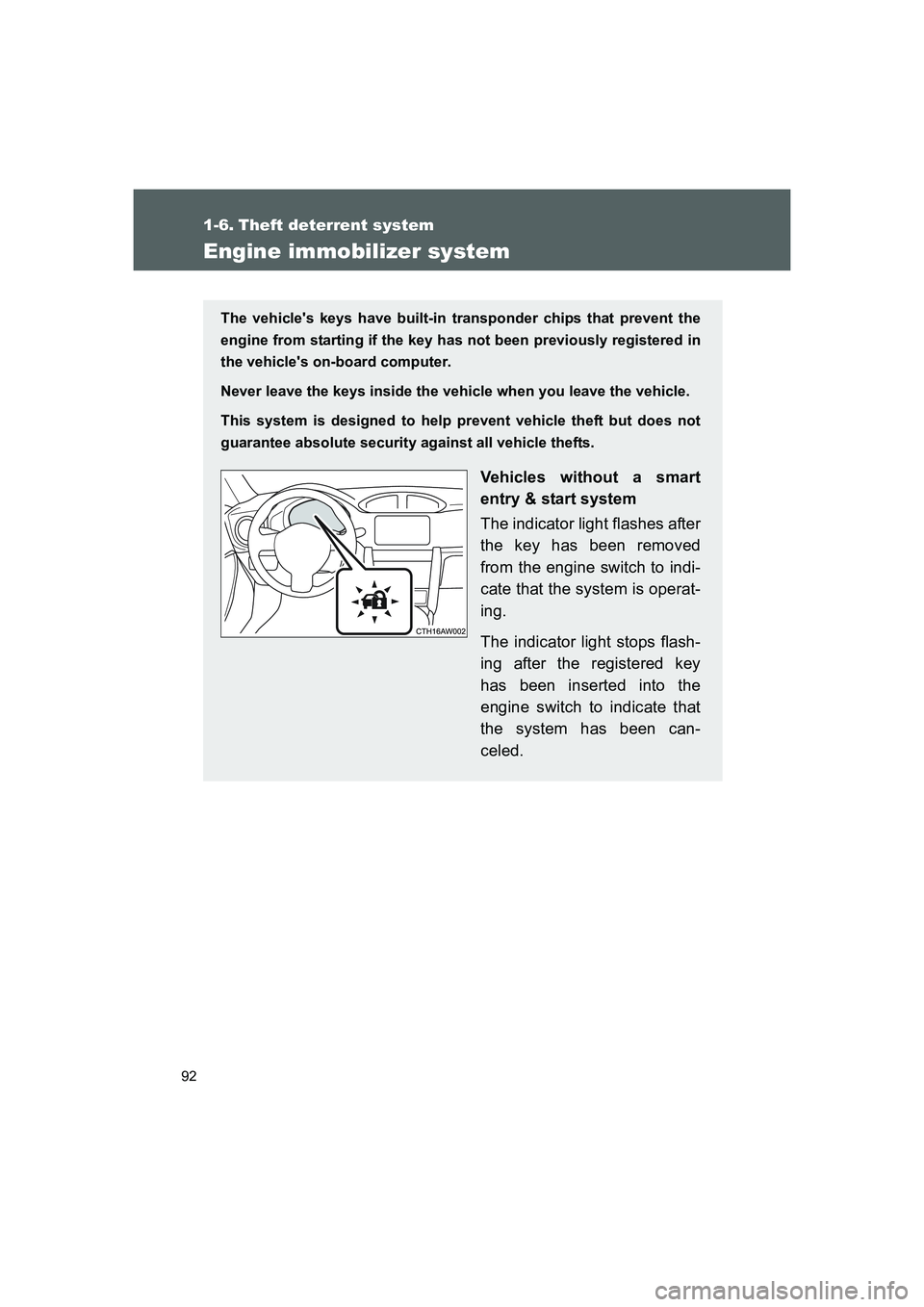

Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.
Vehicles without a smart
entry & start system
The indicator light flashes after
the key has been removed
from the engine switch to indi-
cate that the system is operat-
ing.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.
86_OM_EE_OM18058E.book 92 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

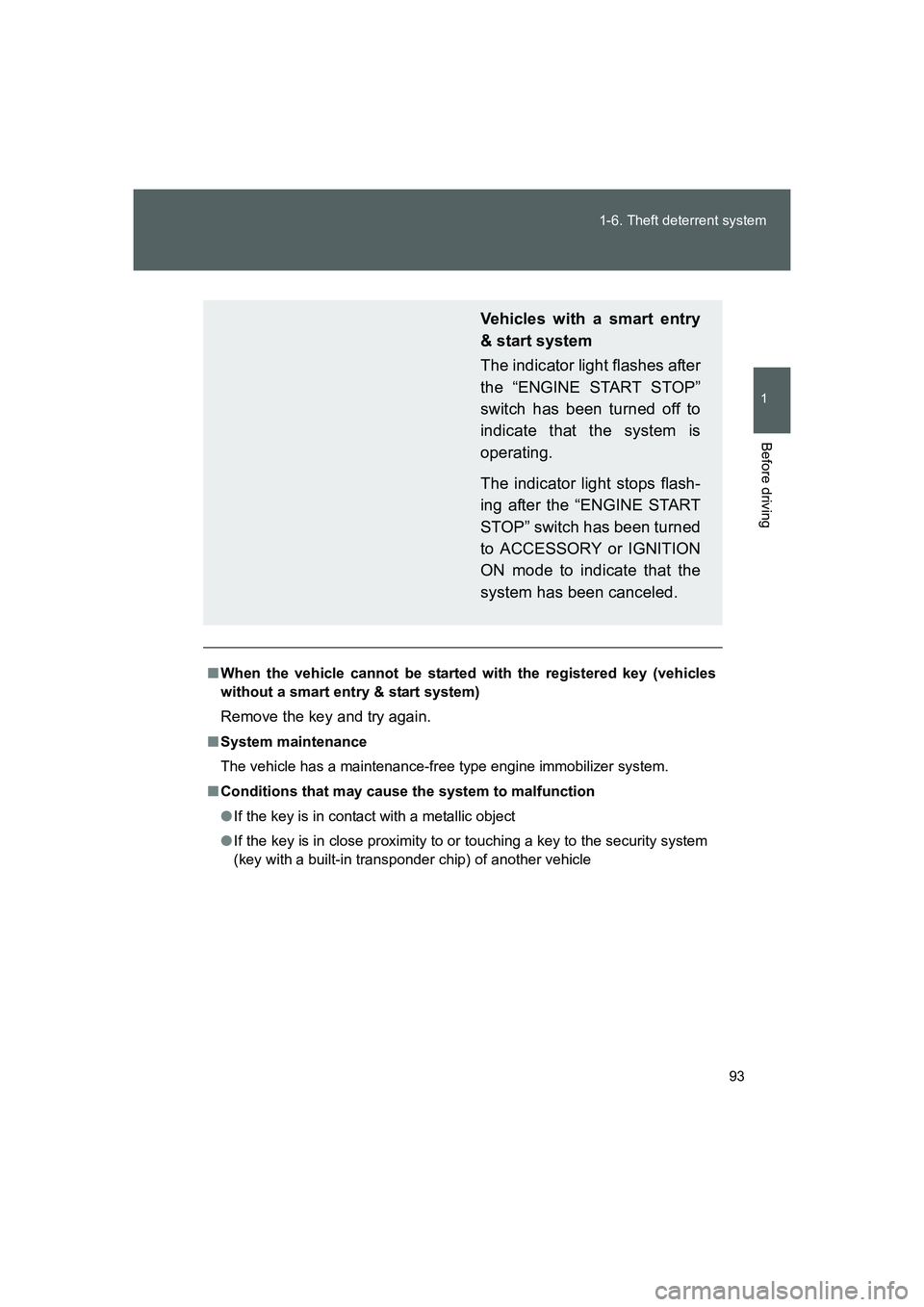

93 1-6. Theft deterrent system
1
Before driving
FT86_EE
■When the vehicle cannot be started with the registered key (vehicles
without a smart entry & start system)
Remove the key and try again.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
Vehicles with a smart entry
& start system
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned off to
indicate that the system is
operating.
The indicator light stops flash-
ing after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.
86_OM_EE_OM18058E.book 93 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

94 1-6. Theft deterrent system
FT86_EE

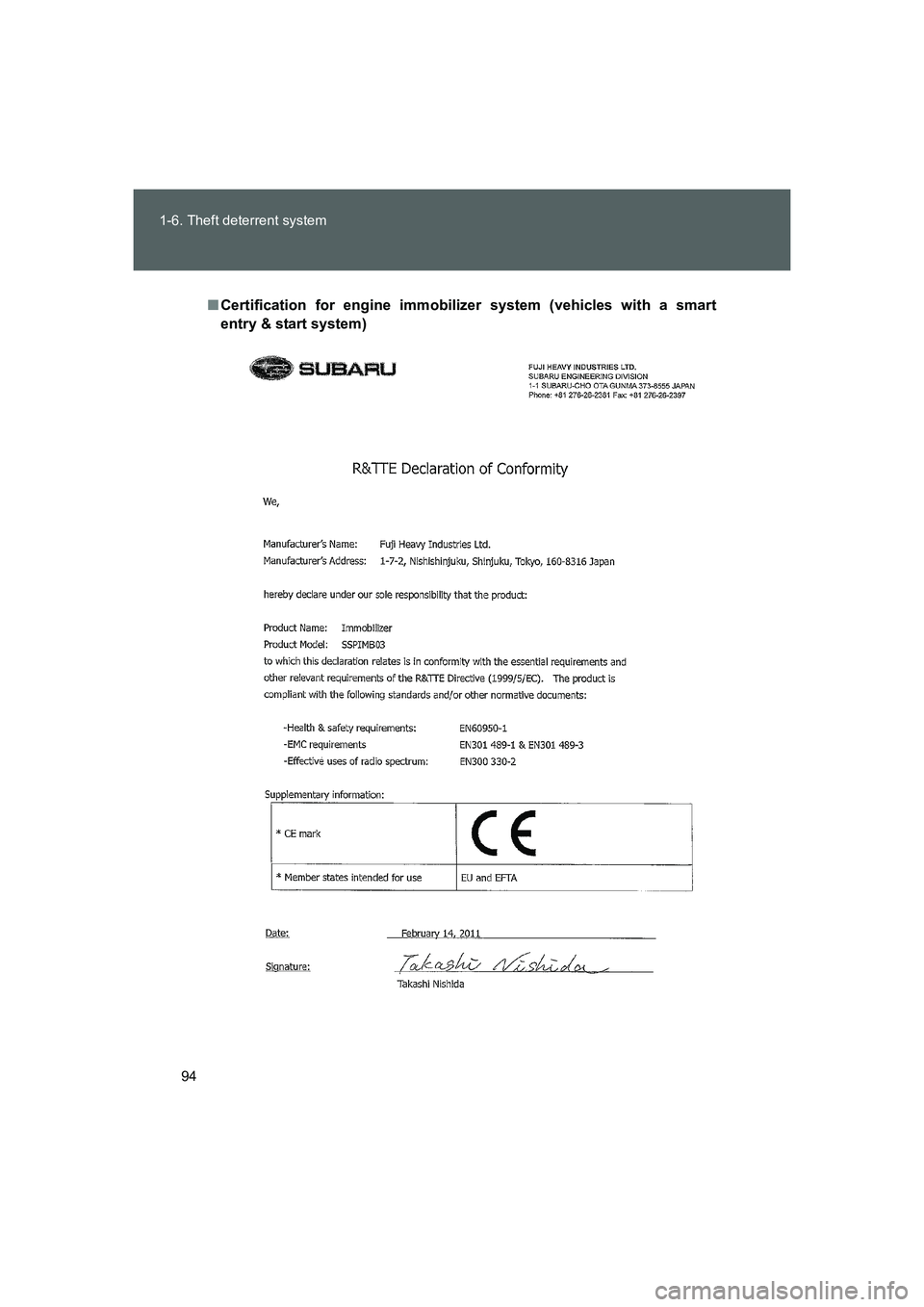

■Certification for engine immobilizer system (vehicles with a smart
entry & start system)
86_OM_EE_OM18058E.book 94 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

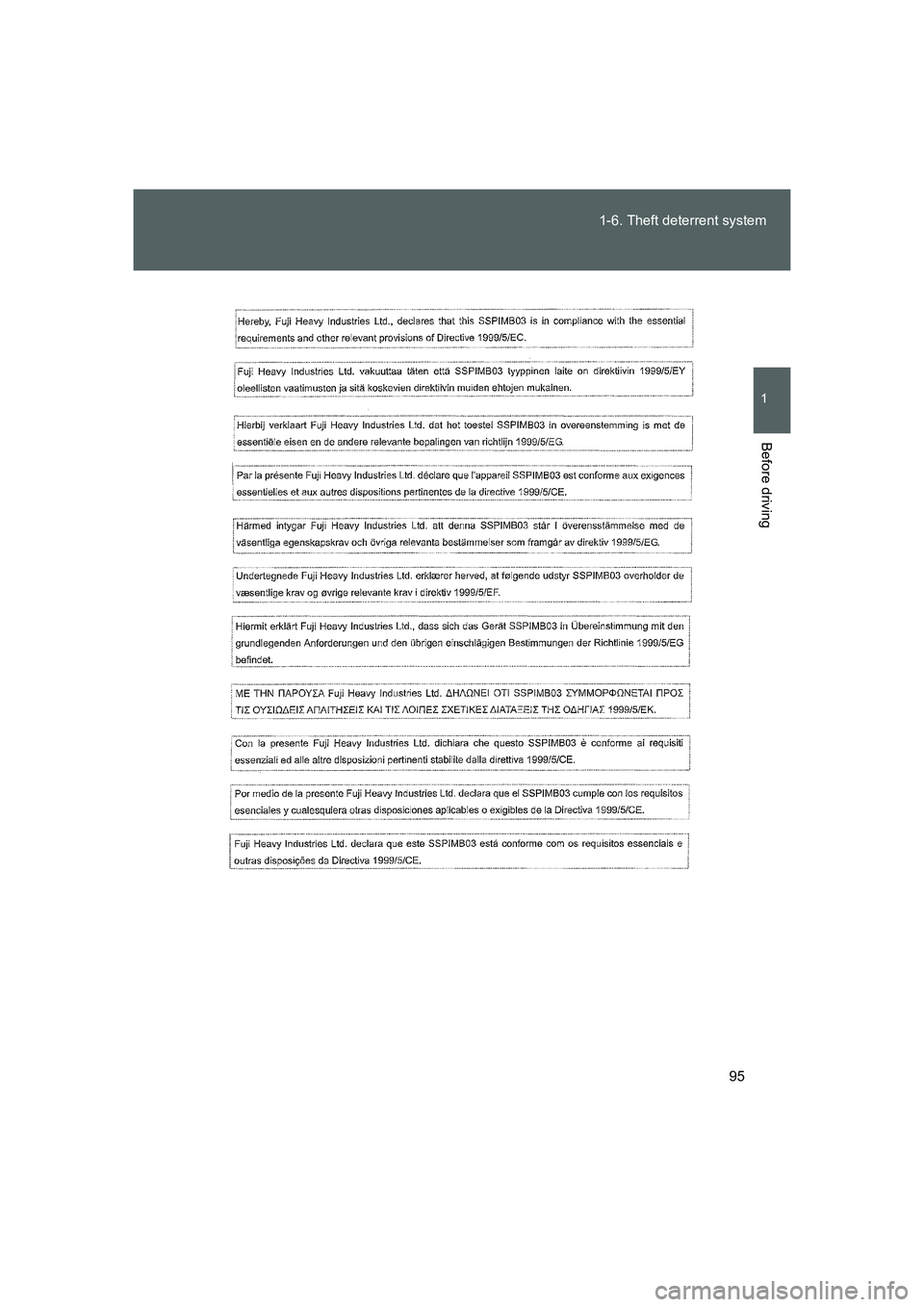

95 1-6. Theft deterrent system
1
Before driving
FT86_EE
86_OM_EE_OM18058E.book 95 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

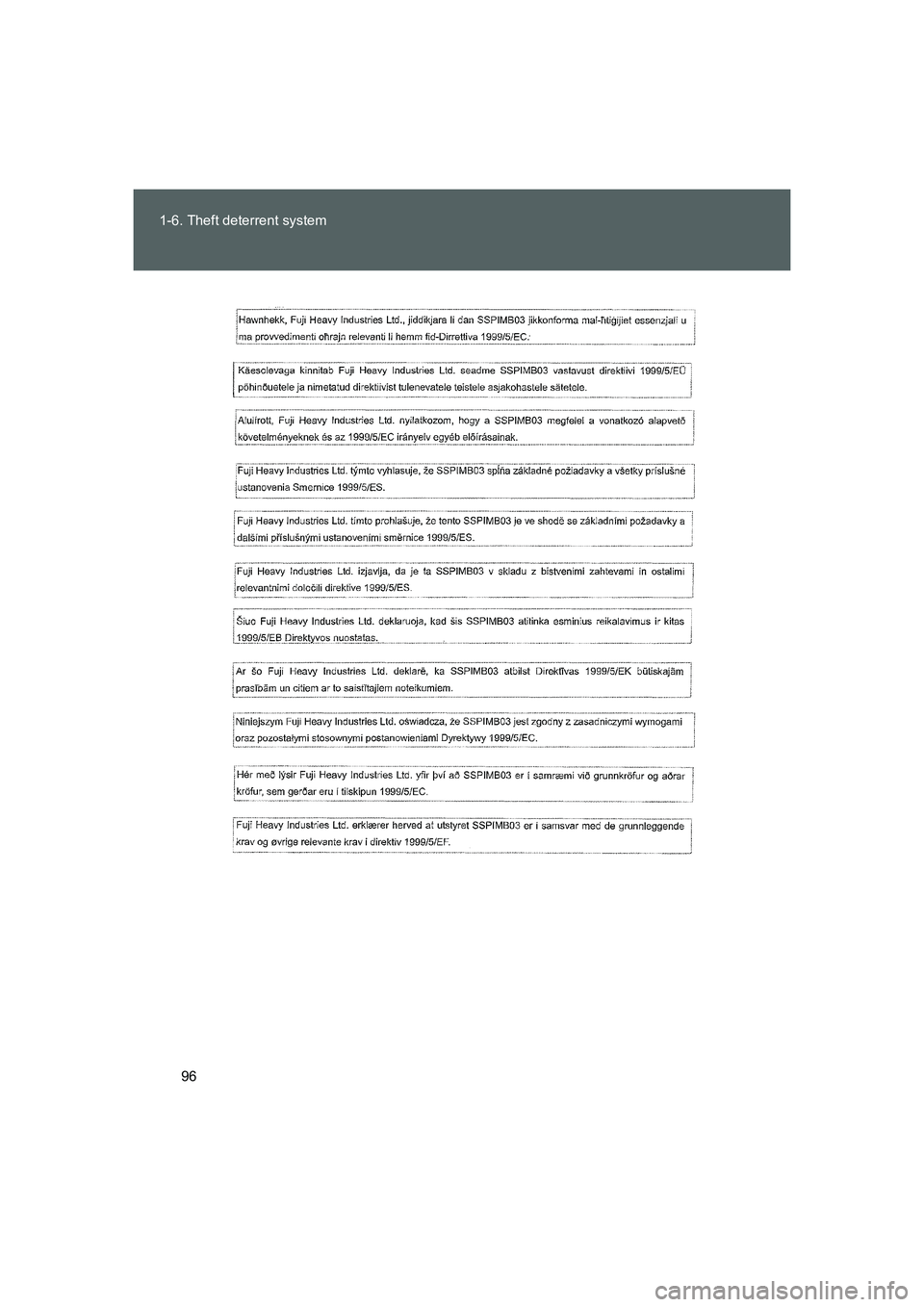

96 1-6. Theft deterrent system
FT86_EE
86_OM_EE_OM18058E.book 96 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

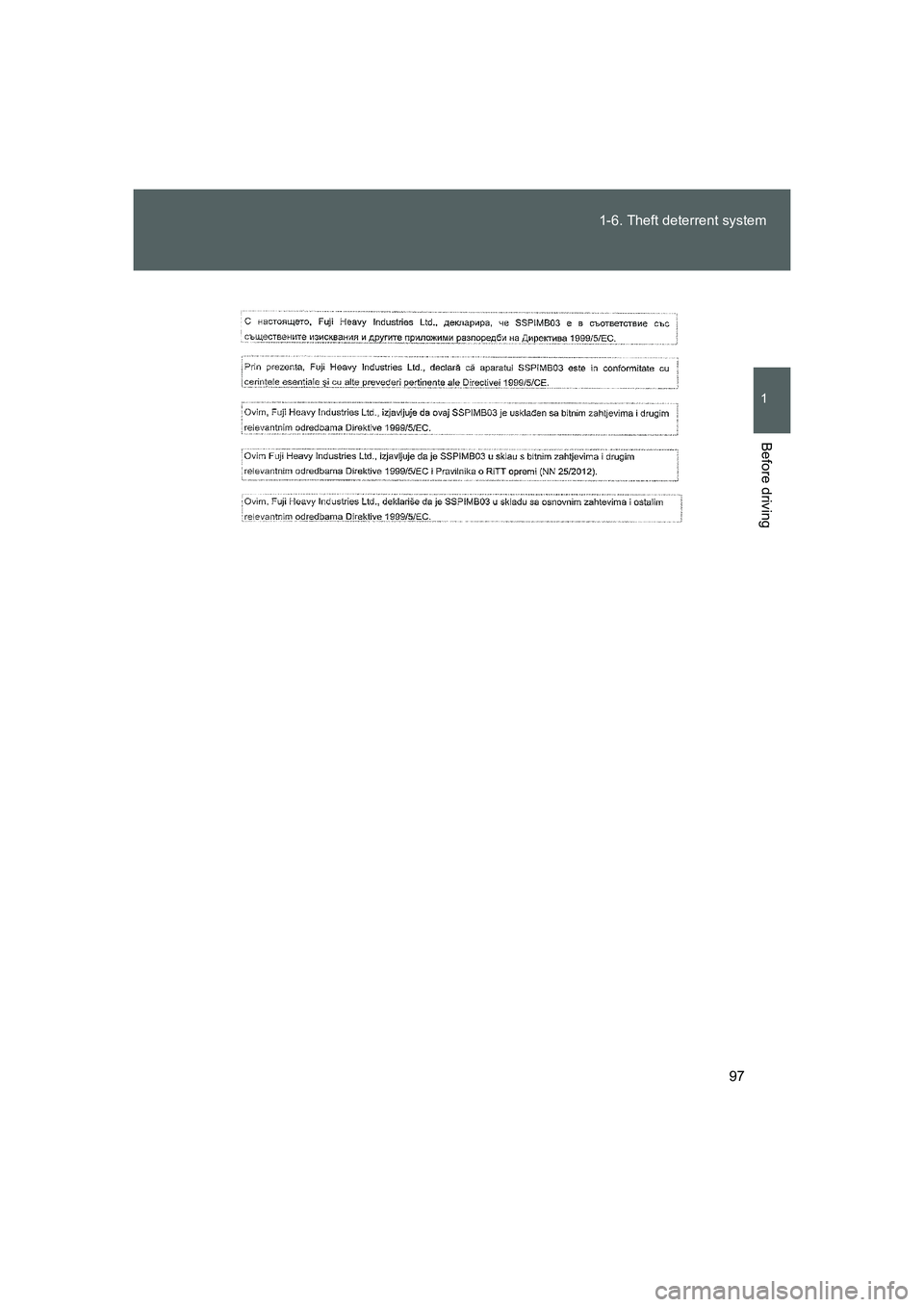

97 1-6. Theft deterrent system
1
Before driving
FT86_EE
86_OM_EE_OM18058E.book 97 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

98 1-6. Theft deterrent system
FT86_EE

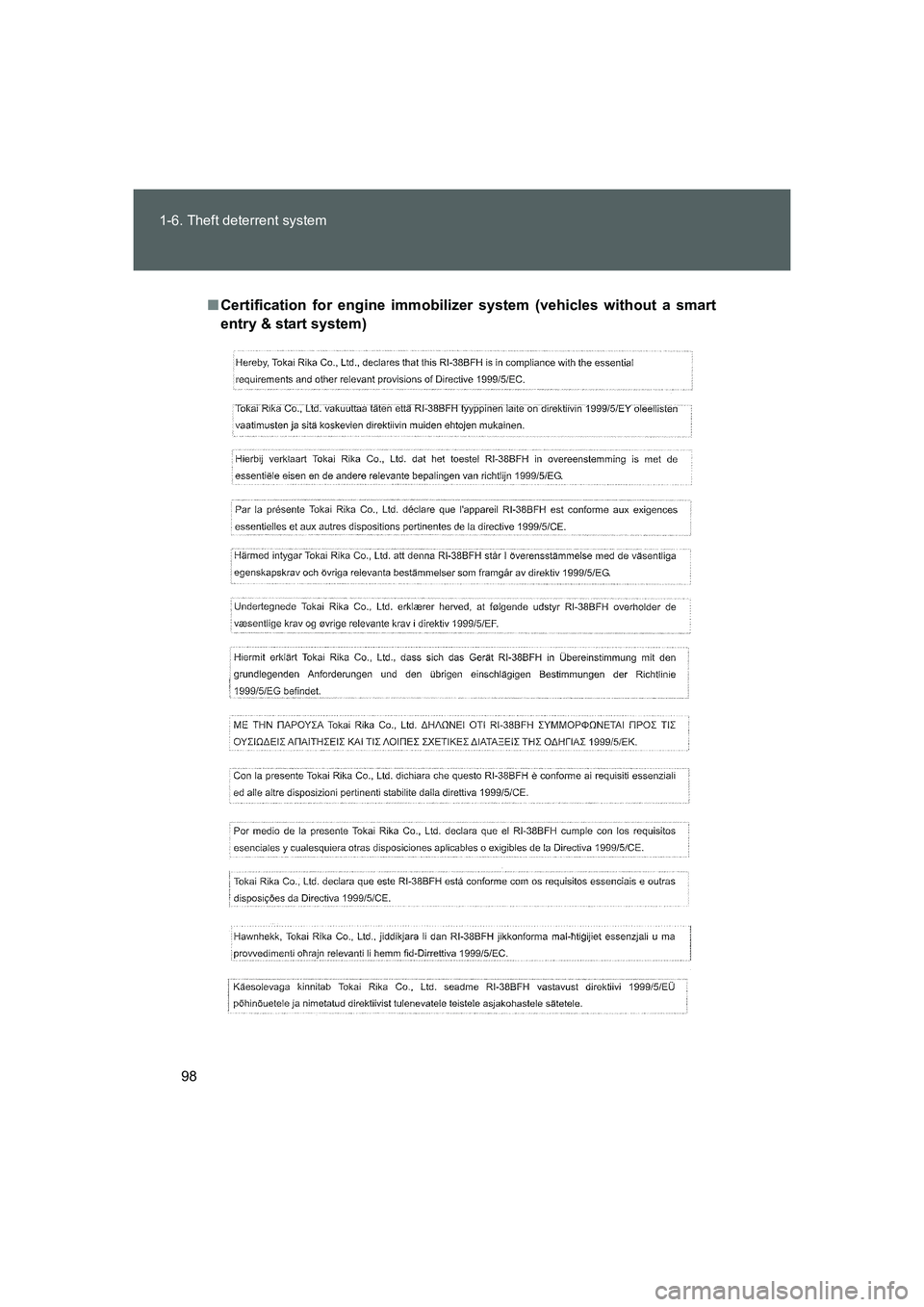

■Certification for engine immobilizer system (vehicles without a smart
entry & start system)
86_OM_EE_OM18058E.book 98 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

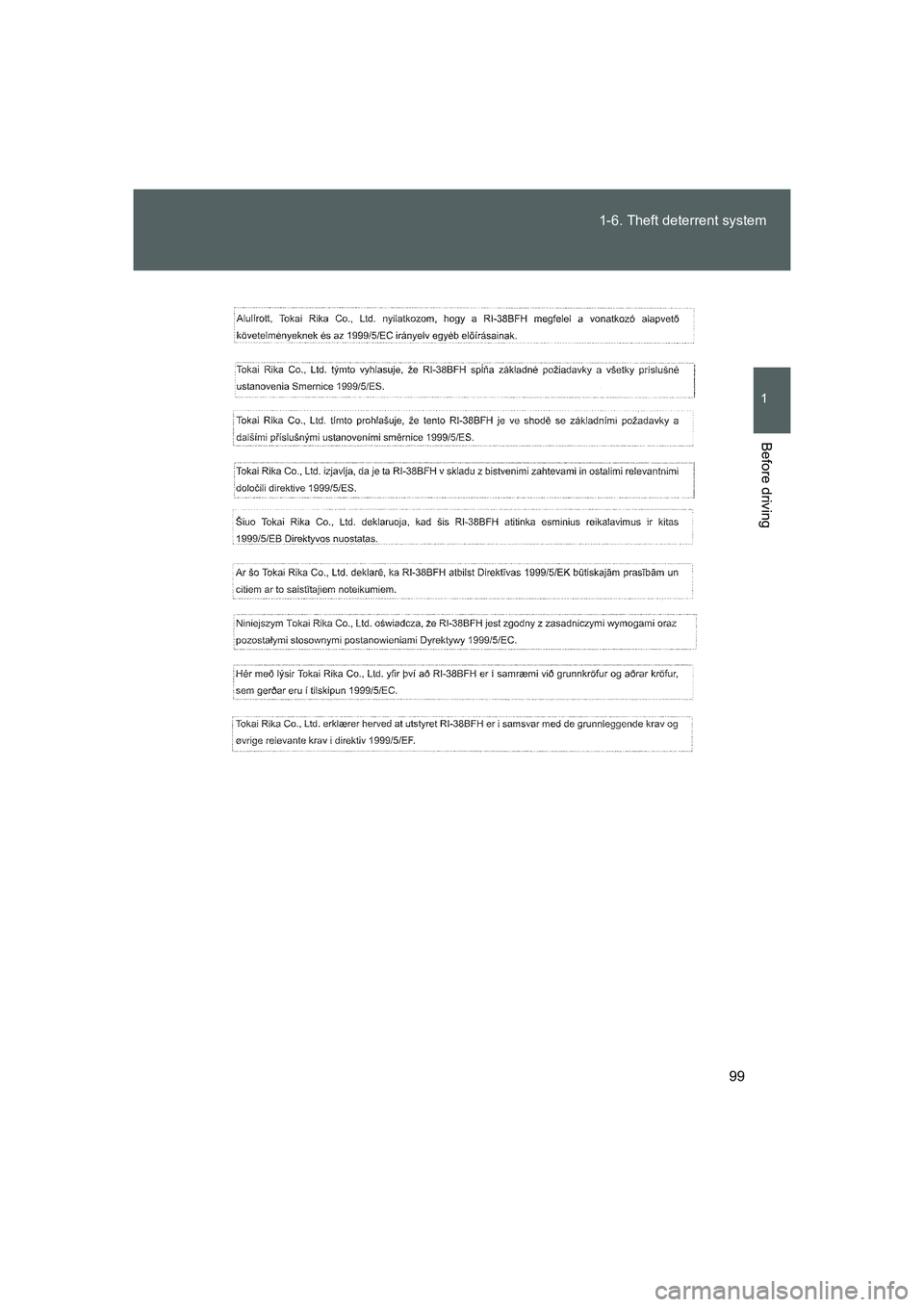

99 1-6. Theft deterrent system
1
Before driving
FT86_EE
86_OM_EE_OM18058E.book 99 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

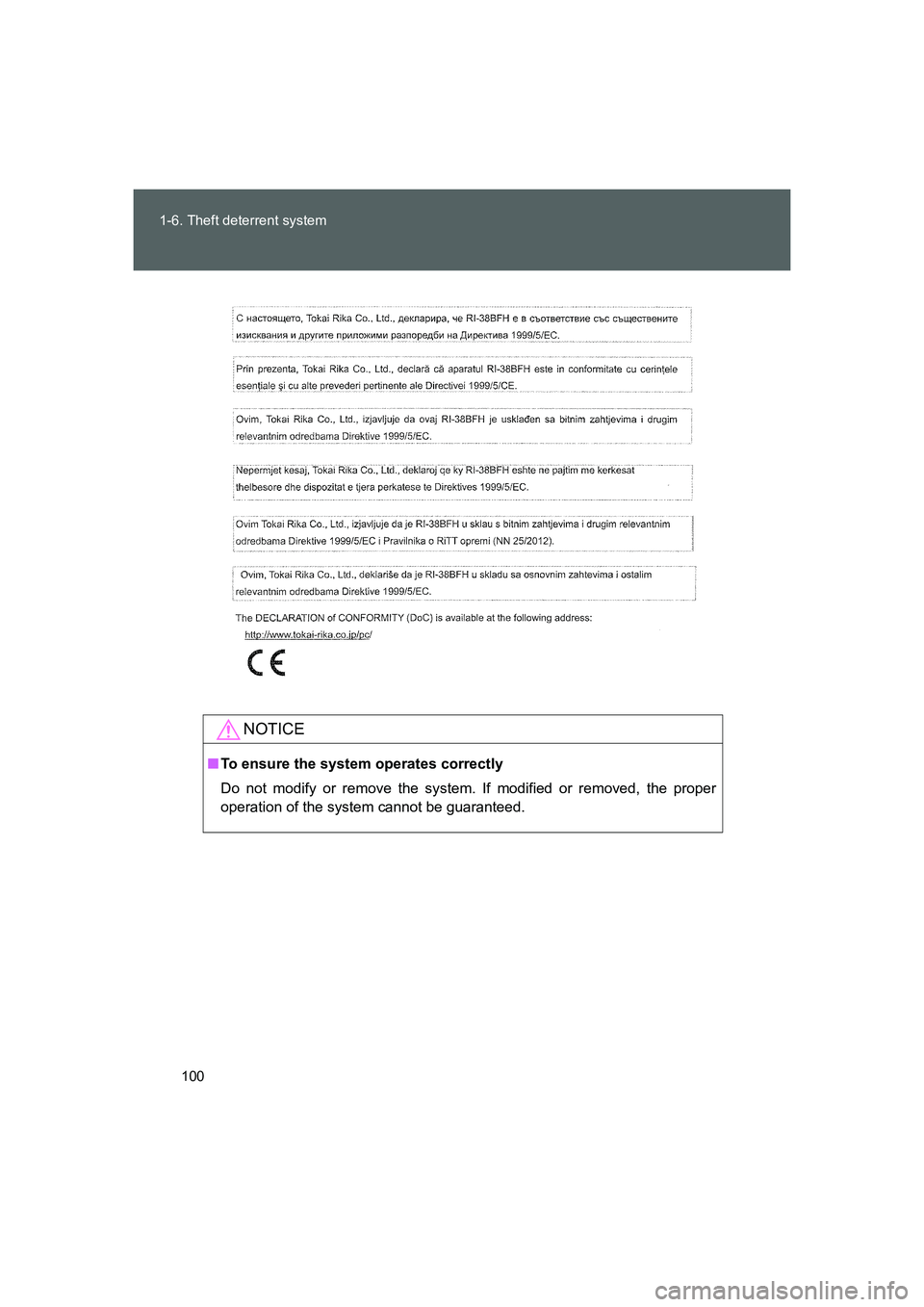

100 1-6. Theft deterrent system
FT86_EE
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
