TABLE OF CONTENTSIndex
4
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ...................... 250
Hood................................... 253
Positioning a floor jack ....... 255
Engine compartment .......... 257
Tires ................................... 270
Tire inflation pressure......... 277
Wheels ............................... 281
Air conditioning filter ........... 284
Wireless remote control key battery ....................... 287
Checking and replacing fuses ................................ 290
Light bulbs .......................... 298
5-1. Essential information Emergency flashers ........... 306
If your vehicle needs to be towed ............................... 307
If you think something is wrong ............................... 315
Fuel pump shut off system .............................. 316 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... .......................... 317
If you have a flat tire ........... 327
If the engine will not start .................................. 338
If the shift lever cannot be shifted from P ................... 339
If you lose your keys ........... 340
If the battery is discharged ........................ 341
If your vehicle overheats..... 345
If the vehicle becomes stuck ................................. 348
If your vehicle has to be stopped in an
emergency........................ 350
6-1. Specifications Maintenance data (fuel, oil level, etc.) ........... 354
Fuel information .................. 366
Tire information................... 370
6-2. Customization Customizable features ........ 383
5When trouble arises
6Vehicle specifications
Page 231 of 428
231
3-5. Other interior features
3
Interior features
■
The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
Page 235 of 428
Maintenance and care4
235
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 236
Cleaning and protecting the vehicle interior.......... 240
4-2. Maintenance Maintenance requirements .................. 244
General maintenance....... 246
Emission inspection and maintenance (I/M)
programs........................ 249 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions .................... 250
Hood ................................ 253
Positioning a floor jack ................................ 255
Engine compartment ........ 257
Tires ................................. 270
Tire inflation pressure ...... 277
Wheels ............................. 281
Air conditioning filter......... 284
Wireless remote control key battery ..................... 287
Checking and replacing fuses .............................. 290
Light bulbs........................ 298
Page 238 of 428
238 4-1. Maintenance and care
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
■ Precautions regarding the exhaust pipes
Exhaust gasses cause the exhaust pipes and rear bumper diffusers to
become quite hot.
When washing the vehicle, be careful not to touch the pipes and diffusers
until they have cooled sufficiently, as touching hot exhaust pipes and rear
bumper diffusers can cause burns.
NOTICE
■To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ Protective film for side sill plates
Make sure to remove the protective film. Failure to do so may cause rust,
depending on conditions.
Page 251 of 428
251
4-3. Do-it-yourself maintenance
4
Maintenance and care
ItemsParts and tools
Fuses( →P. 290) • Fuse with same amperage rating
as original
Light bulbs (→P. 298) • Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
Radiator and condenser (→P. 263)
⎯
Tire inflation pressure ( →P. 277) • Tire pressure gauge
• Compressed air source
Washer fluid(
→P. 268) • Water washer fluid containing
antifreeze (for winter use)
• Funnel
Page 257 of 428
257
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
Battery(→ P. 265)
Engine oil level dipstick (→ P. 258)
Brake fluid reservoir (→ P. 263)
Engine oil filler cap (→ P. 259)Washer fluid tank
(→ P. 268)
Electric cooling fans
Condenser ( →P. 263)
Radiator ( →P. 263)
Engine coolant reservoir (→ P. 261)
Fuse box ( →P. 290)
Page 290 of 428
290
4-3. Do-it-yourself maintenance

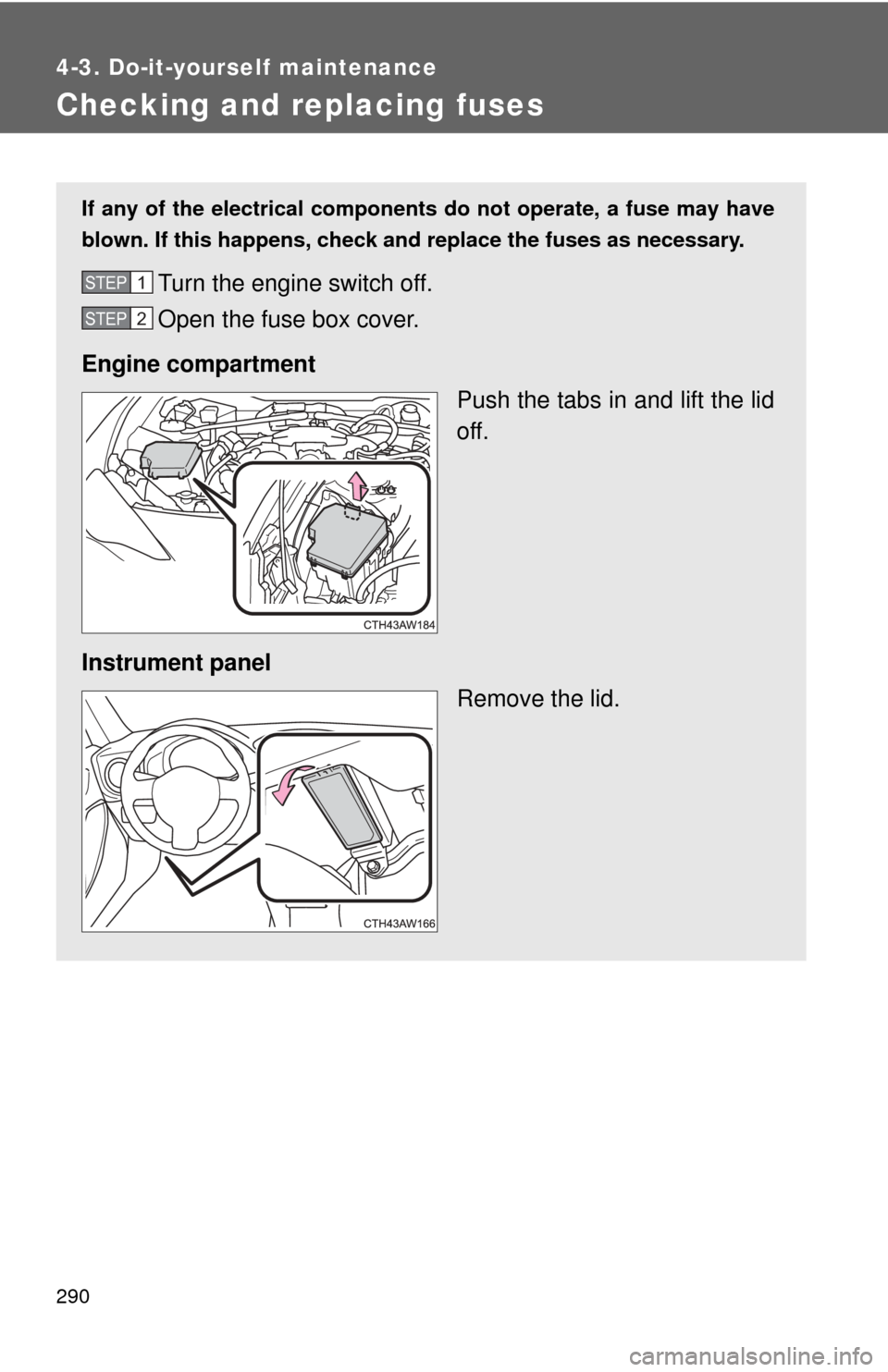

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch off.
Open the fuse box cover.
Engine compartment Push the tabs in and lift the lid
off.
Instrument panel Remove the lid.STEP 1
STEP 2
Page 291 of 428
291
4-3. Do-it-yourself maintenance
4
Maintenance and care
After a system failure, see “Fuse layout and amperage rat-
ings” (
→P. 293) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP 3
STEP 4
STEP 5
Page 292 of 428
292 4-3. Do-it-yourself maintenance
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e DNormal fuse
Blown fuse
Contact your Toyota dealer.
Page 293 of 428
293
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1MIR HTR 7.5 A Outside rear view mirror defoggers
2RDI 25 A Electric cooling fan
3(PUSH-AT) 7.5 A Engine control unit
4ABS NO. 1 40 A ABS
5HEATER 50 A Air conditioning system
6WASHER10 A Windshield washer
7WIPER30 A Windshield wipers
8RR DEF30 A Rear window defogger
9(RR FOG) 10 A⎯
10D FR DOOR 25 A Power window (driver’s side)
11(CDS)25 A Electric cooling fan
12D-OP 25 A⎯
13ABS NO. 2 25 A ABS
14D FL DOOR 25 A Power window (passenger’s side)
15SPARESee note. Spare fuse
